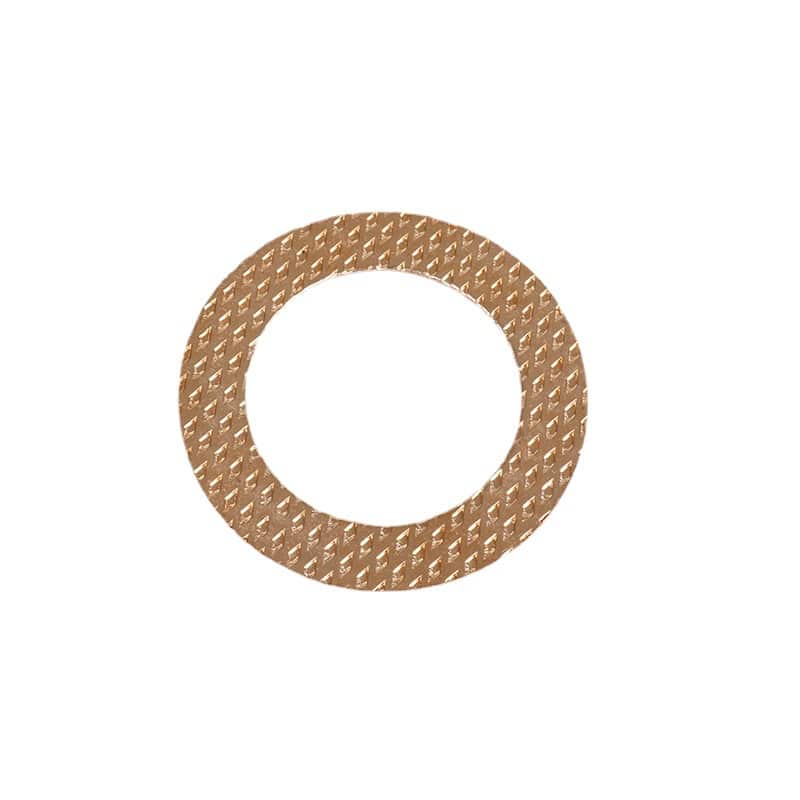

CuSn8 Diamond Bronze Washer

CuSn8 Diamond Bronze Washer

1 in stock

Our bronze washers have been developed for slow-speed, high load applications, especially suited for oscillating motion, and are perfect for the construction, mining/quarrying, agriculture, and automotive industries.

Wrapped Bronze Bearings, CuSn6.5P, CuSn8P, Diamond oil pocket

1. Material: CuSn8P/CuSn6.5P

2. With diamond oil pocket

3. Lead-free & Low-maintenance

Explanation: Bronze Washer with diamond oil socket to preserve oil grease. It has good anti-fatigue, anti-erosion and anti-abrasion, and load capacity. Its material is CuSn8P. It can be produced by different tin-bronze materials and the surface can be produced with another type of oil sockets and oil grooves in different working condition.

Description

CuSn8 Diamond Bronze Washer, China Manufacturer High-Quality Diamond Thin Flat Washer Bronze Washer


Choose from our selection of bronze flat washers in a wide range of styles and sizes. In stock and ready to ship.

Thrust washers are made of bronze with lubricating deposits so that no maintenance is required. Their dimensions are 10 mm inner diameter, 20 mm outer diameter, and mm length. They are suitable for high loads and oscillating movements as well as rough handling and temperature loads. Long-term lubrication can be ensured by lubrication points. This product can be used as an alternative to all-brass bushings.

Matching Bearings
Material Part Number Inner Diameter Outer Diameter Thickness Surface Style
CuSn8 Diamond Bronze Washer FB090 10 20 015 10 20 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 10 20 015 10 20 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 12 24 015 12 24 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 14 26 015 14 26 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 16 30 015 16 30 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 18 32 015 18 32 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 20 36 015 20 36 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 22 38 015 22 38 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 24 42 015 24 42 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 26 44 015 26 44 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 28 48 015 28 48 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 32 54 015 32 54 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 38 62 015 38 62 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 42 66 015 42 66 1.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 48 74 02 48 74 2 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 50 83 02 50 83 2 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 52 78 02 52 78 2 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 71 110 2.5 71 110 2.5 Diamond Indentations
CuSn8 Diamond Bronze Washer FB090 122 158 025 122 158 2.5 Diamond Indentations

diamond bronze washer

Customized Precision Machining Parts Bronze Thin Flat Washer


The range and variety of our wrapped bushings, low-maintenance plain bearings Thin Flat Washer with lubrication pockets are not afraid of the competitors: we offer itself as a unique interlocutor for its customers, with a complete range of products ready in stock that are able to satisfy any request and design need.

Thin Wall Brass Shim Washers with lubrication pockets

Bronze Plain Thrust Bearing
Bronze Washer With Lubrication Pockets – low-maintenance
Bronze Plain Bearing
Material – Characteristics
Sliding elements are made of solid tin bronze (CuSn8) with diamond-shaped lubrication pockets, which serve as a lubricant reservoir.

These plain bearings are suitable for grease and oil lubrication.

Bronze Washer – Thrust Bearings & Bushes – bronzelube.com

Our range of wrapped bushing with lubrication pockets, in Metric & Imperial Sizes. Buy online here for Savings & Fast delivery.

Thin Wall Brass Shim Washers Metric Size

Wrapped bushings diamond pocket Oilless Bronze Sleeve Self Lubricating Flange Copper Bearing Thin Flat Washer.

SizeMaterialColorCertificationDensityHardnessWorking Temperature LimitMax. Dynamic LoadMax Linear Velocity(Grease)Max PV value GreaseFriction CoefficientPressure  strengthYield StrengthMating AxisCoefficient of heat conductionLinear Expansion CoefficientApplication

Product Description
Customized
CuSn8P, Customized
Natural
ISO9001, TS16949
8.8g/cm3
90-150HB
-40~150℃
100N/mm²
2m/s
2.8N/mm2·m/s
0.06~0.15
>460N/mm²
>280 N/mm2
Hardness≥50, Roughness 0.4~1.0
58W/m·K
18.5×10-6/K
hoisting, mining machinery,forest machinery, agricultural machinery

Fast Nationwide Delivery
Fast Delivery, Air Delivery Available,

Material: CuSn8

also with different alloys available upon request

Chemical Composition

Part No Material Cu Sn P Pb Zn
BRONZE BUSHING-090 CuSn8 91.3% 8.5% 0.2% / /
BRONZE BUSHING-092 CuSn8 91.3% 8.5% 0.2% / /

Material Characteristicsimensions
bronze washer

low-maintenance

Bronze Washer, Download complete catalog

wrapped bronze bushing size catalog

Wrapped Bronze Washer with  Oil Indentations


Explore the catalog of Bronze bushings, bronze bushes, and Thin Flat Brass Washers of all types. Discover the wide range and fill out the form: you can also request 2D or 3D drawings!

In addition to the standard product, the catalog is displayed, we provide non-standard Thin Flat Washer products or orders according to customer requirements.

bronze bushing Diamond Indentations oil holes



SLIDE BEARING BUSHING BRONZE

Additional information

Size

Custom Size, Extra large, Imperial size, Metric Size

Cylindrical bushes

Solid Bronze Bushing, Bimetal Bushes, Cast Bronze Bushing, Wrapped Bushing
