CuSn8P Wrapped Bronze Bushings: Enhancing Performance Across Industries
In the world of mechanical components, the selection of materials plays a pivotal role in determining the efficiency and longevity of machinery. CuSn8 wrapped bronze bushings stand out as a premier choice for numerous industrial applications, thanks to their exceptional properties and versatile design features. This blog post explores the characteristics of CuSn8 bronze bushings, their design intricacies, and their wide-ranging applications in various industries.
Material Excellence: CuSn8 Bronze, CuSn8P Wrapped sliding bearings
The material composition of a bushing is crucial to its performance. CuSn8 wrapped bronze bushings are made entirely from CuSn8 grade bronze, known for its high fatigue strength and excellent corrosion resistance. This material is particularly well-suited for heavy load applications due to its durable nature. The CuSn8 bronze not only withstands harsh conditions but also offers superior longevity, making it an optimal choice for critical mechanical components.
Wrapped bronze bushings, made from bronze material, offer a range of benefits that make them an economical solution in bronze bearing applications.
Need Heavy-Duty Bearings? Try CuSn8 Bronze Bushes. Optimal for high load & high temperature. Boost your equipment’s performance today!
CuSn8 plain and flanged bearings Design Features: Lubrication Innovations
One of the standout features of CuSn8 bronze bushings is their innovative design incorporating lubrication grooves or grease reservoirs. These design modifications are critical as they cater to various lubrication applications, ensuring that the bushings operate smoothly under different conditions. The presence of these lubrication pathways significantly reduces the friction between moving parts, thereby minimizing wear and extending the service life of the bushings.
Material Standards: CuSn8 wrapped bush typically follows DIN 1494 or ISO 3547 standards. CuSn8P is a variant of this material adhering to DIN 17662 standards, while CuSn6P is another alternative material option.
When selecting CuSn8 wrapped bushes as a bearing material, consider the specific requirements of the application, including load, speed, temperature, and environmental conditions, to ensure the chosen material meets these demands.
Slide Bearing CuSn8 Wrapped Bronze Bushings Hole or Lubricating pocket
We offer an extensive range of plain and flanged bearings suitable for a variety of applications. CuSn8 Wrapped Bronze Bushings Are Incredibly Versatile And Find Applications Across A Broad Spectrum Of Industries. They Are Commonly Used In:
Material Handling and Lifting Equipment: These bushings provide reliable performance in cranes, forklifts, and other lifting devices where heavy loads and repetitive movements are typical.
Hydraulic and Pneumatic Systems: In hydraulic cylinders and pneumatic equipment, these bushings ensure that components move efficiently without risk of failure due to friction or corrosion.
Agricultural Equipment: Farming machinery benefits greatly from the robust nature of CuSn8 bushings, particularly in environments exposed to dirt, moisture, and variable loads.
Engineered for Efficiency： Enhance Your Equipment with CuSn8 Bronze Bearings. Perfect for dynamic & static loads. Explore our solutions for smoother operations!
Advanced Plain bearing metal Materials
Search Our Self-lubricating Material
Features and applications of a wrapped bronze bearing, which is a type of bearing that offers several advantages due to its material and design. Here’s a summary of the key points:
-
Material: The base plate of the bearing is made from CuSn8 bronze, which is known for its high wear resistance and good mechanical properties.
-
Design: The bearing has a thin wall, which makes it a cost-effective solution without compromising on its performance.
-
Lubrication Options: Depending on the lubrication requirements, the bearing can be designed with either diamond-shaped oil pockets or through oil holes.
- Diamond-shaped oil pockets are suitable for grease lubrication.
- Through holes are used for fluid lubrication.
-
Lubrication Benefits: The design ensures that an oil film is present when the bearing starts to operate, which helps to reduce the initial coefficient of friction.
-
Standards: The bearing is manufactured according to ISO 3547 (which is equivalent to DIN 1494), which specifies the dimensions and tolerances for wrapped bronze sleeve bushings.
-
Types: The product comes in two types:
- Wrapped Bronze Sleeve Bushing

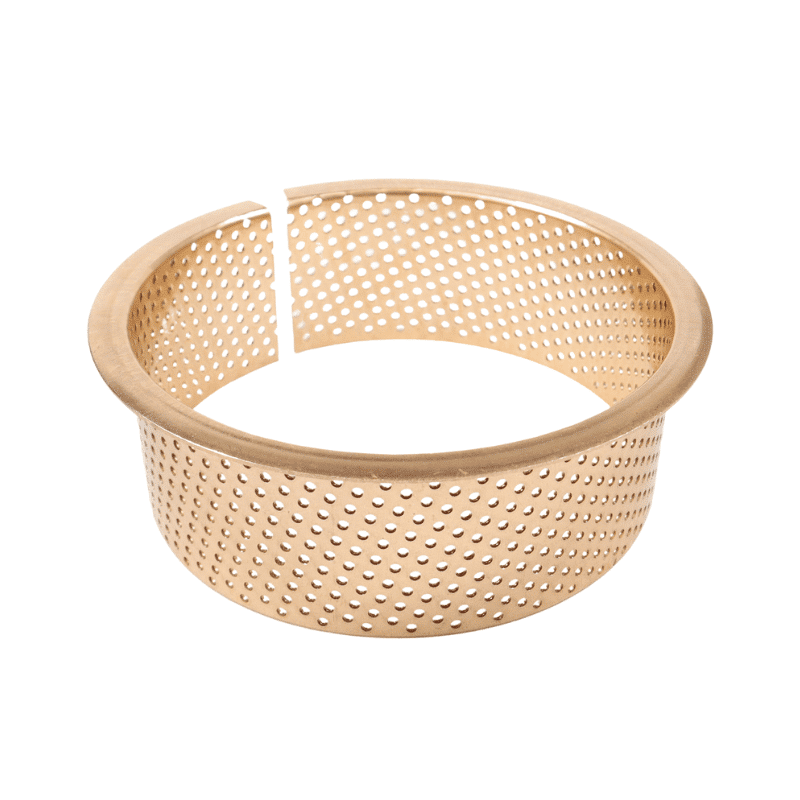

- Wrapped Bronze Flanged Bushing
-
Applications: These bearings are used in a variety of applications due to their durability and reliability. Some of the key areas where they are utilized include:
- Truck chassis parts
- Agricultural machinery
- Construction machinery
- Cranes
- Conveyors
- Lifts
- Winding engines
- Levelers
The wrapped bronze bearing’s combination of material strength, design efficiency, and lubrication options make it a versatile and robust choice for a wide range of mechanical applications where reliability under load is critical. If you have any specific questions about these bearings or need further information, feel free to ask!
Availability
We offer custom-made bearing solutions, including cylindrical bushes with non-standard dimensions and tailored bearing designs to meet specific requirements.
Our bronze bearings and bronze sleeve bushings are crafted from CuSn8, featuring built-in grease reservoirs for sustained lubrication over extended periods.
Material Characteristics
| Max. Load Capacity | ||
| Static Load | N/mm2 | 120 |
| Dynamic Load | N/mm2 | 40 |
| Max. Speed | ||
| E90 | m/s | 2.0 |
| Max. PV Value | N/mm2 · m/s | 2.8 |
| Tensile Strength | N/mm2 · m/s | 450 |
| Yiled Point | N/mm2 · m/s | 250 |
| Hardness | HB | 90-120 |
| Elongation | 40% | |
| Coefficient of Friction | μ | 0.08~0.25 |
| Operation Temperature Range | ℃ | -100~200 |
| Operation Temperature Range | W/(m · k) | 60 |
| Coefficient of Thermal Expansion | k-1 | 15×10-6 |
Chemical Composition
| Part No | Material | Cu | Sn | P | Pb | Zn |
| Bronze Bushing | CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
CLOSEST INTERNATIONAL STANDARDS
| Area | Standard | Alloy | Code | Former Denomination | Status |
|---|---|---|---|---|---|
| Spain | UNE 37-103-2 : 1981 | C-3300 | CuSn8Pb15 | ||
| Europe | EN 1982 : 1998 | CuSn7Pb15-C | CC496K | ||
| Finland | SFS 2216 : 1977 | CuPb15Sn8 | |||
| ISO | ISO 4383 : 1991 | CuPb17Sn5 | |||
| ISO | ISO 4382-1/ ISO 4383 | CuPb15Sn8 | ISO 1338 : 1977 | ||
| Italy | UNI 7013-4 : 1972 | CuSn8Pb15 | Bronzo al piombo 77 / 8 / 15 | ||
| Japan | JIS H 5115 : 1988 | Class4 | LBC 4 | ||
| Poland | PN / H-87026 : 1991 | CuSn8Pb15Ni | |||
| Portugal | NP 1587 : 1978 | CuPb15Sn8 | Bronze de estanho com chumbo | ||
| UK | BS 1400 : 1985 | LB1 | CuPb15Sn9 | Leaded bronze CuPb15Sn9 | |
| Switzerland | VSM 10810-4 : 1973 | CuPb15Sn8 | G-PbBz15 | ||
| USA | ASTM B 505 : 1996 | C93900 | C93900 | SAE 67 |
CuSn8 and CuSn8P are two distinct types of copper alloys, both featuring tin (Sn) as the primary alloying element, yet they differ in composition and properties. Here’s a basic overview of these two alloys:
CuSn8:
- This is a bronze alloy containing about 8% tin.
- It offers good mechanical properties and corrosion resistance.
- It is commonly used for manufacturing bearings, gears, valves, and other mechanical parts.
CuSn8P:
- In addition to containing about 8% tin, this alloy also includes a small amount of phosphorus (P).
- The addition of phosphorus enhances the alloy’s wear resistance and hardness while maintaining good electrical conductivity.
- CuSn8P is typically used in the manufacture of precision electronic components, such as contacts for relays and switches, and in other applications requiring high wear resistance and good electrical conductivity.
- The amount of phosphorus added is usually small but has a significant impact on the alloy’s properties.
When selecting these alloys, it is essential to consider the specific requirements and performance needs of the application. If you need more detailed information or have a particular use case in mind, please provide more context, and I can offer more precise recommendations.
metallic sliding bearings， CuSn8, larger grease reservoirs increase maintenance intervals, dirt and debris swept into perforations, thereby reducing wear
Experience the Strength of Self-lubricating Bearings
CuSn8 Bronze Bearings – Built for the Long Haul. Standards And Compliance
Adhering to international standards, CuSn8 wrapped bronze bushings are manufactured according to ISO 3547-1 dimensions and tolerances. Their quality and performance are further guaranteed by compliance with checking values specified in ISO 3547-2. These standards ensure that the bushings meet rigorous global criteria for mechanical components, providing assurance of their reliability and quality.
Cost-Effectiveness and Performance: Due to their thin wall design, these bushes provide a cost-effective solution. They are capable of handling high loads, exhibit good stability, and have a low wear rate.
Adaptability: These bushes are suitable for use under harsh working conditions due to their excellent corrosion resistance. Ensure your hydraulic systems run flawlessly. Click to upgrade now!”
wrapped bushing, Bronze CuSn8P，Performance Parameters
Maintenance Requirements: CuSn8 bronze bushes are low-maintenance materials. Initial lubrication is required during installation, followed by periodic lubrication with oil or grease.
Lubrication System: Diamond-shaped lubrication pockets or holes on the bush serve as excellent reservoirs for storing lubricating oil, helping to minimize maintenance effort.
Installation and Maintenance: Initial lubrication is crucial for ensuring bush performance. Regular lubrication, depending on usage and environmental conditions, is key to maintaining performance and extending service life.
The operational capabilities of CuSn8 bronze bushings are impressive, with a permissible operating temperature range from -40 to +150 °C (-40 to +300 °F). They can handle dynamic loads up to 40 N/mm² and static loads up to 120 N/mm². With a permissible sliding velocity of up to 1.0 m/s (3.2 ft/s) and a low coefficient of friction (0.08 to 0.15 when greased), these bushings are engineered for high performance and minimal maintenance.
| Item No. | d | D | L |
