SELF-LUBRICATING BRONZE BEARING SOLUTIONS

Bronze bushings are ideal for static oscillatory applications where moderate misalignment may be common. View our full product line and find a bronze bearings. Bronze Bushing – Plain Bearings The VIIPLUS Company.

100%

Self-lubricating

200+

Projects Delivered

Custom
Manufacturing

Always tested. Always proven. Global website www.bronzelube.com

professional
Supplier

Customized size, custom bronze bushes service.

Quality
Focus

Our manufacturing plants in China, Learn More Bronze Bushes Size & Dimensions

The Self-lubricating Bronze Advantage

Explore More bronze bushes products from china, Bronze is a versatile and commonly used material for bushings because it comes in many alloys and compositions.

business about 2

Discover the durability of bronze bushing materials in your machinery!

We offers the broadest range of sizes in both bronze bushings and brass bearings designs for plain bearings bushings material.

Tired of greasy messes? Try our oilless bearings! They’re clean, quiet, and reliable—perfect for your machinery.

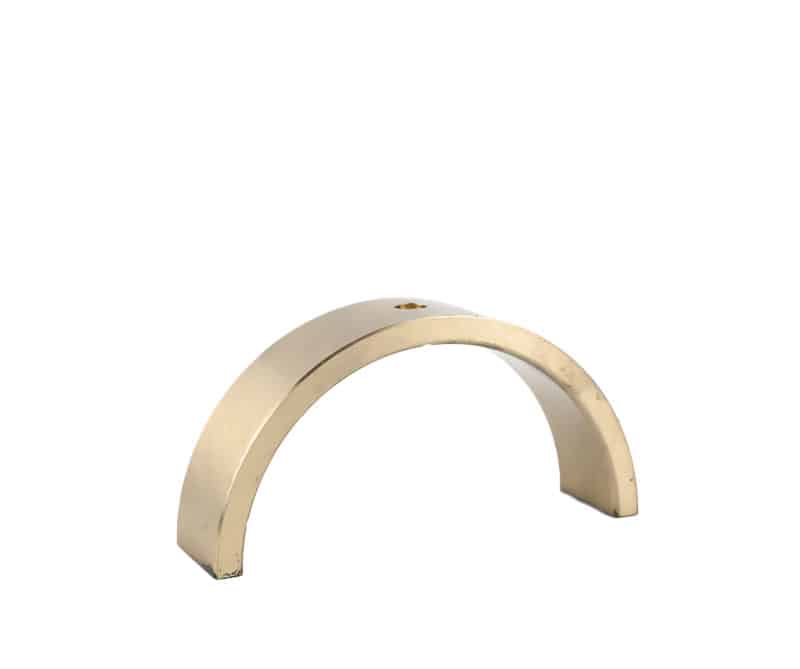

  • AVAILABLE FORMS: Cylindrical bushes, Flanged bushes, Half bearings, Thrust washers, Slide plates

  • Unlock the full potential of your equipment! Choose our oilless bearings for smoother, longer-lasting operation. #PeakPerformance #Longevity

  • The future of bronze bush technology is here! Experience minimal wear and tear with our state-of-the-art oilless bearings.

  • Get a taste of freedom with our oilless bearings! Liberate your machinery from the constraints of traditional bearings.

Plain Bearings & Bronze Bushings, Choose wisely!

Solid bronze bushings. The traditional and robust bushing material. Our bronze bushings solid lubricating bearings enables very high sliding velocity, Solid lubricant insert! Don’t let friction slow you down! Our grease bronze bearings enjoy a smooth, low-friction operation. Need high-speed bearings? Our cast groove bronze bearings offer superior performance, even at high speeds—making them perfect for demanding applications. #HighSpeed, Our Oilless Bearings Are Proven To Outlast Conventional Bearings.

brass bushing

taxation planning

Eiusmod tempor incididunt ipsum ut labore dolore magna aliqua. Ut enim minim veniam duisy ipsum sed quis.

C86300 BRONZE

Self Lube Bushings – What are the options

Self-lubricated bronze bushings are bearings that are manufactured with some form of pre-lubrication feature, bronze bushings are made of solid aluminum bronze and can be ordered either with or without self-lubricating graphite. They are available in a broad range of bronze bushing alloy materials. No more oil leaks! Our oilless bearings eliminate the risk of leaks and contamination, keeping your machinery clean and safe. Put your trust in our oilless bearings! Built to withstand extreme conditions, they’re perfect for heavy-duty applications. #HeavyDuty

Experience the difference with bronze bushing materials – shop now!

Choose from our selection of self-lubricating bronze bushings, including plugged graphite sleeve bearings, Bronze with Groove Pattern. The self-lubricating characteristics of cast brass bearings provide better overall performance than conventional lubricated bearings, especially where external lubrication with grease or oil is difficult to maintain. These lubricants can be drained from the contact area under high loads, long dwell times, and static conditions. These lubricants can be drained during high loads, long dwell times, static contact, or even normal rotational or oscillating motion. This lack of lubricant often leads to higher friction, destructive wear and premature bearing failure.

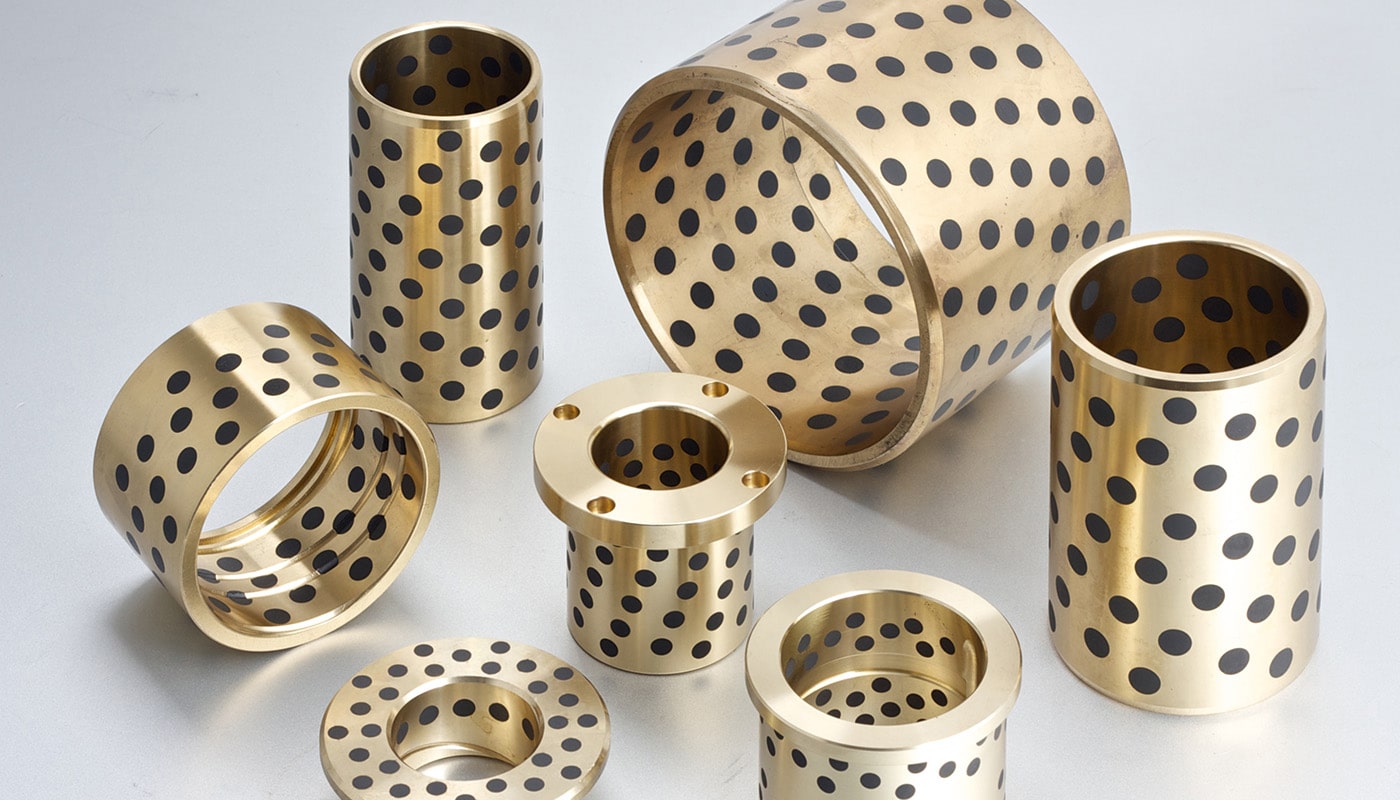

self lubricating bronze bushing4

Bronze bearing material structure, type and size.

Tailored solution with exact specification of bronze bushing.

Every bearing comes with intelligence built in. We create a customized size bronze bushing for our customer, high performance solution. Find out more about the unique benefits of the Bronze Bushes & Plain Bearing – A versatile adaptable product. Also, please check the Bronze Bearings brochure for more information.

100%

“Live stock and current prices for the bronze bushing & self-lubricated bearings!”

Upgrade your bushings to bronze for smoother performance and longevity!

Bronze bushings have been gaining popularity in various industries due to their unique properties, such as reduced friction, improved wear resistance, and excellent durability. By upgrading your bushings to bronze, you can experience smoother performance, increased longevity, and reduced maintenance costs. This article highlights the key benefits of upgrading to bronze bushings and the impact they can have on your machinery and overall operations. Enhance your machinery’s performance with our oilless bearings! Discover the difference a friction-free, long-lasting bearing can make.

Bronze Brass Gunmetal Bush Bushing
bronze bushes
bronze bushes

Why settle for less?

Choose bronze bushings for superior wear resistance!

Buy onlineBuy online today! Wide range of quality metric and imperial bronze bushes. today! Wide range of quality metric and imperial bronze bushes.We supply technological tooling for production as well as various bronze bush parts’ production batches. We offer innovative solutions for challenges in every production area. Our services: CNC milling, CNC turning, Laser cutting, Grinding… manufacturing of quality bearings, bushings. We supply bronze bush Copper based alloys parts with customers from many industries!100% customized manufacturing!We are your specialist for bronze bushes and sliding bearing.

Tired of frequent replacements? Try bronze bushing materials today!

Bronze Bush – Our Range Of Bronze Material. Solid Bronze Bushing & Bearings, Strong in Custom Parts! Transform your equipment’s performance with high-quality bronze bushings! Optimal performance, minimal maintenance! 🌟 Our oilless bearings ensure your machinery runs at peak efficiency with less hassle. #MaintenanceFree

Different bushing catalog.

Make your space useful and different.

Direct from the bronzelube.com: more than 1,000 standard bushings sizes are avalible.

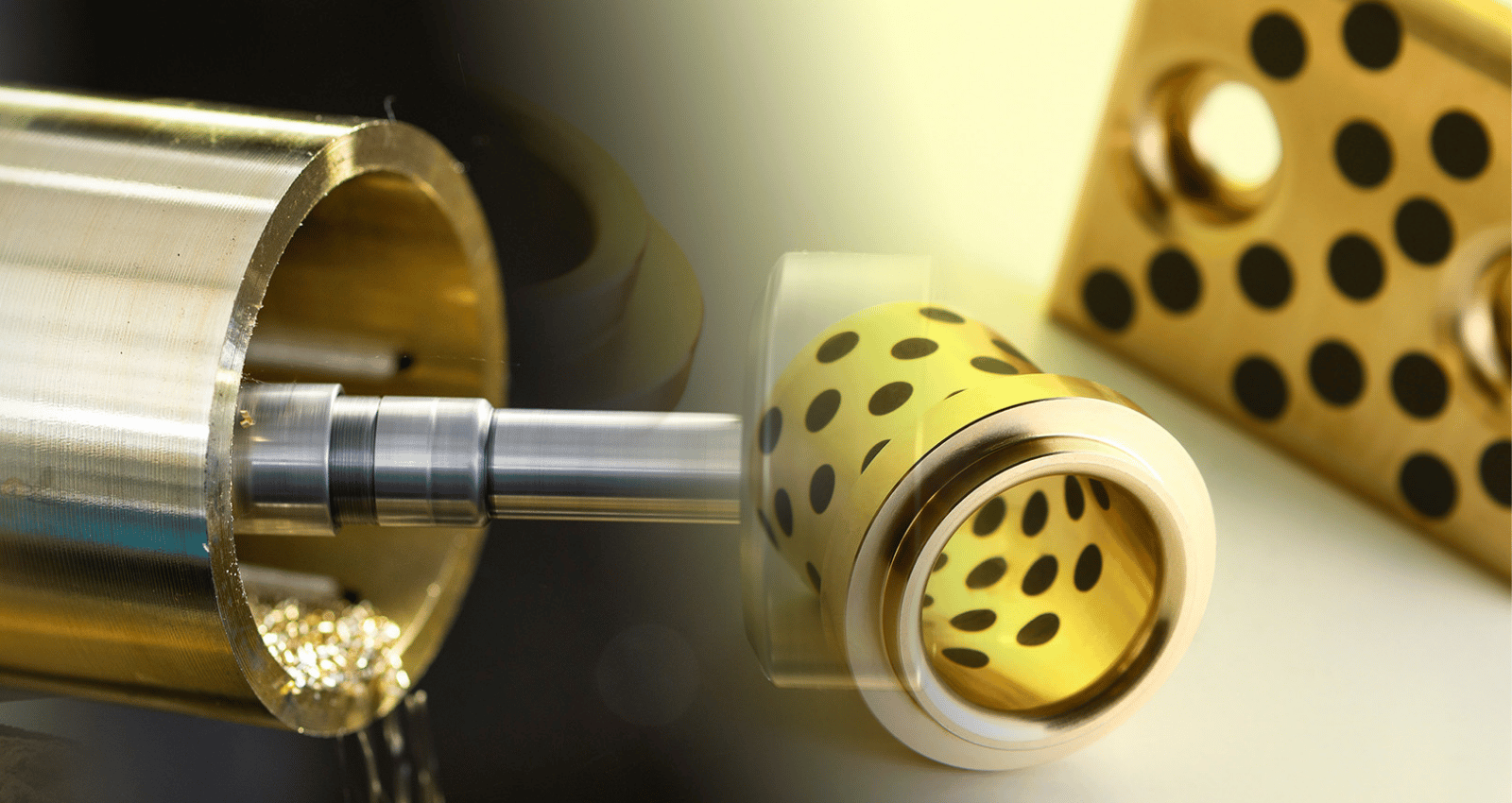

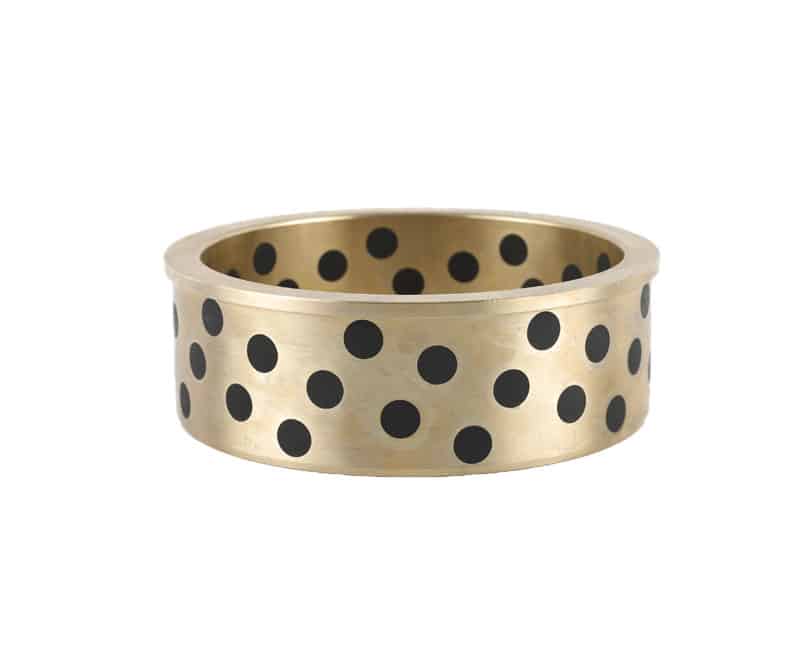

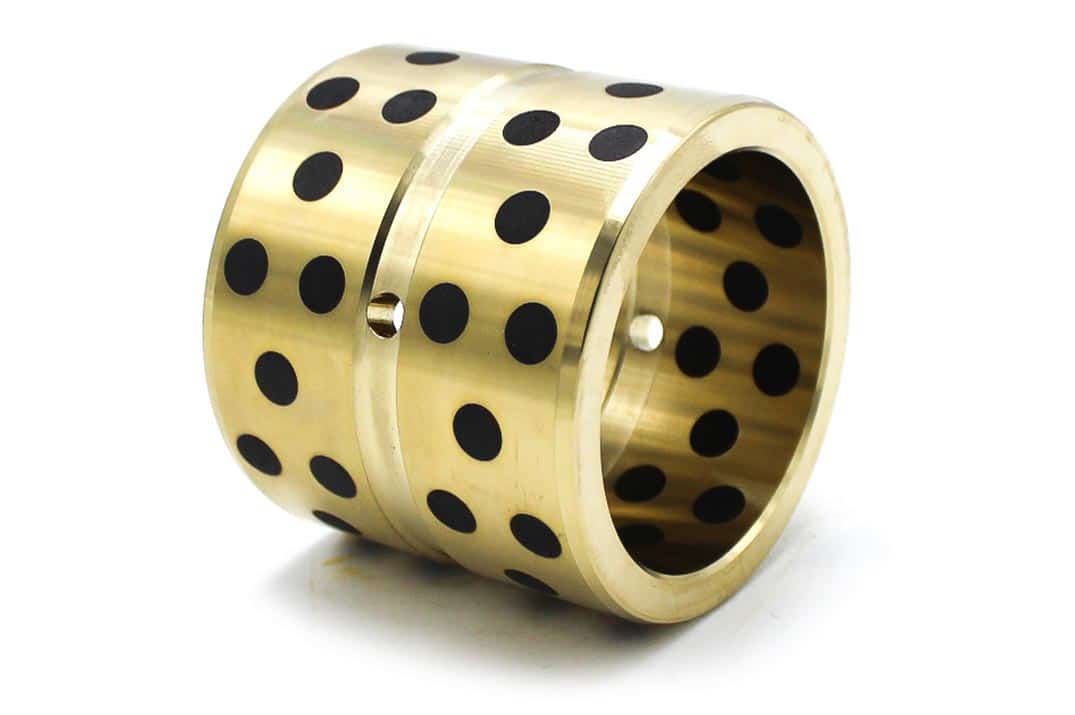

graphite plugged bushing

Learn More

Bronze Bushing Material Selection

Bronze Bush Material Development, Design & Customized, Wholesale Bronze Bush

  • Get reliable, low-friction performance with our bronze bushing materials! Product Bronze CuSn8, Diamond groove bushing

  • The secret to smooth machinery? Bronze bushing material: CuSn8 bronze bush bearings. Explore now!

  • Bronze bushing materials – the perfect balance of strength and durability! Maximize equipment efficiency with long-lasting bronze bushings! High-strength wrapped bronze bush bearings

  • Invest in the future of your equipment with bronze bushing materials! Special phosphor bronze bush, diamond bronze bush bearings!

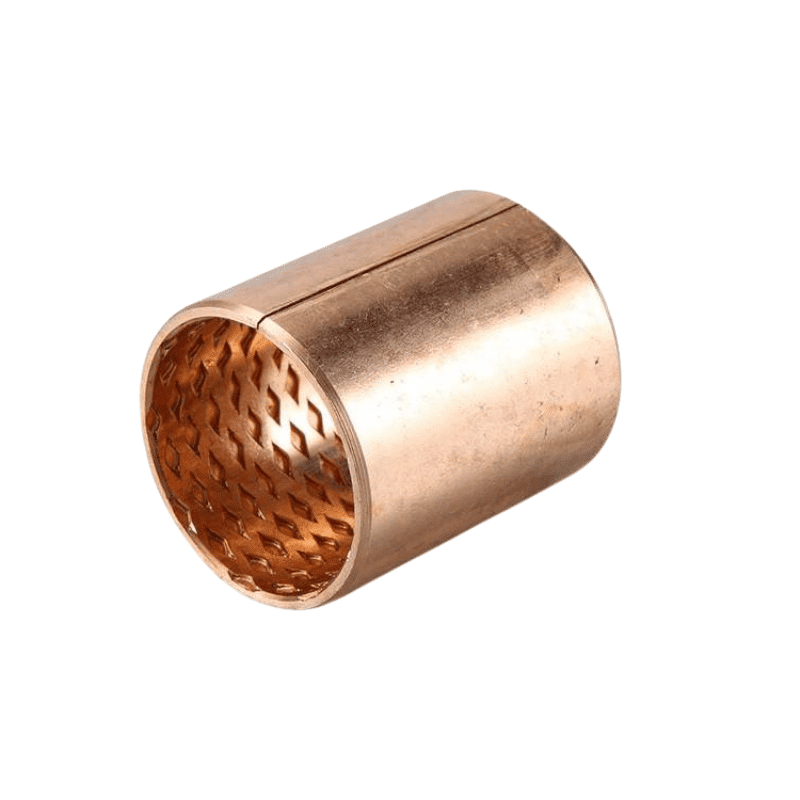

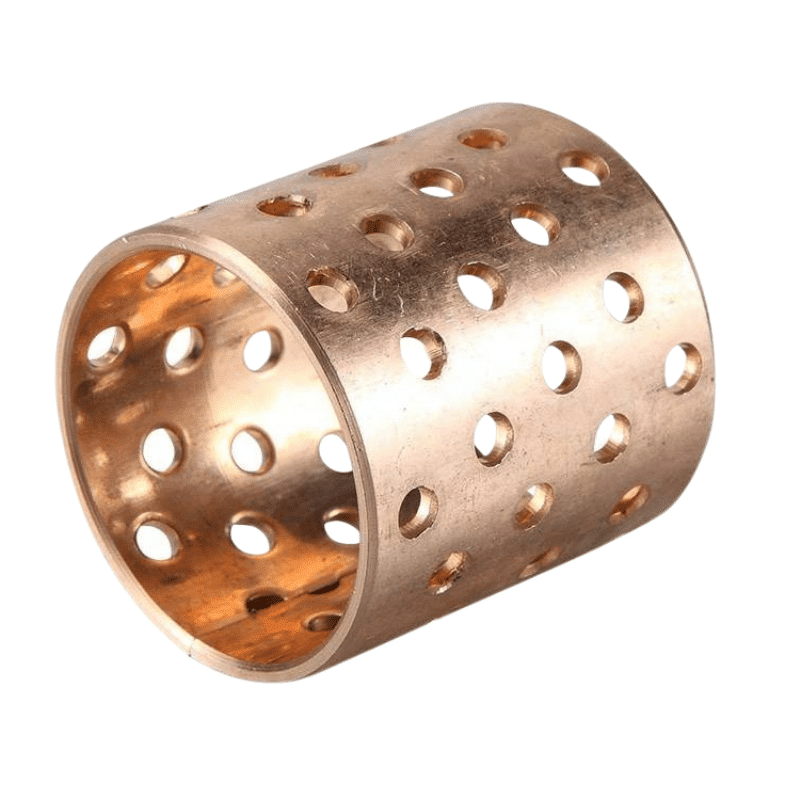

self-lubricating wrapped bronze bushing
self-lubricating wrapped bronze bushing

Bearing Design – Shapes and Geometries

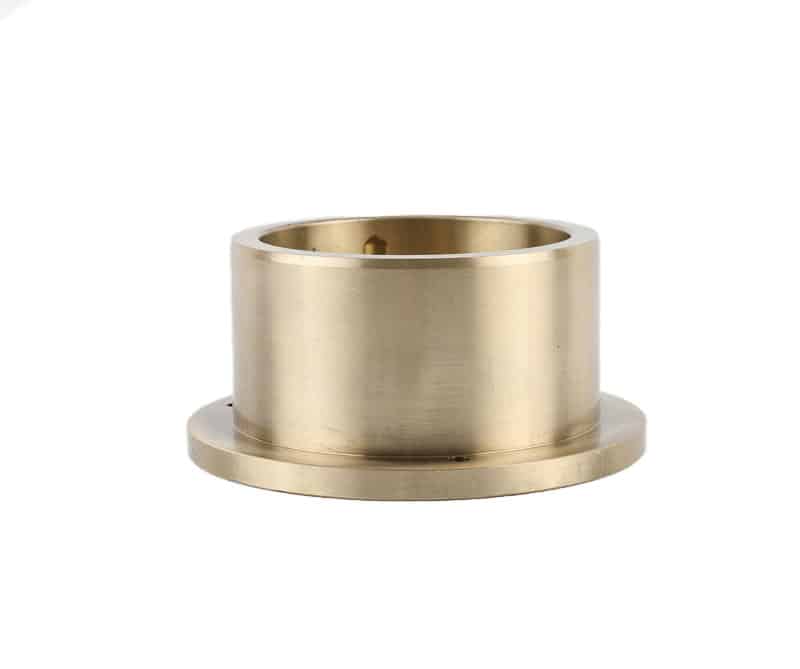

Cylindrical Bearing & Flanged Bearing

  • Enhance your machinery’s performance with premium bronze bushings! Minimum coefficient of friction for bronze bushes
  • Maintenance-free and self-lubricating bronze bearings
  • Space saving and weight reduction of the whole system
  • Looking for low-maintenance bushings? Bronze is the answer! High load capabilities!
cusn8 bronze bushing

Bronze Bush, Tribological Materials, Bronze Bush Material

Can Economically Make Custom Bushings According Your Size. Premium Bronze Bushings - Large Range Of Sizes, Specialists For Manufacturing & Machining Of All Types. See Our Bushing Bearing Range & Request A Quote!

Switch to Oil-free Bronze Bushing Self-lubricating Bronze Bushings Available

The Superior Quality Bearing Manufacturer of China is Looking for New Distributors Worldwide! China’s well-known and bushing bronze bearing manufacturing company expanding its global distributors network by announcing new distributors cooperation plan. Steel Mining Engineering Machinery Wind Mill Railway Bushing Bearing Type.

bronze bushes
Experience less wear and tear with high-quality bronze bushing materials!

Upgrade to bronze bushing materials today!

“bronzelube.com” – your online source for bronze bushes, oil groove bushing, spiral oil groove bushing, v groove bushing. We offers an extensive and competitively priced range of plain and flanged bronze bushes. Bronze bushes are widely used in various industrial segments such as automotive, mining, agriculture and power generation, among others. We supply various bronze bush materials processing services. CNC (Computerized Numerical Control) Bronze bush material with high load capacity! Bronze Bush Characteristics:

  • Manganese Bronze Bush Good impact resistance
  • Tin Bronze Bush Good corrosion resistance

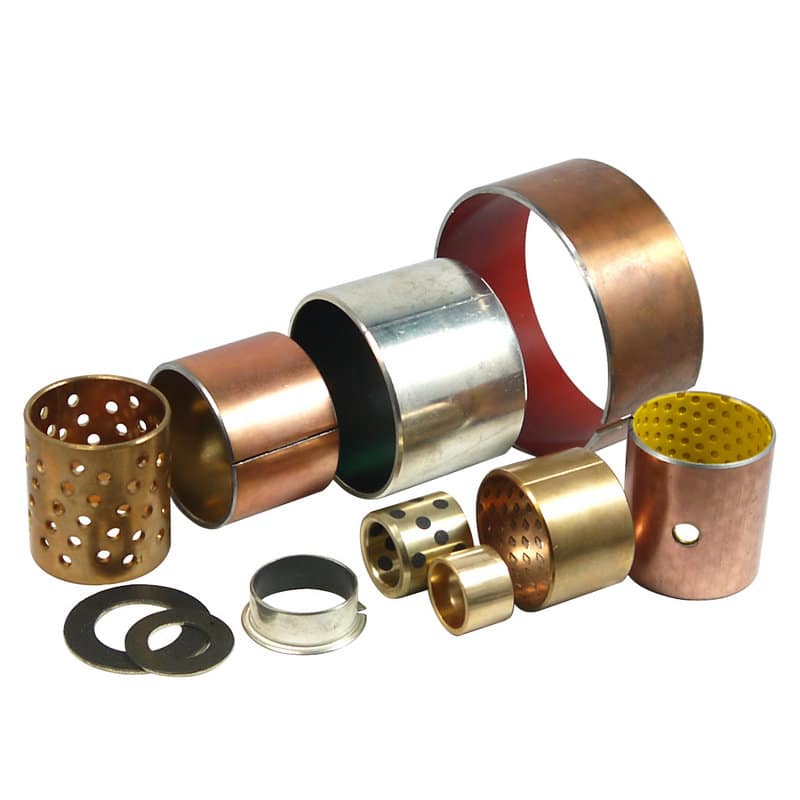

  • Aluminum Bronze Bush Good Wear Resistance
Sliding Bearings Technology

The promise of order bronze bush high quality, meet your requirement.

Bronze Bush Standard Dimensions

Standard dimensions for maintenance free bronze bushes, flange bush, thrust washer.

Switch to Oil-free Slide Bearing- Metal Brass Friction Bushing

Save time and money with the dependable performance of bronze bushings! “Start Your Custom & Quality Bronze Bush Solution.”

Selecting Bronze Bush Materials

Start your new project

Explore More Bronze Bush Types. We manufacturer a variety of specialty bearings customized to meet very specific needs. Choose any item anywhere & tell us how you wanted it, Specializing in custom bearings.

Advantages of Tribological Materials

Self-lubricating Bronze Bearing Solutions

Custom Brass Bushing Solutions

Choose your bronze bushing standard bronze alloy.

We manufacturing bronze bushing tailored to your individual needs.

Maintenance-free operation

Low coefficient of friction Low wear rate for long life-bronze bearing solutions.

cusn8 bronze bushing

Our Application Engineering Team Will Make The Appropriate Selection Based On Your Application Data. The Feasibility Of Some Standard Alloys Depends Upon The Dimensional And Geometric Requirements Of Each Project. Please Contact Our Applications Engineering For Detailed Information. Density Depends On Surrounding Temperature And Percentage Of Each Alloy Component In The Material.Standard Bronze Alloys

Standard Material Fulfills Most Application Requirements

Excellent Performance Under High Loads And Intermittent Movements

High Load Capacity With Maximum Corrosion Resistance Highest Load Capacity, But Less Corrosion Resistance Maximum Values Depend On The Chemical Composition And The Application Engineering Department Should Be Consulted.

Our company specializes in manufacturing high-precision bearings according to customer demand. Our expertise lies in customized parts made from various bronze and brass alloys. We offer consultations and cost calculations right from the start and manufacture parts according to customer specifications and drawings.

The products we supply are just a few examples of what we can produce. We offer logistic solutions to ensure a stable material flow and are happy to provide further advice or quotations upon request.

At our company, we prioritize quality and customer satisfaction. We have a team of experienced professionals who are dedicated to ensuring that our customers receive the best products and services possible. We also use advanced manufacturing techniques and equipment to ensure the highest levels of precision and accuracy in our products.

If you have a need for customized parts made from bronze and brass alloys or require high precision bearings, we are here to help. Contact us today for a consultation or quotation.

Comparison of Different Bronze Bushing Material Standard Codes

A variety of bronze bushing materials are used across multiple industries, each with its unique properties and applications. Understanding the standard material codes from international organizations like ASTM, BSI, and DIN ensures proper selection and application of these bushings. The following table provides a comparison of different bronze bushing material standard codes, their compositions, and characteristics.

cast bronze bushing

Material Standard Organization Alloy Code Composition (Nominal) Characteristics
ASTM ASTM B505 C54400 Cu 88.0%, Sn 4.0%, Pb 4.0%, P 0.25% Excellent machinability, wear resistance
B584 C90700 Cu 89.0%, Sn 11.0%, P 0.25% High wear resistance, corrosion resistance
B271 C90800 Cu 88.5%, Sn 10.0%, Pb 0.5%, P 0.25% High load capacity, wear resistance
British Standard BSI 1400 PB1 Cu 88.8%, Sn 5.0%, Pb 5.0%, P 0.5% Good machinability, wear resistance
1400 PB2 Cu 89.7%, Sn 10.0%, P 0.3% High wear resistance, corrosion resistance
DIN DIN 1705 CuSn5ZnPb Cu 84.0%, Sn 5.0%, Pb 5.0%, Zn 6.0% Good machinability, wear resistance
1705 CuSn10 Cu 90.0%, Sn 10.0% High wear resistance, corrosion resistance

This table serves as a quick reference for comparing different bronze bushing material standard codes from ASTM, BSI, and DIN. It is important to consider the alloy composition and characteristics when selecting the appropriate bronze bushing material for a specific application, ensuring optimal performance and longevity of the engineering systems.

Bronze Bushing Applications

They are most often used in low-speed, high-load, and severe-duty industrial applications and machinery for iron and steel fabrication, food processing, injection molding, automotive machinery, earthmoving machinery, pumps, and other industries.

Two common bronze bushing materials and their uses include: Clogged graphite bronze bushings. Applications for high and low speed machines, high and low temperature machines and food grade applications. Bronze: Most often an alloy of bronze with tin, aluminum, or silicon, these alloys have high corrosive resistance, making them ideal for marine applications.

Bronze bushings or bronze bearings are hard and strong, unlike brass bushings which are softer and more easily deformed. Therefore, bronze bushings have a longer service life than brass bushings. They are impact and impact resistant, wear and corrosion resistant.

They require external lubrication, such as grease or oil, during installation and during operation to reduce friction and wear.

cast bronze bushing

Benefits of Upgrading to Bronze Bushings

  1. Reduced Friction and Improved Wear Resistance

Bronze bushings, particularly those made from phosphor bronze, offer exceptional friction reduction and wear resistance due to the formation of a thin film on their surface. This film acts as a lubricating layer, reducing friction between the bushing and the mating component. By minimizing wear, bronze bushings extend the service life of machinery and equipment, resulting in reduced maintenance costs and increased efficiency.

  1. Enhanced Load Capacity and Durability

Bronze bushings exhibit a high load-carrying capacity, making them suitable for heavy-duty applications. The inherent strength and durability of bronze ensure that the bushings maintain their shape and function under high loads and stress conditions. This contributes to the overall performance and longevity of your machinery, reducing downtime and maintenance requirements.

  1. Corrosion Resistance

Bronze bushings are highly resistant to corrosion, particularly in harsh environments or when exposed to saltwater or other corrosive elements. This property makes them an ideal choice for marine applications, as well as in chemical processing plants and other industries where corrosion resistance is crucial for maintaining the integrity of equipment and components.

  1. Self-Lubricating Properties

Some bronze bushings feature self-lubricating properties, which means they have embedded solid lubricants that reduce friction and wear. These self-lubricating bronze bushings can eliminate the need for external lubrication, further reducing maintenance costs and simplifying the overall design of your machinery.

  1. Eco-friendly and Sustainable

Bronze is an environmentally friendly material, as it is both recyclable and sustainable. The use of bronze bushings helps reduce waste generation and resource consumption, contributing to greener industrial practices. Moreover, the extended service life of these bushings reduces the need for frequent replacements, further minimizing environmental impact.

Conclusion

Upgrading to bronze bushings can significantly enhance the performance, longevity, and efficiency of your machinery and equipment. With their reduced friction, improved wear resistance, high load capacity, corrosion resistance, and eco-friendliness, bronze bushings offer a superior alternative to traditional bushing materials. By making the switch to bronze bushings, you can experience smoother performance and enjoy the benefits of long-lasting, low-maintenance components that contribute to the success of your operations.

Bronze bushing is a type of bearing that is made from a bronze material. Bronze is an alloy of copper and tin, and is known for its strength, durability, and resistance to corrosion. These properties make it an ideal material for use in bushings, which are components that provide a smooth and low-friction interface between rotating parts in machinery.

Bronze bushings come in different grades, depending on the specific composition of the bronze alloy. Some of the most common grades of bronze used in bushings include tin bronze, lead bronze, and aluminum bronze. Each of these grades has its own unique properties, making them suitable for different applications.

One of the main benefits of bronze bushings is that they are self-lubricating, meaning that they do not require any external lubrication to function effectively. This makes them ideal for use in applications where there is limited access to lubrication, or where frequent maintenance is not feasible.

Bronze bushings also have a low coefficient of friction, making them ideal for use in high-speed applications where low friction is essential. They are also resistant to corrosion and wear, making them ideal for use in harsh environments.

In conclusion, bronze bushings are an important component in a variety of machinery and equipment, and are known for their strength, durability, and resistance to corrosion. They are available in different grades, each with its own unique properties, making them suitable for different applications. Whether you are looking for a low-friction, self-lubricating bushing for a high-speed application, or a corrosion-resistant bushing for use in a harsh environment, a bronze bushing is a reliable and effective solution.

Discover Our Range Of Bronze Bushes & Lubricating Bearing Range: Technical Products,You Can Rely On That! Plain Bearings And Bronze Bush Bearings (Also Referred To As Bushings Or Journal Bearings) Are Used To Constrain, Guide Or Reduce Friction In Rotary Or Linear Applications. They Function Via A Sliding Action.

flange bushing Non ferrous Bushes

Technical Data
STANDARD BRON ZE ALLOYS
BRONZE BUSHING
GRADE
ASTM DIN COMPOSITION MECHANICAL PROPERTIES APPLICATION
Stan-
dard
Alloy
No.
Stan-
dard
Alloy
No.
ASTM
% of
weight
DIN
% of
weight
Density
g/cm³
Minimum
Tensile
strength
MPa [ksi]
Minimum Minimum
Yield Elong. Hard-
strength % (in ness
MPa [ksi] 50 mm) HB
BRONZ BEARING MATERIAL B505 C93200
1705
2.1090.01
2.1090.03
2.1090.04
Cu 83
Sn 7
Pb 7
Zn 3
Cu 83
Sn 7
Pb 6,5
Zn 3,5
8,85 207 [30] 97 [14] 15 75 Standard material
fulfills most
application
requirements
C95500 2.0975.01 Cu 81 Cu 79,5
B 584 2.0975.02 Ni 4 Ni 5 High load capacity
B 271
1714
2.0975.03 Fe 4 Fe 4,75 7,50 620 [90] 275 [40] 6 190 with maximum
B 505 2.0975.04 Al 11 Al 9,5 corrosion resistance
B 584
B 271
B 505
C86300
1709
2.0598.01
2.0598.02
2.0598.03
Cu 61
Zn 27
Fe 3
Al 6
Mn 3
Cu 63,5
Zn balance
Fe 2,75
Al 5
Mn 3,75
7,70 758 [110] 414 [60] 12 210 Highest load
capacity, but less
corrosion resistance
than
For applications where standard alloys are not suitable, we are able to supply special materials

In industry, where onerous, dangerous and monotonous tasks are commonplace, the technology of self-lubricating bearings enables people to complete projects more efficiently and safely. Entering the era of “Industry 5.0”, industrial automation technology will cooperate more closely with human beings to cope with the escalating challenges and continuously improve work efficiency. In the field of robotics and automation, we have rich experience in customer cooperation, especially with a deep understanding of surface engineering self-lubricating solutions. Omnidirectional motion in robotics and automation applications places high demands on the contact of surfaces and materials, and our tribological solutions are well suited for this. Our confidence in robotics and automation is based on two things: one is our continuous collaborative innovation in the science of self-lubricating materials; the other is our ability to improve unique and precise solutions for our customers.

As technology continues to mature, more and more industries are applying robots and industrial automation to assist daily production.

From the earliest labor-intensive industries such as textiles and automobiles, to the food and beverage/consumer goods industries that have high requirements for turnover efficiency, and the pharmaceutical and life science industries that have attracted much attention in recent years, industrial automation has improved production efficiency and production costs. control is clearly visible.

We believe that technology can improve production efficiency

It will be of great benefit to the living environment of human beings

Looking forward to the technology of self-lubricating bearings in more fields

We will continue to innovate

Promote the continuous development of industrial automation

Robotics and Automation Applications

– Servo gear

– Omni wheel application

–Exoskeleton

——Mars rover

– Pivot point system

–Holder

– UAV

Understanding Bronze Bushes, Get Your Bronze Bushing.

To be the leading manufacturer of plain bearing solutions through innovation and technical expertise.
To be the world’s leading manufacturer of plain bearing solutions.

or Working Temperatures ≤180°C Consider White PTFE-Based Plugs; For Working Temperatures >180°C Consider

Black Graphite-Based Plugs. Maximum Working Temperature Depends Upon The Properties Of The Bronze Alloy.

Contact Our Applications Engineering If Your Application Temperature Exceeds The Limits Of Self-Lubricating Bearing Standard Alloys.

The Counterface Material (Shaft) Must Have Appropriate Characteristics, Such As: Hardness, Surface Finish And CorroSion Resistance. When A Non Standard Bronze Alloy Is Used, The Hardness Of The Shaft Should Exceed That Of The bronze By At Least 100 HB.

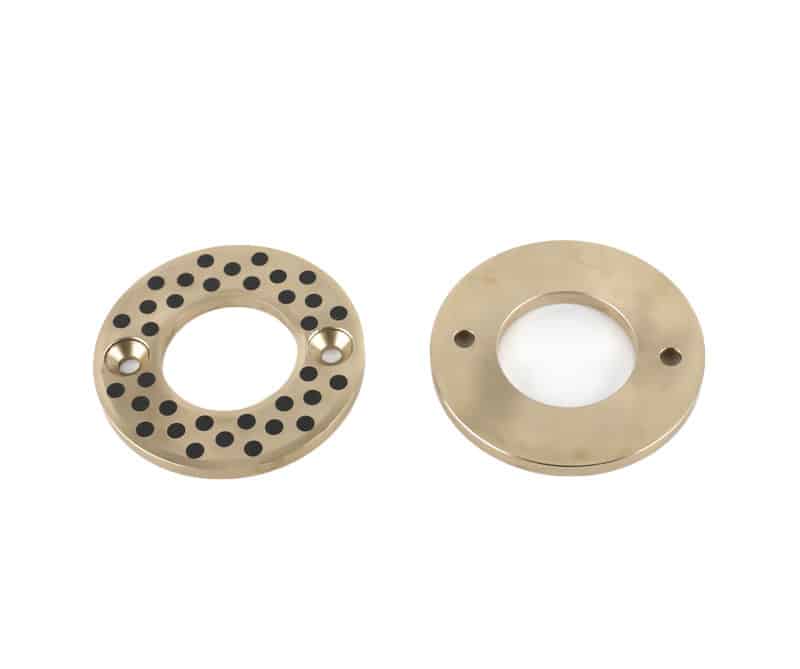

Flange & Cyclinder Bronze Bush and Thrust Bearing

Wide range of quality metric & imperial bronze bushes.

Flange & cylindrical Bronze Bush and Thrust Bearing

Type, Bronze Bushes. Bronze. Bearing Bronze Bush Factory! Standard And Custom Bronze Bush Made For You. Maintenance Free Thus Lower Your Cost For Bronze Bushes.

  • Bronze Bush With Graphite Insert Bearing, Boost your equipment’s efficiency with top-notch bronze bushing materials!

  • Give your machinery the upgrade it deserves with bronze bushings! Fast Delivery, wholesale bearing bronze bush!

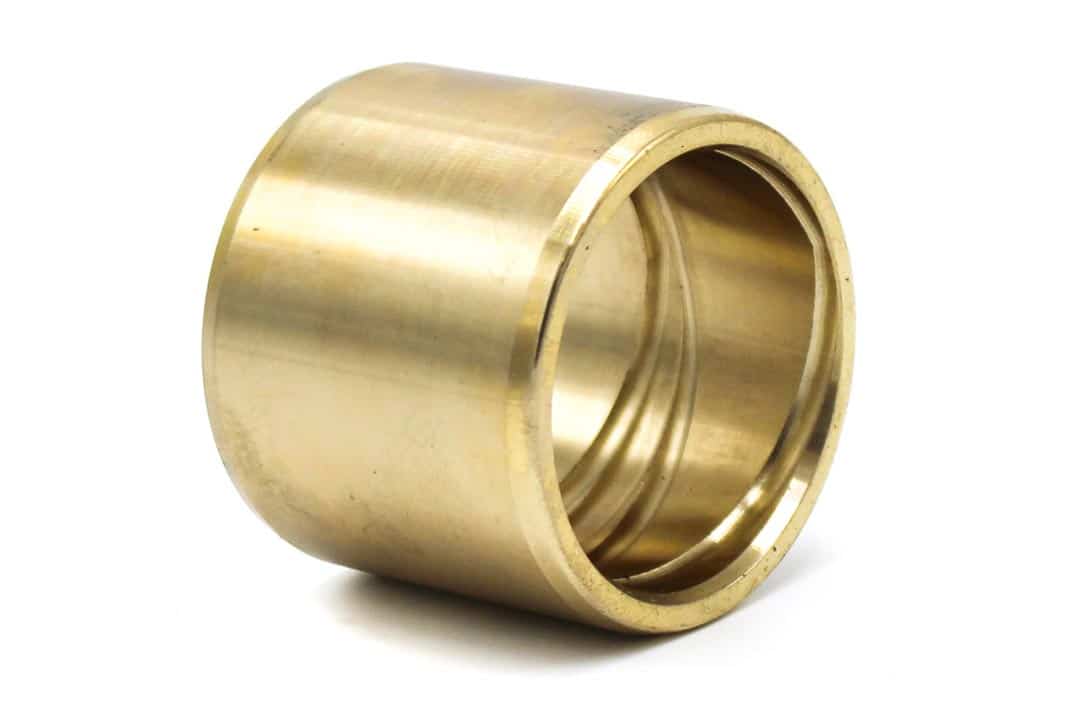

  • Reliable & safe groove bushing, bronze bush supplier

  • Engineered for excellence: discover our bronze bushing materials! Small minimum order quantity, wholesale bearing bronze bush!

Say goodbye to frequent bushing replacements – choose bronze!

Choose from our selection of bronze bushes, diamond groove bushing, including self-lubricating bronze bearing, sleeve bearings, and more. In stock and ready to ship. We are engaged in the manufacturing and exporting of an array of exceedingly high quality bronze bushes. We are experts in custom bronze bush.

Advantages of low friction bearings

  • Lightweight
  • Low friction coefficient
  • High impact resistance
  • Reduce noise levels
  • self-lubricating
  • bushing alternative
High quality bronze bushes with Competitive Price

* Our enterprise, is one of the undisputed supplier of the highly competitive order bronze bushes industry in china.

Bronze Bush

Bronze Bushings Longer Life

Bronze bushings or bronze bearings are hard and strong, unlike brass bushings which are softer and more easily deformed. Therefore, bronze bushings have a longer service life than brass bushings. They are impact and impact resistant, wear and corrosion resistant.

Cu%1 Pb% Sn% Zn% Fe% P% Ni%1,2 Al% S% Sb% Si%
Chemical Composition according to ASTM B505/B505M-18
81.00-
85.00
6.00-
8.00
6.30-
7.50
2.00-
4.00
0.20 1.50 1.00 0.005 0.08 0.35 0.005

Bronze Bushing Material Selection

Bronze Bearing Technology Continues To Mature, Material Selection Should Be Guided By Our Application Engineers. They require external lubrication, such as grease or oil, during installation and during operation to reduce friction and wear.

Cu% Fe% Ni%1 Al% Mn%
Chemical Composition according to ASTM B505/B505M-18
83.00
min
3.00-
5.00
1.50 10.00-
11.50
0.50

Bronze bushing data to improve your bearing experience.

Popular designs include cast bronze graphite oilless bushings, flanged bronze bushings, and wrapped bronze bushings. Discovery more the bronze bushings and bearings webpage to learn more.

Cu%1 Pb% Sn% Zn% Fe% Ni%1,2 Al% Mn%
Chemical Composition according to ASTM B505/B505M-18
60.00-
66.00
0.20 0.20 22.00-
28.00
2.00-
4.00
1.00 5.00-
7.50
2.50-
5.00

A Modular Plain Bearing

Browse, get a quote and order products easily in plain bronze bushes eCatalog

High-Performance Bronze Bush Bearings Designed in Collaboration with Customers. Made for Your Needs. Speak to an Engineer to Learn More About Our Custom, High-Quality Bronze Bearings. Bearing Design – Shapes and Geometries. Save time and money! Our oilless bearings reduce maintenance costs, allowing you to focus on what matters

  • Switch to our oilless bearings and save time, money, and the environment. #GoOilless #MaintenanceFree

  • Self-lubricating bearings for the win! Improve the efficiency and lifespan of your equipment with our advanced oilless bearings. #SelfLubricating

port of san pedro in los angeles ca with san vicente bridge in the picture id1351436389

Say goodbye to frequent oil changes! Contact Us!

The future of bearing technology is here!
