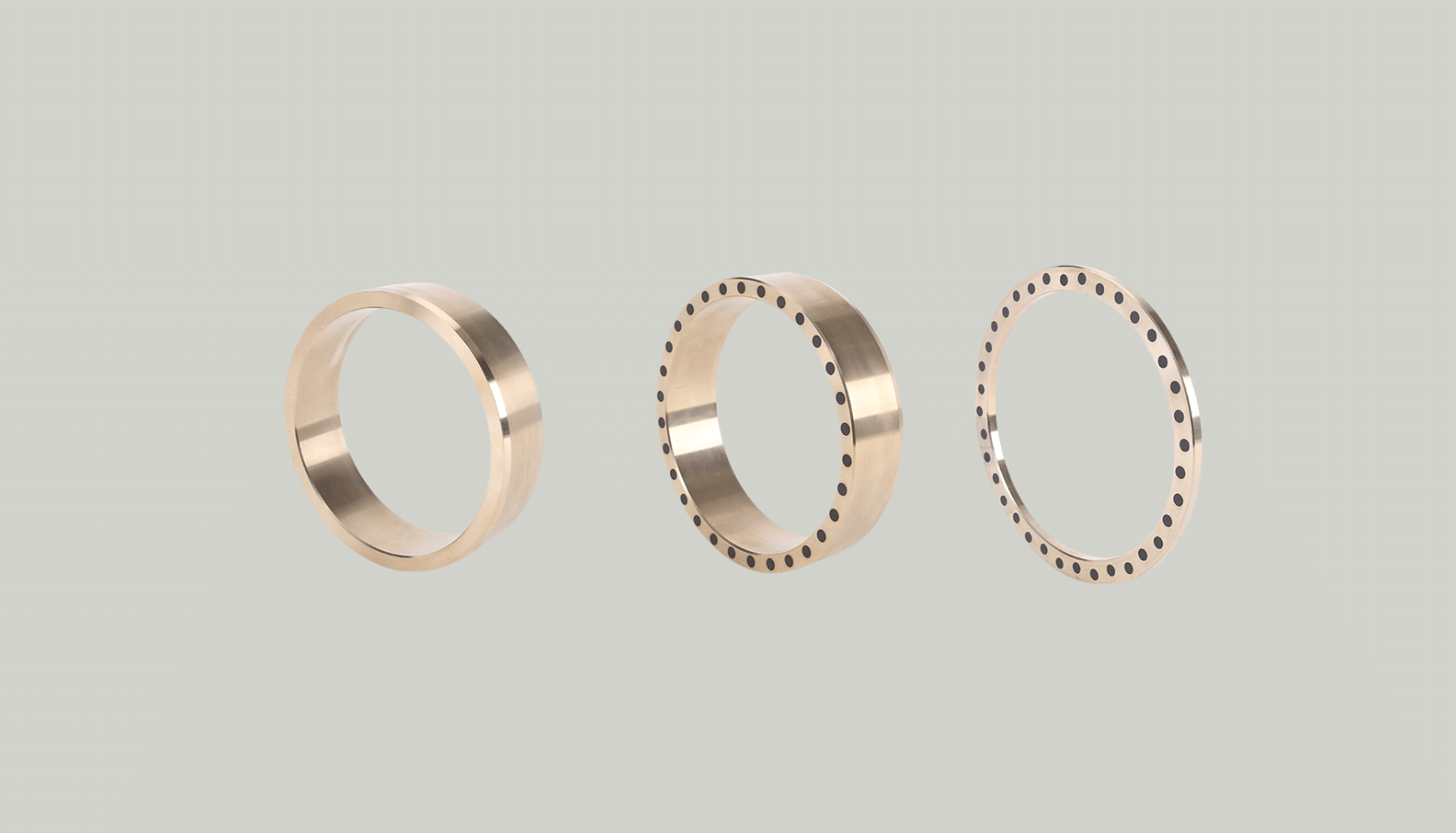

CuAl10NiFe4 Bronze Ring

The CuAl10NiFe4 bronze, also referred to as C63000 or CW307G, is a high-strength aluminum bronze alloy that is increasingly being utilized in the production of electrical flipper actuator components. This alloy is known for its exceptional combination of mechanical properties, corrosion resistance, and electrical conductivity, making it highly suitable for applications within the electrical and marine industries.

Why CuAl10NiFe4 Bronze Ring for Electrical Flipper Actuator?

1. High Strength and Rigidity: The CuAl10NiFe4 bronze alloy offers high strength and rigidity, which is essential for the reliable operation of electrical flipper actuators. These actuators are often required to handle precise movements and maintain accuracy under various operating conditions. The high strength of the alloy ensures that the actuator components, such as the rings, can withstand the mechanical stress without deforming or breaking.

2. Corrosion Resistance: Electrical flipper actuators may be exposed to corrosive environments, especially in marine or outdoor applications. CuAl10NiFe4 bronze provides excellent resistance to corrosion, including resistance to seawater, making it an ideal material choice for actuators used in such conditions. This resistance to corrosion extends the service life of the actuator and reduces the need for frequent maintenance or replacement.

3. Electrical Conductivity: While not as conductive as pure copper, CuAl10NiFe4 bronze still offers good electrical conductivity. This property is beneficial for actuators where the transmission of electrical signals is crucial for operation. The alloy’s conductivity ensures efficient signal transmission and reduces the risk of electrical interference.

4. Wear Resistance: The wear resistance of CuAl10NiFe4 bronze is another critical factor for the longevity of electrical flipper actuators. Components that are in constant motion or come into contact with other parts will experience wear over time. The wear resistance of the bronze alloy helps to minimize this wear, maintaining the actuator’s performance and efficiency.

5. Thermal Stability: The thermal stability of CuAl10NiFe4 bronze is beneficial for actuators that may be subjected to temperature fluctuations. The alloy’s ability to maintain its properties across a range of temperatures ensures the reliable operation of the actuator, even in extreme conditions.

Manufacturing Considerations

When manufacturing CuAl10NiFe4 bronze rings for electrical flipper actuators, it is essential to consider the alloy’s workability and machinability. The alloy’s good hot workability allows for the formation of complex shapes and precise dimensions, which are critical for the proper function of actuators. Additionally, while machinability is moderate, the use of appropriate cutting tools and techniques can achieve the desired level of precision in the manufacturing process.

Conclusion

In summary, CuAl10NiFe4 bronze is an excellent material choice for electrical flipper actuator components due to its high strength, corrosion resistance, electrical conductivity, wear resistance, and thermal stability. These properties, combined with the alloy’s good workability and machinability, make it suitable for creating reliable and long-lasting actuator components that can perform efficiently in a variety of applications and environments.

Copper rings in electric actuators are primarily used for electrical connections and signal transmission components. Due to copper’s excellent conductivity, these rings often serve as contact points between electrical components to ensure reliable current transfer and signal integrity. For example, in the wiring terminals or connectors of an electric actuator, copper rings can act as contact rings to connect power and control signal lines, facilitating the control and operation of the actuator.

Additionally, copper rings may be used in certain mechanical parts within electric actuators, such as bearings or bushings, to reduce friction and wear, thereby enhancing the actuator’s motion precision and lifespan. The high strength and wear resistance of copper alloys make them ideal materials for these applications.

In the design of electric actuators, the use of copper rings aims to improve overall performance and reliability, ensuring that the actuator operates stably in various industrial environments and performs precise control tasks. When selecting an electric actuator, the material characteristics and suitability of copper rings should be considered to ensure they meet the requirements of specific applications.
