Self-Lubricating Thrust Bearings
Designs & variants
Bronze Washer Factory – Bronze Thrust Bearing Factory
Custom solutions for your engineering needs.
Custom Thrust Washer Bearing Manufacture – Customized Thrust Bearing Solutions
Self-lubricating washer supplier, Reliable Bronze Bushings Manufacturer, Thrust Washer material very good wear and low friction performance over a wide range of loads, speeds…Thrust washers, also referred to as thrust bearings or thrust plates, are flat, disk-shaped bearings made of metal-polymer or oilless bronze plugged graphite material. Learn more! Bronze thrust washer with graphite inserts, thrust washer indicates self-lubricating bearings suitable for high load applications. these thrust washer bearings are made from a high strength brass base alloy prepared with advanced casting techniques. the self-lubricating properties of this alloy are due to an incorporated solid lubricant.
about the company

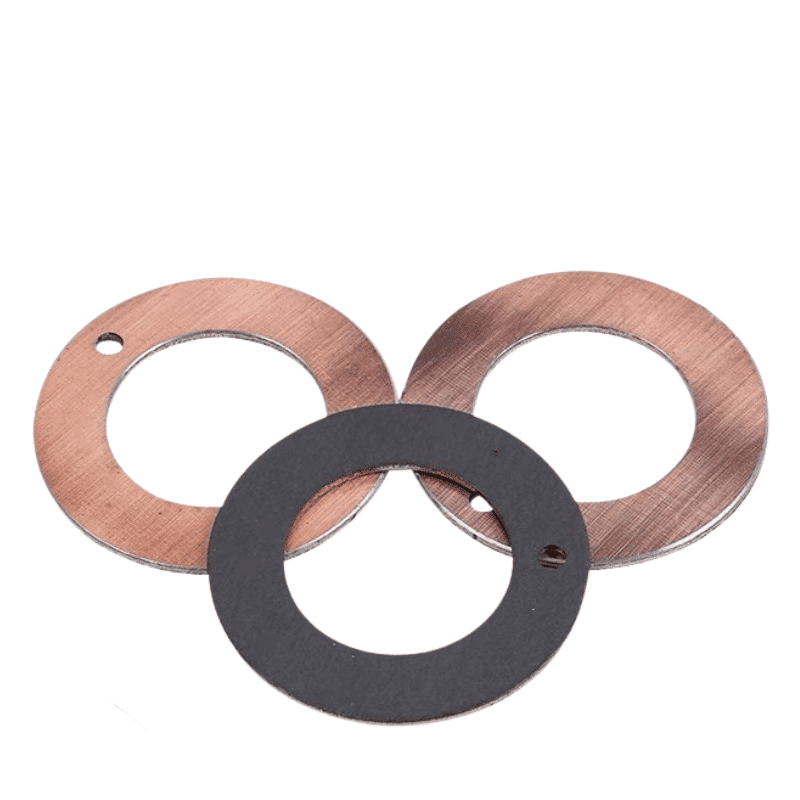

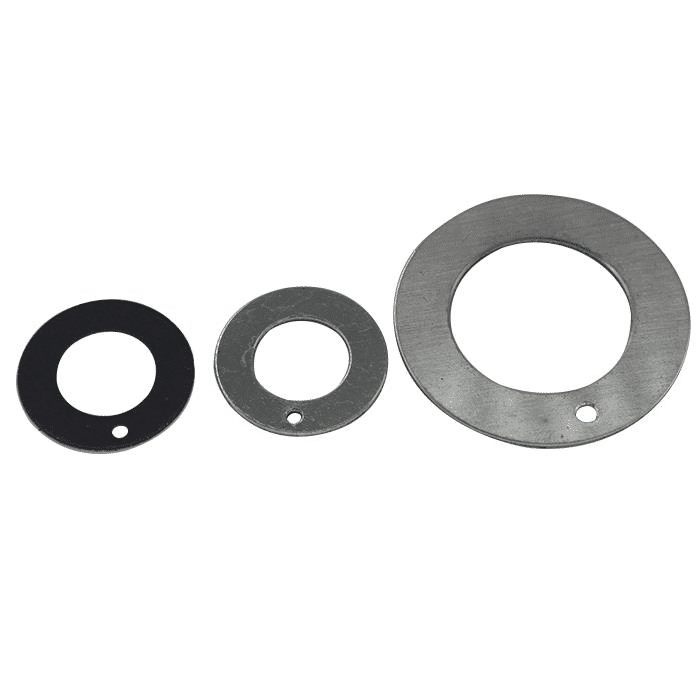

Composite PTFE Custom Thrust Washer Supplier
Thrust washer steel backed filled PTFE liner one size bearings with excellent shock, misalignment, contamination resistance. Plain Thrust Bearing Washer – different in Thickness, PTFE Material, Self-lubricating Bearings. Metal, cast bronze and steel backed PTFE lined Washer, Let us help you find the part you are looking for.
Product Quality Index
Energy Generation
We manufacturing thrust washer bearing tailored to your needs.
Self-lubricating thrust washers made from various materials
Thrust washers are flat bearings that are typically inserted between rotating and stationary components. Their function is to provide frictional force to the rotating component as it begins to move laterally, thereby keeping it in place. These bearings are made from self-lubricating materials and can promote maintenance-free, dry operation under a wide range of applications and axial load requirements. All of our self-lubricating materials undergo rigorous testing to ensure longer lifespan and higher wear rates, particularly in high-corrosive or harsh environments. Typical metal thrust washers can corrode and fail, causing unexpected downtime.

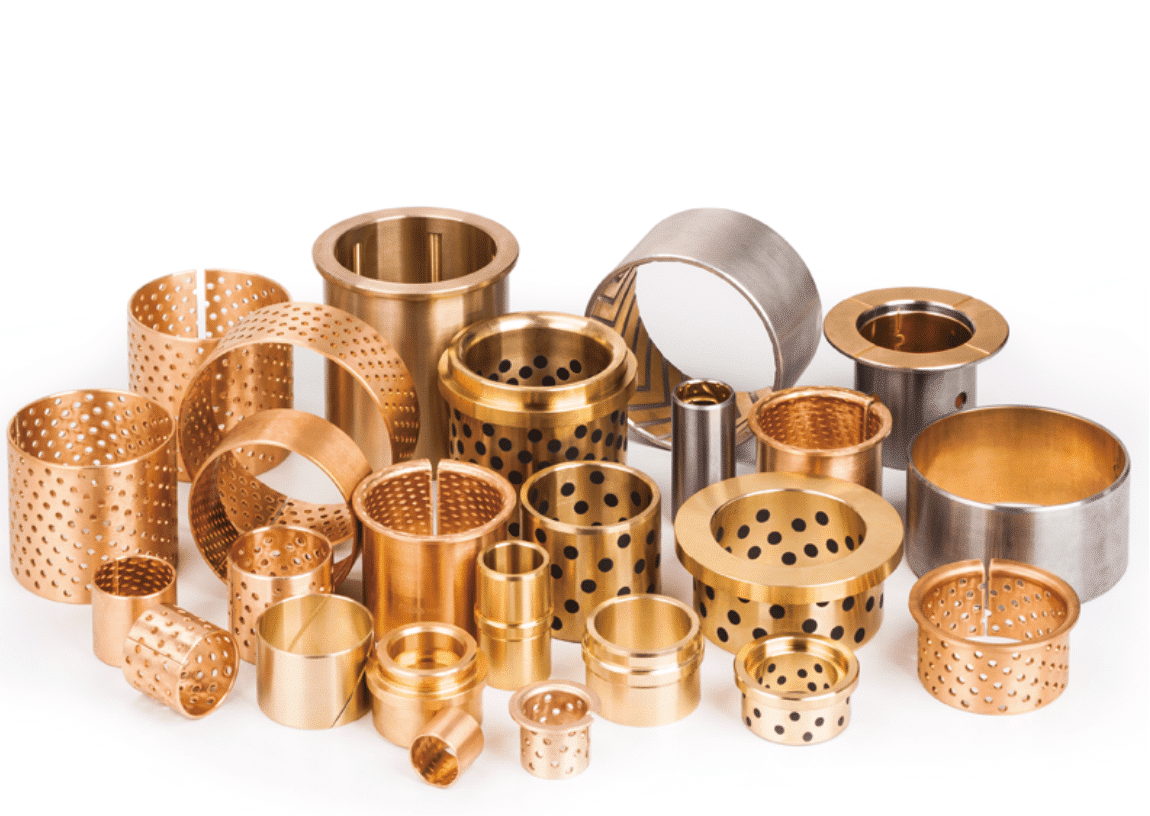

Broadest range of standard size bronze bushings in the industry. Manufacture and Supply of Bronze Bearings – Sleeves, Flanges, Washers. Metal, Cast Bronze. PTFE Thrust Washer Bearings.
Thrust washers are commonly used in various applications such as automotive engines, transmissions, and power generators. They are also used in industrial applications, such as pumps, compressors, and hydraulic systems. They can be made from a variety of materials, including bronze, graphite, and plastic composites. Each material has its own unique properties that make it suitable for different applications.
Bronze thrust washers, for example, are known for their durability, strength, and resistance to wear and corrosion. They can withstand high loads and temperatures, making them suitable for heavy-duty applications such as in large industrial machinery. Graphite thrust washers, on the other hand, are known for their self-lubricating properties, low coefficient of friction, and resistance to high temperatures. They are often used in applications that require high speed and low noise levels. Plastic composite thrust washers are lightweight, corrosion-resistant, and can operate under dry or wet conditions. They are often used in applications where weight reduction is critical, such as in aerospace and medical devices.
Thrust washers made from self-lubricating materials have many advantages over traditional metal thrust washers. They can operate without the need for external lubrication, reducing maintenance and downtime. They also have a longer lifespan and higher wear rates, making them a cost-effective solution in the long run. Additionally, self-lubricating materials are environmentally friendly and do not generate harmful pollutants, making them a sustainable solution for various applications.
In conclusion, thrust washers are essential components in many rotating machinery applications. They provide the necessary frictional force to keep rotating components in place and prevent unexpected downtime. Self-lubricating thrust washers made from various materials have unique properties that make them suitable for different applications, and they offer many advantages over traditional metal thrust washers. Choosing the right thrust washer material for your application is essential for optimal performance and long-term reliability.
Discuss your project with our thrust washer bearings expert
Whether you’re interested in turnkey, fully assembled solutions or looking to build your own customizable thrust washer bearings project, let us assist you with a solution based on your specific application and requirements. Contact us to discuss your project today!
What is “thrust washer bearing”, what are thrust washer?
Thrust washer, also known as thrust bearings or plain bearing. Thrust washers, also referred to as thrust bearings or thrust plates, are flat, disk-shaped bearings made of metal-polymer or metallic thrust bearing material. Learn more!
They are flat disc-shaped thrust bearings made of metallic polymers or reinforced fiber materials.
Thrust Washer and Thrust Bearings
This means that they have many of the same properties as straight bearings, such as excellent wear resistance and a low coefficient of friction. Thrust shims are designed to support heavy axial loads and are used in applications where axial loads are required.
One type of thrust washer from the China manufacturer is plain bearing thrust washer, which consists of PTFE and reinforced fiber material. The POM composite thrust washer has a proprietary filled PTFE sliding layer on both surfaces that provides excellent impact resistance and high load capacity, making it well suited for applications such as pulley shims, gear shims, main pins, crane and valve actuator linkages.
High-quality self-lubricating thrust washers from China
We also manufactures RED PTFE metallic polymer thrust washer for use in parking brakes on vehicles. The low friction and wear resistance of metallic thrust bearings ensure the reliability and safety of the braking system for the life of the vehicle. In addition, the light weight of PTFE thrust bearings helps reduce vehicle weight and improve fuel efficiency.
Thrust washer bearing feature.
Self-lubricating washers are washers that do not require lubrication. They are also referred to as oil-free washers. To prevent seizure or wear caused by frictional resistance due to the load on the bearing, a lubricant, such as oil, is usually used on the washer. Non-lubricated washers can accept thrust loads without the use of lubricants. Typically, a lubricant-free bushing containing a lubricant or lubricant is used in combination with the bearing body. Since no supplemental lubrication is required, this type is very effective for working environments where the use of lubricants is difficult. The life of the machine is also extended, reducing operating costs such as maintenance. These components are used in a wide range of applications, from large machines such as automobiles and general industrial machinery, to small electronic devices.

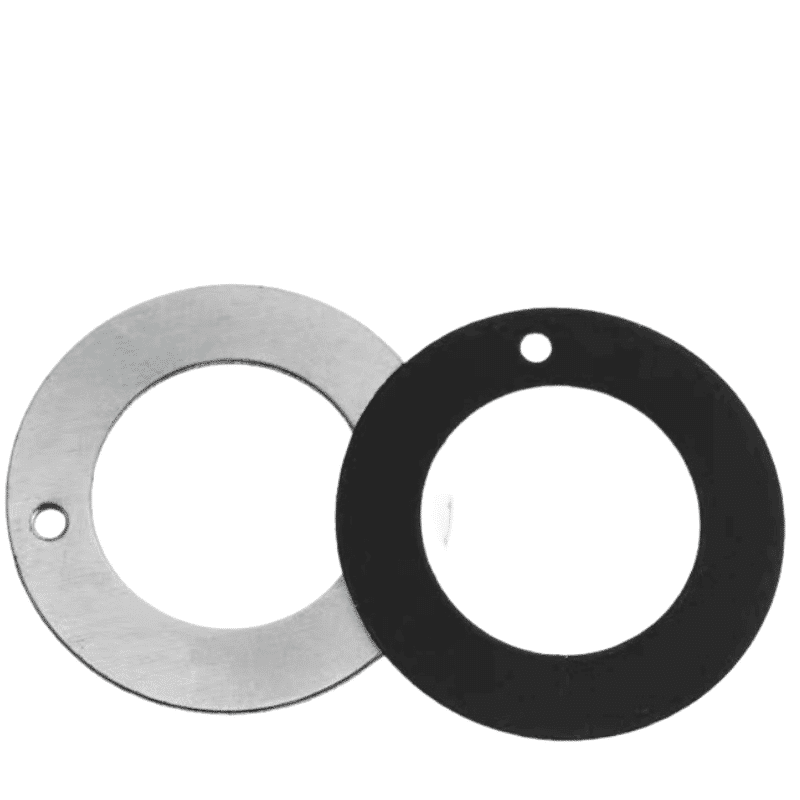

Composite Thrust Bearings & Washers
Washers, Shims, Stampings Custom Specialty OEM Parts. Fastest Turnaround in the Industry!
Composite dry sliding thrust washers are designed for applications where axial space is limited, maintenance is not possible and where lubricant …

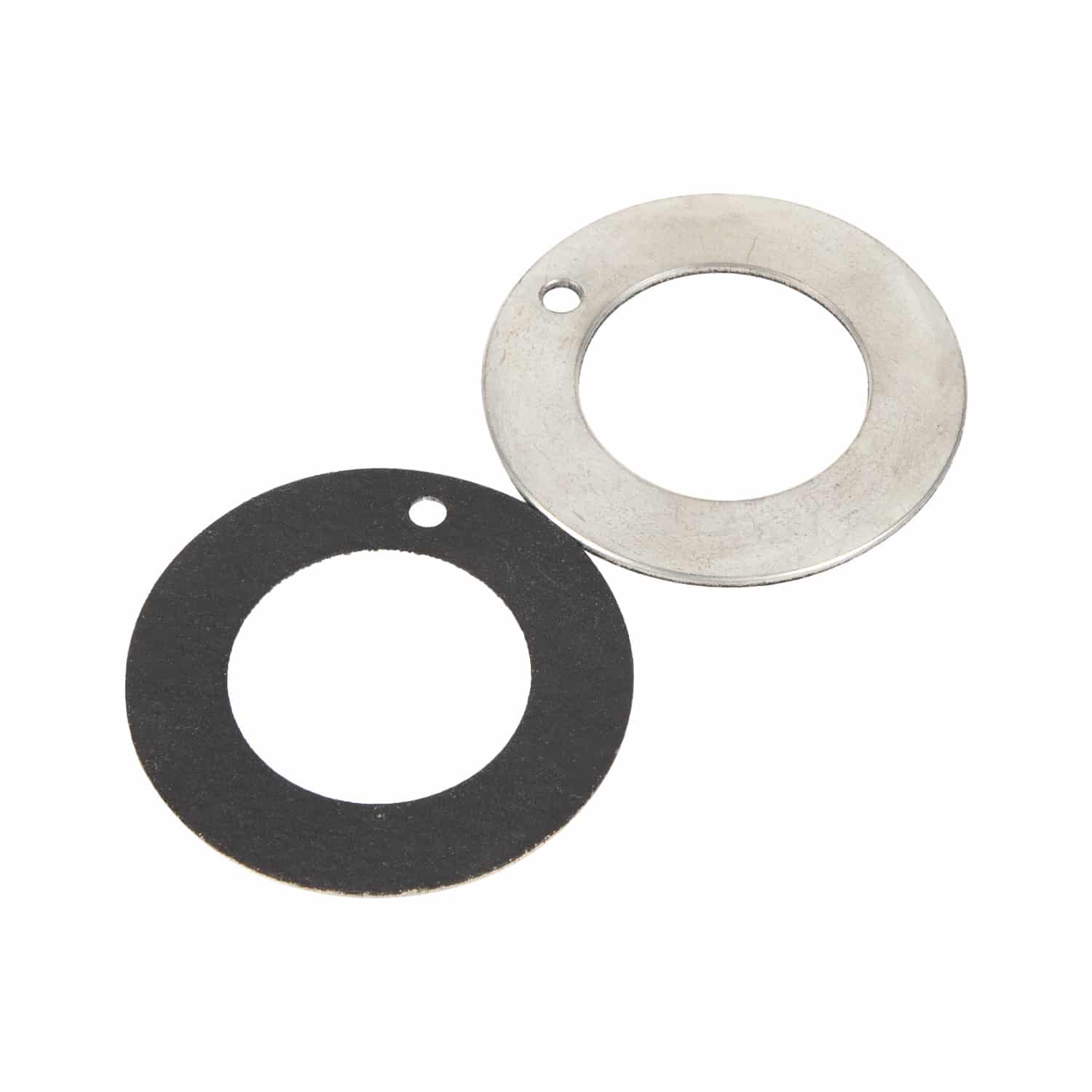

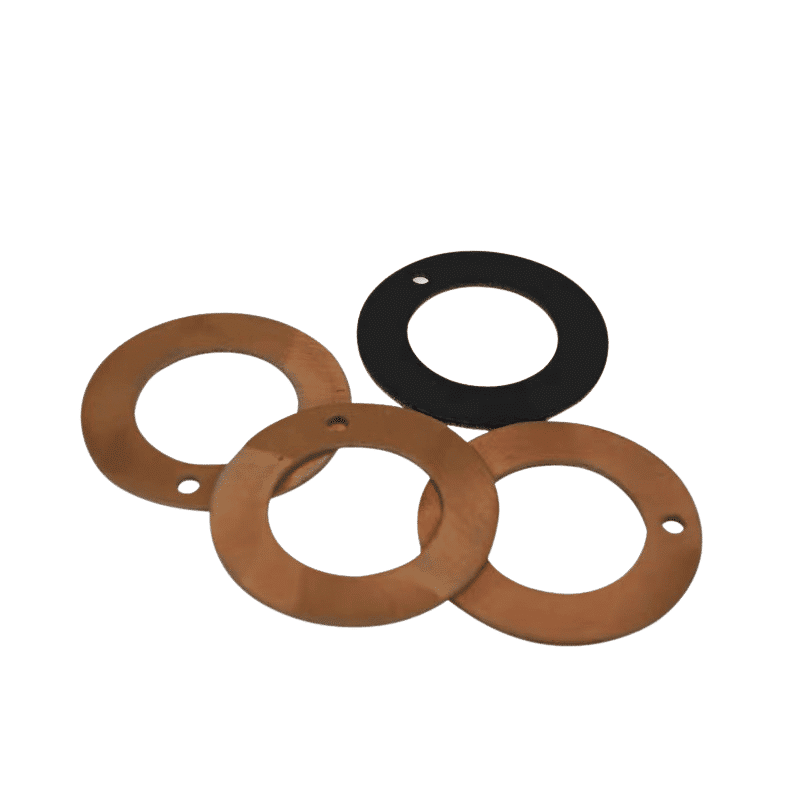

A composite PTFE thrust washer is a type of washer made from a combination of polytetrafluoroethylene (PTFE) and other materials, such as glass or carbon fibers, that are mixed together and then pressed into a sheet or cut to a specific shape.
PTFE is a synthetic fluoropolymer that has excellent non-stick and low-friction properties, as well as high chemical resistance and thermal stability. These properties make PTFE a popular material for use in industrial applications, including as a bearing material.
The addition of glass or carbon fibers to PTFE can improve its mechanical properties, such as its strength and wear resistance. This combination creates a strong and durable material that is ideal for use in applications where high loads and stresses are present.
Composite PTFE thrust washers are commonly used in machinery and equipment to provide a low-friction surface between moving parts. They can be found in a variety of applications, including in automotive engines, hydraulic systems, and industrial machinery.
Has a Thin wall and is compact. Supports a thrust load.
- Volume Discount is available
- Available in Metric size and inch size
- Rapid Design
Thrust washer bearings by bronzelube.com, Custom Prototype Washer Parts

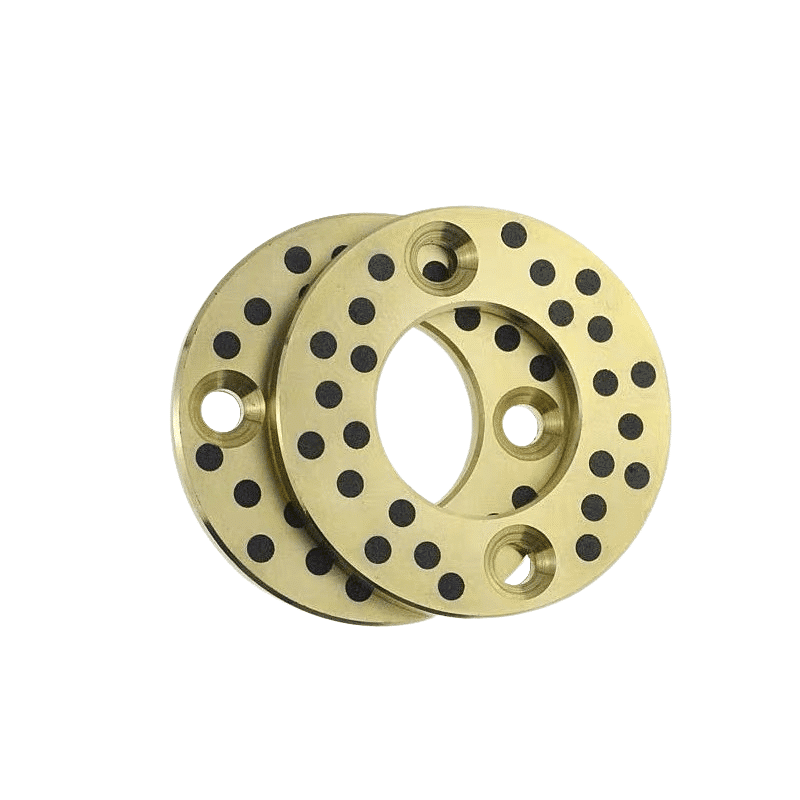

Oil Free Copper Alloy Washers, Material: Metal， Provide a self-lubricating thrust surface, especially in applications where assembly is not suitable for flanged bearings. Alternatively, they can provide a second thrust surface on the non-flanged end of the bearing. We also offer an in-house machining service to provide non-standard sizes for special customer requirements.
Choose from a wide variety of sizes, thicknesses, and materials, including non-metallic. Expect precision fabrication, quality, and on-time delivery. Get a quote today! Metric standard sizes are available
- Washers which can support axial loads.
- Volume Discount is available
- Available in Metric Size and Inch Size
- Rapid Design
Thrust washers bearing materials – maintenance-free, made of metal self-lubricated
Material: Thrust Washer, Provide a self-lubricating thrust surface, especially in applications where assembly is not suitable for flanged bearings. Alternatively, they can provide a second thrust surface on the non-flanged end of the bearing. We also offer an in-house machining service to provide non-standard sizes for special customer requirements
Self-lubricating thrust washers are made from a variety of materials that provide long-lasting, low-maintenance solutions for various applications. Here are some of the commonly used self-lubricating materials for thrust washers:
PTFE (Polytetrafluoroethylene): PTFE is a thermoplastic material that offers excellent chemical resistance and low friction. It has a low coefficient of friction and is suitable for applications that require high wear resistance and low friction. PTFE thrust washers can operate in a wide range of temperatures and can withstand high loads.
Nylon: Nylon is a thermoplastic material that is lightweight and durable. It offers good chemical resistance and low friction, making it ideal for applications that require low noise and low wear.

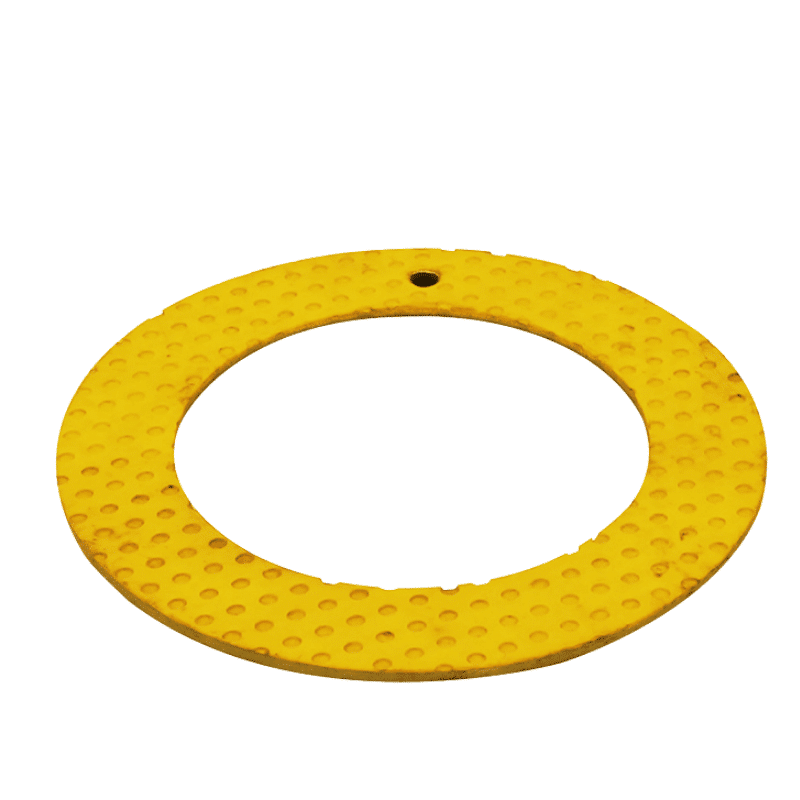

Acetal: Acetal is a thermoplastic material that offers excellent dimensional stability and low friction. It has good chemical resistance and can operate in a wide range of temperatures. Acetal thrust washers are ideal for applications that require low wear and low friction.
Graphite: Graphite is a solid lubricant that offers low friction and excellent wear resistance. Graphite thrust washers are suitable for high-temperature and high-speed applications.
Bronze: Bronze is a metal alloy that offers good strength, durability, and corrosion resistance. Self-lubricating bronze thrust washers are infused with graphite or other solid lubricants to provide long-lasting lubrication and low maintenance.
Ceramic: Ceramic thrust washers offer excellent wear resistance and low friction. They can operate in a wide range of temperatures and are suitable for high-speed and high-load applications.
These self-lubricating materials offer many advantages over traditional metal thrust washers, such as reduced maintenance, longer lifespan, and reduced downtime. Choosing the right material for your application is essential for optimal performance and long-term reliability..
*Available in metric and inch standard sizes, Fast & Free Custom Quote. Shipped On Time. Custom Made to Your Specifications. Quality Parts, Reliable Delivery. Experience World Class Service!
Switch to Oil-free Slide Plates
Thrust Bearing Washer, Oil-free Washer, Thrust washer, Bearing washer – All industrial manufacturers

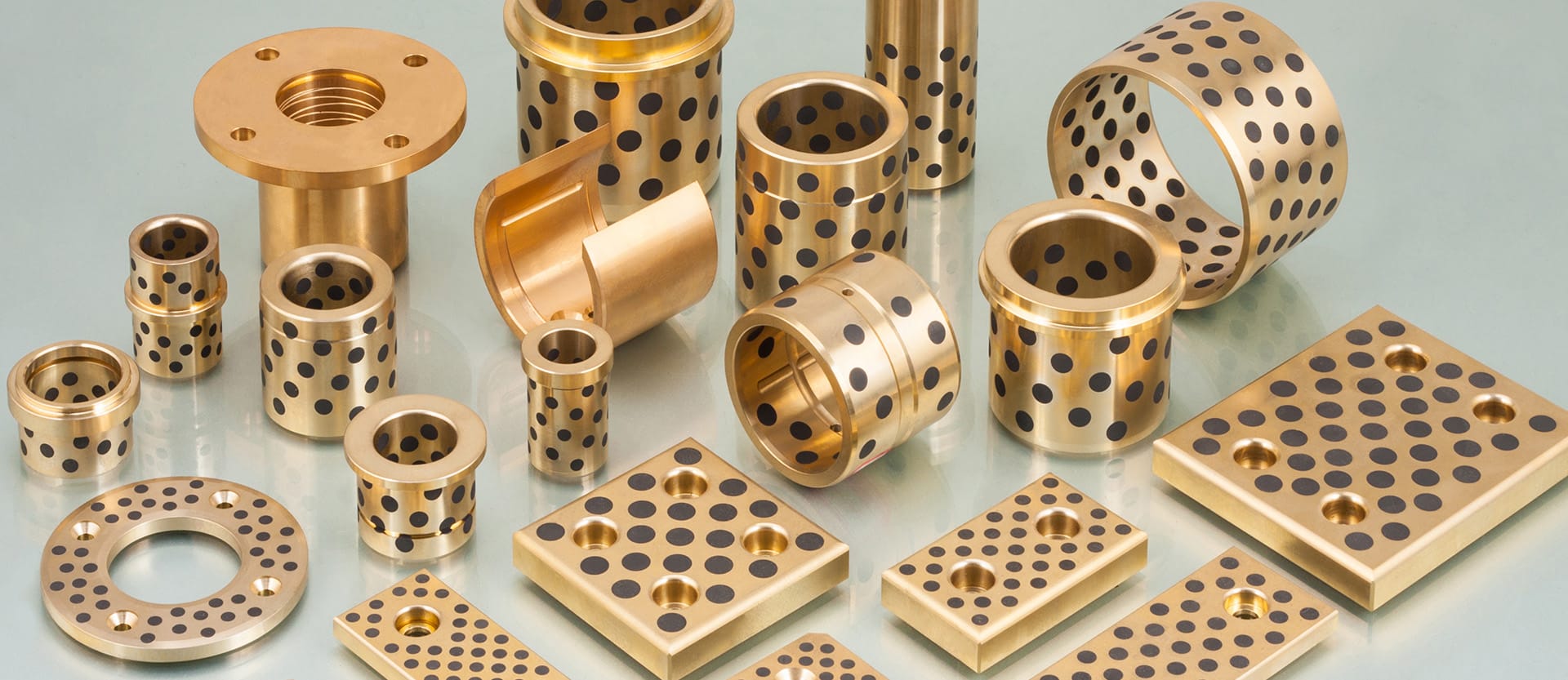

Bushing Material, Graphite Impregnated Brass. As a manufacturer, we produce almost all possible dimensions. Extensive Know-How. Small Minimum Quantities. Short Periods Of Delivery. Cost-Effective Prices. OEM Manufacturer, Exporter, Supplier For Brass & Bronze Bush, Bushings For All Application. Finish Bush Manufacturer. Expert Team Support. Offer Quote 24 Hours only. Thrust washers, also referred to as thrust bearings or thrust plates, are flat shaped bearings made of metal-polymer or graphite lubricated metal bronze material. Learn more!
Thrust washer bearings are essential components in various mechanical systems, particularly those that require axial movement, such as engines, transmissions, and pumps. As a manufacturer of thrust washer bearings, we take pride in our ability to produce high-quality, durable bearings that can withstand the demands of these systems.
At our manufacturing facility, we utilize advanced technologies and processes to ensure that our thrust washer bearings meet the highest standards of quality and precision. We begin by carefully selecting materials that are both strong and wear-resistant, such as bronze, steel, and graphite. We then use state-of-the-art equipment to machine and shape these materials into precisely crafted bearings that are capable of handling the intense pressures and forces of axial movement.
One of the key advantages of our thrust washer bearings is their ability to reduce friction and wear, even under heavy loads. This is achieved through a number of design features, such as the use of self-lubricating materials and the incorporation of grooves and channels that help to distribute lubricant evenly across the bearing surface. By reducing friction and wear, our thrust washer bearings help to extend the life of mechanical systems, while also improving their overall performance and efficiency.
Another important aspect of our manufacturing process is our commitment to quality control. We employ a rigorous testing and inspection program that ensures that each bearing meets our high standards for precision, durability, and performance. This includes the use of advanced testing equipment, such as coordinate measuring machines and hardness testers, to verify the accuracy and strength of each bearing.
In addition to our focus on quality and precision, we also place a strong emphasis on customer service and support. Our team of experienced engineers and technicians is dedicated to helping our customers select the right thrust washer bearings for their specific needs, and we are always available to answer any questions or concerns that may arise. We also offer a range of customization options, including different materials, sizes, and configurations, to ensure that our bearings are tailored to each customer’s unique requirements.
In conclusion, as a manufacturer of thrust washer bearings, we are committed to delivering the highest quality, most durable bearings possible. By utilizing the latest technologies and processes, and focusing on quality control and customer support, we are able to produce bearings that meet the demanding needs of a wide range of mechanical systems. Whether you are looking for a standard thrust washer bearing or a customized solution, we are here to help.
Thrust washer bearings, also known as thrust washers, are a type of plain bearing that are designed to withstand axial loads. They are commonly used in applications where rotational motion is required, such as in automotive, industrial, and aerospace industries. In this article, we will explore what thrust washer bearings are, how they work, their advantages, and their various applications.
What are Thrust Washer Bearings?
Thrust washer bearings are a type of plain bearing that are designed to handle axial loads. They consist of a flat metal disc that is installed between two surfaces to provide a low-friction, wear-resistant interface. Thrust washers come in a variety of sizes and materials, including bronze, steel, and plastic. They can be used in both low- and high-speed applications.
How do Thrust Washer Bearings Work?
Thrust washer bearings work by providing a low-friction interface between two surfaces that are subjected to axial loads. When axial loads are applied, the thrust washer allows the two surfaces to slide against each other with minimal resistance, reducing wear and preventing damage to the surfaces.
Thrust washer bearings are typically installed in pairs, with one washer on each side of the load-bearing surface. The washers are designed to be preloaded, which means they are compressed between the load-bearing surfaces to ensure proper contact and to prevent any gaps between the surfaces. The preloading also helps to distribute the load evenly across the washers, reducing the risk of localized wear.
Advantages of Thrust Washer Bearings
Thrust washer bearings offer a number of advantages over other types of bearings. One of the main advantages is their ability to handle axial loads. This makes them ideal for applications where axial loads are present, such as in automotive and aerospace industries.
Thrust washer bearings are also very durable and can withstand heavy loads and high speeds. They are low-maintenance and do not require lubrication, which makes them cost-effective and easy to maintain. They are also lightweight and compact, which makes them ideal for applications where space is limited.
Applications of Thrust Washer Bearings
Thrust washer bearings are used in a wide range of applications in various industries, including automotive, aerospace, and industrial. They are commonly used in engines, transmissions, and differentials in vehicles. They are also used in hydraulic and pneumatic systems, as well as in industrial equipment such as pumps, compressors, and gearboxes.
Conclusion
Thrust washer bearings are an essential component in many applications where axial loads are present. They are durable, low-maintenance, and cost-effective, making them a popular choice in a wide range of industries. With their ability to handle heavy loads and high speeds, thrust washer bearings are an important part of many critical systems, from engines and transmissions to industrial equipment and more.

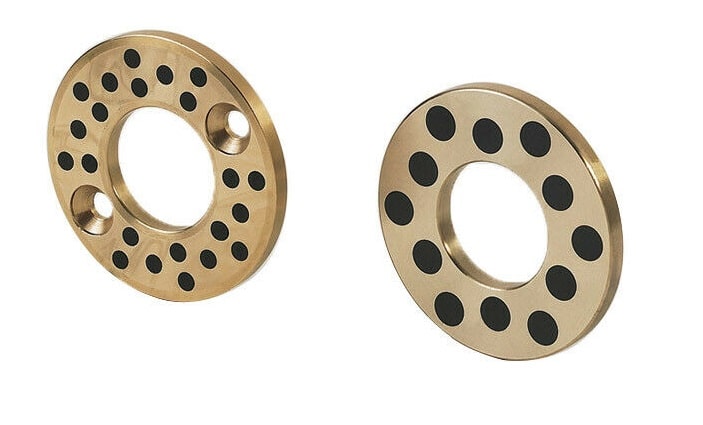

Your Safe & Reliable Bronze Thrust Washer Supplier

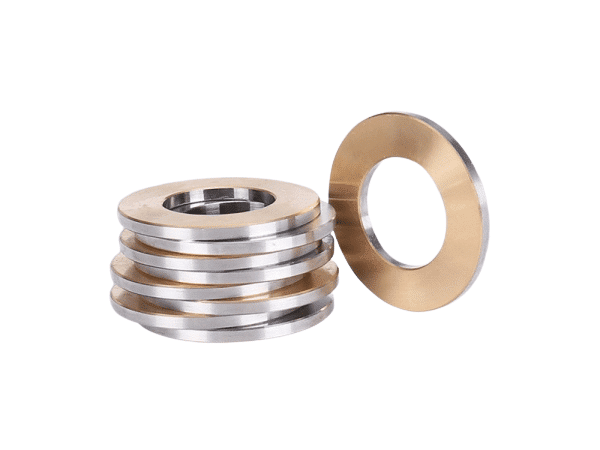

A bronze thrust washer is a type of bearing made from a combination of copper and tin. These bearings are commonly used in industrial applications, such as in pumps, motors, and other rotating machinery, to support axial loads and reduce friction. In this article, we will discuss the characteristics and advantages of bronze thrust washers, as well as their applications and maintenance requirements.
Characteristics of Bronze Thrust Washers
Bronze thrust washers are known for their durability and resistance to wear and tear. They have a low coefficient of friction, which means they can operate at high speeds without generating excessive heat. They are also resistant to corrosion and can withstand high temperatures, making them suitable for use in harsh environments.
Bronze thrust washers can be manufactured in a variety of shapes and sizes to fit different types of machinery. They are available in both metric and imperial sizes and can be custom-made to meet specific requirements. They are typically self-lubricating, meaning they don’t require additional lubrication and can operate smoothly without causing excess friction.
Advantages of Bronze Thrust Washers
One of the main advantages of bronze thrust washers is their ability to handle heavy axial loads. They are designed to support thrust loads, which are perpendicular to the shaft’s axis, and can handle a significant amount of force without degrading or failing. This makes them ideal for use in high-speed applications where high loads are common.
Bronze thrust washers are also cost-effective compared to other types of bearings. They have a long lifespan and can operate without maintenance for extended periods. This reduces the need for frequent replacements, which can save time and money in the long run.
Applications of Bronze Thrust Washers
Bronze thrust washers are used in a variety of applications, including:
- Pumps: Bronze thrust washers are commonly used in centrifugal pumps to support axial loads and reduce friction between moving parts.
- Motors: Bronze thrust washers are used in electric motors to support the rotor’s axial load and reduce wear and tear on the bearings.
- Gearboxes: Bronze thrust washers are used in gearboxes to support the input and output shafts and reduce friction.
- Valves: Bronze thrust washers are used in valves to support the stem and reduce friction between the stem and the valve body.
Maintenance of Bronze Thrust Washers
Bronze thrust washers require little maintenance, but it’s essential to keep them clean and free of debris. Regular cleaning can help prevent the buildup of dirt and other contaminants that can damage the surface of the washer. It’s also important to monitor the temperature of the bearing to ensure it doesn’t overheat, which can cause premature wear and failure.
In conclusion, bronze thrust washers are a durable and cost-effective solution for supporting axial loads and reducing friction in industrial applications. With their resistance to wear and tear, high load-bearing capacity, and ability to operate at high speeds, bronze thrust washers are an excellent choice for machinery that requires high-performance bearings.
Experience of over 10 years of successful projects on creating custom-made bronze thrust washer, C863 bronze thrust washer, C954 aluminum bronze thrust washer, phosphor bronze thrust washer other bronze thrust washer material all over the world. Graphite thrust bearing washer is the standard solution. Choose your self-lubricating slide thrust bearing size. Lead Free Thrust Washers – Lead Free Cast Bronze, Welcome to bronzelube.com
Choose from our selection of bronze thrust washers, including oil-embedded thrust bearing, thrust washer, wear plate, bronze thrust washer metric and more. In stock and ready to ship. The graphite washer uses metal-to-metal contact to compress and control the graphite density and seal. The graphite volume before and after compression is precisely controlled by special structural design and molding process, and the compression and spring back of graphite ring are used to achieve sealing and ensure the minimum creep rate. Under a very small sealing surface pressure (35~ 50MPa), the overall structure can also meet the assembly rigidity. Through the control of metal-to-metal contact, graphite density increases and reaches the sealing state, especially suitable for thermal transient, pressure circulation occasions, its sufficient rebound also ensures the stable sealing performance in long time use.
Thrust Bearings & Thrust Washers Material.
Thrust Washers China Bronze Manufacturing, Lightweight, low noise, oil free. A thrust washer usually made of cast from bronze. Thrust washers are typically used in rotating assemblies to support axial loads and play an important role in keeping the assembly aligned along the shaft. The flat surface of the washer ensures that the load is evenly distributed throughout the component and provides more lubrication than machine bushings. Thrust washers can be found in a wide range of applications, including power output devices, gearboxes, pumps and watercraft props.
| Performance. & Chemical Compositions |
CuZn25Al6FeMn3 High Brass |
CuZn25Al6FeMn3 Special Brass |
CuSn5Pb5Zn5 Tin Bronze |
CuAl10Ni aluminium bronze |
CuSn12 Tin bronze |
Cast Iron HT250 EB00 |
| Cu% | 65 | 65 | 85 | 80 | 88 | |
| Sn% | 5 | 12 | ||||
| Pb% | 5 | |||||
| Zn% | 25 | 25 | 5 | |||
| Ni% | 5 | |||||
| Al% | 6 | 6 | 10 | |||
| Fe% | 5 | |||||
| Mn% | 4 | 4 | ||||
| Dengity g/cm 3 |
8.0 | 8.0 | 8.8 | 8.3 | 8.8 | 7.3 |
| Hardness | >210 | >180 | >70 | >150 | >80 | >160 |
| Tensile Strength | >750 | >550 | >200 | >500 | >360 | >250 |
| Elongation | >12 | >12 | 15 | >10 | >8 | |
| Coeicient of linear expansion |
1.9·10 -5 /℃ | 1.9·10 -5 /℃ | 1.8·10 -5 /℃ | 1.6·10 -5 /℃ | 1.8·10 -5 /℃ | 1.0·10 -5 /℃ |
| Limit Temp. | 300~400 | 300~400 | 400 | 400 | 400 | 400 |
| Max. Load N/mm 2 | 100 | 80 | 60 | 50 | 70 | 10 |
| Max. Speed m/min | 15 | 15 | 10 | 20 | 10 | 15 |
| Max. PV N/mm2·m/min | 200 | 200 | 200 | 200 | 200 | 40 |
| 400N/mm2 | <0.01 | <0.01 | <0.05 | <0.04 | <0.05 | <0.015 |
Friction of coe. Oil 0.03; Dry 0.16
Thrust bearings and thrust washer size
Thrust bearing can only support the axial load in one direction, can be used as a good rigidity and axial space occupied by the smallest bearing configuration, if the surface of the adjacent parts hardened and ground can be used as a raceway, bearing configuration can be extremely compact, such as the adjacent parts are not hardened, it is necessary to use in combination with the thrust washer, the same can obtain a small axial section height.
Thrust washer bearings come in various sizes to accommodate different applications and requirements. The size of a thrust washer bearing is determined by its dimensions, which typically include the inside diameter (ID), outside diameter (OD), and thickness.
The ID refers to the diameter of the bore, or the opening in the center of the bearing where the shaft is inserted. The OD refers to the diameter of the outer ring of the bearing, and the thickness refers to the overall thickness of the bearing.
Thrust washer bearings are available in a wide range of sizes, from small precision bearings used in miniature applications to large bearings used in heavy-duty industrial machinery. The size of a thrust washer bearing is usually specified in metric or imperial units, and the exact size needed for a particular application will depend on factors such as the load, speed, and operating environment.
To select the appropriate size thrust washer bearing for your application, it’s essential to consult with a bearing supplier or manufacturer who can provide guidance and recommendations based on your specific requirements. Factors such as the type of application, load capacity, speed, and operating temperature will all play a role in determining the appropriate bearing size for your needs.

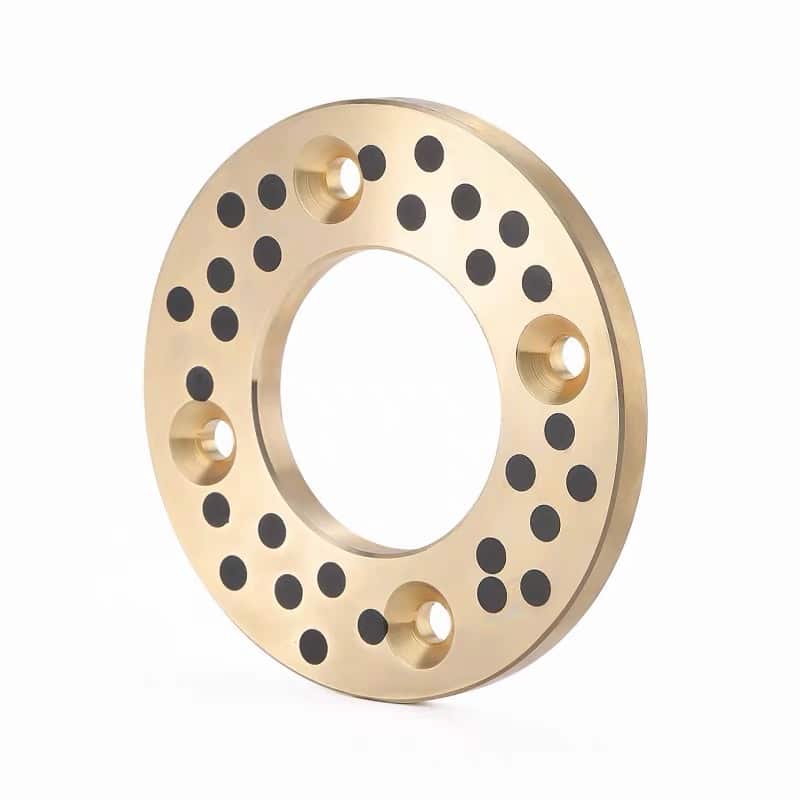

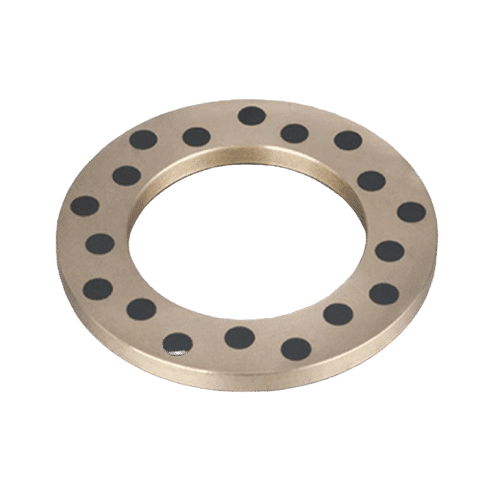

Oilless Washer, self-lubricating
| Base Material: | Special Brass (SO#50SP2) |
| Self-lubricating: | Yes |
| Lubricant: | Graphite |
| Surface Pressure P: | 100 N/mm² |
| Sliding speed v: | 30 m/min |
| P*v-value: | 200 N/mm² x m/min |
| Operating temperature: | -50°C / +200°C (max. 300°C) |
| Friction coefficient: | 0,07 |
Always tested. Always Proven.

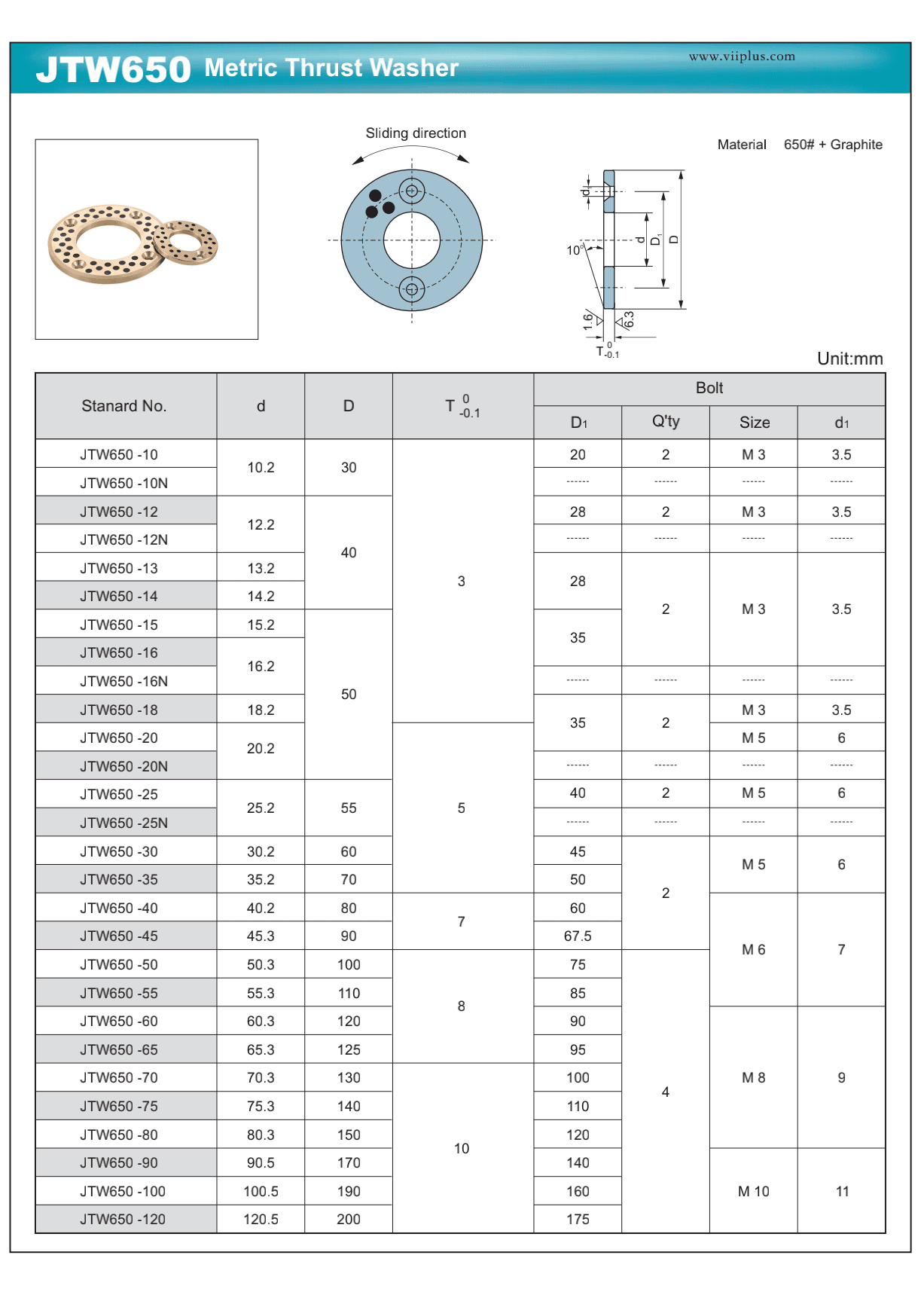

JTW THRUST BEARING WASHER SIZE CHART

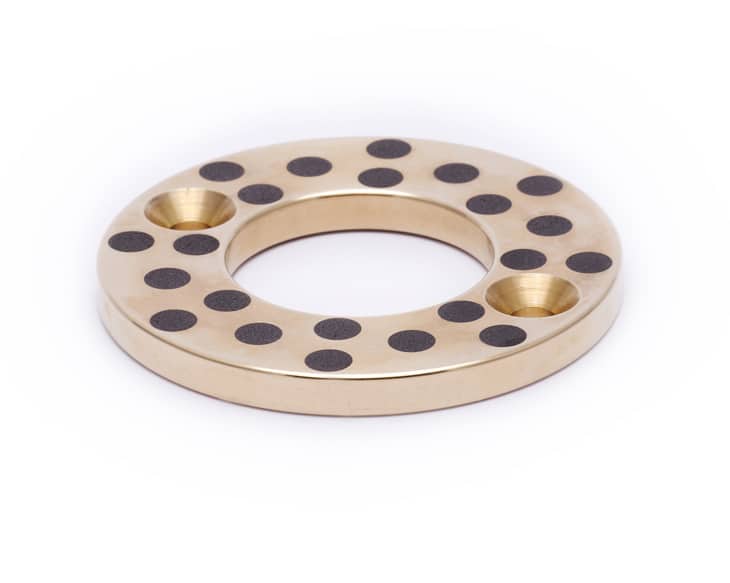

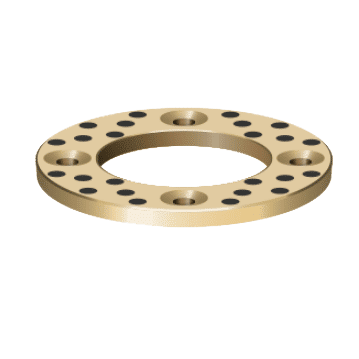

JTW self-lubricating thrust washers
Product Description
Basic Features
JTW self-lubricating thrust washers combine the wear resistance of copper alloy (ZCuZn24Al6) and the self-lubricating properties of solid lubricants, so that they do not require oil maintenance during use. Products are widely used in high-load, intermittent or oscillating motion, such as automobile and locomotive production lines, hydraulic turbines, reservoir work/accident doors, plastic machinery, etc. Various types of copper alloys are available depending on the conditions of use.
|
Stanard No |
d
|
D
|
|
Bolt
|
||||||
|
D1
|
Q’ty
|
size
|
d1
|
|||||||
|
JTW-10
|
10.2
|
30
|
3
|
….
|
…..
|
….
|
….
|
|||
|
JTW-12
|
12.2
|
40
|
3
|
28
|
2
|
M3
|
3.5
|
|||
|
JTW-13
|
13.2
|
40
|
3
|
28
|
2
|
M3
|
3.5
|
|||
|
JTW-14
|
14.2
|
40
|
3
|
28
|
2
|
M3
|
3.5
|
|||
|
JTW-15
|
15.2
|
50
|
3
|
35
|
2
|
M3
|
3.5
|
|||
|
JTW-16
|
16.2
|
50
|
3
|
35
|
2
|
M3
|
3.5
|
|||
|
JTW-16N
|
16.2
|
50
|
3
|
….
|
….
|
….
|
….
|
|||
|
JTW-18
|
18.2
|
50
|
3
|
35
|
2
|
M3
|
3.5
|
|||
|
JTW-20
|
20.2
|
50
|
5
|
35
|
2
|
M5
|
6
|
|||
|
JTW-20N
|
20.2
|
50
|
5
|
….
|
….
|
….
|
….
|
|||
|
JTW-25
|
25.2
|
55
|
5
|
40
|
2
|
M5
|
6
|
|||
|
JTW-25N
|
25.2
|
55
|
5
|
….
|
….
|
….
|
….
|
|||
|
JTW-30
|
30.2
|
60
|
5
|
45
|
2
|
M5
|
6
|
|||
|
JTW-35
|
35.2
|
70
|
5
|
50
|
2
|
M5
|
6
|
|||
|
JTW-40
|
40.2
|
80
|
7
|
60
|
2
|
M6
|
7
|
|||
|
JTW-45
|
45.3
|
90
|
7
|
67.5
|
2
|
M6
|
7
|
|||
|
JTW-50
|
50.3
|
100
|
8
|
75
|
4
|
M6
|
7
|
|||
|
JTW-55
|
55.3
|
110
|
8
|
85
|
4
|
M6
|
7
|
|||
|
JTW-60
|
60.3
|
120
|
8
|
90
|
4
|
M8
|
9
|
|||
|
JTW-65
|
65.3
|
125
|
8
|
95
|
4
|
M8
|
9
|
|||
|
JTW-70
|
70.3
|
130
|
10
|
100
|
4
|
M8
|
9
|
|||
|
JTW-75
|
75.3
|
140
|
10
|
110
|
4
|
M8
|
9
|
|||
|
JTW-80
|
80.3
|
150
|
10
|
120
|
4
|
M8
|
9
|
|||
|
JTW-90
|
90.5
|
170
|
10
|
140
|
4
|
M10
|
11
|
|||
|
JTW-100
|
100.5
|
190
|
10
|
160
|
4
|
M10
|
11
|
|||
|
JTW-120
|
120.5
|
200
|
10
|
175
|
4
|
M10
|
11
|
|||
Thrust Washer Function
The primary function of a thrust washer is to support axial loads and reduce friction in rotating machinery. Thrust washers are used in a variety of applications, including pumps, motors, gearboxes, and valves.
When an axial load is applied to a rotating shaft, it can cause the shaft to move in a direction perpendicular to its axis. This can lead to increased friction and wear on the surfaces of the rotating parts, which can result in premature failure of the machinery. Thrust washers are designed to prevent this by supporting the axial load and reducing the friction between the moving parts.
Thrust washers are typically placed between the rotating shaft and a stationary surface, such as a housing or a bearing race. When the axial load is applied, the thrust washer slides along the surface it contacts, reducing the friction between the two surfaces. This allows the rotating shaft to move smoothly without generating excess heat or wear.
Thrust washers may be designed with a variety of features to optimize their performance in different applications. For example, some thrust washers are made from self-lubricating materials, while others may have grooves or other features to improve their ability to distribute oil or other lubricants. Thrust washers may also be made from materials with specific properties, such as bronze or nylon, to provide the desired level of wear resistance and load capacity.
In summary, the function of a thrust washer is to support axial loads and reduce friction in rotating machinery. By doing so, thrust washers help to ensure the smooth and efficient operation of industrial equipment and can help to prevent premature wear and failure.
Oilless Washer Size Chart
Washer, self-lubricating with mounting holes,
| Oilless Washer, self-lubricating | Shaft diameter | Inner diameter d | Outer diameter D | D1 | l | r | M (ISO 10642) |
| Washer, self-lubricating10 | 10 | 10,2 | 30 | 20 | 3 | 0,5 | 2xM3 |
| Washer, self-lubricating12 | 12 | 12,2 | 40 | 28 | 3 | 0,5 | 2xM3 |
| Washer, self-lubricating13 | 13 | 13,2 | 40 | 28 | 3 | 0,5 | 2xM3 |
| Washer, self-lubricating14 | 14 | 14,2 | 40 | 28 | 3 | 0,5 | 2xM3 |
| Washer, self-lubricating15 | 15 | 15,2 | 50 | 35 | 3 | 1 | 2xM3 |
| Washer, self-lubricating16 | 16 | 16,2 | 50 | 35 | 3 | 1 | 2xM3 |
| Washer, self-lubricating18 | 18 | 18,2 | 50 | 35 | 3 | 1 | 2xM3 |
| Washer, self-lubricating20 | 20 | 20,2 | 50 | 35 | 5 | 1 | 2xM5 |
| Washer, self-lubricating25 | 25 | 25,2 | 55 | 40 | 5 | 1 | 2xM5 |
| Washer, self-lubricating30 | 30 | 30,2 | 60 | 45 | 5 | 1 | 2xM5 |
| Washer, self-lubricating35 | 35 | 35,2 | 70 | 50 | 5 | 1 | 2xM5 |
| Washer, self-lubricating40 | 40 | 40,2 | 80 | 60 | 7 | 2 | 2xM6 |
| Washer, self-lubricating45 | 45 | 45,3 | 90 | 67,5 | 7 | 2 | 2xM6 |
| Washer, self-lubricating50 | 50 | 50,3 | 100 | 75 | 8 | 2 | 4xM6 |
| Washer, self-lubricating55 | 55 | 55,3 | 110 | 85 | 8 | 2 | 4xM6 |
| Washer, self-lubricating60 | 60 | 60,3 | 120 | 90 | 8 | 2 | 4xM8 |
| Washer, self-lubricating65 | 65 | 65,3 | 125 | 95 | 8 | 2 | 4xM8 |
| Washer, self-lubricating70 | 70 | 70,3 | 130 | 100 | 10 | 2 | 4xM8 |
| Washer, self-lubricating75 | 75 | 75,3 | 140 | 110 | 10 | 2 | 4xM8 |
| Washer, self-lubricating80 | 80 | 80,3 | 150 | 120 | 10 | 2 | 4xM8 |
| Washer, self-lubricating90 | 90 | 90,5 | 170 | 140 | 10 | 2 | 4xM10 |
| Washer, self-lubricating100 | 100 | 100,5 | 190 | 160 | 10 | 2 | 4xM10 |
| Washer, self-lubricating120 | 120 | 120,5 | 200 | 175 | 10 | 2 | 4xM10 |

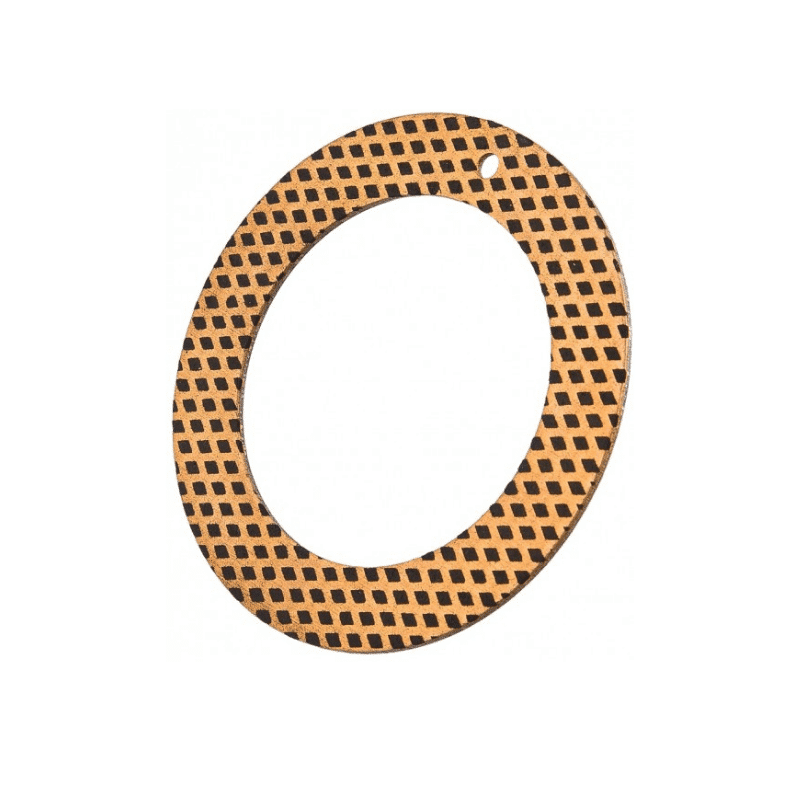

Bronze Thrust Washer, self-lubricating
Thrust washers are flat washers located between a rotating surface and a stationary component and support the axial load or side to side motion on a shaft.
thrust washers
Dry Composite Thrust Washers are designed for applications where axial space is limited, maintenance is not possible and lubricant shortage may occur.
In addition to composite bearings and strips, we manufacture composite thrust washers as standard from PTFE and POM composite materials.
Thrust Bearings and Washers
| Base Material: | Special Brass (Bronze Thrust Washer) |
| Self-lubricating: | Yes |
| Lubricant: | Graphite |
| Surface Pressure P: | 100 N/mm² |
| Sliding speed v: | 30 m/min |
| P*v-value: | 200 N/mm² x m/min |
| Operating temperature: | -50°C / +200°C (max. 300°C) |
| Friction coefficient: | 0,07 |
Thrust Washer vs Thrust Bearing
Thrust washers and thrust bearings are both types of components used to support axial loads in rotating machinery. However, there are some important differences between the two.
Thrust washers are flat, ring-shaped components made from materials such as bronze or nylon. They are designed to support axial loads and reduce friction between moving parts, but they do not have any rolling elements. Instead, they rely on a sliding motion between the washer and the surface it contacts to enable smooth rotation. Thrust washers are typically used in applications where the axial load is relatively low or where space is limited.
Thrust bearings, on the other hand, are designed to support axial loads using rolling elements such as balls or rollers. This design allows thrust bearings to support higher axial loads than thrust washers, making them suitable for heavy-duty applications. There are several types of thrust bearings, including ball thrust bearings, roller thrust bearings, and tapered roller thrust bearings. Each type has unique design features that allow them to handle different types of loads and speeds.
In summary, thrust washers are flat, ring-shaped components that rely on sliding motion to support axial loads, while thrust bearings use rolling elements to support higher axial loads. The choice between a thrust washer and a thrust bearing will depend on the specific requirements of the application, including the type of load, speed, and available space.
Thrust Bearing Washer Cost， Thrust Washer Bearings Manufacturer – For wholesale
As well as for composite bushings and strips, We manufactures composite thrust washers as standard from PTFE and POM composite materials. Product details.
The cost of a thrust bearing can vary widely depending on several factors such as the type of bearing, size, material, manufacturer, and the quantity purchased. Generally speaking, the cost of a thrust bearing can range from a few dollars to several hundred or even thousands of dollars.
The simplest and most affordable type of thrust bearing is the flat washers or thrust washers made of low-cost materials such as bronze or nylon. These types of bearings can cost as little as a few dollars per piece.
More advanced types of thrust bearings, such as ball thrust bearings or roller thrust bearings, can handle higher axial loads and are generally more expensive. These bearings have a more complex design and require precision manufacturing, which can add to their cost. However, they are also more efficient and can offer longer service life, making them a cost-effective solution in many high-load applications.
The cost of a thrust bearing can also vary depending on the manufacturer or supplier. Bearings from reputable and established manufacturers are generally more expensive than those from lesser-known brands or generic suppliers. However, they often come with higher quality standards and warranty or support, which can make them a more reliable and cost-effective option in the long run.
Overall, the cost of a thrust bearing depends on several factors, and it is essential to consider the specific requirements of the application, as well as the total cost of ownership over the bearing’s expected service life.
Find your thrust washer bearing parts.
Thrust bearings are a special type of rotary bearing. Like other bearings, they rotate permanently between parts, but they are designed to support primarily axial loads. There are several varieties of thrust bearings. Custom designed completed reliably from production to delivery. Bronze Thrust Washer Service.
Huge thrust washer selection
Our self-lubricating thrust washers are made from premium carbon steel, ensuring durability and longevity. We offer a wide selection of metric sizes to meet your needs.Designed for high wear applications!
Thrust Bearings Manufacturing
Looking for reliable, long-lasting thrust washers? Our self-lubricating options are the perfect solution. Our competitive pricing and quality guarantee make us the top choice for businesses worldwide. Bronze Thrust Bearings & Thrust Washers. thin, flat, washer shaped component
Beautifully crafted leather products.
Bronze Thrust Bearing, self – lubricated bearing technology
Bronze Thrust Bearing-Washer Brass, Bronze,Metal – to – metal copper sleeve high performance graphite self – lubricating bearing technology. Choose from our selection of thrust washers, including graphite embedded thrust bearings, dry-running PTFE thrust bearings, and more. In stock and ready to ship. Your reliable source for Bronze Washer. CuSn6, CuSn8, CuSn8P. Good Service. Expert Advice. Fair Prices. Providing Good Service. With a large number of high performance graphite gasket self-lubricating bearing technology as an example, it is made of selected graphite specially processed. Graphite washer is graphite with high force brass arranged in order. The graphite volume before and after compression is precisely controlled by special structural design and molding process, and the overall structure can also meet the assembly rigidity.
Bearing damage and failure analysis
Fast, Reliable Service with Highest Quality Industry Standards. Buy Wholesale Bronze Thrust Bearings & Washer at Good Prices! Flexible Shipping Options. Customer Support. China Bronze Washer Supplier. Highlights: Customer Service Available, Quick Ordering Option Available. The self-lubricating thrust washer combines the wear resistance of copper alloy (ZCuZn24Al6) with the self-lubricating performance of solid lubricant, so that it does not need to be refueled during service. The products are widely used in high load, intermittent or swing motion, such as steam engine production line, water turbine, reservoir work/accident gate, plastic machinery, etc. Various types of copper alloys can be supplied according to the working conditions used. Bearing Washer. Find Bearing Washer Supplier, We Can Often Offer A Better Price. Contact Us To Get A Quote. Learn More Self-Lubricating Thrust Washer, High Performance Graphite Washer.
Bronze Thrust Washer & Plate
Bronze Thrust Washer Bearing With Graphite Plugs by Bronzelube.com
Thrust bearings have been developed for high load, low speed applications and are made of rotational cast high-strength bronze using a specially formed graphite plug as lubricant.Metal self – lubricating bearings metal – to – metal contact. Taking high performance graphite gasket technology as an example, it uses the choice of flexible graphite copper gasket. When the seal is tightened, the gasket contacts (also known as metal to metal contact), and the sealing effect comes from the final compaction of the seal. Metal-to-metal contact enables a rigid mechanical contact independent of the graphite seal, thereby breaking through the limitations of general mechanical assembly and protecting the seal ring. The elastic recovery capability of the graphite seal will be fully utilized for sealing, and this sealing mechanism also enables the sealing ring to be protected in case of over-tightening. In extreme pressure and temperature applications, this design also prevents failure of the graphite section of the gasket (the sealing section) under transient excessive loads.
Top quality, High Quality Thrust Bearings
The promise of bronze thrust washer high quality, meet your requirement.
Bronze Thrust Washer Order
Small minimum order value & quantity, fast delivery.
Thrust washers – maintenance-free, made of self-lubricating metallic
Finishing Parts Main Base Alloy, Thrust washers, also referred to as thrust bearings or thrust plates, are flat, disk-shaped bearings made of metal-polymer or bronze graphite material. Choose from our selection of PTFE and self-lubricating washers in a wide range of styles and sizes. In stock and ready to ship. Ready to growth your business? Learn more!
Oil Free Parts Selection
Thrust washer bearings by bronzelube.com
Oil Free Plain Bearing Washer
Lubrication-Free Copper Alloy – Graphite, Custom Made Thrust Bearings
Bronze Bearings Wholesale: Thrust washer bearings are made from self-lubricating graphite materials that promote maintenance-free, dry operation for a wide range of applications and … Thrust washer bearings by bronzelube.com, thrust bearing sale online.Non-standard thrust bearing OEM Company, for high quality thrust bearing within very short delivery times. produces bronze plates, bronze washer, thrust washers, thrust bearing in a range of forms and shapes from graphite bushes.
Provide Best Bronze Thrust Washer Solution To Meet Your Request !
Customized washer size, custom bronze thrust washer service. Bronze Wear Plate Online sales, Washers – Configure and purchase, Flat Bronze Washers (copper alloy), Lubrication-free washers are washers that don’t require lubricating oil. They are also called oil-less washers. Always tested. Always proven. Global website www.bronzelube.com, Oil Free Washers and other configurable components ➤ Order from the china online shop ✓ Fast delivery ✓ Fair prices ✓ Free CAD data ✓ Large washer size product … Oil Free Thrust Washer, Material. High Tensile Brass Alloy.
Self-Lubricating Thrust Bearings Manufacturing
Customized washer size, Self-Lubricating Thrust Washers, Carbon Steel, Metric Size, PTFE composite thrust washers are self-lubricating as well as maintenance-free and provide a long service life due to low friction. PTFE Material washer. Self-lubricated dry sliding bearings. thrust washers from china are lubrication-free and need no maintenance, even in dirty or dusty environments. Finding the right thrust washer can be a challenge, but our extensive selection of self-lubricating options makes it easy. Our team of experts is here to help you find the perfect product for your specific needs.
Shop thrust washer oilless
Plain Bearings & Thrust Washers
Shop for all your Thrust Washers and Plain Bearings & Thrust Washers needs! Thrust Bearings & Washers – Customized Design! A thrust bearing is a type of rotary bearing, designed for low speed and high thrust applications. Oil-free Bronze Thrust Bearing Washer Suppliers!
Graphite Plug Oilless Solid Lubricant Thrust Washers, Bronze Washer
Bronze thrust washer widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines, etc..
Save Cost For Your Bronze Thrust Washer Order.
Bronze Thrust Washer With Graphite, Bronze thrust washers are available in metric and imperial sizes.
Structures
- Solid lubricant film
- Solid lubricant plug
- Bronze backing
Bronzelube.com service can produce non-standard sizes to suit specific customer requirements. Our enterprise, is one of the undisputed supplier of the highly competitive bulk order bronze thrust washer industry in china.
Bronze Washer, Thrust Washers
More Guide Bushes & bronze thrust washer products from china! Composite dry sliding thrust washers are designed for applications where axial space is limited, maintenance is not possible and where lubricant starvation can occur. Maintenance-free, Made of steel-backed- PTFE/POM. Best Bronze Thrust Washer Solution, Custom-made Bronze Thrust Bearings, Professional Bronze Thrust Washer Supplier
At our company, we pride ourselves on offering thrust washers that exceed expectations. With unbeatable prices, fast shipping, and exceptional customer service, we’re your go-to source for self-lubricating thrust washers.
