Find a plastic bushing for your application, Plastic bushings to replace oil-impregnated sintered bronze bearings.

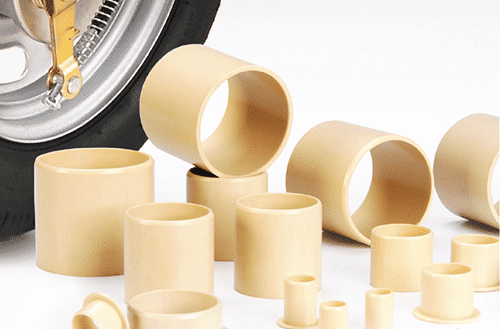

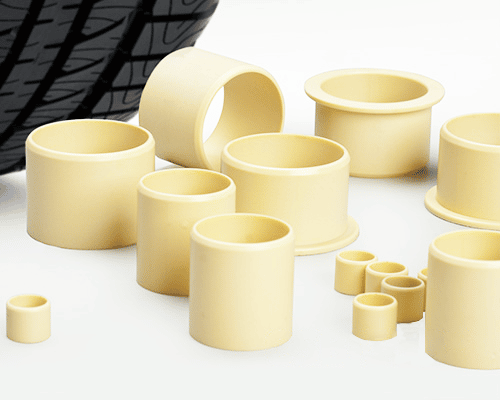

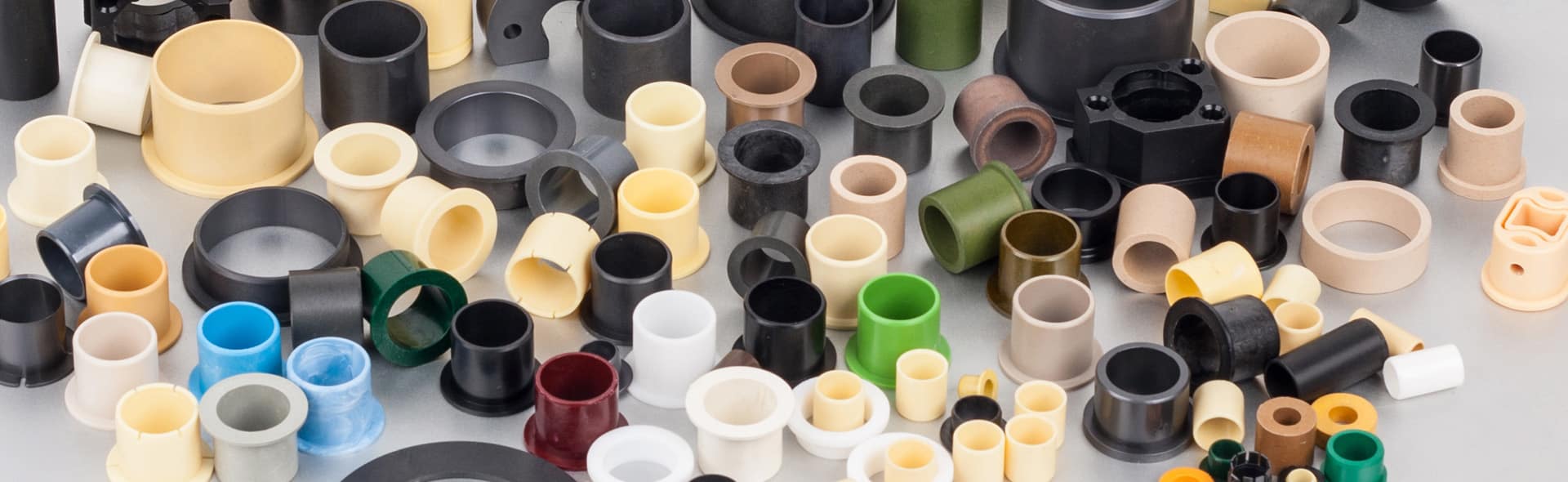

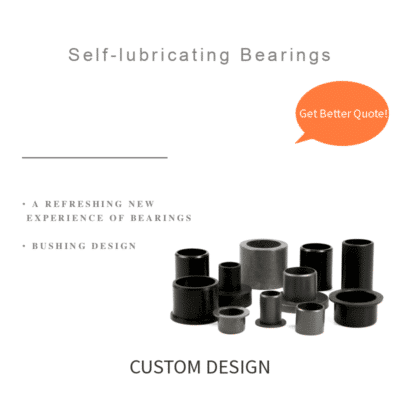

Plastic sleeve bushings, sleeve bearing with flange, mm
Self-lubricating plastics
Sleeve Bearings Made From Plastic, made to order from china.
Select your bushing size, Cost-effective Price.
Plastic plain bearings use high performance plastics as a raw material, and also fill high-strength fibers and special solid lubricants with polymer compound technology to improve the wear resistance of composite materials.
In the automotive industry with high durability requirements, high speed applications, underwater applications, high temperature and anti-corrosive applications, or in the food industry with FDA requirements, VIIPLUS can always provide different solutions for customers.

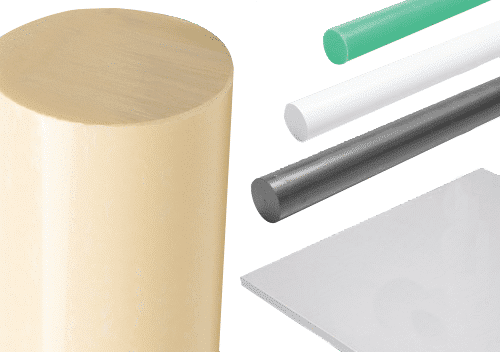

Plastic Sleeve Bushings Material and Color
Plastic sleeve bearings from bronzelube.com. Selection according to shaft diameter, bearing width or outer diameter. Online shop with large selection plastic sleeve bushings material.
Reliable & safe – producer and supplier Plastic Sleeve Bushings for all branches of industry.
Widely-applicable materials
| Common Capability | Unit | EPT | EPG | EPH | EPX | EPJ | EPS |
| Density | g/cm³ | 1.46 | 1.46 | 1.65 | 1.49 | 1.24 | |
| Color | Black gray | Dark grey | Grey | Black | Yellow | Beige | |
| Max.water absorption,23℃/ 50% | [% weight] | 0.2 | 0.7 | 0.1 | 0.3 | 2.02 | |
| Max.water absorption | [% weight] | ＜1.2 | ＜4 | ＜0.3 | ＜0.5 | ＜1.3 | ＜0.1 |
| Dynamic friction /steel | μ | 0.05-0.15 | 0.08-0.18 | 0.07-0.20 | 0.09-0.27 | 0.06-0.18 | 0.05-0.15 |
| Max.PV（dry） | MPa•m/s | 0.4 | 0.5 | 1.37 | 1.32 | 0.34 | 0.4 |
| Mechanical behavior | |||||||
| E-module | MPa | 2,300 | 7,800 | 12,500 | 8,100 | 2,400 | 830 |
| Tensile strength,20℃ | MPa | 80 | 200 | 175 | 170 | 73 | 18 |
| Compressive strength | MPa | 65 | 80 | 90 | 150 | 35 | 10 |
| Max.static pressure of the surface,20℃ | MPa | 35 | 80 | 150 | 90 | 20 | 10 |
| Shore D hardness | 70 | 112 | 87 | 85 | 74 | 73 | |
| Physical and thermal properties | |||||||
| Continuous work tempreature | ℃ | +80 | +130 | +200 | +250 | +90 | +260 |
| short-time work tempreature | ℃ | +120 | +220 | +240 | +315 | +120 | +310 |
| Minimum operating temperature | ℃ | -40 | -40 | -40 | -100 | -50 | -200 |
| Thermal conductivity | W/m•K | 0.2 | 0.25 | 0.60 | 0.60 | 0.25 | 0.24 |
| Max.water absorption,23℃ | K-1•10-5 | 7 | 9 | 4 | 5 | 10 | 12 |
| Conductivity | |||||||
| Volume resisticity | Ωcm | ＞1012 | ＞1013 | ＜104 | ＜105 | ＞1013 | ＞1015 |
| Surface resisticity | Ω | ＞1015 | ＞1011 | ＜105 | ＜103 | ＞1012 | ＞1015 |
Get your free quote!
PLASTIC SLEEVE BUSHING TOLERANCE
Plain Bearing Installation
The Plastic Sleeve Bushing Tolerance
| d mm² | Tolerance after fit E10 | Fit Housing H7 | Fit Shaft h9 |
| ＞0~3 | +0.014~+0.054 | 0~+0.010 | 0~-0.025 |
| ＞3~6 | +0.020~+0.068 | 0~+0.012 | 0~-0.030 |
| ＞6~10 | +0.025~+0.083 | 0~+0.015 | 0~-0.036 |
| ＞10~18 | +0.032~+0.102 | 0~+0.018 | 0~-0.043 |
| ＞18~30 | +0.040~+0.124 | 0~+0.021 | 0~-0.052 |
| ＞30~50 | +0.050~+0.150 | 0~+0.025 | 0~-0.062 |
| ＞50~80 | +0.060~+0.180 | 0~+0.030 | 0~-0.074 |
| ＞80~120 | +0.072~+0.212 | 0~+0.035 | 0~-0.087 |
| ＞120~180 | +0.085~+0.245 | 0~+0.040 | 0~-0.100 |

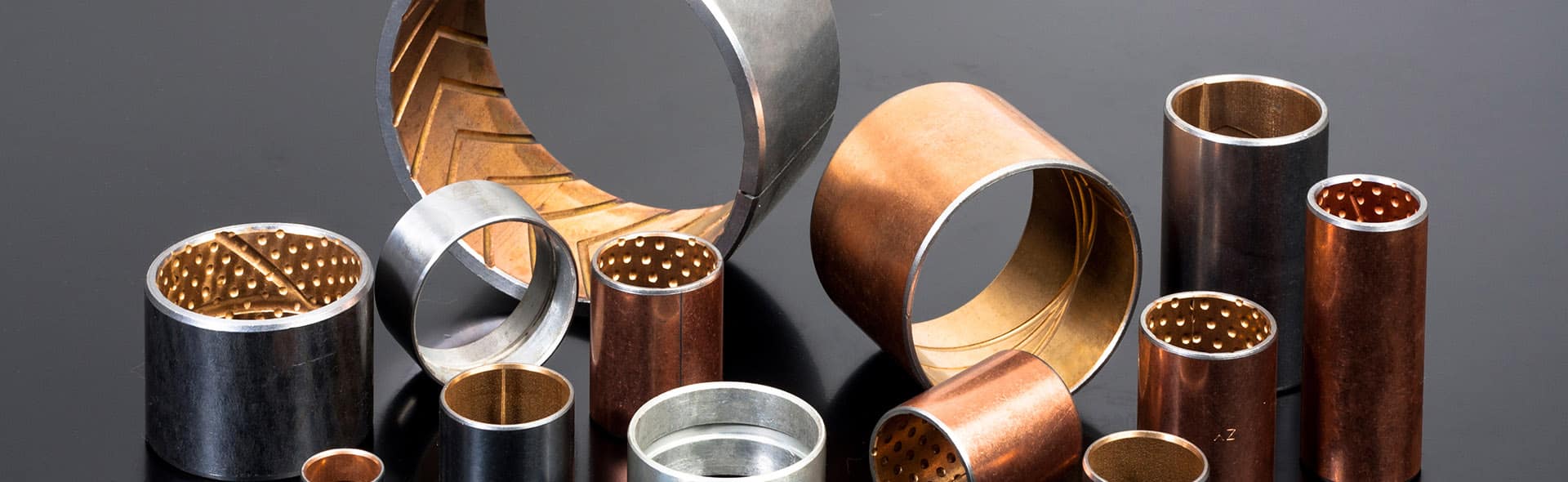

Plastic Sleeve Bushings Series vs Metal Bearings
Change your bushings today!

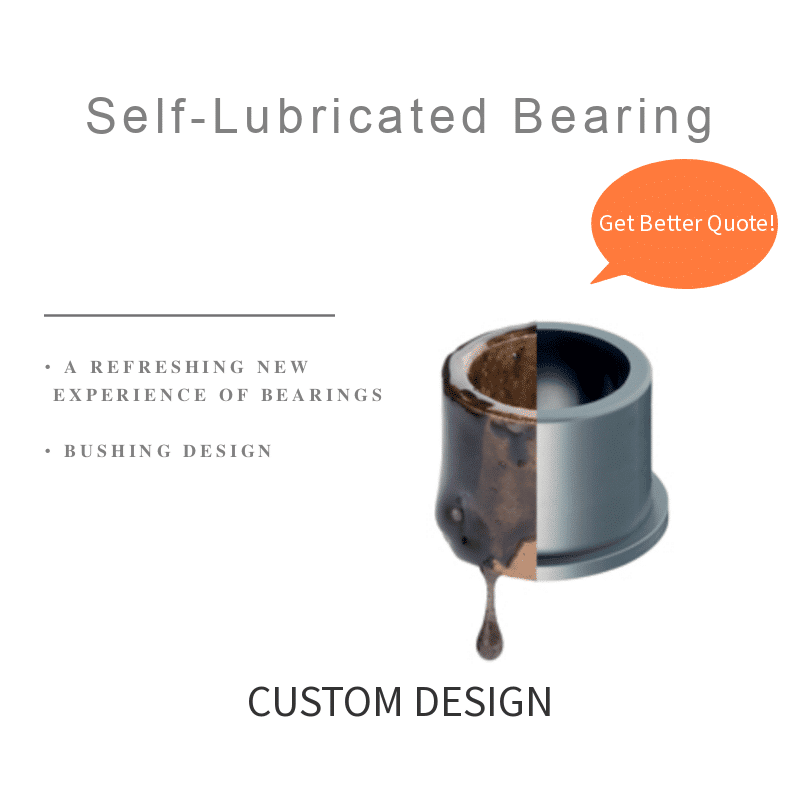

self-lubricating plastic bushings are proven to deliver a longer service life than oil-impregnated sintered bronze bearings.
Because the grease immersed in the solid plastic material, the lubricating will be valid continuously no matter how long the bearings are working. Therefore, the traditional sintered oilless bearings provide the lubricating function by utilizing the impregnated oil in the tiny porosities of the material. When the impregnated oil would have been run out of dried, the bearing wear will be increased sharply and the bearing life will be terminated at the same time.

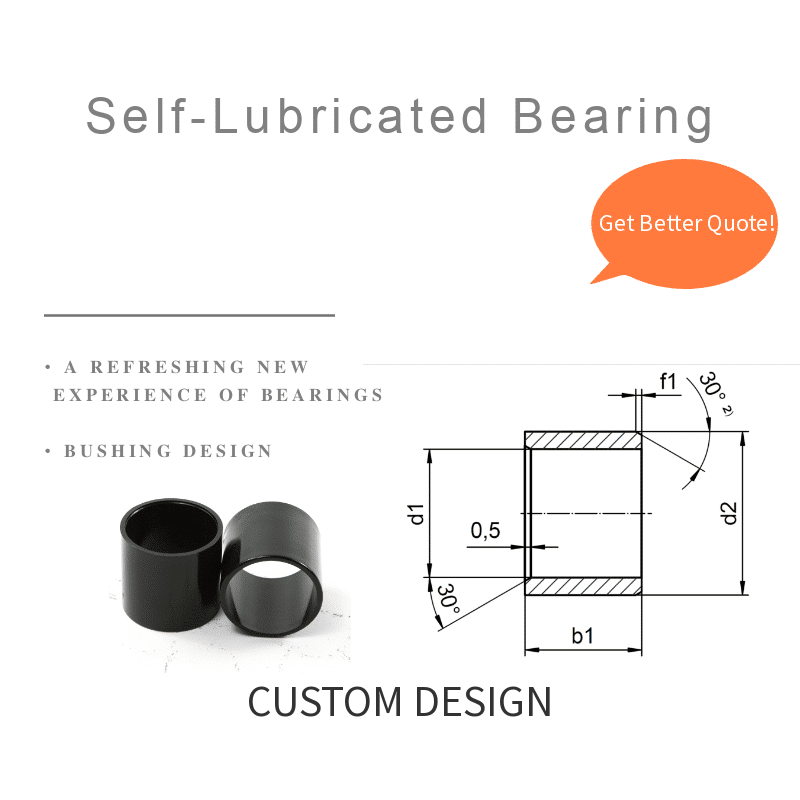

Plastic Sleeve Bushings Metric Size made to order from china at Excellent price
Part no.
Ø d1 [mm]Outer diameter d2 [mm]
Flange diameter d3 [mm]
Bearing length b1 [mm]
Flange thickness b2 [mm]

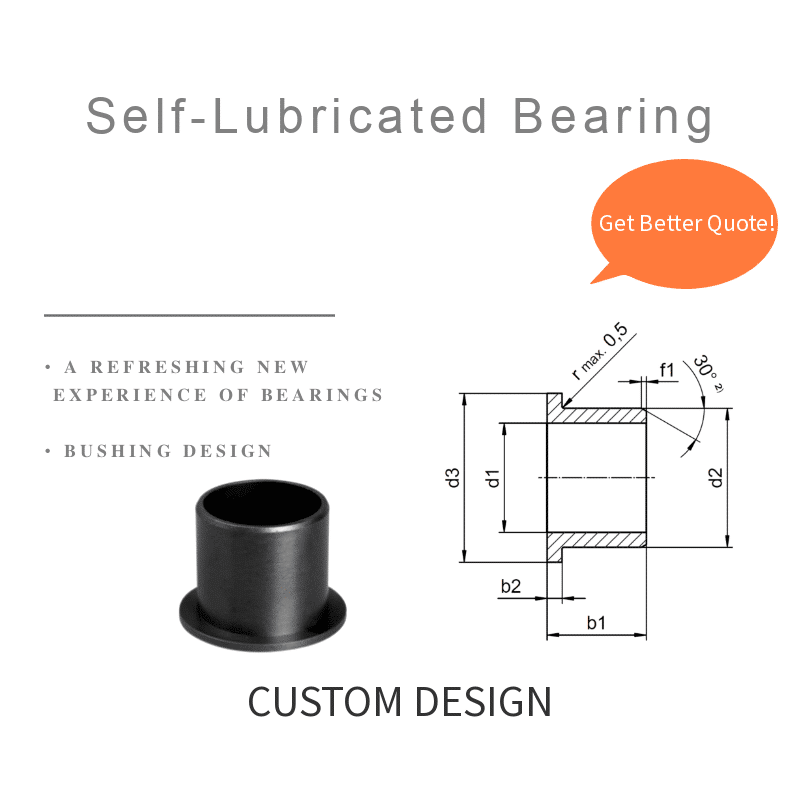

Flange Sleeve Bushing Type Made to Order from china at Excellent price

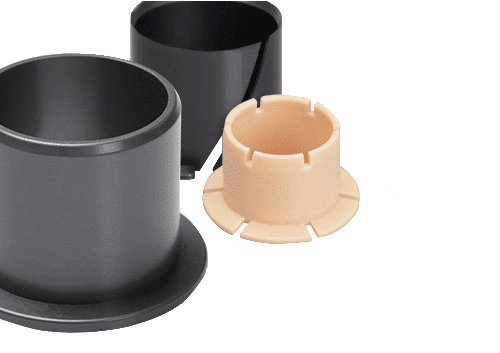

sleeve bearing with flange, mm
Part no.
Ø d1 [mm]Outer diameter d2 [mm]
Flange diameter d3 [mm]
Bearing length b1 [mm]
Flange thickness b2 [mm]
Plastic Sleeve Bushing Application
Agriculture
Automotive
Aviation
Boats and yachts
Beverage production & packaging
Bicycles
Building material manufacturing
Bulk Material Handling
Camera and film technology
Car wash systems
Composting plants
Construction Machinery
Energy
Fitness/ physical therapy equipment
Food production and packaging
Furniture/ industrial design
Heavy machinery/ plant construction
Indoor and EOT Cranes
Infrastructure
Forklifts
Locks & dock facilities
Machine tools
Material handling
Medical technology
Mining
Motorcycles & scooters
Oil and Gas
Offshore
Packaging
Plastic machines
Port and Terminal Cranes
Printers
Prostheses
Railway technology
Service robotics
Shipbuilding
Shore power
Solar technology
Steel mills
Textiles
Theatre / Stage construction
Truck & Trailer
Vending machines
Vertical farming
Wind power stations
Woodworking
3D printers
Industry solutions
plastic sleeve bushings replacement for bronzelube.com
Buy Self-lubricating Plastic bearings online bronzelube.com
Designed to be self-lubricating, wear-resistant, and maintenance-free, buy plastic sleeve plain bearings directly from china at Excellent price today!
Selecting your plastic sleeve bushing size!
