Self-lubricating Bushings, thrust washers & strips

Take Your Market Intelligence to The Next Level, Metric bearings and imperial bushings made to order from china.

PTFE composite bushings Bushing Types

PTFE composite bushings forms available in standard dimensions

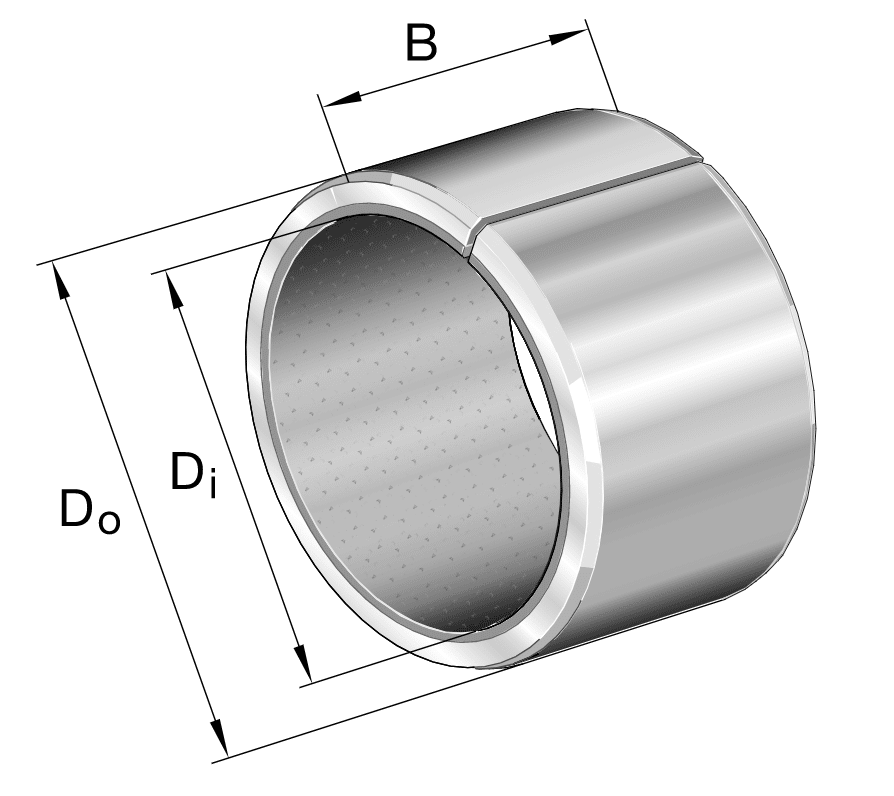

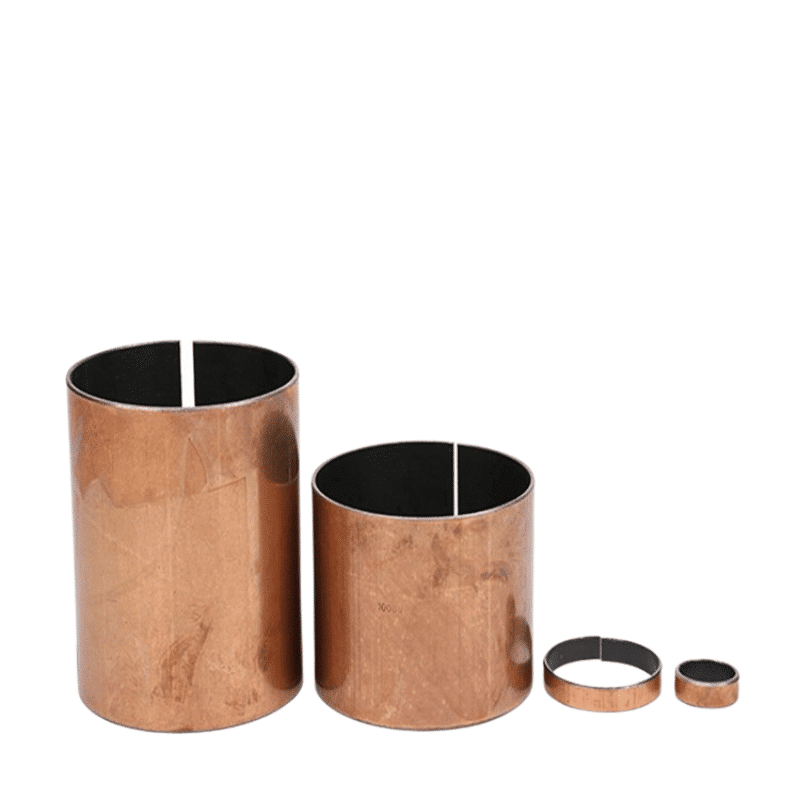

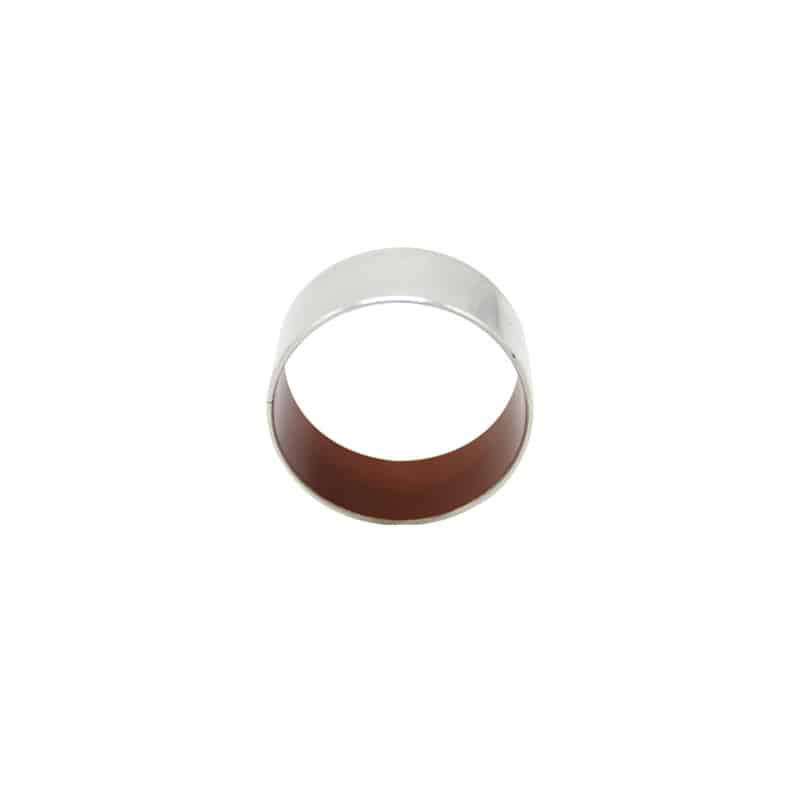

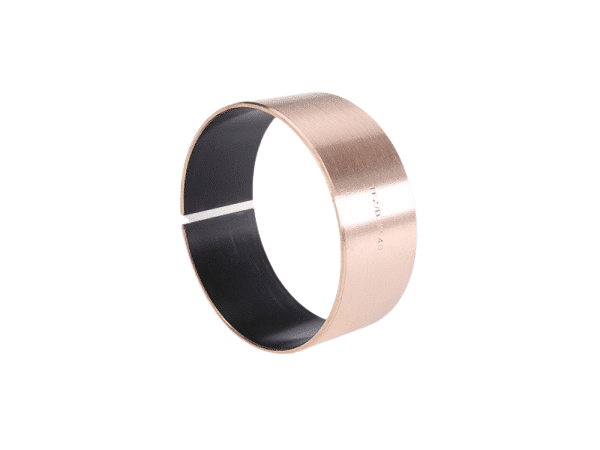

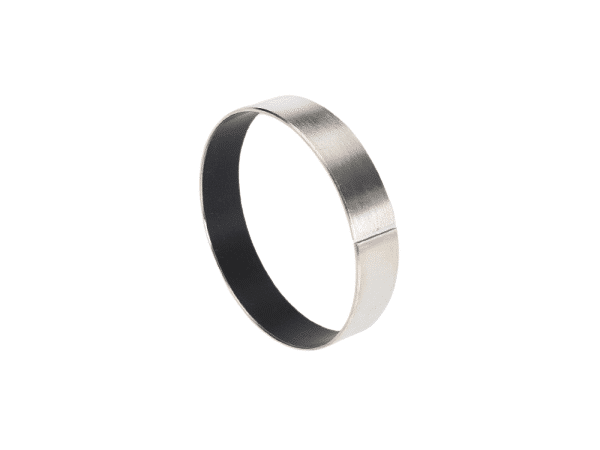

Cylindrical Bushes

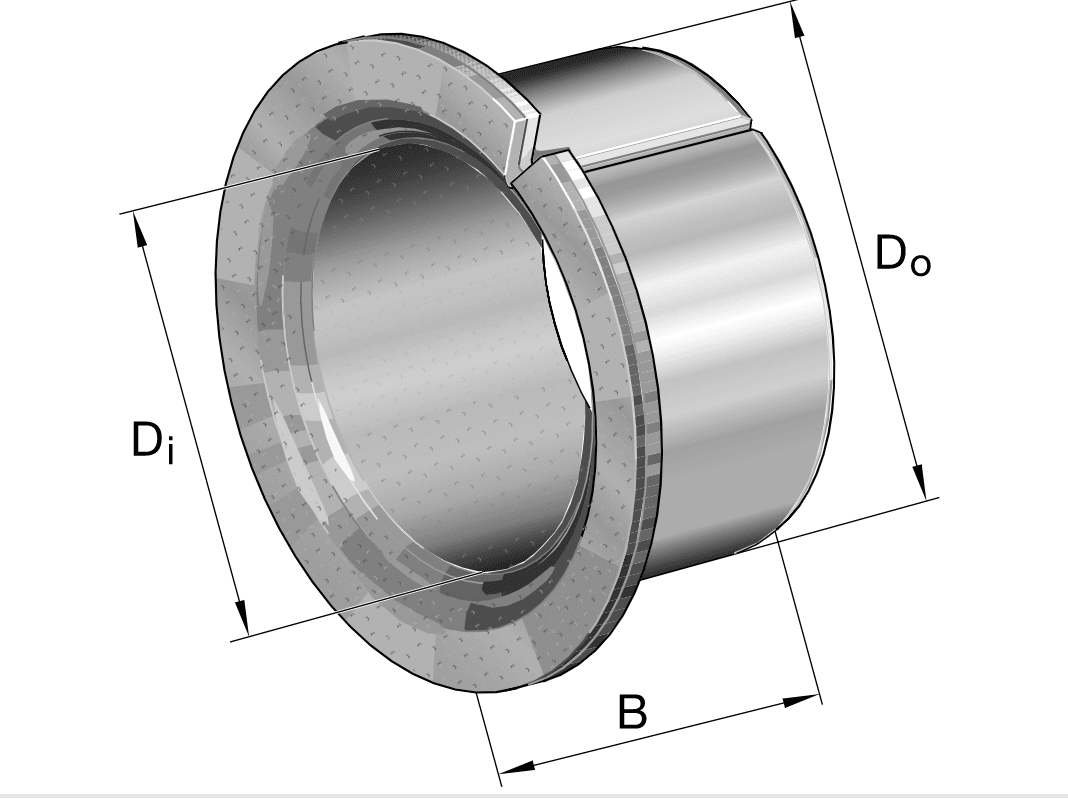

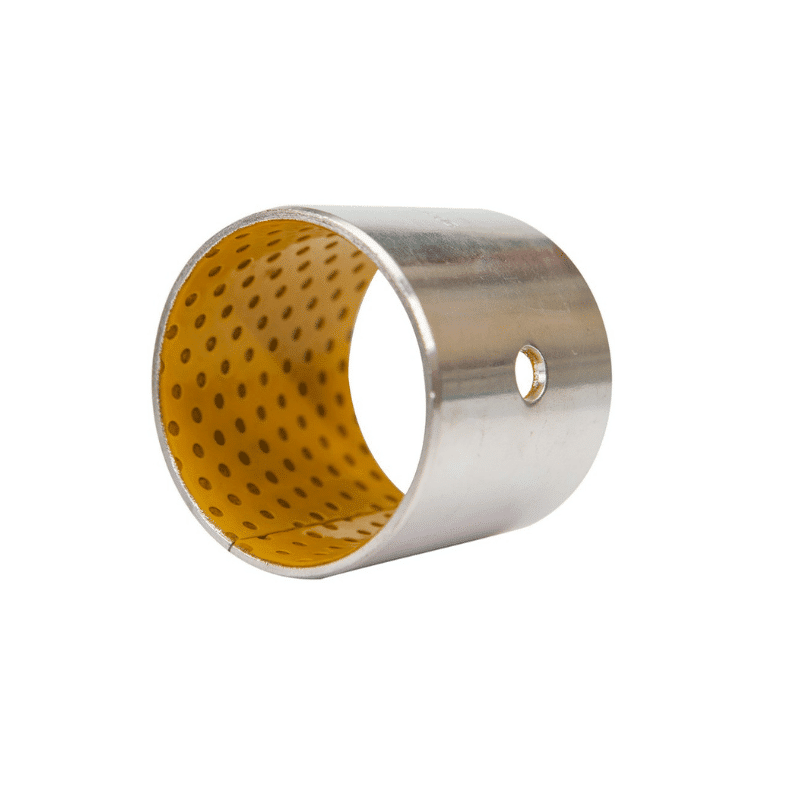

Flanged Bushes

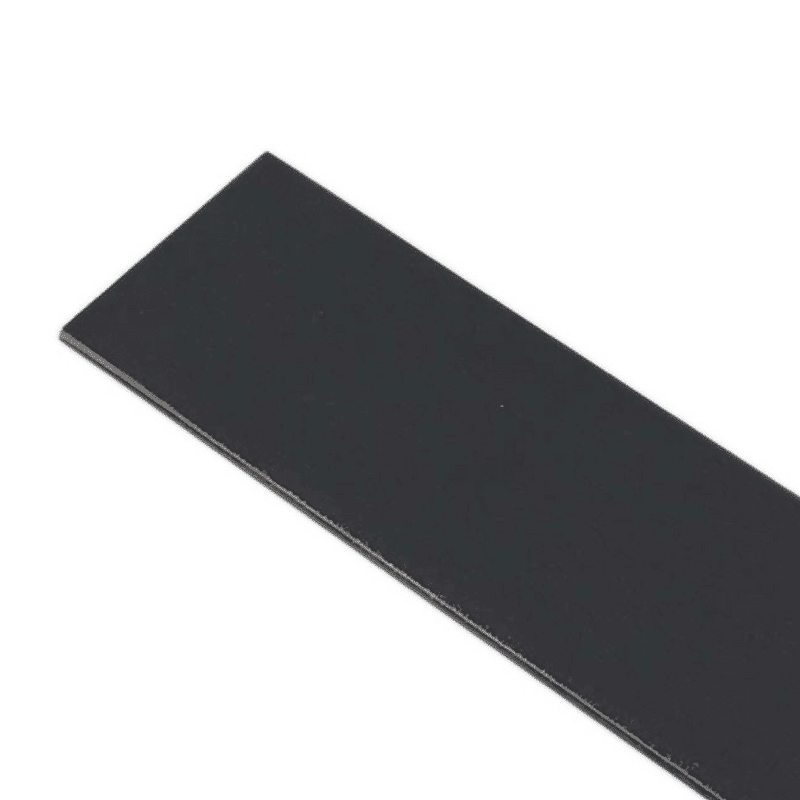

Sliding Plates

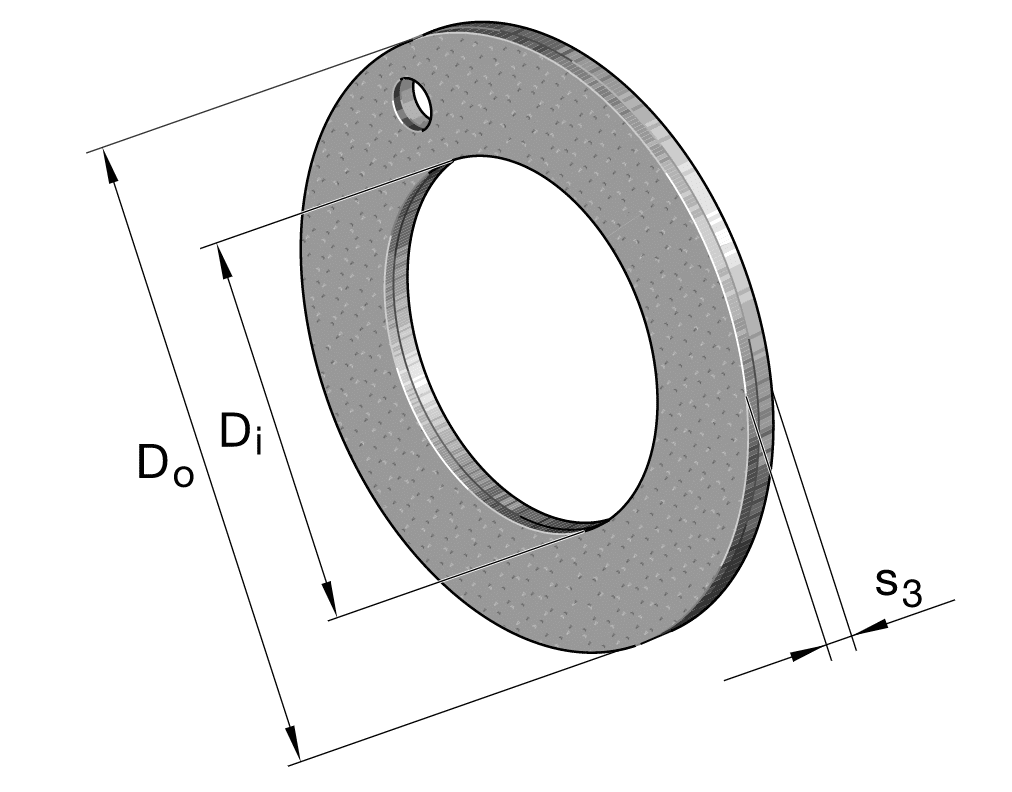

Thrust Washer– stamped/deep drawn shapes
Flanged washers – customized designs

Description of the composite bushings
The oil-free lubrication bearing is based on a steel plate. It has the properties of a low coefficient of friction, good wear resistance, good corrosion resistance and oil-free lubrication. Using this product can reduce costs. Products have been widely used in sliding parts of various machines such as printing machines, textile machines, tobacco machines, fitness equipment, etc.

Ask a Quote Today

Material For Quick Learning

STRUCTURE & COMPOSITION

  • Metal-Polymer Composite Bushing Material
  • Steel backed + Porous  Bronze Sinter
  • PTFE + Fillers

Tri-layer  bushing have a base of lower carbon steel backed bushings, onto which a porous bronze layer is sintered. PTFE mixtures are impregnated into the  of this bronze layer after rolling process completed. It has good physical & mechanical properties, also has certainly chemical properties. It is suitable for rotary, oscillating movement with performance of self-lubricating. Anti-wear, lower noise.

Structure

After rolling process completed, PTFE mixtures are filled in intersice of bronze layer. Under normal operation, Part of PTFE mixture on top layer will be removed and transferred on the mating surface, forms a physically lubricating film, which will reduced the firction coe. and protect the mating shaft.
2 Porous Bronze layer;
The layer provides bonded strength of Self-Lub. Layer.
3 Steel Backing
The layer provides load & thermal conductivity
4 Copper / Tin layer Material

Material Chemical Characteristic

TypeWaterSea WaterAirAlkaline SolutionsNHSB-1tral SolutionsFuels & LubricatisStrong AcidWeak Acid
PTFE BUSHINGS

★Good       □Common       ▲Poor

Apply Today

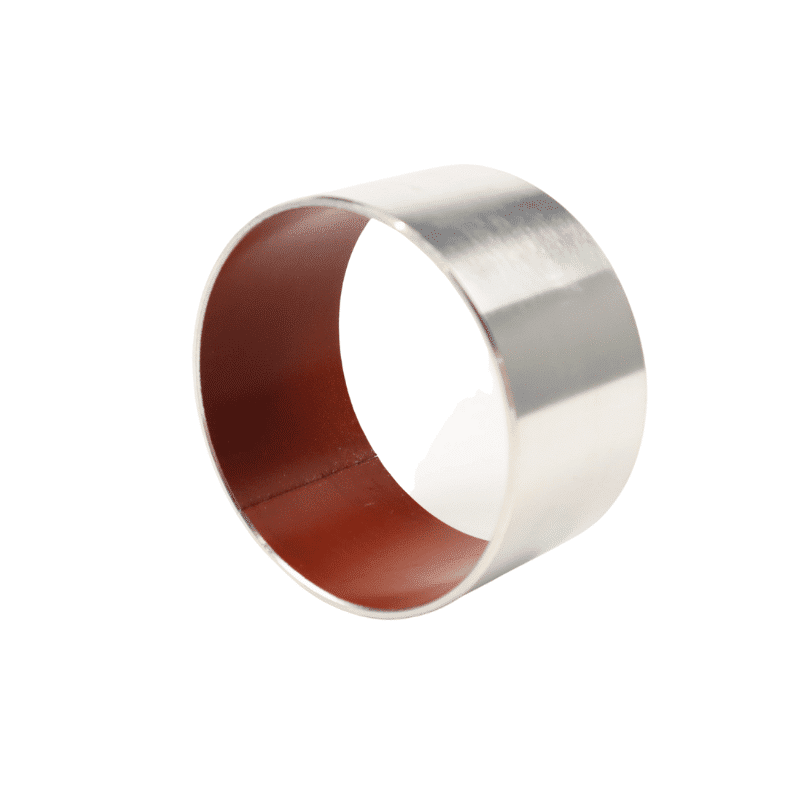

Wrapped composite sliding bearing, tin-plated steel/PTFE, DIN 1494/ISO 3547, Maintenance-free

composite sliding bearing can be produced from an ID of 3mm all the way up to 400mm.

bushing-supplier

Technical data

PerformanceData
Maximum loadStatic load250N/mm²
Dynamic load140N/mm²
Line speedDry friction2.5m/s
Oil lubrication5m/s
Maximum PV valueDry friction3.6N/mm²・m/s
Oil lubrication50N/mm²・m/s
Coefficient of frictionDry friction0.04~0.20
Oil lubrication0.02~0.07
Operating temperature-195℃~+280℃
Thermal Conductivity42W/m・K
Thermal expansion coefficient11×10-6/K
hydraulic cylinders, cranes and construction equipment, all kinds of production machines, pumps and medial devices
  • Support material Steel backed tin-plated or copper plated bushings
  • Intermediate layer: Sintered bronze
  • Sliding layer: PTFE composite bushings
Special dimensions are available on request
The composite sleeve made of PTFE is maintenance-free due to the sliding layer of PTFE. Outstanding slip and wear resistance. High load capacity sleeve.
  • Housing ØH7
  • Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 or h8
Get a Quote Today

PROPERTIES

is a maintenance-free material due to the PTFE sliding layer. Outstanding sliding and wear performance. High load capacity and very versatile bushing.

The surface polymer is resistant to chemical corrosion, so its corrosion resistance mainly depends on the steel back and the surface plating. Copper or tin plating on steel back surface can effectively prevent atmospheric corrosion; If working in corrosive medium, steel back can be galvanized, etc.

Composite Bearing Characteristics

The so-called “self-lubricating bearings” means no or less oil is added. The goal of our research is to ensure that the composite bearing can still perform well under such conditions and extend its service life as much as possible. Self-lubricating bearing is the basic working principle of solid lubricant on the surface of the bearing in the early operational stage due to the friction of ask each other to form a transfer film and coat the to eventually form solid lubrication film on the grinding parts to achieve the purpose of self lubrication, which partition the direct contact between the workpiece and good protection of grinding extend the service life of the bearing and artifacts.

bushing material

Composite series metal composite self-lubricating materials with high quality low carbon steel as the substrate, sintering porous spherical copper powder layer, the surface of copper is given priority to with PTFE wear-resistant lubricating materials as bearing layer, the material has excellent mechanical bearing capacity, the middle copper powder layer can not only transfer the heat generated by the bearing during operation in time, but also increased the strength of the combination of the plastic layer and substrate. PTFE is designed for full dry friction and a variety of materials have been developed according to lubrication, friction coefficient and durability requirements. VIIPLUS’s PTFE metal composites provide the best performance over the widest range of loads, speeds and temperatures with or without external lubrication.
