For all industries high quality self-lubricating bearing solutions

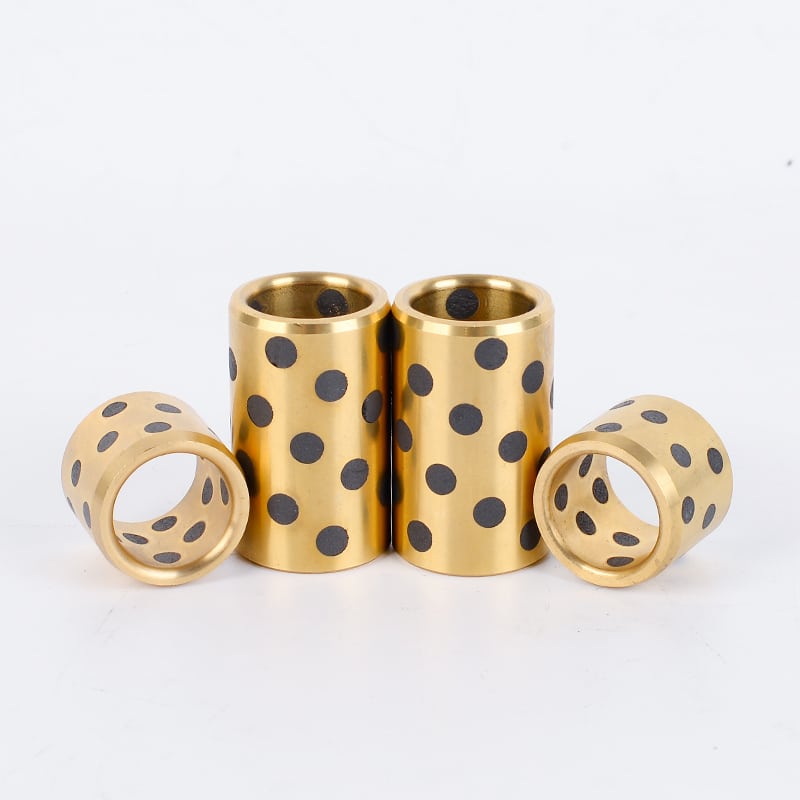

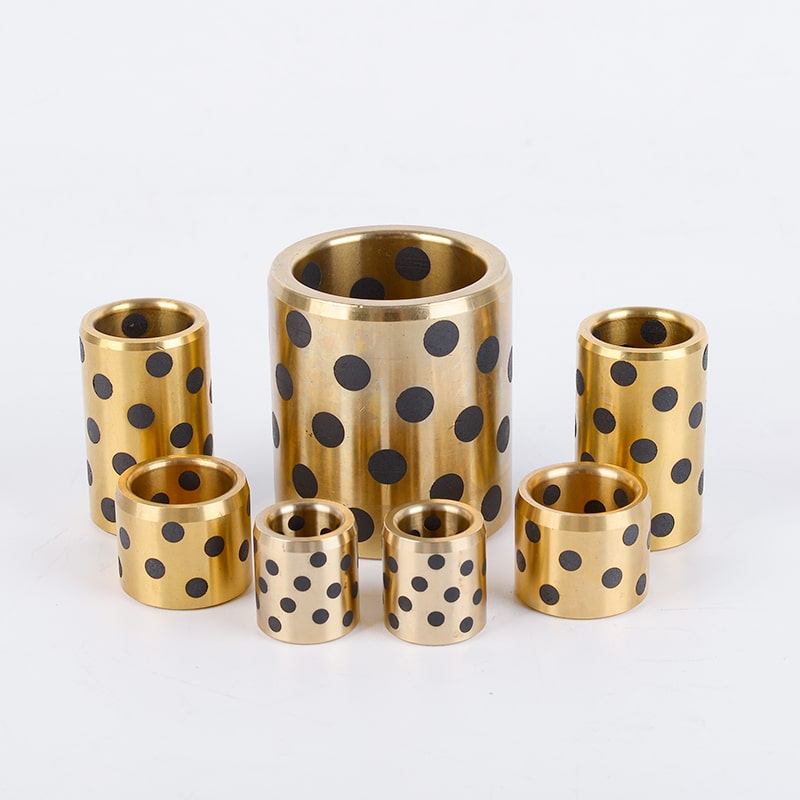

Graphite Embedded Brass Bushing

Standard & custom plain bearings

Want to help? Contact us!

Specialists in Embedded Graphite Bushing

Customer graphite size

Products: We Offer High-Precision Graphite Bearings, Embedded Graphite Bearing, Industrial Self-Lubricating Bronze Bushing, And Oilless Bronze Bearing Bushes Parts As Well As Highly Individualized Solutions.

Choose Your Flange Or Cylindrical Graphite Embedded Brass Bushing!Solid-Lubricating Bearings, Bronze Bushings Enables Very High Sliding Velocity!

Applications include:

  • electrical equipment
  • household equipment
  • printing machinery
  • machine tools

oILLESS WASHER

Custom Design, Reliable Supplier

Learn more

Graphite plugged PLATE

Excellent Service, Graphite filled bushing Cylindrical bushing, slide plates

Learn more

Solid Lubricant

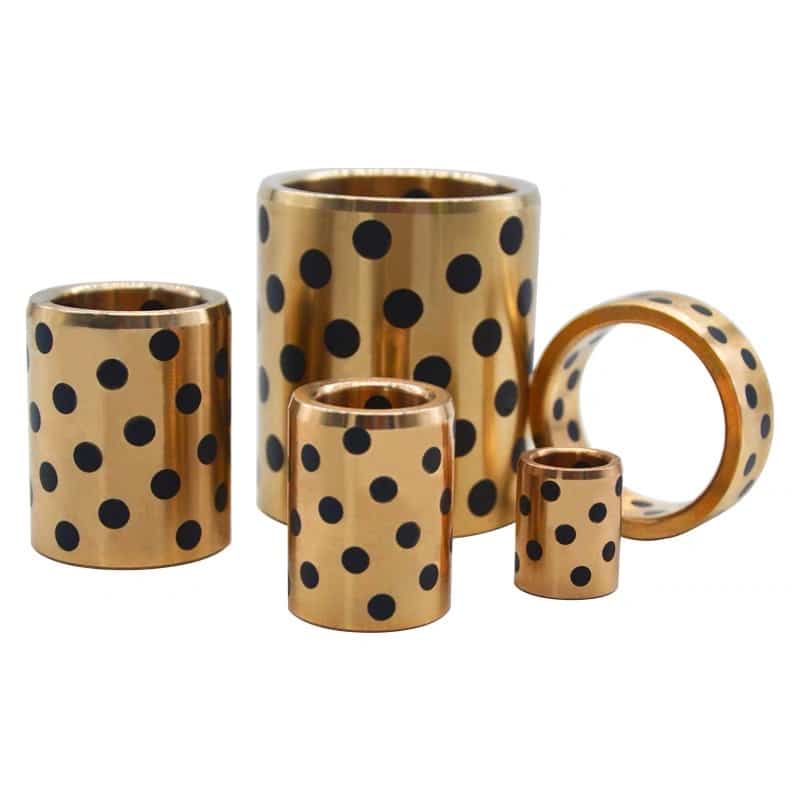

Cylindrical bushing, Self Lubricating, Bronze with solid lubricant

Learn more

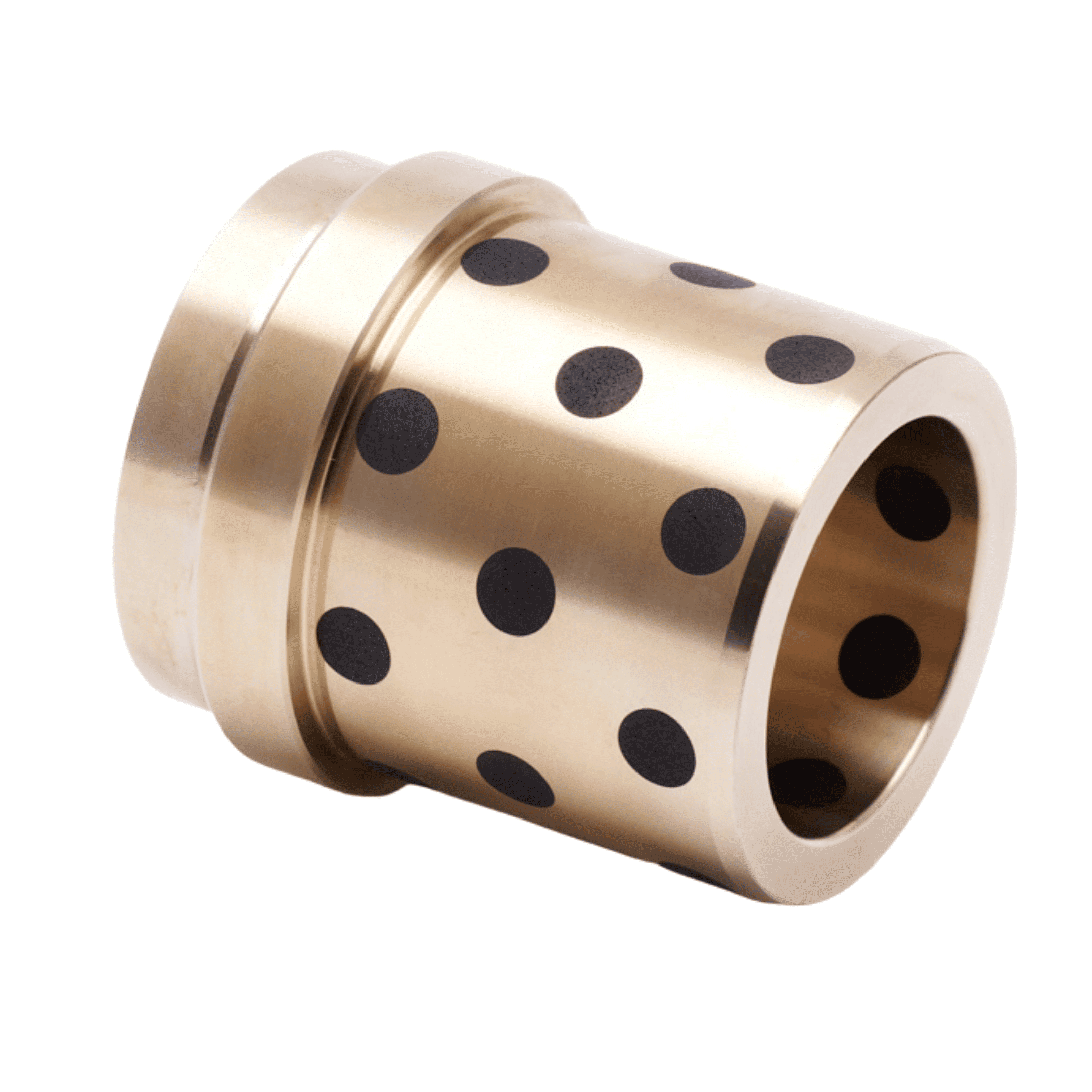

FLANGE BRONZE BUSHING

Standard Size, Maintenance Free, Graphite filled bushing!

Learn more

Ready to growth your business?

Bulk production of copper tubes, tin bronze tubes, aluminum bronze tubes, brass tubes, high force brass tubes, copper rods and other copper materials, and can be customized production in various forms and standards according to the needs of customers. We can also implement the production of copper alloy materials according to the Chinese national standards, and also the production of copper alloy according to the relevant standards of the United States, the European Union and other countries, and moreover, we can develop copper alloy materials according to the special requirements of customers, and also produce precision finished parts according to customers’ drawings..

Get started today

Brass Bushing Selection

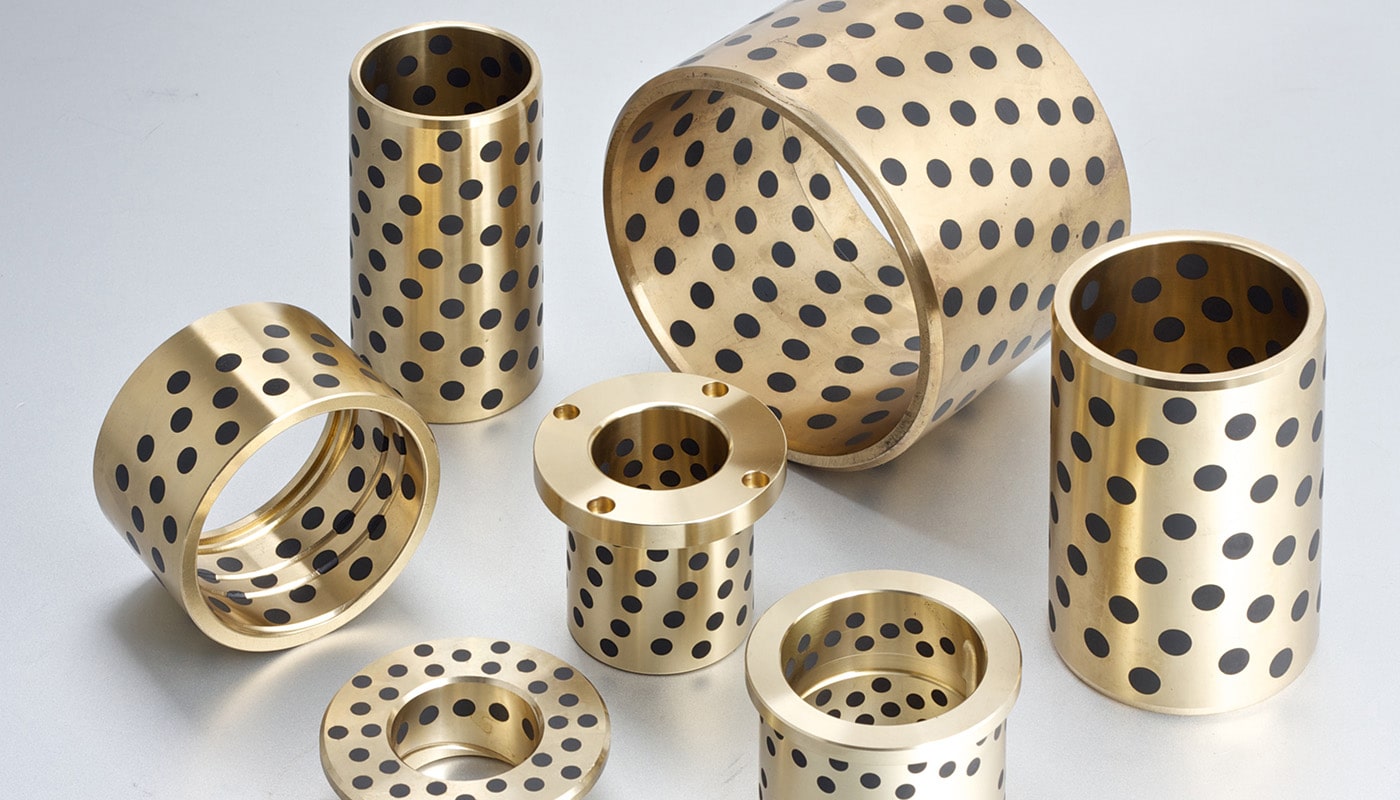

Embedded Graphite Bearing & Thrust Washers

  • Product Type: Flanged bush, brass with solid lubricant …

  • Material: Oilless Bush. Copper Alloy. Flange Type.

  • High-strength Brass Alloy Solid Lubricant Embedded
  • Special custom size.

flange graphite bushes
Lubricant Graphite

Oil Free Graphite Bushings Impregnated

Graphite Embedded Brass Bushing Flange Bearing, Lubrication-Free Copper Alloy

Make your prototype and precision parts different, Your Bronze and Graphite Bushing manufacturing supplier…Oilless Guide bushes with Collar Standard Flanged Size. Advantages of bronze Graphite Embedded Brass Bushing include:

  • very high sliding velocity
  • lubrication free
  • maintenance-free operation
  • good frictional properties

So what can we do for you? Do you have any questions or suggestions, or do you need expert advice about our products? We are more than happy to help you further. What makes us special self-lubricating bearings as experts in our sliding bearing technology? What specific expertise do we have? Learn more about our history, our management team and how you can kick-start your career as a member of the our team.

Learn more about us

Quality self-lubricating material solutions

Morbi lobortis netus ac eget at montes.

Professional manufacturers of self-lubricating bearings

Industries Graphite Embedded Brass Bushing: No industry is like the other. Purposely designed self-lubricating bearing solutions work more effectively. Modified solutions based on our Graphite Embedded Brass Bushing are capable of mastering every industry requirement. Looking for a special solution? Let’s talk about it today. Manufacturer Of Graphite Filled Bronze Bush – Graphite Impregnated Bronze Bush, Graphite Embedded Brass Bushings Offered By www.bronzelube.com. We are at your service – worldwide, Do you want to get into contact with us or do you have any questions about our delivery parts?Contact us today!

More Details
Contact an bushing bearings expert

Contact www.bronzelube.com

Do you have a special application in which you use self-lubricating bushings plain bearings?

oilless bushing

Learn More

Choose Your Partner for Oilless Bushings Application

Choose Your Partner for Oilless Bushings Application, Graphite Embedded Brass Bushing, Viiplus is a world leading designer and manufacturer of self-lubricating bearings for energy control valves, safety, and monitoring products for engines, compressors, turbines, and other rotating equipment.

More from www.bronzelube.com

Discover our oilless bushes innovations

Quality bushing, Customer designing, Technical support, Prompt delivery.

Graphite & Brass – Global Services And Oilless Bushings Products From Online Source

Plain & Self-Lubricating Bearings(Bushing Material:Graphite Impregnated Brass)

As a reliable partner we support oilless bushes manufacturers worldwide in the manufacture of safe and affordable bearings – with our products and our expertise.

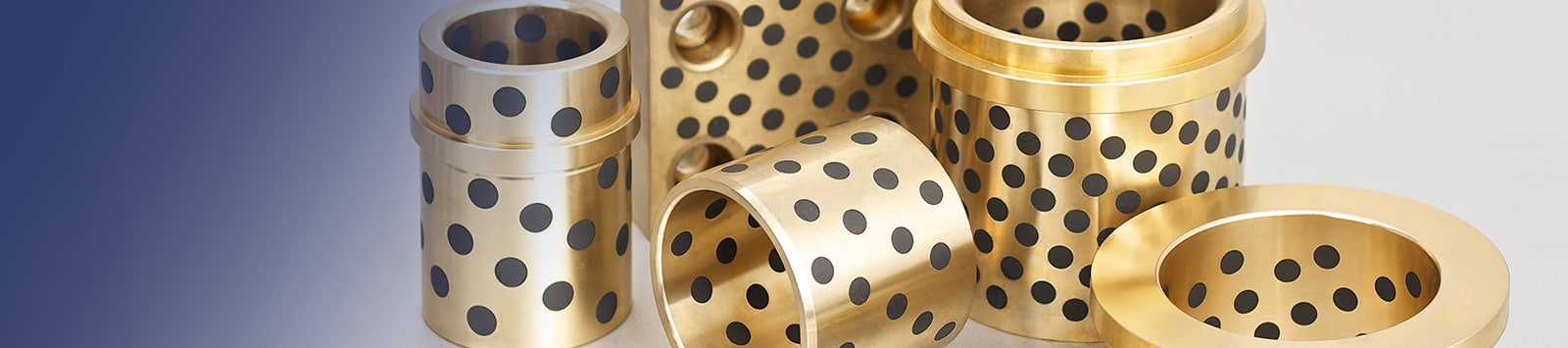

gleitlagerbuchsen bronze graphite

viiplus offers you the flexible trade terms and excellent service. The company is mainly engaged in the professional technical metal products supplying, include self-lubricating bearings, bimetal bearings, solid lubrication bearings, oil sintered bearings and ball retainers. The main products are self lubricating bearings, which are widely used in many fields such as automobile, lathe industry, construction machinery, industry and agricultural equipment and so on. Parts produced according to ISO3547, DIN 1494 and internal quality standard. The quality and performance of products have reached the same level compared to the same trade overseas, and exported to many countries include America, Canada, Germany, Czech and the UK, etc.

Price & Delivery Time on Request. Metric & Inch Size.

Bronze With Graphite

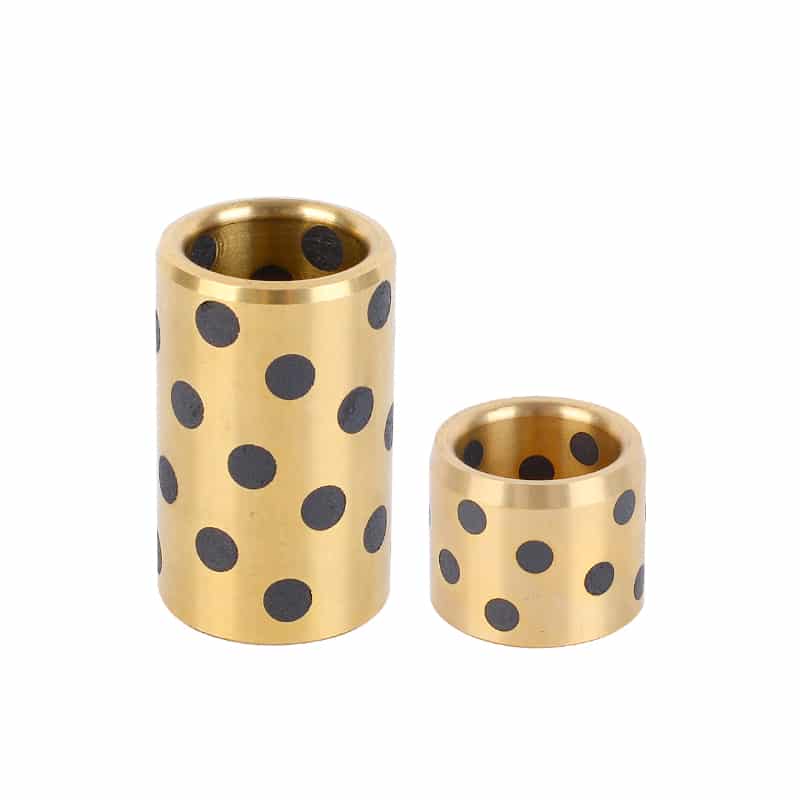

The graphite embedded brass bushing material is made of solid cast bronze base metal with special built-in solid lubricants. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing exhibits excellent performance without pre-lubrication under extremely high / low temperature conditions at low speeds.

This material provides a maintenance free bearing solution, especially for heavy, intermittent loads of oscillating motion.

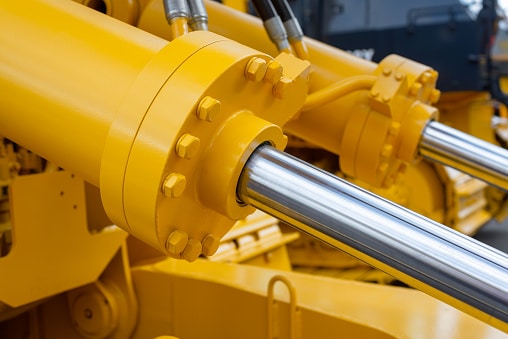

HYDRAULIC PARTS BUSHINGS

This type of bearing can be applied in dry, high temperature, high pressure, corrosive, water or other chemical environments where no oil can be introduced.

Currently, it is widely used in the automotive industry, water engineering, dam locks, plastics industry, consecutive casting machines, steel rollers in the metallurgical industry, mineral machinery, ships, turbo generators, hydraulic turbines and injection molding machines …

Graphite embedded brass bushing in different material

Type JDB-1 RoHS JDB-2 JDB-3 JDB-4 RoHS JDB-5 RoHS
Base Material CuZn25Al6Fe3Mn3 CuSn6Zn6Pb3 Steel+ CuSn6Zn6Pb3 HT-250 GCr15
Base Hardness HB230 (HB270) HB 90 HB 80 HB 210 HB 60
Friction Coef(u) <0.16 <0.15s <0.14 <0.17 <0.177
Temperature Limit 300°C 350°C 300°C 400°C 350°C
Dynamic Load Limit 100N/mm2 60N/mm2 70N/mm2 60N/mm2 250N/mm2
Load Limit Under 1M/Min 25N/mm2 15N/mm2 20N/mm2 15N/mm2 70N/mm2
Speed Limit (Dry) 0.40 m/s (Oil) 5 m/s 2m/s 2m/s 0.5m/s 0.1m/s
PV Limit 3.8N/mm2·m/s 0.5N/mm2·m/s 0.6N/mm2·m/s 0.8N/mm2·m/s 2.5N/mm2·m/s
Graphite Embedded Brass Bushing Type Application Features
Graphite embedded brass bushing-JDB-1 Can be used in low, middle and high load. When under high load, wear peformance degrades accordingly.
It’s a general-purpose product and be applied under low or high pressure, low or high temperature, and oil, water or
dry lubrication.
Can be applied in consistent cast machine, rolling machine, conveyor equipment; plastic injection machine, high
voltage switch; hoisting supporter, hydraulic gate supporter; paper-making machine, automobile die etc.
Graphite embedded brass bushing-JDB-2 JDB-2 is also one type of JDB series. It is mainly used for circumstances under low load, high temperature and
middle speed, e.g. gemel is furnace gate, convery way of the baking furnace, light industry and tooling machine
industry etc.
Graphite embedded brass bushing-JDB-3 JDB-3 has almost the same constructure as JDB-2. Suitable for lowload position, wear performance worsens
when under middle or high load. The mating layer is same as JDB-2 so that more cost-saving than JDB-2 whereas
compression strength increases and weldable. Most suitable for dry position in construction, metallurgical
machines, conveyor machines etc.
Graphite embedded brass bushing-JDB-4 JDB-4 is based on cast iron Ht250 and embedded with solid lubricant. Very good performance when under low load.
Not suitable for middle and high load.
A typical cost saving material, can substitute JDB-2 to be applied in the position without high requirements such as
die guider, plastic injection machines etc.
Graphite embedded brass bushing-JDB-5 JDB-5 is reinforced product of JDB series. It is based steel GCR15 and embedded with solid lubricant. It is of high
compress strength and particularly suitable for supporting position in hoisting machines, e.g. The support or stand
of windlass and of crane. But it should not be applied in water or in acid/alkali circumstance.
Graphite embedded brass bushing-JDB-1U JDB-1U takes oil in inner grooves to work. It can be used in low speed because of larger load, longer life and higher
HB than Al-Cu bearing. Now JDB-1U is mostly used in gear cases and joint parts of grabs.
Part Number I.D. d O.D. D Overall Length L Operating Temperature Range Operating Temperature Range (No Lubrication) Min Operating Temperature Range (No Lubrication) Max Operating Temperature Range (Periodically Lubricated) Min Operating Temperature Range (Periodically Lubricated) Max
(mm) (mm) (mm) (℃)
Graphite embedded brass bushing – MPBZ5-8 5 9 8 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ5-9 5 9 9 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ5-10 5 9 10 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ5-12 5 9 12 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ5-15 5 9 15 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ6-8 6 10 8 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ6-9 6 10 9 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ6-10 6 10 10 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ6-12 6 10 12 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ6-15 6 10 15 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ6-16 6 10 16 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ6-19 6 10 19 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ6-20 6 10 20 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-8 8 12 8 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-9 8 12 9 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-10 8 12 10 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-12 8 12 12 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-15 8 12 15 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-16 8 12 16 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-19 8 12 19 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-20 8 12 20 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ8-25 8 12 25 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-8 10 14 8 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-9 10 14 9 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-10 10 14 10 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-12 10 14 12 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-15 10 14 15 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-16 10 14 16 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-19 10 14 19 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-20 10 14 20 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-25 10 14 25 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ10-30 10 14 30 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-8 12 18 8 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-9 12 18 9 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-10 12 18 10 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-12 12 18 12 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-15 12 18 15 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-16 12 18 16 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-19 12 18 19 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-20 12 18 20 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-25 12 18 25 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-30 12 18 30 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ12-35 12 18 35 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-9 13 19 9 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-10 13 19 10 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-12 13 19 12 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-15 13 19 15 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-16 13 19 16 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-19 13 19 19 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-20 13 19 20 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-25 13 19 25 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-30 13 19 30 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ13-35 13 19 35 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ15-9 15 21 9 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ15-10 15 21 10 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ15-12 15 21 12 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ15-15 15 21 15 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ15-16 15 21 16 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ15-19 15 21 19 -40~150 -40 150 -40 200
Graphite embedded brass bushing – MPBZ15-20 15 21 20 -40~150 -40 150 -40 200

25%

“High performance self-lubricating bronze parts for every application.”

Supply Tin bronze bronze bushing for turbine parts,

graphite embedded brass bushing

The production of graphite embedded brass bushing bronze bearing suppliers, centrifugal casting technology to hold sufficient to ensure that the bronze liquid forming speed, to ensure that the centrifugal casting bushing bronze bearing density of the casting speed of choice, the casting of brass bushing , various specifications of bronze bushing, large bronze bearings by the industry repeatedly praised, welcome to map processing.

The steam turbine is a rotary power machine that converts the energy of steam into mechanical work. It is also called steam turbine. Mainly used as the prime mover for power generation, but also can directly drive a variety of pumps, fans, compressors and ship propellers. It can also use the steam turbine’s exhaust steam or intermediate extraction steam to meet the production and domestic heating needs.

graphite embedded brass bushing bronze bearing is one of the key components of the turbine, which plays a supporting role for the rotor of the turbine with heavy load and high speed operation under the lubrication and cooling effect of circulating lubricating oil. Bearing tile in the work, in addition to and journal wear, but also with the journal to its load, so the bearing tile material should have a small coefficient of friction, good anti-wear and have a high enough compressive strength and toughness. Therefore, the organization of the bearing alloy is required, in a fairly soft matrix distributed on a certain size of high hardness phase composition.

Tin bronze casting properties, good friction reduction and good mechanical properties, suitable for the manufacture of graphite embedded brass bushing bronze bearing, worm gears, gears, etc.. With high elastic limit, elastic modulus, good wear and corrosion resistance, suitable for the manufacture of various elastic components corrosion resistance, wear resistance, good mechanical properties and process properties, and can be well welded and brazed, impact does not produce sparks.

Tin bronze is divided into processed tin bronze and cast tin bronze. Tin bronze used for pressure processing contains less than 6% to 7% tin, and the tin content of cast tin bronze is 10% to 14%. Cast tin bronze bronze bushings are wear resistant, high temperature resistant, and corrosion resistant. With advanced centrifugal casting technology and precision CNC lathe processing, various large bronze bushings can be processed.

Tin bronze bronze bushings in the electrical and electronic industry is widely used, with large, accounting for more than half of the total consumption. Used in a variety of cables and wires, motors and transformers of this kind, switches and printed circuit boards In the manufacture of machinery and transport vehicles, used in the manufacture of industrial valves and fittings, instruments, slide bearings, molds, heat exchangers and pumps, etc.

ZCuSn10Pb1 cast bronze alloy has high hardness, excellent wear resistance, not easy to produce bite, good casting properties and cutting properties, good corrosion resistance in the atmosphere and fresh water.ZCuSn10Pb1 cast bronze alloy can be used for wear-resistant parts working under high load (up to 20MPa) and high sliding speed (8m/s), such as connecting rods, tin bronze bushings, shaft tiles gears, worm gears, etc.

H

High performance for every application

Our self-lubricating graphite bronze bushing solutions allow for a wide range of combinations. Flanged bronze bushings, slide plate, straight bushings, we can smoothly and cost effectively modify and design and manufacture to specific industry requirements at any time. Our self-lubricating bronze bushings have proven their reliability and cost effectiveness in a variety of applications for decades. Are your requirements really special? We will evaluate the basic conditions in detail and build a self-lubricating bearing solution precisely for your application. For example, requirements such as alloy copper internal oil groove design, corrosion resistance, low noise and self-lubrication, and high temperature resistance are all important specifications that we take for granted to meet. Can’t find your industry? No problem! We will find an application-specific solution for your industry in cooperation with you. Make your prototype and precision parts different!

Don’t see what self-lubricating bearings you’re looking for?

Propose A Custom Graphite Embedded Brass Bushing Solution

Graphite Embedded Brass Bushing

Browse, get a quote and order products easily in oil-free parts eCatalog

Download Center, you will find oilless bush catalogues, brochures, replacement parts lists, operating instructions and size files to download. Just select the document you want, open it in a new tab in your browser and save it to your computer. Please do not leave…We have the right bearings for you. Kindly provide us with your email for further assistance!

  • Can’t find what you’re looking for? Then send us a brief message using the Contact Form below.

  • Self lubricating bronze bearing plugged graphite, We’ll gladly send you the document you’re looking for. Everything you need to know at one click!

Lubricant Graphite
