DP4 Sleeve Bushings DP4 is a composite bearing material. It consists of a DP4 steel beam, to which a porous sintered brown intermediate layer is bonded, which is coated and impregnated with polytetrafluoroethylene (PTFE), which contains a mixture of inorganic fillers and special polymer fibers. The DP4 steel beam ensures mechanical strength and the sintered bronze layer ensures a strong mechanical connection of the filled DP4 Sleeve Bushings lining.

Composition

Steel Back + Porous Bronze Sinter + PTFE + Filler

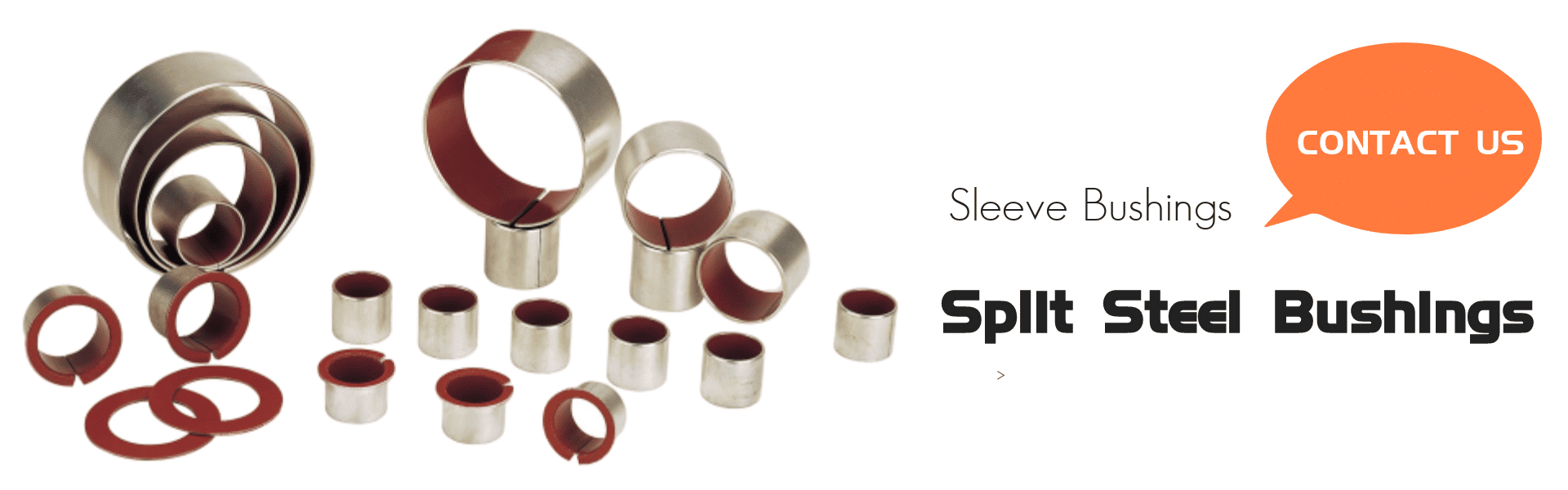

DP4 Sleeve Bushings-Metric Self-lubricating Oilless Plain Slide Sleeve Dry Linear Shaft Split Oil Free Bushings

DP4 Sleeve Tri-layer Bushings have a base of lower carbon steel backed bushings, onto which a porous bronze layer is sintered. PTFE mixtures are impregnated into the  of this bronze layer after rolling process completed. It has good physical & mechanical properties, also has certainly chemical properties. It is suitable for rotary, oscillating movement with performance of self-lubricating. Anti-wear, lower noise.

Structure

-Metal-Polymer Composite Bushing Material

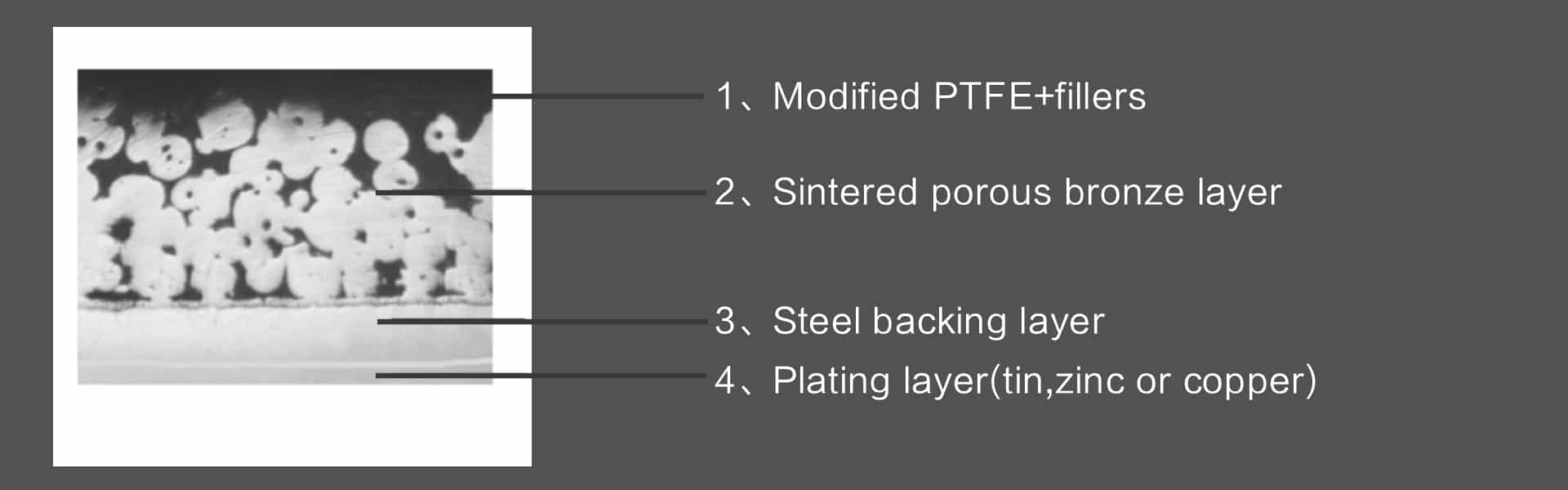

1. PTFE/Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

After rolling process completed, PTFE mixtures are filled in intersice of bronze layer. Under normal operation, Part of PTFE mixture on top layer will be removed and transferred on the mating surface, forms a physically lubricating film, which will reduced the firction coe. and protect the mating shaft.

Among these professional manufacturers of special hydraulic pumps for DP4 Sleeve Bushings in China, we invite you to buy custom and cheap hydraulic pumps, hydraulic cylinder liners, special hydraulic bearing sleeves or receive a free sample from our factory.

SELECT YOUR GLACIER BUSHES

Split Steel Bushing,  Customized High Quality DP4 Sleeve Bushing

Welcome Your Inquriy and Trial Order !

Technical data

In particular, depending on the dry running conditions, DP4 materials have the following performance advantages:

Dry conditions

• Good friction and wear performance in light service conditions
• Particularly suitable for intermittent oscillating and reciprocating movements
• Maintenance free, as no external lubrication is required
• Resistant to seizures.

Lubricated conditions

• Good wear and friction characteristics over a wide range of loads, speeds and temperatures.
• High wear resistance in boundary operating conditions
• High resistance of the bearing surface under cavitation and erosion conditions
• Suitable for work in various liquids (oil, fuel, solvents, refrigerants, water).

• Housing ØH7
• Bushing inner-Ø after mountingH9
• Shaft tolerancef7 or h8

Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bushings

DP4 Sleeve Feature

• DP4 Sleeve Bushing low friction bearings provide good wear and low friction performance over a wide range of loads, speeds and temperatures under dry operating conditions
• Very good performance in lubricated applications
• Good performance in greased applications
• Suitable for linear, oscillating and rotary movements
• Lead-free material

DP4 sleeve bushing material is a maintenance-free material due to the PTFE sliding layer. Outstanding sliding and wear performance. High load capacity and very versatile bushing.

The surface polymer is resistant to chemical corrosion, so its corrosion resistance mainly depends on the steel back and the surface plating. Copper or tin plating on steel back surface can effectively prevent atmospheric corrosion; If working in corrosive medium, steel back can be galvanized, etc.

DP4 Sleeve Bushing Characteristics

• Good friction properties with negligible slip
• High static and dynamic load capacity
• Suitable for rotating, oscillating, alternative and sliding movements
• Compact size and low weight
• Pre-finished which does not require any work after assembly
• Possibility of browning to reduce the operating clearance
• No water absorption and therefore dimensionally stable
• Suitable for a wide range of operating temperatures from -200 to +280 ° C

The so-called “self-lubricating bearings” means no or less oil is added. The goal of our research is to ensure that the composite bearing can still perform well under such conditions and extend its service life as much as possible. Self-lubricating bearing is the basic working principle of solid lubricant on the surface of the bearing in the early operational stage due to the friction of ask each other to form a transfer film and coat the to eventually form solid lubrication film on the grinding parts to achieve the purpose of self lubrication, which partition the direct contact between the workpiece and good protection of grinding extend the service life of the bearing and artifacts.

Composite series metal composite self-lubricating materials with high quality low carbon steel as the substrate, sintering porous spherical copper powder layer, the surface of copper is given priority to with PTFE wear-resistant lubricating materials as bearing layer, the material has excellent mechanical bearing capacity, the middle copper powder layer can not only transfer the heat generated by the bearing during operation in time, but also increased the strength of the combination of the plastic layer and substrate. PTFE is designed for full dry friction and a variety of materials have been developed according to lubrication, friction coefficient and durability requirements. VIIPLUS’s PTFE metal composites provide the best performance over the widest range of loads, speeds and temperatures with or without external lubrication.

HIGH QUALITY GLACIER BUSHES SUPPLIER

DP4 SLEEVE BUSHINGS ADVANTAGES

1. Can be used where no oil can be applied or the oil is difficult to apply.

2. Low wear, low friction and long service life. The load will be distributed over a wider area due to the elastic nature of the bearing material.

3. Low sliding properties of the stick guaranteeing the machine’s operating precision at low sliding speed

4. Low vibration, low noise and non-pollution in operation.

5. PTFE and lead charge are transferred to the coupling shaft to improve the operating properties.

6. Can be used in low hardness of the coupling shaft, so that the processing of the shafts is easy.

7. The machine will be compact because of the thin thickness and low weight of the bush.

8. Electro plating is possible to prevent corrosion.

Sliding Bearing Friction Sleeve Composite Dry Bushing Split Steel Bushing DP4 Sleeve Bushings

Given the performance characteristics under both dry and lubricated operating conditions, DP4 bearing materials are widely used in a variety of automotive and industrial applications,such as:
Automotive
Braking systems, clutches, gearbox and transmissions, hinges – door bonnet and boot, convertible roof tops, pedal systems, pumps – axial, radial, gear and vane, seat mechanisms, steering systems, struts and shock absorbers, wiper systems.
Industrial
Aerospace, agricultural, construction equipment, food and beverage, marine, material handling, office equipment, packaging equipment, pneumatic and hydraulic cylinders, railroad and tramways,textile machinery, valves.

TYPICAL APPLICATIONS: The split friction sleeve sleeve with friction friction bearing is widely applied in various sliding movements of different types of machines, such as textile machines, tobacco machines, hydraulic vehicles, automobiles, agricultural machinery, etc.

MAINTENANCE-FREE DP4 SLEEVE BUSHINGS

DP4 Sleeve Bushings Properties

* Depending on operating conditions

DP4 sleeve bushing Size Model

Avalibility

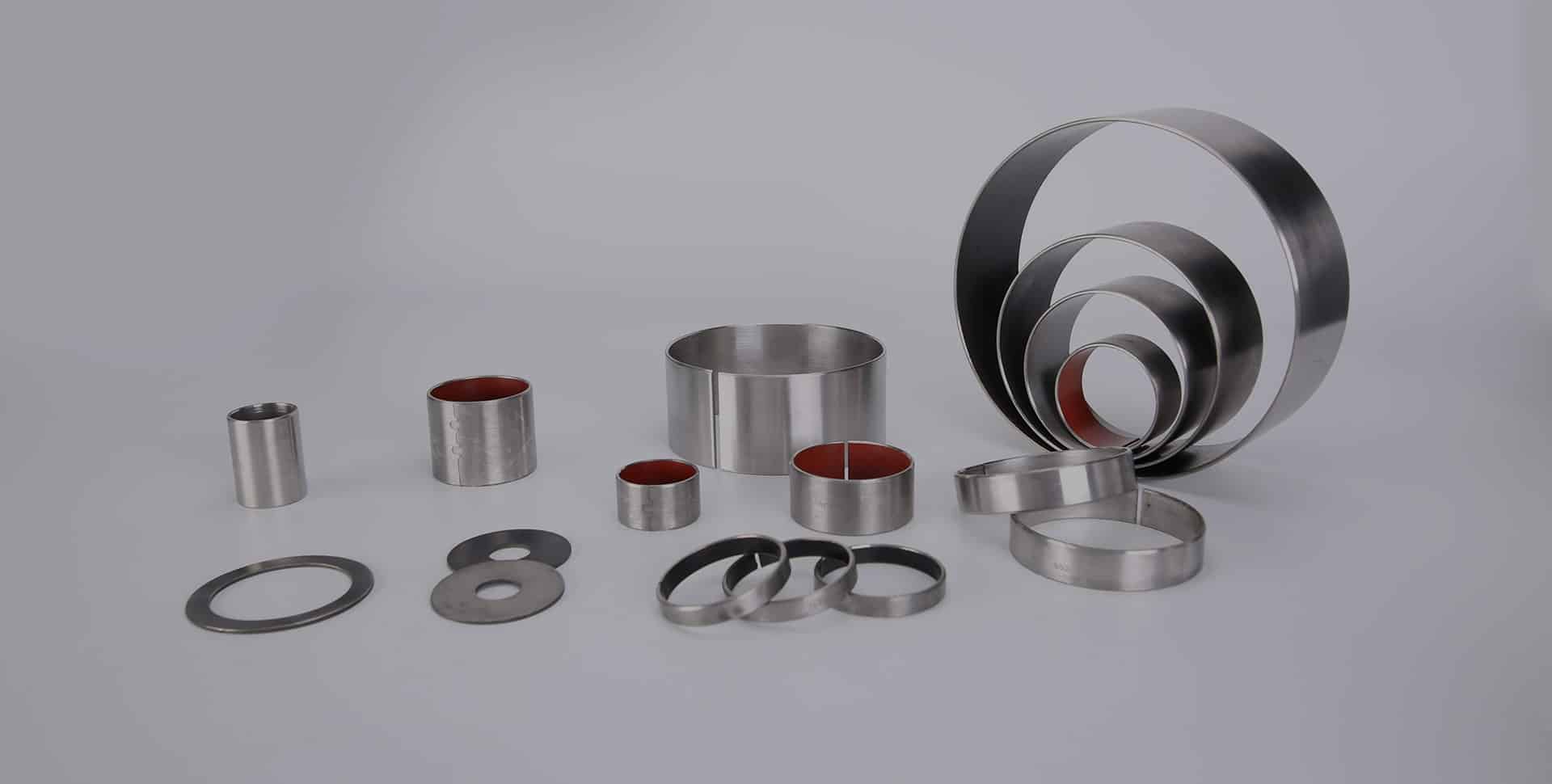

Bearing forms made to order: cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping, customized bearing designs
