Exploring the Longevity of Graphite-Impregnated Bronze Bushings in Water Wheel Applications

Graphite-impregnated bronze Bushings， graphite bronze bushing with collar，  material ASTM B271 C86300 PTEF, manganese bronze with PTFE inserts

ASTM B271 C86300PTEF refers to a specific type of material that combines the properties of C86300 manganese bronze with PTFE (Polytetrafluoroethylene) inserts. This material is designed to offer the mechanical strength and corrosion resistance of manganese bronze with the added benefits of PTFE, known for its low friction and excellent chemical resistance.

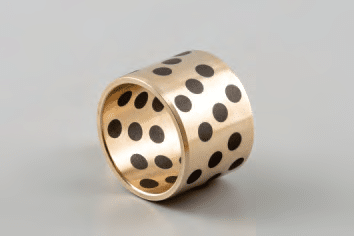

Bronze bushing with graphite plugs

Water wheels have been an integral part of human history, harnessing the power of water for various mechanical applications. In recent years, there’s been a resurgence in their use, particularly in renewable energy projects and small-scale industrial applications. A key component in the efficiency and durability of these water wheels is the type of bearings used. This post delves into the use of graphite-impregnated bronze bushings for water wheels, focusing on their lifespan and effectiveness.

What Are Graphite-Impregnated Bronze Bushings?

Bronze bushings are a type of plain bearing used in machinery for rotational or sliding applications. They are prized for their strength, durability, and resistance to corrosion. When these bronze bushings are impregnated with graphite, it enhances their lubricating properties. Graphite is a solid lubricant, known for its ability to withstand high temperatures and corrosive environments, making it ideal for water wheel applications.

Benefits in Water Wheel Applications

1. Self-Lubricating: The graphite within these bushings releases gradually, providing continuous lubrication. This is particularly beneficial for water wheels, as it reduces the need for regular maintenance.
2. Corrosion Resistance: Water wheels are often exposed to harsh environmental conditions. Graphite-impregnated bronze bushings resist corrosion caused by water exposure, ensuring longer life and consistent performance.
3. Durability Under Load: These bushings can withstand the heavy loads and continuous operation typical of water wheels, thanks to the strength of bronze and the lubricating properties of graphite.
4. Environmentally Friendly: As they do not require additional lubrication, these bushings are a more environmentally friendly option, reducing the risk of water contamination.

Lifespan of Graphite-Impregnated Bronze Bushings in Water Wheels

The lifespan of graphite-impregnated bronze bushings in water wheel applications can vary depending on several factors:

1. Quality of Water: The presence of abrasive particles in the water can affect the bushing’s lifespan. Cleaner water typically means longer bushing life.
2. Maintenance Practices: Regular inspections and proper alignment of the water wheel can extend the lifespan of the bushings.
3. Operational Load and Speed: Higher loads and speeds can increase wear and tear, potentially reducing the lifespan.
4. Quality of the Bushing: Higher quality bushings with a higher percentage of graphite and a denser bronze matrix tend to last longer.

On average, high-quality graphite-impregnated bronze bushings in well-maintained water wheels can last anywhere from 5 to 20 years, depending on the above factors. However, it is not uncommon for these bushings to outlast this range in optimal conditions.

Bronze  Graphite Bushings

The use of graphite-impregnated bronze bushings in water wheels presents a reliable and efficient solution for their rotational mechanisms. Their self-lubricating nature, combined with durability and environmental friendliness, make them an excellent choice for both new installations and upgrades to existing systems. While their lifespan can vary, with proper maintenance and favorable conditions, these bushings can significantly extend the operational life of water wheels, making them a smart investment for sustainable mechanical applications.

A water wheel shaft bronze bushing is a critical component in the mechanics of a water wheel. Let’s break down what this means and how it functions in the context of a water wheel system:

Understanding Water Wheel Shaft Bronze Bushings

1. Water Wheel Basics:

• A water wheel is a mechanical device that converts the energy of flowing or falling water into useful forms of power.
• The wheel typically rotates on a horizontal axis, driven by the force of water striking paddles or blades.

2. The Shaft:

• Central to the water wheel’s operation is the shaft. This is the rod or pole that runs through the center of the wheel and is the axis around which the wheel rotates.
• The shaft bears the load of the wheel and transmits the rotational energy to whatever machinery the water wheel is powering.

3. Role of the Bronze Bushing:

• A bushing is a type of bearing, a component that allows for relative motion between parts, reducing friction and wear.
• In the context of a water wheel, the bronze bushing is fitted around the shaft. It helps in smoothly turning the wheel by reducing friction between the shaft and the wheel or between the shaft and its support structure.
• Bronze is a preferred material for such bushings because of its durability, resistance to corrosion (important in a water-rich environment), and good frictional properties.

4. Graphite Impregnation:

• Some bronze bushings are impregnated with graphite. Graphite acts as a lubricant, further reducing friction and wear. This is particularly beneficial in a water wheel setup, where consistent lubrication can be challenging due to the presence of water.
• The graphite impregnation also extends the life of the bushing, as it provides consistent lubrication without the need for regular maintenance.

5. Importance in Water Wheel Efficiency:

• The efficiency and longevity of a water wheel greatly depend on the smooth operation of its rotating components. The less friction there is, the more efficiently the wheel can convert the water’s kinetic energy into mechanical energy.
• Well-maintained bushings ensure that the shaft rotates smoothly, reducing the energy loss due to friction and wear. This not only improves efficiency but also extends the lifespan of the water wheel and its components.

6. Maintenance and Replacement:

• Even though bronze bushings are durable, they do wear out over time and need to be checked regularly.
• The lifespan of a bronze bushing in a water wheel can vary depending on factors such as water quality, load, speed of operation, and maintenance practices.

In summary, the water wheel shaft bronze bushing is a small but essential part of the water wheel’s mechanical system. It ensures the efficient and smooth operation of the wheel, contributing to the overall productivity and durability of the setup.
