Unveiling the Might of Metal Bushings: A Deep Dive into Oil-Free Solutions

In the intricate world of machinery and industrial applications, the humble bushing plays a colossal role. These unassuming components are the unsung heroes that enable smooth motion, reduce friction, and protect critical parts from wear and tear. Today, we’re drilling down into a specific and highly advantageous category: oil-free metal bushings, often referred to as dry bearing metal bushes.

Forget constant lubrication schedules and the mess that comes with them. Oil-free technology is revolutionizing how we approach bearing solutions, especially in demanding environments. As manufacturers, we specialize in crafting metal bushings tailored to your unique operational needs, and understanding their nuances is key to optimal performance.

The Age-Old Problem: Friction and the Need for Lubrication

At its core, a bushing (or bush) is a cylindrical lining designed to reduce friction and wear between two moving parts, typically a rotating shaft and a stationary housing. When metal surfaces rub against each other, friction generates heat. This heat can lead to:

• Deformation or Melting: Metal expands with heat, potentially leading to seizure.

• Sticking or Scuffing: Micro-welds form and break, damaging surfaces.

• Increased Energy Consumption: More power is needed to overcome friction.

• Premature Failure: Components wear out faster.

Traditionally, lubricants (oils and greases) are introduced to create a film between surfaces, reducing direct metal-to-metal contact. However, this isn’t always ideal or even possible.

Enter the Oil-Free Metal Bushing: A Game Changer

Oil-free metal bushings, or dry bearings, are engineered to operate effectively without the need for external liquid or grease lubrication, or with significantly reduced lubrication requirements. This is achieved through innovative material science and design.

How do they work?
Instead of relying on an external oil supply, these bushings incorporate lubricating properties directly into their structure:

1. Self-Lubricating Materials: Metals are combined or embedded with solid lubricants.

2. Impregnated Lubricants: The porous structure of the metal holds lubricant within itself, releasing it as needed.

This self-sufficiency makes them invaluable in applications where:

• Regular maintenance is difficult, costly, or dangerous.

• Lubricant contamination is a concern (e.g., food processing, clean rooms).

• Extreme temperatures would degrade conventional lubricants.

• High loads or slow, oscillating movements make maintaining a hydrodynamic oil film challenging.

Diving Deeper: Materials and Types of Oil-Free Metal Bushings

The material of an oil-free bushing is paramount. While resin bushings exist, our focus here is on their robust metal counterparts.

1. Bronze-Based Oil-Free Bushings (Often Graphite-Plugged)

These are a cornerstone of oil-free metal bearing technology.

• Composition: Typically a bronze alloy (copper-tin, sometimes with lead or zinc) forms the base.

• Mechanism: The key is the incorporation of a solid lubricant, most commonly graphite.

  • Graphite Plugs/Inserts: Cylindrical holes are drilled into the bronze bushing, and these are filled with specially formulated graphite, sometimes also impregnated with oil.

  • Sintered Bronze: Fine bronze powder is mixed with graphite powder and then sintered (heated below melting point to fuse particles). The resulting porous structure can also be oil-impregnated.

• How Graphite Works: Graphite has a lamellar (layered) structure. These layers can slide easily over one another, providing a low coefficient of friction. As the shaft rotates, a thin film of graphite is transferred to the mating surface, creating a solid lubricating layer.

• Characteristics:

  • Excellent resistance to high temperatures.

  • Good impact resistance.

  • Suitable for high loads, especially at low to moderate speeds and oscillating movements.

  • Good corrosion resistance (depending on the specific bronze alloy).

2. Hardened Steel Bushings

While not always “oil-free” in the same inherent way as graphite-plugged bronze, hardened steel bushings are critical metal components that can be part of an oil-free or minimal lubrication strategy.

• Composition: High-strength steel that undergoes heat treatment (hardening and tempering) to significantly increase its surface hardness and wear resistance.

• Mechanism for Reduced Lubrication:

  • Extreme Hardness: Reduces adhesive wear and abrasion.

  • Surface Finish: Can be ground and polished to very smooth finishes, minimizing friction.

  • Dry Film Lubricants: Often used in conjunction with MoS₂ (Molybdenum Disulfide) or PTFE (Teflon™) coatings for dry lubrication.

  • Boundary Lubrication: Can operate under boundary lubrication conditions where only a very thin film of lubricant is present, or with greases that provide long service intervals.

• Benefits:

  • Exceptional Durability & Wear Resistance: Ideal for high-load, abrasive, or impact-prone applications.

  • High Strength-to-Weight Ratio: Robust performance.

  • Improved Accuracy: Maintain tight tolerances for precise motion control.

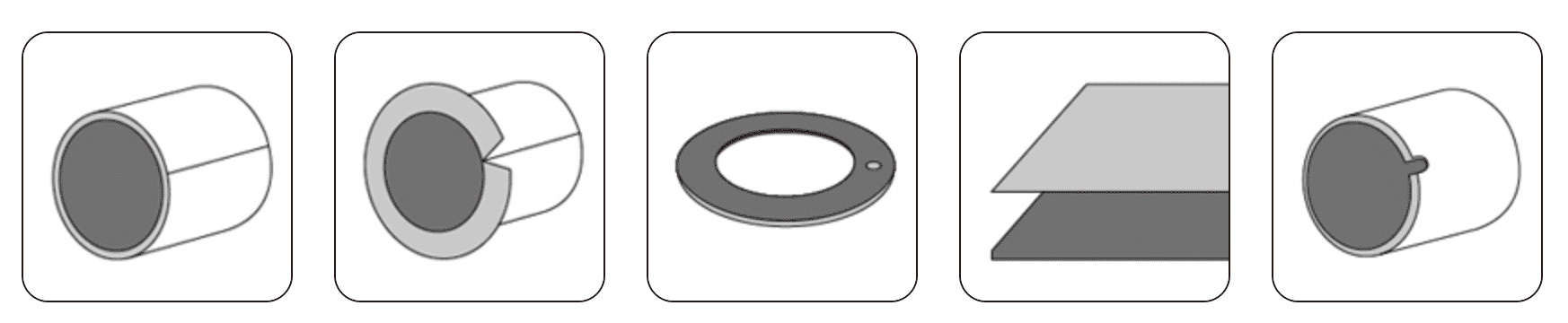

• Common Types of Hardened Steel Bushings:

  • Sleeve Bushings: Simple cylindrical design.

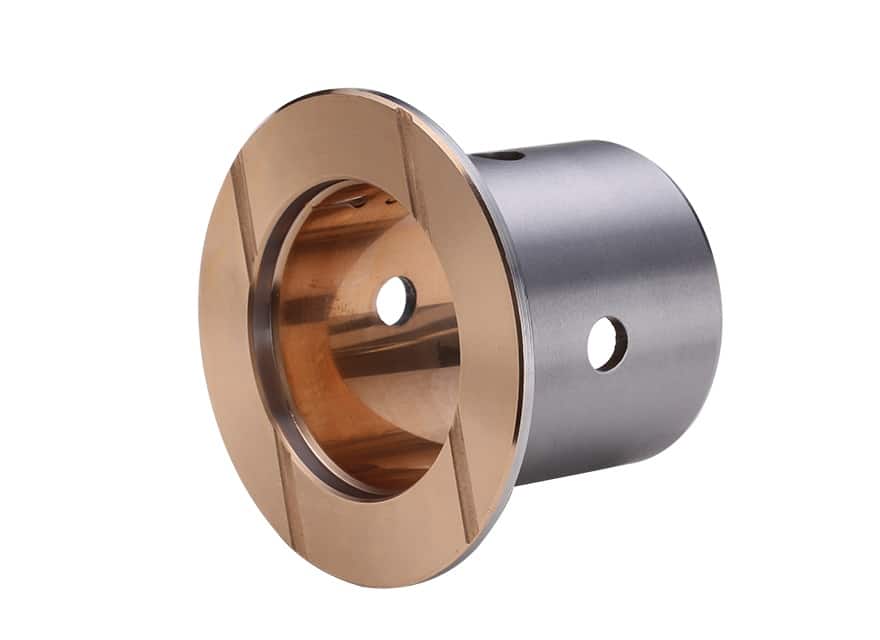

  • Flanged Bushings: Include a flange for axial location and to bear thrust loads.

  • Thrust Bushings (Washers): Designed specifically to handle axial loads.

Contrasting Metal Bushing Material Approaches:

Advantages and Disadvantages of Metal Oil-Free Bushings

Choosing any engineering component involves weighing its pros and cons:

Choosing the Right Metal Bushing: Key Considerations

Selecting the optimal metal bushing isn’t a one-size-fits-all affair. Consider these factors:

1. Load: What is the magnitude and type of load (radial, axial, combined, shock)?

2. Speed: What is the rotational speed or linear velocity?

3. Temperature: What is the operating temperature range, including ambient and generated heat?

4. Environment: Is it clean, dusty, corrosive, or wet? Are there specific chemical exposures?

5. Motion Type: Is it continuous rotation, oscillation, or linear movement?

6. Mating Shaft: What is the shaft material, hardness, and surface finish? (Crucial for wear life).

7. Service Life & Maintenance: What are the expectations for lifespan and acceptable maintenance intervals?

8. Cost: Balance initial cost with total cost of ownership.

Tailored to Your Needs: Manufacturing Custom Metal Bushings

At our facility, we understand that standard off-the-shelf bushings don’t always meet the specific demands of every application. That’s why we specialize in manufacturing metal bushings tailored to your individual needs. Whether it’s a unique dimension, a specific bronze alloy with custom graphite plugging, or a hardened steel bushing with a specialized coating for an extreme environment, we work with you to design and produce the perfect solution.

Conclusion: The Enduring Value of Oil-Free Metal Bushings

Oil-free metal bushings represent a significant advancement in bearing technology. Their ability to operate without external lubrication, coupled with their robustness and adaptability to harsh conditions, makes them an indispensable solution across countless industries – from automotive and aerospace to heavy construction and food processing.

By understanding the different types, materials, and their respective strengths, you can select a metal bushing that not only performs reliably but also reduces maintenance burdens and enhances the overall efficiency of your machinery.

Ready to explore how custom-engineered, oil-free metal bushings can optimize your application? Contact our experts today to discuss your requirements!
