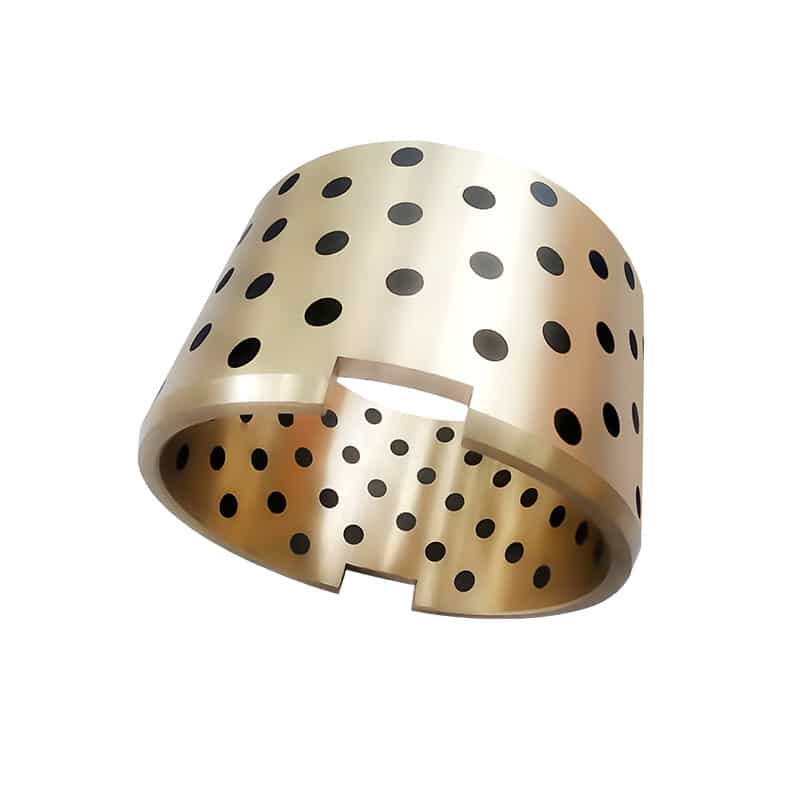

Self-Lubricating Graphite Plugged Bronze Sleeve Bushing

Shop a large range of flanged bearing bushings – maintenance-free self-lubricating slide bearings with dry lubricating pins at bronzelube.com. Support all your metal copper bushing and maintenance repair needs … with excellent quality, to win customers of all ages.

Brief Description

This material provides a maintenance-free and low friction bearing solution, particularly for high load and intermittent oscillating motion. Solid lubricants within the bronze combine the strength of the bronze with the wear resistance of the graphite. Applications covered are automotive production lines, water industry, dam gates, plastic molding machinery etc. Different types of bronze alloy can be offered according to the application.

Description

Graphite Bearings & Bushings, Self lubricating

Graphite bush bearings – maintenance-free, Graphite bronze bushing metric size.
Bushings can be manufactured individually, up to 800 kg in weight and 1500 mm in diameter.

Self-lubricating slide bearings with dry lubricating. On the bronze alloy with lubricating, solid lubricant Graphite, PTFE, or MoS2.

Oilless Graphite Lubricating Brass Bearing Bushing

Graphite bush bearings, also known as brass graphite bearing, is a special material self-lubricating bearing, according to different uses and working conditions, choose different copper graphite bearings. One of the major categories of solid inlaid copper graphite bearings (JDB for short) is a novel lubricating bearing with both the characteristics of metal bearings and oil-free lubricating bearings. The metal matrix bears the load, and the solid lubricating material with special formula plays the role of lubrication. It has the characteristics of high bearing capacity, impact resistance, high-temperature resistance, strong self-lubrication ability, especially suitable for heavy load, low speed, reciprocating or swing, and other difficult lubrication and oil film formation occasions, also not afraid of water and other acid erosion and scouring. At present, the products have been widely used in a metallurgical continuous casting machine, rolling equipment, mining machinery, ships, steam turbines, water turbines, injection molding machines,s and equipment production lines.
Manufacturer of Oilless Bush – Self Lubricating Bush – Graphite Impregnated Bronze BushOilless BushGraphite Filled Bronze Bush, and Flanged Oilless Bush …

Graphite oilless bushing/bearing

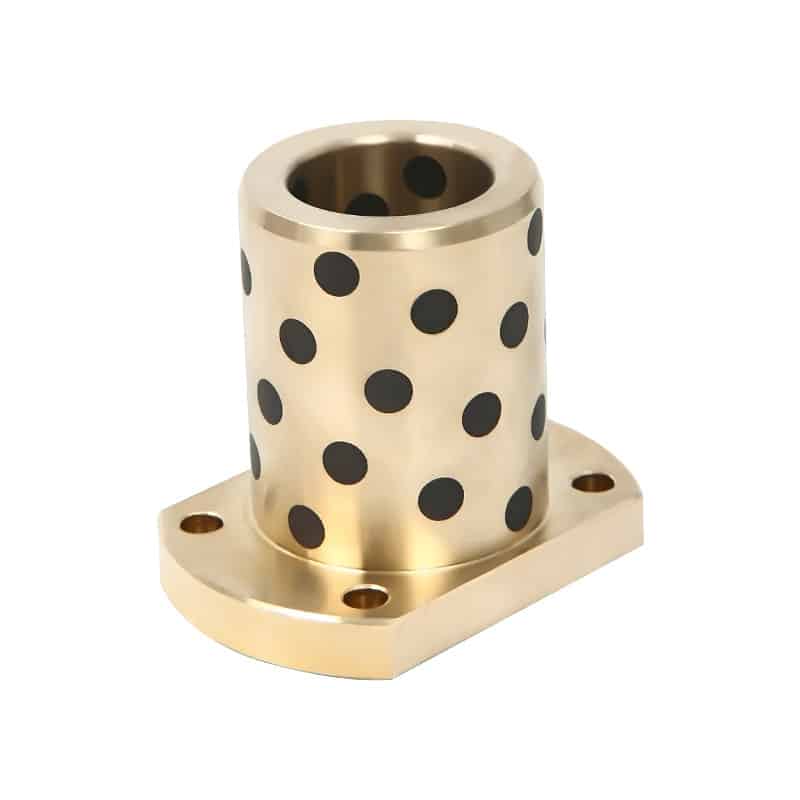

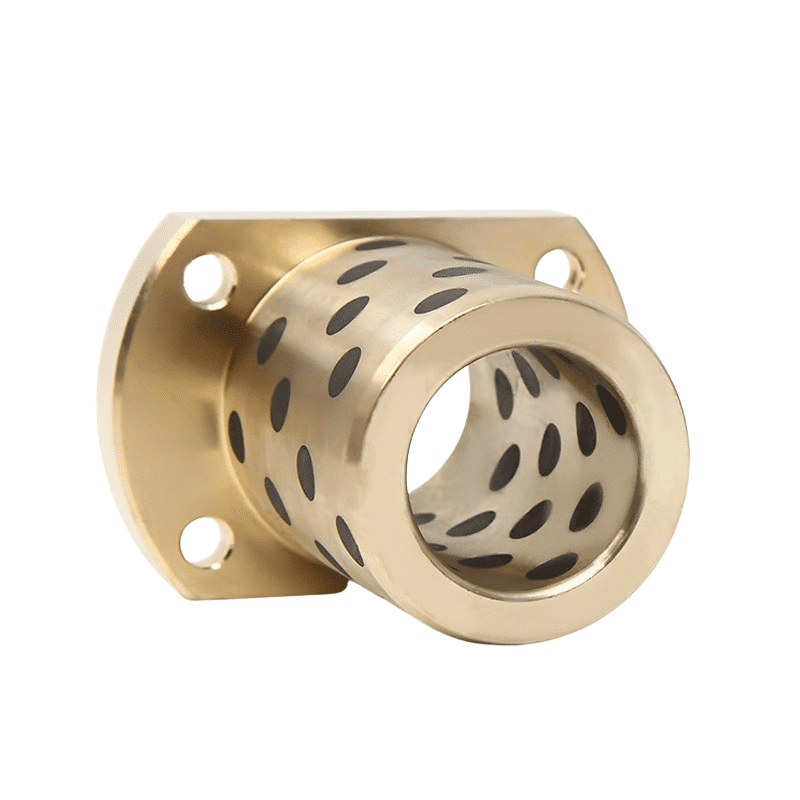

Oilless Bearing Oilless Brass Flange Bushing Graphite Plugged Bearing

Graphite Bushings And Bearings – Reduced Costs & Downtime
Offering Superior Performance In Hundreds Of Applications Replacing Steel Bearings. Increased productivity. Increased reliability. Hi-Temp Bearing Solution. Non-galling. Run dry & keep running. Services: Custom Design, Engineering Support, Short Lead Times.

Material: graphite bush bearing metric size available upon request, graphite oilless bushing/bearing inch size.

The model of self-lubricating graphite copper sleeve is digital group, that is, inner diameter + outer diameter + length, such as inner hole 30, outer diameter 38, the model of self-lubricating graphite copper sleeve of length 30 is 303830.

The following is a list of models, specifications, and sizes of self-lubricating graphite copper bushing commonly used without a stop (tick “√” indicates the size and model of this specification) :

IDF7 ODm6 L
d D 8 10 12 15 16 20 25 30 35 40 50 60 70 80
8 +0.028
+0.013
12 +0.018
+0.007
10 14
12 +0.034
+0.016
18
13 19 +0.021
+0.008
14 20
15 21
16 22
18 24
20 +0.041
+0.020
28
22 32 +0.025
+0.009
25 33
30 38
35 +0.050
+0.025
45
40 50
45 55 +0.030
+0.011
50 60
F7 ODm6 L
d D 30 35 40 50 60 70 80 100 120 130 140 150
50 +0.050
+0.025
62 +0.030
+0.011
50 65
55 +0.060
+0.030
70
60 74
60 75
63 75
65 80
70 85 +0.035
+0.013
70 90
75 90
75 95
80 96
80 100
90 +0.071
+0.036
11
100 120
110 130 +0.040
+0.015
120 140
125 +0.083
+0.043
145
130 150
140 160
150 170
160 180

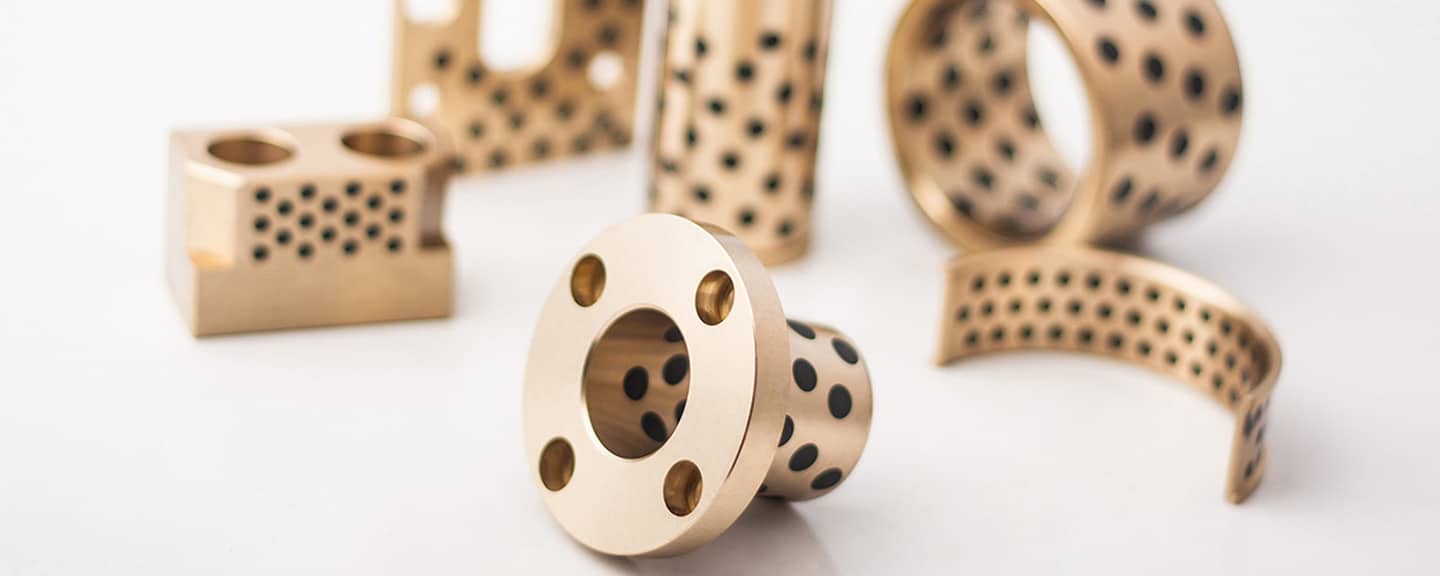

Graphite Bronze Bushings, graphite bush bearing

Wouldn’t you like to work with a professional team?

We are at your service with our expert staff and high technology devices.

graphite bush bearing

Contact Us
Need Assistance? Call Or Email Us Engineering Support Available
Request a Quote.
Catalogs and Brochures Available Fill out our form to get more info
No Oil Or Grease.
Bearing Solutions For Food Applications. Call Us Now.

Additional information

Size

Custom Size, Extra large, Imperial size, Metric Size

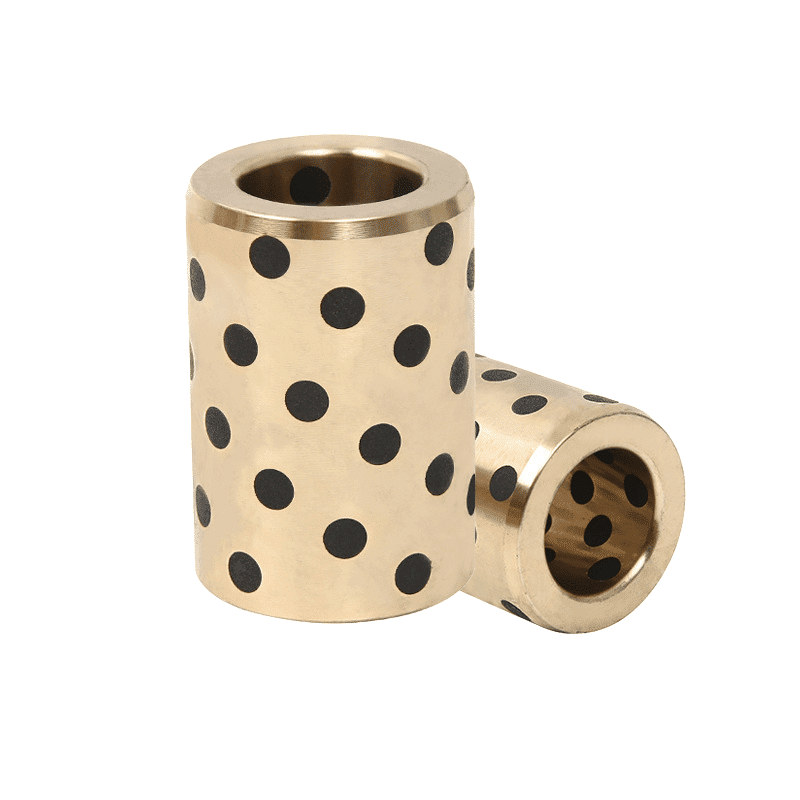

Cylindrical bushes

Solid Bronze Bushing, Bimetal Bushes, Cast Bronze Bushing, Wrapped Bushing
