Thrust Bushing – Brass Alloy, Shouldered
We have the best instructors
Please check the product specification for your part number on the Thrust Bushing – Brass Alloy, Shouldered. We offer metric thrust bushings with lubricant plugs, free CAD downloads, short lead times, competitive pricing, and a small minimum order quantity. High-strength brass alloy made with advanced casting technology and embedded solid lubricant for high load oil free bearings! Choose from our selection of thrust bushings, including plugged graphite thrust bearings, dry-running thrust bearings, and more. In stock and ready to ship.
Thrust Washer Bearings
graphite Thrust Bearing Bushings
Choose from our selection of thrust bearing bushings, including oil-embedded thrust bearings bushing, dry-running thrust bearings, and more. In stock and ready to ship. Choose from our selection of thrust bushings, including Bronze Sliding Bearing With Solid Lubricant Insert and Flange Bushing and thrust bearings, dry-running thrust bearings, and more. In stock and ready to ship.
Thrust Washer Bearings, Chemical & Mechanical Engineering
Technical Solutions For All Factories & Plants
Thrust Bushing (graphite) from China. We offers free CAD downloads, short lead times, competitive pricing, and small minimum order quantity.
Product Quality Index
Energy Generation
Slide bushings to buy, Thrust Washers
Maintenance free thrust bearing and bushing Suitable for rotary, oscillating and reciprocating movements. Maintenance Free, Self-Lubricating Bearings for demanding applications. Used in many applications as hydro power, oil & gas, wind, construction and…Cast bronze bushings and thrust washers, Spherical copper graphite sleeves sleeve bearings! Including product descriptions, applications, and more.
High tensile brass based thrust bushing, graphite sleeves
Graphite thrust bearing bushings are available in metric and inch sizes making them easy to integrate into your current process. Contact us today about your manufacturing needs. The self-lubricating thrust bushing is composed of high-strength bronze alloy bases made with advanced casting technology and embedded solid graphite…Reliable Thrust Flange Bearing Supplier!
- One bushing can carry both radial journal loads and thrust loads.
- Mechanical accuracy can be improved by increasing flange thickness accuracy.
High-strength brass bearings with embedded solid lubricant
Spherical plain bearing to buy: The thrust bushing series are self-lubricating bearings composed of brass alloy bases made with advanced casting technology and embedded solid lubricants, graphite + additives with lubrication oil. Serviceable, no lubrication required. Exhibits high performance under high loads and low speed operation. Demonstrates excellent wear resistance in applications where oil film is rarely produced. Such as reciprocating motion, oscillation, frequent starts and stops, etc. Excellent chemical and corrosion resistance. Standard products are available in a variety of sizes. Suitable for rotary, oscillating and reciprocating motion. Not suitable for use in water. markets components for moulds (standard and at drawing) bronze-graphite slides and bushes.
Oil-Free Bushing
Oil Free Bushings/Bronze Alloy/Standard， Tell Us About Your Application
Bushings & Bearings – Sleeve, Flange, Thrust
Using a unique metal material with high strength and excellent abrasion resistance

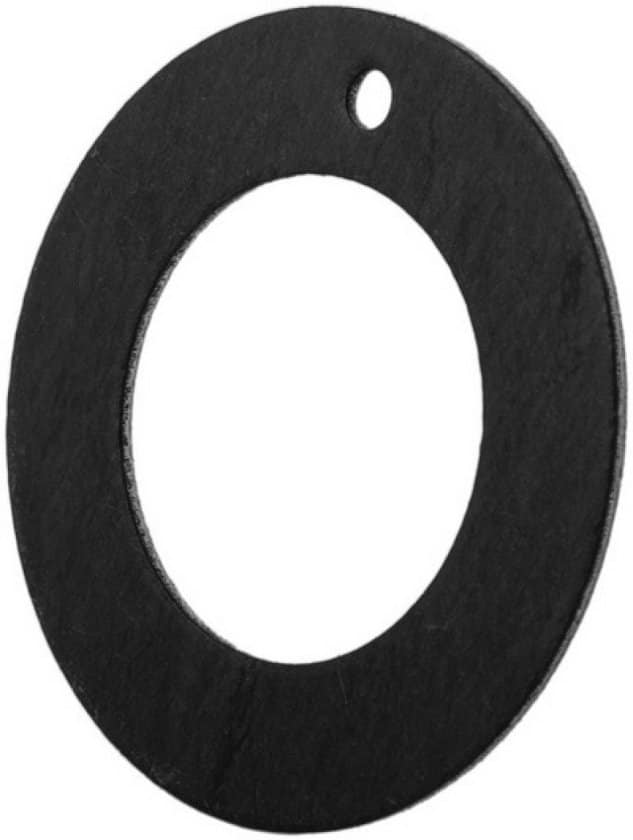

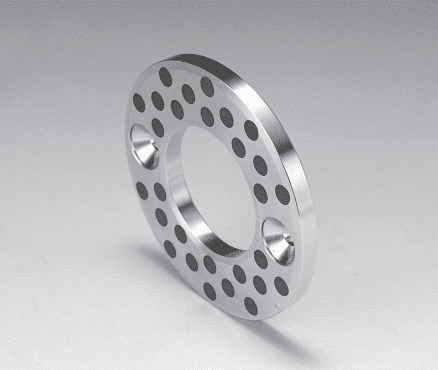

Thrust Washers
Oil Free Thrust Washer -Copper Alloy Thrust Type, Oil Free Bushings -Copper Alloy Thrust Type, Volume Discount, Embedded lubricant

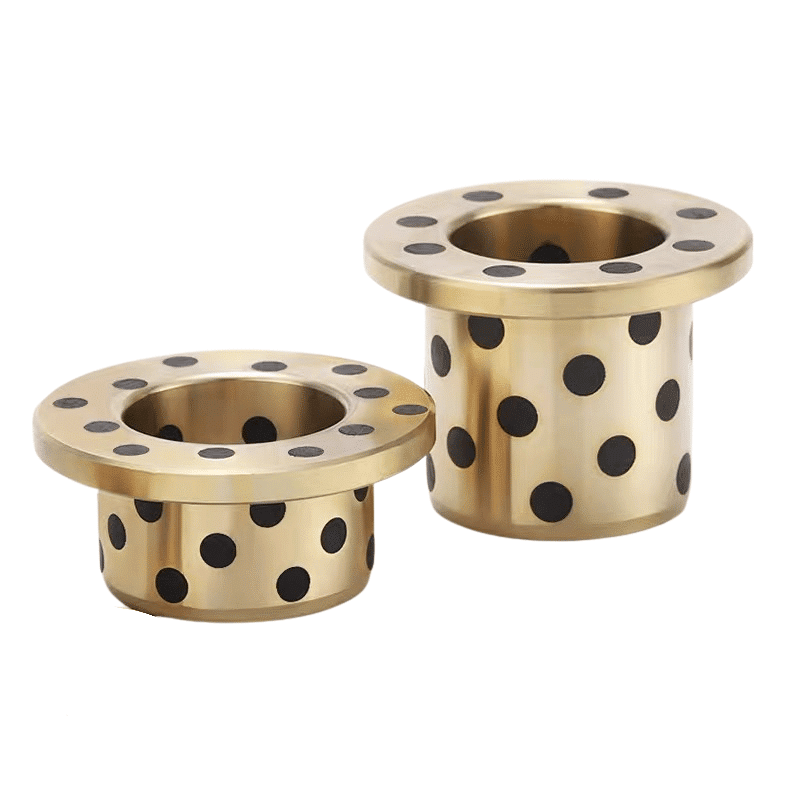

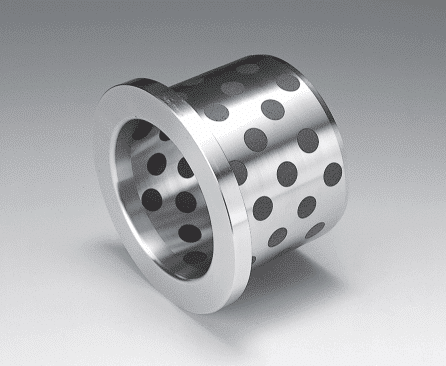

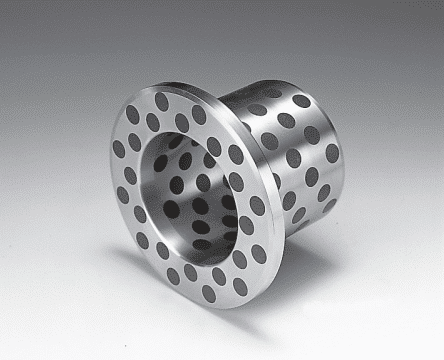

Brass Flanged Thrust Bushing
Bronze Alloy Flange Type, Oil Free Bushings/Copper Alloy/Thrust Type
Graphite Thrust Bushing
High performance and long life while remaining thin.

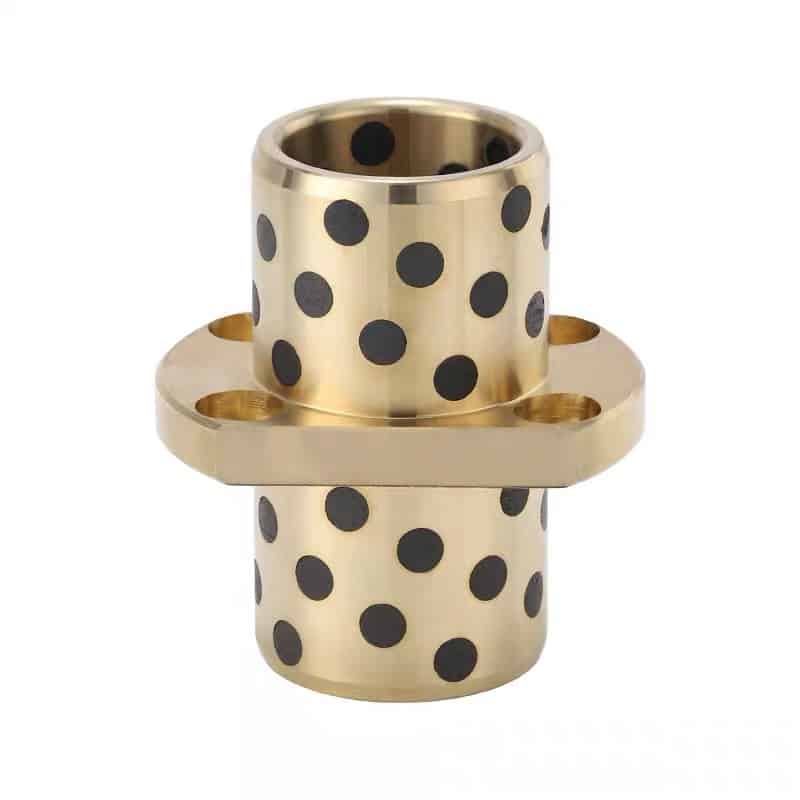

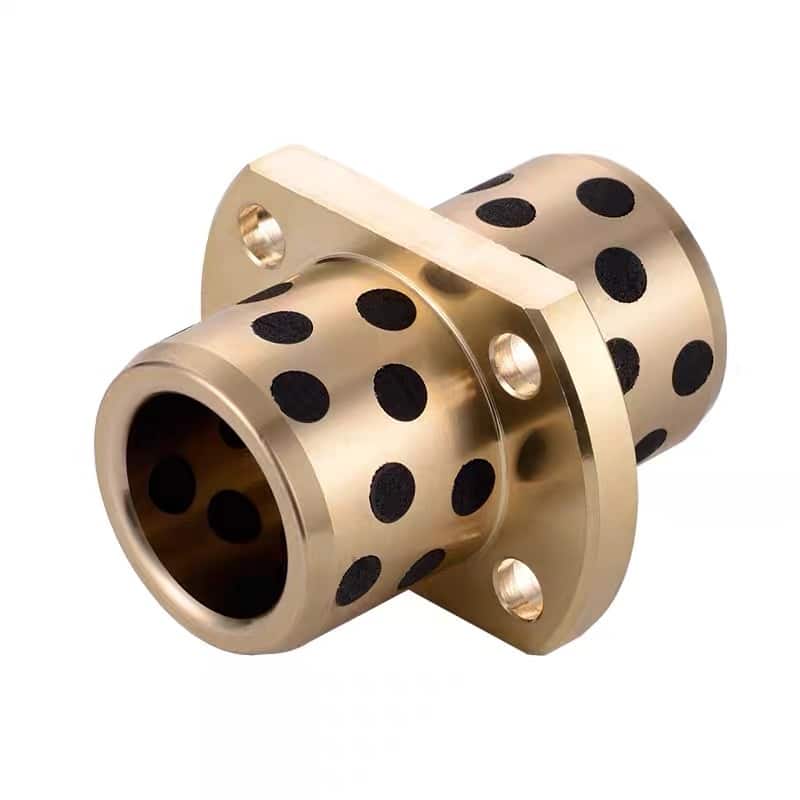

Flange Thrust Bushing
Oil Free Bushings/Bronze Alloy/Thrust Type
Thrust Flange Bushing
A bronze alloy oil free bushing designed with cost in mind.

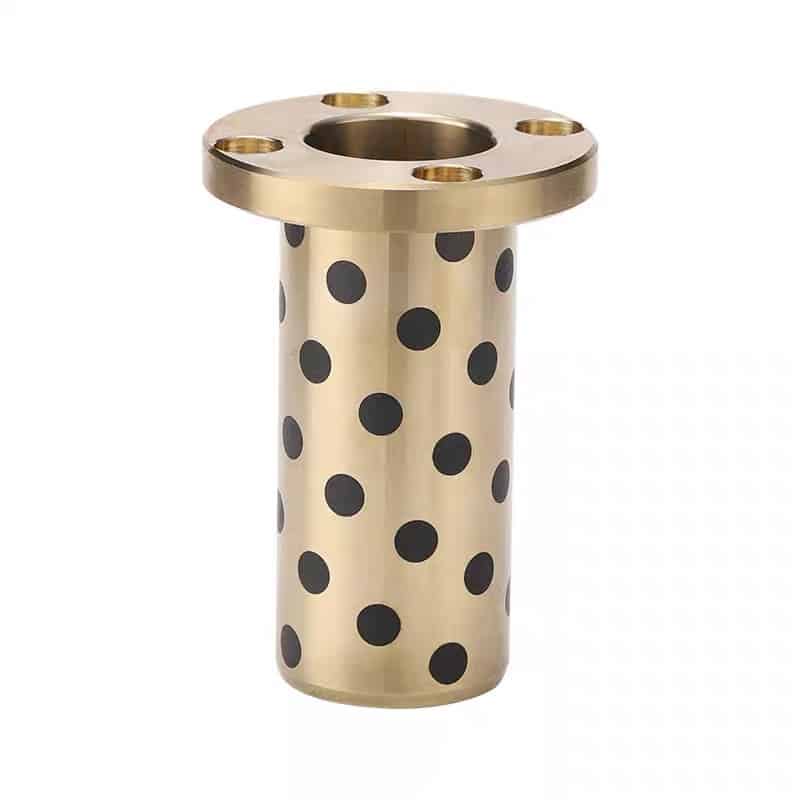

Bronze Alloy/Flanged Thrust Bushing
Oil Free Bushings/Bronze Alloy/Flanged/Thin Wall
Flange Thrust Bushing, Brass Sleeves
Oil Free Bushings/Bronze Alloy/Flanged/I.D.F7&I.D.G6
Thrust Brass Bushing
Bushings/Cast Bronze Alloy/Flanged/Cost Efficient Product
Graphite Plate
Oil Free Plate Copper Alloy Wear Plate Type, Oil-free Slide Plates
Oil Free Bushings -Copper Alloy Thrust Type, , Buy a Plain Bearing
Shouldered and Flanged Thrust Oil Free Bushing Flange Graphite Copper Sleeve Bushing Self-lubricating Bearing, Brass Alloy, Shouldered and Flanged Thrust Sleeve Bearing. Thrust washer bearings by bronzelube.com

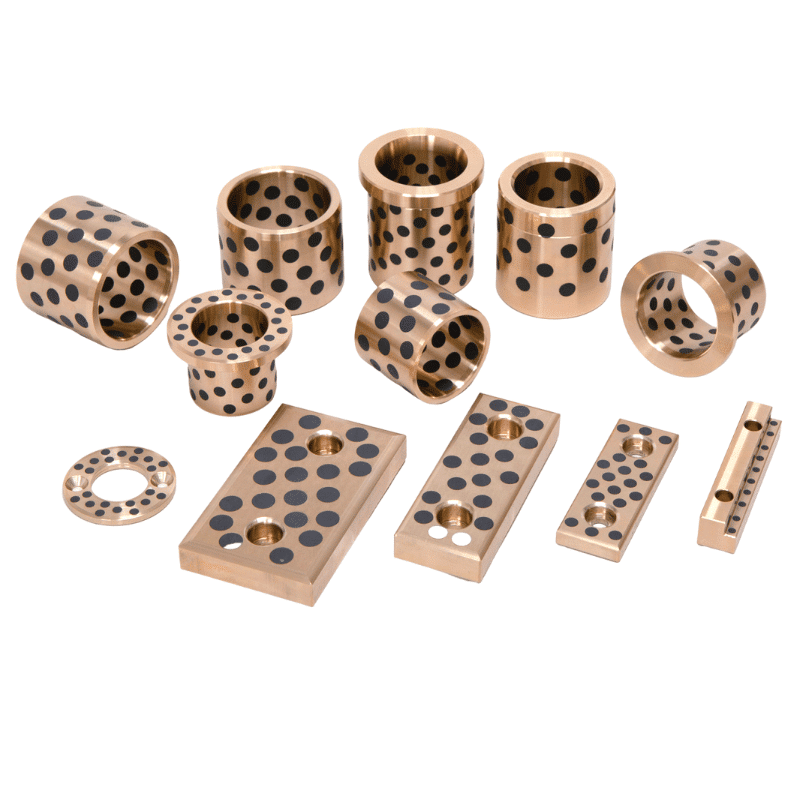

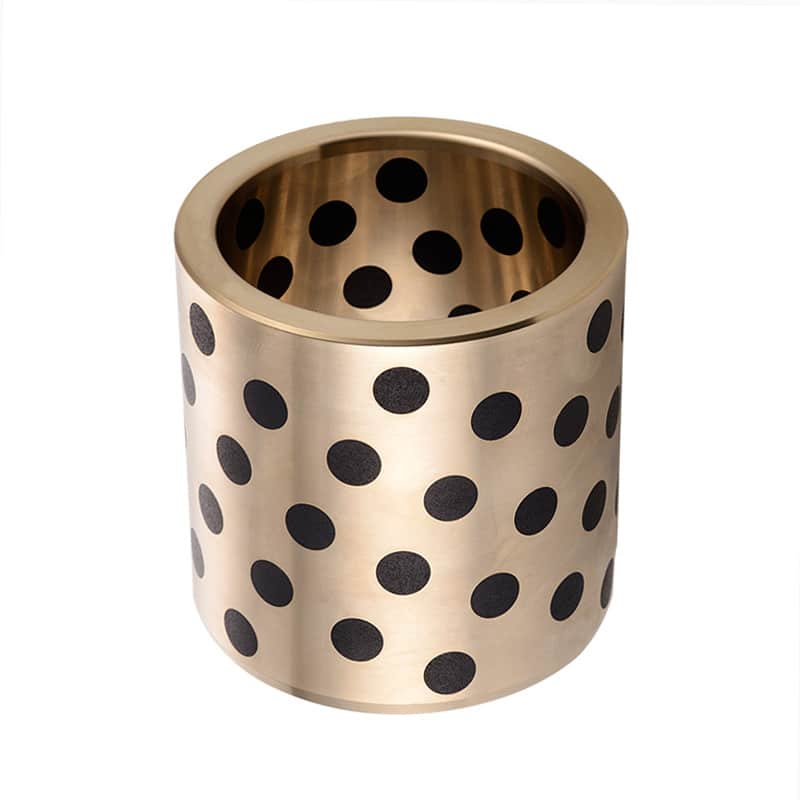

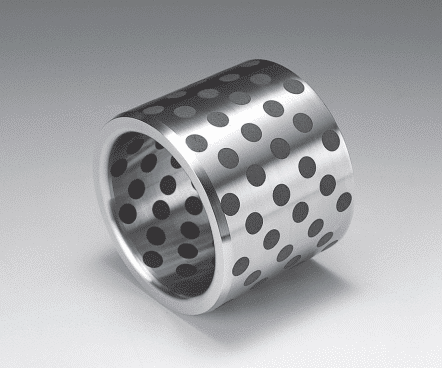

Graphite Brass Sleeve Bearing – Oil-Free Bushes
High-strength brass bearings, oil less brass bearings with embedded solid lubricant, Standard dimensions， Thrust Bushing is self-lubricating. If you don’t find the right Thrust Bushing standard size, no problem, we can produce custom special sizes, sizes, shapes, base materials, and types of lubricant plugs. Size, shape, base material, type of lubricant plug, can all be changed to match your application and conditions. For these custom Thrust Bushing , contact us to request a Thrust Bushing sample. If you still have questions about material selection, please don’t hesitate to contact us by mail. We will be happy to help and guide you.
Thrust washer bearings by bronzelube.com
Beautifully crafted leather products.
Thrust washer bearings are flat bearings that are typically inserted between a rotating part and a stationary part and function to provide friction to the rotating part as it begins to move laterally. Thrust washer bearings are made of self-lubricating graphite bronze bushing material for maintenance-free, dry operation in a wide range of applications and axial load requirements. All of our self-lubricating materials are rigorously tested in our laboratory to ensure long service life and high wear rates, especially in highly corrosive or harsh environments where typical metal thrust washer bearings can corrode and fail, causing unplanned downtime.
Thrust Bushings Offers a line of thrust bushings self-lubricating graphite bushings.
If you are looking for a low-fractionation, self-lubricating bearing, then our Thrust Bushings are the product you need.
Bronze Sliding Bearing With Solid Lubricant Insert and Flange Bushing!
Self Lubricant Bushings Oilless Bushing
| Performance Index | Data | |
| JDB Bearings Solid Lubricant Graphite Embedded Copper Brass Bronze Bushing | ||
| Material | CuZn25AI5Mn4Fe3 | |
| Density g/cm³ | 8 | |
| Hardness HB | >210 | |
| Tensile strength N/mm² | >750 | |
| Yeild strength N/mm² | >340 | |
| Elongation % | >12 | |
| Coefficient of linear expansion 10-5/ºC | 2.2 | |
| Heat-conducting Coefficient W(/m.k) | 38~55 | |
| Flexibility Coefficient KN/mm² | 100~140 | |
| Temp. Limits ºC | -40~+200 | |
| Max. Dynamic Load N/mm² | 98 | |
| Max.speed m/s | Dry Lubrication | 0.3 |
| Oil Lubrication | 1.0 | |
| Max.PV N/mm²*m/s |
Dry Lubrication | 1.65 |
| Oil Lubrication | 3.25 | |
| Friction | Dry Lubrication | 0.12~0.16 |
| Oil Lubrication | 0.03~0.08 | |
| Notice: In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements. | ||
Oil Free Bushings -Copper Alloy Thrust Type, Embedded lubricant at flange allows to bear radial journal load and thrust load at the same time.
Offering Superior Performance In Hundreds Of Applications Replacing Bearings. Reduced costs & downtime. Services: Custom Design, Engineering Support.
Configured Specifications
Type Flanged Bushing Material Graphite Impregnated Brass Bushing
Graphite Impregnated Brass Bearings Materials
Oil-Free Bushing Material: High Tensile Brass Alloy Solid Lubricant Embedded
Oil-Free Bearing Characteristics: Dry Work. Oil Free Bushing – Brass Alloy, Shouldered and Flanged Thrust Bearings
It can be done well with high load and low speed.
Reciprocating motion, unloading, starting and stepping are often a difficult to maintain the oil film. Can still play advantageous wear resistance.
Excellent chemical resistance and corrosion protection.
Flexible, simple, convenient, and abundant standard design, can be selected by standard axles.
Oil-Free Bearings Description:
Made of cast brass and equipped with graphite, which is self-lubricating and requires no lubrication.
The brass bushing is self-lubricating. It offers good friction, wear resistance and low noise.
The solid friction sleeve can work during a wide temperature range (-40 ℃ + 300 ℃). Suitable for sliding applications.
Oilless sleeve bearings are most suitable for applications where self-lubricating material properties are required.
Specification:
Material: CuZn24Al6 + graphite
High-strength brass as the base
High force brass, the chemical formula is ZCuZn25Al6Fe3Mn3, mechanical properties are different zinc content, mechanical properties are other, pressure processing properties have good plasticity, can withstand hot and cold processing.
Chemical composition editor
The chemical formula of Golik brass is ZCuZn25Al6Fe3Mn3, which contains about 65% copper and 24% zinc. Zinc improves the strength, hardness and corrosion resistance of brass. There are three kinds of room temperature organization of brass: brass containing less than 35% zinc, the microstructure at room temperature consists of single-phase α solid solution, called α brass.
Application Areas Editorial Podcast
High force brass is widely used, made by casting into shingles and bushings, domestic mainly with high force brass as the substrate for the production of solid lubrication oil-free bearings (referred to as solid lubricant bearings), is the use of high force high-strength brass as the substrate, and radially embedded in an orderly arrangement of cylindrical polymer filler for the friction material (generally graphite, molybdenum disulfide, polytetrafluoroethylene, oil and other lubricants), its superiority lies mainly in its make Copper alloy and non-metallic wear reducing materials have their own complementary advantages, not only has a high load-bearing capacity, but also break through the general bearing rely on oil film grease lubrication boundary, to achieve oil-free lubrication, embedded solid lubrication easy to form a lubricating film, its friction and wear performance has played a great role in improving the stability and reliability of high cost. Compared with the composite oil-free bearing, it has the advantages of good machinability, high precision, strong load-bearing capacity and good wear resistance. This self-lubricating guide plate can be used in many fields such as: construction machinery joint parts, such as excavators, mining shovel machine, rotary drilling rig, concrete pump truck, rock drilling machinery, winch, port crane, etc., and metallurgical machinery continuous casting machinery, water conservancy machinery, conveying machinery, rolling mills, blowing machine film blowing machine, injection molding machine crosshead clamping differential, tire curing machine, trailer balance beam, vacuum switch, etc..
|
basic material |
ZCuZn25Al6Fe3Mn3 |
hardness |
Hb230-270 |
|
friction coefficient |
<0.16 |
the highest use temperature |
300℃ |
|
limit load |
100N/mm2 |
Lm/mim |
25N/mm2 |
|
maximum slid speed |
Dry：0.40m/s oil：5m/s |
Service limit PV value |
3.8N/mm2·m/s |
Thrust Bushing Tin bronze as the base
|
basic material |
CuSn6Zn6Pb3 |
hardness |
Hb90 |
|
Friction coefficient |
<0.15 |
the highest use temperature |
350℃ |
|
limit load |
60N/mm2 |
Lm/mim |
15N/mm2 |
|
maximum slid speed |
2m/s |
Service limit PV value |
0.5N/mm2 ·m/s |
Iron inlaid Tin bronze as a base
|
basic material |
HT-250 |
hardness |
Hb210 |
|
friction coefficient |
<0.17 |
the highest use temperature |
400℃ |
|
limit load |
60N/mm2 |
Lm/mim |
15N/mm2 |
|
maximum slid speed |
0.5m/s |
Service limit PV value |
0.8N/mm2 ·m/s |
Steel as base
|
basic material |
CuCr15 |
hardness |
Hb60 |
|
friction coefficient |
<0.17 |
the highest use temperature |
350℃ |
|
limit load |
250N/mm2 |
Lm/mim |
70N/mm2 |
|
maximum slid speed |
0.1m/s |
Service limit PV value |
2.5N/mm2 ·m/s |
Our team provides excellent support.
We specialize in the production of solid inlay self-lubricating bearings, graphite bronze bushings, and can customize production in various forms and standards according to customer needs. We have built a complete and scientific quality management system; we have perfect quality inspection systems such as composition testing and mechanical property testing to provide you with high quality products.
Graphite thrust bushing, also known as self-lubricating bearings, is a product with self-lubricating properties in the thrust bushing as the metal matrix of the friction surface to develop an orderly arrangement, the appropriate size of the hole, and embedded graphite or molybdenum disulfide, etc. as a solid lubricant.
The general solid lubricant accounts for 20-30% of the friction surface area. The lubrication principle of this self-lubricating bearing is that during the sliding friction between the shaft and the bearing, a part of the graphite particles is transferred to the friction surface of the shaft and the bearing, forming a more stable solid lubrication diaphragm to prevent the direct adhesive wear of the shaft and the bearing.
This rational combination integrates the respective performance advantages of metal alloy and non-metallic wear reducing material to complement each other, that is, with the high load-bearing capacity of metal and the lubricating performance of wear reducing material. Therefore, it is especially suitable for the environment of no oil, less oil, high temperature, high load or water, etc.
At present, graphite bronze bush has been widely used in engineering machinery, metallurgical machinery, mining machinery, locomotive support, rolling equipment, marine machinery, mold equipment, textile machinery, gas turbines and other low-speed heavy load, high-speed light load and other occasions to use.
There are two basic forms of graphite bronze bushings marked in the national standard: straight column type self-lubricating bronze bushings and self-lubricating graphite bushings with retaining edges. Straight column self-lubricating bronze bush type said: integral inlay bearing, with a baffle edge self-lubricating bush type said: with a baffle edge integral inlay bearing; Folio type self-lubricating bush said: split inlay bearing. With this process also derived from self-lubricating thrust shim and self-lubricating guide plate and other products.
Graphite thrust bushing and bearing commonly used lubricating materials：Solid lubricating materials generally have polytetrafluoroethylene, high-purity graphite or add molybdenum disulfide, zinc stearate material (part of the material can be oiled state).
Choose the bronze bushing material, Bushing Material Graphite Impregnated Brass

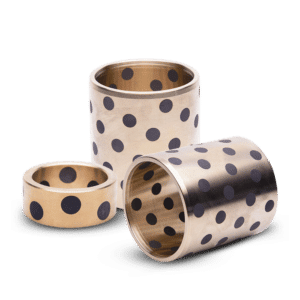

Thrust Bushing is a self-lubricating bearing with a high grade copper alloy base material embedded with a solid lubricant plug, graphite or PTFE. Embedded with a solid lubricant plug, graphite or PTFE. During operation, a very thin but very strong lubricating film is automatically deposited over the entire moving surface. Automatically deposited over the entire moving surface. Thrust Bushing is suitable for applications requiring a maintenance-free operation, high loads, high temperatures, chemicals or corrosion. High temperature, chemical or corrosive requirements make it impossible to use conventional bearings. Bronze graphite bushes and slide plate, standard (for example Fibro type, Meusburger type, Sankyo type, ecc) and custom to drawing. Precision Thrust Washers!
Thrust washer bearings, Cost-effective, Most popular material worldwide!
It is specialized in thrust bushing bearing design, Oil Free Bushings/Copper Alloy/Thrust Type ; Type, Sleeve Bearings Shouldered ; Metallic, High-Tensile Brass Alloy production, custom and service of of industrial areas worldwide. Choose from our selection of thrust bushings, including graphite impregnated bushings and thrust bearings, dry-running thrust bearings, and more. In stock and ready to ship.
An Expert in bronze components
We are the supplier and manufacturer of castings and machined components made of bronze, bronze sleeve bearings!
A good choice for your bronze alloy parts, slide bushing
Offshore/Marine, We provide Offshore/Marine companies with stocked and specially ordered products. 100% recyclable bronze alloys. We are your sustainable choice now and in the future.
Friction Oil-Free Brass Bearings, A sustainable option.
We cast & machine thrust bushing washer and mechanical bronze lubricated parts with great precision, and to your specifications
Mining Industry
We provide mining industry with stocked and specially ordered thrust bushing & bearings, Sleeve bushing with flange to buy!
Forestry Industry, slide bushings to buy
Examples of where our bushings are used: Rotators Harvesters Forwarders Grapple claws Cranes Sawmill equipment
A sustainable option.
Examples of where our products are used: Tilt rotators Cone crushers Drilling rigs Wheeled loaders Dumpers Jaw crushers Excavators Worm gears (worm wheels) Cranes, thrust bearing manufacturer
Oil-free Slide Bushing
We custom-manufacture bushings to your specifications, and offer standard stocked thrust washer.
Get Started!
Standard Parts or Custom Washer Please feel free to email or phone us with your inquiry.
Thrust Bushings, thrust washers & flange bearings.
We are committed to sustainability and carbon neutral target efforts, based on the casting and processing of 100% recyclable copper alloys. Our thrust bushing bearings production process is carried out in the same plant from raw material to finished product, and we obtain energy efficient production with minimal environmental impact from transportation. Our Company’S Bronze-Graphite Thrust Bushing Standards Are Made Of High Quality Bronze And Graphite, In Accordance With Industry Standards. In Addition, Our Company Is Able To Offer Our Customers Special Bronze-Graphite Products, Which Are Made According To The Drawings And Technical Specifications Provided By The Customer. We are working for a sustainable future. Discuss your project with the thrust bearing washer expert.
Bronze/Graphite Thrust Bearing Bushing Parts
We Offer Its Customers A Wide Range Of Self-Lubricating Bearing Thrust Bushings That Are Made Of Bronze With Solid Graphite Inserts And Are Interchangeable With Major European And Japanese Brands. This Type Of Thrust Bushing Is Used And Appreciated In Machining Operations Where There Are Significant Friction, Rubbing And Wear Problems, Or Where External Lubrication With Oil Or Grease Is Difficult Or Impossible. Bronze-Graphite Thrust Bushing, As The Name Suggests, Is Made Of Bronze With Holes Cut In The Surface Into Which Graphite Is Embedded; These Lubricating Solids Gradually Release Micro-Particles Of Graphite, Creating A Thin Layer That Ensures Self-Lubrication Of The Sliding Assembly Due To The High Lubricating Capacity Of Graphite.
