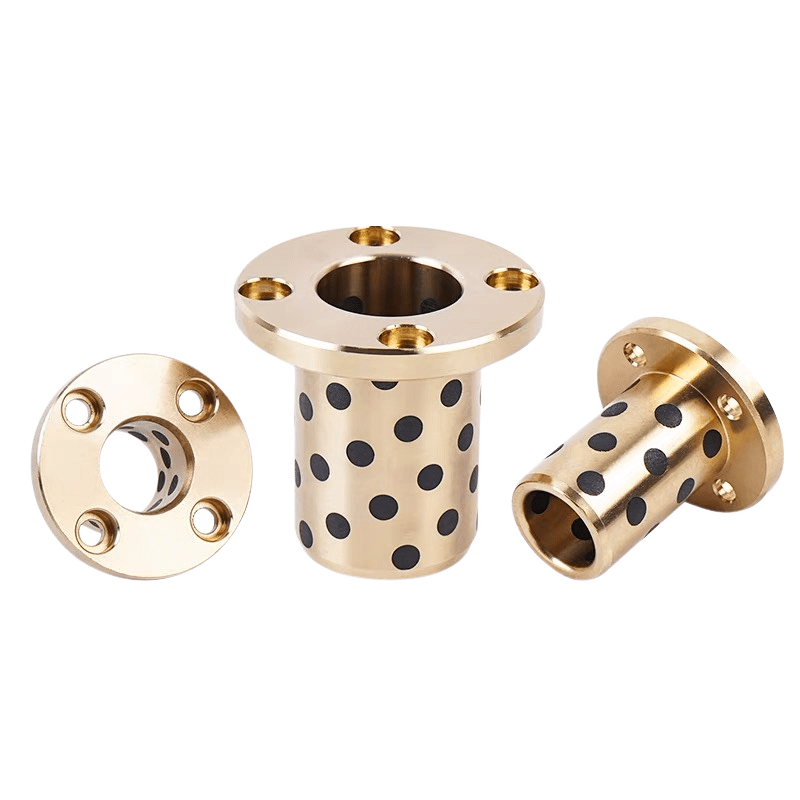

Bearing Housing Installation Guide

Bearing Housing Installation Guide, Bearing Housing Installation Guide, self-lubricating bearing, installation instructions and installation technical support for bearing

Method 1: Press-Fit Method

To install the bearing housing, first, press the bearing onto the shaft using a press. Then, insert both the shaft and the bearing into the bearing housing. It’s important to use a soft metal material sleeve on the end face of the bearing’s inner ring during press-fit. This sleeve should have an inner diameter slightly larger than the shaft’s diameter and an outer diameter slightly smaller than the bearing’s inner ring flange. This ensures a tight fit between the bearing’s outer ring and the bearing housing. If the fit between the inner ring and the shaft is loose, press the bearing into the housing’s bore first, ensuring the sleeve’s outer diameter is smaller than the bore diameter of the housing. If both the bearing’s ring and the shaft/housing bore fit tightly, press both the inner and outer rings into the shaft and housing bore simultaneously.

Method 2: Heating Method

This common and efficient method involves expanding the bearing through heating, turning a tight fit into a loose fit for installation. Heat the bearing or the separable bearing’s ring in an oil bath, keeping the oil temperature within 80–100°C. After heating, quickly place the bearing onto the shaft. To prevent any looseness between the inner ring’s end face and the shaft shoulder after cooling, tighten axially once more.

When fitting the bearing’s outer ring tightly with the bearing housing, heating the bearing housing can prevent damage to the mating surfaces. Note that when heating in an oil bath, do not place the bearing directly at the bottom of the tank. Use a mesh or hang the bearing with a hook at a fixed distance from the bottom, and ensure the temperature does not exceed 100°C to prevent tempering that could reduce the ring’s hardness.

Method 3: Tapered Bore Bearing Installation

Install the locknut and withdrawal sleeve on the tapered surface of the bearing housing or mount the tapered bore bearing on a tapered shaft. Selecting the radial internal clearance can balance the tightness of the fit. Measure the radial internal clearance before installation and during operation until the desired clearance reduction is achieved. Typically, bearings are installed using a locknut or heating method.

Method 4: Thrust Bearing Installation

Installing thrust bearings is relatively simple. First, fix the double-direction thrust bearing’s central spring on the shaft to prevent the bearing housing from rolling on the shaft. The fit between the bearing’s inner ring and the shaft is an interference fit, while the fit between the bearing’s outer ring and the bearing chamber is a clearance fit.

Knowledge Expansion

• Purpose and Common Issues of Bearing Housings

1. Purpose of Bearing Housings Bearing housings, as essential partners of bearings, play a crucial role in the entire shaft system. Typically installed at both ends of the shaft, their main function is to support and secure the bearings, ensuring the shaft maintains its positional relationship with connected components. Additionally, bearing housings often come with sealing devices to reduce bearing contamination.
2. Common Issues with Bearing Housings Wear is a frequent issue with bearing housings, leading to regular occurrences of wear and tear.

what are the common mistakes to avoid during bearing housing installation

During bearing housing installation, several common mistakes should be avoided to ensure proper functionality and longevity of the bearings. Some of these mistakes include:

1. Improper Lubrication: Using non-recommended greases or neglecting proper lubrication can lead to premature bearing failure
   1

   .

2. Misalignment: Failing to ensure the outer race is square with the housing bore can cause damage to the bearing during operation
   1
   2

   .

3. Inaccurate Installation Force: Hammering directly on the bearing, races, or rollers should be avoided, as it can lead to damage. Instead, even, driving pressure should be applied directly to the race being press-fit
   1
   2

   .

4. Using Incorrect Shaft Diameters: Working with incorrect shaft diameters can lead to fretting or fracturing of bearings if the shaft is undersized
   4

   .

5. Neglecting Compatibility Issues: Neglecting compatibility issues between the lubricant and the bearing materials can lead to premature failure and costly downtime
   5

   .

By being mindful of these common mistakes and following proper installation guidelines, the risk of bearing damage and premature failure can be significantly reduced.
