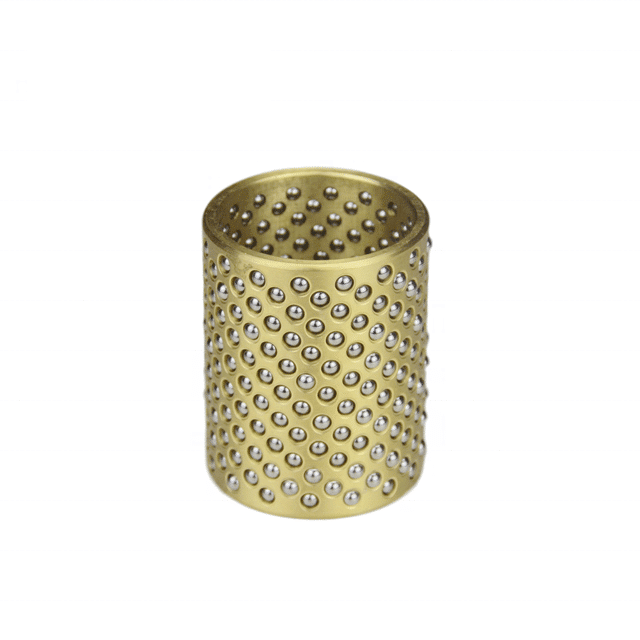

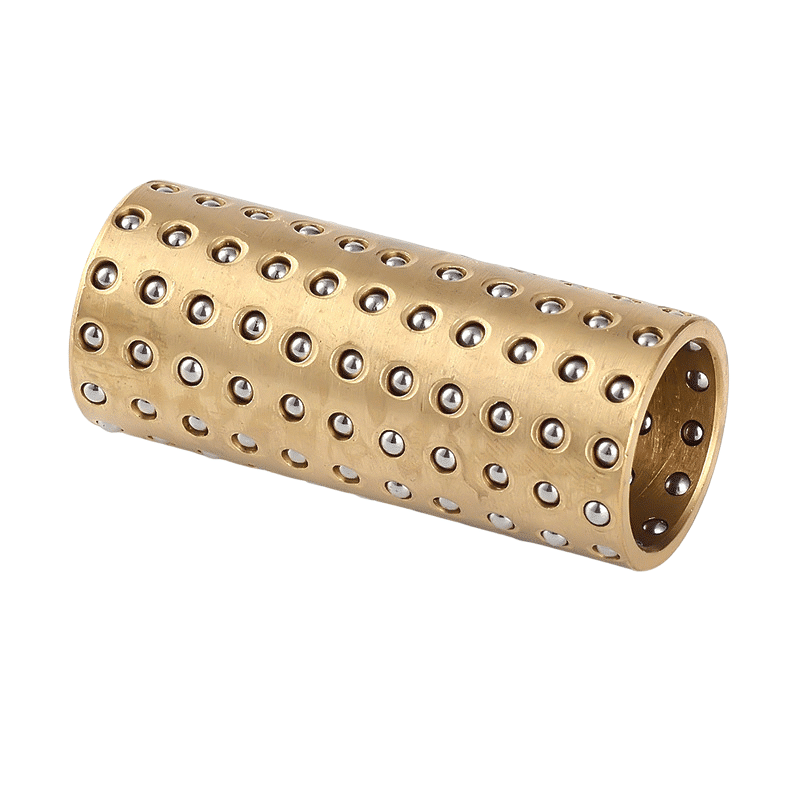

Brass Ball Cage Bearing – Mini Range. Brass ball cage with steel balls in helical formation – mini range. FZH ball cage bearing solutions: FZH Brass Cage Ball Retainer Bush is a guide pin bush. FZH Ball Cage Bearing Feature:
- Low Coef Friction
- Long life span
- High movement accuracy
- Be Proper for straight line and spiral movement
- Fast Movement
Structure: Copper Retainer + Steel Ball Bearing, Customized FZH Bearing
FZH Ball Cage Bearing & Bush is a new generation replacement of the guide pin bushing. With high-speed motion, this is mainly used in high-precision punching machines, high-precision machine tools, Self-lubricating etc. FZH Ball Cage Bearing, Online Customized Solutions. This is a copper-based material on which the rollers are arranged in an orderly manner at certain angles and intervals. In addition, the holding technology is improved so that the rollers can be thoroughly prevented from falling. The friction is low and can move freely in both the redial and axial directions, and the ball cage bearing is high-precision. This is a young generation of roller bearing that can roll at high speed and is used in rolling frames of cold impact dies, high-precision machine tools and their accessories.
We offer a large selection of graphite copper sleeve and flange bushing.
MAINTENANCE Self-lubricating flange bushing, highly durable, and reliable bushing supplier with or without graphite plugged. Learn more!
CUSTOM-MADE STANDARD PRODUCTS
Learn More
Brass Ball Cage Product introduction, Ball Cage Bearing Manufacturer

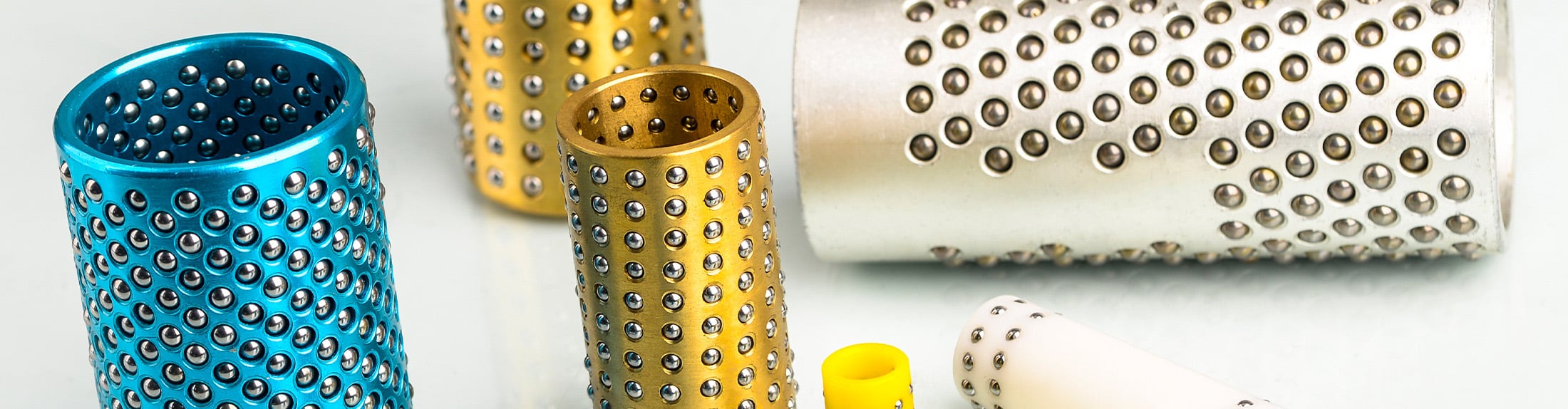

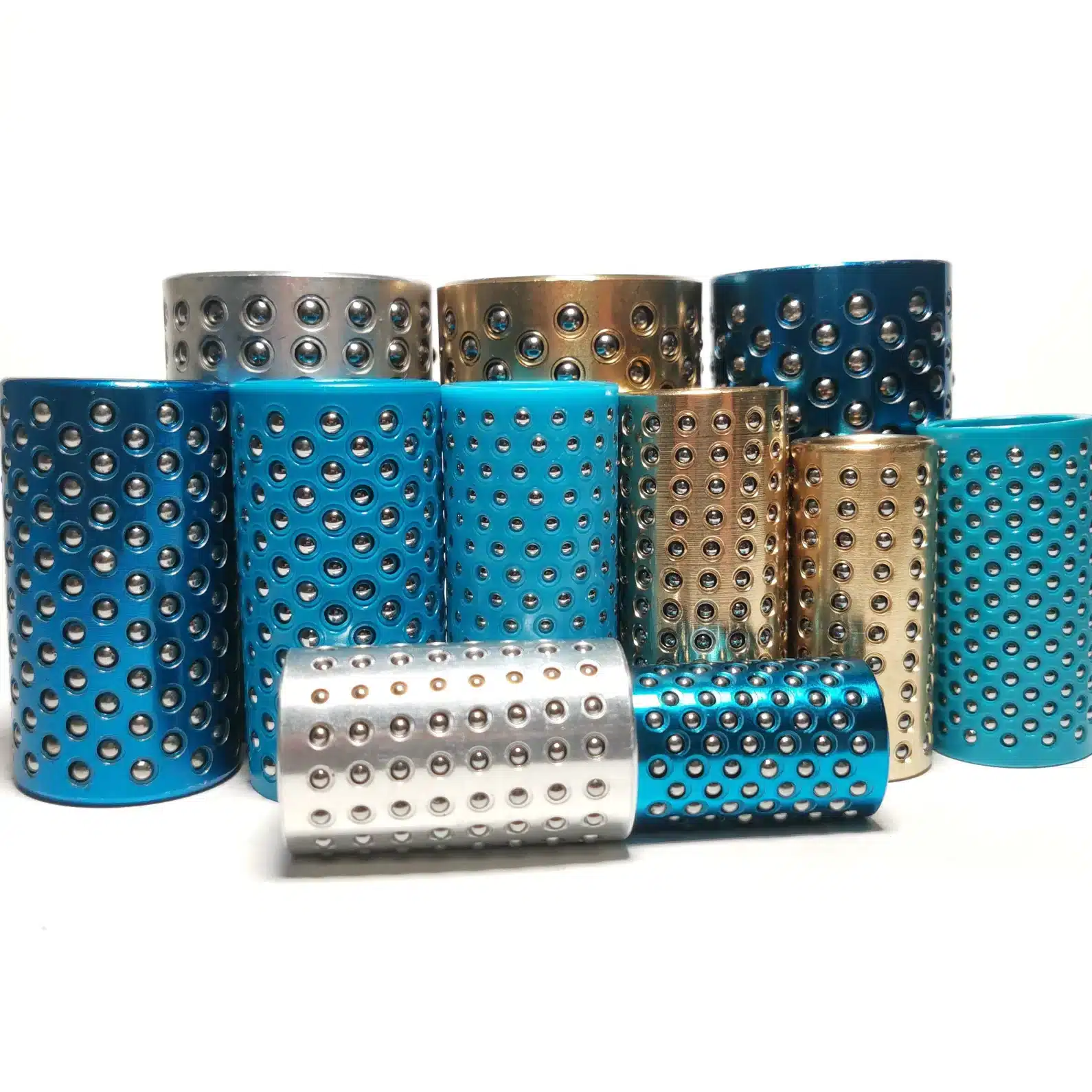

FZH (copper-based), FZL (aluminum-based), FZP (resin-based) steel ball retaining solid, respectively, with copper alloy, hard aluminum alloy, POM resin as the substrate, and in its outer surface, processing the arrangement of orderly, appropriate size, special shape of the hole, in its hole set into the rolling bearing steel ball.

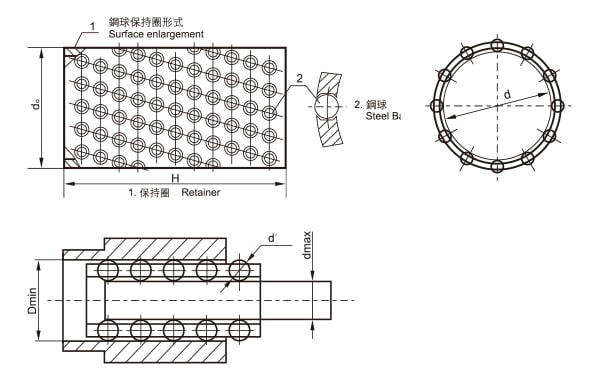

The mouth adopts the latest groove circumferential ball locking process, which effectively solves the problem that the traditional type of ball locking and indentation type of ball locking cannot completely prevent the steel ball from falling off. The bottom of the hole is machined with 90° stop to make the steel ball rotate freely in the hole without falling off.
Because the diameter of the steel ball is larger than the wall thickness of the retaining ring, so in use the steel ball is higher than the inner and outer surface of the retaining ring, directly in contact with the matching hole and shaft, so that the substrate (retaining ring) floats in the middle, and the difference between the radius of the matching hole and shaft is smaller than the diameter of the steel ball, i.e., the steel ball fits with the interference fit, with high precision, and the relative movement of the shaft and hole is flexible. It is the newer product of retaining ring.
Brass Ball Cage Features
– These balls are arranged spirally around the circumference of the cage and are designed so that the tracks of these balls do not overlap. This ensures that the balls do not wear out over time and that a high level of accuracy is achieved over a long service life.
– In addition, because the ball pocket section that holds the balls is machined to a high standard and prevented from falling out by a unique continuous caulking method, smooth motion is obtained even if the cage is used for longer than the housing.
– It is suitable for applications in precision stamping die sets, textile machinery, precision measuring instruments, automatic recorders, medical equipment, and various machine tools.
High-precision rotary stroke bearings Brass Ball Cage
Applicability

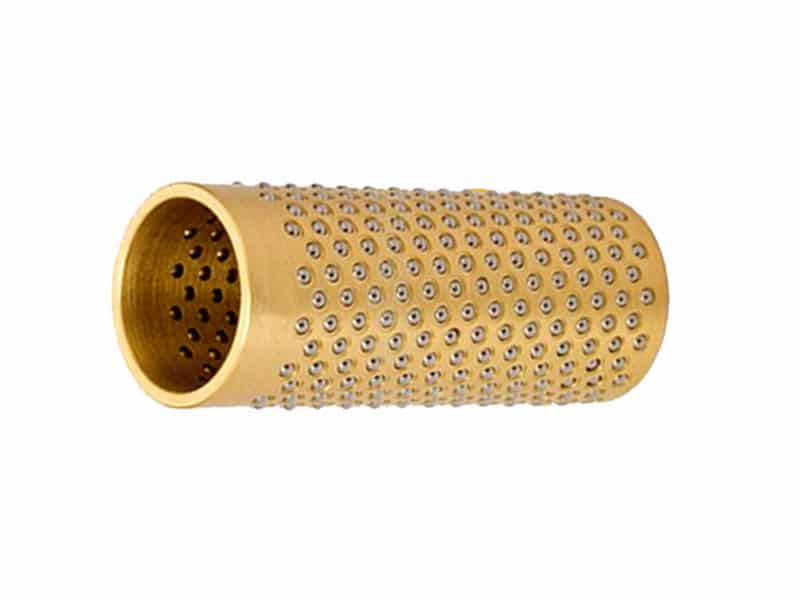

Brass ball cage with steel balls in a spiral arrangement.
– Allows for universal use.
– Provides the best combination of smooth operation and long service life.
– Spiral arrangement of steel balls is ideal for both linear and rotary motion.
Features
– Ball chamber is mechanically sealed so that the balls remain fixed but can still move easily.
But still moves easily.
– Balls are optimally arranged so that each ball runs on its own track for linear and rotary motion.
Running on its own track for linear and rotational movements
– This ball arrangement ensures smooth operation and greatly extends the service life of the rotary stroke bearings.
The service life of rotary stroke bearings.
– Brass has high mechanical stability, optimum sliding properties, and high resistance to wear and heat.
Wear and heat.
– For instructions on mounting and maintenance, see pages 37-41.
Material cage.
– Brass
– Maximum constant operating temperature 150°C
(For higher temperatures, please consult us)
Ball.
– Hardened, special roller bearing steel
Loading capacity
Load rating of the ball cage under uniform radial load.
When moments are available, the load capacity must be calculated.
Special designs
Ball cages can be supplied with stainless steel or ceramic balls.
Other sizes or designs can be supplied according to the workpiece drawing and different cage materials can be used.
Can be produced using different cage materials.
Our capabilities include component design, brass bushing material selection, prototype, production, and manufacturing.

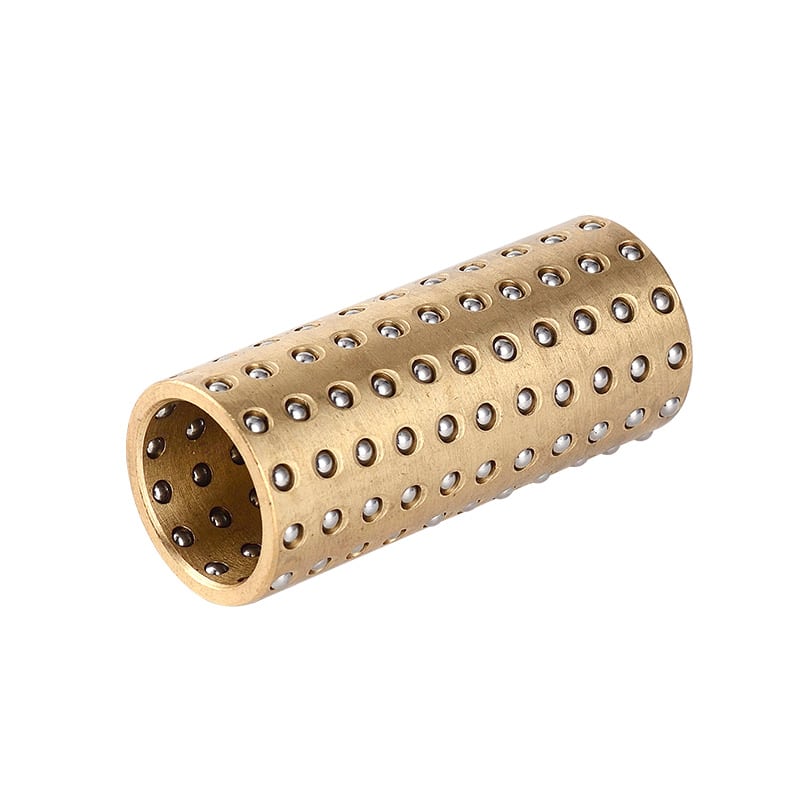

Miniature Ball Bearing Guide Components – Ball Slider Compact Type
Online sourcing for Fz Ball Retainer Cage Bearing Bushing, Find Complete Details about Fz Ball Retainer Cage Bearing Bushing, Ball Retainer, Ball Cage, Ball Bearing Retainer from a great selection of Brass Material, Quick Quote For Brass Bushings, Sleeve Bearings…
Custom Ball Bearings Components: Components manufactured to your exact specifications.
- Brass+Steel Ball
- Plastic+Steel Ball
- Aluminium+Steel Ball
Bearing Materials
Improve & extend the performance of Ball Bushing
Ask The Expert: Engineering assistance & self-lubricating material selection support.
Bushings Catalog – Search Bushings Size, Miniature Ball Bearing Guide Components – Ball Slider
With the Same Shaft Diameter, Smaller Push Outer Diameter by 1 to 2 mm than Standard Type, Further Space Saving.
CAD DRAWINGS
• Type: Ball Cage
Get access to ball bearing equivalent drawings
| No. | Di | B | d | En | Mn | Number of Steel balls | T | L |
| FRB-1950T60 | 19 | 50 | 12 | 8 | 96 | 5.5 | 5.75 | |
| FRB-1960T60 | 60 | 10 | 120 | 5.25 | ||||
| FRB-2050T60 | 20 | 50 | 8 | 96 | 5.75 | |||
| FRB-2060T60 | 60 | 10 | 120 | 5.25 | ||||
| FRB-2250T60 | 22 | 50 | 14 | 8 | 112 | 5.75 | ||
| FRB-2260T60 | 60 | 10 | 140 | 5.25 | ||||
| FRB-2360T60 | 23 | 50 | 10 | 208 | 5.25 | |||
| FRB-2475T60 | 24 | 75 | 16 | 13 | 128 | 4.50 | ||
| FRB-2550T60 | 25 | 50 | 8 | 112 | 5.75 | |||
| FRB-2560T60 | 60 | 10 | 160 | 5.25 | ||||
| FRB-2575T60 | 75 | 13 | 208 | 4.50 | ||||
| FRB-2775T60 | 27 | 75 | 13 | 208 | 4.50 | |||
| FRB-2860T60 | 28 | 60 | 4 | 14 | 8 | 112 | 6.5 | 7.25 |
| FRB-2875T60 | 75 | 11 | 154 | 5.00 | ||||
| FRB-3060T60 | 30 | 60 | 8 | 112 | 7.25 | |||
| FRB-3075T60 | 75 | 11 | 154 | 5.00 | ||||
| FRB-3260T60 | 32 | 60 | 16 | 8 | 128 | 7.25 | ||
| FRB-3275T60 | 75 | 11 | 192 | 5.00 | ||||
| FRB-3390T60 | 90 | 13 | 208 | 6.00 | ||||
| FRB-3685T60 | 36 | 85 | 12 | 192 | 6.75 | |||
| FRB-3690T60 | 90 | 13 | 208 | 6.00 |
| FZ 3*5*10 Miniature Ball Bearing Guide Components |
| FZ 3*5*15 Miniature Ball Bearing Guide Components |
| FZ 3*5*20 Miniature Ball Bearing Guide Components |
| FZ 4*6*10 Miniature Ball Bearing Guide Components |
| FZ 4*6*15 Miniature Ball Bearing Guide Components |
| FZ 4*6*20 Miniature Ball Bearing Guide Components |
| FZ 5*7*10 Miniature Ball Bearing Guide Components |
| FZ 5*7*15 Miniature Ball Bearing Guide Components |
| FZ 5*7*20 Miniature Ball Bearing Guide Components |
| FZ 6*8*15 Miniature Ball Bearing Guide Components |
| FZ 6*8*20 Miniature Ball Bearing Guide Components |
| FZ 6*8*30 Miniature Ball Bearing Guide Components |
| FZ 8*10*15 Miniature Ball Bearing Guide Components |
| FZ 8*10*20 Miniature Ball Bearing Guide Components |
| FZ 8*10*30 Miniature Ball Bearing Guide Components |
| FZ 8*10*40 Miniature Ball Bearing Guide Components |
| FZ 10*12*20 Miniature Ball Bearing Guide Components |
| FZ 10*12*30 Miniature Ball Bearing Guide Components |
| FZ 10*12*40 Miniature Ball Bearing Guide Components |
| FZ 12*14*20 Miniature Ball Bearing Guide Components |
| FZ 12*14*30 Miniature Ball Bearing Guide Components |
| FZ 12*14*40 Miniature Ball Bearing Guide Components |
| Custom Miniature Ball Bearing Guide Components – Ball Slider Compact Type |
Ball Cage Bearing Supplier
Matching parts requirements
1. Guide bush: material GCrl5, YB9, heat treatment, hardness HRC62~66, technical conditions according to GB/T12446 and shaft fit should have 0.01-0.02 radial interference, surface roughness of
2. Shaft: material GCrl5, YB9, heat treatment, hardness HRC62~66, technical conditions according to GB/T12446, shaft tolerance using h5, surface roughness of
3. Measurement: Use common measurement means (pneumatic gauge, OD dry scale, ID micrometer, etc.) to measure the size deviation value of the shaft guide bush and steel ball to find out the interference amount after the fit, i.e. Ymax=dmax+2d’-DmIn, the required interference amount is 0.01-0.02mm
Explore Brass Ball Cage Bearing bushing positions around the world.
Rely on technological progress, the use of advanced process, introduced advanced equipment. Learn More Brass Cage Ball Retainer Bush Online. Miniature Ball Cage Bearing Guide / Ball Slider Compact Type! Brass ball cage with steel balls and circlip for path limitation. Ball Cage for LM Stroke Die Set. Plastic Ball Cage, Cage made of polyacetal resin with steel balls. Cages can be plugged together to the desired length.
taxation planning
Eiusmod tempor incididunt ipsum ut labore dolore magna aliqua. Ut enim minim veniam duisy ipsum sed quis.
View standard FZH bearing dimensions – Metric Size in MM.
FZH Ball Cage Bearing – Brass Cage Ball Retainer Bush; X; ∅4 mm (ball diameter), diam. 48mm (shaft); length 87.5mm, cage in bronze material H62 brass.
- Spiral Array Ball Retainer
- Straight Line Ball Retainer
Ball Cage Bearing Supplier. Customized Size FZH ball cage bearing is possible, Made in china. Short & Reliable Delivery. Safety Quality Assurance. High quality factory.
