Wrapped Bronze Bushing Design Supply Company, Diamond-shaped Lubrication Pockets Sliding Surface!

Check out our wrapped bronze bushing selection for the very best in unique or custom entirely bronze material type on our online website: www.bronzelube.com

Customer Made Wrapped Bronze Bushings Material

Bushing: Design

Surface: Diamond shaped lubrication

CuSn8

WRAPPED BRONZE BUSHING,

Made in China

Wrapped Bronze Bushing

Size & Type Design

Cylindrical & Flange



Bronze Split Bushing Projects

Wrapped Bronze Cylindrical & Flanged Bushing Requiring Low-maintenance

Experienced Manufacturer & Supplier in China. Guaranteed Top Quality & Service. Quality Bronze Bushings Supplier & Manufacture in China, Contact Now! Quality Assurance.Wholesale Price. Advanced Technology. Types: Quality Assurance, Wholesale Price.

bearing application- Home Appliances
wrapped bronze bushing application

Learn More wrapped bronze bushings

CuSn8 Gleitlager
Cusn8 Gleitlager
Cusn8 Gleitlager
Top Quality

The promise of order wrapped bronze bushing high quality, meet your requirement.

Wrapped Bronze Bushing

Small minimum order value & quantity, fast delivery.

Bronze Bushing Features

Self-lubricating & Maintenance-free Wrapped Bronze Bushings

The 090 Series Wrapped Bronze Bushings are wrapped of a cold formable homogenous bronze (CuSn8), which will obtain exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film in the startup movement and subsequently reduce the startup friction. The material is suitable for the construction and agriculture industries where high load and slow movement are occurring.

Wrapped Bronze Bushings Material

  • CuSn8

Cu%

Sn%

P%

Pb%

Zn%

91.3

8.5

0.2

/

/



Wrapped Bronze Bushing Lubrication

Wrapped bronze bearings must be lubricated with grease or oil on installation. A good quality lubricant is essential as it will reduce friction and wear by forming a film between the plain bearing and the shaft. For heavily contaminated applications, we recommend sealing off the bearing. This will protect both the bearing and the lubricant.

Check out our online wrapped bronze bushing

“Start Your Wrapped Bronze Bushing Configuration.”

Explore More wrapped bronze bushings type

wrapped bronze bushings

Maintain Professional Design & Good Service From bronzelube

  • Free wrapped bronze bushings samples for approval

  • Fast Delivery

  • Reliable & safe bronze split bushing supplier

  • Small minimum order quantity



Wrapped Bronze Bushings Characteristics

  • Easy fitting and lubrication
  • High load capacity
  • Inner side can be machined
  • High level of thermal conductivity
  • Minimum overall dimensions
  • Chemical resistance

Check online wrapped bronze bushings catalog

Metric Cylindrical Wrapped Bronze Bushes

If you need help in selecting the best products for your particular application, please remember that design engineering and application assistance are available from bronzelube.com as part of our value-added services designed to make your job easier.

Wrapped bronze bushings application

This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, trust washers, spherical bearing and so on.

Wrapped bronze bushings forms made to order:

  • Straight wrapped bronze bushing
  • Flange bronze bushings

* Our enterprise, is one of the undisputed supplier of the highly competitive order wrapped bronze bushings industry in china.

Wrapped Bronze Bushing | Excellent Supplier from China

Expore more wrapped bronze bushings

Find a Bronze Split Bushings, Lagerbuchsen for your application, for forestry and construction machinery, agricultural machinery, cranes, forklifts, hoists etc.

Bronze sleeve bushings, lagerbuchsen with lubrication pockets

The 090 bronze sleeve bushings is a type of Lagerbuchsen wrapped in a brown slat. Bronze has a special formula with a high specific gravity, and on its surface you can enter spherical or diamond-shaped cavities or oil grooves, according to customer requirements. It has a high load capacity and long life. Instead of the traditional brown bush, it is cheaper and more compact. It is widely used in hoisting and other construction machinery, cars, trucks, machine tools and mineral engines.

The bronze sleeve bushings, lagerbuchsen produced by us are made of CuSn8 rolled phosphor bronze alloy materials, which are widely used and suitable for a wide range of applications. These bronze sleeve bushings, lagerbuchsen have been developed for slow speed, high load applications, especially suitable for oscillating motion, and are perfect for construction, mining/quarrying, agriculture and automotive industries.
Our bronze sleeve bushings, lagerbuchsen 090 series can withstand axial and radial loads, has excellent resistance to salt water and corrosion cracking, and most importantly; more cost-effective than mechanical processing, roller or ball lagerbuchsen.

CHARACTERISTICS

·Lagerbuchsen material made of solid bronze strips with recesses for lubrication
·Good wear resistance, suitable for harsh conditions
·Optimal performance at relatively high loads and low speeds

Bronze Sleeve Bushing, Lagerbuchsen, High Quality-Factory Price

TECHNICAL DATA(CuSn8)

Material:Cu – 91.3%    Sn – 8.5%    P – 0.2%
Standard:Cu Sn8. DIN 17662. CW453K
Sliding layer (thickness):Homogeneous
Tensile strength Rm:450N/mm²
Yield strength Rp 0.2:300N/mm²
Elongation in % A10:0.2
Hardness:130-150 HB
Friction coefficient:0.08-0.25µ
Thermal conductivity:60W/m·K
Temperature range:-100°C/200°C
Max. load static:150 N/mm²
Max. load, dynamic:60 N/mm²
Max. sliding speed (w.lubr.):2.5 m/s
Pv-value, Mpa x m/s, kont / int:2.8

090 bronze sleeve bushings, 090 bronze bushing bearing supplier,  bronze sliding bearing, lagerbuchsen

The lagerbuchsen are wrapped in cold bent homogeneous bronze (CuSn6.5) with exceptional material properties.

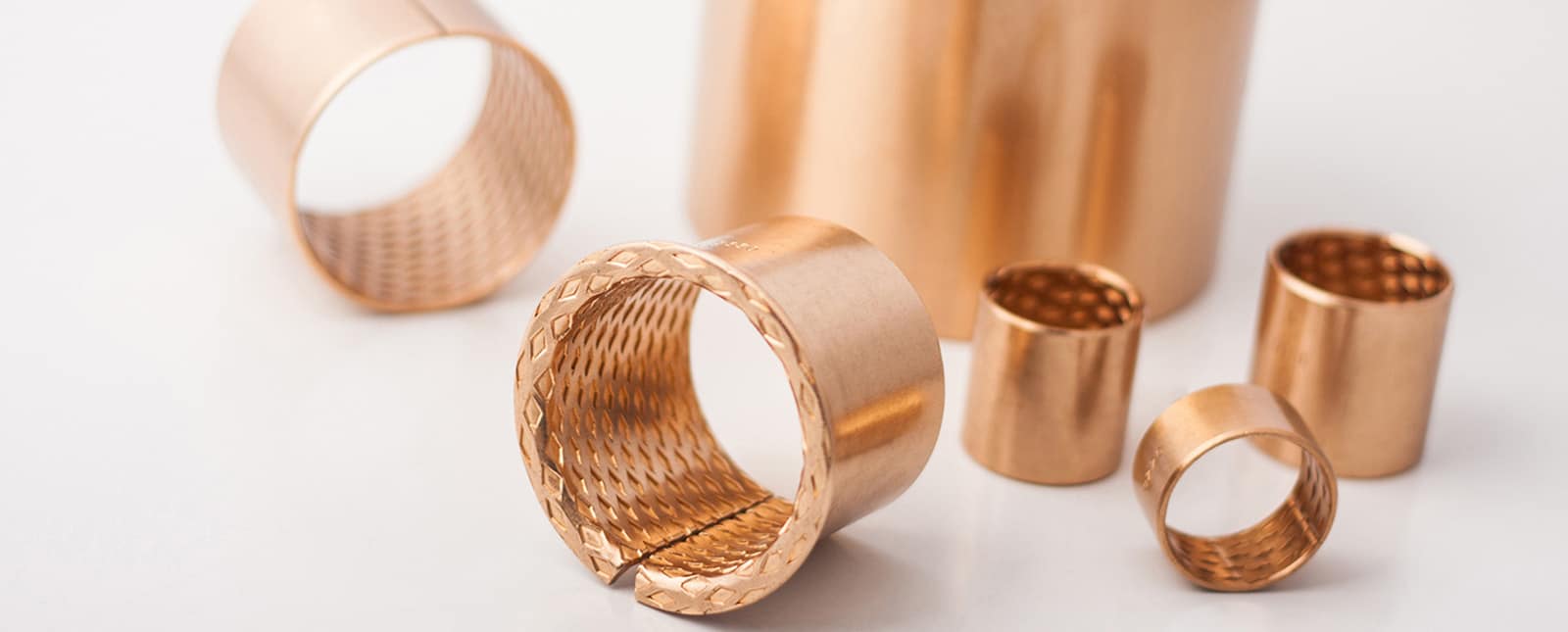

Standard sizes are equipped with diamond-shaped lubrication recesses on the lagerbuchsen surface.
These recesses serve as reservoirs for lubrication for the rapid formation of a lubricating film at the beginning of movement and, therefore, to reduce friction during movement.
The material is suitable for use in construction and agricultural machinery.

TECHNICAL DATA(CuSn6.5)

Max. Load PStatic load120 N/mm² Elongation40%
Dynamic load40 N/mm²Temp.-100 ºC~+200 ºC
Max. Speed (Lubrication) V2 m/sFriction coefficient0.08~0.25
Max.PV2.8 N/mm²*m/sThermal conductivity58w(m*k)-1
Tensile strength450 N/mm²Coef. of thermal expansion18.5*10-6*K-1

Select your lagerbuchsen size, Cost-effective Price.

Bronze Sleeve Bushing are used in forestry and construction machinery, agricultural machinery, cranes, forklifts, hoists etc.

Lagerbuchsen, 090 bronze sleeve bushings
It is made of bronze plate with oil bags or oil holes. It is an oil-lubricated and sometimes graphite) lubricated bush bearing. The bronze material is usually CuSn6.5P or CuSn8P, which is made with a special formula and has a high specific gravity. The surface can be added with spherical or diamond-shaped indentations or oil grooves according to customer requirements. Products are widely used in engineering machinery, agricultural machinery and other fields.
The material is suitable for construction and agricultural machinery applications.

BRONZE SPLIT BUSHINGS

DIAMOND BRONZE SPLIT BUSHINGS

Lagerbushsen Feature

CuSn6 CuSn8 090 bronze sleeve bushings lagerbuchsen with split sleeve Brown spider bearing The sleeve has good anti-fatigue, anti-erosion and anti-friction properties as well as load capacity.

·Easy to assemble and lubricate
·High load capacity
·Inner diameter can be machined on request
·High thermal conductivity
·Minimum overall dimensions
·Chemical resistance.

Lagerbuchsen Bronze Bearings and Bronze Sleeve Bushings made of CuSn8&CuSn6 with Lubrication Indents

These bronze sleeve bushings lagerbuchsen have been developed for slow speed, high load applications, especially suitable for oscillating motion, and are perfect for construction, mining/quarrying, agriculture and automotive industries.

Our lagerbuchsen are inevitable with lubrication pockets, through holes and grooves. This range is only available in metric sizes.

Our in-house processing services can produce non-standard sizes to meet specific customer requirements.

split-bronze-bushings

Lagerbuchsen, Bronze  Sleeve Bushings made of CuSn8/CuSn6 with Lubrication Indents

Lubrication must be done through the shafts or radially through the housings. All common types of grease or oil can be used.

Bronze Sleeve Bushing types available in standard dimensions: Plain cylindrical bearings, flanged bearings, thrustwashers, slidingplates.

Bearing forms made to order: Cylindrical bushings with non-standard dimensions, flanged bushings, sliding plates, customized bearing designs

The 090 bronze sleeve bushings lagerbuchsen are made entirely of bronze. They are particularly suitable for applications which need to be re-greased due to dirty environments.
The sliding surface has lubrication pockets, which help improve lubrication performance.
This crossing is produced in accordance with ISO 3547 and DIN 1494.

OPERATING PERFORMANCE

DryPoor
Oil lubricatedGood
Grease lubricatedGood
Water lubricatedPoor
Process fluid lubricatedPoor



Get your free quote!

ASK A QUOTE TODAY

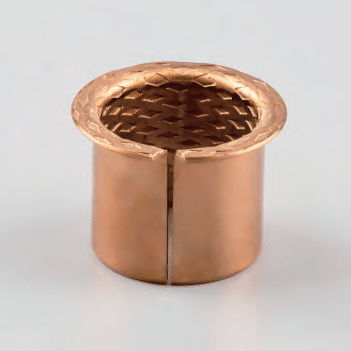

Lagerbuchsen, bronze sleeve bushings, diamond bronze flanged bearings with lubrication pockets.

090 bronze sleeve bushing is made of high alloyed hot rolled phosphorous tin bronze. Sliding bearings are specially designed to withstand heavy loads and shock. The entire bearing sliding surface is composed of lubrication holes, which form a lubrication film during startup and operation to reduce friction. 090 bronze sleeve bushing  is used for radial, oscillating and axial movement, especially suitable for medium to high loads.

Characteristics

– High load capacity
– Works well in dirty environments
– Wide temperature range
– Easy to assemble
– Grease pockets as lubrication reservoirs

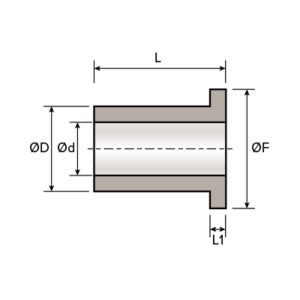

Lagerbuchsen Metric Wrapped Bronze Sleeve Bushings Flanged Bearing Size Model

Tolerance

Recommended tolerance: e7-f7
House: H7

Technical Data



Material:

Cu – 91.3%    Sn – 8.5%    P – 0.2%

Standard:

Cu Sn8. DIN 17662. CW453K

Sliding layer (thickness):

Homogeneous

Tensile strength Rm:

450N/mm²

Yield strength Rp 0.2:

250N/mm²

Elongation in % A10:

0.4

Hardness:

90-120 HB

Friction coeff:

0.08-0.25µ

Thermal conductivity:

60W/m·K

Temperature range:

-100°C/200°C

Max. load static:

120 N/mm²

Max. load, dynamic:

40 N/mm²

Max. sliding speed (w.lubr.):

2.5 m/s

Pv-value, Mpa x m/s, kont / int:

2.8

Lubricating

Lubrication should be performed radially through the shaft or through the bearing housing. All common grease types or oils can be used.

Application

Forestry and construction machinery, agricultural machinery, cranes, forklifts, lifting equipment, etc.

Avalibility

Plain cylindrical bearings, flanged bearings, thrustwashers, slidingplates.

We can provide special size, shape, form or length requirements. Please contact us for a quotation or more information.

BRONZE SLEEVE BUSHINGS

Bronze Bushing Sale | Source Online & Used Drilling Rigs | Bronze Mesh Material

APPLICATION

This type of bronze sleeve bearings, lagerbuchsen is widely used in lifting and other construction machines, automobiles, tractors, trucks, machine tools and certain mineral engines. It can be produced in bushes, half bearings, flanged bushes, taist washers, spherical bearings and soon. Learn more about rolled bronze bearings,bronze sleeve bushing, bronze sliding bearing, bronze bearing, CuSn8 CuSn6 bronze bushes applications.

TYPICAL APPLICATIONS

The 090 self-lubricating bronze sleeve bearings is widely applied in conditions of heavy load but low running speed, such as on agricultural, construction, engineering machines, etc.

CUSN8 CUSN6 BRONZE BUSHES ORDER FROM CHINA

Advanced production equipment production precision products, lagerbuchsen, bronze bearings,bronze sleeve bushing, bronze sliding bearing, bronze bearing, cusn8 cusn6 bronze bushes professional suppliers.

ASK A QUOTE

Select your correct lagerbuchsen,bronze sleeve bushings

MATERIALS

CuSn8 & CuSn6

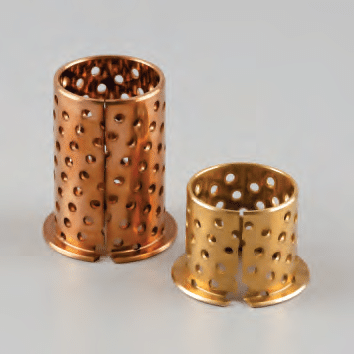

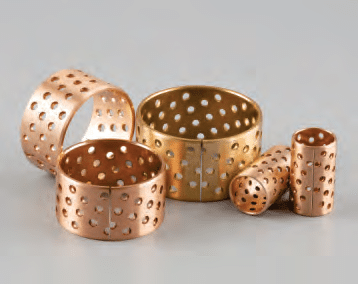

CuSn8 bronze with either grease pockets or CuSn8 with holes

The lagerbuchsen are wound from cold-formed homogeneous bronze CuSn8 (alternatively CuPb10Sn10) with exceptional material properties. The standard sizes have diamond-shaped lubrication notches in the lagerbuchsen surface. These recesses serve as a lubricant container in order to quickly build up a lubricating film at the beginning of the movement and then to reduce the running friction. The material is suitable for construction and agricultural machinery applications.

composition
Sn 8 %
P < 0.05 %
Cu Rest

STRUCTRUE

The bronze sleeve bushings are wrapped in a homogeneous cold formed bronze (CuSn8) with exceptional material properties. Standard sizes are equipped with diamond-shaped lubrication holes in the bronze sleeve bushings surface. These indentations serve as lubricant reservoirs to quickly form a lubrication film at the start of the movement and then reduce rolling friction. The material is suitable for construction and agricultural machinery applications.

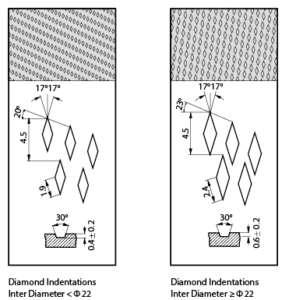

090 Lagerbuchsen Oil Indentations Holes

Buy Self-lubricating Lagerbuchsen, Bronze Sleeve bushings online bronzelube.com

Designed to be self-lubricating, wear-resistant, and maintenance-free, buy bronze sleeve plain bushings, lagerbuchsen directly from china at Excellent price today!

Bronze split bushings suppliers & exporters in china

Bronze Split Bushings- self-lubricating

BRONZE SPLIT BUSHING (LUBRICATED METAL) MAJOR APPLICATIONS

General industrial machinery and heavy industrial facilities
