Durable. Robust. Clean. Perfect carbon sliding bearings
Because attention to detail makes all the difference. Our mission is to find the solution for your individual project.
Maintenance-free sliding bearing bushings: Cylindrical Bearing, Flanged Bearing & plate.
Sliding bearing bushing materials are available for your specific project.
Our mission is to find the solution for your individual project
Cylindrical Bush, Hi Temp Bearing Solution.
Maintenance-free, of course.
Sliding bearings
We develop custom carbon bushing solutions for your individual applications and industries with innovative high-tech bushes and technical expertise. Carbon Graphite Bearing & Carbon Steel Bushing. Reduced Costs & Downtime. Run Dry & Keeps Running. Custom Design, Engineering Support.
Tribological self-lubricating bearings
Sophisticated tribological design
Self-lubricating Bearings Quiet: The composite special material bearing and polymer coating reduces surface friction and absorbs vibration, thereby reducing compressor noise. Low components are also available, resulting in significant size and weight reductions.
Reliable supplier of self-lubricating bearings: One-piece tribological design solutions allow for lighter compressors and increased output efficiency. High temperature resistant materials accommodate repeated heating and cooling of the battery. Strong load capacity to withstand the impact caused by automotive components.
Environmentally friendly bushings: The use of bearings and coatings that do not require grease lubrication in refrigeration compressors allows for full fluid lubrication, improving system efficiency while reducing energy consumption. We use surface materials that comply with the EU’s Exhausted Vehicles Directive (ELV) and Restriction of Hazardous Substances Directive (RoHS), which are free of hazardous substances such as lead and help you reduce your carbon footprint by replacing hard chrome plating and NMP.
A matched coating designed to enhance the performance of existing plain bearing products. When used with any self-lubricating composite bearing or coating, it can significantly reduce friction and extend the life of your system. We can spray on complex geometries that meet high standards of dimensional control, adhesion and tribological performance.
Sliding bushing bearings can cope with extreme operating conditions:
High temperatures and stresses
- Chemicals
- Dirt
- Corrosion
- Complex lubricating
- Difficult movement patterns
Self-lubricating and relubricable bushings
Bearing Bushes at Good Price in China
We supply Graphite Bushing and Graphite Bronze Part with Technical Support. Global Supply.
A graphite/metal alloy, graphite and carbon; solid, self-lubricating, bushing and bearing material. Graphite bushing – Manufacturer In China, Wide Range Of Graphite Bearing Product, Get Quote Now. Provide a Variety of Differently Sized Graphite Products. Meet Specific Customer Needs. Need Assistance? Call Or Email Us Engineering Support Available
High Wear Resistance with Low Friction
Select, configure, order. We delivers punctually and offers fair prices.

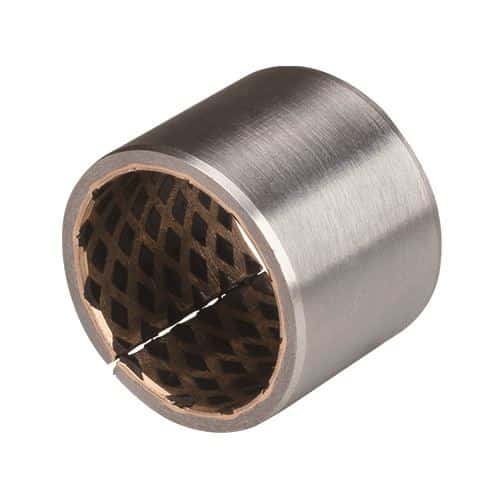

Carbon Steel Backed PTFE Lined Metric Flanges Bushing: Lubricating Multilayer Carbon Steel Backed Bushing, Steel-Backed PTFE Lined Bushings and Washers offers free CAD downloads, prompt lead times, competitive pricing, and small minimum order quantity.
Our sliding bearings are used in Filling and packaging machines, including in direct contact with food Injection molding and film stretching machines!
High Quality Bearing Bush Manufacturers
The promise of bush bearings high quality, meet your requirement.
Bush Type Bearing
Cylindrical bushings, flanged bushings and strips are standard fabrication.
No more worries about the authenticity of suppliers.
SELF-LUBRICATING BUSHING ONLINE
BUSH AND BEARING PRODUCTION sliding bearings for heavy duty
Manufacturers of Bush Bearings, sliding bearings for mechanical & plant engineering
WHAT IS MILD STEEL?
Mild steel is a carbon steel with carbon content less than 0.25%. It is also called mild steel because of its low strength, low hardness and soft. It includes most common carbon structural steels and part of high quality carbon structural steels, most of which are used for engineering structural parts without heat treatment, and some of which are used for mechanical parts requiring wear resistance after carburizing and other heat treatment.
Low carbon steel annealed structure is ferrite and a small amount of pearlite, its strength and hardness is low, plasticity and toughness is better. Therefore, its cold formability is good, can be used edge rolling, bending, stamping and other methods for cold forming. The steel also has good weldability. Low carbon steel generally refers to the carbon content between 0.10 ~ 0.25% of the steel. This kind of steel has low hardness and good plasticity, which is convenient for the use of cold plastic deformation forming process, welding and cutting, and is often used in the manufacture of self-lubricating bearing bushings
A Variety Of Low Friction Bearing Bush Materials

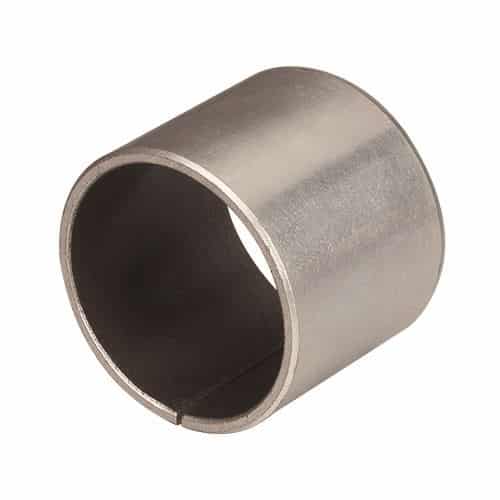

- Mild Steel Backed Bushing – PTFE lined self-lubricating bearing also called DU bushing, dry bushing, DU bearing, teflon bushing, All You Need to Know
As bearing bush manufacturers, we supply sliding bearings, tolerance rings and bearings to high volume international Original Equipment Manufacturers (OEMs) and Tier One suppliers in various industries.
High Performance Self-lubricating Bearing Mild Steel Bushing Sourcing Online
We create market-leading quality plain bearing solutions. We help bearing bush stay in front. We make you satisfied.
Our unmatched bearing product inventory, industry-specific experience, and overall bearing bush technical know-how ensure you get the bushes & bearing solution and support you need.
* Our enterprise, is one of the undisputed supplier of the highly plain bearing bushing industry in china.
You can find the largest assortment Plain Bearing Bushes at www.bronzelube.com. Choose from more than 1,000 bushings sleeve and order right away.
Online shopping for Sleeve Bearing Bush – Bushings & Bush Type Bearings from a great selection at www.bronzelube.com.
Plain Bearings For Everything That Moves
We’ve been committed to continuous learning and applying that self-lubricating bearing bushing sleeve knowledge to help our customers and partners achieve greater success.
Due to vast range many standard bushes / washers are available in ready stock.
- Bushing Types: Plain bearings, sleeve bearings, linear sleeve bushings
- Materials: Bronze, composite, plastic, PTFE-lined, self-lubricating steel
Plain bearings – sometimes known as bushes, bushings or sleeves – come in a variety of materials and compositions to suit most demanding applications.
BUSHINGS TYPE
Bearing bush forms available in standard dimensions.
- Cylindrical bushing – Measurements in mm
- Flange Bronze Bearing – Flange bushing
- Strips, – Bronze Plate with Lubrication Indents
- Thrust Washer – Aenean ut purus non tortor rhoncus bibendum
- Customized Bearing Designs– with non-standard dimensions
Bushing Bearing type made to order: cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bearing designs.
Choose from our selection of self-lubricating bearing bushing sleeve , sleeve bearings, bush type bearings, and more. In stock and ready to ship.
Self-lubricating bushes and bearings are used where the bearing must operate without lubricant or with marginal lubricant. Our goal is to ensure that the bearing offers the best performance and maximum life in various conditions. The principle of operation of self-lubricating bearings is that, during the initial bearing break-in period, there will be a solid lubricating film created by the transfer of a small amount of material from the bearing layer. This film comes into direct contact with moving parts, protecting and lubricating mating components and extending bearing life.
- Sintered Bronze / Iron Sintered Self Lubricated Bushes / Parts
- Dry Bushes & Washers

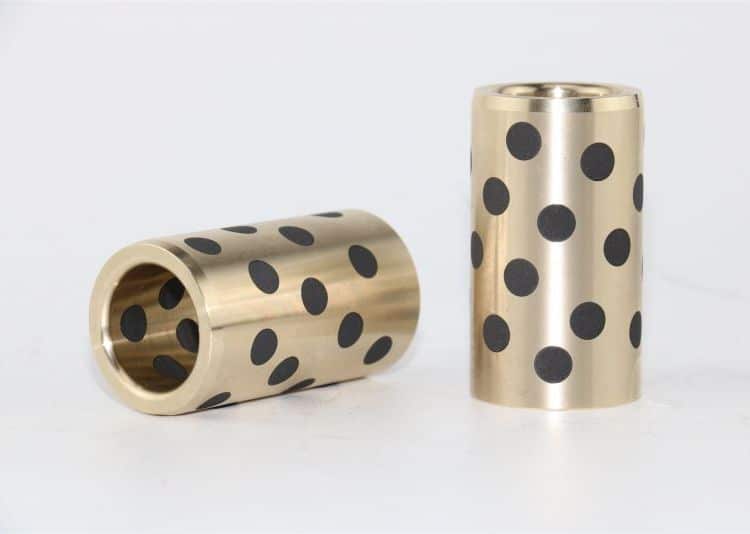

- Graphite Filled Bronze Bushes / Plates
- Wrapped Bronze Bearing
- Bimetal bushes
Self-lubricating Bearing Bush Advantages
- Elimination of Oil Holes and Grooves – No cost of machining oil holes and oil grooves required. The self-lubrication eliminates the need for an additional oil system.
- Reduction of machinery operating costs – Thanks to the maintenance-free features, the lubricating oil is drastically reduced; machinery operating costs will also decrease.
- Maintenance-Free Operation – Self-lubricating bearings solve the problem of lubrication operation and lubrication devices, which also helps reduce bearing maintenance costs.
- Simplified mechanical design and fabrication. With the above advantages, thin wall thickness, higher load and excellent wear resistance, the mechanical structure can be simplified and made more economical.
View our range of glacier style bearing bushes, split bearing bushes, flanged split bearing bushes, DU split bearings & DX split bushes. Buy online today for great prices and fast delivery.
Standard cylindrical bushing sizes
| d | D | d SHAFT
(mm) |
D HOUSING
(mm) |
f
mm. |
|||||||||||||||
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | 40 | 50 | ||||||||
| 3* | 5 | 3 | – 0.025 | 5 | + 0.010 | 0304 | 0305 | 0306 |
0,5 |
||||||||||
| – 0.037 | (H7) | – 0 | |||||||||||||||||
| 4* | 6 | 4 | – 0.025 | 6 | + 0.012 | 0404 | 0406 | 0408 | |||||||||||
| – 0.040 | (H7) | – 0 | |||||||||||||||||
| 5 | 7 | 5 | ” | 7 | + 0.015 | 0504 | 0505 | 0506 | 0508 | ||||||||||
| (H7) | – 0 | ||||||||||||||||||
| 6 | 8 | 6 | ” | 8 (H7) | 0606 | 0608 | 0610 | ||||||||||||
| 7 | 9 | 7 | – 0.025 | 9 |
(H7) |
0710 | 0712 | ||||||||||||
| – 0.040 | |||||||||||||||||||
| 8 | 10 | 8 | ” | 10 |
(H7) |
” | 0806 | 0808 | 0810 | 0812 | 0820 | ||||||||
| 9 | 11 | 9 | ” | 11 |
(H7) |
” | 0910 | ||||||||||||
| 10 | 12 | 10 | ” | 12 | + 0.018 | 1006 | 1008 | 1010 | 1012 | 1015 | 1020 | ||||||||
| (H7) | – 0 | ||||||||||||||||||
| 12 | 14 | 12 | – 0.025 | 14 |
(H7) |
” | 1206 | 1208 | 1210 | 1212 | 1215 | 1220 | 1225 | ||||||
| – 0.043 | |||||||||||||||||||
| 13 | 15 | 13 | ” | 15 |
(H7) |
” | 1310 | 1320 | |||||||||||
| 14 | 16 | 14 | ” | 16 |
(H7) |
” | 1410 | 1412 | 1415 | 1420 | 1425 | ||||||||
| 15 | 17 | 15 | ” | 17 |
(H7) |
” | 1510 | 1512 | 1515 | 1520 | 1525 | ||||||||
| 16 | 18 | 16 | ” | 18 |
(H7) |
” | 1610 | 1612 | 1615 | 1620 | 1625 | ||||||||
| 17 | 19 | 17 | ” | 19 (H7) | ” | 1710 | 1712 | 1715 | 1720 | ||||||||||
| 18 | 20 | 18 | ” | 20 | + 0.021 | 1810 | 1812 | 1815 | 1820 | 1825 | |||||||||
| (H7) | – 0 | ||||||||||||||||||
| 20 | 23 | 20 | – 0.025
– 0.046 |
23 (H7) | ” | 2010 | 2012 | 2015 | 2020 | 2025 | 2030 |
0,8 |
|||||||
| 22 | 25 | 22 | ” | 25 |
(H7) |
” | 2210 | 2212 | 2215 | 2220 | 2225 | 2230 | |||||||
| 24 | 27 | 24 | ” | 27 (H7) | ” | 2415 | 2420 | 2425 | 2430 | ||||||||||
| 25 | 28 | 25 | ” | 28 |
(H7) |
” | 2510 | 2512 | 2515 | 2520 | 2525 | 2530 | 2550 | ||||||
| 28 | 32 | 28 | ” | 32 | + 0.025 | 2815 | 2820 | 2825 | 2830 | 2840 | |||||||||
| (H7) | – 0 | ||||||||||||||||||
| 30 | 34 | 30 | ” | 34 |
(H7) |
” | 3012 | 3015 | 3020 | 3025 | 3030 | 3040 | |||||||
| 32 | 36 | 32 | – 0.025 | 36 (H7) | ” | 3220 | 3230 | 3240 | |||||||||||
| – 0.050 | 1 | ||||||||||||||||||
| 35 | 39 | 35 | ” | 39 |
(H7) |
” | 3512 | 3515 | 3520 | 3525 | 3530 | 3540 | 3550 | ||||||
| 38 | 42 | 38 | ” | 42 (H7) | ” | 3815 | 3820 | 3830 | 3840 | ||||||||||
| 40 | 44 | 40 | ” | 44 |
(H7) |
” | 4012 | 4020 | 4025 | 4030 | 4040 | 4050 | |||||||
| d | D | d SHAFT
(mm) |
D HOUSING
(mm) |
f
mm. |
|||||||||||||
| 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 95 | 100 | 115 | ||||||
| 45 | 50 | 45 – 0.025 | 50 (H7) | + 0.025 | 4520 | 4525 | 4530 | 4540 | 4550 | ||||||||
| – 0.037 | + 0 | ||||||||||||||||
| 50 | 55 | 50 ” | 55 (H7) | + 0.030 | 5020 | 5030 | 5040 | 5050 | 5060 | ||||||||
| – 0 | |||||||||||||||||
| 55 | 60 | 55 – 0.025 | 60 (H7) | ” | 5530 | 5540 | 5550 | 5560 | |||||||||
| – 0.055 | |||||||||||||||||
| 60 | 65 | 60 ” | 65 (H7) | ” | 6030 | 6040 | 6050 | 6060 | 6070 | 1.2 | |||||||
| 65 | 70 | 65 + 0.005 | 70 (H7) | ” | 6530 | 6540 | 6550 | 6560 | 6570 | ||||||||
| – 0.035 | |||||||||||||||||
| 70 | 75 | 70 ” | 75 (H7) | ” | 7040 | 7050 | 7060 | 7070 | 7080 | ||||||||
| 75 | 80 | 75 ” | 80 (H7) | ” | 7530 | 7540 | 7550 | 7560 | 7580 | ||||||||
| 80 | 85 | 80 ” | 85 (H7) | + 0.035 | 8040 | 8060 | 8080 | 80100 | |||||||||
| – 0 | |||||||||||||||||
| 85 | 90 | 85 + 0.005 | 90 (H7) | ” | 8540 | 8560 | 8580 | 85100 | |||||||||
| – 0.030 | |||||||||||||||||
| 90 | 95 | 90 ” | 95 (H7) | ” | 9040 | 9050 | 9060 | 9090 | 90100 | ||||||||
| 95 | 100 | 95 ” | 100 (H7) | ” | 9550 | 9560 | 95100 | 1,4 | |||||||||
| 100 | 105 | 100 ” | 105 (H7) | ” | 10050 | 10060 | 100115 | ||||||||||
| 105 | 110 | 105 ” | 110 (H7) | ” | 10560 | 105115 | |||||||||||
| 110 | 115 | 110 ” | 115 (H7) | ” | 11060 | 110115 | |||||||||||
| 120 | 125 | 120 ” | 125 (H7) | + 0.040 | 12060 | 120100 | |||||||||||
| – 0 | |||||||||||||||||
| 125 | 130 | 125 + 0.005 | 130 (H7) | ” | 125100 | 125115 | |||||||||||
| – 0.045 | |||||||||||||||||
| 130 | 135 | 130 ” | 135 (H7) | ” | 13060 | 130100 | |||||||||||
| 140 | 145 | 140 ” | 145 (H7) | ” | 14060 | 140100 | |||||||||||
| 150 | 155 | 150 ” | 155 (H7) | ” | 15050 | 15080 | 150100 | ||||||||||
| 160 | 165 | 160 ” | 165 (H7) | ” | 160100 | 1,6 | |||||||||||
| 180 | 185 | 180 ” | 185 (H7) | + 0.046 | 180100 | ||||||||||||
| – 0 | |||||||||||||||||
| 200 | 205 | 200 + 0 | 205 (H7) | ” | 200100 | ||||||||||||
| – 0.071 | |||||||||||||||||
| 220 | 225 | 220 ” | 225 (H7) | ” | 220100 | ||||||||||||
| 250 | 255 | 250 ” | 255 (H7) | + 0.050 | 250100 | ||||||||||||
| – 0 | |||||||||||||||||
| 300 | 305 | 300 + 0 | 305 (H7) | ” | 300100 | ||||||||||||
| – 0.081 | |||||||||||||||||
Standard bearing bush sizes (with flanges)
| d | D | d
AXEL (mm) |
D
HOUSING (mm) |
Thickness | FD
diam. flange |
“L” Bush total Width (mm) ± 0,25 | ||||||||||||||||||||||
| T1 | T2 | 4 | 5,5 | 7 | 7,5 | 8 | 9 | 9,5 | 11,5 | 12 | 16 | 16,5 | 17 | 21,5 | 26 | 32,5 | 42,5 | 52,5 | 62,5 | |||||||||
| 6 | 8 | 6 | – 0.025 | 8 (H7) | + 0.015 | 0
1.0 – 0.03 |
1.0 | 0
– 0.2 |
12 | 0603 | 0606 | 0608 | ||||||||||||||||
| – 0.037 | – 0 | -12T | -12T | -12T | ||||||||||||||||||||||||
| 8 | 10 | 8 | ” | 10 | ” | 15 | 0804 | 0806 | 0808 | |||||||||||||||||||
| -15T | -15T | -15T | ||||||||||||||||||||||||||
| 10 | 12 | 10 | ” | 12 (H7) | + 0.018 | 18 | 1006 | 1008 | 1010 | 1015 | ||||||||||||||||||
| – 0 | -18T | -18T | -18T | -18T | ||||||||||||||||||||||||
| 12 | 14 | 12 | – 0.025 | 14 | ” | 20 | 1206 | 1208 | 1210 | 1215 | ||||||||||||||||||
| – 0.043 | -20T | -20T | -20T | -20T | ||||||||||||||||||||||||
| 14 | 16 | 14 | ” | 16 | ” | 22 | 1408 | 1410 | 1415 | |||||||||||||||||||
| -22T | -22T | -22T | ||||||||||||||||||||||||||
| 15 | 17 | 15 | ” | 17 | ” | 23 | 1508 | 1510 | 1515 | |||||||||||||||||||
| -23T | -23T | -23T | ||||||||||||||||||||||||||
| 16 | 18 | 16 | ” | 18 | ” | 24 | 1608 | 1610 | 1615 | |||||||||||||||||||
| -24T | -24T | -24T | ||||||||||||||||||||||||||
| 18 | 20 | 18 | ” | 20 (H7) | + 0.021 | 26 | 1810 | 1815 | ||||||||||||||||||||
| – 0 | -26T | -26T | ||||||||||||||||||||||||||
| 20 | 23 | 20 | – 0.025 | 23 | ” | 31 | 2010 | 2015 | 2020 | |||||||||||||||||||
| – 0.046 | 1.5 | 0
– 0.03 |
1.5 | 0
– 0.2 |
-31T | -31T | -31T | |||||||||||||||||||||
| 22 | 25 | 22 | ” | 25 | ” | 33 | 2210
-33T |
2215
-33T |
2220
-33T |
|||||||||||||||||||
| 25 | 28 | 25 | ” | 28 | ” | 36 | 2510 | 2515 | 2520 | |||||||||||||||||||
| -36T | -36T | -36T | ||||||||||||||||||||||||||
| 30 | 34 | 30 | ” | 34 | ” | 2.0 | 0
– 0.03 |
2.0 | 0
– 0.2 |
42 | 3015 | 3025 | ||||||||||||||||
| -42T | -42T | |||||||||||||||||||||||||||
| 35 | 39 | 35 | ” | 39 | ” | 49 | 3515 | 3525 | ||||||||||||||||||||
| -49T | -49T | |||||||||||||||||||||||||||
| 40 | 44 | 40 | ” | 44 | ” | 54 | 4025 | |||||||||||||||||||||
| -54T | ||||||||||||||||||||||||||||
| 45 | 50 | 45 | ” | 50 | ” | 2.5 | 0
– 0.03 |
2.5 | 0
– 0.3 |
60 | 4530 | |||||||||||||||||
| -60T | ||||||||||||||||||||||||||||
| 50 | 55 | 50 | ” | 55 (H7) | + 0.030 | 65 | 5030 | 5050 | ||||||||||||||||||||
| – 0 | -65T | -65T | ||||||||||||||||||||||||||
| 60 | 65 | 60 | ” | 65 | ” | 75 | 6040 | 6060 | ||||||||||||||||||||
| -75T | -75T | |||||||||||||||||||||||||||
Standard THRUST WASHER sizes
| Nomination |
Type |
Di
+ 0,25 mm |
De
– 0,25 mm |
Sp
– 0,05 mm |
a
+0,2 mm |
I
± 0,12 mm |
| Bearing Bush Thrust Washer | TW8M | 10 | 20 | 1,5 | 1,5 | 15 |
| Bearing Bush Thrust Washer | TW10M | 12 | 24 | 1,5 | 1,5 | 18 |
| Bearing Bush Thrust Washer | TW12M | 14 | 26 | 1,5 | 2 | 20 |
| Bearing Bush Thrust Washer | TW14M | 16 | 30 | 1,5 | 2 | 23 |
| Bearing Bush Thrust Washer | TW16M | 18 | 32 | 1,5 | 2 | 25 |
| Bearing Bush Thrust Washer | TW18M | 20 | 36 | 1,5 | 3 | 28 |
| Bearing Bush Thrust Washer | TW20M | 22 | 38 | 1,5 | 3 | 30 |
| Bearing Bush Thrust Washer | TW22M | 24 | 42 | 1,5 | 3 | 33 |
| Bearing Bush Thrust Washer | TW24M | 26 | 44 | 1,5 | 3 | 35 |
| Bearing Bush Thrust Washer | TW25M | 28 | 48 | 1,5 | 4 | 38 |
| Bearing Bush Thrust Washer | TW30M | 32 | 54 | 1,5 | 4 | 43 |
| Bearing Bush Thrust Washer | TW35M | 38 | 62 | 1,5 | 4 | 50 |
| Bearing Bush Thrust Washer | TW40M | 42 | 66 | 1,5 | 4 | 54 |
| Bearing Bush Thrust Washer | TW45M | 48 | 74 | 2 | 4 | 61 |
| Bearing Bush Thrust Washer | TW50M | 52 | 78 | 2 | 4 | 65 |
| Bearing Bush Thrust Washer | TW60M | 62 | 90 | 2 | 4 | 76 |
| Nomination | STRIP TYPE | SIZES | |||
| T mm | B mm | B1 mm | L mm | ||
| Bearing Strip | 125 10 | 1,0 | 125 | 120 | 500 |
| Bearing Strip | 125 15 | 1,5 | 125 | 120 | 500 |
| Bearing Strip | 125 20 | 2,00 | 125 | 120 | 500 |
| Bearing Strip | 125 25 | 2,5 | 125 | 120 | 500 |
| Bearing Strip | 125 30 | 3,00 | 125 | 120 | 500 |
| Bearing Strip | 170 10 | 1,0 | 170 | 165 | 1000 |
| Bearing Strip | 170 15 | 1,5 | 170 | 165 | 1000 |
| Bearing Strip | 170 20 | 2,0 | 170 | 165 | 1000 |
| Bearing Strip | 170 25 | 2,5 | 170 | 165 | 1000 |
The right bush bearing solution for every application.
Typical applications include:
• Industrial • Agricultural
• Automotive • Marine
• Medical • Aerospace (Airbus & Boeing approved)
Industry
Automotive
Marine
Medical
Agriculture
Construction
Carbon Bushings and Bearings – Self-lubricating
Browse, get a quote and order products easily in oil-free bushes eCatalog
Carbon Steel Backed Bushing is Suited for Submerged and High Temperature Applications. Increased reliability. Hi Temp Bearing Solution. Non-galling. Run dry & keeps running. Reduced costs & downtime. Services: Custom Design, Engineering Support, Short Lead Times.
Standard Size Bushes, Need Assistance? Call Or Email Us Engineering Support Available
Self lubricating steel bushing.
Call us
24/7 emergency callout
+ 86 (0)18258386757
+86 (0)57384499350
