Plan your Oilless Resin Sliding Materials: Washer

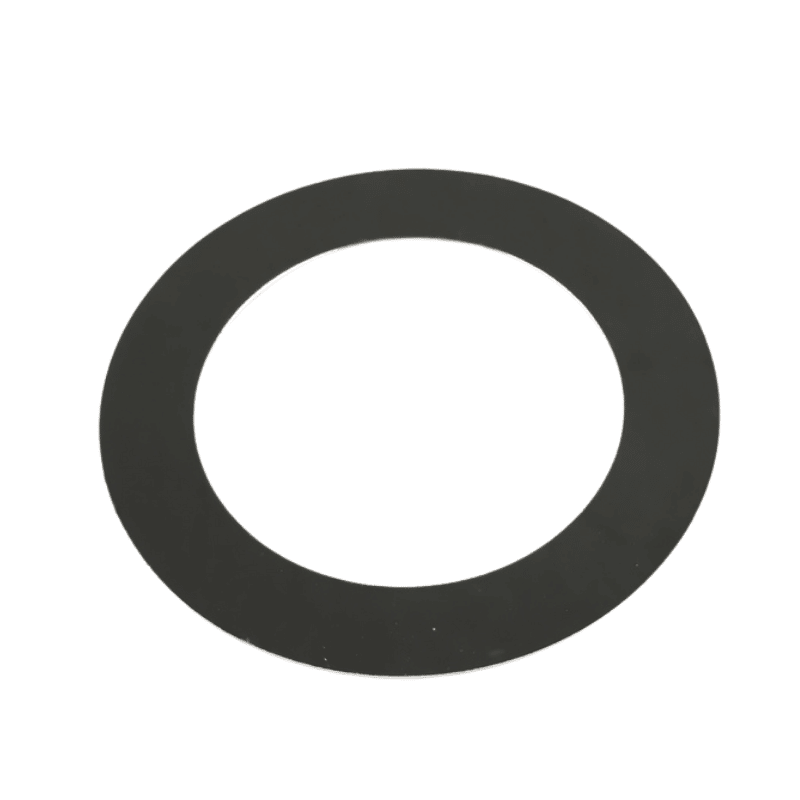

Oilless Resin Sliding Materials: Washer, PTFE composite thrust washers are self-lubricating as well as maintenance-free and provide a long thrust bearing service life due to low friction. Thrust washer bearings are made from self-lubricating materials that promote maintenance-free, dry operation for a wide range of type washers…
Low Friction Lightweight Thermoplastic Composite Bearing
Low Friction Lightweight Composite Bearing
Self-Lubricating Solutions launches its latest lightweight composite bearing bushing, the PTFE or POM Composite Bearing Plus, an enhanced dual-layer bearing with a low-friction modified sliding layer that reduces friction and increases wear performance for use in bearing, thrust washer, thrust bearings and bushing applications… Your Trusted Self Lubricating Thrust Bearings Manufacturers, Thrust Washers Selection Guide: Types, Features, Applications, Thrust washers are used as a bearing surface for rotary applications. They are usually made of steel, bronze, dry slide bearing layer, or other materials with low friction washer…Plain Sleeve Thrust Washers.
Low Friction Lightweight Self-lubricating Composite Bearing
- Technical Solutions For Factories & Plants
Self-lubricating thrust washer bearings save costs!
Self-lubricating bearing bushing components can affect up to 85% of total maintenance costs, so proper selection of bearing bushings is critical.
This means hanging on to the correct quality self-lubricating bearing…
Product Quality Index
Energy Generation
Thrust washers – maintenance-free, made of metal
Easy to install, bushing and thrust washers from China are lubrication-free and need no maintenance, even in dirty or dusty environments.
Low coefficient of friction, thrust washer, mm
Cost-effective, thrust washers, bushing – maintenance-free, made of metal composite plastic. Bronze thrust washer, maintenance-free
We manufacturing thrust washer, self-lubricating tailored to your individual needs.
Thrust Washers – What is a thrust washer?
Thrust washers are flat washers located between a rotating surface and a stationary component and support the axial load or side to side motion on a shaft. Thrust washers, also referred to as thrust bearings or thrust plates, are flat, disk-shaped bearings made of metal-polymer or self-lubricating oilless metallic material. Learn more!

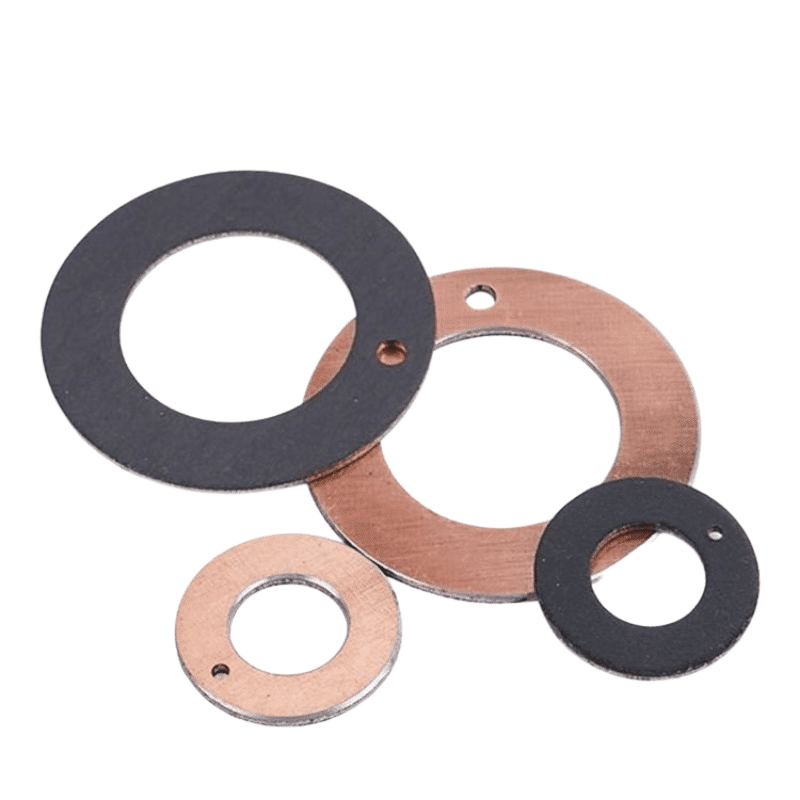

Thrust bearings and thrust washer: Composite dry sliding thrust washers are designed for applications where axial space is … Designation, Principal dimensions, Basic load ratings.
Thrust bearing can only support the axial load in one direction, can be used as a good rigidity and axial occupation of the minimum space bearing configuration, if the surface of the adjacent parts hardened and ground can be made for the raceway, bearing configuration can be extremely compact, such as the adjacent parts are not hardened, it is necessary to use in combination with the thrust washer, the same can obtain a small axial section height. Thrust washers are flat bearings that accommodate axial forces in a rotating machine to keep the mechanism aligned along the spindle. They can be found in many pieces of equipment, including power tools and any equipment with moving, rotating parts. Their primary purpose is to provide a surface on which the thrust bearing rests. By working with the thrust bearing to stabilize axial motion and conserve rotational forces, thrust washers can improve the end-face action in an application. These thrust washers are made from a variety of materials, but the best are made from PFTE. While they can be made from many different metals, such as porous brass, PFTE offers the longest service life and lowest maintenance requirements.
Thrust Washers Selection Guide: Types, Features, Applications
Washer, Self-lubricating Lead Free type， Oilless Washer, Thrust washers are used as a bearing surface for rotary applications. They are usually made of steel, bronze, bimetal, or other materials with low friction metallic self-lubricating sliding material …Thrust washers are applied to any mechanism that has parts that move or rotate along many different axes. Here are some washer Applications: Mainly used in high-temperature production lines, construction machinery, steam locomotive chassis parts, ball valves, butterfly valves various valves, pumps and chemical industry and high-speed trains and other heavy-duty low-speed and can not refuel the occasion.
What are thrust washers made of? Stainless Steel Washer Material, Self-lubricating with PTFE, made to order
Thrust washers can be made from many different materials, and the materials used are based on the intended application of the thrust washer. They can be made from stainless steel, bronze, graphite and steel (PFTE). At bronzelube.com, we specialize in PFTE and oilless washer self-lubricating products made from PFTE last longer and require less maintenance than parts made from the normal steel washer.
Highly corrosion-resistant and wear-resistant washer made of stainless steel with PTFE coating on the surface. The material is especially suitable for strong acid, strong alkali, two-weight load in low speed occasions, its wear resistance performance is significantly better than the graphite bushings of single PTFE bushings. The product has been widely used in chemical acid and alkali flow meters, pumps, valves and corrosion resistant sliding parts in the marine industry.
Thrust Washers Type, Range of Standard Size, Metric and inch size.
Thrust washer types, standard size range, metric and imperial sizes. Thrust washers are typically between 0.4 and 2.5 inches, but they can be any size. At bronzelube.com, we can customize our washer sizes to meet whatever size your application requires. Just provide a design to our engineering team and we will be happy to discuss lead times and pricing to meet your needs.
What is the difference between thrust washers and flat washers?
Thrust washers are a type of flat washer. Thrust washers differ from ordinary flat washers in that they are designed to withstand high working loads and forces. Thrust washers are located between the stationary and moving surfaces to provide stability in the path of motion. Due to the high wear faced by thrust washers, the best thrust washers are self-lubricating. These washers are made from PFTE, which is our most recommended product at bronzelube.com.
Thrust Washers Custom Size, Inch and Metric Thrust Washers – Bearings
Our company manufactures some of the best thrust washers in the world, and we can customize bushings, changing sizes and weights to match our customers’ custom designs.
Because we have high quality materials and the ability to customize them to meet the needs of our customers. The best part about our PFTE thrust washers is that they are self-lubricating, which is especially necessary due to the high wear and tear that thrust washers face. We are a renowned and trusted leading supplier of thrust washers and all types of bushings. Standard sizes from metric size to inches size.
Corrosion Resistant Self Lubricating Thrust Washer Custom Size, For more information on pricing and lead times, don’t hesitate to contact our professional sales team!
Oversized Flat Washers – Quick Delivery – Polypropylene Washers
Choose from a wide variety of sizes, thicknesses, and materials, including metallic thrust washer. Inch and Metric Thrust Washers – Bearings. Get a quote！Enjoy quick shipping on thrust washers. Available in inch and metric sizes. Need a custom size or bore diameter? Axial Thrust Washers – Quality Bearings and Components. Choose from our selection of thrust washers, including oil-embedded thrust bearings, dry-running thrust bearings, and more. In stock and ready to ship. Steel Thrust Washers & Bushings! Shop Thrust Washer Bearings online, PTFE Steel Thrust washers are often used in bearing assemblies and in rotating applications. The self-lubricating thrust bearing washers are designed to carry an axial or bearing load.
Thrust Washer Design- Manufacturers & Suppliers in China
Browse our metal-polymer, engineered plastic, fiber reinforced, metal and bimetal and other bearings. Find the right bushing and buy china thrust washer & plain bearings. Application Industrial -Agricultural Equipment, Construction Equipment, Food And Beverage. Material : (Metal-Polymer Composite Self-lubricating Bushing Material Steel Back+Porous Bronze Sinter+PTFE. Self-Lubricating Thrust Washer, Carbon Steel, Inch
Deliver Lifetime Cost Savings and Significant Operating Advantages. Non-galling. Increased reliability. Reduced costs & downtime. Hi-Temp Thrust Washer & Plain Bearing Solution. Run dry & keeps running. Services: Custom Design, Engineering Support, Short Lead Times.
Type of Thrust Bearing Low Friction,Plain Bearings,Wear Resistance!

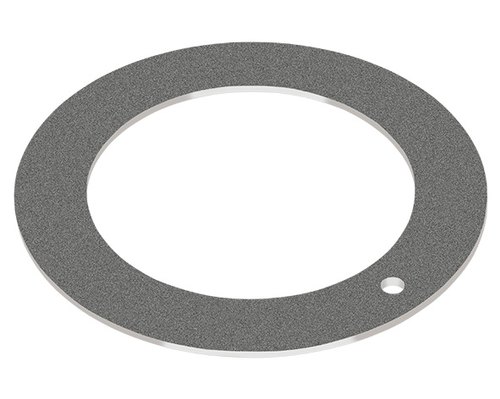

Maintenance-free Metal-Polymer Anti-Friction Plain Bearings
Yoga takes you into the present moment. The only place where life exists.
Washers, Spacers & Shims – Standard & Metric
Oilless Resin Sliding Materials: Washer, Sliding Bearing Technology： Thrust Washer base material: Steel， Intermediate layer: Sintered bronze. Sliding layer : PTFE, Maintenance-free and lubricant-free thrust washers. They take up axial loads by rotational motion. The loading can be either alternating or permanent. Electrically insulating. Resistant to UV radiation. Are you interested in the products in this catalogue?
- Material:
- Bronze with graphite inserts.
- Version: Self-lubricating washer.
Plain Bearings and Sleeve Bearings from www.bronzelube.com
High Speed Thrust Bearings, Thrust Washers, Self-Lubricating
All available in standard or custom sizes and shapes, and manufactured to precise specifications. Broadest range of standard size bronze bushings in the industry. Manufacture and Supply of Bronze Bearings – Sleeves, Flanges, Washers. Thrust Bearings. Metal Steel Backed PTFE Washer. Cast Bronze Graphite Washer. Thrust washer bearings are made from self-lubricating steel bronze ptfe materials that promote maintenance-free, dry operation for a wide range of industry…PTFE composite thrust washers are self-lubricating as well as maintenance-free and provide a long service life due to low friction.
Self-lubricating Thrust Washer offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions. Bushing material suitable for lubricated applications: Anti-friction bearing suitable for linear, oscillating and rotating movements. Manufacturer, Importer and Trader Of Cylindrical Bushes, Bronze Bearings, Spherical Washer, Bush, Flanged Bearing, Composite Bearings, Thermoplastic Bearing Compound, Cylindrical Bearing, Thrust Washer, Hardened Stainless Steel Bush Bearings, Fiber Bearing,
Top Quality， Request A Quote
Composite bearings are available as bushes, plates, bearing segments and special forms, depending on the particular material type.
High Quality Thrust Washer Supplier
Thrust washer bearings are flat bearings that are typically inserted between a rotating component and a stationary component！
Our capabilities include component design, thrust washer & palin bearing material selection, prototype, production, and manufacturing.
Thrust Washers
The thrust Washer Bearing series has a composite structure consisting of a carbon steel backing, an intermediate layer of sintered bronze, and a PTFE-based sliding lining. Available in inch and metric sizes.
Custom Plain Bearings Components
Components manufactured to your exact specifications
Sliding Bearing Materials
Improve & extend the performance of Brass Bushing
- Flange bearings – Plain bearing within mountable housing unit
- Sleeve bearings – Always self-lubricating & grease-free
- Customized Brass Bearings – We will manufacture the exact self-lubricating bearing you need at a low cost.
- Groove Brass Bushings – Easy to install
- Brass Beraring Material design – Cost-effective
Ask The Expert
Engineering assistance & self-lubricating material selection support.
Plain Bearing Thrust Washers – What to know
What is a Plain Bearing Thrust Washer?
Choose from our selection of self-lubricating thrust bearings, including oil-embedded thrust bearings, dry-running thrust bearings, and more.
We have a large selection of Self–Lubricating, Carbon Steel, Metric, Thrust Washers and other Thrust Bearing Products.
Plain Bearing Thrust Washers are flat bearings used to contain axial forces in rotating machines to keep the mechanism aligned along the spindle. They can be found in many pieces of equipment, including power tools and any equipment with moving, rotating parts. Their primary purpose is to provide the surface on which the thrust bearing rests. By working with the thrust bearing to stabilize axial motion and conserve rotational forces, thrust washers can improve end play in applications. These thrust washers are made from a variety of materials, but the best are made from PFTE. While they can be made from many different metals, such as porous brass, PFTE offers the longest service life and lowest maintenance requirements.
Self-Lubricating Plain Bearing Thrust Washers, Shop Self‑lubricating Thrust washer
Self-Lubricating Steel Washers
What is the purpose of a thrust washer?
Steel Lubricating Bronze With Ptfe Thrust washers can be used in any mechanism with components that move or rotate along many axes.
What materials are Plain Bearing Thrust Washers made of?
Plain Bearing Thrust Washers can be made from many different materials and the material used is based on the intended application of the thrust washer. They can be made from stainless steel, bronze, graphite and composite (PFTE). We specialize in PFTE because self-lubricating products made from PFTE last longer and require less maintenance than parts made from the best metals.
What is the average size of a thrust washer?
Self-lubricating Thrust washers are typically between 0.4 and 2.5 inches, but they can be any size. In China, we can customize our washers to any size your application requires. Just provide a design to our engineering team and we will be happy to discuss lead times and pricing to meet your needs.
What is the difference between a thrust washer and a flat washer?
Metallic Thrust washers are a type of flat washer. Plain Bearing Thrust Washers differ from regular flat washers in that they are designed to withstand high working loads and forces. Thrust washers are located between the stationary and moving surfaces to provide stability in the path of motion. Due to the high wear faced by thrust washers, the best thrust washers are self-lubricating. These washers are made from PFTE, which is our recommended product for self-lubricating direct thrust bearing washers.
Customize your Plain Bearing Thrust Composite Washers
Our company manufactures some of the best thrust washers in the world because we have the quality materials and the ability to customize them to meet the needs of our customers. The best part about our PFTE bearing thrust washers is that they are all self-lubricating, which is especially necessary due to the high wear and tear that thrust washers face. We are a renowned and trusted leading supplier of steel thrust washers as well as all types of bushings. We do business with companies all over the world, especially in Europe, America and Southeast Asia.
Plain Bearing Thrust Washer Size
|
shaft
|
Code
|
Washer Size
|
mounting dimension
|
|||||
|
d +0.25
|
D -0.25
|
T -0.05
|
M ±0.12
|
h+0.4
+0.1 |
T±0.2
|
D1+0.12
|
||
|
8
|
WC10
SF-1 |
10
|
20
|
1.5
|
15
|
1.5
|
1
|
20
|
|
10
|
WC12
SF-1 |
12
|
24
|
18
|
24
|
|||
|
12
|
WC14
SF-1 |
14
|
26
|
20
|
2
|
26
|
||
|
14
|
WC16
SF-1 |
16
|
30
|
23
|
30
|
|||
|
16
|
WC18
SF-1 |
18
|
32
|
25
|
32
|
|||
|
18
|
WC20
SF-1 |
20
|
36
|
28
|
3
|
36
|
||
|
20
|
WC22
R-1 |
22
|
38
|
30
|
38
|
|||
|
22
|
WC24
RCB-1 |
24
|
42
|
33
|
42
|
|||
|
24
|
WC26
SF-1 |
26
|
44
|
35
|
44
|
|||
|
26
|
WC28
SF-1 |
28
|
48
|
38
|
4
|
48
|
||
|
30
|
WC32
SF-1 |
32
|
54
|
43
|
54
|
|||
|
36
|
WC38
SF-1 |
38
|
62
|
50
|
62
|
|||
|
40
|
WC42
SF-1 |
42
|
66
|
54
|
66
|
|||
|
46
|
WC48
SF-1 |
48
|
74
|
2
|
61
|
1.5
|
74
|
|
|
50
|
WC52
SF-1 |
52
|
78
|
65
|
78
|
|||
|
60
|
WC62
SF-1 |
62
|
90
|
76
|
90
|
|||
Composite thrust bearing plain washer
1. The mixture of modified polytetrafluoroethylene (PTFE) lead (Pb) 0.01~0.03mm, a wear-resistant material, can form a transfer film during operation to protect the counter-grinding shaft.
2. The copper powder layer of 0.2~0.3mm improves the bonding strength of PTFE/Pb and steel plate, and has good bearing capacity and wear resistance. At the same time, copper is a good thermal conductive material, which can quickly transfer the heat generated during the operation of the bearing.
3. Low carbon steel 0.7~2.3mm, improve bearing capacity and heat transfer.
4. Copper/tin plating layer, copper plating layer 0.008mm, tin plating layer 0.005mm, so that the bearing has good corrosion resistance.
TECHNICAL DATE
Engineered Self-lubricating Thrust Washer Solutions
Your engineering partner from prototype to production
Thrust Bearings Technical Library
Spec sheets, design worksheets, case studies & brochures
Engineered Plain Bushing Solutions
Product Description
The Dryslide trademark identifies a whole range of self-lubricated dry sliding bearings. A composite structure, Thrust washer consists of a carbon steel backing, an intermediate layer of sintered bronze, PTFE/fibre mixture sliding lining. The main items in the Thrust washer range are the wrapped cylindrical bushings (DIN 1494) and the flanged cylindrical bushings. Moreover, the range also includes thrust washers, strips and special parts made to customer specifications. From a technical point of view, the product is already widely known and new applications are constantly being identified to take advantage of the high load capacity, the self-lubricated feature and the excellent ratio between cost and performance of the whole range.
The Thrust washer is suitable for dry running applications. It possesses good wear properties as well as a low coefficient of friction that will extend the life of your application. It can be used in both rotary and oscillating applications. Other features include high chemical resistance, low water absorption and swelling. The thrust washer will also perform well with lubrication.
Steel bronze powder with PTFE/Fibres mixture
1. PTFE fibres mixture 0.01-0.03mm, lead-free: provides an excellent initial transfer film, which effectively coats the mating surface of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder 0.20-0.35mm: provides maximum thermal conductivity away from the bearing surface, also serves Dryslide structural details a reservoir for the PTFE-lead mixture.
3. Low-Carbon Steel: provides exceptionally high load-carrying capacity.
4. Zinc/Tin plating 0.002mm: provides good corrosion resistance
A dry-running thrust bearing with a low coefficient of friction, good wear properties and sliding characteristics. It can be used in both rotary and oscillating applications
Request for quotation.
Whether you need engineering assistance or self lubricating material selection support, our Ask the Plain Bearings Experts feature provides a quick and easy way for you to upload your drawing and submit questions to our engineering team.
Can meet the demanding criteria for long life and trouble-free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earthmovers, and road graders. Specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers, pistons, shock absorbers, governor linkage, windshield wiper motor, and tilt gear assemblies…
Office Equipment: photocopy machines, mail sorters, postage meter systems, computer printers, peripheral equipment, automatic printing devices, and mail processing machinery…
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions…
Home Appliances: refrigerators, air conditioners, vacuum cleaners, polishers, sewing machines, ovens, dishwashers, and washing machines…
Materials handling: pallet trucks, scissor lifts, packaging machinery, and textile equipment…
Bronzelube the Advantage Is Yours
Thrust Washer Size & Dimensions
DU TYPE WASHERS – METRIC
View our DU type thrust washers here in metric sizes. Buy now for great prices.
Special dimensions are available on request
TFW10 10X20MM DU TYPE WASHER
Outside Dia (mm) : 20 Inside Dia (mm) : 10
TFW12 12X24MM DU TYPE WASHER
Outside Dia (mm) : 24 Inside Dia (mm) : 12
TFW14 14X26MM DU TYPE WASHER
Outside Dia (mm) : 26 Inside Dia (mm) : 14
TFW16 16X30MM DU TYPE WASHER
Outside Dia (mm) : 30 Inside Dia (mm) : 16
TFW18 18X32MM DU TYPE WASHER
Outside Dia (mm) : 32 Inside Dia (mm) : 18
TFW20 20X36MM DU TYPE WASHER
Outside Dia (mm) : 36 Inside Dia (mm) : 20
TFW22 22X38MM DU TYPE WASHER
Outside Dia (mm) : 38 Inside Dia (mm) : 22
TFW24 24X42MM DU TYPE WASHER
Outside Dia (mm) : 42 Inside Dia (mm) : 24
TFW26 26X44MM DU TYPE WASHER
Outside Dia (mm) : 44 Inside Dia (mm) : 26
TFW28 28X48MM DU TYPE WASHER
Outside Dia (mm) : 48 Inside Dia (mm) : 28
TFW32 32X54MM DU TYPE WASHER
Outside Dia (mm) : 54 Inside Dia (mm) : 32
TFW38 38X62MM DU TYPE WASHER
Outside Dia (mm) : 62 Inside Dia (mm) : 38
TFW42 42X66MM DU TYPE WASHERS
Outside Dia (mm) : 66 Inside Dia (mm) : 42
TFW48 48X74MM DU TYPE WASHER
Outside Dia (mm) : 74 Inside Dia (mm) : 48
TFW52 52X78MM DU TYPE WASHER
Outside Dia (mm) : 78 Inside Dia (mm) : 52
TFW62 62X90MM DU TYPE WASHER
Outside Dia (mm) : 90 Inside Dia (mm) : 62
TFW95 95X115MM DU TYPE WASHER
Outside Dia (mm) : 115 Inside Dia (mm) : 95
Thrust Washer Catalog – Search Thrust Bearing Size
CAD DRAWINGS
Get access to thrust washer equivalent drawings
Metal-Polymer Plain Bearings & Thrust Washer Application
1. No oil lubrication or less oil lubrication, suitable for refueling or more difficult refueling occasions, can be used without maintenance or less maintenance;
2. Good wear resistance, small friction coefficient, long service life; 3. Can be used in the range of -195℃ ~ +280℃;
4. Good running performance, low noise, no pollution; 5. Thin wall structure, light weight, can reduce the mechanical volume;
6. Transfer film can be formed during operation to protect the grinding shaft without shaft biting;
7. The hardness of the grinding shaft is low, and the shaft without quenching and tempering treatment can be used, thus reducing the processing difficulty of relevant parts;
8. No water absorption, oil absorption, small thermal expansion coefficient, good heat dissipation, stable size;
9. The back of the steel can be electroplated with a variety of metals, so it can be used in corrosive media and will not rust;
Currently has been widely applied to various mechanical sliding parts, such as automatic mechanical equipment (scale, swing, slide, bending, cyclotron, turning parts) guide set of hydraulic cylinder, gear pump pu, textile machinery, vending machines, plastic molding machine, die-casting machine, rubber machine, tobacco machine, fitness equipment, office machinery, hydraulic handling
“Metal-Polymer Self-lubricating Thrust Washer Bearing Solutions? “
Breathtaking design for home living.
Thrust Washer – Large Range Of Sizes， Explore More Thrust Washer Bearing Size, Buy Thrust Washers at bronzelube.com – Thrust Bearings
Nam aliquet ante porta, gravida elit interdum, luctus porta sapien justo, at fringilla felis suscipit vestibulum.
PTFE Thrust Washers, Products & Suppliers
Self-Lubricating Thrust Washers, carbon Steel, Metric, Groove Effects on Thrust Washer Lubrication.
We has a large selection of Self-Lubricating, Carbon Steel, Metric, Thrust Washers and other Plain Bearing Products.
thrust washers – metric. ✓ Available for autoCAD, Thrust washer HS code, Search Plain thrust washer HS Code for Plain bearing import and export at bronzlube.com
AVAILABILITY
Thrust Bearing For Sale, Description: Self lubricated washers. Carbon steel shell with sintered bronze layer filled with PTFE. Available in metric and imperial sizes from stock. Also bronze shell versions can be supplied to order.
Cast Bronze Machine Washer Available
Maintenance-free bearing material for heavy duty applications. Excellent performance under high loads and intermittent operation. Also available with graphite inserts for temperatures above 450°C. Request A Sample – High Performance PTFE, Thrust Washer Bearing Metric & Imperial sizes. Available in PTFE, POM or self-lubricating washer, etc. Thrust Washer Bearing Design Features Innovation, Safety, Performance
