Thrust Bearing PTFE Material

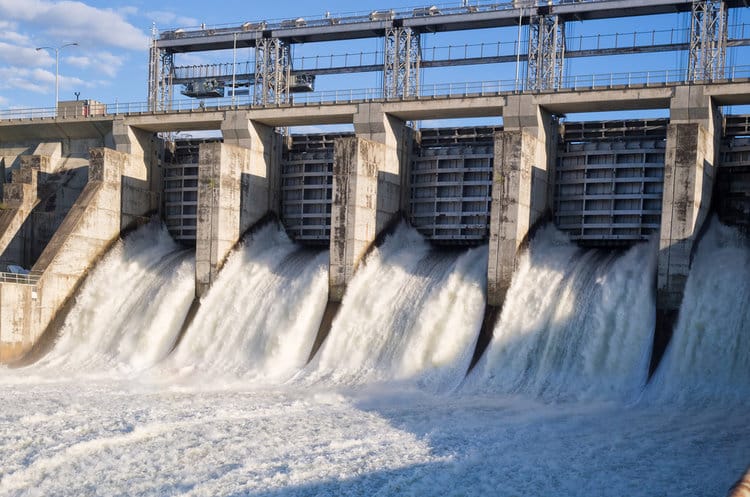

PTFE thrust bearing conversion improves operations at hydropower station
The bearing thrust bearings were replaced with a PTFE coated alternative as a result of the study. The PTFE material offers a higher safety factor compared to the white metal solution. PTFE is more durable and has a well established and proven experience in the hydropower industry. The study concluded that the material will also increase bearing life and provide greater reliability.
A World-Leading Extrusion Partner For Advanced Bearing Solutions.
PTFE material is reinforced with bronze wire mesh embedded into the PTFE below its running surface to reduce crowning.
The PTFE liner has anti-friction and anti-scratch properties, as well as high electrical insulation. The coefficient of dry friction between the PTFE packing and the friction surface of the steel guide plate is 0.05 to 0.08, or about 20% to 30% of the coefficient of Babbitted bearings.
Crowning using PTFE thrust bearing linings are drastically reduced since the thermal conductivity for PTFE linings is only 0.05% of the thermal conductivity of the babbitt / steel gasket. In this way, operational errors associated with restarting generators can be eliminated between stopping and restarting.
Customized PTFE thrust bearing
Although PTFE has been around for some time and is well associated with bearing technology, its use as a hydrodynamic bearing lining is relatively recent. Thrust bearings are used in hydroelectric power plants, they are widely used and are attracting a lot of attention in other parts of the world.
The thrust bearings are available in virtually any size and profile, with deliveries available across the globe.
Quality thrust bearing
The thrust bearing is known to be of the highest quality and consistency in the industry.
Self-lubricating washers. Carbon steel shell with a sintered bronze layer filled with PTFE. Available from stock in metric and imperial sizes. Bronze shell versions can also be supplied to order.
Metal-Polymer Composite thrust washer Material
Steel Back + Porous Bronze Sinter + PTFE + Lead
- Proprietary filled PTFE tape liner on both surfaces
- Excellent shock resistance
- High load capacity
- Excellent misalignment resistance
- Excellent contamination resistance
- Good surface speed capability
- Very good friction and wear properties
- Good chemical resistance
PTFE Thrust Bearing Solutions
To understand customer problems, Providing correct cost-effective bearing solution for product longer life with justifiable technology.
