Bi-metal Bush Auto Bushing Bearing Manufacturer

It has high fatigue strength, load capacity, and impact strength. The product is applied to track roller, air compressor, especially replaced the Centrifugal casting bimetal bushing for the track roller application. the alloy thickness becomes uniform compared with the centrifugal casting bimetal bushing, and save a lot of material, which make the product cost performance higher.

Description

Bimetal Bushing, China Bimetal Bearing – High-Quality Price Ratio, Bimetal Bushing – Oilless Self-lubricating Tech, Auto bushings

Strives to Offer Cost-saving, Stable Performance Bearings and Bushings. Contact Us.

Bimetal bush, Traditional Sourcing Brought Online. Find Quality Products & Contact Verified Suppliers!

Bimetallic slide bearing is a surface sintered CuPb10Sn10 material with a steel plate as the base. This product is one of the strongest copper-lead alloys* and is used in a wide range of applications. * suitable for bearing medium speed, high impact load bushings, thrust washers, and other multi kinds of applications. jf800 bimetallic bearing applications must be designed with oil lubrication conditions. General low-speed occasion oiling condition is assembly with grease fully closed, use the oil bolt oiling according to the cycle, for example, car balance bridge, spring steel plate seat hole, brake shoes; steering knuckle; motion linkage; punching machine sliding parts; bulldozer support wheel, heavy dynamic wheel, etc.. The movement of medium-speed occasions should be configured with oil cup thin oil lubrication, for example connecting rod parts, punching and shearing machine shaft parts, and conveyor wheel parts. High-speed occasions are immersed in oil refueling conditions, such as gearbox body, oil pump, oil cylinder, engine, clutch, etc.

Metal & Bimetal – Bronze Bearings – Steel Bushings

CuSn10Pb10 bi-metal bushing bearings are composite bearings made of a steel base and a surface layer of the tin-lead-bronze alloy CuSn10Pb10. These bearings are crafted to endure heavy loads and are well-suited for applications that involve oscillating movements and low frequencies. They find extensive use across the automotive sector, construction machinery, and a broad spectrum of industrial equipment.

Features and Benefits:

  • Material Qualities: The CuSn10Pb10 alloy strikes an excellent balance between strength and malleability, showcasing a hardness range of 60-100 HB.
  • High Load Support: Capable of supporting significant loads, these bearings have a maximum PV value of 10N/mm²·m/s and can handle up to 65 N/mm² in load capacity.
  • Temperature Resistance: They perform efficiently under temperatures up to 150℃ with grease lubrication and up to 250℃ with oil lubrication.
  • Adaptability: Ideal for a myriad of applications, including engine components, transmission systems, and other heavy-duty machinery.
  • Maintenance Needs: To avoid early wear and ensure ongoing smooth operation, periodic lubrication is required.
  • Customizable Design: The bearings’ dimensions and configuration can be tailored to match specific requirements.

Use Cases:

These bearings are pivotal in various domains, such as:

  • Construction Machinery: Employed in track chassis, towing, and tension wheelsets.
  • Automotive Applications: Utilized for balance shaft, kingpin, rod, camshaft, differential, gearbox bushings, engine main bearings, and thrust washers.
  • Industrial Equipment: Found in motor bearings, food processing machinery, and electrical appliances.

Maintenance and Design Aspects:

  • Lubrication: Regular lubrication maintenance is crucial, with some models featuring external holes for easier relubrication.
  • Design Innovations: Bearings are designed with internal surface channels to cater to diverse lubrication needs, aiming for low friction and reduced wear even in challenging refueling conditions.

Selection Guide:

When choosing a CuSn10Pb10 bi-metal bushing bearing, consider:

  • Size and Load: Ensure the chosen bearing fits the size and load demands of your project.
  • Operating Environment: Assess the operational temperature range and lubrication requirements.
  • Supplier Reliability: Opt for suppliers with a proven track record in delivering quality bearings.
  • Customization Options: For unique needs, seek suppliers that offer bespoke solutions.

In essence, CuSn10Pb10 bi-metal bushing bearings offer a durable, flexible solution for applications demanding robust, reliable bearings. With appropriate selection, regular maintenance, and correct lubrication, they are poised to deliver lasting performance across various industrial and automotive settings.

BI-METAL BUSH, Fiber Reinforced Composite bearings are available as bushes, plates, bearing segments, and special forms, depending on the particular material type.

Automotive bushings, Oilless Bushing/bimetal Bush Material Bi-metal Bearing

Manufacturers and Suppliers of Bi-Metal Bushes, Bi-Metal Bush, Flanged Bushes, Graphite Filled Bronze Bush, Ball Cage Bushes, Sintered Bronze Filter, …
Auto-bushings, Flanged Bimetal Bush Manufacturer
Industry Leaders In Replacement Technology. Shop Direct Online! Fast Shipping. extensive range of bimetal bushes servicing solutions. Shop online.
Traditional Sourcing Brought Online. Find Quality Products & Contact Verified Suppliers!

Material steel+CuPb10Sn10

Plain Steel & Bronze Bushes
Small Minimum Quantity or Order value.

Bimetal Bush Typical application

Application: con-rod of automobile engines, engineering, and agriculture machinery, heavy-duty construction machinery, etc.

Performance Data
Max dynamic Load P 140N/mm²
Max line speed V Grease lubrication 2.5m/s
Max PV value Grease lubrication 2.8N/mm²·m/s
Friction coef μ Grease lubrication 0.05~0.15
Max line speed V Oil lubrication 5m/s
Max PV value Oil lubrication 10N/mm²· m/s
Friction coef μ Oil lubrication 0.04~0.12
Max Working temperature Grease lubrication 150℃
Performance Data
Max Working temperature Oil lubrication 250℃
Mating Axis Hardness ≥53HB
Mating Axis Roughness Ra=0.32~0.63
Alloy Hardness 80~120
Heat-conducting Coefficient 47W/(m·k)
Coefficient of linear expansion 18×10-6K-1
according to customers’ special requests while out of this table.



Bimetal Bush manufacturers & suppliers

hasp bimetal bushes







oil hole

bimetal bush sleeve bushings

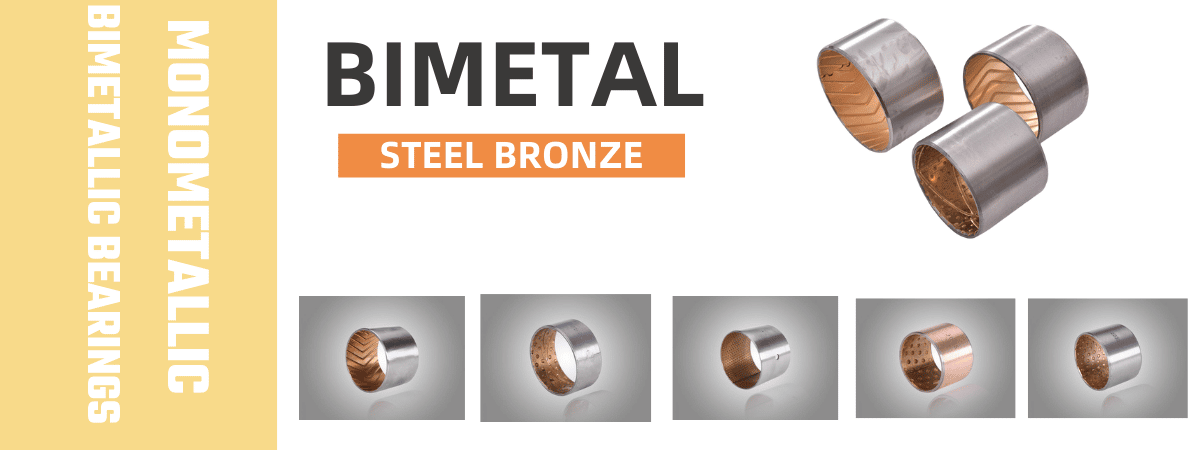

 monometallic and bimetallic bearings.

Additional information

Size

Custom Size, Extra large, Imperial size, Metric Size
