Cylindrical Bushing
Cylindrical Bushing
Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.
Manufacturing on Demand

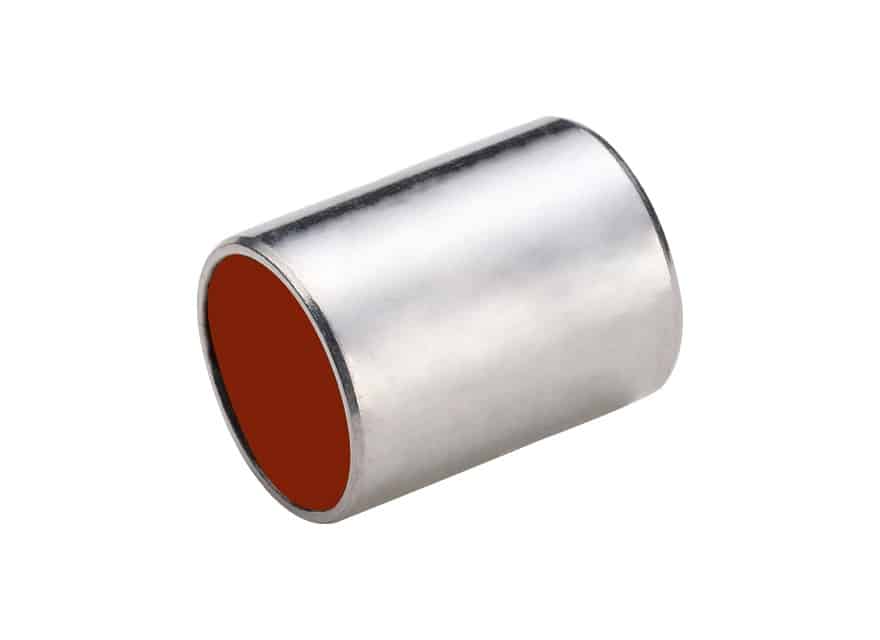

Cylindrical Bushing
Cylindrical Bushing
Offering cylindrical bushing. Wrapped bushes are ideal for applications involving rotation and oscillation.
Carbon Steel + Copper Powder + (PTFE + Filler)
Cylindrical bushing steel back — Porous Bronze Bushes–PTFE Bushes, Cylindrical Sliding Bushings
Self-lubricating Bearing Bushing Material, Manufacturers of Engineered Composite Bushing & Bearing, Cylindrical Bushing.

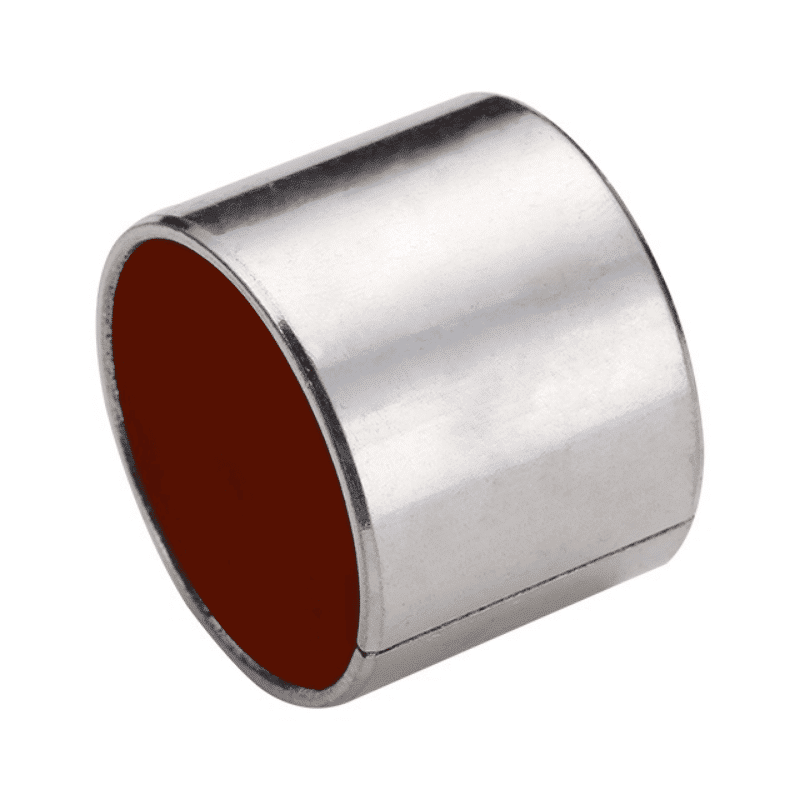

The summary outlines the intricate design of a cylindrical bushing intended for high-performance applications, emphasizing its low maintenance needs, robust load-bearing capacity, and efficient lubrication system. This component integrates steel, bronze sinter, and POM (Polyoxymethylene), each chosen for specific functional advantages, and adheres to precise engineering and dimensional standards. Here’s a detailed explanation of its composition and attributes:
Material Composition and Structure:
- Steel Backing: Forms the core of the bushing, offering substantial mechanical strength and superior heat dissipation, foundational for the bushing’s durability and load-bearing capacity.
- Sintered Bronze Layer: Fused to the steel, this layer serves as a lubricant reservoir, promoting strong adhesion with the POM layer, aiding in heat management, and contributing to the component’s overall thermal efficiency.
- POM Sliding Layer: This outermost layer, potentially enhanced with MoS2 for better sliding characteristics, is known for its resistance to wear, low friction, and excellent machinability. It may feature lubrication indents to store and gradually distribute lubricant, minimizing wear and prolonging the bushing’s lifespan.
Specifications and Features:
- POM Color: The bushing’s orange hue, akin to RAL 2011, adds a visual aspect to its design, aligning with the RAL Classic color system.
- Custom Features: A slit and specific markings indicate tailored design elements for specialized use or identification, aiding in installation or alignment.
- Tolerances: The specified tolerances for the shaft (h8) and housing (H7) align with ISO norms, ensuring a precise fit and optimal function within mechanical assemblies.
- Dimensional Standards: The adherence to ISO 3547 methods for measuring outer and inner diameters guarantees compatibility and interchangeability.
- Greasing Hole: This feature facilitates lubrication, enhancing the bushing’s self-lubricating capability and maintenance ease.
Applications and Performance: These bushings are ideal for a variety of sectors, including automotive and industrial machinery, where they ensure reliable, efficient operation, especially in environments where maintenance is challenging or continuous lubrication is essential.
In essence, this bushing is engineered for demanding settings where longevity, minimal maintenance, and accuracy are crucial. Its material selection and design features, such as lubrication pockets and a greasing hole, make it versatile for numerous industrial and mechanical uses.
Cylindrical Bushings: The Superiority of Steel Bronze with PTFE
Cylindrical bushings are a type of plain bearing that function as an integral part in various types of machinery. Particularly, cylindrical bushings made from steel bronze with Polytetrafluoroethylene (PTFE) have gained considerable attention due to their unique properties and outstanding performance.
The Composition: Steel Bronze and PTFE
Steel bronze is a type of bronze – a metal alloy consisting primarily of copper, with tin as the main additive. The addition of steel further increases the strength and durability of the bronze. On the other hand, PTFE is a high-performance plastic known for its exceptional properties such as low friction, outstanding heat resistance, and excellent electrical insulating properties.
When these two materials are combined, the result is a cylindrical bushing that offers excellent durability, high load capacity, and reduced friction. The steel bronze provides the strength and durability, while the PTFE layer reduces friction and enables smooth, efficient operation.
Unique Features of Steel Bronze with PTFE Cylindrical Bushings
These cylindrical bushings stand out due to their unique features, which include:
- Self-lubricating: The PTFE layer in these bushings acts as a self-lubricating feature, which eliminates the need for additional lubrication. This results in reduced maintenance costs and downtime, thus increasing overall efficiency.
- High load capacity: The steel bronze material used in these bushings gives them a high load-carrying capacity, making them ideal for applications that involve heavy loads.
- Durability: The combination of steel bronze and PTFE results in a bushing that is highly durable and resistant to wear and tear. This ensures a longer lifespan and less frequent replacements.
- Resistance to temperature and chemicals: PTFE is known for its excellent temperature and chemical resistance. This makes these bushings suitable for use in harsh and demanding environments.
Applications
Due to their unique properties, steel bronze with PTFE cylindrical bushings are used in a wide variety of applications. These include automotive industries, construction machinery, agricultural equipment, and any application that requires a durable, high-performing bearing solution.
cylindrical bushings made from steel bronze with PTFE offer a unique combination of strength, durability, and performance. They represent a cost-effective and reliable solution for various industrial applications.
Cylindrical PTFE bushings are a type of industrial component that are widely used in various applications due to their exceptional properties. Made from polytetrafluoroethylene (PTFE), these bushings offer a unique combination of low friction, chemical resistance, and high temperature stability.
PTFE is a synthetic polymer that is known for its non-stick properties and chemical resistance. It is an excellent material for use in high temperature and corrosive environments, as it does not react with most chemicals and has a low coefficient of friction. This makes it ideal for use in bushings, which are subjected to constant pressure and friction.
Cylindrical PTFE bushings are typically used in applications where low friction and high chemical resistance are required. They are commonly used in the chemical processing industry, as well as in food processing, pharmaceuticals, and other industries where contamination is a concern. The low friction of PTFE ensures that the bushings will provide a smooth and consistent surface for movement, reducing wear and tear on the components and improving their overall performance and longevity.
The manufacturing process of cylindrical PTFE bushings involves molding the PTFE material into the desired shape and then undergoing a series of precision machining operations to ensure that the finished product meets the exact specifications required for the intended application. The bushings are then subjected to rigorous testing to ensure their strength, durability, and chemical resistance, and only those that meet the required standards are accepted for use in industrial applications.
In conclusion, cylindrical PTFE bushings are an essential component in many industrial applications, providing low friction, chemical resistance, and high temperature stability. With their excellent properties, these bushings are an excellent investment for industries looking for reliable and long-lasting components.

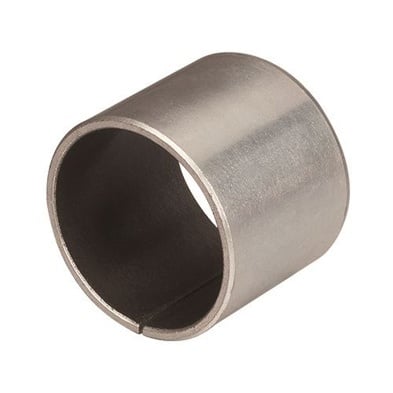

Metric PTFE Cylindrical Bushing consists of a carbon steel backing and an intermediate layer of sintered bronze, …offers a broad selection of cylindrical bearings, including technical support for customers in the design and application of PTFE sliding Cylindrical bushing bearings.
Qualified partner in the international supply of metal split cylindrical roller bearings and steel PTFE bushings.
Stainless self-lubricating plain bearings. Metal bushings. Unique steel bushing that fully closes at the gap. Sleeve bearings. Maintenance-free …
Metal-Polymer Anti-Friction Plain Bushings: The Future of Bushing Technology
Bushings are an essential component in a wide range of machinery and equipment, and the technology behind them has come a long way in recent years. One of the most innovative advancements in this field is the development of metal-polymer anti-friction plain bushings.
Metal-polymer anti-friction plain bushings are a combination of metal and polymer materials, designed to offer the best of both worlds. The metal outer shell provides strength and stability, while the polymer inner lining reduces friction and wear. This combination of materials results in a bushing that is both durable and low-friction, offering numerous benefits for various applications.
One of the main advantages of metal-polymer anti-friction plain bushings is their low friction coefficient. The polymer lining reduces friction and wear, resulting in improved performance and longer lifespan compared to traditional metal or plastic bushings. This also means that metal-polymer anti-friction plain bushings require less maintenance and replacement, reducing downtime and costs for businesses and organizations.
Another benefit of metal-polymer anti-friction plain bushings is their ability to operate in a wide range of temperatures and environments. The polymer lining can withstand extreme temperatures and harsh conditions, while the metal outer shell provides protection against rust and corrosion. This makes metal-polymer anti-friction plain bushings suitable for use in a variety of industries, including aerospace, automotive, and agriculture.
In addition to their durability and performance, metal-polymer anti-friction plain bushings are also more environmentally friendly than traditional bushings. The polymer lining is typically made of a thermoplastic material, which can be recycled and reused. This helps to reduce waste and conserve resources, making metal-polymer anti-friction plain bushings a sustainable choice for many applications.
In conclusion, metal-polymer anti-friction plain bushings represent a major advancement in bushing technology, offering numerous benefits over traditional metal and plastic bushings. With their low friction, durability, and sustainability, they are well-suited for use in a wide range of industries and applications. As technology continues to advance, it is likely that metal-polymer anti-friction plain bushings will become even more widespread and play an increasingly important role in various industries.
Cylindrical Bushing Supplier. Steel PTFE Bushes for high speeds.
A plain bearing, also known as a bushing, is a mechanical element used to reduce friction between rotating shafts and stationary support members.
Cylindrical Bush. Thrust Washer. Flanged Bush (Axial Loading). Slide-bearing lining may occur at specific loads above.
Dry Bearings Supplier
Steel Lubricating Bearing Bushings – Plain Bearings Design Services
Self-Lubricating Steel PTFE Cylindrical Bushing, Plain Bearing, CYLINDRICAL BUSHING
- PTFE Cylindrical bushings
- PTFE Thrust Washers
- PTFE Strips
Three-layer composite bearing bushing material. A porous tin bronze sinter structure is applied on the steel back.
Cylindrical bushes are available in different sliding-bearing materials. Material for maintenance-free, dry-running applications …
Download Datasheets and 2D/3D CAD Files
Discover Plain bearings cylindrical at bronzelube.com You can find the largest range of Plain bearings cylindrical products online. … Bearing bush,series
Inform yourself specifically about the bearing bushes materials. Download the data sheets, PTFE bushes size, or CAD data immediately.
Plain Bearing Cylindrical Bushes PTFE lined. Composite Bearing bush, steel backing, plated to reduce corrosion, porous sintered bronze, and PTFE coating.
Ptfe Bushes manufacturers & suppliers
They consist of a steel backing with cylindrical outer and inner surfaces to support the sliding layer. They can absorb higher forces than conventional steel, and bronze, …
Supporting you interactively to select suitable PTFE bushing right bushing cylindrical bushing bearings and dry materials, your sliding bearings partner. CAD data are available immediately.
Bushing Catalog Parts Cylindrical Bushings; Design type. Cylindrical Bushing. Material. Flange bushing, Sleeve Bearing· Dimensions. Bore diameter d [mm], Outside Custom Size …
We offer a wide range of PTFE bushES, which can be availed at industry leading prices. Our content is in wide demand among our clients due to its reliability and …
Free-Maintenance bearings Series – (Steel + PTFE) Sliding bearings INOX + PTFE
Sliding bearing bushing cylindrical no oil Wear Resistant Water resistants Mute Bearings
Polytetrafluoroethylene bushings ( PTFE Cylindrical Bushing)
Wrapped composite sliding bearing Copper-plated or tin-plated steel/bronze DIN 1494 / ISO 3547 Low-maintenance
PTFE bushings are used in applications where standard metal bearings cannot be used due to high coefficients of friction, and in other applications where polymer bearings fail due to high loads or temperatures. Teflon bushing cylindrical bushing bearings have dry-running, non-lubricated characteristics.
We manufacture our PTFE bushes bearings with multiple layers of self-lubricating materials that do not require lubrication or are lubricated only at initial installation. Our commitment to the environment extends not only to our lead-free dry bushes bearing materials but also to our environmentally friendly manufacturing processes.
Our innovative technologies are applied in our sophisticated, state-of-the-art manufacturing and development facilities. These facilities allow us to continually meet our customers’ needs for standard and custom bearing bushing designed to improve comfort and reduce the maintenance of shock absorbers, hinges, gears, pumps, valves, automotive seats, shock absorbers, and other equipment requiring bearing materials.
Sliding bearings INOX + PTFE Stainless Steel Bushing Serie
Types and Sizes of Ptfe Bushes Materials
Made out of a three-bonded layer material:
- Cylindrical steel bushings
- Flanged steel bushings
- PTFE Thrust Washers
- PTFE Bearing Strips
Temperatures
The temperature limits for a constant performance are from -200 ºC to 280 ºC.
Applications
- Valves
- Office equipment as printers
- Shock absorbers
- Pneumatic and hydraulic actuators
Continue to be specified by engineers and self-lubricating bearing bushing developers looking for the absolute best price and performance combination.
Support OEM’s as they increase market share and global presence.
Effective Composite Bearing Bushing Solutions Through Product Development.
Carbon Steel + Copper Powder + (PTFE + Filler)
Application: he printing, woven, tobacco and gymnastic machinery, shock absorber, etc..
| Performance | Date | |
| Load capacity P | Static load | 250N/mm² |
| Load capacity P | Dynamic load | 140N/mm² |
| Load capacity P | Oscillation Load | 60N/mm² |
| Max line speed V | Dry friction | 2.5m/s |
| Max line speed V | Oil lubrication | >5m/s |
| PV value limit | Dry friction | 1.8N/mm²· m/s |
| PV value limit | Oil lubrication | 3.6N/mm²· m/s |
| Friction coef μ | Dry friction | 0.08~0.20 |
| Performance | Date | |
| Friction coef μ | Oil lubrication | 0.02~0.08 |
| Mating Axis | Hardness | >220 HB |
| Mating Axis | Roughness | Ra=0.4~1.25 |
| Working temperature | -200~+280℃ | |
| Thermal conductivity | 40W/(m·k) | |
| Coefficient of linear expansion | 11×10-6K-1 | |
| Outside surface Plating | copper/tin | |
| We can also develop according to customers’ special requests while out of this table. | ||
Custom-sized self-lubricating bushings are available upon request.
Flange-size bushings are available upon request.
Garlock Bearings Cylindrical Bushing Metric Size
Stainless steel PTFE bushings and other self-lubricating composite-bearing materials are available upon request.
According to the standard, cylindrical sliding bushings are standardized, ready-to-fit machine parts. They consist of a backing with a cylindrical outer surface and an inner surface to support the sliding layer.
They can absorb higher forces than conventional steel, bronze, or plastic plain bearings and are ideal for pivoting movements and high, unidirectional and variable loads.
The Cylindrical sliding bushings are used as axially guided bearings with cylindrical sliding bushings
Catalog Parts Cylindrical Bushing & Flanged Bushings
