Self-lubricating skateboard SEWP

1 in stock

Shop self-lubricating slide plate for all your application. We offers free CAD download, short lead times.


Wear Resistant Self-lubricating skateboard, Precision Wear Plates – with or without graphite!

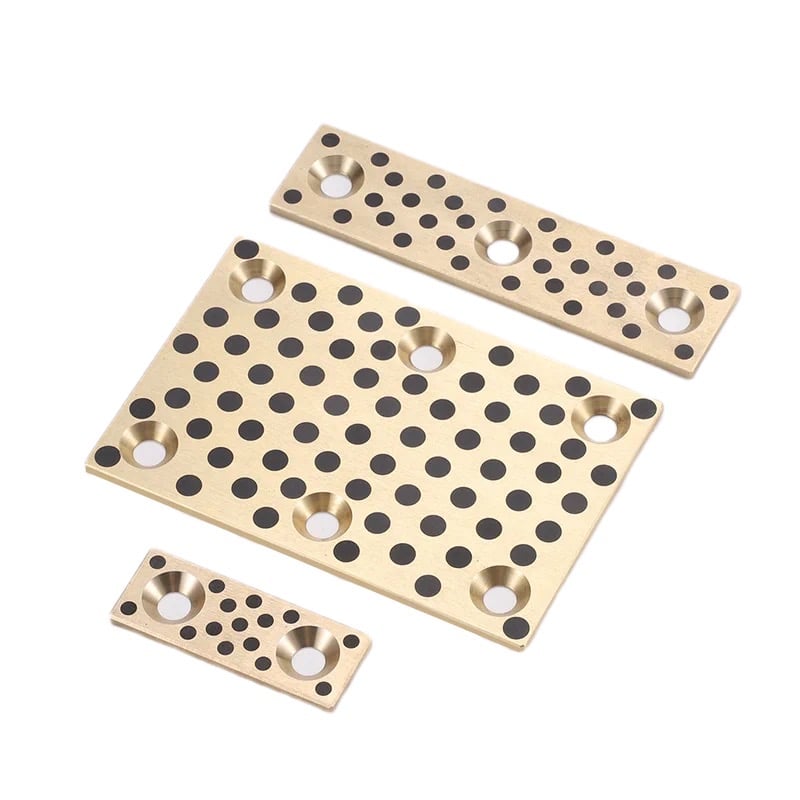

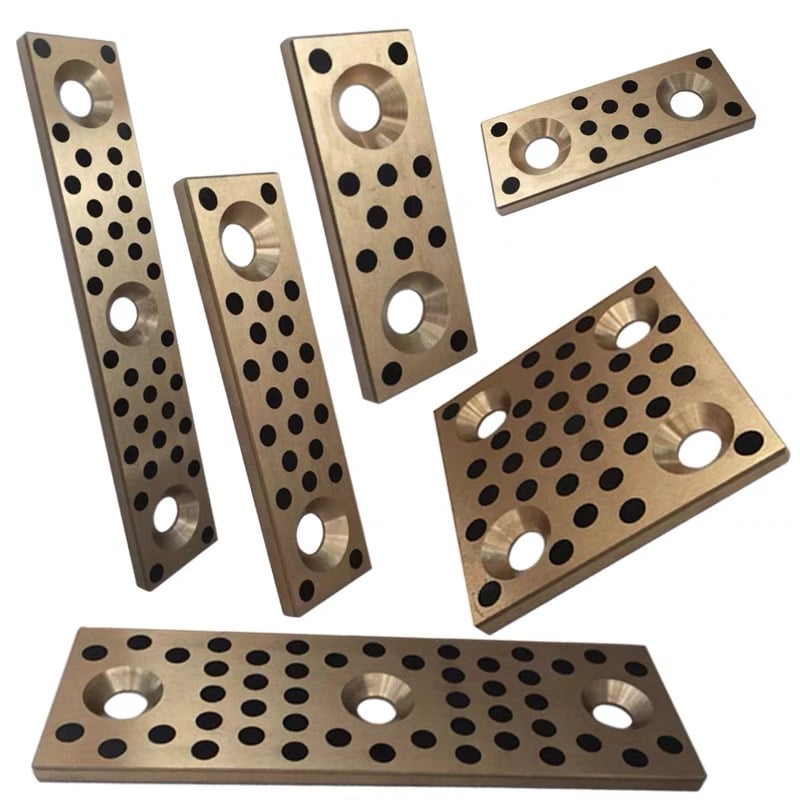

Industrial Configurable Components Supply, Oil-Free Copper Alloy Slide Plate, Self-lubricated Bronze Plate, Oilless Plate. Metric SizeOilless Wear Plate
Special copper alloy is the base metal with special solid lubricants embedded. The slide plate of this type has excellent wear resistance. This slide plate is applicable for most sliding areas of press dies.

Self-lubricating slide guide price auger copper sleeve copper-based oil-free self-lubricating copper sleeve is based on high force brass (ZCuZn25Al6Fe3Mn4), inlaid with graphite or MoS2 solid lubricant high-performance lubrication products, breaking through the limitations of general bearings rely on oil film lubrication. In the process of use, the friction heat makes the solid lubricant rub with the shaft, forming the excellent condition of oil and powder coexisting lubrication, which not only protects the shaft from wear but also makes the solid lubrication characteristic eternal. Its hardness is twice as high as the general copper bushing, and its wear resistance is also twice as high. It has been widely used in metallurgy continuous casting machines, injection molding machines, train support, rolling equipment, mining machinery, ships, turbine and other high temperature, high load, low-speed heavy load, and other occasions use.

Main Products.
Customized non-standard copper bushings,self-lubricating copper bushings, graphite copper bushings,self-lubricating bearings,oil-free bearings, composite bearings, bimetallic bearings, copper sliding plates, tin bronze bushings,aluminum-bronze bushings, shaft tiles, steel casting copper. is your one-stop online sourcing self-lubricating skateboard & graphite plate for all your manufacturing needs, including configurable factory automation, press dies, and plastic mold components. Offers free CAD download, short lead times,

Bronze Plate Stock  – Metal Bronze Plate

STWP STWT self-lubricating slide plate JSL P oil-free high force brass graphite slide wear plate self-lubricating slide plate JSP oil-free high force brass graphite slide wear

slide plate

Wear-resistant Slide bronze solid lubricated plate

1、No oil lubrication or less oil lubrication, suitable for places where it is impossible to add oil or very difficult to add oil, can be used without maintenance or less maintenance.

2、Good wear resistance, small friction coefficient, long service life.

3, there is a moderate amount of elasticity, can distribute the stress in a wider contact surface, improve the bearing capacity.

4, static and dynamic friction coefficient is similar, can eliminate the crawling at low speed, so as to ensure the working accuracy of the machinery.

5、It can make the machinery reduce vibration, reduce noise, prevent pollution and improve labor conditions.

6、The transfer film can be formed during the operation to protect the shaft of the grinding, no gnawing phenomenon.

7、The hardness requirement for the grinding shaft is low, and the shaft without tempering treatment can be used, thus reducing the processing difficulty of related parts.

8、Thin-walled structure, light weight, can reduce the volume of machinery.

9、The back of the steel can be plated with various metals and can be used in corrosive media; it has been widely used in the sliding parts of various machinery.

One, mold parts (automotive mold, plastic mold, stamping mold guide, diagonal cage, positioning, guide rail and other parts); two, hydraulic pneumatic components (engineering telescopic cylinders, cylinders, etc.)

Third, plastic molding machinery (vulcanizing machine, blow molding machine, injection molding machine hinge, Green column, crosshead and other parts).

Four, engineering and construction equipment (excavators, transfer machines, scrapers, bulldozers, forklifts, winches, rock drillers, rotary drilling rigs, concrete pump trucks, etc. boom lugs parts)

V. Metallurgical equipment (boilers, continuous casting machines, etc.), light industrial machinery (textile machinery, pharmaceutical machinery, food machinery, office equipment, fitness equipment, etc.)

Six, auto parts industry (heavy-duty differential, tensioning wheel, steering power pump, door hinges,, luggage compartment hinges, etc.), hydraulic and pneumatic industry (gear pumps, piston pumps, vane pumps, compressors, submersible pumps, cylinders, cylinders, ball valves, butterfly valves, valves, etc.)

Seven, wind and solar power generation devices.

Eight, water conservancy engineering machinery, ship machinery.

ix. high-voltage switches, vacuum circuit breakers and other industries.

X. Office equipment, fitness equipment.

Eleven, punching and forging equipment.

Standard No. L (mm) L1 (mm) L2 (mm) W (mm) W1 W2
SEWP-28×75 75 45 15 28
SEWP-28×100 100 50 25 28
SEWP-28×150 150 100 25 28
SEWP-38×75 75 45 15 38
SEWP-38×100 100 50 25 38
SEWP-38×150 150 100 25 38
SEWP-48×75 75 45 15 48
SEWP-48×100 100 50 25 48
SEWP-48×125 125 75 25 48
SEWP-48×150 150 100 25 48
SEWP-48×200 200 150 25 48
SEWP-58×75 75 45 15 58
SEWP-58×100 100 50 25 58
SEWP-58×150 150 100 25 58
SEWP-75×75 75 25 25 75
SEWP-75×100 100 50 25 75
SEWP-75×125 125 75 25 75
SEWP-75×150 150 100 25 75
SEWP-75×200 200 150 25 75
SEWP-100×100 100 50 25 100 50 25
SEWP-100×125 125 75 25 100 50 25
SEWP-100×150 150 100 25 100 50 25
SEWP-100×200 200 150 25 100 50 25
SEWP-100×250 250 200 25 100 50 25
SEWP-100×300 300 200 50 100 50 25
SEWP-125×125 125 75 25 125 50 37.5
SEWP-125×150 150 100 25 125 50 37.5
SEWP-125×200 200 150 25 125 50 37.5
SEWP-125×250 250 200 25 125 50 37.5
SEWP-125×300 300 200 50 125 50 37.5
SEWP-125×350 350 200 75 125 50 37.5
SEWP-150×150 150 100 25 150 100 25
SEWP-150×200 200 150 25 150 100 25
SEWP-150×250 250 200 25 150 100 25


bronze slide plate

Self-lubricating guide plate, copper-based graphite slide plate, self-lubricating wear plate with high force brass (ZCuZn25Al6) as the substrate, through the substrate inlaid with solid lubricant (graphite or molybdenum disulfide) as a lubricating medium to replace the traditional tin bronze, can be used in the environment where it is not easy to add oil, long-term oil shortage or no oil. We can also process oil grooves and position holes according to customers’ actual needs.


Additional information


Custom Size, Extra large, Imperial size, Metric Size
