Split Bush Bearings
Split Bush Bearings
Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.
Manufacturing on Demand

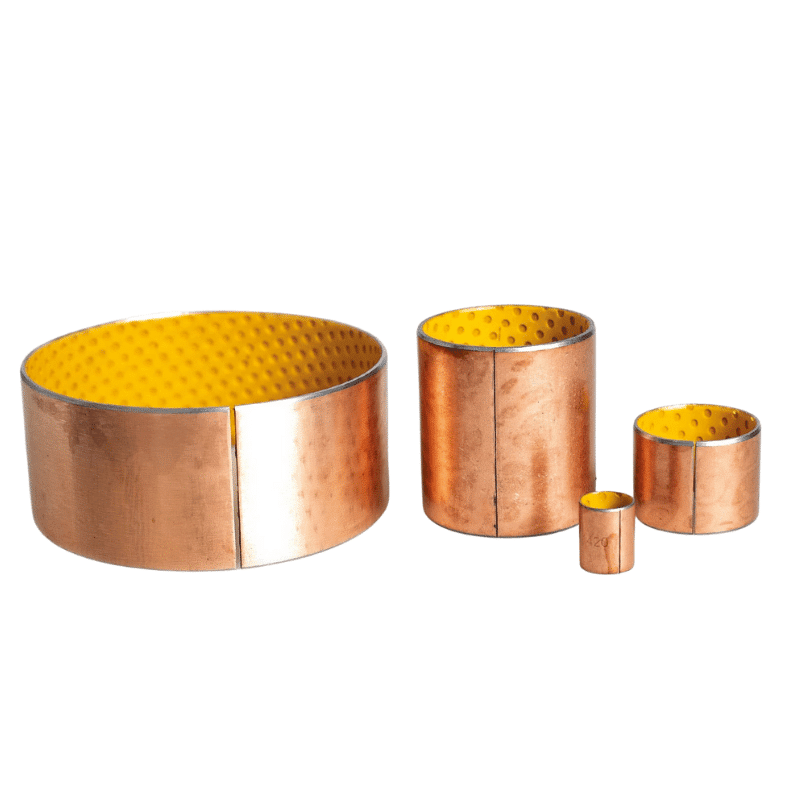

Split Bush Bearings
Steel-Sintered-Bronze-POM Composite Materia, Low-maintenance bushes with grease pockets ( POM, POZ, SF2, DX, COB021 )
Structure
Material – Characteristics
Steel with porous sintered tin bronze layer, which is coated with POM as a sliding layer.
The POM sliding layer creates a low-maintenance bearing material, which is well suited for high loads and low sliding velocities.
The grease pockets provide a lubricant reservoir in which larger amounts of the lubricant can be stored, resulting in longer maintenance intervals.
Split Bush Bearings, Oil-Free Bushing Bearing- Multi-Layer, Straight (pom) of composite bearings, Graphite Bush, Shop bush bearing types， Bush Bearing
Split bush PTFE bearings are a type of plain bearing that incorporates a polytetrafluoroethylene (PTFE) layer for low friction and self-lubrication. These bearings are designed to accommodate radial loads and facilitate smooth, low-friction movement between parts without the need for additional lubrication. They are often used in applications where maintenance is difficult or where lubricants could contaminate the environment, such as in the food processing or chemical industries.
Bearing Bushes at Best Price in China, Bush Bearings Supply – Wholesale Suppliers Online
Our product range, bush bearing application
Our main expertise is in meeting requirements, immediate delivery, and close-dimensional accuracy. Due to the wide range, many standard bushings/washers are readily available from stock. viiplus’ guarantee of material composition and workmanship is an essential factor in serving the engineering industry.
Bushing Types & Material Bushing Catalog.
Bushing materials include cast or machined metals, composite bearing bushing, wrapped bushing, and combinations of different types of materials.
Plain Bearings bushes, Metal-polymer self-lubricating, Wrapped Bearings Range, split bearing bushes
manufactures bushings in various designs and from different materials. Therefore, we offer a wide assortment of bushings available from stock.
Composite low-maintenance bushings have a three-layer construction. The outer part is made of steel, the central part is bronze, and the inner surface is coated with a polymer layer of POM. The main purpose of this type of bushing is to be installed in mechanisms with little movement and medium loads. Low-maintenance composite bushings are not suitable for use in high-vibration applications. The product has a lubrication pocket, but can operate for a long time without additional lubrication, because due to the polymer coating it has a negligible coefficient of friction. They are included in the construction of hydraulic units, installed on elevators, hydraulic cylinders, agricultural machinery, and machines. In the “viiplus” company bushing catalog you can find bushings of different sizes, with an inner diameter – of 8 mm, and outer – of 10 mm.
Plain bearings have always offered technical and cost advantages over plain metal bearings and are a good alternative. They improve performance by precisely adding reinforcing materials and solid lubrication components for a wide range of applications and requirements, reducing maintenance and enabling technical improvements. Sliding bearing bushings are a collective name for self-lubricating plastic plain bearings and their material families, consisting of a superior performance metal matrix mixed with reinforcing fibers and solid grease in precise proportions to replace traditional rolling bearings, including steel-backed composite bearings, POM Bushings, bronze wrapped bearings, etc.
- High chemical resistance
- Low coefficient of friction
- Dirt resistance
- Underwater operation
- Low water absorption
- Maximum dry running retention time
- Shock absorption
Our metal-backed, POM-based (POM LAYER) polymer-bearing materials have a common structure, consisting of a metal backing bonded to a porous bronze sinter layer. This bronze sinter layer is impregnated and overlaid with the filled POM bearing lining.
Types of bush bearing, Customize your bearings – No Competition-Just Completion, Metal-Polymer Self-Lubricating Bushing Straight Plain Bearings, Self-Lubricating Bushes
Cylindrical Bushes, Plain Bearings, and Sleeve Bearings from China
Self-lubricating split bushings are an innovative and useful mechanical component that have been widely adopted in various industrial applications. These bushings are designed to reduce friction between moving parts in machines and equipment, which can help increase their lifespan and improve their overall efficiency.
One common type of self-lubricating split bushing is made from a composite material that includes a mixture of resin and lubricating particles. This material is designed to be self-lubricating, meaning that it can effectively reduce friction between the bushing and the shaft or other moving parts it comes into contact with. The split design of the bushing allows it to be easily installed and removed from the shaft without having to disassemble the entire machine, which can save valuable time and effort in maintenance and repair.
In addition to their self-lubricating properties, these bushings are also known for their durability and resistance to wear and tear. The composite material used to create them is often reinforced with fibers, such as glass or carbon, which help to increase their strength and resistance to impact and fatigue. This makes them ideal for use in heavy-duty applications, such as those found in the mining, construction, and transportation industries.
The split design of these bushings also allows them to be easily customized to fit a wide range of shaft sizes and shapes. This versatility makes them a popular choice for equipment manufacturers and maintenance professionals who need a reliable, easy-to-install solution for reducing friction in their machines and equipment.
Another key benefit of self-lubricating split bushings is their ability to operate effectively in harsh environments. They are resistant to moisture, chemicals, and extreme temperatures, which makes them ideal for use in outdoor or industrial settings where machines are exposed to these elements.
In summary, self-lubricating split bushings are a versatile, durable, and easy-to-install component that can provide significant benefits in various industrial applications. Their ability to reduce friction, increase efficiency, and withstand harsh environments make them a popular choice for equipment manufacturers and maintenance professionals looking to optimize the performance and lifespan of their machines and equipment.
Wrapped Bearings Range, We are pleased to announce a line of high-temperature, self-lubricating Metal polymer Bushing POM lined steel backing or bronze-backed wrapped bearings.
Our design combines the durability and corrosion resistance of Wrapped Bearings (POM) with the production and cost reduction benefits of traditional clad steel bearings. It provides optimum performance in operating environments up to 250°C, as well as low torque characteristics and impressive corrosion resistance.
As a high-performance polymer, POm’s production and processing costs often prevent it from being used in the manufacture of many components. By using it to line steel or bronze components, rather than manufacturing solid POM products, we can now offer a range of cost-effective sliding Plain Bushes bearing solutions for particularly harsh environments.
The Split Plain Bushes Wrapped Bearings range is manufactured to ISO 3547 dimensions and tolerances and is available in both metric and inch sizes, including cylindrical and thrust bearings, with a choice of PTFE and sliding layer fillings. Metal composite self-lubricating bearing strip sheets and custom parts are also available.
“We strive to address the component, plant performance, and maintenance issues faced by our customers through materials innovation, product development and cost effective manufacturing and distribution techniques.
“Our new high-temperature self-lubricating POM Wrapped Bearings lined bearings are a problem-solving product specifically designed for harsh application environments.POM is known for its superior thermoplastic properties, and by combining its performance benefits with more economically viable materials and production methods, we can provide a win-win solution for our customers.”
For more information on sizes and availability, please contact our sales team.
Made of high-performance plain bush bearings, the straight POM bearing requires no additional lubrication and is mechanically stable with a minimum coefficient of friction. Whether in dust and dirt, in clean rooms, or underwater, it works great.
METAL-POLYMER MAINTENANCE-FREE STEEL BRONZE BUSHING SOLUTIONS
The metal backing provides mechanical strength, while the bronze sinter layer provides a strong mechanical bond between the backing and the bearing lining. This construction promotes dimensional stability and improves thermal conductivity.
Self-Lubricating Metric Cylindrical Split Bushing Bearing
These polymer bush-bearing linings, being predominantly POM, offer exceptionally low friction.
Steel-Sintered-Bronze-POM Composite Material low-maintenance
pockets, low-maintenance
Split Bush Bearing, Wrapped composite sliding bearing, steel/acetal resin (POM), lubrication pocket
Wrapped composite sliding bearing steel / POM, with lubrication pockets, Low-maintenance • DIN 1494 / ISO 3547
We produce all special designs at short notice! Punchings and moldings are produced on customers‘ requirements.
- Cylindrical bushing
- Thrust washer
- Strips
Additional lubrication slots or lubrication drills on demand! Cylindrical bushings, thrust washers, and strips are a standard fabrication.
The intermediate layer, the Sliding layer, is Suitable for grease or oil lubrication and all kinds of movements, has good load capacity, robust and insensible to dirt. Steel copper-plated / tin-plated, Sintered bronze
Acetal resin / POM Plain Bearing Bushes. The application of an adequate force-fitting mandrel is advisable. Grease lubrication of the outer surface may be
necessary when mounting. The adhesive should not contact the sliding surface. bearing bushing is a low-maintenance composite sliding bearing with a POM coating. Primary lubrication is necessary.
Self-lubricating dry bushes, Split Bush Bearing – DX Type, Bushing, sleeve. Check out the variety of configurable, Oil-Free Bushing – Multi-Layer, …
Oil or grease lubrication is possible. Because of lubrication pockets, lubrication clearances are reduced to a minimum!
Bushing, 70 * 30
Harvester accessories ultra high quality assured use
BEARING BUSHING SPECIFICATIONS
| Bushing Type | Plain Bearing Bushing |
|---|---|
| Bushing Material | POM bushing |
| Inside Diameter | metric size |
| Bushing Outside Diameter | metric size |
| Overall Length | metric size |
| Groove Type | Plain Bushes |
Wrapped Plain Bearing Bushings, low-maintenance plain bearings with POM as sliding layer-wrapped bushings
For Bushing Bearing Design
Sliding bushing – POM Split Bush Bearings. POM. The sliding layer, made of POM, has many grooves filled with grease before installation.
Grooves on the work surface allow optimal use with the minimum amount of grease, thus significantly extending the life of the bushing and ensuring an almost maintenance-free operation. These bushings should work only if lubricated.
Internal structure, Recommended fittings for the plain bearing and the sliding counterparts
| shaft | h8 |
| housing | H7 |
| bearing | according to DIN ISO 3547-1 (formerly DIN 1494) |
MaterialCarbon Steel + Copper Powder + POM bushing
Typical applications are used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry, and rolling steel industry, etc.
Self-lubricating pom-bearing bushing data
| Max. Load Capacity P | ||
| Static Load | N/mm2 | 250 |
| Dynamic Load | N/mm2 | 140 |
| Max. Speed V | ||
| Pre-Lubricated | m/s | 2.0 |
| Oil Grease Lubrication Continuous Operation | m/s | >2 |
| Max. Pv Value | N/mm2 · m/s | 2.8 |
| Coefficient of Friction | μ | 0.05~0.20 |
| Operation Temperature Range | ℃ | -40~110 |
| Thermal Conductivity | W(m · k-1) | 42 |
| Coefficient of Thermal HSB-2pansion | λST | 11·10K-6 |
| ITEM | ⌀d x ⌀D x L |
| POM BUSHES-Split Bush Bearing-1010 | ⌀10 x ⌀12 x 10 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1015 | ⌀10 x ⌀12 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1020 | ⌀10 x ⌀12 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1210 | ⌀12 x ⌀14 x 10 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1215 | ⌀12 x ⌀14 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1220 | ⌀12 x ⌀14 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1415 | ⌀14 x ⌀16 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1420 | ⌀14 x ⌀16 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1515 | ⌀15 x ⌀17 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1520 | ⌀15 x ⌀17 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1525 | ⌀15 x ⌀17 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1615 | ⌀16 x ⌀18 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1620 | ⌀16 x ⌀18 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1625 | ⌀16 x ⌀18 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1815 | ⌀18 x ⌀20 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1820 | ⌀18 x ⌀20 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-1825 | ⌀18 x ⌀20 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2015 | ⌀20 x ⌀23 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2020 | ⌀20 x ⌀23 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2025 | ⌀20 x ⌀23 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2030 | ⌀20 x ⌀23 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2215 | ⌀22 x ⌀25 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2220 | ⌀22 x ⌀25 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2225 | ⌀22 x ⌀25 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2230 | ⌀22 x ⌀25 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2415 | ⌀24 x ⌀27 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2420 | ⌀24 x ⌀27 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2425 | ⌀24 x ⌀27 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2430 | ⌀24 x ⌀27 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2515 | ⌀25 x ⌀28 x 15 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2520 | ⌀25 x ⌀28 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2525 | ⌀25 x ⌀28 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2530 | ⌀25 x ⌀28 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2820 | ⌀28 x ⌀32 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2825 | ⌀28 x ⌀32 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-2830 | ⌀28 x ⌀32 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3020 | ⌀30 x ⌀34 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3025 | ⌀30 x ⌀34 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3030 | ⌀30 x ⌀34 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3035 | ⌀30 x ⌀34 x 35 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3040 | ⌀30 x ⌀34 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3220 | ⌀32 x ⌀36 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3225 | ⌀32 x ⌀36 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3230 | ⌀32 x ⌀36 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3235 | ⌀32 x ⌀36 x 35 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3240 | ⌀32 x ⌀36 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3520 | ⌀35 x ⌀39 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3525 | ⌀35 x ⌀39 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3530 | ⌀35 x ⌀39 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3535 | ⌀35 x ⌀39 x 35 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-3540 | ⌀35 x ⌀39 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4020 | ⌀40 x ⌀44 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4025 | ⌀40 x ⌀44 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4030 | ⌀40 x ⌀44 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4035 | ⌀40 x ⌀44 x 35 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4040 | ⌀40 x ⌀44 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4045 | ⌀40 x ⌀44 x 45 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4050 | ⌀40 x ⌀44 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4520 | ⌀45 x ⌀50 x 20 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4525 | ⌀45 x ⌀50 x 25 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4530 | ⌀45 x ⌀50 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4535 | ⌀45 x ⌀50 x 35 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4540 | ⌀45 x ⌀50 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4545 | ⌀45 x ⌀50 x 45 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-4550 | ⌀45 x ⌀50 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5030 | ⌀50 x ⌀55 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5035 | ⌀50 x ⌀55 x 35 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5040 | ⌀50 x ⌀55 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5045 | ⌀50 x ⌀55 x 45 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5050 | ⌀50 x ⌀55 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5060 | ⌀50 x ⌀55 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5530 | ⌀55 x ⌀60 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5535 | ⌀55 x ⌀60 x 35 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5540 | ⌀55 x ⌀60 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5545 | ⌀55 x ⌀60 x 45 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5550 | ⌀55 x ⌀60 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-5560 | ⌀55 x ⌀60 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6030 | ⌀60 x ⌀65 x 30 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6035 | ⌀60 x ⌀65 x 35 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6040 | ⌀60 x ⌀65 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6045 | ⌀60 x ⌀65 x 45 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6050 | ⌀60 x ⌀65 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6060 | ⌀60 x ⌀65 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6540 | ⌀65 x ⌀70 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6550 | ⌀65 x ⌀70 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-6560 | ⌀65 x ⌀70 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-7040 | ⌀70 x ⌀75 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-7050 | ⌀70 x ⌀75 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-7060 | ⌀70 x ⌀75 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-7080 | ⌀70 x ⌀75 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-7540 | ⌀75 x ⌀80 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-7550 | ⌀75 x ⌀80 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-7560 | ⌀75 x ⌀80 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-7580 | ⌀75 x ⌀80 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-8040 | ⌀80 x ⌀85 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-8050 | ⌀80 x ⌀85 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-8060 | ⌀80 x ⌀85 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-8080 | ⌀80 x ⌀85 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-8540 | ⌀85 x ⌀90 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-8550 | ⌀85 x ⌀90 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-8560 | ⌀85 x ⌀90 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-8580 | ⌀85 x ⌀90 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9040 | ⌀90 x ⌀95 x 40 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9050 | ⌀90 x ⌀95 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9060 | ⌀90 x ⌀95 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9080 | ⌀90 x ⌀95 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9090 | ⌀90 x ⌀95 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9550 | ⌀95 x ⌀100 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9560 | ⌀95 x ⌀100 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9580 | ⌀95 x ⌀100 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9590 | ⌀95 x ⌀100 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-9595 | ⌀95 x ⌀100 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10050 | ⌀100 x ⌀105 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10060 | ⌀100 x ⌀105 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10080 | ⌀100 x ⌀105 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10090 | ⌀100 x ⌀105 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10095 | ⌀100 x ⌀105 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10550 | ⌀105 x ⌀110 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10560 | ⌀105 x ⌀110 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10580 | ⌀105 x ⌀110 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10590 | ⌀105 x ⌀110 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-10595 | ⌀105 x ⌀110 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-105100 | ⌀105 x ⌀110 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-105110 | ⌀105 x ⌀110 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-11050 | ⌀110 x ⌀115 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-11060 | ⌀110 x ⌀115 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-11080 | ⌀110 x ⌀115 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-11090 | ⌀110 x ⌀115 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-11095 | ⌀110 x ⌀115 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-110100 | ⌀110 x ⌀115 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-110110 | ⌀110 x ⌀115 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12050 | ⌀120 x ⌀125 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12060 | ⌀120 x ⌀125 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12080 | ⌀120 x ⌀125 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12090 | ⌀120 x ⌀125 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12095 | ⌀120 x ⌀125 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-120100 | ⌀120 x ⌀125 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-120110 | ⌀120 x ⌀125 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12550 | ⌀125 x ⌀130 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12560 | ⌀125 x ⌀130 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12580 | ⌀125 x ⌀130 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12590 | ⌀125 x ⌀130 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-12595 | ⌀125 x ⌀130 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-125100 | ⌀125 x ⌀130 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-125110 | ⌀125 x ⌀130 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-13050 | ⌀130 x ⌀135 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-13060 | ⌀130 x ⌀135 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-13080 | ⌀130 x ⌀135 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-13090 | ⌀130 x ⌀135 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-13095 | ⌀130 x ⌀135 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-130100 | ⌀130 x ⌀135 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-130110 | ⌀130 x ⌀135 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-14050 | ⌀140 x ⌀145 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-14060 | ⌀140 x ⌀145 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-14080 | ⌀140 x ⌀145 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-14090 | ⌀140 x ⌀145 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-14095 | ⌀140 x ⌀145 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-140100 | ⌀140 x ⌀145 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-140110 | ⌀140 x ⌀145 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-15050 | ⌀150 x ⌀155 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-15060 | ⌀150 x ⌀155 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-15080 | ⌀150 x ⌀155 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-15090 | ⌀150 x ⌀155 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-15095 | ⌀150 x ⌀155 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-150100 | ⌀150 x ⌀155 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-150110 | ⌀150 x ⌀155 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-16050 | ⌀160 x ⌀165 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-16060 | ⌀160 x ⌀165 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-16080 | ⌀160 x ⌀165 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-16090 | ⌀160 x ⌀165 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-16095 | ⌀160 x ⌀165 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-160100 | ⌀160 x ⌀165 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-160110 | ⌀160 x ⌀165 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-17050 | ⌀170 x ⌀175 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-17060 | ⌀170 x ⌀175 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-17080 | ⌀170 x ⌀175 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-17090 | ⌀170 x ⌀175 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-17095 | ⌀170 x ⌀175 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-170100 | ⌀170 x ⌀175 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-170110 | ⌀170 x ⌀175 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-18050 | ⌀180 x ⌀185 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-18060 | ⌀180 x ⌀185 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-18080 | ⌀180 x ⌀185 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-18090 | ⌀180 x ⌀185 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-18095 | ⌀180 x ⌀185 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-180100 | ⌀180 x ⌀185 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-180110 | ⌀180 x ⌀185 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-19050 | ⌀190 x ⌀195 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-19060 | ⌀190 x ⌀195 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-19080 | ⌀190 x ⌀195 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-19090 | ⌀190 x ⌀195 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-19095 | ⌀190 x ⌀195 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-190100 | ⌀190 x ⌀195 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-190110 | ⌀190 x ⌀195 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-190120 | ⌀190 x ⌀195 x 120 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-20050 | ⌀200 x ⌀205 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-20060 | ⌀200 x ⌀205 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-20080 | ⌀200 x ⌀205 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-20090 | ⌀200 x ⌀205 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-20095 | ⌀200 x ⌀205 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-200100 | ⌀200 x ⌀205 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-200110 | ⌀200 x ⌀205 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-200120 | ⌀200 x ⌀205 x 120 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-22050 | ⌀220 x ⌀225 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-22060 | ⌀220 x ⌀225 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-22080 | ⌀220 x ⌀225 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-22090 | ⌀220 x ⌀225 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-22095 | ⌀220 x ⌀225 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-220100 | ⌀220 x ⌀225 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-220110 | ⌀220 x ⌀225 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-220120 | ⌀220 x ⌀225 x 120 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-24050 | ⌀240 x ⌀245 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-24060 | ⌀240 x ⌀245 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-24080 | ⌀240 x ⌀245 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-24090 | ⌀240 x ⌀245 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-24095 | ⌀240 x ⌀245 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-240100 | ⌀240 x ⌀245 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-240110 | ⌀240 x ⌀245 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-240120 | ⌀240 x ⌀245 x 120 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-25050 | ⌀250 x ⌀255 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-25060 | ⌀250 x ⌀255 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-25080 | ⌀250 x ⌀255 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-25090 | ⌀250 x ⌀255 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-25095 | ⌀250 x ⌀255 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-250100 | ⌀250 x ⌀255 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-250110 | ⌀250 x ⌀255 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-250120 | ⌀250 x ⌀255 x 120 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-26050 | ⌀260 x ⌀265 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-26060 | ⌀260 x ⌀265 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-26080 | ⌀260 x ⌀265 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-26090 | ⌀260 x ⌀265 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-26095 | ⌀260 x ⌀265 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-260100 | ⌀260 x ⌀265 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-260110 | ⌀260 x ⌀265 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-260120 | ⌀260 x ⌀265 x 120 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-28050 | ⌀280 x ⌀285 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-28060 | ⌀280 x ⌀285 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-28080 | ⌀280 x ⌀285 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-28090 | ⌀280 x ⌀285 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-28095 | ⌀280 x ⌀285 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-280100 | ⌀280 x ⌀285 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-280110 | ⌀280 x ⌀285 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-280120 | ⌀280 x ⌀285 x 120 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-30050 | ⌀300 x ⌀305 x 50 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-30060 | ⌀300 x ⌀305 x 60 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-30080 | ⌀300 x ⌀305 x 80 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-30090 | ⌀300 x ⌀305 x 90 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-30095 | ⌀300 x ⌀305 x 95 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-300100 | ⌀300 x ⌀305 x 100 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-300110 | ⌀300 x ⌀305 x 110 |
| wrapped bushing | |
| POM BUSHES-Split Bush Bearing-300120 | ⌀300 x ⌀305 x 120 |
Your expert in self-lubricating Bearing
and Bronze alloys – serving globally
