Plain bearing bush

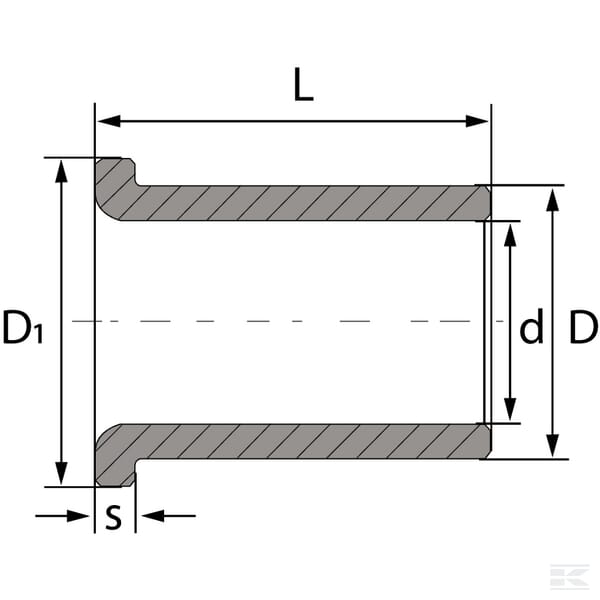

Interested in buying bronze bushes products? Wrapped Bearing bush with collar. low-maintenance
Bronze & Wrapped Metal Bushes. Industrial and Bearing Supplies
Cylindrical and flanged bushings, thrust washer and strips are standard fabrication
Wrapped Bronze Sliding Bearing, Perforations, Low-Maintenance




Our Flanged Bushes Selector.
Design & build completely custom layouts
Custom Sized Flanged Bushes. You can find the flange bushes or plain bushes at bronzelube.com
We offers an extensive and competitively priced range of plain and Flanged bushes material made of solid bronze strip with indents for lubrication
- Good wear resistance, suitable for rough conditions
- Optimum performance under relatively high loads and low speeds

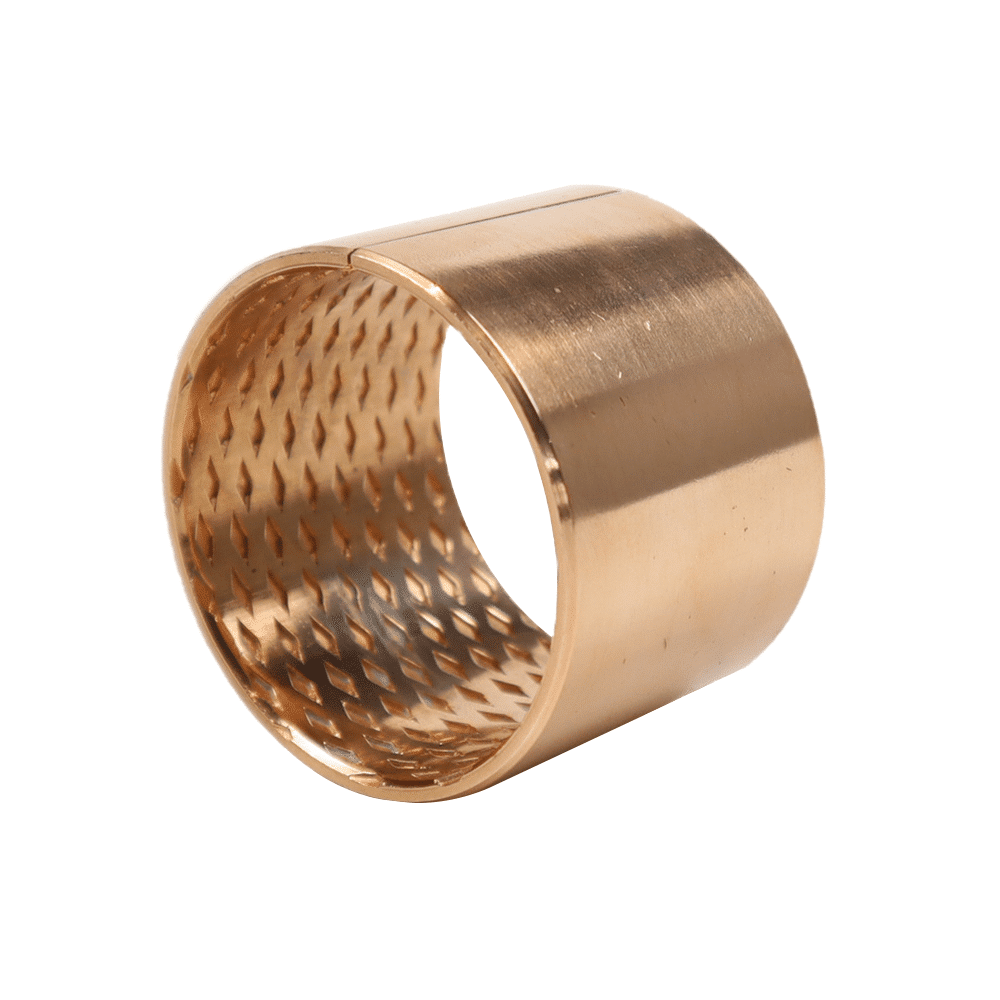

Bronze bearings made of CuSn8 with lubrication indents : Flanged Bushes & Phosphor Bronze Bearing
Design & build completely custom layouts
CuSn8 Grade Phosphor-Bronze Strip is called CuSn8 in DIN and EN standards, and C52100 in American standards. The chemical composition contains a high percentage of Cu(Copper) and 7.5-8.5% Sn(Tin), and these elements form the Bronze substance in the structure. CUSN6 / CUSN8. Phosphor tin bronze. Phosphor bronze is characterized as a very pure alloy with extremely low content of impurities.



CuSn8 in DIN and EN standards
High strength and hardness CuSn8 bronze bearing
Manufactures flanged bushes in various designs & from different materials. Provides high quality bronze flanged bushes & strips for an extremely wide range of industrial applications. Metal Bearing & Bushing Company: Partners with customers worldwide on customized tribological design solutions that are efficient and environmentally sustainable. VIIPLUS’s engineers bring their expertise and passion for tribology to a wide range of industries, including automotive and industrial manufacturing.
Bearing forms available in standard dimensions
Our Company offers a wide range of additional services, helping to satisfy the most varied needs. Surface treatments, like galvanic tinning, copper plating, as well as selective plating, in order to improve the electrical and surface behavior in critical component conditions.

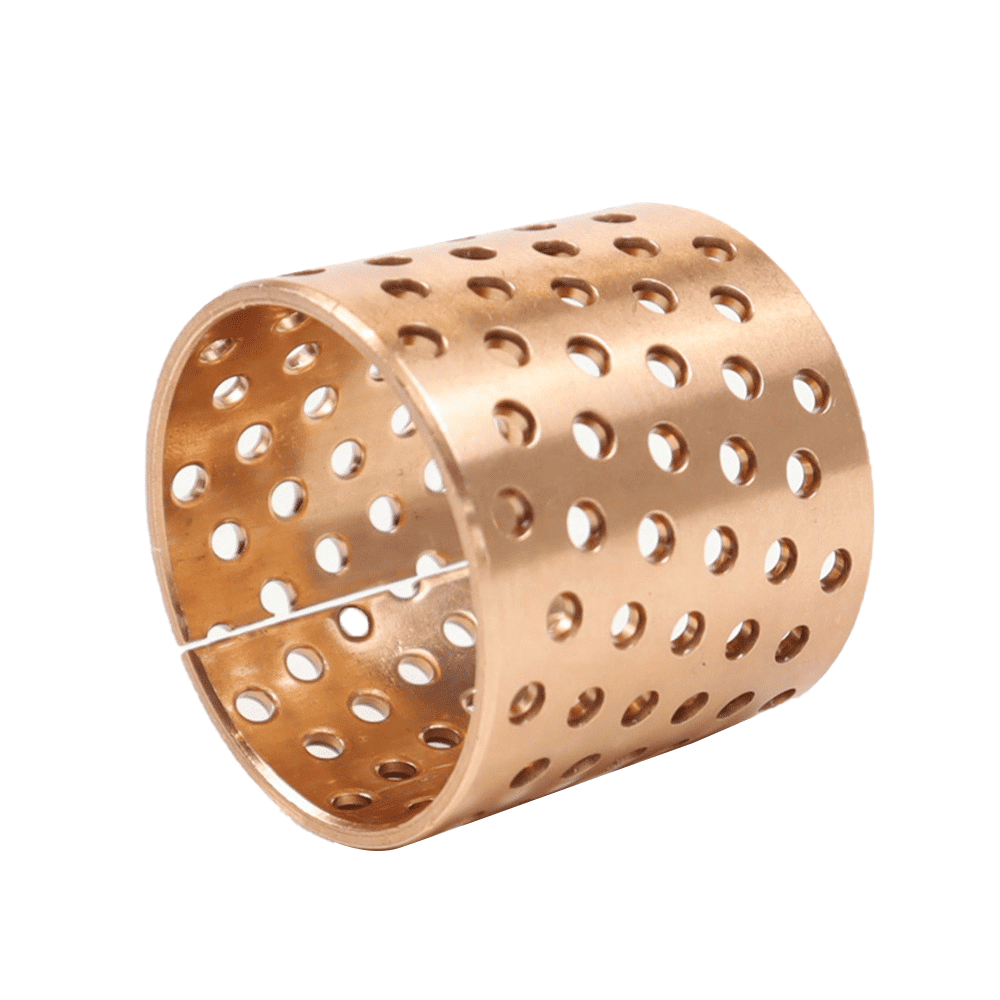

Bronze Bushing – FB092(BMZ/L,WB702,WB802) Rolled bronze bearings with lubrication holes. Characteristics. – Extra high load capacity – Good lubrication properties
Technical Parameters
Data | Code | FB-092 |
Material | CuSn8P(Qsn8-0.3) | |
Applications | Products are widely used in agricultural machinery, construction machinery, engineering machinery. | |
Density g/cm³ | 8.8 | |
Max Load Capacity N/mm² | 120 | |
Max Line Speed V | Grease Lubrication m/s | 2.5 |
PV Value Limit | Grease Lubrication N/mm²·m/s | 2.8 |
Tensile Strength N/mm² | >460 | |
Yield Strength N/mm² | >280 | |
Hardness HB | 90~150 | |
Friction Coefficient u | 0.06~0.15 | |
Mating Axis | Hardness HRC | ≥50 |
Roughness Ra | 0.4~1.0 | |
Working Temperature ℃ | -40~+150 | |
Thermal Conductivity W/mk | 58 | |
Coefficient Of Linear Xpansion | 18.5×10-6/K | |
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements. |
Bronze Bushing is a bronze material for the matrix, processing uniform and orderly injection hole, the rolling made of thin-walled bearings, lubricating grease after assembly, and then configure the end face seal and use. The bearing has a large amount of oil, easy installation, the advantages of small size design, and can replace the use of copper sets, which can greatly reduce costs.
At present the product has been used in conveyors, lifts, roll field machines, school-level machines, such as medium and low-speed occasions.
Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547
Characteristics CuSn8 strips provide a better corrosion resistance compared to bronze with lower tin-content, combined with higher strength and good slip properties. It is wear resistant, has excellent spring properties, good cold forming and soldering properties. CuSn8 is used for springy applications where high strength and wearresistance are required. Special characteristics such as superfine particle size or thermalmechanical stress relieving improve mechanical properties and provide increased strength and greater malleability.
Provides high-quality bronze flanged bushes & strips for an extremely wide range of industrial applications
- Phosphor Bronze Bearing & Bushing
- Phosphor bronze (sometimes sold with the shorter name Phos Bronze) is an alloy of copper with 3.5 to 10% of tin and a significant phosphorus content of up to 1%. The phosphorus is added as deoxidizing agent during melting.These alloys are notable for their toughness, strength, low coefficient of friction, and fine grain. The phosphorus also improves the fluidity of the molten metal and thereby improves the castability, and improves mechanical properties by cleaning up the grain boundaries.
- Phosphor bronze bushing that provides excellent electrical conductivity, resistance to heat, safety and fatigue resistance. Phosphor bronze strip is the most widely used ductile material of copper alloys at present.
Wrapped Bronze Bushings Flange Type -Metric Size
Product | Bearing Type | Shaft Dia., Nominal (d) (mm) | Bearing Outside Diameter, Nominal(Do) (mm) | Bearing Length, Nominal (B) (mm) | Wall Thickness (S3) (mm) |
Wrapped Bushing F2515 | flanged | 25 | 28 | 15 | 1.5 |
Wrapped Bushing F2520 | flanged | 25 | 28 | 20 | 1.5 |
Wrapped Bushing F2525 | flanged | 25 | 28 | 25 | 1.5 |
Wrapped Bushing F3020 | flanged | 30 | 34 | 20 | 2 |
Wrapped Bushing F3025 | flanged | 30 | 34 | 25 | 2 |
Wrapped Bushing F3030 | flanged | 30 | 34 | 30 | 2 |
Wrapped Bushing F3520 | flanged | 35 | 39 | 20 | 2 |
Wrapped Bushing F3525 | flanged | 35 | 39 | 25 | 2 |
Wrapped Bushing F3530 | flanged | 35 | 39 | 30 | 2 |
Wrapped Bushing F3535 | flanged | 35 | 39 | 35 | 2 |
Wrapped Bushing F4025 | flanged | 40 | 44 | 25 | 2 |
Wrapped Bushing F4030 | flanged | 40 | 44 | 30 | 2 |
Wrapped Bushing F4035 | flanged | 40 | 44 | 35 | 2 |
Wrapped Bushing F4040 | flanged | 40 | 44 | 40 | 2 |
Wrapped Bushing F4530 | flanged | 45 | 50 | 30 | 2.5 |
Wrapped Bushing F4535 | flanged | 45 | 50 | 35 | 2.5 |
Wrapped Bushing F4540 | flanged | 45 | 50 | 40 | 2.5 |
Wrapped Bushing F4550 | flanged | 45 | 50 | 50 | 2.5 |
Wrapped Bushing F5030 | flanged | 50 | 55 | 30 | 2.5 |
Wrapped Bushing F5035 | flanged | 50 | 55 | 35 | 2.5 |
Wrapped Bushing F5040 | flanged | 50 | 55 | 40 | 2.5 |
Wrapped Bushing F5050 | flanged | 50 | 55 | 50 | 2.5 |
Wrapped Bushing F5530 | flanged | 55 | 60 | 30 | 2.5 |
Wrapped Bushing F5535 | flanged | 55 | 60 | 35 | 2.5 |
Wrapped Bushing F5540 | flanged | 55 | 60 | 40 | 2.5 |
Wrapped Bushing F5550 | flanged | 55 | 60 | 50 | 2.5 |
Wrapped Bushing F6030 | flanged | 60 | 65 | 30 | 2.5 |
Wrapped Bushing F6035 | flanged | 60 | 65 | 35 | 2.5 |
Wrapped Bushing F6040 | flanged | 60 | 65 | 40 | 2.5 |
Wrapped Bushing F6050 | flanged | 60 | 65 | 50 | 2.5 |
Wrapped Bushing F6060 | flanged | 60 | 65 | 60 | 2.5 |
Wrapped Bushing F6530 | flanged | 65 | 70 | 30 | 2.5 |
Wrapped Bushing F6535 | flanged | 65 | 70 | 35 | 2.5 |
Wrapped Bushing F6540 | flanged | 65 | 70 | 40 | 2.5 |
Wrapped Bushing F6550 | flanged | 65 | 70 | 50 | 2.5 |
Wrapped Bushing F6560 | flanged | 65 | 70 | 60 | 2.5 |
Wrapped Bushing F7035 | flanged | 70 | 75 | 35 | 2.5 |
Wrapped Bushing F7040 | flanged | 70 | 75 | 40 | 2.5 |
Wrapped Bushing F7050 | flanged | 70 | 75 | 50 | 2.5 |
Wrapped Bushing F7060 | flanged | 70 | 75 | 60 | 2.5 |
Wrapped Bushing F7070 | flanged | 70 | 75 | 80 | 2.5 |
Wrapped Bushing F7535 | flanged | 75 | 80 | 35 | 2.5 |
Wrapped Bushing F7540 | flanged | 75 | 80 | 40 | 2.5 |
Wrapped Bushing F7550 | flanged | 75 | 80 | 50 | 2.5 |
Wrapped Bushing F7560 | flanged | 75 | 80 | 60 | 2.5 |
Wrapped Bushing F7570 | flanged | 75 | 80 | 70 | 2.5 |
Wrapped Bushing F8035 | flanged | 80 | 85 | 35 | 2.5 |
Wrapped Bushing F8040 | flanged | 80 | 85 | 40 | 2.5 |
Wrapped Bushing F8050 | flanged | 80 | 85 | 50 | 2.5 |
Wrapped Bushing F8060 | flanged | 80 | 85 | 60 | 2.5 |
Wrapped Bushing F8070 | flanged | 80 | 85 | 70 | 2.5 |
Wrapped Bushing F8080 | flanged | 80 | 85 | 80 | 2.5 |
Wrapped Bushing F9050 | flanged | 90 | 95 | 50 | 2.5 |
Wrapped Bushing F9060 | flanged | 90 | 95 | 60 | 2.5 |
Wrapped Bushing F9070 | flanged | 90 | 95 | 70 | 2.5 |
Wrapped Bushing F9080 | flanged | 90 | 95 | 80 | 2.5 |
Wrapped Bushing F9090 | flanged | 90 | 95 | 100 | 2.5 |
Wrapped Bushing F10050 | flanged | 100 | 105 | 50 | 2.5 |
Wrapped Bushing F10060 | flanged | 100 | 105 | 60 | 2.5 |
Wrapped Bushing F10070 | flanged | 100 | 105 | 70 | 2.5 |
Wrapped Bushing F10080 | flanged | 100 | 105 | 80 | 2.5 |
Wrapped Bushing F10090 | flanged | 100 | 105 | 90 | 2.5 |
Wrapped Bushing F11050 | flanged | 110 | 115 | 50 | 2.5 |
Wrapped Bushing F11060 | flanged | 110 | 115 | 60 | 2.5 |
Wrapped Bushing F11070 | flanged | 110 | 115 | 70 | 2.5 |
Wrapped Bushing F11080 | flanged | 110 | 115 | 80 | 2.5 |
Wrapped Bushing F11090 | flanged | 110 | 115 | 90 | 2.5 |
Wrapped Bushing F12060 | flanged | 120 | 125 | 60 | 2.5 |
Wrapped Bushing F12070 | flanged | 120 | 125 | 70 | 2.5 |
Wrapped Bushing F12080 | flanged | 120 | 125 | 80 | 2.5 |
Wrapped Bushing F12090 | flanged | 120 | 125 | 90 | 2.5 |
Wrapped Bushing F13060 | flanged | 130 | 135 | 60 | 2.5 |
Wrapped Bushing F13070 | flanged | 130 | 135 | 70 | 2.5 |
Wrapped Bushing F13080 | flanged | 130 | 135 | 80 | 2.5 |
Wrapped Bushing F13090 | flanged | 130 | 135 | 90 | 2.5 |
Wrapped Bushing F14060 | flanged | 140 | 145 | 60 | 2.5 |
Wrapped Bushing F14070 | flanged | 140 | 145 | 70 | 2.5 |
Wrapped Bushing F14080 | flanged | 140 | 145 | 80 | 2.5 |
Wrapped Bushing F14090 | flanged | 140 | 145 | 90 | 2.5 |
Wrapped Bushing F15060 | flanged | 150 | 155 | 60 | 2.5 |
Wrapped Bushing F15070 | flanged | 150 | 155 | 70 | 2.5 |
Wrapped Bushing F15080 | flanged | 150 | 155 | 80 | 2.5 |
Wrapped Bushing F15090 | flanged | 150 | 155 | 90 | 2.5 |
Wrapped Bushing F16060 | flanged | 160 | 165 | 60 | 2.5 |
Wrapped Bushing F16070 | flanged | 160 | 165 | 70 | 2.5 |
Wrapped Bushing F16080 | flanged | 160 | 165 | 80 | 2.5 |
Wrapped Bushing F16090 | flanged | 160 | 165 | 90 | 2.5 |
Wrapped Bushing F17060 | flanged | 170 | 175 | 60 | 2.5 |
Wrapped Bushing F17070 | flanged | 170 | 175 | 70 | 2.5 |
Wrapped Bushing F17080 | flanged | 170 | 175 | 80 | 2.5 |
Wrapped Bushing F17090 | flanged | 170 | 175 | 90 | 2.5 |
Wrapped Bushing F18060 | flanged | 180 | 185 | 60 | 2.5 |
Wrapped Bushing F18070 | flanged | 180 | 185 | 70 | 2.5 |
Wrapped Bushing F18080 | flanged | 180 | 185 | 80 | 2.5 |
Wrapped Bushing F18090 | flanged | 180 | 185 | 90 | 2.5 |
Wrapped Bushing F19060 | flanged | 190 | 195 | 60 | 2.5 |
Wrapped Bushing F19070 | flanged | 190 | 195 | 70 | 2.5 |
Wrapped Bushing F19080 | flanged | 190 | 195 | 80 | 2.5 |
Wrapped Bushing F19090 | flanged | 190 | 195 | 90 | 2.5 |
Wrapped Bushing F20060 | flanged | 200 | 205 | 60 | 2.5 |
Wrapped Bushing F20070 | flanged | 200 | 205 | 70 | 2.5 |
Wrapped Bushing F20080 | flanged | 200 | 205 | 80 | 2.5 |
Wrapped Bushing F20090 | flanged | 200 | 205 | 90 | 2.5 |
Wrapped Bushing F22560 | flanged | 225 | 230 | 60 | 2.5 |
Wrapped Bushing F22570 | flanged | 225 | 230 | 70 | 2.5 |
Wrapped Bushing F22580 | flanged | 225 | 230 | 80 | 2.5 |
Wrapped Bushing F22590 | flanged | 225 | 230 | 90 | 2.5 |
Wrapped Bushing F25060 | flanged | 250 | 255 | 60 | 2.5 |
Wrapped Bushing F25070 | flanged | 250 | 255 | 70 | 2.5 |
Wrapped Bushing F25080 | flanged | 250 | 255 | 80 | 2.5 |
Wrapped Bushing F25090 | flanged | 250 | 255 | 90 | 2.5 |
Wrapped Bushing F26560 | flanged | 265 | 270 | 60 | 2.5 |
Wrapped Bushing F26570 | flanged | 265 | 270 | 70 | 2.5 |
Wrapped Bushing F26580 | flanged | 265 | 270 | 80 | 2.5 |
Wrapped Bushing F26590 | flanged | 265 | 270 | 90 | 2.5 |
Wrapped Bushing F28560 | flanged | 285 | 285 | 60 | 2.5 |
Wrapped Bushing F28570 | flanged | 285 | 285 | 70 | 2.5 |
Wrapped Bushing F28580 | flanged | 285 | 285 | 80 | 2.5 |
Wrapped Bushing F28590 | flanged | 285 | 285 | 90 | 2.5 |
Wrapped Bushing F30060 | flanged | 300 | 305 | 60 | 2.5 |
Wrapped Bushing F30070 | flanged | 300 | 305 | 70 | 2.5 |
Wrapped Bushing F30080 | flanged | 300 | 305 | 80 | 2.5 |
Wrapped Bushing F30090 | flanged | 300 | 305 | 90 | 2.5 |
Metal base self-lubricating bearings markets
Phosphor-Bronze Bushing, Flange Bushes made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs.
Our range of CuSn8 bronze bearings (rolled phosphor bronze alloy material) are extremely versatile and well suited for a wide range of applications.
Taking high strength copper alloy or other metal materials as the matrix, solid lubricant with regular inlaid arrangement or evenly distributed dispersion is designed to form a solid lubrication film on the surface of the friction pair during operation to ensure the self-lubrication performance of the bearing.
Inlaid solid lubricants are designed for low speed, medium and high load conditions, while dispersed solid lubricants provide a lower coefficient of friction for freting and medium to high speed applications.
