Graphite plugged bronze bushings
Self-lubricating
Precision Bronze Bushings
Order Online Now
Discover
Bronzelube.com
Kick start your project with bronzelube.com ! Browse our current Standard & Self-Lubricating Bronze Bushing. Heavy Duty.
professional
Supplier
Standard & Self-Lubricating Bushing Wear Plates – Metric, Plastic Mold Components, user-friendly resource for factory automation, press die, and plastic mold applications.
Bushings
Focus
Bronze with graphite plugs, bushings are made of solid aluminum bronze and can … Plastic Mold Components, Embedded Lubricant Graphite – Oil-Free Leader Bushings
Products
Components
Bronze Bushings are manufactured from bronze material with oil impregnated graphite plugs. Discover Bronzelube.com
Graphite Plugged Bronze Bushing Copper Alloy Straight Type

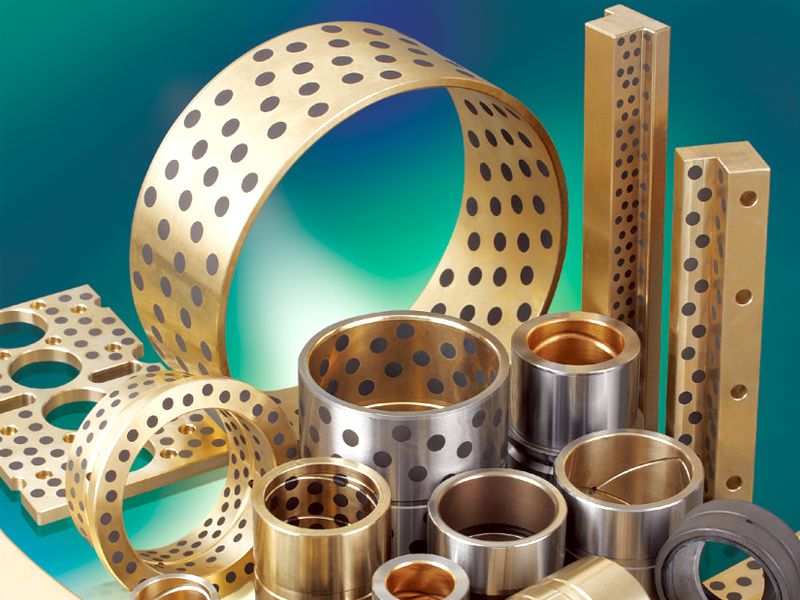

Graphite plugged bronze bushings are a complete line of self-lubricating bushings that excel whenever standard lubrication is impractical, including high temperature, heavy load applications. A variety of bronze alloys of graphite bronze bushing: Search By Bronze Bushing Size – Graphite Plugged Cast Bronze: Self Lubricated for Higher Temperatures and Heavier Loads. Custom bronze bushing from prototype to production.
Graphite Plugged Bronze Bushing Copper Alloy Straight Type
Graphite Bronze Bushing Suppliers: Continued innovation is essential for vehicle manufacturers to design more durable vehicles that consistently perform well in crash and explosive testing. Over the years, bronze bushings and graphite bearings have proven the test of time in numerous defense vehicle applications. We have been supplying these components to a number of defense vehicle manufacturers. Services such as full traceability and quality assurance ensure that only the best materials are used for a wide range of bearings and Graphite Bronze Bushing bushings. No Oil Or Grease! Bearing Solutions For Food Applications. Call Us Now. Request a Catalog. Graphite Plugged Bronze Bush Catalogs and Brochures Available Fill out our form to get more info.
SELF LUBRICATING DRY ELEMENTS
Material is cast from strong bronze, Embedded with a special solid lubricant.
The base metal can withstand high loads while the solid lubricant provides self-lubrication. The solid lubricant provides self-lubrication. The bushing exhibits excellent performance and does not require extreme high/low temperature and low speed conditions, excellent performance at high/low temperature and low speed conditions. Manufacturer Of Custom Machined Oilless Bearings parts: Our Expertise Across Industries.
flanged bushing, Download Solid Bronze Self-lubricating Bearings Catalog
Metric standard by design
Product Quality Index
Energy Generation
Graphite Plugged Cast Bronze Standard Bushings
Graphite plugged bronze bushings are available in standard sizes and can also be custom-made to meet specific requirements. They are offered by various manufacturers and suppliers, and some companies, like National Bronze Manufacturing, have made them available online for easier access.
Graphite plugged bronze bushings are a reliable and efficient solution for applications requiring self-lubrication, especially in challenging environments. They offer a combination of durability, low maintenance, and versatility, making them a popular choice across various industries
Supply and stock standard graphite brass bearing bushings in inch sizes available, custom size self-lubricating graphite brass bushings. We also offer a complete line of metric bushings. We are able to meet small volume orders and provide fast lead times by having most sizes of these bushings in stock in graphite bronze bearings. Bushings can also be modified with recesses, holes, graphite or other specifications your application may require. Our engineering and customer support departments can assist you in determining which parts you need. Quick parts Manufacturing – Quick Cast Casting, Prototyping Service – Small Minimums, Quick Turnaround! Oilless Bearing Prototypes – Get An Instant Quote. Easy Online Ordering. Fast Turnaround Times. Expert Engineering. Quality Parts. 15% Off First Order.
Self-lubricating Bronze Bushing Embedded Solid Lubricants
We have a large inventory of CDA 932 (660 bronze) graphite bronze bearing fabrications, CDA 954 (aluminum bronze) graphite bronze bushings and C86300 manganese bronze cast bronze bushings, high force brass bearings. We also have special alloys and shapes of continuous cast bronze parts, shaft shingles. We offer sliders in large size materials, whether you are looking for finished machined parts or self-lubricating copper bearing material, we will do our best to meet your requirements. Saves You Time & Money In Bushing Research, Design & Production Costs. E-mail Now! Standard graphite plugged bronze bushing over 1,000 sizes that are carried in stock. Standard & Self-Lubricating Wear Plates Supplier. With/Without Graphite and mounting holes.
- Bearing Surface Material: Bronze – Cast Bronze
- Bushing Type: Sleeve
- Design Units: Metric & Inch
- Solid Lubricant Embedded
taxation planning
Eiusmod tempor incididunt ipsum ut labore dolore magna aliqua. Ut enim minim veniam duisy ipsum sed quis.
Supplying Bronze with Graphite Plugs Bearings To Many Industries
Bronze Material With Or Without Oil-Impregnated Graphite Plugs. When Ordered With Graphite Plugs, The Plugs Cover 25-30% Of The Wear Surface And Are Arranged To Generate Optimal Coverage At Any Engagement Direction Of The Wear Plate. Standard & Self-Lubricating Wear Plates – Metric, Save Your Cost For Your Graphite Plugged Bronze Bushing Solution. Graphite Bushings And Bearings – Graphite Plugged Bronze Bush Is Suited For Submerged And High-Temperature Applications. Increased Productivity. Reduced Costs & Downtime. Services: Custom Design, Engineering Support, Short Lead Times. Always Tested. Always Proven. Global Website Www.Bronzelube.Com, No Oil Or Grease Bearing Solutions For Your Applications. Need Assistance? Call Or Email Us Engineering Support Available. Customized Parts, Custom Graphite Plugged Bronze Bushing Service.
Graphite plugged bronze bushing feature, CNC Bronze Prototype – Custom Bronze Bearing
The V block is self-lubricating in design and is available in
either bronze with oil-impregnated graphite plugs or steel with oil-impregnated graphite plugs. U and V Graphite Blocks are manufactured to metric dimensions and fully meet the standard. TU Blocks are manufactured from bronze material with oil-impregnated graphite plugs. Rapid Prototyping Services – Industrial Custom Products. From design to manufacturing with our rapid prototyping services. Oilless Plate Prototypes Manufacturers and Suppliers in the China.
Graphite plugged bronze bushing feature
- Self Lubricated when standard lubrication is impractical
- Performs well under various loads, types and speed operations
- Resists corrosive and hostile environments
- Excellent performance in medium to high temperatures up to 600° F
- Compatible with most viscous lubricants & Oil and Grease applications
We manufacturing solid lubricated bushing tailored to your needs.
High-Temperature Solid Lubricating Materials, Graphite Plugged Bushings / Bearings Supplier!
We offer a variety of customized approaches to serve our customers and bring value and expertise in emerging markets. Solid Lubrication at High-Temperatures, bronze graphite bushings, oil-filled bronze, graphite-filled bronze bushing, graphite-filled bronze bushing do you know what is? Copper bushing various copper casting suppliers!
With a dedicated technical team to discuss different self-lubricating graphite copper bearing material solutions, novel and developing designs and alloy manufacturability, and experience in thousands of applications, we will guide you through the use of less cost effective materials and geometries to meet your self-lubricating bearing component manufacturing needs.
Our customer support team will be the backbone of your time to meet your needs, providing cost saving strategies and being a resource in your procurement process. If your size and part is not found, please contact our business sales team to discuss your opportunity with us. We are always eager to support new opportunities and have the best industry resources at your disposal to help you become a leader in your market. We look forward to the conversation!
What is oilless bearing graphite-filled bronze bushing?
Bronze graphite bushing, Graphite-filled bronze bushing is inlaid with solid lubricant, friction and wear performance than the general better, because it is easier to form a lubricating film, simply put, we often use graphite copper bushing. Custom Bronze Bushing, Customized graphite bronze bushing, meet your requirement. Small minimum order value & quantity, fast delivery. Various Bushing Type!
The advantages of Oilless Bearing copper bushing.
Oil-filled bronze, graphite-filled bronze, An excellent alternative to oil-filled bronze, graphite-filled bronze provides dry lubrication in temperatures as high as 700° F.
- Good bearing, good wear resistance;
- Suitable for high load and low-speed rotary motion, swing motion, and frequent opening and closing under load is not easy to form hydrodynamic lubrication;
- In the case of boundary lubrication, can be maintained for a long time without refueling, and in the layer of refueling will make the bearing life longer;
- In the process of processing and molding, the surface plastic layer can retain a certain amount of margin. After assembled and pressed into the seat hole, it can be processed by itself to achieve better assembly size.
Oilless Bearing copper sleeve working principle.
During use, solid lubricant rubs on the shaft by frictional heat, forming excellent conditions for simultaneous lubricant and powder, which not only protects the shaft from wear but also makes the solid lubrication characteristics eternal. It is twice as hard as ordinary copper bushings and has double the wear resistance. At present, it has been widely used in metallurgical continuous casting machines, train stands, rolling equipment, cranes, dies guide bushings, mining machinery, ships, turbines, and other high temperature, high load, low speed, and heavy load applications.

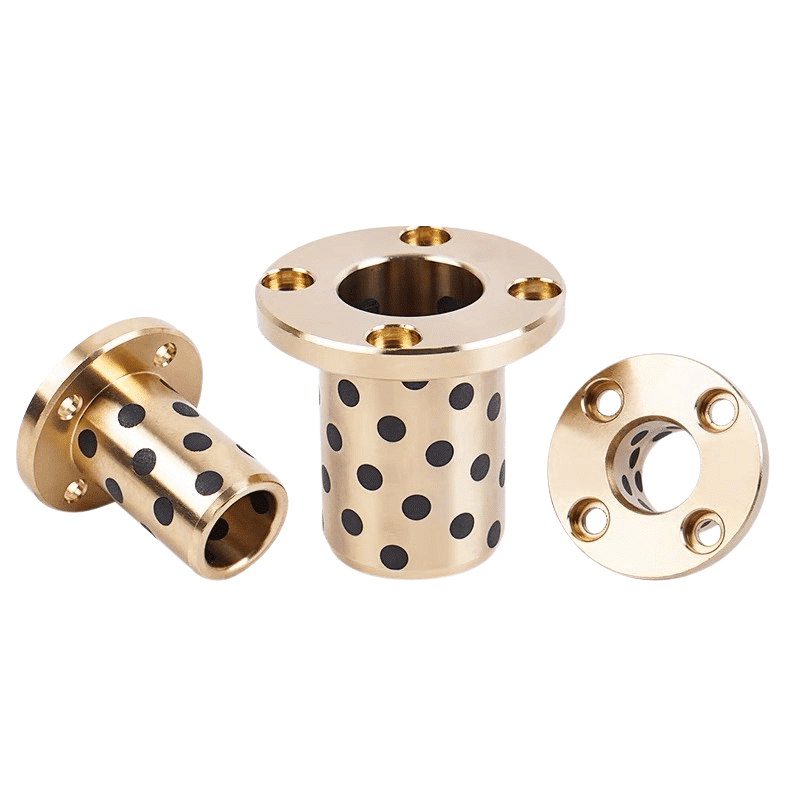

Oilless Bearing bronze (with graphite plugs) flange bearing
A bronze flange bearing with graphite plugs is a type of self-lubricating bearing that is commonly used in applications where traditional oil or grease lubrication is not practical or desirable. The bearing is made from a bronze alloy that contains graphite plugs, which act as a solid lubricant.
The bronze material provides a strong and durable base for the bearing, while the graphite plugs act as a dry lubricant, reducing friction and wear. This combination of materials results in a low-maintenance, long-lasting bearing that is ideal for use in applications where frequent lubrication is not practical or where contamination from lubricants is a concern.
Some of the features of a bronze flange bearing with graphite plugs include:
Self-lubricating: The graphite plugs act as a solid lubricant, eliminating the need for oil or grease lubrication.
Low friction: The graphite plugs reduce friction and wear, resulting in a longer lifespan for the bearing.
Corrosion resistance: The bronze material is resistant to corrosion, making it suitable for use in harsh environments.
High load-bearing capacity: The bronze material provides a strong and sturdy base for the bearing, allowing it to withstand high loads.
Low maintenance: The self-lubricating nature of the bearing means that it requires minimal maintenance, making it a cost-effective choice for many applications.
Overall, a bronze flange bearing with graphite plugs is a reliable and durable bearing option that offers self-lubrication, low friction, corrosion resistance, high load-bearing capacity, and low maintenance requirements. This makes it an ideal choice for a wide range of applications, including automotive, industrial, and marine machinery.

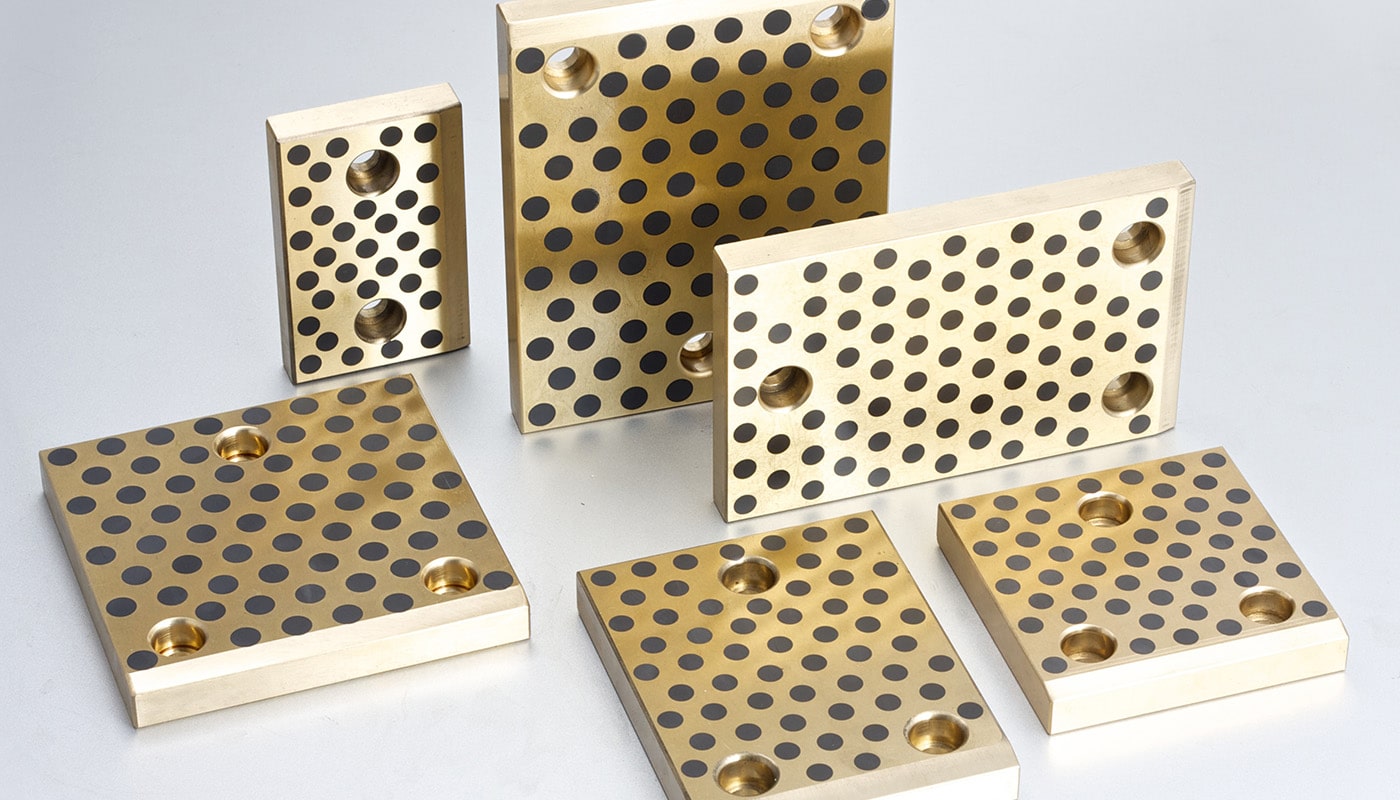

Standard & Self-Lubricating Wear Plates, Quick Oilless Plate parts Prototyping – Metal Prototype Parts
Beautifully crafted leather products.
Self lubricating wear plates are manufactured from bronze material with oil impregnated graphite plugs. The graphite plugs are arranged to generate optimal coverage at any engagement direction of the wear plate. Quick wear plate parts Prototyping – Metal Prototype Parts. Custom Bearing Manufacturer – Custom Bearings for Your Specs. Speed up product development with the widest range of self-lubricating bearing materials. Traditional manufacturing services for rapid prototyping. Your manufacturer of custom-made thrust bearing and wear plate solutions in a wide range of materials. We produce lifetime lubricated or oilless thrust bearings & more…From Concept to Manufacturing – Get your Product Made in China.
A century of engineering excellence
Beautifully crafted leather products.
has worked with partners in the automotive, steel and titanium industries, as well as the offshore, oil, gas and chemical industries, across a range of applications, including low-friction and wear-resistant copper bushings, and corrosion-resistant self-lubricating bearings. This unparalleled experience, combined with our technical expertise and superior engineering alloys, means we are able to be a global partner in creating metal solutions for our customers. The most common bronze bearings alloy is CuSn7Zn4Pb7 (CC493K), also known as Rg7 or gunmetal. It has good sliding and dry running properties and has a good machinability. Excellent quality and a competitive price / material ratio. Advanced manufacturer specializing in precision machining. Call us today. Provides contract manufacturing services. Custom Oilless Flange Bearing Prototypes for Manufacturing.
Bronze Bushing Material Solution, Standard Graphite Bronze Bushing Material Selection Guide
|
Component |
PN-91/ |
EN 1982 |
DIN 17656 |
ASTM B30 |
BS 1400: 1985 |
|
CuSn- |
|||||
|
CuSn10 |
B10 |
CuSn10-B |
GB-CuSn10 |
C90700 |
– |
|
CuSn10P |
B101 |
CuSn11P-B |
|
|
PB1 |
|
CuSn10Zn2 |
B102 |
|
GB-Rg10 |
C90500 |
G1 |
|
CuSn10Pb10 |
B1010 |
CuSn10Pb10-B |
GB-CuPb10Sn |
C93700 |
LB2 |
|
CuSn4Zn7Pb6 |
B476 |
|
|
C83800 |
LG1 |
|
CuSn5Zn5Pb5 |
B555 |
CuSn5Zn5Pb5-B |
GB-Rg5 |
C83600 |
LG2 |
|
CuAl- |
|
||||
|
CuAl10Fe |
BA93 |
|
GB-CuAl10Fe |
C95200 |
AB1 |
|
CuAl10Fe3Mn2 |
BA1032 |
|
|
|
|
|
CuAl10Fe4Ni4 |
BA1044 |
CuAl10Fe5Ni5-B, |
GB-CuAl10Ni |
C95500 |
AB2 |
|
CuSi- |
|
||||
|
CuSi3Zn3Mn1 |
BK |
|
|
|
|
|
CuNi- |
|
||||
|
CuNi16A19Zn9 |
|
|
|
|
|
|
CuZn- |
|
||||
|
CuZn39Pb2 |
MO59 |
|
|
|
|
|
GB-CuZn37Pb |
|
CuZn39Pb1Al-B |
GB-CuZn37Pb |
|
DCB3 |
|
GB-CuZn38Al |
|
|
GB-CuZn38al. |
|
DCB1 |
|
CuZn40Mn3Fe1 |
MM55 |
|
|
|
|
|
CuZn38Al2Mn1Fe |
MA58 |
|
GB-CuZn34Al2 |
C86500 |
|
|
CuZn35Al1 |
|
CuZn35Mn2Al1Fe1-B, CB765S |
GB-CuZn35Al1 |
C86400 |
HTB1 |
|
CuZn25Al5 |
|
CuZn25Al5Mn4Fe3-B, CB762S |
GB-CuZn25Al5 |
C86300 |
HTB3 |
|
CuZn16Si3,5 |
MK80 |
CuZn16Si4-B |
GB-CuZn15Si4 |
C87500 |
|
|
FAMILY |
ALLOY GRADES |
|
Red Brass |
C83300, C83600, C83800 |
|
Semi-Red Brass |
C84400, C84800 |
|
Yellow Brass |
C85200, C85400, C85700 |
|
Manganese Bronze |
C86200, C86300, C86400, C86500 |
|
Copper-Silicon |
C87200, C87500 |
|
Leaded Tin Bronze |
C92200, C92300, C92600, C92700, C93700, C93800, C94100, C94500 |
|
Tin Bronze |
C90300, C90500, C90700, C90800, C91600, C91700, C93200, C93400, C93500, C94300 |
|
Aluminum Bronze |
C95200, C95300, C95400, C95500, C95800 |
|
Copper Nickel |
C96200, C96400 |
|
Nickel Silver |
C97300, C97600, C97800 |
|
Pure, Chrome Coppers |
C81100, C81500 |
Supply of Bronze Bearings and Bushings:
We manufacture and supply custom-designed bronze bearings and bronze bushings to meet your requirements. We manufacture to a wide range of standards and are able to select from a large number of alloys to effectively meet your needs. For any kind of inquiry, contact us today.
Oilless Bushes Price and delivery time on request. Choose Your Graphite Bronze Bushing Material / Alloy
-Request a Quote or Place an Order
Graphite Plugged Bronze Bushing Different Material.
C86300 Manganese Bronze Bushing Chemistry
| Cu(1) | Al | Fe | Pb | Mn | Ni(2) | Sn | Zn | |
| Min./Max. | 60.0-66.0 | 5.0-7.5 | 2.0-4.0 | .20 | 2.5-5.0 | 1.0 | .20 | 22.0-28.0 |
| Nominal | 63.0 | 6.2 | 3.0 | – | 3.7 | – | – | 25.0 |
C93200 Bronze Bushing Chemistry
| Cu(1) | Al | Sb | Fe | Pb | Ni(2) | P(3) | Si | S | Sn | Zn | |
| Min./Max. | 81.0-85.0 | .005 | .35 | .20 | 6.0-8.0 | 1.0 | .15 | .005 | .08 | 6.3-7.5 | 1.0-4.0 |
| Nominal | 83.0 | – | – | – | 7.0 | – | – | – | – | 6.9 | 2.5 |
C95400 Aluminum Bronze Bushing Chemistry
| Cu | Al | Fe | Mn | Ni(1) | |
| Min./Max. | 83.0 min | 10.0-11.5 | 3.0-5.0 | .50 | 1.5 |
| Nominal | 83.2 | 10.8 | 4.0 | – | – |
Plain & Self-Lubricating Bearings（Bushing Material： Graphite Impregnated Brass）

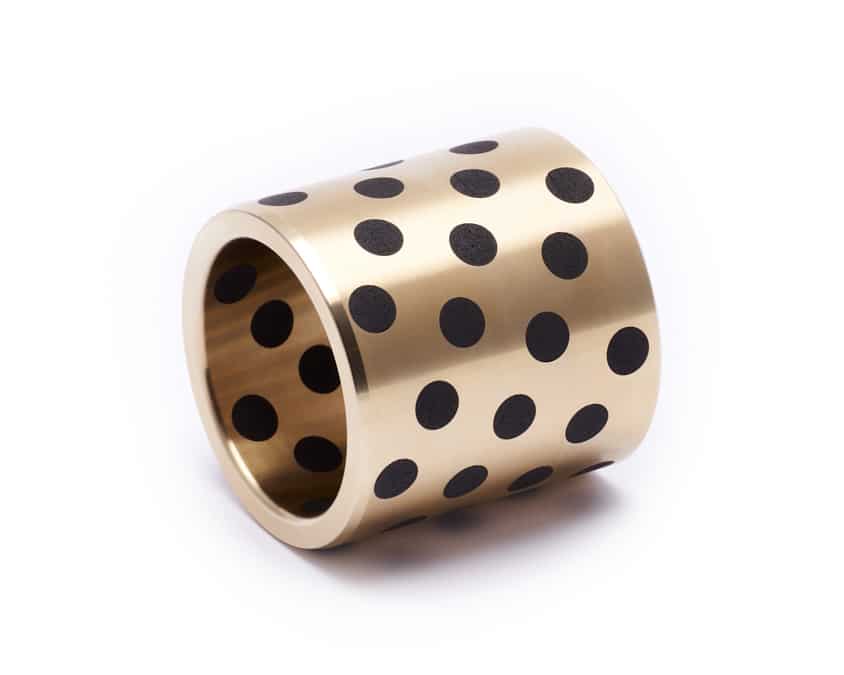

- Straight graphite plugged bushing
- Flanged oilless bushing

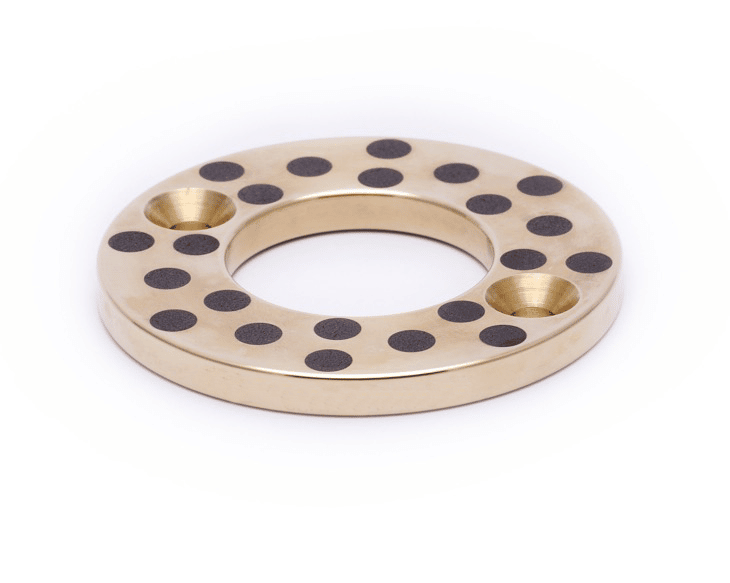

- Thrust washer

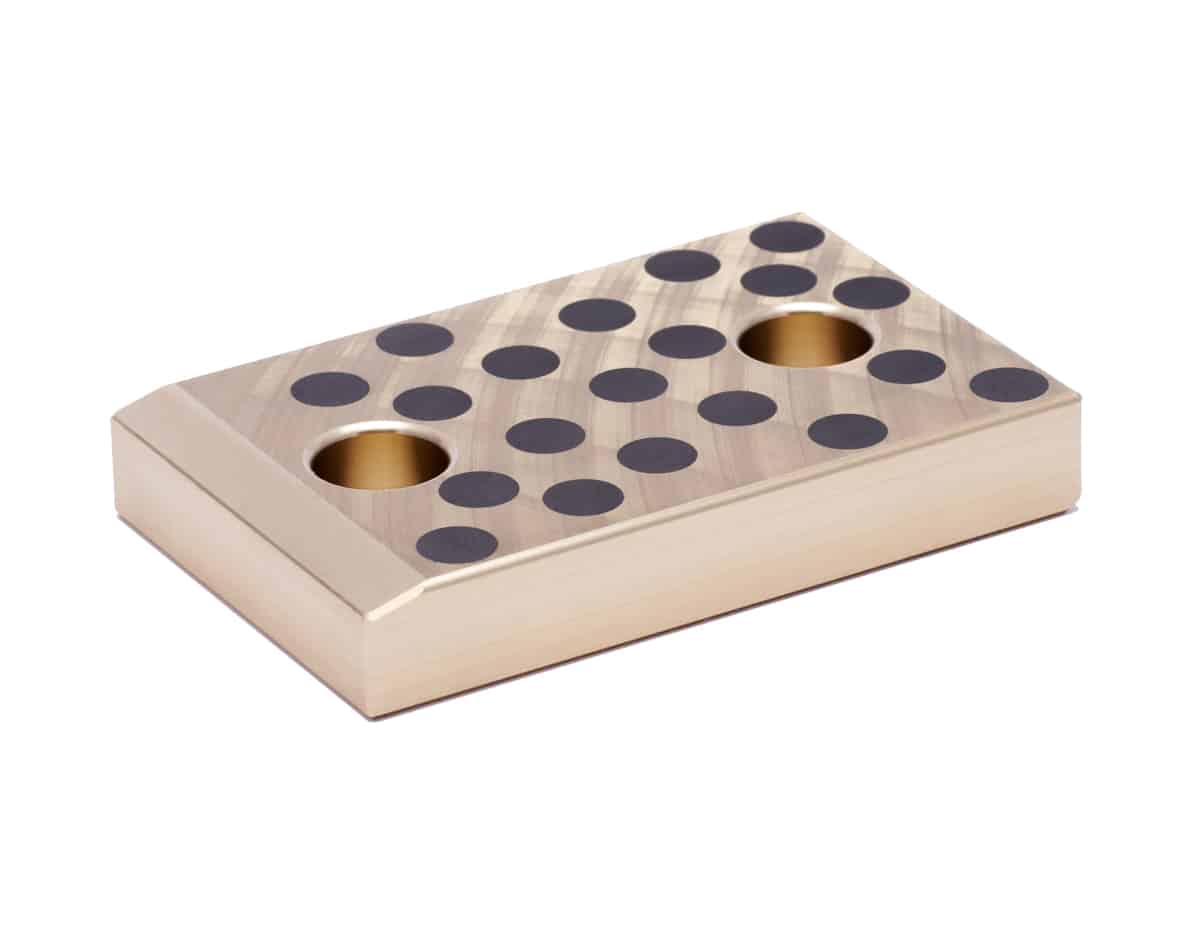

- Slide plate
- Customized bushing
Oil Free Bushing – Brass Alloy, Straight, Standard Type – Metric Size
| Type | Straight | Bushing Material | Graphite Impregnated Brass | Maximum Allowable PV Value Range(N/mm2•m/s) | 1.1～2.0 |
| Maximum Allowable PV Value(N/mm2•m/s) | 1.65 | Maximum Allowable Load(N/mm2) | 29 | Maximum Allowable Velocity(m/s) | 0.5 |
| Mounting Hole Fits | H7 |
CNC Machined Bronze & Metal Bearing
Graphite Bushings and Bearings. Increased productivity. Reduced costs & downtime. Services: Custom Design, Engineering Support, Short Lead Times.
Cast Bronze Sleeve Bearings
The graphite plugged bronze bushings are available from stock or on a special order basis. Contact our customer service department for prices and delivery on your material needs today. E-mail us a quote and receive the fastest turnaround in the industry.
Oilless Metal Sliding Materials
Graphite Plugged Bronze Bushing Solid Lubrication
A film of solid lubricant is transferred unto the shaft as it starts to run. The self-lubricating features allow the graphite plugged bushings to be used where oiling is complex and expensive to implement and grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Graphite Lubricant Bronze Bushing is an Oilless self-lubricating bearing, we are slide bearing manufacturers supplier, professional design oilless bearings, graphite bearings, bronze bushes, etc.
Oil-Free Bushings, Oilless Washer for industrial applications. bronzelube.com offers free CAD downloads, short lead times, competitive pricing, and a small minimum order quantity.
CNC Machined Bronze & Metal Bearing: Graphite Bushings and Bearings. Increased productivity. Reduced costs & downtime. Services: Custom Design, Engineering Support, Short Lead Times.
Cast Bronze Sleeve Bearings, Wide Selection of Standard and Custom Products
The graphite plugged bronze bushings are available from stock or on a particular order basis. Contact our customer service department for prices and delivery on your material needs today. E-mail us a quote and receive the fastest turnaround in the industry.
Buy Oilless Bushes online at bronzelube.com
Designed to be self-lubricating, wear-resistant, and maintenance-free, buy oilless bushes directly from china at an Excellent price today!
Providing Custom Solutions, Catalog Available, ISO 9001:2008 Certified Company
STRAIGHT & FLANGE TYPE
Oilless Bush. Copper Alloy. Straight type. Material Base Copper alloy. Solid lubricant. Lubricant Type. Lubricating Bushes
CuSn7Zn4Pb7-C (CC493K) | CuSn7ZnPb
| EN | DIN | ||||
| Alloy | CuSn7Zn4Pb7-C | CuSn7ZnPb | |||
| RG7 | |||||
| Standard | EN 1982 | DIN 1705 | |||
| Alloy number | CC493K | 2.1090 | |||
| Chemical composition | Mechanical properties | ||||
| Cu | 81,0 – 85,0 | 81,0 – 85,0 | EN | DIN | |
| Sn | 5,4 – 8,0 | 5,6 – 8,0 | Rm | ≥ 260 | ≥ 270 |
| Zn | 2,0 – 5,0 | 3,0 – 5,0 | Rp 0,2 | ≥ 120 | ≥ 120 |
| Pb | 5,0 – 8,0 | 5,0 – 7,0 | A5 | ≥ 12 | ≥ 16 |
| Ni | 2,0 max. | 2,0 max. | HB | ≥ 70 | ≥ 70 |
| P | 0,10 max. | 0,05 max. | |||
| kg/dm³ | 8,9 | ||||
| Condition | GC, GZ | GC | |||
| Characteristics | Most common bronze alloy, also called bearing bronze or gunmetal. Suitable for bearings with medium load, good dry running properties, high wear resistance and machinability. General applications: cylinder and bearing liners, gears and wearstrips. Loads up to 4000 N/cm² | ||||
CuSn12-C (CC483K) | CuSn12
| EN | DIN | ||||
| Alloy | CuSn12-C | CuSn12 | |||
| Gbz12 | |||||
| Standard | EN 1982 | DIN 1705 | |||
| Alloy number | CC483K | 2.1052 | |||
| Chemical composition | Mechanical properties | ||||
| Cu | 85,0 – 88,5 | 84,0 – 88,5 | EN | DIN | |
| Sn | 10,5 – 13,0 | 10,5 – 13,0 | Rm | ≥ 300 | ≥ 280 |
| Zn | 0,5 max. | 1,0 max. | Rp 0,2 | ≥ 150 | ≥ 140 |
| Pb | 0,7 max. | 1,0 max. | A5 | ≥ 6 | ≥ 8 |
| Ni | 2,0 max. | 2,0 max. | HB | ≥ 90 | ≥ 90 |
| P | 0,60 max. | 0,4 max. | |||
| kg/dm³ | ca. 8,9 | ||||
| Condition | GC, GZ | GC | |||
| Characteristics | Corrosion and seawater resistant, high wear resistance and resistant to high surface loads. Higher mechanical values than with CuSn7Zn4Pb7 due to higher tin content and lower lead and zinc content. As a result, the dry running properties and machinability is less. Applications: bearings with high peripheral speeds, heavily loaded worms and gears, coupling parts and threaded sleeves | ||||
CuSn5Zn5Pb5-C (CC491K) | CuSn5ZnPb
| EN | DIN | ||||
| Alloy | CuSn5Zn5Pb5-C | CuSn5ZnPb | |||
| RG5 | |||||
| Standard | EN 1982 | DIN 1705 | |||
| Alloy number | CC491K | 2.1096 | |||
| Chemical composition | Mechanical properties | ||||
| Cu | 83,0 – 87,0 | 84,0 – 86,0 | EN | DIN | |
| Sn | 4,0 – 6,0 | 4,0 – 6,0 | Rm | ≥ 250 | ≥ 220 |
| Zn | 4,0 – 6,0 | 4,0 – 6,0 | Rp 0,2 | ≥ 110 | ≥ 90 |
| Pb | 4,0 – 6,0 | 4,0 – 6,0 | A5 | ≥ 13 | ≥ 16 |
| Ni | 2,0 max. | 2,5 max. | HB | ≥ 65 | ≥ 60 |
| P | 0,10 max. | ||||
| kg/dm³ | 8,7 | ||||
| Condition | GC, GZ | GS | |||
| Characteristics | Usually replaced by CuSn7Zn4Pb7 (RG7) nowadays | ||||
CuSn10Zn
| EN | DIN | ||||
| Alloy | niet genormeerd | CuSn10Zn | |||
| RG10 | |||||
| Standard | DIN 1705 | ||||
| Alloy number | 2.1086 | ||||
| Chemical composition | Mechanical properties | ||||
| Cu | 86,0 – 89,0 | DIN | |||
| Sn | 9,0 – 11,0 | Rm | ≥ 260 | ||
| Zn | 1,0 – 3,0 | Rp 0,2 | ≥ 130 | ||
| Pb | 1,5 max. | A5 | ≥ 15 | ||
| Ni | 2,0 max. | HB | ≥ 77 | ||
| P | 0,05 max. | ||||
| kg/dm³ | 8,7 | ||||
| Condition | GC, GZ and GS | ||||
CuSn10-C (CC480K) | CuSn10
| EN | DIN | ||||
| Alloy | CuSn10-C | CuSn10 | |||
| Standard | EN 1982 | DIN 1705 | |||
| Alloy number | CC480K | 2.1050 | |||
| Chemical composition | Mechanical properties | ||||
| Cu | 88,0 – 90,0 | 88,0 – 90,0 | EN | DIN | |
| Sn | 9,0 – 11,0 | 9,0 – 11,0 | Rm | ≥ 280 | ≥ 270 |
| Zn | 0,5 max. | 0,5 max. | Rp 0,2 | ≥ 170 | ≥ 130 |
| Pb | 1,0 max. | 1,0 max. | A5 | ≥ 10 | ≥ 18 |
| Ni | 2,0 max. | 2,0 max. | HB | ≥ 80 | ≥ 70 |
| P | 0,2 max. | 0,2 max. | |||
| kg/dm³ | ca. 8,7 | ||||
| Condition | GS, GC, GZ | GS | |||
| Characteristics | Construction material with higher elongation, corrosion and sea water resistance | ||||
CuSn12Ni2-C (CC484K) | CuSn12Ni
| EN | DIN | ||||
| Alloy | CuSn12Ni2-C | CuSn12Ni | |||
| Gbz12Ni | |||||
| Standard | EN 1982 | DIN 1705 | |||
| Alloy number | CC484K | 2.1060 | |||
| Chemical composition | Mechanical properties | ||||
| Cu | 84,5 – 87,5 | 84,0 – 87,0 | EN | DIN | |
| Sn | 11,0 – 13,0 | 11,0 – 13,0 | Rm | ≥ 300 | ≥ 300 |
| Zn | 0,4 max. | 0,4 max. | Rp 0,2 | ≥ 180 | ≥ 170 |
| Pb | 0,3 max. | 0,3 max. | A5 | ≥ 10 | ≥ 10 |
| Ni | 1,5 – 2,5 | 1,5 – 2,5 | HB | ≥ 95 | ≥ 90 |
| P | 0,05 – 0,40 | 0,2 max. | |||
| kg/dm³ | 8,6 | ||||
| Condition | GC, GZ | GC | |||
| Characteristics | Good wear resistance, corrosion and seawater resistant. Applications are high-stress spindle nuts, high-speed gear and worm gears | ||||
CuSn11Pb2-C (CC482K) | CuSn12Pb
| EN | DIN | ||||
| Alloy | CuSn11Pb2-C | CuSn12Pb | |||
| Gbz12Pb | |||||
| Standard | EN 1982 | DIN 1705 | |||
| Alloy number | CC482K | 2.1061 | |||
| Chemical composition | Mechanical properties | ||||
| Cu | 83,5 – 87,0 | 84,0 – 87,0 | EN | DIN | |
| Sn | 10,5 – 12,5 | 11,0 – 13,0 | Rm | ≥ 280 | ≥ 280 |
| Zn | 2,0 max. | 1,0 max. | Rp 0,2 | ≥ 150 | ≥ 140 |
| Pb | 0,7 – 2,5 | 1,0 – 2,0 | A5 | ≥ 5 | ≥ 7 |
| Ni | 2,0 max. | 2,0 max. | HB | ≥ 90 | ≥ 85 |
| P | 0,4 max. | 0,2 max. | |||
| kg/dm³ | 8,7 | ||||
| Condition | GC, GZ | GC | |||
| Characteristics | CuSn11Pb has better dry running properties compared to CuSn12. Good abrasion resistance, corrosion and seawater resistance. Applications are bearings with a high impact load and guideway profiles | ||||
Quality Oilless Bushing By Quality Team.
Short Run / Prototype Bronze Bushing Solutions
Graphite Plugged Bronze Bush Components for the Defense Vehicle Industry. Inquiries Or To Request A Graphite Plugged Bronze Bushing Catalog Online. The oilless bronze bearing are produced to ASTM standards and have stock on the ID and OD to permit machining to the nominal dimension desired. Custom Oilless Graphite Parts Built To Your Specifications. Machined Products – Bronze Sleeve Bearings.
The graphite plugged bronze bushings are available in a broad range of inch and metric sizes.
Graphite Wear Plate / Oilless Slide Plate, We can save you time and money in bronze bushing research, design and production costs. Our wear plates in a broad range of standard inch and metric sizes and are available in steel or aluminum bronze, either with or without self-lubricating graphite. Self-lubricating bearings are superior in wear resistance, galling resistance and frictional properties, and provide improved performance and maintenance free. Bronze Components for the Defense Vehicle Industry! We can supply test samples from our stock when available, or complete specials for a nominal lot charge. Our Design and Manufacturing team will take an idea and …
- Bronze no Graphite bushing and wear plate
- Bronze w/Graphite bearings
The graphite plugged bronze bushings are available in a broad range of inch and metric sizes.
We are available to assist you with the design of your bronze bushings. We supply a large number of customers throughout the worldwide. We mainly sell direct for the simple reason that it saves customers time and money. Graphite Plugged Graphite Plugged Bronze Graphite Oilless Bearing Bushing … General assembly machinery, industrial vehicles, automation, farm machinery. Custom Machined Services: Meeting All Your Needs.
* Applications for graphite filled bushings are virtually limitless. From tough to maintenance applications, to high temperature environments to heavy load applications, graphite filled bronze bushings exhibit excellent service and wear resistance.
Special Dimension Oil less Bush, Email Our Team
Oil-Free Bushing – Metal, Straight and Shouldered Oilless Bearings, Customized Oilless bushes products are available made to order from china. We provide samples, manufacture high-precision graphite bronze bearings at a competitive price. Brass, Bronze & Copper Bushings Suppliers. Flange Graphite impregnated bronze bearings are used in a wide variety of applications, from medical equipment to vehicles. While they are designed to be durable. Custom Oilless Bearing Manufacturer. Choose CNC Milling when your application requires: Tolerance levels comply with the requirements of sophisticated applications; Prototype/production; CAD/drawing design …Design, Prototype, and Production！Wide selection of corrosion-resistant bronze bearing alloys · Graphite plugged solid lubricant · Standard & custom bushings available in both inch size and metric size. Bronze CNC Machining – Instant Quote!
Oil Less Bushing, Bronze Parts Supplier, Higher load bronze precision bushes.
Oilless Bushing, Bronze Parts Manufacturer – Self-lubricating bushes bearing. Oilless Bush. Copper Alloy. Straight type. Material Base Copper alloy ,Solid lubricant. Large Inventory of Bronze Material, Bronze Bushing, and Bronze Flange Bearings. Graphite Plugged Bronze Bush Size for the maintenance or repair of motor vehicles and machinery, including in oils and lubricants. Vehicles & Accessories. Vehicles oilless bearing , bronze bearings , graphite plugged bronze bearings , graphite plugged sleeve bearings, Unit Size,
Bearing Distributor - Oilless Self-Lubricating Tech, Explore More Graphite Plugged Bronze Bushing Products From China
With the booming development of aerospace, military and communication industries, the application of self-lubricating bearings has become more popular! Especially the processing of more precise self-lubricating bearings are highly respected, as a supplier of self-lubricating bearings. But still from time to time hear such complaints: obviously use the imported bearings, but how to debug the processing effect is not good? Clearly has used the standard specifications of self-lubricating bearings, indeed and our bearing effect is almost the same. In order to avoid these situations, we provide you with customized self-lubricating bearing solutions. We have experience in providing solutions for standard bearing products worldwide. We can guarantee the longevity and safety and reliability of the cables so that we can refine our technology and reduce maintenance costs. We have years of experience in self-lubricating bearings, mature manufacturing process and larger stock of self-lubricating bearings, we can provide the most professional service and reliable quality assurance for each customer. Welcome to contact us for high quality, wear-resistant and better self-lubricating bearings.
Self-lubricating Bearing Lubricated Bushing Supplier, Manufacturing for Low Volume Bearings
Use Self-lubricating Bearings for High Performance and Low Maintenance. Work in High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Run dry & keeps running. Strives to Offer Cost-saving, Stable Performance Bearings and Bushings. Contact Us. Design and Manufacture a Self-lubricating Bushes Prototype for Manufacturing …
