Greased Flanged Bushes & Washers Available On Demand.

Bronze/Graphite Sizes-Bronze Bushing Solutions

Offers Top Quality Metric Size & Inch Size Bronze Bushings Graphite Filled Diamond Indents at Competitive Prices from china. Grooves are often machined in plain bushes to improve the lubricant flow and therefore the sliding properties of the bush. Grooves also aim at carrying for the wear wastes from the sliding surface.

wrapped bronze bushing with grease pocket
bronze-graphite-bushings

Learn More Greased WRAPPED BUSHINGS

Projects

Make your space useful and different

Experience of over 10 years of successful projects on creating unique and modern interior designs all over the world.

Learn More

bronze-graphite-bushings
bronze-graphite-bushings
Bronze – Wrought Alloys

Sliding bushes are composed with

only one layer:.

  • Material Specification
  • WROUGHT BRONZE S.A.E. 795
  • 90% copper, 10% ZINC
  • GRAPHITE FILLED DIAMOND INDENT SURFACE FINISH
Lubricating Bushings

A bronze layer CuSn8P for sliding and loading support function. It also provides a good thermal conductivity and dimensional stability. To maintain a good lubrication and a long life time, bronze bushings design can have holes or diamond pockets.

Bronze Bearing Solutions

Bronze – Wrought Alloys Bushings

CONTACT US TODAY!

Flange Bronze Bushing Possible dry use.

BRONZE BUSHINGS PRODUCTION

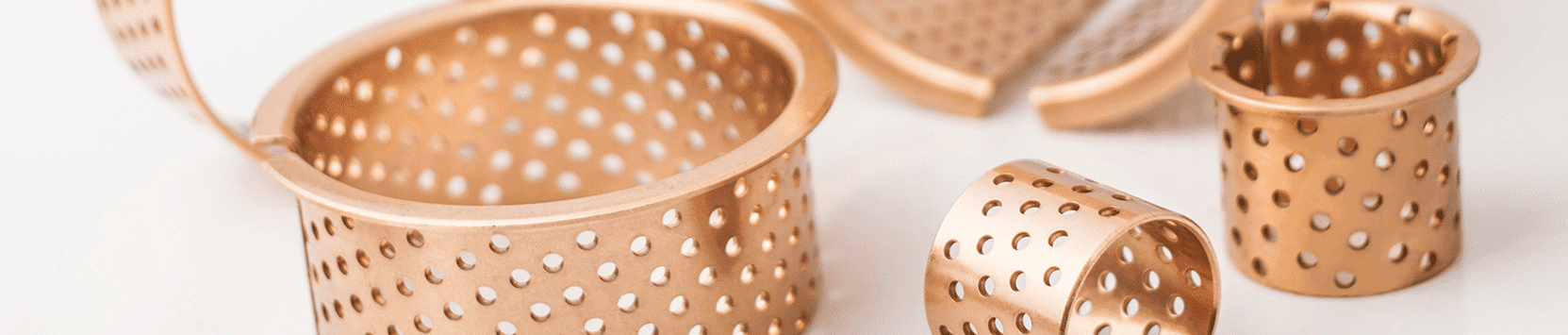

3 different type of wrapped bronze bearings:

  • with holes
  • with spherical pockets
  • with diamond shaped pockets

Bronze with diamond pockets & graphite pellets. We offers bushes that meet customers’ requirements. We designs are perfectly appropriate to heavy loads especially for transportation vehicles, presses, mills, as well as all industrial systems.

High Temperature Difficult lubrication, Bushes Can be Lubricated either with Grease or With oil.

In order to increase lubrication supply, Wrapped bushes have holes. These holes allow a quick lubricant film creation and a low friction coefficient at the beginning of use. bronze bushes are well appropriated to oscillation motions.Holes can hold a larger quantity of grease pockets. Thus they are well appropriate to severe environments where time between two lubrications is long bearing life.We offers two different kinds of pockets with sizes from 1.5 to 3mm: spherical pockets bronze bushing for oil lubrication and diamond shaped pockets bronze bearings for grease lubrication. When used with continuous oil lubrication, especially for hydrodynamic and mixed film lubrication, it is better not to have pockets, like our wrapped bronze bushings type. In such case, We offers bushes with feeding grooves.

We design bronze bushing for your application.

Wrought commercial bronze strip (S.A.E. 795) with 10% Zn can be readily press formed into cylindrical bushings and thrust washers.

  • CuSn8 with composition
  • Sn 8 %
  • P < 0.05 %
  • Cu Rest

* CUSN6 / CUSN8. Phosphor tin bronze. Phosphor bronze is characterized as a very pure alloy with extremely low content of impurities.

Explore More

More CUSN6 / CUSN8. Phosphor tin bronze bushings products from china

Manufacturing Bronze Bushing for the Mining Industry.manufacturer and supplier of bronze based products. Our metal bushing stock gives us quick access to a wide variety of alloys and sizes. Bronze Wrapped Bushing Pre-lubricated Dry Bearings 090 & 092 ,09F 92F bushes.Choose Your Style – Metric Cylindrical Bushes Oilless Online Order.Bronze Wrapped Bushing Wall thickness (1.00mm,1.50mm,2.00mm,2.50mm).5030 5035 | 5040 | 5050 | 5530 | 5535 | 5540 | FLANGE 40*44* 55*50…Get a Free Quote Today. Surface of alloy is rolled diamond type of the oil indents or half ball oil indentsWe offer a wide range of straight and flange bronze bearings.The largest outside diameter of the products can be 305mm, the wall thickness up to 5mm, the length 200mm.

Material

VIIPLUS Wrapped Bronze is made completely of bronze, CuSn8. The bushings are produced from strips which are then wrapped and calibrated. The working surface is machined and provided with holes all over its sliding surface. These indentations serve as lubricant reservoirs, where lubricant is initially filled and progressively released during operation.

Bronze Bushings Diamond or global oil grooves is applied to lifting machinery, construction machinery and mining machinery, etc.

Plain bearings always offer a solution – either from the

CUSN8 BRONZE BUSHINGS CATALOG

CUSN8 BRONZE BUSHINGS CATALOG

range or as custom-size plain bearing special solution.

CHARACTERISTICS

Tin phosphor bronze as the self-lubrication bearing & bushings material, made the oil hole regularly arranged on the surface, metal bearing parts wrapped into the thin-walled bearing with high load bearing and good wear resistance.

FEATURE

  1. Save a lot of bronze material and save the working time of your project;
  2. Compared with the ball bearings, Light weight and cheap prices;
  3. With oil holes, oil holes and certain oils can be processed on the friction surface, and the time for extending the oiling is 5 times that of the copper sleeve;
  4. Extremely high load carrying capacity, especially for rough friction surfaces;

MATERIAL & COMPOSITION

  • Support material CuSn8P (DIN 17662)
  • alternative CuSn6P available

Wrapped bronze bearings are made entirely from phosphor bronze CuSn8. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. Wrapped bronze bearings are produced from strips that are subsequently wrapped and calibrated.

WRAPPED BRONZE BEARINGS-LUBRICATION

Wrapped bronze bearings must be lubricated with grease or oil on installation. A good quality lubricant is essential as it will reduce friction and wear by forming a film between the plain bearing and the shaft. For heavily contaminated applications, we recommend sealing off the bearing. This will protect both the bearing and the lubricant.

AVAILABILITY

Bearing forms available in standard dimensions

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs

SHAPES & FORMS

  • Cylindrical bushes
  • Flanged bushes
  • Thrust washers
  • Flanged washers
  • Sliding plates

RANGE OF APPLICATION

  • Construction Machinery
  • Agricultural Machine
  • Auto Industry
  • Renewable Energy
  • Fluid Power
  • General Industry
  • Metallurgical Industry

Sport Equipment

SPECIAL MANUFACTURING

Special dimensions are available on request, metric and inch size bushing & washers.

BRONZE BEARING PROPERTIES

Material:CuSn8P0.3 or CuSn6.5P0. 1
Hardness:HB90~120
Temperature limit:-80℃~200℃
Load capacity:75N/mm2
Speed limit:2.5m/s
090 bronze bushings
