Iron Graphite Bushing

Iron Graphite Bushing

1 in stock

Straight Type Guide Bushing Bearing, FC250 With Graphite, Save Up To 15% When You Buy More.

Iron Graphite Bearings Are Made From Iron. Iron graphite –  bronzelube.com, High tension Iron with graphite plugs,

Iron Graphite Bearings Structure

(FC250 with Graphite). Material. Bronze with Graphite. FC250 with Graphite. Order Online.

Graphite Bearings are made of cast iron-based metal with special lubricants embedded. The base metal withstands high load and the solid lubricant plugs provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed.

Offers Standard Size Plain & Flanged Cylindrical Bushing. Solid bronze graphite Self-Lubricating Bushing, Brass graphite bushing, bronze bearings · Graphite Embedded Brass Bearing.

Description

Cast Iron Graphite Bushing And Bearings – Increased Productivity. Guide bushing is made of materials embedded with cast iron / solid lubricant. Can be used without oil.

Oil Free Bushings (Lubrication) for industrial applications. We offer free CAD downloads, prompt lead times, and competitive pricing, …

China Factory Supply Self Lubricating Cast Iron Bushing Bearing,

Iron Graphite Bushing

Iron graphite bushings are self-lubricating bearings made from a combination of iron and embedded graphite. These bushings are designed to provide reliable performance, extended service life, and reduced maintenance costs in various applications, especially those operating under heavy loads or in harsh environments.

Key Features:

  • Maintenance-free operation
  • High load-bearing capacity
  • Low coefficient of friction
  • Excellent wear and corrosion resistance
  • Wide temperature range compatibility
  • Suitable for linear, oscillating, and rotating movements

Structure: Iron graphite bushings consist of two main components:

  1. Iron base material: Provides mechanical strength, dimensional stability, and excellent load-bearing capacity.
  2. Embedded graphite: Acts as a solid lubricant, ensuring low friction and minimal wear during operation.

Applications: Iron graphite bushings are suitable for various industries and applications, including:

  • Heavy machinery: construction equipment, mining machinery, and agricultural equipment
  • Material handling: conveyors, linear guides, and packaging machinery
  • Automotive: suspension systems, steering components, brake systems, and door hinges
  • Hydraulic and pneumatic components: pumps, valves, and cylinders

Installation and Maintenance: Iron graphite bushings are easy to install and do not require any additional lubrication, making them a cost-effective and maintenance-free solution. For optimal performance, ensure that the mating surface is smooth, clean, and free of any burrs or sharp edges.

Customization: We understand that each application may have unique requirements, and we offer custom solutions tailored to your specific needs. Our expert engineering team can help you select the appropriate materials, designs, and dimensions for your iron graphite bushing.

Contact us today to discuss your self-lubricating bearing needs, and let our experienced professionals assist you in finding the perfect solution for your application. We are committed to providing top-quality products, competitive pricing, and exceptional customer service throughout the entire process, from product selection to post-sales support.

Metallic Self-lubricating Bearings,Type Straight Type Metal Type Cast Iron Based Operating Environment Standard

Metallic Bushing Cast iron  Bushing/ solid lubricant bushing Basic Information

Type Straight Type Metal Type Cast Iron Based Bushing Operating Environment Standard
Maximum Allowable PV Value Range(N/mm2•m/s) 0.3~1.0 Maximum Allowable PV Value(N/mm2•m/s) 0.5 Maximum Allowable Surface Pressure P(N/mm2) 5
Maximum Allowable Velocity V(m/s) 0.15 Length Type Single Fitting axis js6
Housing Fitting H7 Lubrication Non-Lubricated / Regular Lubrication Operating Temperature Range(°C) -40::400

Custom graphite self-lubricating copper bushings Oil-free bearing ductile iron bushings

Iron Graphite Bushing with embedded solid lubricant Material FC250 with Graphite, High-quality Bushing from China, China’s Solid Bronze Bushings product …

FGB ductile iron self-lubricating guide bush
Ductile iron two-hole type self-lubricating sliding plate standard guide plate

Cast iron oil-free bushing/ solid lubricant bushing

Ductile iron inlaid solid lubricant bearing, the product is made of ductile iron FC250 as the substrate, the surface is inlaid with a special formula of solid lubricant at a certain angle and density, and is precisely processed. Combining the wear resistance of cast iron and the self-lubricating property of solid lubricant, it can be used without or less oil maintenance. Since ductile iron itself has certain self-lubricating property, with the action of solid lubricant, the self-lubricating performance is better, and the cost is relatively low, so it is used in many applications, such as rollers, molds, etc. It is suitable for light load applications. It is particularly good in wear resistance in light load applications, but not in medium load and heavy load applications. In some cases can be replaced with steel-based, copper-based bearings. However, like steel-based bearings, they are not suitable for use in water or acid and alkali applications.

Available forms: copper bush, guide bush, sliding block, sliding plate, shaft tile

Processing: Standard cast iron bushing / solid lubricant bushing

Straight Type Guide Bushing Bearing, FC250 with Graphite · Straight Type Guide Bushing

OILES Oil-Free Bushings(Metallic: Cast Iron)

FC250 cast iron, Oiles 500F SL1 Guide Bushings

FC250 is a Japanese grey cast iron brand, corresponding to China’s HT250.
HT is the labeling method of national standard gray iron, FC is the labeling method of JIS (Japanese standard) gray iron;
The minimum tensile strength of HT250(FC250) is 250N/mm2

FC250 cast iron price, FC250 cast iron hardness, FC250 cast iron density

FC250 cast iron bushing, FC250 plate iron performance, FC250 cast iron plate

FC250 high-strength gray cast iron parts

Iron cast bushing introduction:

A term used to describe alloys consisting chiefly of iron, carbon, and silicon. In these alloys, the amount of carbon in excess of that can remain in the austenitic solid solution at the eutectic temperature. Cast iron is a general term for an alloy consisting primarily of iron, carbon, and silicon. In these alloys, the amount of carbon in excess of that can remain in the austenitic solid solution at the eutectic temperature.

Specification for heat treatment and metallographic structure of cast iron:

Heat treatment specification :(determined by the supplier, the following is the heat treatment specification of a sample for reference) 920℃, annealing

Metallographic structure: ferrite pearlite

Solid Metal Bushings are made of cast iron-based metal with special lubricants embedded. The base metal withstands high load and the solid lubricant plugs provide self-lubrication.

The solid metal bushing shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed.
This series of bushings feature metallic structures with a range of various lubrication methods depending on the series. Lubrication options include oil grooves, sintered layers, solid graphite lubricants, lubricant indents, and lubricant through holes.

OILES Oil Free Bushings(Metallic:Cast Iron Bushing)

Iron Graphite Bushing

Oiles 500F SL1 Guide Bushings  Iron Graphite Bearing Bushing Bearing

Iron Graphite Bushing / Solid Lubricant by China – Select, configure order. We deliver punctually and offer fair prices.

We are a professional manufacturer of various kinds of bearings in China for Iron Graphite Bushing

Iron Graphite Bushing from China. We offer free shipping, free CAD downloads, short lead times, competitive pricing, and a small minimum …

Type: Metallic Solid Lubricant Plain Bearings
Material: Iron  HT250

Iron Graphite Bushing Technical Data

Max. Static Load 70 N/mm2
Max. Dynamic Load 10 N/mm2
Max. Speed Dry .15 m/s
Max. Speed Hydrodynamic .25 m/s
Max. PV 0.8 N/mm2*m/s
Tensile Strength 150 N/mm2
Coefficient of Friction 0.08 to 0.20
Temperature Range (°C) -40°C to +400°C
Hardness HB > 160
Cast Iron Graphite Bushing

Bearings for middle-load, middle-speed applications with superior run-in characteristics.

Base Graphite Lubricant Bush Oilless Bearing, Cast Iron Graphite Bush, Iron Base Graphite Lubricant Bush, Oilless Bearing …

The plugged graphite series are self-lubricating bearings for middle loads composed of Iron bases and embedded solid lubricant. Two types of base materials are available: for general use for high temperatures.

Solid Iron bushings are available in metric sizes as a straight or flanged bronze bushing. This solid bronze bushing material is suitable for a wide range of applications. The cast bronze bearing bushings are applicable for oscillating movements for applications where rotating speeds are low. … All surfaces of a solid bronze bushing are machined.

Cast Iron Graphite Bushing, slide plate made of materials embedded with cast iron / solid lubricant.

Can be used without oil.

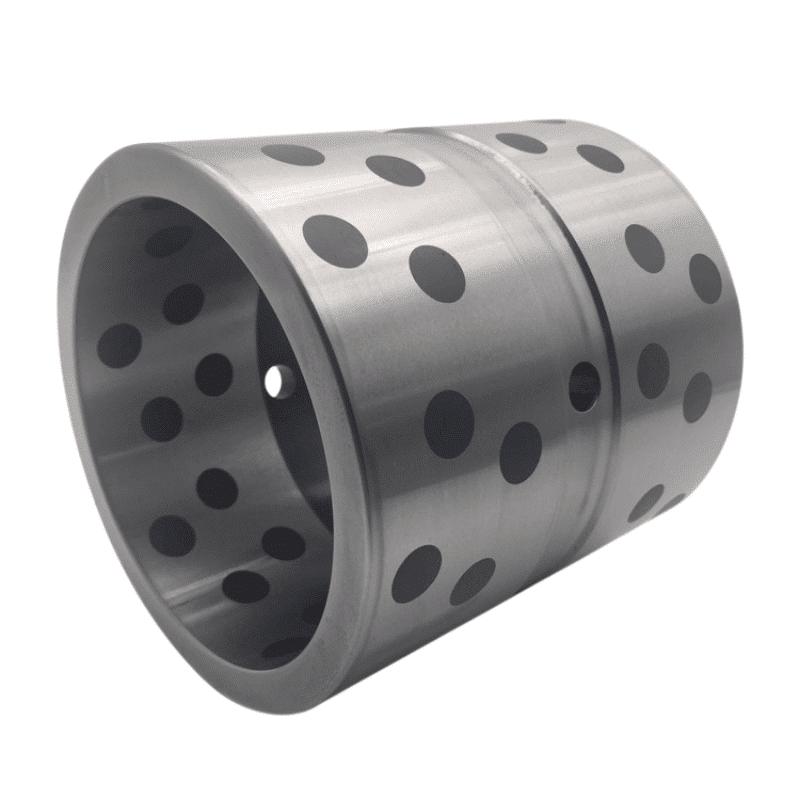

FC250 cast iron graphite bushing bearings

graphite oilless bearing bushings OEM parts

Additional information

Size

Custom Size, Extra large, Imperial size, Metric Size

Flange bushing

Composite Bearing, Metal Bushing, Plastic Bushing
