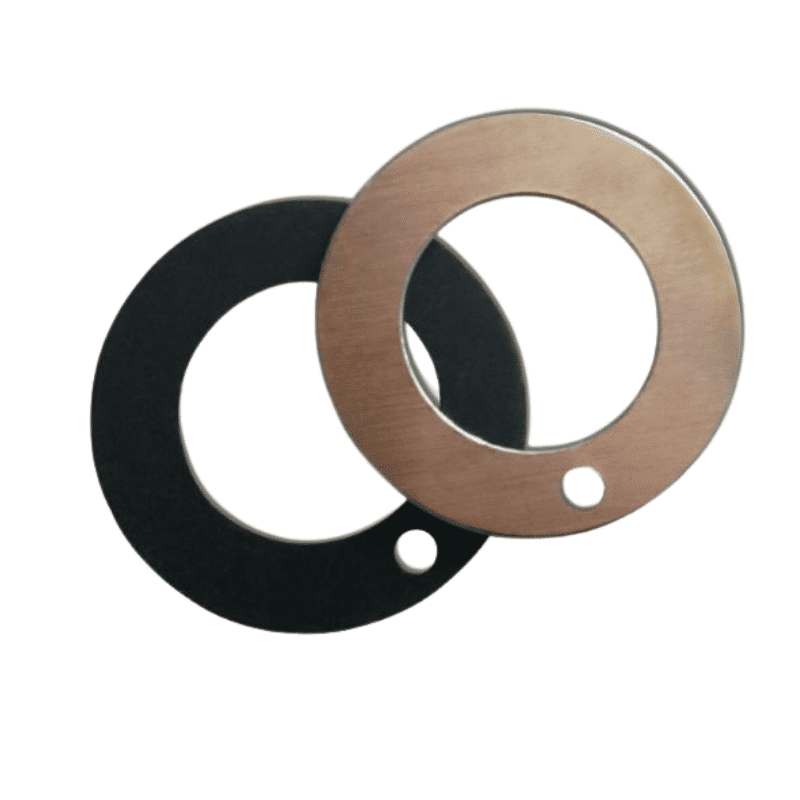

Teflon coating thrust washer
Teflon coating thrust washer
Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.
Manufacturing on Demand
Teflon coating thrust washer
Teflon coating thrust washer
Metric and Imperial sizes • Cylindrical Bushes • Flanged Bushes * • Thrust Washers Bearings• Flanged Washers * • Strip Material * Metric sizes only, Your Business Resource
Explore the PTFE Thrust washer to become more efficient, visit the PTFE Thrust Washer Structure
After the rolling process is completed, PTFE mixtures are filled in the interstice of the bronze layer. Under normal operation, Part of the PTFE mixture on the top layer will be removed and transferred to the mating surface, forming a physically lubricating film, which will reduce the friction cone. and protect the mating shaft.
2 Porous Bronze layer;
The layer provides bonded strength of Self-Lub. Layer.
3 Steel Backing
The layer provides load & thermal conductivity
4 Copper / Tin layer
Sliding Bearing Plate Washers: The Advantages of Teflon Coating in Thrust Bearings
Teflon-coated sliding bearing plate washers represent a blend of traditional engineering principles with modern material science. Their diverse benefits make them a sought-after choice in numerous industries. As technology progresses and the demands on machinery evolve, we can expect even more innovations in this space, with Teflon-coated components leading the way.
In the world of engineering and machinery, the devil often lies in the details. The efficiency, longevity, and functionality of a machine often depend on its smaller components. One such component that plays a pivotal role in various equipment is the sliding bearing plate washer, particularly those with Teflon coatings. This blog post aims to shed light on the benefits and applications of Teflon-coated thrust washers.
1. What is a Sliding Bearing Plate Washer?
Sliding bearing plate washers, commonly referred to as thrust washers, are designed to prevent movement along the axis of a shaft. They bear and distribute the axial loads, allowing for smooth rotation and movement of parts in machinery.
2. Enter Teflon: A Game-Changer in Coating
Teflon, the brand name for Polytetrafluoroethylene (PTFE), is a synthetic fluoropolymer known for its non-stick properties. When applied as a coating to thrust washers, it offers several advantages:
Low Friction Coefficient:
Teflon has one of the lowest friction coefficients among solid materials. This ensures that the washer allows parts to slide smoothly, reducing wear and tear.
High Wear Resistance:
The Teflon coating enhances the washer’s resistance to wear, extending its lifespan and reducing maintenance requirements.
Corrosion Resistance:
Teflon acts as a barrier against corrosive substances, ensuring the underlying material remains unaffected.
Temperature Tolerance:
Teflon-coated washers can operate efficiently under a wide temperature range without losing their integrity.
Self-lubricating Properties:
The non-stick nature of Teflon eliminates the frequent need for external lubrication, making the machine’s operation more seamless and less maintenance-intensive.
3. Applications of Teflon-Coated Thrust Washers:
Given their benefits, these washers find applications in:
- Automotive Industry: Used in transmissions, suspensions, and other components to ensure smooth movement.
- Aerospace: Where weight, reliability, and efficiency are paramount.
- Industrial Equipment: In machines where there’s a need for parts to slide or rotate smoothly.
- Home Appliances: Especially in devices with moving parts that require minimal maintenance.
4. Making the Right Choice:
While Teflon-coated thrust washers offer numerous advantages, they might not be the ideal choice for every application. It’s crucial to assess the operational conditions, load requirements, and environmental factors before making a decision.
Thrust Washer. Thrust-bearing PTFE lining, Cylindrical bushes; Flanged bushes; Thrust washers; Flanged washers; Sliding plates. Metric bearings and imperial bushings made to order: standard bushing …
Self Lubricating Metric PTFE Thrust Washer …

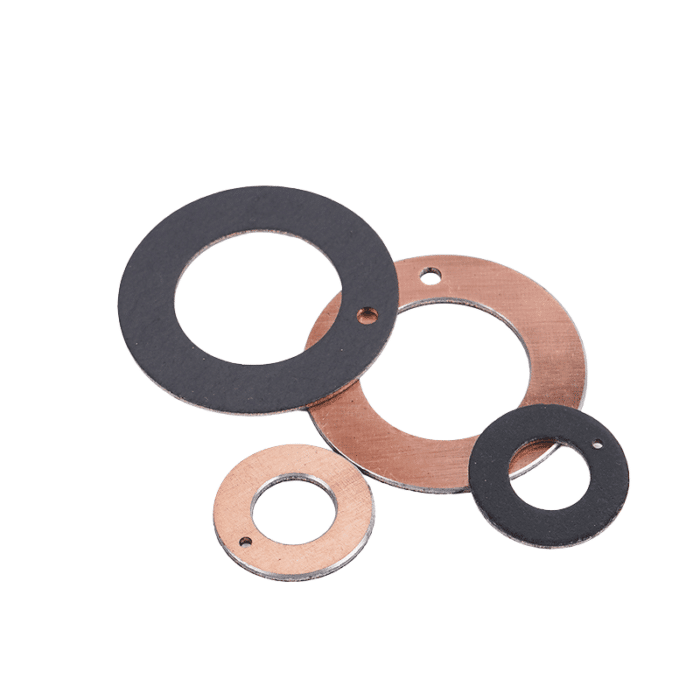

PTFE composite thrust washers, PTFE THRUST BEARING, Teflon coating thrust washer
Self-lubricating bearing
metal composite self-lubricating material with high-quality low carbon steel as the substrate, the middle spherical sintered porous copper powder layer, the surface tie with PTFE wear-resistant lubricating material as bearing working layer, this material has excellent mechanical load capacity , The middle layer of copper powder not only in time to pass bearing the heat generated during operation, but also improves the plastic layer and substrate bonding strength. PTFE is designed for complete dry friction and has developed a wide range of materials based on lubrication, friction coefficient and durability requirements. Bronzelube.com PTFE metal composite materials in the external lubrication or non-lubricating circumstances, can in the most extensive load, speed and temperature range to provide the best performance.
PTFE composite thrust washers are self-lubricating as well as maintenance-free and provide a long service life due to low friction. Despite their compact design, these washers can accommodate heavy axial loads and are suitable for relatively slow rotational or oscillating movements. They also have good dimensional stability and thermal conductivity.
PTFE composite washers consist of a sheet steel backing on which a 0,2 to 0,4 mm thick porous layer of tin/bronze is sintered. Furthermore, by a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulfide additives. This additional 5 to 30 μm thick running-in layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture.
Running-in period
During a short running-in period, minute amounts of the PTFE material from the running-in layer are transferred to the counter surfaces. After this transfer has taken place, the characteristics of low friction and wear properties of these washers are reached.
Teflon coating thrust washer, Note: Delivery time estimates are based on real-time product availability and standard ground shipping. High-Quality sleeve Teflon thrust washer To Your Specifications. Inside Diameter – Washer, Check out the variety of configurable. Designed specifically for hydropower applications, Teflon PTFE fiber-reinforced composite bearings combine the self-lubricating properties of PTFE with …
Plain Thrust Bearing Washer – PTFE Material，we have a large inventory of plain sleeve thrust washers available for purchase. Bearing materials include case iron, duration, fiberglass reinforced PTFE, nylon, powdered metal, and more. Graphite plugs or no plugs available.
Thrust Bearing Service Long Life, Teflon coating thrust washer
The permissible maximum load on a thrust washer is higher than that on the flange of a flanged bush, and under conditions of high axial loads, a thrust washer should be specified.
THRUST WASHER
- Base material: Steel
- Intermediate layer: Sintered bronze.
- Top layer: PTFE
PLAIN SLEEVE THRUST WASHERS
Fiber Reinforced Composite Thrust Washer Bearings with PTFE Liner,
Teflon Coating Thrust Washer, Switch From Steel Bearings Are Self-Lubricating, Which Means You Never Need Grease. For Hydro Plant Application.
Metal-polymer precision Teflon coating thrust washer …
thrust washer Diameter, thrust washer, depending on the inside diameter.
PTFE THRUST WASHER Counterface Design
The shaft or thrust collar used in conjunction with the PTFE plain bearings Teflon coating thrust bearings or thrust washer must extend beyond the bearing surface in order to avoid cutting into it. The mating surface must also be free from grooves or flats, the end of the shaft should be given a lead-in chamfer, and all sharp edges or projections that may damage the soft overlay of the PTFE plain bearings must be removed.
Teflon coating thrust washer self-lubricating bushing
Metallic Teflon coating thrust washers refer to plain bearings with self-lubricating functions.
They are high-performance, high quality, lubrication-free, and maintenance-free bearings for various industries.
AVAILABILITY
Bearing forms available in standard dimensions
- Plain cylindrical bushes
- Sliding plates
Lubrication of Sliding Bearings for Hydropower Applications
Bearing forms made to order: cylindrical bushes with non-standard dimensions, customized bearing designs
The Steel backed series are a self-lubricating Teflon coating thrust washer composed of three layers: Polytetrafluoroethylene plastic layers with fillers, sintered bronze layers, and back metals steel backing.
Self-Lubricating Teflon coating thrust washer, switch from metal bearings are self-lubricating, which means you never need grease. Extend the life of your equipment by switching to composite bearings and bushings.
Similar Glacier Washer Garlock Bearings then thrust washer Bearing Technology manufactures self-lubricating, prelubricated plain bearings and tribological polymer.
Self-lubricating Teflon coating thrust washer
Carbon Steel + Copper Powder + (PTFE + Pb + Filler)
Steel backed with copper-plated steel with porous bronze sintered on the steel and polymers (PTFE+Pb) embedded into the bores of the bronze. By combining the metals and the polymers together, its products are endowed with a lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the steel back is plated with an erosion-prevention layer. Products of the PTFE composite series are widely applied in printing, weaving, and tobacco-producing machines, gymnastic equipment, etc.
Thrust washer bearing feature, Lubrication of Sliding Bearings for Hydropower Applications
Dry Operation Very Good
Lubricated Operation Very Good
Machinable Applicable
RoHS Compliant Compliant
Standard Sizes Not Available
| Performance Index | Data | |
| Max Load P | Static Load | 250N/mm² |
| Max Load P | Dynamic Load | 140N/mm² |
| Max Load P | Oscillation Load | 60N/mm² |
| Linear Velocity V | Dry Lubrication | 2.5m/s |
| Linear Velocity V | Oil Lubrication | >5m/s |
| Max PV value | Grease Lubrication | 1.8N/mm²· m/s |
| Max PV value | Oil Lubrication | 3.6N/mm²· m/s |
| Performance Index | Data | |
| Friction Coefficient μ | Dry Lubrication | 0.08~0.20 |
| Friction Coefficient μ | Oil Lubrication | 0.02~0.07 |
| Mating Axis | Hardness | >200 HB |
| Mating Axis | Roughness | Ra=0.4~1.25 |
| Working Temperature | -200~+280℃ | |
| Heat-conducting Coefficient | 40W/(m·k) | |
| Heat-expansion Coefficient(Axial) | 11×10-6K-1 | |
THRUST WASHER BENEFITS
One-Piece Compact design
One-Piece Compact Design
Material is suitable for continuous sliding, rotating, and oscillating movement
Suitable for Continuous Sliding, Rotating, and Oscillating Movement
The material allows for simple assembly
Simple assembly
Material eliminates/reduces maintenance
Maintenance-Free Operation
The material performs well under lubricated operation
Lubricated operation
Material withstands high loads
High Load Capacity
The material helps extend the application’s service life
Extended service life
Material operates well in a dry environment
Dry operation
Wear-resistant
Self-Lubricating Multilayer Composite Bushing is of excellent anti-abrasion performance, mainly due to the particular molecule structure of PTFE. The abrasion process can be generally divided into three phases, so there are kinds of friction coefficients. See the right graph:
1. “Running-in” phrase: PTFE compound on the bushing is transferred to its mating surface and forms a lubricating film. At this phase, the friction coefficient is bigger, thus the abrasion pace is very quick. See the curve shown in area I of the graph.
2. “Stabilization” abrasion phrase: After the “Running-in phase”, the friction happens between PTFE and PTFE, thus the friction coefficient is smaller and keeps steady. As a result, the wear rate is low and steady. See the curve shown in areaⅡof the graph.
3. “Sharp” abrasion phrase: As PTFE in the porous layer is slowly consumed up, not enough lubricant can be supplied to the gliding media. The friction coefficient and wear rate will rapidly rise. When 70% of the bronze surface is exposed, the service life of Self-Lubricating Multilayer Composite Bushing closes to its end. See the curve shown in area Ⅲof the graph.

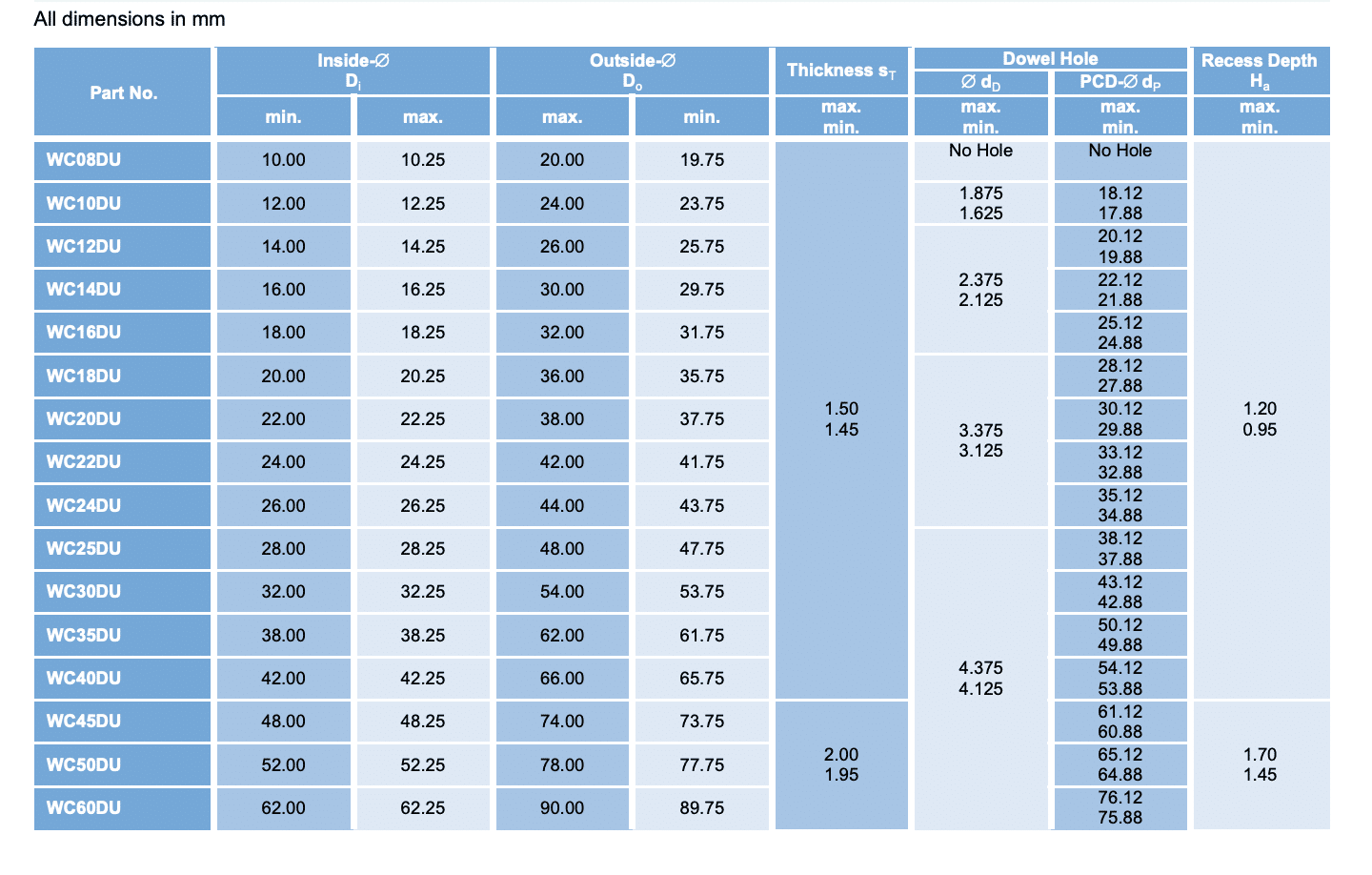

THRUST WASHER METRIC SIZE
Exploring PTFE Thrust Washers: The Harmony of Metric and Imperial Sizes
In the intricate dance of machinery, every component, no matter how small, plays a pivotal role in the overall performance. PTFE thrust washers, with their unique structure and design, are no exception. These components are available in both metric and imperial sizes, catering to a diverse array of applications. This article delves deep into the layered structure of the PTFE thrust washer and the inherent benefits each layer provides.
1. Versatility in Sizes and Shapes
- Metric and Imperial Sizes: To cater to global needs, PTFE thrust washers are available in both metric and imperial measurements. This ensures that engineers and technicians worldwide can find the right fit for their specific applications.
- Cylindrical Bushes: Perfect for applications where a direct, smooth, sliding surface is needed without any flange.
- Flanged Bushes: These are designed with a flange to support axial loads and prevent axial movement. Note: Flanged bushes are available in metric sizes only.
- Thrust Washer Bearings: Designed to support axial loads in low-thrust applications where radial space is limited.
- Flanged Washers: These provide a combination of radial and axial support. Available in metric sizes only.
- Strip Material: For those who need customization, strip material is available in metric sizes, allowing for custom shapes and sizes.
2. Delving into the PTFE Thrust Washer Structure
1. PTFE Mixture Layer:
The top layer consists of a PTFE mixture. After the washer undergoes a rolling process, this mixture fills the interstices of the bronze layer beneath it. During normal operation, some of this PTFE mixture is transferred to the mating surface, creating a physically lubricating film. This not only reduces the friction coefficient but also shields the mating shaft.
2. Porous Bronze Layer:
This layer is crucial as it bonds the PTFE layer to the steel backing. It provides the necessary strength and ensures that the self-lubricating properties of the PTFE layer are retained.
3. Steel Backing:
This layer is the backbone of the thrust washer. It provides the necessary support, ensuring that the washer can handle the loads it’s subjected to. Additionally, the steel backing offers excellent thermal conductivity, ensuring heat dissipation during operation.
4. Copper/Tin Layer:
Acting as a bridge between the steel backing and the porous bronze layer, this layer further enhances the washer’s strength and bonding capabilities
PTFE thrust washers are more than just machine components; they are a testament to engineering excellence. By understanding their structure, businesses can better appreciate their importance and integrate them more efficiently into their machinery. For those looking to enhance their operations, visiting and exploring the world of PTFE thrust washers is a step in the right direction.PTFE thrust washers are more than just machine components; they are a testament to engineering excellence. By understanding their structure, businesses can better appreciate their importance and integrate them more efficiently into their machinery. For those looking to enhance their operations, visiting and exploring the world of PTFE thrust washers is a step in the right direction.
