Thrust bearing washer

Thrust bearing washer

Oil-free Thrust Washer

Copper base Mosaic solid lubrication thrust bearing washers Material: CuZn25Al5, also with different alloys available upon request

– Cast bronze bearing washer, bronze thrust washer, bronze washer, graphite lubricant bronze bearing
– Solid bronze washer with graphite points, solid bronze spring washer cast, bronze washer with graphite lubricant

Description

Maintenance-free thrust bearing washer, plain bearing, plain bearing bush with solid lubricants

oilless washer,oilless thrust washer,oilless bronze washer,oiles washer,oiles bronze washer,oiles thrust washer

oil free thrust washer,oil free bronze washer,oil free slide washer

Plain bearings with lubricating pins, maintenance-free  thrust bearing, plain bearing washer with solid lubricants, China Supply High Quality Plain Flat Copper Washer

High-strength copper alloy washer as the base material, use conditions according to a certain proportion of its working surface machined hole and fill one solid lubricant. High-strength copper alloy provides a high load-carrying capacity and the solid lubricant can be formed at lower friction. Under dry conditions we design.

Thrust bearings for sale, Self-Lubricating Thrust Washers, Brass, Metric – Bronze Washer…

Oilless Washer Metric Thrust Washer, China Copper Graphite Washer – High-Quality Price Ratio.

Find yourself with a problem? We can supply the thrust washer it or replace it.
Get in touch with us today!

We have a large selection of SelfLubricating Thrust Bearings, Metric, Thrust Washers and other Plain Bushes Bearing Products.

Design for Self Lubricating Thrust Washer self-lubricating thrust bearing material is undergoing tremendous demand. Even in the severe operating environment and maximum extreme load conditions also require maintenance. As the cost of the increasing demand, business equipment, and plant operation reliability requirements are also increasing. Metal Self Lubricating Thrust Washers to meet the long-term maintenance-free and under the conditions of use of self-lubricating, thus making the design of a long-term reliable oilless bearing system possible. Metal type self-lubricating bearing material can be widely used in high-load low-speed rotation conditions, swivel and linear reciprocating motion, but also for conventional lubrication can not be achieved or prohibit the use of the occasion, or in special conditions such as dust, shock load or irradiation conditions require long-term and stable use.

Features Self Lubricating Thrust Washer Lubricant

Solid Lubricant
Lubricant Features Typical application
SL1 Graphite+add Excellent resistance against chemical attacks and low friction.Temp limit 400 ℃ Suite for general machines and under an atmosphere
SL4 PTFE+Additives Lowest in friction and the good of water lubrication, Temp. limit 300℃ The ship, hydraulic turbine, gas turbine, etc

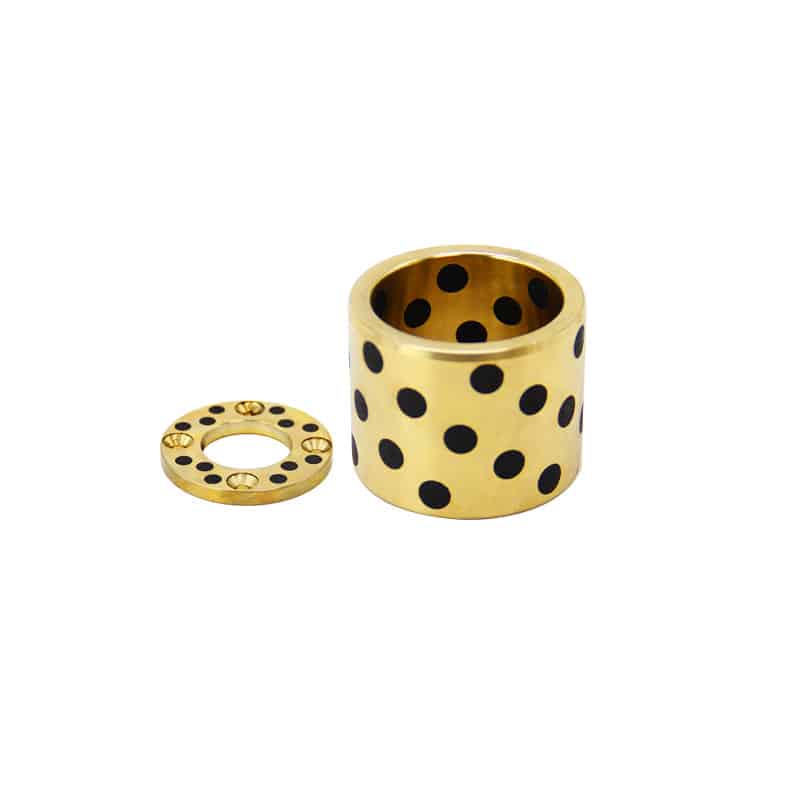

graphite bearing bronze

Caution

1. Where possible, try to use standard design;
2. Please note that the surface of any foreign body assembly;
3. Sliding surface after use, because the solid lubricant film formation results in a surface with black or gray-black phenomenon, please do not scrub, as usual;
4. Before assembly, if the lubricating oil is applied to the wear parts, can shorten the running-in period, in favor of mechanical operation, operation;
5. The assembly should be slowly pushed forbidden beat, so as not to damage bearings and cause deformation;
6. Design should be used in different parts of the appropriate material, in order to improve the mechanical properties, extending bearing life;
7. In the high load, the reciprocating motion, it is recommended to use screws;
8. In freshwater, seawater, and at sea, the shaft, or recommend the use of stainless steel, chrome plated.

Self-Lubricating Thrust Washers & Graphite Bearings Advantage

1. The design is flexible, simple, and convenient, and has a wide range of use;
The fuel supply system is a heavy-duty, time-consuming, and labor-intensive device in mechanical design. There is no need to consider the use of solid self-lubricating bearings when designing fuel, which saves fuel device equipment and can be applied to various special occasions. The solid self-lubricating bearings are designed in a variety of shapes to meet the needs of various special occasions. The use of solid self-lubricating bearings can significantly reduce the cost of mechanical maintenance and fuel.
2. No oil can be used;
Since the coefficient of linear expansion is greater than that of the solid lubricant of the metal matrix when the solid self-lubricating bearing starts to run, the piece will be transferred to the mill members to realize self-lubrication, so it is difficult to use solid self-lubricating bearings in oil and can not be oil or fat. Locally, even in the case of low speed and high load, it can also play a good lubrication effect.
3. Low cost of use;
With the traditional mechanical design, the fuel gauge should be checked at all times during refueling and maintenance within a certain operating time. The installation of the oil is smooth. Regular refueling will cause pollution to the surrounding environment and increase maintenance costs. After lubrication, not only can the environment be cleaned, but also the use cost of the lubricant can be greatly reduced.
4. Under high load and low-speed conditions, it can exert superior performance;
The solid self-lubricating bearing uses centrifugal casting high-strength brass alloy as a matrix, which plays a role in the load. The special formula of graphite with good self-lubricating performance is used as a lubricant, playing a role in self-lubricating, which combines their respective advantages, Even under high load and low-speed conditions, it can exert superior performance.
5. Reciprocating motion, rocking motion, and frequent start-stop film formation difficulties, exert excellent wear resistance;
The principle of the self-lubricating bearing arrangement of solid lubricants is to ensure that all parts of the grinding member have the role of lubricant during the operation. Therefore, the arranged lubricant must be arranged based on the direction of movement of the grinding to determine the location of the lubricant.
6. Excellent chemical resistance and corrosion resistance;
The solid self-lubricating bearing lubricant is specially formulated from graphite, polytetrafluoroethylene, molybdenum disulfide, and other wear-resistant materials. It has a stable molecular structure. The metal matrix can have different chemical resistance and corrosion resistance according to the metal selected. Therefore, solid self-lubricating bearings have excellent chemical resistance and corrosion resistance.
7. The product is more competitive in cost performance, compared with similar products, it has a long service life, less maintenance, a long replacement cycle, and good performance.

Thrust washers

Contact Us

To make an inquiry about or request a catalog of self-Lubricating Thrust Washers , click here!

ARTICLE-NO. ⌀d x ⌀D x T
Graphite Bronze Washer-10 ⌀10.2 x ⌀30 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-11 ⌀11.2 x ⌀35 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-12 ⌀12.2 x ⌀40 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-13 ⌀13.2 x ⌀40 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-14 ⌀14.2 x ⌀40 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-15 ⌀15.2 x ⌀50 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-16 ⌀16.2 x ⌀50 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-16 ⌀16.2 x ⌀50 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-18 ⌀18.2 x ⌀50 x ⌀3
Self-lubricating Graphite
Graphite Bronze Washer-20 ⌀20.2 x ⌀50 x ⌀5
Self-lubricating Graphite
Graphite Bronze Washer-20N ⌀20.2 x ⌀50 x ⌀5
Self-lubricating Graphite
Graphite Bronze Washer-25 ⌀25.2 x ⌀55 x ⌀5
Self-lubricating Graphite
Graphite Bronze Washer-25N ⌀25.2 x ⌀55 x ⌀5
Self-lubricating Graphite
Graphite Bronze Washer-30 ⌀30.2 x ⌀60 x ⌀5
Self-lubricating Graphite
Graphite Bronze Washer-35 ⌀35.2 x ⌀70 x ⌀5
Self-lubricating Graphite
Graphite Bronze Washer-40 ⌀40.2 x ⌀80 x ⌀7
Self-lubricating Graphite
Graphite Bronze Washer-45 ⌀45.3 x ⌀90 x ⌀7
Self-lubricating Graphite
Graphite Bronze Washer-50 ⌀50.3 x ⌀100 x ⌀8
Self-lubricating Graphite
Graphite Bronze Washer-55 ⌀55.3 x ⌀110 x ⌀8
Self-lubricating Graphite
Graphite Bronze Washer-60 ⌀60.3 x ⌀120 x ⌀8
Self-lubricating Graphite
Graphite Bronze Washer-65 ⌀65.3 x ⌀125 x ⌀8
Self-lubricating Graphite
Graphite Bronze Washer-70 ⌀70.3 x ⌀130 x ⌀10
Self-lubricating Graphite
Graphite Bronze Washer-75 ⌀75.3 x ⌀140 x ⌀10
Self-lubricating Graphite
Graphite Bronze Washer-80 ⌀80.3 x ⌀150 x ⌀10
Self-lubricating Graphite
Graphite Bronze Washer-90 ⌀90.5 x ⌀170 x ⌀10
Self-lubricating Graphite
Graphite Bronze Washer-100 ⌀100.5 x ⌀190 x ⌀10
Self-lubricating Graphite
Graphite Bronze Washer-120 ⌀120.5 x ⌀200 x ⌀10



Thrust Washer Description

Size
Customized brass graphite wahser
Material
Brass / Bronze(CuZn25Al5Mn4Fe3)
Color
Brass color
Size
Metric Size
Max line speed V
Dry Lubrication 0.3m/s,Oil Lubrication1.0m/s
PV value limit
Dry Lubrication 1.65N/mm²· m/s,Oil Lubrication 3.25N/mm²· m/s
Friction coef u
Dry Lubrication 0.12~0.16, Oil Lubrication 0.03~0.08
Max Working temperature
-40~200℃
Mating Axis
Hardness >220 HB, Roughness Ra=0.4~1.25
Thermal conductivity
38-55W/(m·k)

Oilless washer size

Additional information

Size

Custom Size, Extra large, Imperial size, Metric Size

Cylindrical bushes

Solid Bronze Bushing, Bimetal Bushes, Cast Bronze Bushing, Wrapped Bushing
