Flange Cusn8 Wrapped Bronze Bush, Diamond Indents, Metric Size

---

Bronze bushing is a kind of wrapped self lubricating bearing.

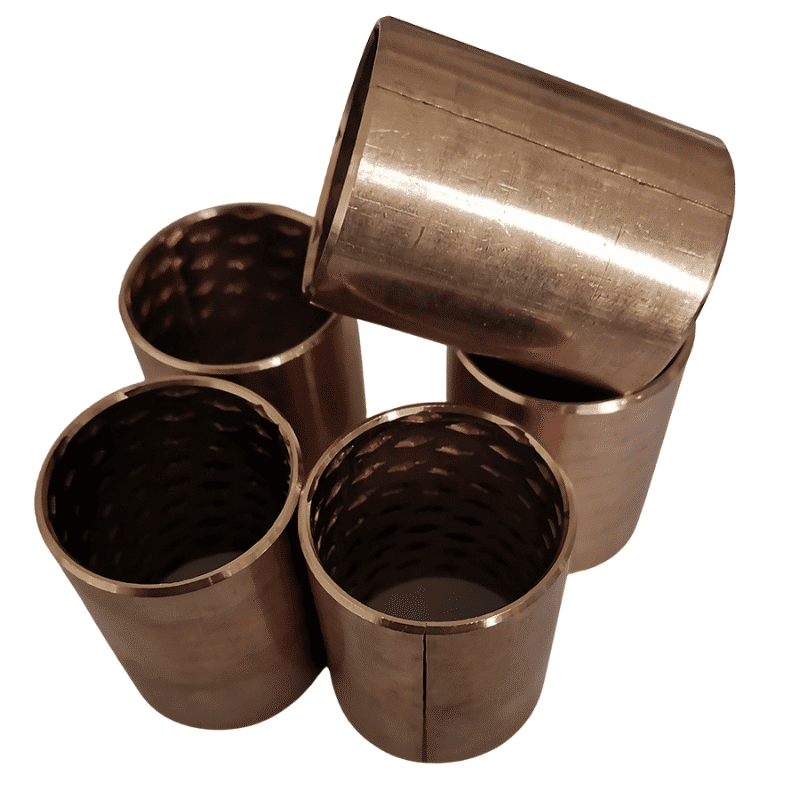

Flanged Wrapped Bronze Bushing it is made of bronze plate with pockets or oil holes. It is a kind of wound greased lubricating bushing bearing (sometimes also graphite). Bronze material normally in CuSn6.5P or CuSn8P, bronze is made in the particular formulation with high specific and specific weight, and on its surface it can be incorporated with spherical or diamond-shaped serrations or / and oil grooves as requested by customers. The products are widely used in construction machinery, agricultural machinery and so on.

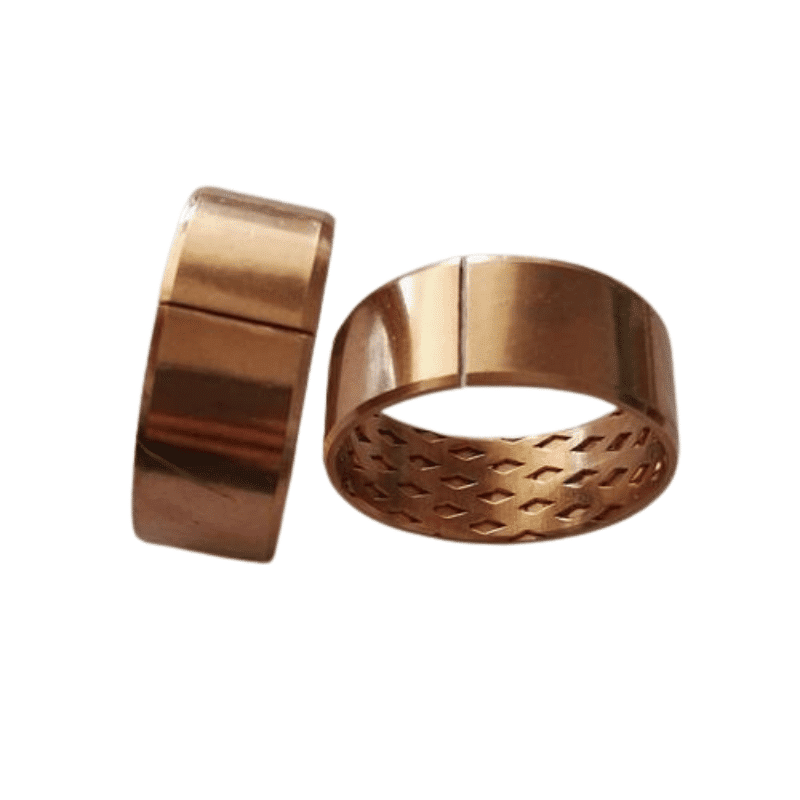

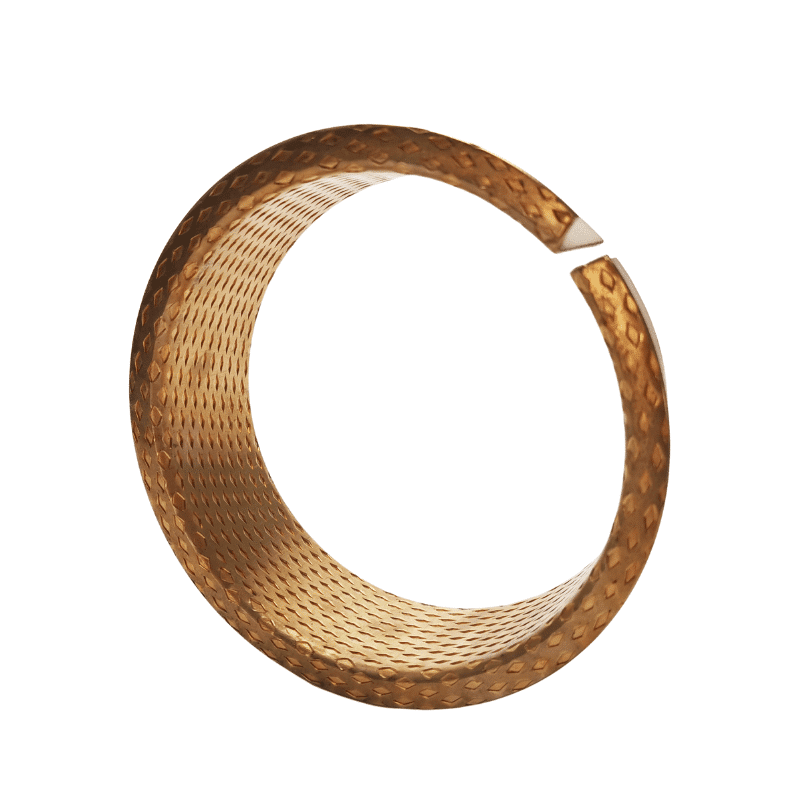

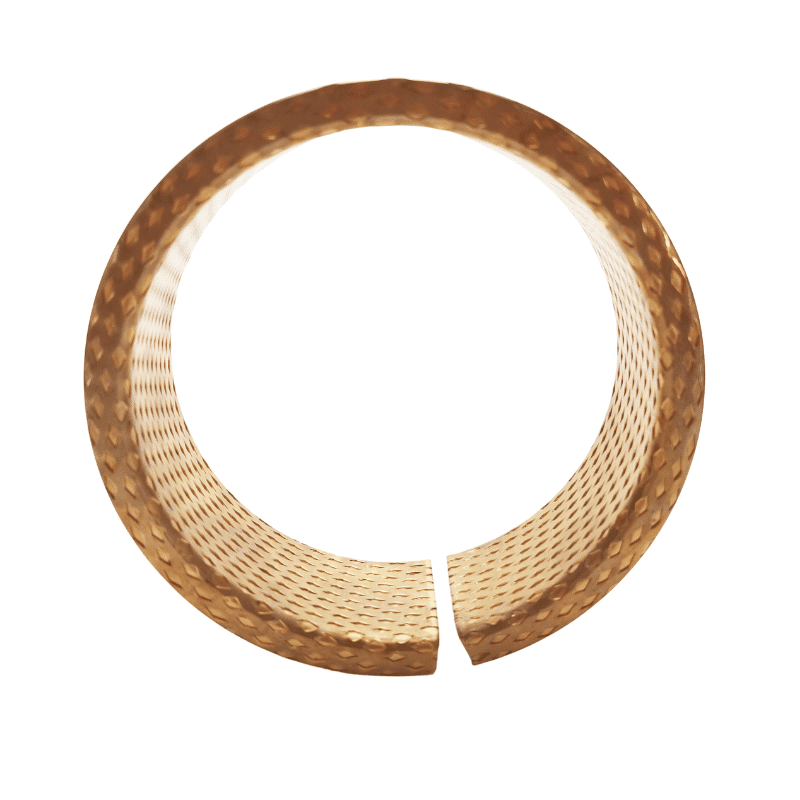

1.FB090 is based on high density bronze alloy, and rolled with diamond pocket or round pocket as it’s inner surface.
2. It has high capacity, high temperature, anti-corrosion and good wear.

Industrial: Widely used in construction machinery, agricultural machinery,hydraulic system,piston, and so on.

Wrapped Bronze Bushes Advantages

1. Lead-free and fully recyclable. Less expensive than machined bushing.
2. Minimal space required.
3. Lighter in weight than machined bushing or roller bearing.
4. High stability under load, therefore particularly suitable for oscillating bearing.
5. Lubrication grooves are coined into the metal, and any shape desired is possible.
6. Grease depots for long-term lubrication.

Wrapped flanged bearingsbushing offer the following additional advantages:

1. A single bushing and take both radial and axial forces.
2. A single bearing element is needed to replace both thrust washer and cylindrical bushing.
3. High stability.
4. No fixing of thrust washers.

Physical and Mechanical Properties

Maximum Operating Temperature	150	°C
Hardness	90 ~ 150	HB
Tensile Strength	460	N/mm2
Maimum PV	2.8	N/mm2 x m/s
Maximum Sliding Speed -Oil	2.5	m/s

Understanding Wrapped Flanged Bearings: A Comprehensive Guide

Bearings play an integral role in numerous applications, ensuring the smooth operation of machinery and reducing friction between moving parts. Among the vast array of bearing types, wrapped flanged bearings stand out for their distinct design and specialized uses. In this blog post, we’ll delve deep into the world of wrapped flanged bearings, examining their design, applications, benefits, and factors to consider when choosing one.

What are Wrapped Flanged Bearings?

Wrapped flanged bearings, often simply called flanged bearings, are a type of plain bearing that has a flange on one end. This flange aids in positioning, preventing axial movement, and guiding the bearing during installation. Typically, they are made of bronze, plastic, or other materials, with bronze being a popular choice due to its excellent wear resistance and self-lubricating properties.

Key Features:

1. Self-lubricating: Many wrapped flanged bearings are designed to be self-lubricating, meaning they have tiny pores that release lubricant during operation. This feature minimizes the need for regular maintenance and ensures longevity.
2. Compact Design: Their compact size makes them suitable for applications with limited space.
3. Flange for Positioning: The flange ensures the bearing remains in the correct position, reducing the risk of misalignment.

Common Applications:

1. Automotive: Wrapped flanged bearings are widely used in various car parts, including door hinges and transmission systems.
2. Aerospace: Their ability to withstand high temperatures and resist corrosion makes them suitable for aerospace applications.
3. Industrial Machinery: They’re commonly found in machinery where precise movement is required, such as CNC machines.

Benefits:

1. Durability: These bearings are known for their durability and ability to withstand wear and tear, especially when made from robust materials like bronze.
2. Easy Installation: The presence of a flange makes it easier to position and install the bearing.
3. Cost-Efficient: Due to their self-lubricating nature and longevity, they can result in lower maintenance costs in the long run.

Factors to Consider When Choosing a Wrapped Flanged Bearing:

1. Material: The choice of material will dictate the bearing’s resistance to wear, corrosion, and heat. Bronze, for example, is known for its excellent self-lubricating properties.
2. Size and Dimensions: Ensure the bearing’s size matches your application’s requirements.
3. Load Capacity: Different bearings can handle varying amounts of axial and radial loads. Make sure you choose one that can handle your machinery’s load requirements.
4. Environment: If the bearing will be used in a corrosive or high-temperature environment, ensure it’s made of a material that can withstand such conditions.

Conclusion:

Wrapped flanged bearings are a valuable component in many applications, offering durability, ease of use, and cost-efficiency. When selecting one, it’s essential to consider the application, load requirements, and environmental factors to ensure you get the most out of your bearing. By understanding the intricacies of these bearings, you can make an informed decision that will benefit your machinery and operations.

Wrapped flanged bushings – low-maintenance

---

low-maintenance plain bearings with lubrication pockets

The range and variety of our wrapped bushings, low-maintenance plain bearings with lubrication pockets are not afraid of the competitors: we offer itself as a unique interlocutor for its customers, with a complete range of products ready in stock that are able to satisfy any request and design need.

wrapped bushing with lubrication pockets
