Solid Bronze Bushings

Description

Solid turned bronze sliding bearing, Specialized in the production of American Standard C61900, C86300, C83600, C93700, C90700, C95810, C95200

Bronze bearings with embedded solid lubricant, High-quality Solid Bronze Bushings Self Lubricating Bearings High Strength Brass Castings from China, China’s Solid Bronze Bushings product …

We are a professional manufacturer of various kinds of bearings in China for … Spherical Shape Bronze Sleeve Bushings.

Bushing from China. We offer free shipping, free CAD downloads, short lead times, competitive pricing, and a small minimum …

Cast Bronze Guide Bush

Bearings for middle-load, middle-speed applications with superior run-in characteristics.

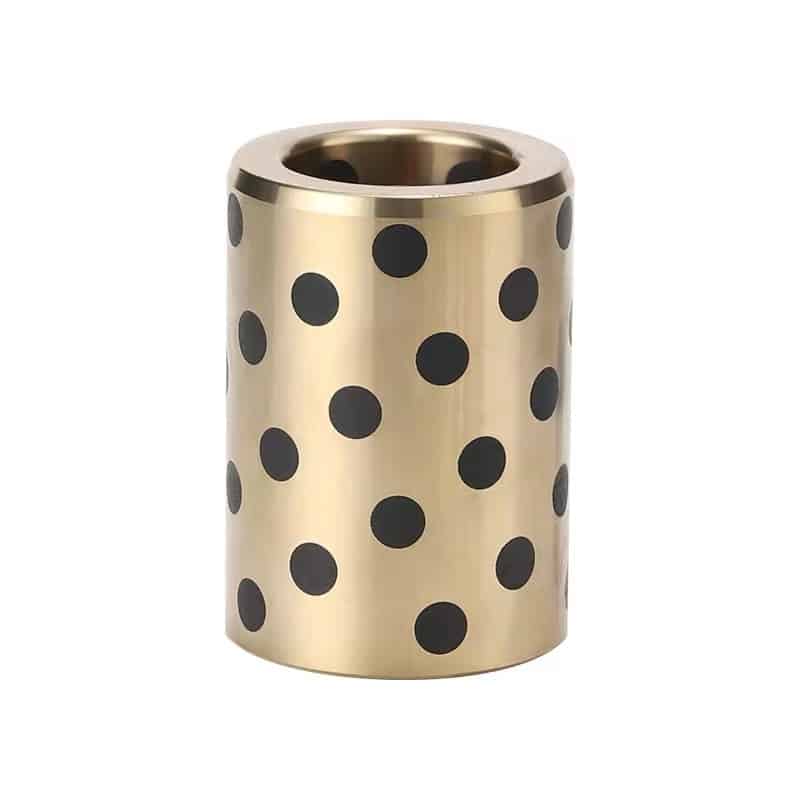

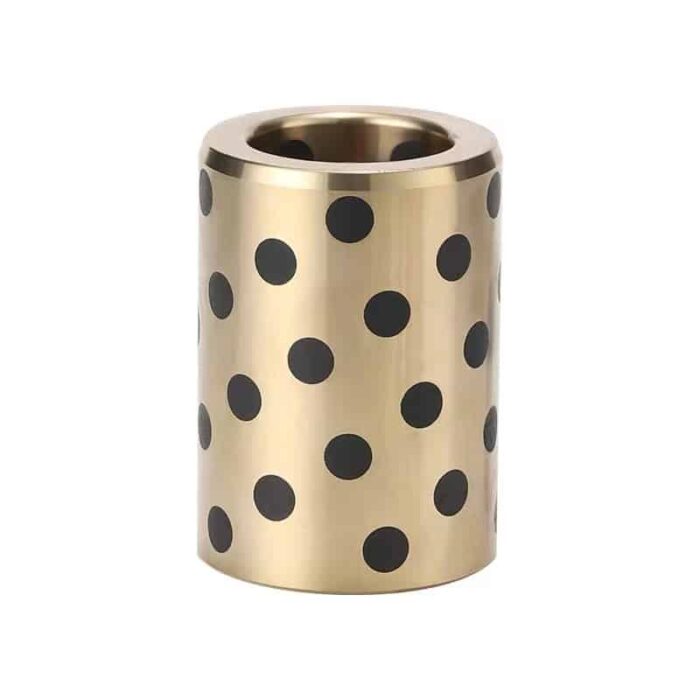

Base Graphite Lubricant Bush Oilless Bearing, Bronze Graphite Bush, Bronze Base Graphite Lubricant Bush, Oilless Bearing …

The plugged graphite series are self-lubricating bearings for middle loads composed of cast bronze bases and embedded solid lubricant. Two types of base materials are available: for general use for high temperatures.

Solid bronze bushings are available in metric sizes as a straight or flanged bronze bushing. This solid bronze bushing material is suitable for a wide range of applications. The cast bronze bearing bushings are applicable for oscillating movements for applications where rotating speeds are low. … All surfaces of a solid bronze bushing are machined.

Service range
Lubrication conditions	Dry	Periodic lubrication
Service temperature range (°F)	-40 to +482	-40 to +302
allowable max. contact pressure ： P (N/mm2)	15	15
allowable max. velocity ： V (m/s)	0.40	0.85
Allowable max. PV value (N/mm2・m/s)	1.00	1.65

■ Serviceable without the need for lubrication. Demonstrates high performance under middle-load and middle-speed operations.
■ Usable at high temperatures.
■ Has superior chemical and corrosion resistance.
■ Standard products are available in various sizes.
* The base metals contain lead.



d	D	IDF7		ODm6		L-0.10-0.30
						30	35	40	50	60	70	80	100	120	130	140	150
50	62	50	+0.050+0.025	62	+0.030+0.011	506230	506235	506240	506250	506260	506270
50	65	50		65		206530		506540	506550	506560	506570	506580	5065100
55	70	55	+0.060+0.030	70				557040	557050	557060	557070
60	74	60		74		607430	607435	607440	607450	607460	607470	607480
60	75	60		75		607530	607535	607540	607550	607560	607570	607580	6075100
63	75	63		75						637560	637570	637580
65	80	65		80					658050	658060	658070	658080
70	85	70		85	+0.035+0.013		708535	708540	708550	708560	708570	708580	7085100
70	90	70		90					709050	709060	709070	709080
75	90	75		90						759060	759070	759080	7590100
75	95	75		95						759560	759570	759580	7595100
80	96	80		96				809640	809650	809660	809670	809680	8096100	8096120
80	100	80	+0.071+0.036	100				8010040	8010050	8010060	8010070	8010080	80100100	80100120		80100140
90	110	90		110					9011050	9011060	9011070	9011080	90110100	90110120
100	120	100		120						10012060	10012070	10012080	100120100	100120120		100120140
110	130	110		130	+0.040+0.015							11013080	110130100	110130120
120	140	120		140								12014080	120140100	120140120		120140140
125	145	125	+0.083+0.043	145									125145100	125145120
130	150	130		150									130150100		130150130
140	160	140		160									140160100			140160140
150	170	150		170									150170100				150160140
160	180	160		180									160180100
