Project Description

Quality Cast Bronze Bearings, Custom Bushings – Get Your Custom Quote Today.

Explore more

Custom Bearings Made From High-Strength Bronze

Discuss your project with a custom parts expert!

Choose from our selection of cast bronze bushings, including groove bushing, sleeve bearings, flanged sleeve bearings, and more.Online bronze bushing & bearing catalog from bronzelube.com. Wide Selection to handle your bronze bushing manufacturing needs. Made to Order Custom Machined Parts bronze bushings – Specialists For Manufacturing & Machining Of All Types. Saves You Time & Money In Research, Design & Production Costs. Self-Lubricating Groove Graphite Bushings Designed for Any Type of Dry Running Environment. Fast availability at a low price!

Bearing Lubrication.

Bearing remanufacturing and customization.

Explore self-lubricating bushing solutions and find new ways to increase bushing product quality.

bronze bearing

Learn More

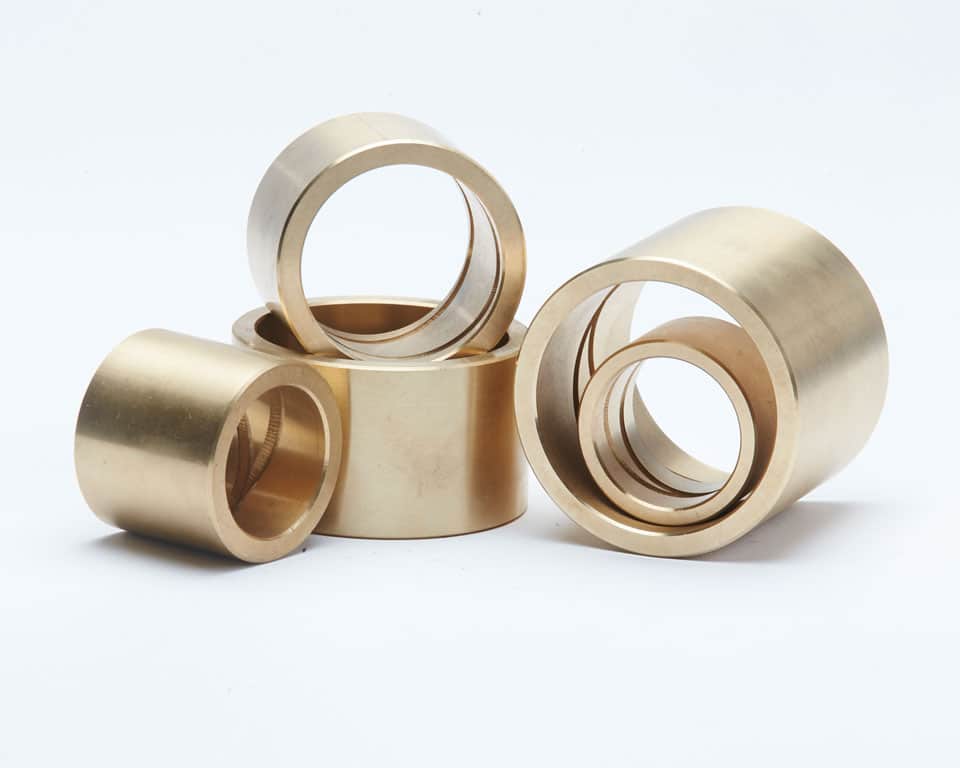

Cast Bronze Bearings
Cast Bronze Bearings
Cast Bronze Bearings
Cast Bronze Bearings
Selection replacement cast bronze bearings.

Custom designed bushing completed reliably from start to finish.

Casting Solid Bronze Bearings (with Grooves / Without Grooves), Machined Casting Bronze Bearings Offer Technically & Economically Favorable Bearings Solutions. Rg7 is the most common bronze bearings material worldwide. The material properties makes this alloy well suited for bearings, flange bushes, wear plates and thrust waster products. Pressure-tight with good dry running properties and easy to machine simply makes this an excellent all around bronze alloy. Self-lubricating Bearing Metal Quote – Customizable Gum Metal Bearing Quotes. Upload A Part Today. Fully Customizable Quoting For Sheet Metal Parts. Get A Quote Today. Browse Available Materials. Manufacturer & Supplier – Get Quick & Quality Prototypes. Bronze GuMetal Bushing Products for Sale

Top quality

The promise of cast bronze bearings high quality, meet your requirement.

Re-manufacturing

Small minimum order value & quantity, fast delivery.

Customized Size Bronze Bushing Projects

Special Bushings & Custom Machined Parts Available, Save Cost & Order Today!

Casting Bronze Bushing Supply – High quality factory products! Find metal bushes supplier on bronzelube.com. Get metal bushes quotations from the most suitable suppliers for your business.

Take a look at our special bushing

Custom Bearings Made From High-Strength Bronze

Customized bearings: Dedicated to providing high performance Customized Bronze Bushing machine parts for any application. In addition to our standard self-lubricating graphite bearings and bushings, we produce custom bearings on a daily basis. We produce the exact self-lubricating bearing or bushing you need at a low price. Let our experts assist you in finding the most efficient manufacturing method and the ideal high performance self-lubricating custom material to meet your specific requirements.

  • Cast Bronze Bearing Production, Always tested. Always proven. Global website www.bronzelube.com

  • Online Sales: Customized groove design, custom cast bronze bearings size service.

  • Save your purchasing cast bronze bushing budget for your project.

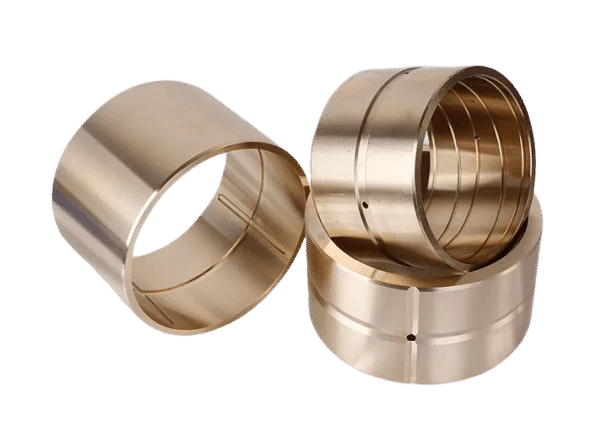

Casting Bronze Bushing: Custom Size

A Bronze Age Process for the Modern Era

Bronze Bearing Materials Stable

Start your new project

Bronze bearings are easy to form, have a low intermetallic friction rating, and can withstand pressure and high pressures, making them ideal for a wide range of industrial and artistic applications. Learn More Plugged Graphite Bushings

Get a Quote

Slide Bearings

Custom Bearing Solutions

Self-lubricating Bearing

Design & Build Completely Custom Bronze Bushing

Design & build completely custom layouts

The Most Complete & Flexible Cast Bronze Bearings Foundry in China,We supply

agricultural machinery bushings
High-Strength Bronze Bearings

Online sourcing to secure customized bushing sales.

Cast Bronze Bushing Application:

  • Offshore – Drilling rigs
  • Inland shipping – Vessels
  • Civil engineering – Bridges/locks
  • Agriculture – Hydraulic systems
  • Mechanical engineering – Food industry
  • Construction – Cranes
View all customized bearing

Request a Custom Bronze Bearing Prototype!

Standard bronze plain bearings and bushings, Custom Bushings – Bronze Bushing Manufacturing, Custom bushings by Manufacturing are custom engineered and come in a variety of common and hard-to-find stocks. Call us today!

the ideal high-performance bronze bushing material

1. Submit an inquiry

Request a custom bearing bushing prototype! Fill out the form with your information

Visit the bushing type

2. Wait for customized bronze components

The production process at bronzelube.com starts as soon as your order is received

Browse the bearing bush material

3. Receive your final product

After Bulk Production, Everything is made ready to ship and delivered as quickly as possible!

Contact us
Boccole du catalogo pdf

Custom-made Cast Bronze Bushings

Get standard products with modifications replacements. Request Custom Bearings & Bushings. We only need your drawing size with the assembly situation, like load cases and operating conditions, to prove the feasibility. Need custom designed bronze bearings for your application? See how can produce bronze bearings according to desired shape, material, and size. Custom Bushings – Groove Bushing. Custom Bushings. If a standard won’t do the job, has the capability to produce a custom bushing to your exact specifications.

Learn more about this

High Tensile Brass Bushing

Bronze bushing is a part of mechanical equipment, mainly used in mines,Mountain machinery and equipment, and more widely used in mechanical equipment. In the process of use, bronze bushing is an indispensable part. Commonly used cast bronze bushings materials include:

  • Brass
  • Tin bronze
  • Lead bronze
  • Aluminum bronze
  • Phosphor bronze
  • Bronze Bushing
  • Aluminium Bronze Bushing
Get started today
metal bushings

Customized Bushing Sliding Bearings

Customized bushing Machined Bronze Parts

We operate some of the most advanced, precise equipment available. The China Plain Bearings Supplier and Cast Bronze Plugged Graphite Bearing,Custom Machined Parts Manufacturer. check out bushings and buy custom made bushings at an affordable price on bronzelube.com. Enjoy scrolling through China’s wholesalers offering quality custom …

Want to help? Contact us!

Customized Bronze Bushings Grooving Pattern.

Groove parts to our customer’s specifications, including single loop, figure eight, double loop, double figure eight, half figure eight, straight, and circular groove patterns.

Customized Size

Custom bronze bushings supplier. Finishing cast bronze bushings provide a simple and economical way to use bearings with high load capacity, good corrosion resistance, and arbitrary dimensional processing.

View the custom bronze bushings

Customized Bearing Bushing

At the same time, Top Viet can provide different grades of copper alloy according to different working conditions and process different forms as required, it has higher dimensional accuracy than rolled type copper bearings.

Get started today

Oil Free Parts Flange Size Selection

Cast Bronze SAE660 Sleeve Bearings / Bushings

  • Product Type: Cast Copper Alloy Sleeve Bearings

  • Material: Copper alloy, Customized Bushing

  • Lubricated bronze bearing design

  • Selecting Cast Bearing Bronzes

Precision Bronze Bushings C 954
3Bronze Alloy 954 Bearings

Oil Free Guide Bushing, Customized Bushing

Groove Bronze Bearing, Grease Grooving Patterns

Straight Axial Supply Groove, Lubricant Grooving. They may consist of simple grooves or dimples, or very sophisticated shapes such as wedges and spiral groove patterns. Various Grease Supply Groove Patterns: Graphite Filled Grooves & Plugs, Wear Plate with Graphite Plugs. straight axial, circular, axial and circular, butterfly groove, single loop, double loop, figure eight, double figure eight, chain-link, ladder.

Solid bronze flange bearings. Good in heavy and dirty conditions, Solid bronze bearings are ideal for demanding applications in harsh environments. This makes the solid bronze bearings ideal for a wide variety of applications.

Learn more Grease Grooving Patterns

Cast Groove Bearing, Bronze Bearing Design.

Breathtaking design for home living.

Bronze Bearings Process: We Machine Self Lubricating Bronze Bearings According To Clients’ Drawings.

Nam aliquet ante porta, gravida elit interdum, luctus porta sapien justo, at fringilla felis suscipit vestibulum.

Get started today
Discover more
Get started today
Discover more
DESIGN EVERYTHING

Create the perfect custom bushing experiences

Customized Bushing: We operate some of the most advanced, precise equipment available. The China Plain Bearings Supplier and Cast Bronze Plugged Graphite Bearing,Custom Machined Parts Manufacturer.

Sand Casting and Centrifugal Casting

Cast Bronze Self-lubricating Bearings

One of the oldest man-made alloys, bronze traditionally consisted of only copper and tin, but today’s bronze alloys may contain copper mixed with aluminum, manganese, silicon and a range of other materials, depending on the properties required for the intended application of the alloy. Bronze is easily molded, has a low metal-to-metal friction rating, and can withstand pressure and stress, making it ideal for a wide range of industrial and artistic applications.

Bronze can be molded into complex shapes by a technique known as casting. In this process, molten bronze is poured into a mold. After cooling, the bronze solidifies and the mold is removed, leaving only the predetermined shape.

Industrial bronze casting

Sand Casting

Modern sand casting is still largely based on the bronze casting method used in ancient times. It begins by creating a pattern in the sand and then a mold is made from the sand. Next, a bronze liquid is poured into a hollow mold. Once the metal cools, the mold is removed, leaving the bronze behind, known as “sand casting. Although this method is time consuming, it can create a wide variety of shapes that other processes may not be able to do.

Centrifugal Casting

Centrifugal casting is the preferred method for creating cylindrical bronze bearings. As the molten bronze is poured in, a cylindrical mold rotates around an axis at a constant speed. This method produces parts with a circular inner diameter. Undesirable impurities and foreign matter in the alloy usually collect in this inner ring and can be removed by secondary machining, which is an advantage of this casting process. However, the size and shape of the items produced by centrifugal casting is limited.
Seek to determine which bronze bearing casting process will be suitable to create a product to meet your needs.

Choose your cast bronze bushing bearing material

Self-lubricating graphite bronze sleeve non-standard bushing eight-character oil groove wear-resistant bushing

There are many kinds of bronze bushing sleeves, including machine bronze bushing, bronze bearings, etc. Oil lubricated bearings are used in various large and heavy machinery and are an important component of machinery.

AVAILABILITY

Custom Bearing forms made to order: cylindrical bushes, flanged bushes, thrust washers, sliding plates, pintle bearings, half-bearings, axial and radial segment rings, self-aligning spherical bearings, customized bearing designs

Bronze bearing, also known as bronze bushings, are divided into many types, including machine bronze rollers, bronze bearings, etc. It is used in various light industry, large and heavy machinery and is an important component of machinery. The product has the traditional tin bronze bearing function. It is made of electrolytic bronze as raw material with various trace metal elements, sintered at high temperature, and processed by air pressure centrifugal casting. High hardness, excellent wear resistance, not easy to cause seizure, good casting performance and cutting performance, and good corrosion resistance in the atmosphere and fresh water. In the absence of lubricants and water-based lubricants, it has good sliding properties and self-lubricating properties, easy cutting, poor casting properties, and good corrosion resistance to dilute sulfuric acid. Structural parts for general purposes, simple-shaped castings used in ships, instruments, etc., such as sleeves, bushings, bearing bushes, sliders, etc.

Bronze Bushing Material:

The bronze bushing material is as follows:

ZCuSn10Pb1

High hardness, excellent wear resistance, not easy to cause seizure, good casting performance and cutting performance, and good corrosion resistance in the atmosphere and fresh water.

Can be used for wear-resistant parts that work under high load (below 20Mpa) and high sliding speed (8m/s), such as connecting rods, bushings, bearing bushes, gears, worm gears, etc.

ZCuSn10Pb5

Corrosion resistance, especially to dilute sulfuric acid, hydrochloric acid and fatty acid.

Structural materials, corrosion-resistant and acid-resistant accessories, as well as crusher bushings and bearing bushes.

ZCuPb10Sn10

Good lubricity, wear resistance and corrosion resistance, suitable for bimetal casting materials.

Vehicle bearings, internal combustion engine bimetallic bearing bushes with a peak load of 100Mpa, piston pin sleeves, friction plates, etc.

ZCuPb15Sn8

In the absence of lubricants and water-based lubricants, it has good sliding properties and self-lubricating properties, easy cutting, poor casting properties, and good corrosion resistance to dilute sulfuric acid.

Bearings with high surface pressure and side pressure can be used to manufacture copper cooling pipes of cold rolling mills, parts with impact load up to 50Mpa, bimetal bearing bushes of internal combustion engines, mainly used for piston pin sleeves with load up to 70Mpa, acid-resistant accessories.

ZCuZn38Mn2Pb2

It has good mechanical properties and corrosion resistance, good wear resistance and good cutting performance.

General-purpose structural parts, simple-shaped castings used in ships, instruments, etc., such as sleeves, bushings, bearing bushes, sliders, etc.

Application Features:

JDB-1U oil groove bronze bushing copper sleeve is a kind of bronze bearing lubricated by oil groove oil. The product has the function of traditional tin bronze bearing. Since the high-strength brass (ZCuZn25Al6) is used, its HB hardness is doubled, so using this product in low-speed situations can double the life of the general bronze sleeve, and its The bearing pressure is large, and it can be used in heavy-duty occasions. This product is made of electrolytic copper as raw material with various trace metal elements, sintered at high temperature, and processed by air pressure centrifugal casting.

The products are widely used in textile machinery, injection molding machinery, mining machinery, construction machinery, automobile industry and other fields. The company can choose various grades from China, Germany, Japan, the United States and other countries to make Bronze Bushing, washers, skateboards, half tiles and other products according to customers. Various oil grooves and oil filling holes can be processed on the inner and outer walls according to customer requirements, and can also be processed according to drawings.

Typical use: High purity graphite + additives. SL1 Graphite+add

Good wear resistance and chemical stability, use temperature < 400 ℃

Applied to general machinery, used in the atmosphere

  • S L 4 + M o S 2
  • P T F E + M o S 2 + C F

Very low coefficient of friction and good water wettability, operating temperature <300℃

Bronze vs. Brass – What’s the Difference? bearing material

Bronze vs. brass
Although these metals are related in composition, appearance, and even application, brass and bronze are often used for different purposes. Thermal conductivity is a good measure to know if a metal will be used in a thermal application because it shows how much energy can be transferred through the material, and at what rate. Brass has a much higher thermal conductivity than bronze, making it an ideal choice for heat sinks. Bronze can also be used for thermal applications, but if the choice is between the two, brass will always take precedence.

Fatigue stress is a stress caused by high cycling of small stresses, which can cause microscopic or even macroscopic fractures to the material over a long period of time. If the material will be under constant stress, such as frequent changes in temperature or load, this value is crucial to understand the integrity of the material, because as long as there is enough cycling, it will chip away at the integrity of the alloy. The fatigue strength ranges for bronze and brass are given in Table 1, as each metal has many alloys. Bronze typically has higher fatigue resistance than brass, as can be seen by comparing the lower limits of their fatigue strength ranges. This property makes bronze more suitable for marine components and springs, which are subjected to constant stress during use.

Brass has a lower average melting point than bronze (917 vs. 1010°C), but they are both easy to cast. If either of these two metals is used to cast a shape, consider the mechanical properties required; a more resilient project is most likely to benefit from bronze, while a more decorative project can use brass to great effect.

Hardness is a measure of how a material responds to local surface stresses, and how it reacts to scratches, dents, etc. The Brinell hardness tester is one of many hardness testers that use their own hardness indenter to rate the material’s response to standard forces. For reference, a typical glass scores 1500 on the Brinell hardness tester, while lead scores 5; using these as a benchmark, Table 1 clearly shows that bronze has a higher average hardness than brass. Harder materials are usually more brittle, and bronze follows this rule and breaks more easily than brass. If machinability is a necessity, then brass is a better choice than bronze. However, if strength and wear resistance are concerns, bronze may be a better choice.

Machinability is a comparative score given to metals to show how they respond to machining stresses such as turning, milling, stamping and other procedures. It is important to know a metal’s machinability score because it determines what types of machining, if any, can be performed. A metal’s machinability percentage is compared to a reference metal that is given a rating of 100% (easy to machine). A metal that is more difficult to machine is given a rating of less than 100%, as is the case with both bronze and brass. There are some alloys that were developed specifically for machining (such as brass alloy C360), but most copper alloys are too ductile to machine. Both of these metals have excellent casting properties, so consider the casting procedure before machining these metals. If machining is necessary, make sure the alloy you choose is made for machining, or you risk gumming up your mill.

Both bronze and brass come in many shapes, sizes and compositions. As always, ask your supplier for the latest information on what is available and which type of bronze or brass will work best for your application.

Attention should be paid to the processing of custom bronze bushing:

Everyone knows bronze set of high hardness, good wear resistance, it is not easy to produce killed the phenomenon, and it also has good casting properties and cutting the processing performance of it has strong corrosion resistance so it in the manufacturing process of the work is also very carefully, so in the process of its craft manufacturing we should need to pay attention to what?The first point: when casting the bronze bushing, each process must be carefully handled. For example, it is required to put the core right in the box to avoid the casting product cannot be processed according to the size due to this reason.The second point: before processing, the castings should be cleaned first, and then the castings should be put on the train. After the correction, the castings should be put on the train when the semi-finished products are processed, and then the castings should be cooled. Because the bronze has shrinkage property, the castings should be put on the train again at room temperature for accurate processing.The third point: after the finished product, especially the straight sleeve should be placed vertically if it cannot be placed horizontally to prevent deformation.The fourth point: packaging, to leave the quantity, avoid in the process of transport by the collision caused by the unexpected deformation.

Bronze Bushing & Bronze Bearing Pursue high technology & good brand, combine the best quality products & reasonable price. we warmly welcome the domestic and international merchants came to hold business talks. Short & Reliable Delivery. Safety Quality Assurance.

Bronze bushing divided into many type, including machine bronze bushing, custom bronze bearing and so on. Oil-lubricated bearings, used in various large and heavy machinery, is an important part of machinery. Bronze bushing sleeve, also known as bushes bronze sleeve, is divided into many types of bronze bushing, including machine bronze bushes, bronze bearing and so on. Used in all kinds of light industry, large, heavy machinery, is an important part of machinery. The custom bronze bushing product has the traditional tin-bronze bearing function, taking electrolytic bronze as raw material with a variety of trace metal elements, after high temperature sintering, through the pressure centrifugal casting processing. High hardness, excellent wear resistance, not easy to kill the phenomenon, has good casting performance and cutting performance, in the atmosphere and fresh water has good corrosion resistance. In the absence of lubricant and water lubricant conditions, good sliding and self-lubricating performance, easy cutting, poor casting performance, good corrosion resistance to dilute sulfuric acid. Structural bronze parts for general use, castings of simple appearance used in ships and instruments, such as sleeves, bushings, bearing bushes, sliders, etc.

Cast Bronze Bearings with Solid Lubricant Inserts! Maintenance-free bearing material for heavy duty applications Excellent performance under high loads and intermittent operation.

Also available with graphite inserts for temperatures above 250°C. Maintenance free bronze bearings with graphite grooves and graphite plugs are available. Graphite acts as a dry lubricant and provides permanent, maintenance-free lubrication. The internal grooves can be filled with a special curable graphite paste. Graphite plugs can be pressed into the bearing wall using a special epoxy resin binder. Typical plunger diameter is 7mm with 25% surface coverage. The graphite plugs can be placed around special features of your parts. Graphite bronze parts should be run dry with no oil or grease. Our graphite plug bearings typically have a coefficient of friction between 0.10 and 0.15, depending on a variety of factors affecting performance. Oil grooves are typically wider and deeper than oil grooves. This is to hold a supply of fat and ensure that the thick fat is pushed in. Oil grooves typically vary in width but are shallower than grease grooves. Most oil grooves operate in a constant loss or closed

Performance.

& Chemical Compositions
CuZn25Al6FeMn3

High Brass
CuZn25Al6FeMn3

Special Brass
CuSn5Pb5Zn5

Tin Bronze
CuAl10Ni

aluminium bronze
CuSn12

Tin bronze
Cast Iron HT250

EB00
Cu% 65 65 85 80 88
Sn% 5 12
Pb% 5
Zn% 25 25 5
Ni% 5
Al% 6 6 10
Fe% 5
Mn% 4 4
Dengity

g/cm
3
8.0 8.0 8.8 8.3 8.8 7.3
Hardness >210 >180 >70 >150 >80 >160
Tensile Strength >750 >550 >200 >500 >360 >250
Elongation >12 >12 15 >10 >8
Coeicient of

linear expansion
1.9·10 -5 /℃ 1.9·10 -5 /℃ 1.8·10 -5 /℃ 1.6·10 -5 /℃ 1.8·10 -5 /℃ 1.0·10 -5 /℃
Limit Temp. 300~400 300~400 400 400 400 400
Max. Load N/mm 2 100 80 60 50 70 10
Max. Speed m/min 15 15 10 20 10 15
Max. PV N/mm2·m/min 200 200 200 200 200 40
400N/mm2 <0.01 <0.01 <0.05 <0.04 <0.05 <0.015

Custom Size Options, machining bronze bushings and a supplier of solid bronze oilless bushes and plate delivered on time and on budget.

Oilless Bushing Alloy International Code

Chinese Code

GB1776-87
International counterparts Applications
International

ISO 1338
Japan

Jis
(USA)

ASTM (UNS)
German

DIN
CuZn25AI6FeMn3 CuZn25AI6FeMn3 H5102

CAC304
B30-92

C86300
DIN1709

G-CuZn25A/2.0598
High-load, low speed, general use
CuZn25AI6FeMn3 CuZn25AI6FeMn3 H3102

CAC304
B30-92

C86300
DIN1709

G-CuZn25A/2.0598
Super high load, low-speed, high

duty
CuAI10Fe3 CuAI10Fe3 H5114

CAC703
B30-92

95800
DIN1714

GB-CuAI10NI/2.1096
Medium load, medium-speed,

general use
CuSn5Pb5Zn5 QSn5-5-5 H5111

CAC406
B30-92

C83600
DIN1705

G-Cu5n5ZnPb/2.1096
Medium load, medium-speed
DB5675-85

HT250
Fe250 ASTM

class40
low-load, low-speed

Solid Bronze Bearing Applications

Solid Bronze Bearing Applications
Solid bronze bearings are ideal for oscillating applications, both axial and radial. General applications:
offshore
Dredging industry
mechanical engineering
elevators

Advantages of solid bronze bearings

The main advantages of solid bronze bearings include:
Unaffected by impurities
Suitable for corrosive environments
Suitable for shock loads and vibrations at low speeds
Has a groove to retain the lubricant

Request a custom bronze bearing prototype!

Engineering & Design: Custom Manufacturing Bearings:

Custom Bronze Bushing, Whether you’re interested in our self-lubricating bearing solutions or looking to build your own customizable project, let us assist you with a solution based on your specific application and requirements. Contact us today!

Learn more bronze bushing material

Customized Bushing, Oil Groove Bushings

Oil & Grease Groove Bronze Bushings / Bearings: In order to create a more perfect oil film between the bearing and the shaft, we recommend a V-groove whenever the design allows, as it allows the lubricant to flow fully on the bearing surface. Fast delivery with low prices and high precision brass bushings!

Learn more
bronze bushings with oil grooves

Cast Bronze Plain Sleeve Bearings – Online Sourcing

Custom solutions for your engineering needs.

Quality Engineered Bronze Bearings:

100%

“We received the best services we could hope for!”

Get in touch for a free quote

Specialists in Manufacturer Of Custom Bronze Bushings!

Our client focused client approach in all areas of the company is fundamental to fulfill with our commitments in both quality and delivery times.

Plan your customer size bearing bushing
Browse bronze bushing materials
Huge rental selection

Cast Bronze Bushings with Solid Lubricant Inserts. Standard Cast Bronze Bearings, grooved bronze bushings, lead-free bearings, Tin Bronze, metric and imperial. High-strength brass is a cast bronze alloy.

Earn passive income

This name is derived from Japanese industrial standards. In fact, it is the name of several types of cast aluminum brass (some are also marked with grades: #500SP).

24/7 support

The hardness and compressive strength of this type of brass alloy It is much higher than ordinary cast brass alloys, and the elongation is much smaller.

Oil Grooves & Grease Grooves

Browse, get a quote and order products easily in oil-free parts eCatalog

Offers a complete line of cast bronze bearings and slide plates. Cast bronze sleeve bearings, flange bearings, and custom parts are available with oil grooves or grease grooves. Maintenance-free self-lubricating bronze bearings with graphite filled grooves or graphite plugs are available.

  • Standard L-shaped plates

  • slide plate, self lubricating

cast bronze cnc bearing

Call us

24/7 emergency callout

  • + 86 (0)18258386757

  • +86 (0)57384499350
