Collar Bushing Project
Reliable & Safe Collar Bushings Solution Supplier
As a experienced professional collar bushing manufacturer, we produce almost all possible dimensions.

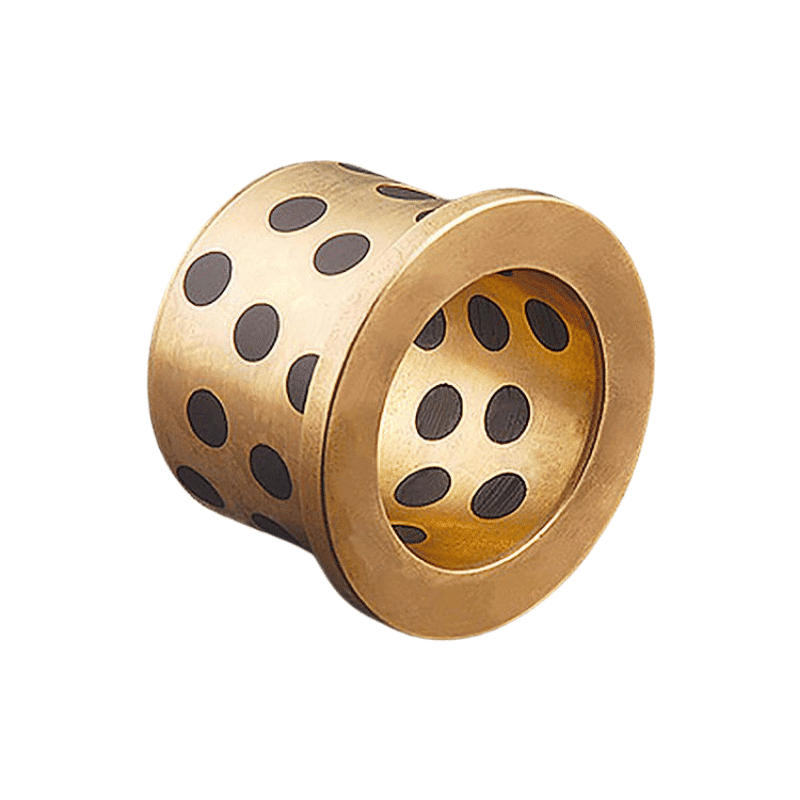

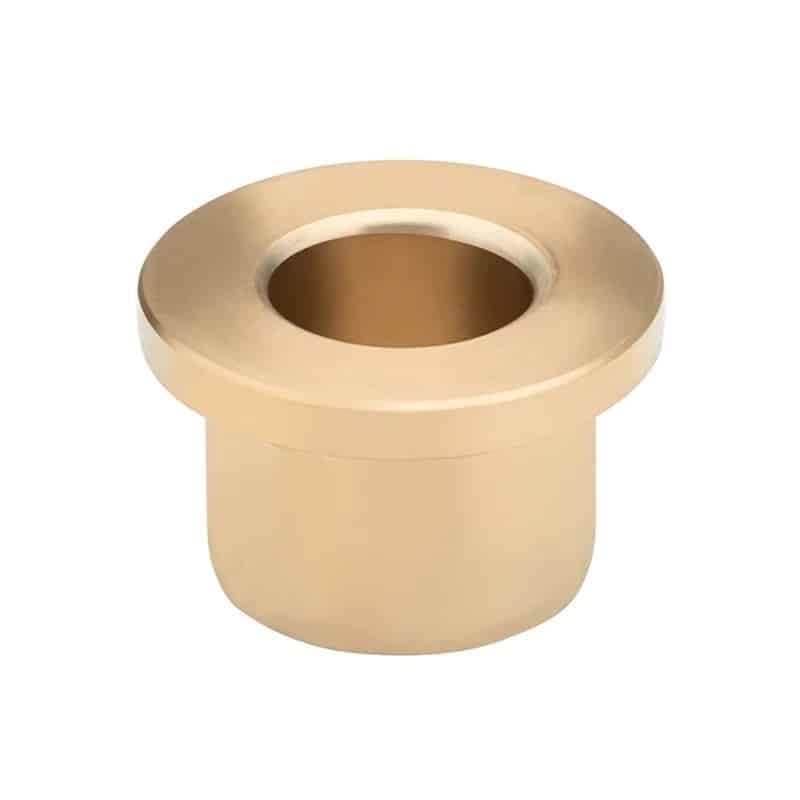

With a strong supply capacity in China, we are able to offer an extensive range collar bushings products to every industry,which include bronze bushing, self-lubricating bearings,plugged bronze graphite bushing, PTFE composite bushings and more.
Welcome to bronzelube.com
Bronzelube provide high-quality collar bushings solutions for small-scale procurement clients without middleman.
Standard collar bushings – Quality “Made in China”
High Quality Collar Bushings For Customers’s Needs.
Wholesale Suppliers Online, Stock In China.
Collar Bushings Design
Custom-made Collar Bushings Design
The PTFE-based sliding surface enables smooth running with low friction without lubrication. The presence or continuous supply of oil or other non-corrosive fluids can be beneficial and improve the performance of these collar bushings.

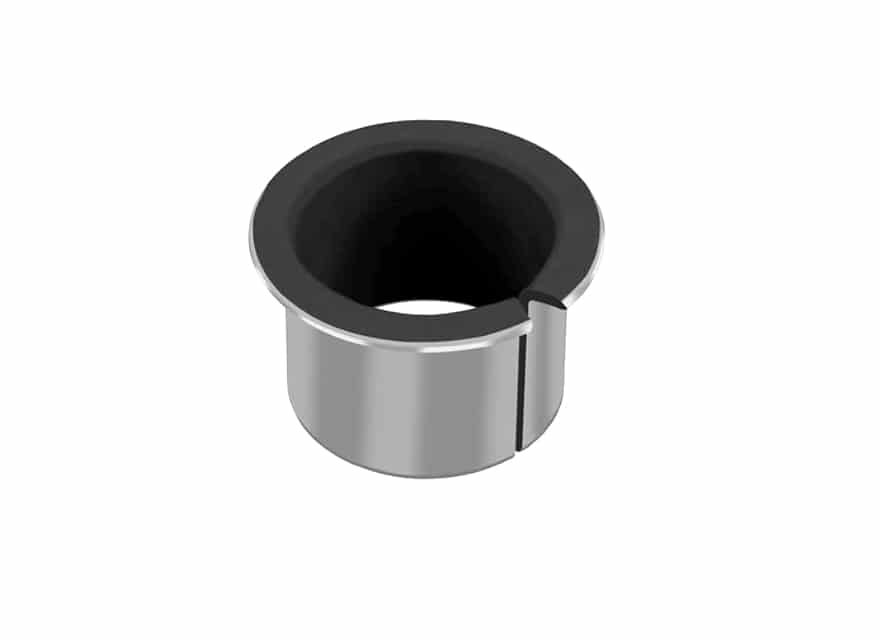

PTFE composite flanged bushing maintenance-free steel backing
Collar Bushings Characteristics
- Maintenance-free operation
- Very good frictional properties
- High load carrying capacity
- Operation temperatues up to 250°C
- Sliding velocity up to 2 m/s
- Small operating clearance
Choose from our selection of shaft collar bushings, including shaft collars, two-piece shaft collars, and more. In stock and ready to ship.

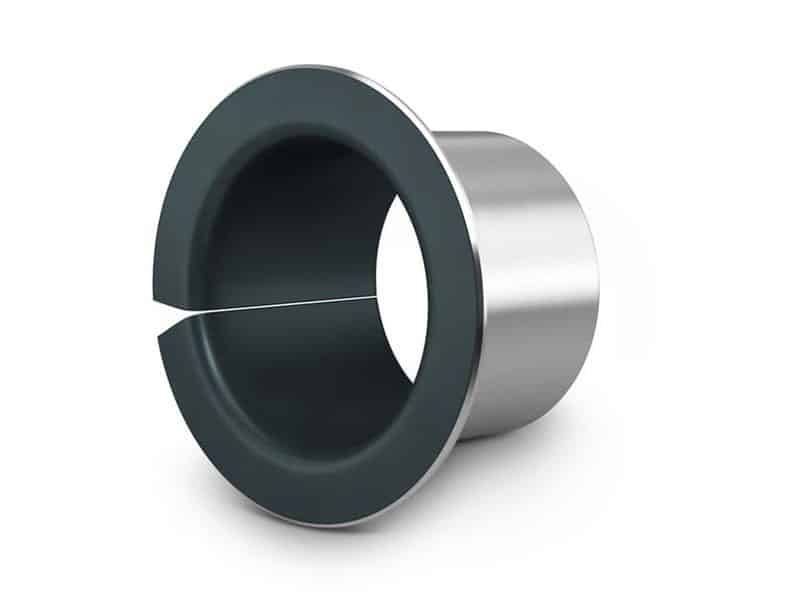

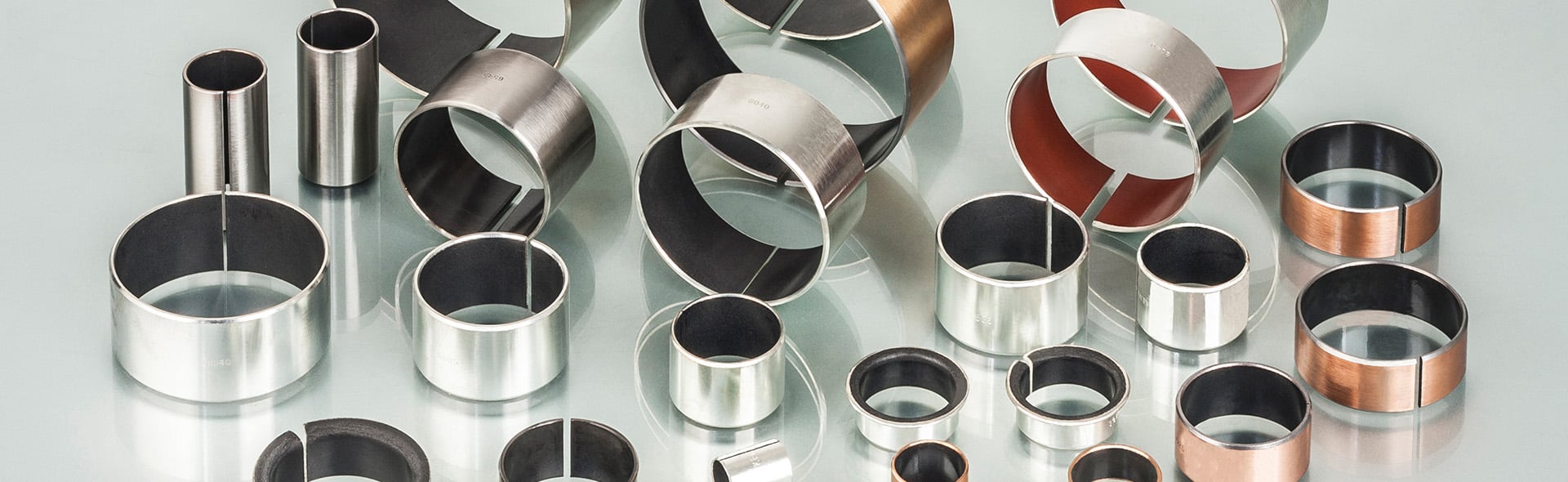

PTFE composite flanged bushing maintenance-free Collar Bushing – Wholesale Suppliers Online
Sliding sleeves are used for joints that require free movement of shafts or other rolling elements.The sleeve is made of composite or metal with self-lubricating material ptfe inserts.Usually, they do not require additional lubrication.

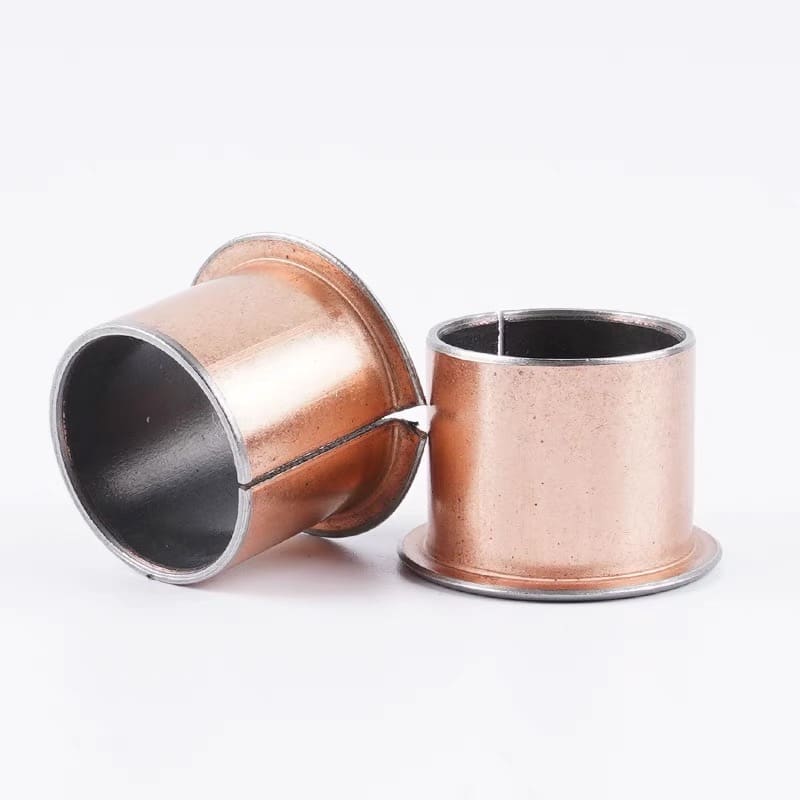

PTFE sleeve – a sleeve made of steel tape with pressed PTFE composite material.They also provide collar bushing.
Bushing Sizes range from 10 mm to 300 mm.Flange Size.Split Type
Collar Bushing Characteristics
The PTFE-based sliding surface allows smooth running without friction without lubrication. The presence or continuous feeding of oil or other non-aggressive fluids can be beneficial and improve the performance of these bearings.
Lead-free bearing is a new product developed on the basis of PTFE material according to international environmental requirements.This product is widely used in general machinery, especially in food machinery, pharmaceutical machinery, tobacco machinery.
Collar Bushing Material
Tread material: Polytetrafluoroethylene (PTFE)
- Polytetrafluoroethylene with lead and other filling mixtures 0.01-0.03mm
- Spherical bronze powder 0.2-0.3mm
- The steel back of 07-2.3 mm
- Electroplating: tin plating layer 0.005mm thick, or copper plating layer 0.008mm thick

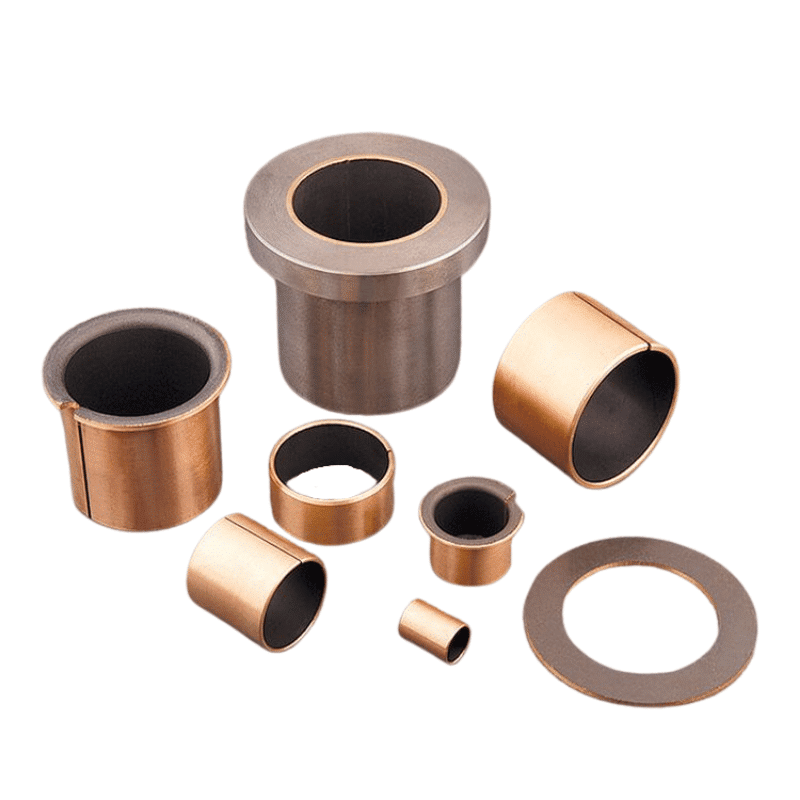

Self-lubricating Bearing Bushing Type
- Straight sleeve
- flanging sleeve
- thrust gasket
- slide plate
- other non-standard parts, etc.
Metric PTFE composite bushings – shaft and housing tolerances, operating clearance. Bushing dimensions. Diameter limits.

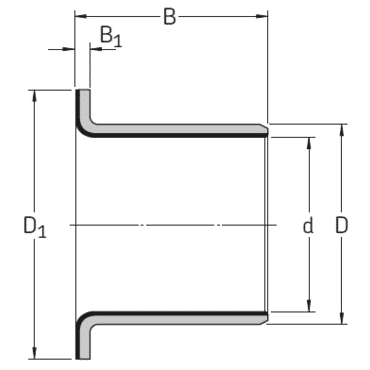

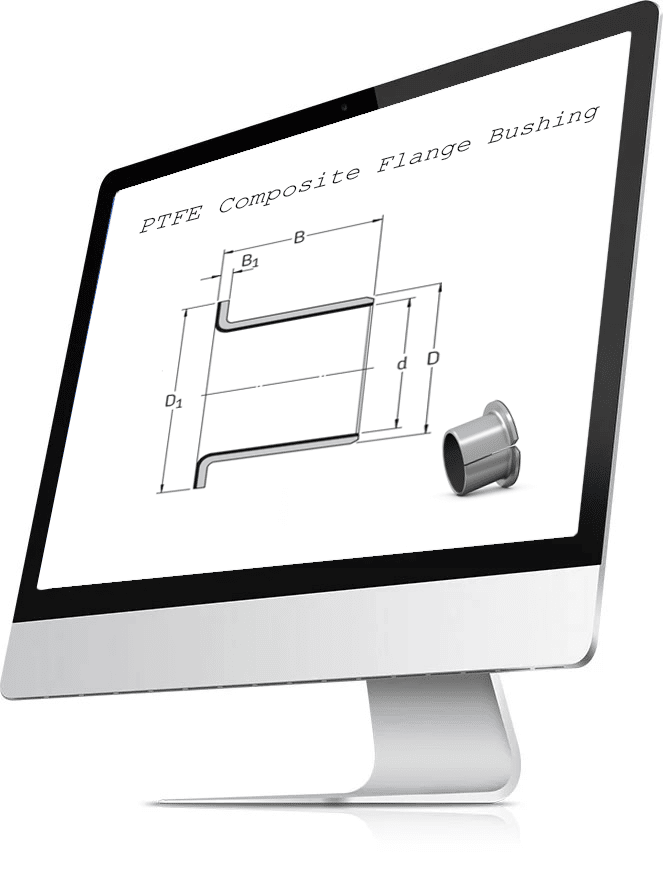

PTFE composite flange bushing,collar bushing–Dimensions
Shaft tolerance: f7 – h8
Housing tolerance: H7
Collar Bushing Bushings Lubrication
The PTFE-based sliding surface provides smooth operation with a low coefficient of friction without lubrication. During the short run-in phase, there will be some transfer of the PTFE material from the sliding contact surface to the opposite surface. After this transmission, the characteristic properties of these bearings with a low coefficient of friction and wear will be achieved.
The presence or continuous supply of oil or other non-corrosive fluids can be beneficial and improve the performance of these bearings.
Collar Bushing Advantages
- PTFE, fiber mixture in motion can form a good transfer film to protect the grinding shaft.
- Because it does not contain lead, it is harmless to humans.
- It has good load capacity and wear resistance.
- Copper and steel plates have good thermal conductivity.
- The coating on the surface has good corrosion resistance.
Collar Bushing Properties
|Permissible load (dyn/stat), N/mm2||80 (v ≤ 0,02) / 250|
|Permissible sliding velocity, m/s||2,0 (p ≤ 1,0)1)|
|Friction coefficient m||0,03 .. 0,25|
|Temperature range, °C||–200 .. +250|
Collar Bushing Application
PTFE composite bushings are suitable for applications where sliding material with self-lubricating properties is required.Application area examples for these bushings are:
- material handling equipement
- home appliances and consumer goods
- textile machinery
Bushing Bearings have been widely used in food machinery, medical machinery, tobacco machinery, beverage machinery and other green machinery.With the gradual development of international environmental protection, the replacement of sleeve parts.
