Graphite Slide Plate application, Brass Embedded Graphite Slide Bearing
- Automotive industry (tool guidance systems, body stamping)
- Injection molding machines and injection molds
- Mechanical engineering, steel and rolling mills
- Construction and stone industry
- Weir systems and hydraulic engineering
- Shipbuilding industry
- Welding technology
- Packaging industry
- Lifting and conveying technology
BRONZE PLATE DESIGN SERVICES
Maintenance-free sliding elements
Product Quality Index
Energy Generation
self-lubricating wear plate Supplier, Brass Embedded Graphite Bearing
Self-lubricating guide with copper alloy as the substrate, making full use of the sex of copper and the self-lubricating properties of solid lubricants, can be processed in the friction surface of a variety of oil grooves and oil holes and inlay solid lubricants, can adapt to different environmental working conditions, in the process of use without refueling maintenance. Such as steam locomotive production line, home appliances, automotive and other stamping stamping dies, SESW self-lubricating plate, self-lubricating copper guide plate, self-lubricating guide large metal extrusion equipment, hydraulic arc door, etc.. We provide standard parts for automobile moulds such as inclined wedge, concave and convex V-block, L-type guide plate. Steel backing as a substrate, the surface sintered CuPb10Sn10 or CuSn6Zn6Pb3 or CuPb24Sn4 lead-tin bronze alloy and QSn6.5-0.1, after several high-temperature sintering and dense rolling of copper, steel integrated bimetallic strip rolled, is an alloy bearing load-bearing capacity, suitable for bearing medium-speed, high-impact load bushings, thrust washers and many other types of Application. The product is used in the balance axle bushings of heavy vehicles, and is a kind of bearing for high load and low speed movement. In the higher sliding performance, lack of lubricating medium and water as the medium has a particularly good self-lubricating performance, suitable for bimetallic casting materials, SESW self-lubricating plate, self-lubricating copper guide plate, self-lubricating guide high sliding speed bearings, and crusher, water pump, cold rolling mill bearings, load up to 70MPa piston pin bush. Mainly used in heavy vehicle balance axle bushings, shims, automotive steel plate bushings, internal combustion engine main shaft tile, connecting rod bushings, rocker arm bushings, oil pump side friction plate, small and medium power internal combustion engine shaft tile, train engine shaft tile, air pressure machine shaft tile, refrigeration machine, etc..

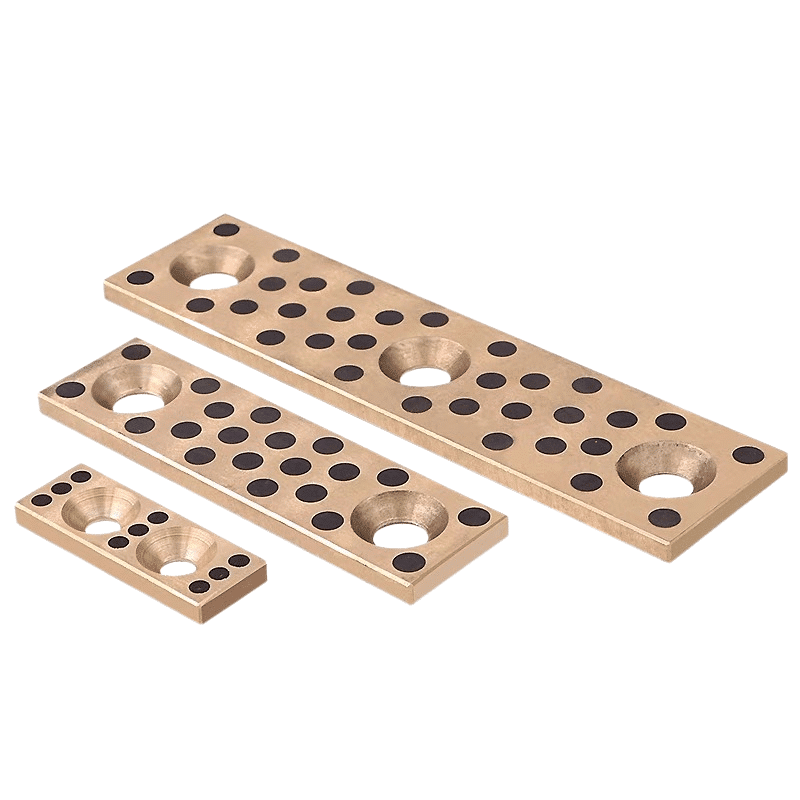

Wear Plate & Wear Products, Brass Embedded Graphite Plate
Manufacturer of Oilless Wear Plate – Graphite Filled Bronze Wear Plate, Graphite Embedded Bronze Wear Plate, Graphite Impregnated Bronze Wear Plate, trusted manufacturers of wear plate and bronze plates. Wear Plate self-lubricating are available in inch or metric sizes to meet the your request.
Bronze Wear Plates – Press Die Components
Custom solutions for your engineering needs.
Find good price die set components supplier. The Online Shop for Self Lube Wear Plates Graphite, for various graphite grades and plate. High quality – low prices. Reliable Service. Graphite Thrust Bearings – For High Temp Applications
Graphite impregnated oil embedded sleeve bearings – what you should know
Graphite-impregnated oil-embedded sleeve bearings are friction-reducing devices that help keep the machinery running smoothly and efficiently. By adding graphite to the bearing material, Graphite impregnated oil embedded sleeve bearings reduce sliding friction and provide longer and smoother operation of your machinery.
If you are looking for oil-impregnated bronze bushings that can help improve the performance of your machinery, please contact us today. We would be happy to discuss our Graphite impregnated oil embedded sleeve bearings and help you find the right solution for your needs.
Graphite impregnated bearings
What is a Graphite impregnated oil embedded sleeve bearings?
A graphite-impregnated bearing is a carbon graphite sleeve bearing that uses graphite to lubricate the bearing surfaces. The graphite is inserted into the bearing body, usually through a plug, to form a film that reduces friction and wear. graphite-impregnated bronze oil-embedded sleeve bearings are used in applications where a reliable source of lubrication is not available, such as vacuum pumps and motors. They are also used in high-temperature applications where other types of bearings would fail due to loss of lubricant. They are self-lubricating, which means they do not require an external source of lubrication. They can also withstand high temperatures and can be operated without fear of seizure or failure. However, they are more expensive than other types of bearings and require careful mounting to ensure that the graphite is evenly distributed over the bearing surface.
Benefits of using graphite impregnated bronze bearings.
In many industrial applications, bearings are subjected to heavy loads and extreme temperatures. To ensure reliable operation, it is important to select a bearing material that can withstand these conditions. One option that is often used in high-temperature applications graphite impregnated bronze bushes. This type of bearing is made by injecting graphite into the pores of a metal surface. The resulting composite material has a number of advantages over conventional bearings. First, it has a lower coefficient of friction, which reduces wear and energy loss. Second, it is more resistant to corrosion and erosion. Third, it can operate at higher temperatures without deformation. Finally, it does not require lubrication, which can save time and money. For these reasons, graphite impregnated bronze bushes are the best choice for high-temperature applications.
How do graphite impregnated bearings work?
Graphite is a lubricant and impregnating bearings with it helps reduce friction. Graphite forms a thin film that covers the bearing surface and this film acts as a barrier between the metal surfaces. The result is less friction, which allows the bearing to spin more smoothly. In addition, the graphite film helps to dissipate heat and prevents the bearing from overheating. Graphite impregnated bearings are typically used in high speed applications where the reduced friction helps to improve efficiency.

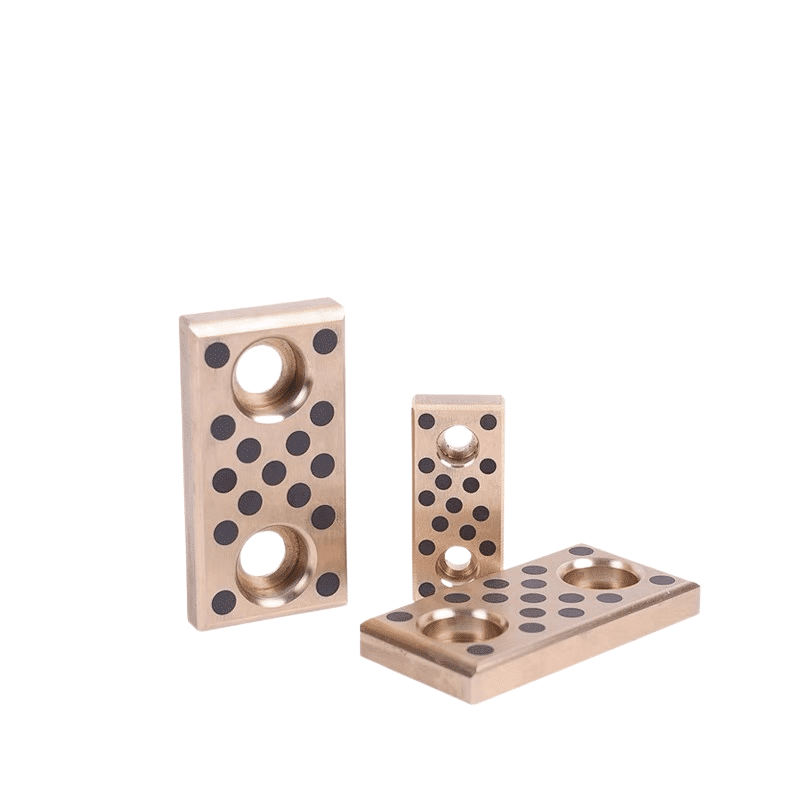

Graphite impregnated bronze Wear Plates

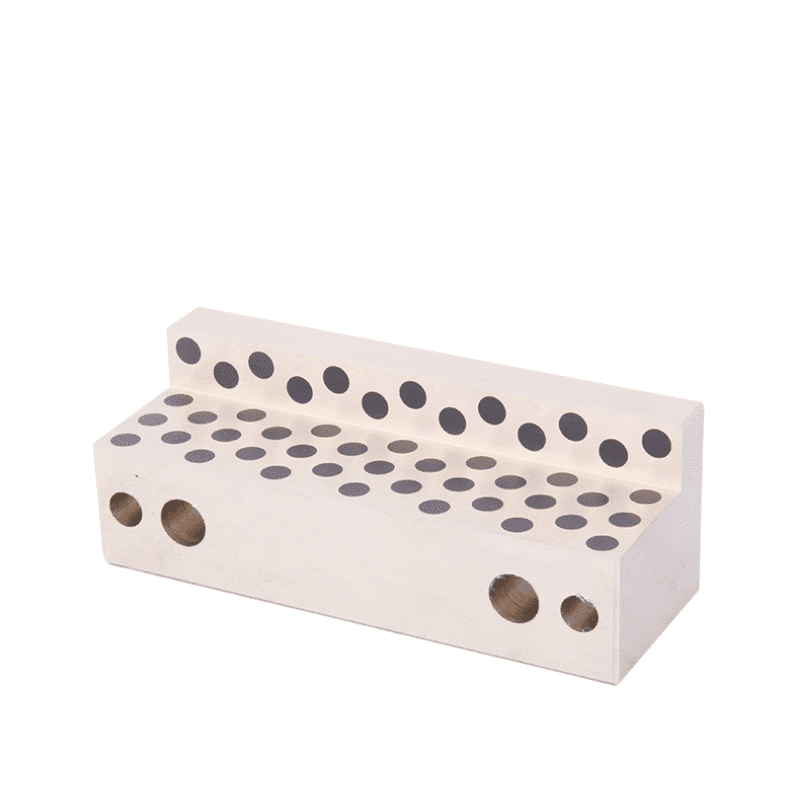

graphite Wear Plates
Tips for choosing the right graphite impregnated bearing for your application.
1. Consider load capacity. You need to know the maximum weight that will be placed on the bearing in order to select a bearing that will support that load.
2. Consider the speed. Graphite-impregnated bush are designed for high-speed applications, so if you are looking for a bearing for a low-speed application, this type of bearing is not right for you.
3. Choose the right material. The material of the bearing is important for both its strength and its ability to withstand wear.
4. 4. Consider the environment. Graphite-impregnated bearings are corrosion-resistant, but they may not be suitable for all environments. Be sure to consider any potential exposure to chemicals or other corrosive materials.
5. Get the right size. Bearings come in a variety of sizes, so you need to make sure you choose the right one for your application.
We are processing the bronze plates. Chose to work with us for high standards on staff skills, processing quality, and more. On-site services. Engineering and design. Fast delivery.
Material | ZCuZn25AI6Fe3Mn3+ Graphite |
Standard No. | W | L | A | B | C | D | E | ||
Flat Head Screw | No. of Holes | ||||||||
JSP Bronze Plate-1875 | 75 | 15 | 45 | ||||||
JSP Bronze Plate-18100 | 18 | 100 | 20 | 60 | |||||
JSP Bronze Plate-18125 | 125 | 25 | 75 | ||||||
JSP Bronze Plate-18150 | 150 | 100 | M6 | ||||||
JSP Bronze Plate-2875 | 75 | 15 | 45 | 2 | |||||
JSP Bronze Plate-28100 | 28 | 100 | 50 | ||||||
JSP Bronze Plate-28125 | 125 | 25 | 75 | ||||||
JSP Bronze Plate-28150 | 150 | 100 | |||||||
JSP Bronze Plate-35100 | 100 | 60 | |||||||
JSP Bronze Plate-35150 | 150 | 55 | 3 | ||||||
JSP Bronze Plate-35200 | 35 | 200 | 20 | 55 | 50 | 55 | M8 | 4 | |
JSP Bronze Plate-35250 | 250 | 70 | 70 | 70 | 4 | ||||
JSP Bronze Plate-35300 | 300 | 65 | 65 | 65 | 65 | 5 | |||
JSP Bronze Plate-35350 | 350 | 80 | 75 | 75 | 80 | 5 | |||
JSP Bronze Plate-3875 | 75 | 15 | 45 | ||||||
JSP Bronze Plate-38100 | 38 | 100 | 50 | ||||||
JSP Bronze Plate-38125 | 125 | 25 | 75 | ||||||
JSP Bronze Plate-38150 | 150 | 100 | M6 | ||||||
JSP Bronze Plate-4875 | 75 | 15 | 45 | 2 | |||||
JSP Bronze Plate-48100 | 48 | 100 | 50 | ||||||
JSP Bronze Plate-48125 | 125 | 75 | |||||||
JSP Bronze Plate-48150 | 150 | 100 | |||||||
JSP Bronze Plate-50100 | 100 | 60 | |||||||
JSP Bronze Plate-50150 | 150 | 3 | |||||||
JSP Bronze Plate-50200 | 50 | 200 | 4 | ||||||
JSP Bronze Plate-50250 | 250 | 70 | 70 | 70 | 4 | ||||
JSP Bronze Plate-50300 | 300 | 65 | 65 | 65 | 65 | 5 | |||
JSP Bronze Plate-50400 | 400 | 20 | 90 | 90 | 90 | 90 | M8 | 5 | |
JSP Bronze Plate-75150 | 150 | 110 | 4 | ||||||
JSP Bronze Plate-75200 | 200 | 80 | 80 | 6 | |||||
JSP Bronze Plate-75250 | 75 | 250 | 105 | 105 | 6 | ||||
JSP Bronze Plate-75300 | 300 | 85 | 90 | 85 | 8 | ||||
JSP Bronze Plate-75400 | 400 | 120 | 120 | 120 | 8 | ||||
JSP Bronze Plate-75500 | 500 | 115 | 115 | 115 | 115 | 10 |
Professional Graphite Plates Products Manufacturer. All Types & Competitive Price. Reasonable Price. Strict Quality Control. Professional service. Deliver on time.
Standard No. | vv | L | Bole Hole | Bolt | |||||
a | b | C | d | Size | Number | Type | |||
JSL-20x 100 | 100 | 60 | — | — | — | 2 | |||
JSL-20x 150 | 20 | 150 | 55 | — | — | M8 | 3 | A | |
JSL-20x 200 | 200 | 50 | 55 | — | 4 | ||||
JSL-30x 100 | 100 | 60 | — | — | — | 2 | |||
JSL-30x 150 | 30 | 150 | 55 | — | — | 3 | B | ||
JSL-30x 200 | 200 | 55 | 50 | — | 4 | ||||
JSL-30x 250 | 250 | 70 | 70 | 70 | — | M10 | 4 | ||
JSL-45x 200 | 200 | 50 | 55 | — | 4 | ||||
JSL-45x 250 | 45 | 250 | 70 | 70 | 70 | — | 4 | C | |
JSL-45x 300 | 300 | 65 | 65 | 65 | 65 | 5 | |||
JSL-45x 350 | 350 | 80 | 75 | 75 | 80 | 5 |
Product Description
Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuZn32Al5Ni3 |
Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
HB hardness | >210 | >70 | >150 | >95 | >280 |
Tensile strength N/mm2 | >750 | >200 | >600 | >260 | >540 |
Yeild strength N/mm2 | >450 | >90 | >260 | >150 | >450 |
Elongation % | >12 | >15 | >10 | >8 | >0.3 |
Coefficient of linear expansion |
1.9×10-5/°C | 1.8×10-5/°C | 1.6×10-5/°C | 1.8×10-5/°C | 1.8×10-5/°C |
Max. temp. | -40~+300 | -40~+400 | -40~+400 | -40~+400 | -40~+150 |
Max. load N/mm2 | 100 | 60 | 50 | 70 | 150 |
Max. speed (Dry) m/min | 15 | 10 | 20 | 10 | 15 |
Max. PV N/mm2*m/min (Lubrication) |
200 | 60 | 60 | 80 | 200 |
Compression deformation 300N/mm2 |
<0.01mm | <0.05mm | <0.04mm | <0.05mm | <0.005mm |

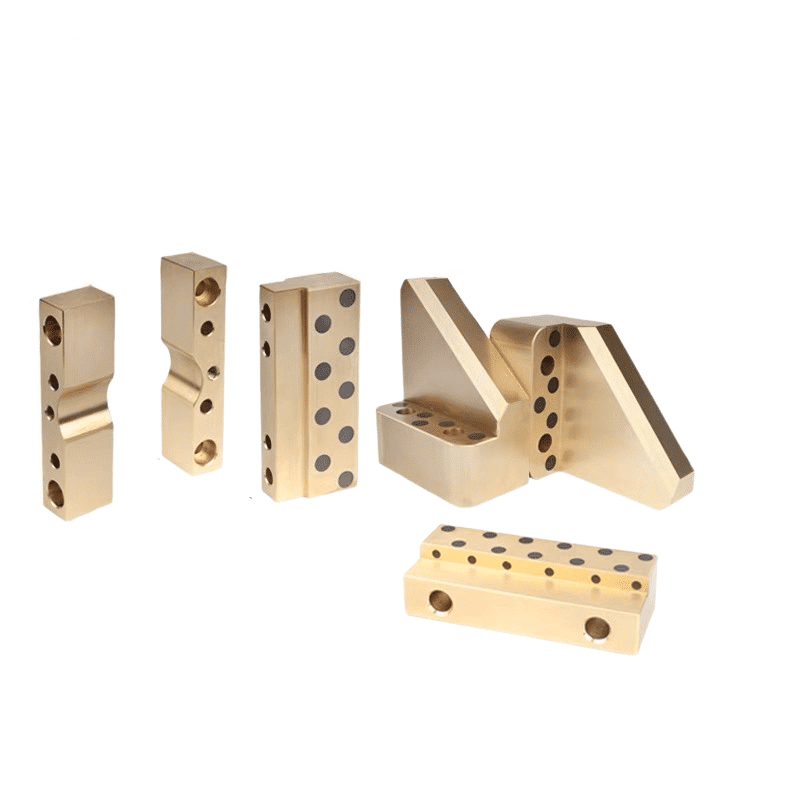

Oil-free Plate, Standard Components for Press Die
Trusted & Reliable Graphite Wear Plate Supplier
Trusted handyman services
Oil Free Slide Plates – Select, configure, order. We delivers punctually and offers fair prices.
Oil-free components are produced by embedding a special solid lubricant at appropriate locations.
Flanged Bearing & Wear Plate
with Graphite plugs
Beautifully crafted leather products.
Graphite Bearings – Bearings Hi Temp Applications, Brass Embedded Graphite Bearing CuZn25Al5, is the basic alloy in all stocked bronze bearings products. CuZn25Al5 + graphite, Graphite Plugged Bushings / Bearings, Graphite impregnated bronze wear plate, Plug Graphite Bearings!
If another alloy is wished for, we can offer most alloys and special sizes acc. to your requirements. Shaft e7-f7 and Housing H7! Wear Plate made by bronzelube.com – Graphite or Grease Grooves, Graphite Bearings – Graphite or Grease Grooves, Manufactured To Your Specs!
Switch to Oil-free Bronze Plates – Metal Brass Friction Plate
Graphite Bronze Plate- Reduced Costs & Downtime,
Graphite Bearings – Wear Plate in High & Low Temps
Standard Components & bronze graphite bushing for Press Die, Graphite Bushes, Die Guide Components. Die set components, oilless plates for sale! Water Lubricated Bearings Bronze Graphite Non-Liquid Lubricant Plate Wear Plate for Mold Oilless Guide Sliding! Shop for all your Oil-Free Slide Plates and Oil-free Slide Plates needs. We offers free CAD design. Type: Copper alloy plate• Graphite Plug Plate! Graphite Plate Outperforms Ordinary Graphite Bushings and Bearings. Increased productivity. Reduced costs & downtime. Services: Custom Design, Engineering Support, Short Lead Times.
Type | Base Material |
Application range
|
Physical Properties
|
||||||||
maximum allowable load | maximum allowable sliding speed | maximum allowable PV value | Limit Temperature | Specific gravity | Hardness | Elongation | Tensile strength | Coefficient of linear expansion | |||
N / mm2 | m / min | N / mm2 m / min |
0c | % | N / mm2 | 10 -5/ 0c | |||||
Solid Lubricant Bearing | Metal | Copper Alloy | 100 | 15 | 200 | 300 | 8.0 | HB 210 or more | 12 or more |
775 or more |
1.9 |
FG260 | 5 | 50 | 50 | 400 | 7.1 – 7.3 |
HB 100 -200 |
———– | 150 -250 |
1.0 | ||
Case Hardening Steel | 30 | 10 | 60 | 400 | 7.8 | HRC 55 or more | 17 or more |
700 or more |
1.1 |
Oilless Bearing | Slide Bearing With Lubrication | Roll Bearing | ||
Lubricatiting Conditions | Acceptable without lubrication | Lubrication is required | Acceptable without lubrication on some cases | |
Bearing Conditions | Lord resistance | Good for extreme high load | Depend on lubrication and speed | Not good |
Speed resistance | Good for low / medium speed | Good for medium / high speed | Good for medium / high speed | |
Oscillating characteristics | Good | Not Good | Not good | |
Intermittent operation | Good | Not Good | Good | |
Reciprocating operation | Good | Not Good | Not good expect for special bearing | |
Impact resistance | Good | Good | Not good | |
Fretting resistance | Good | Good | Not good | |
Coefficient of friction | Relatively high | Depends on lubrication, load and speed | Very small | |
Environment Conditions | Heat resistance | Good depending on the type | Depends on oil heat resistance | Not good |
Corrosion resistance | Good depending on the type | Good depending on the type | Not good | |
Waterproof | Good | Not good except for special bearing | Waterproof is required | |
Soundproof | Good | Good | Not good | |
Effect by foreign matter | Minor | Minor | Large | |
Mating Material | Material | Usually special steel | Usually special steel | Normal steel |
Surface finish | 3-12 µ mR max | 3 µ mR max or less | 6-12 µ mR max | |
Shape of material | Max. size | Generally unlimited | Generally unlimited | Limited |
Limitation to shape | Generally unlimited | Generally unlimited | Limited | |
Fitting | Clearance | Ralatively large | Relatively small | Extremely small |
Tolerance | Varies depending on the type | Relatively good | Good |
Graphite Filled Bronze Bushes / Plates, Base Material Special Brass (SO#50SP2)
Oilless Technology – Tech up, Cost Down
Need Assistance? Call Or Email Us Engineering Support Available
Open Type Brass Embedded Graphite Bearing is Suited for Submerged and High-Temperature Applications. Increased productivity. Reduced costs & downtime. Services: Custom Design, Engineering Support.
The Brass Embedded Graphite Bearing offer continuous lubrication over long periods without maintenance. Our Catalog National Enduralube Catalog plug graphite bearings.
Article properties: |
Sliding speed v 30 m/min |
Base Material Special Brass (SO#50SP2) |
Self-lubricating Yes |
Lubricant Graphite |
Surface Pressure P 100 N/mm² |
P*v-value 200 N/mm² x m/min |
Operating temperature -50°C / +200°C (max. 300°C) |
Friction coefficient 0,07 |
