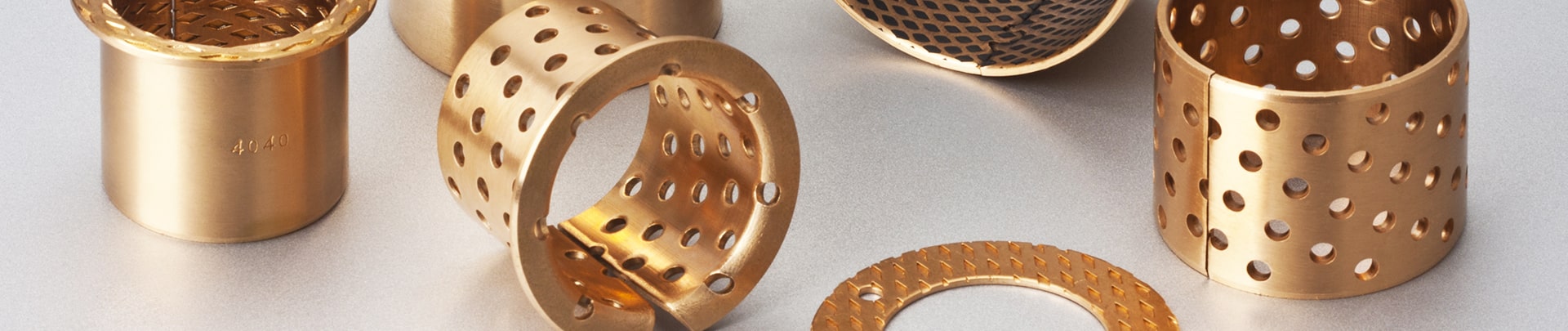

CUSN8 Material /CUSN6 Bronze Bushing Made To Order Alloys

Trusted & Reliable CuSn8 Material Bushings – Metric CuSn8 Bronze Bushing Supplier

Trusted handyman services

Custom Bronze Bushing, Find out all of the information about the bronze bushing product: flange bushing with lubricating holes. Contact a supplier or the parent company directly to …

Oil-free Flange Bushing & Sleeve Bushing Online Sourcing

CuSn8 Bronze Flange Bushing – Durable, Reliable, Lightweight

Experience Durability with CuSn8 Bronze Bushings! – Looking for bearings that last? Try our CuSn8 Material Bronze Bushing Flange Bearings. Perfect for high wear resistance and strength. Order now for enhanced mechanical performance! Range of flange bushing, metric, solid bronze bushings for maintenance-free industrial operations. CuSn8, also known as CW453K, is a type of bronze alloy. It is primarily composed of copper (Cu) and tin (Sn) with small amounts of other elements. We offering a range of CuSn8 bronze bearings sizes and configurations to suit different applications.

– Enhance your equipment’s efficiency with our high-quality CuSn8 Bronze Bushing Flange Bearings. Exceptional corrosion resistance and strength. Click to discover our range!

Upgrade Your Machinery with CuSn8 Flange Bearings!

CuSn8 Bronze Bushing Parts Selection

CuSn8 Material Sleeve Bearings – Flange Bushing Metric Industrial Supply

  • Product Type: Flanged bush, self lubricating, CuSn8 is a bronze alloy primarily composed of copper and tin, known for its mechanical properties such as wear resistance and tensile strength. It finds applications in industries where these properties are essential, such as in the manufacturing of bearings and bushings.

  • Material: Copper alloy, Good Load Carrying Capacity: Phosphor bronzes like CUSN8P have excellent load carrying capacities. This makes them ideal for use in flange bushings, which often have to support high loads.

  • Corrosion Resistance: This material is highly resistant to corrosion, making it an excellent choice for applications where the bushing may be exposed to corrosive substances or conditions.

  • Thermal Conductivity: CUSN8P has good thermal conductivity, which means it can effectively dissipate heat and prevent overheating during operation.

cusn8 bronze bearings flange bushes - metric. Bushings, bronze plain bearing material CuSn8 with lubrication holes

Price and delivery time on request

Flange Bushing /Lubrication-Hole Bronze Bearing Bushing

CuSn8, a bronze bushing material, is a copper-tin alloy primarily composed of 91-93% copper (Cu) and 7-9% tin (Sn). This composition grants CuSn8 several advantageous mechanical properties, such as robust wear resistance, high tensile strength, and notable corrosion resistance. These characteristics make it highly suitable for various mechanical uses. Specifically, CuSn8 is frequently utilized in the production of bearings, bushings, and other parts that demand both durability and low friction. Additionally, in European standards, CuSn8 is recognized by its copper equivalent designation, CW453K.

Flange bushings made from CUSN8P can be used in a variety of applications, including machinery, vehicles, and other mechanical systems. The specific design of the flange bushing can vary depending on the application, including factors like the size of the flange, the length of the bushing, and the diameter of the inner and outer races. FB092 CuSn8 bronze coil bushing is a kind of economic bearing with high load bearing and good wear resistance. Standard product work surface is covered with regular oil holes, during the initial movement can easily form an oil film to reduce the initial friction factor.

Thin wall design roll made, can meet the requirements of low precision, cost sensitive occasions. The through-hole is designed for thin oil lubrication and reduces adhesion wear by rapidly establishing an oil film. The inner hole can be reprocessed as required. The copper alloy base material has good corrosion resistance and thermal conductivity. It is recommended that the process be lubricated regularly with thin oil, suitable for medium and low speed working conditions.

Sleeve Bushing Selection

Special CuSn8 Bronze Bushing Bearing with Groove, Need bearings that can withstand the test of time?

  • Product Type: Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. DIN 1494 / ISO 3547 Standard: These bearings may adhere to DIN 1494 or ISO 3547 standards, ensuring compatibility and interchangeability in various systems

  • Material: CuSn8P, High Fatigue Resistance: CUSN8P bronze has high fatigue resistance, meaning it can endure repeated stress and strain without breaking down or failing, which is often required in many mechanical systems.

  • Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. Grease Reservoirs: Some CuSn8 bronze bearings come with grease reservoirs, which further enhance their lubrication and extend their service life

  • It is suitable for high load, lower speed application like construction, transport, and agriculture machinery. Discover the Strength of CuSn8 Bronze Bearings! Our CuSn8 Material Bronze Bushing Flange Bearings are your solution. Superior corrosion resistance for long-lasting use. Order now and experience the difference!

cusn8 bronze plain bushes Bronze bearings made of CuSn8 with lubrication indents

Maintenance and lubrication

Flanged bush, self lubricating

A flange bushing made from CUSN8P, also known as phosphor bronze or tin bronze, is a particular type of bushing bearing that has a flange at one end. This flange helps to locate the bushing accurately, and it also increases the surface area of the bushing, which can help distribute loads and reduce wear.

Phosphor bronze (CUSN8P) is a popular material choice for bushings due to its exceptional mechanical properties and resistance to wear and tear. Here are some key features of a CUSN8P flange bushing:

FB092 CuSn8 bronze rolling bushing is widely used in lifting equipment and construction machinery, automobile industry, tractors, trucks, agricultural machinery and mining equipment and other fields. We can customize bushing, bushing, flanging bushing, thrust gasket and other types of products according to customer requirements.

Applications: CuSn8 bronze bearings are commonly used in various industries, including automotive, machinery, and industrial equipment. They can be found in bushings, bearings, and other sliding components.

CuSn8 Bronze Material

CUSN8, also known as phosphor bronze or tin bronze, is a type of bronze alloy known for its exceptional strength, durability, and resistance to wear and tear, making it an excellent choice for bushing bearings.

A bushing bearing, also often simply referred to as a bushing, is a type of plain bearing that allows for rotational or sliding motion with low friction. They are typically cylindrical in shape, creating a sleeve that provides a smooth, stable surface for other components to move against.

Here are some reasons why CUSN8 bronze is often used for this purpose:

  1. Resistance to wear and fatigue: Phosphor bronze exhibits superior resistance to wear, fatigue, and deformation under load, making it ideal for high-stress applications like bushing bearings.
  2. Corrosion resistance: CUSN8 bronze is also highly resistant to corrosion, including in marine environments. This means that bearings made from this material can withstand challenging conditions without failing.
  3. Good machinability: This material can be easily cut, drilled, and otherwise machined, making it a convenient choice for manufacturing bearings.
  4. Excellent thermal conductivity: CUSN8 bronze has good thermal conductivity, which means it can effectively disperse heat, preventing overheating in high-speed or high-load applications.

Remember, the choice of material for a bearing will depend on the specific application and the conditions it will operate under. Other factors such as cost, availability, and size constraints may also play a role.

Solid Bronze Strip Bearings with Perforation: Enhancing Wear Resistance and Lubrication Efficiency

Solid bronze strip bearings with perforation offer improved performance compared to traditional CuSn8 material bronze bearings. These bearings are designed to provide excellent wear resistance and efficient lubrication, making them an ideal choice for various applications. This article explores the features and advantages of solid bronze strip bearings with perforation, highlighting their enhanced performance and lubrication capabilities.

Enhanced Wear Resistance: Solid bronze strip bearings with perforation are specifically engineered to offer superior wear resistance. The solid bronze strip construction ensures high strength and durability, enabling the bearings to withstand heavy loads and harsh operating conditions. This enhanced wear resistance contributes to extended bearing life and reduced maintenance requirements.

Efficient Lubrication: The perforation in solid bronze strip bearings serves as a grease reservoir, enhancing the lubrication process. These grease reservoirs retain and distribute lubricants throughout the bearing surface, ensuring smooth and efficient operation. The improved lubrication capability minimizes friction, reduces wear, and provides better performance compared to traditional CuSn8 bronze bearings.

Advantages over CuSn8 Material Bronze Bearings: Solid bronze strip bearings with perforation offer several advantages over CuSn8 material bronze bearings:

  1. Enhanced Lubrication Efficiency: The grease reservoirs in solid bronze strip bearings allow for improved lubrication efficiency. This results in reduced friction, lower operating temperatures, and extended bearing life compared to CuSn8 material bronze bearings.
  2. Higher Load Capacity: The solid bronze strip construction provides higher load-bearing capacity, making these bearings suitable for heavy-duty applications. They can withstand greater loads without compromising performance, ensuring reliable operation in demanding conditions.
  3. Extended Service Life: The combination of enhanced wear resistance and efficient lubrication contributes to a longer service life for solid bronze strip bearings with perforation. These bearings exhibit excellent durability, minimizing the need for frequent replacements and reducing downtime.

Applications: Solid bronze strip bearings with perforation find applications in various industries and mechanical systems, including:

  1. Automotive Industry: These bearings are used in automotive components such as engine parts, suspension systems, and gearbox assemblies. The improved wear resistance and lubrication efficiency make them suitable for high-performance automotive applications.
  2. Industrial Machinery: Solid bronze strip bearings are utilized in industrial machinery, including pumps, compressors, conveyors, and machine tools. Their robust construction and enhanced lubrication capabilities ensure reliable performance and reduced maintenance.
  3. Marine and Offshore: These bearings are suitable for marine and offshore applications, where corrosion resistance and reliable lubrication are essential. They can withstand the harsh conditions associated with saltwater environments and provide dependable performance.

Conclusion: Solid bronze strip bearings with perforation offer improved wear resistance and lubrication efficiency compared to traditional CuSn8 material bronze bearings. With their enhanced load capacity, extended service life, and efficient lubrication capabilities, these bearings are a reliable choice for various applications. Whether in the automotive industry, industrial machinery, or marine and offshore environments, solid bronze strip bearings with perforation provide superior performance and contribute to smooth and efficient operation.

CuSn8 Flange Bronze Bushing: A Versatile Solution for Efficient Friction Management

CuSn8 flange bronze bushings are widely recognized for their versatility and efficiency in friction management. With their unique composition and flanged design, these bushings offer numerous benefits for a wide range of applications. This article explores the features and advantages of CuSn8 flange bronze bushings, highlighting their suitability and performance in various mechanical systems.

Composition and Construction: CuSn8 flange bronze bushings are composed primarily of copper (Cu) and tin (Sn). The CuSn8 alloy is known for its excellent mechanical properties, including high strength, good corrosion resistance, and superb wear resistance. The flanged design of these bushings provides additional support and stability during operation.

Advantages of CuSn8 Flange Bronze Bushings:

  1. Excellent Wear Resistance: CuSn8 flange bronze bushings exhibit outstanding wear resistance, making them suitable for applications with demanding operating conditions. The CuSn8 alloy’s inherent hardness and wear-resistant properties ensure extended service life and minimal frictional wear.
  2. Self-Lubrication Capability: The CuSn8 alloy contains embedded solid lubricants, such as graphite or other additives, which provide inherent self-lubricating properties. This self-lubrication reduces the need for external lubrication, resulting in lower maintenance requirements and improved operational efficiency.
  3. High Load-Carrying Capacity: CuSn8 flange bronze bushings are designed to handle high radial loads effectively. The flanged design adds rigidity and support, enabling the bushings to withstand heavy loads and maintain stable performance even in challenging applications.
  4. Corrosion Resistance: The CuSn8 alloy offers good corrosion resistance, making these bushings suitable for use in various environments, including those exposed to moisture or corrosive substances. The corrosion resistance ensures reliable performance and extends the bushings’ operational life.
  5. Versatile Applications: CuSn8 flange bronze bushings find widespread applications across multiple industries. They are commonly used in automotive components, machinery, hydraulic systems, construction equipment, and many other mechanical systems. The versatility of CuSn8 flange bronze bushings makes them a preferred choice for various friction management needs.

CuSn8 flange bronze bushings provide a versatile and efficient solution for friction management in diverse mechanical systems. With their excellent wear resistance, self-lubricating capability, high load-carrying capacity, and corrosion resistance, these bushings offer reliable performance and extended service life. Whether in automotive, industrial, or construction applications, CuSn8 flange bronze bushings contribute to smooth operation, reduced friction, and enhanced durability. When it comes to efficient friction management, CuSn8 flange bronze bushings are a trusted choice for maintaining optimal performance and ensuring reliable operation.

CuSn8 Tin Bronze Bushing Groove Bearing: Enhancing Performance in Friction Management

CuSn8 tin bronze bushing groove bearings offer enhanced performance in friction management, making them a preferred choice for various mechanical applications. With their specific composition and groove design, these bearings provide several advantages for efficient operation. This article explores the features and benefits of CuSn8 tin bronze bushing groove bearings, highlighting their ability to enhance performance in friction management.

Composition and Construction: CuSn8 tin bronze bushing groove bearings are composed primarily of copper (Cu) and tin (Sn). The addition of tin to the bronze alloy enhances its mechanical properties, such as improved strength, wear resistance, and corrosion resistance. The groove design of these bearings provides an effective channel for lubrication distribution.

Advantages of CuSn8 Tin Bronze Bushing Groove Bearings:

  1. Excellent Wear Resistance: CuSn8 tin bronze bushing groove bearings exhibit exceptional wear resistance due to the inherent properties of the CuSn8 alloy. This wear resistance allows the bearings to withstand high loads and provide prolonged service life, minimizing the need for frequent replacements.
  2. Effective Lubrication Distribution: The groove design in these bearings serves as an effective channel for lubrication distribution. This allows for optimal lubricant flow and distribution throughout the bearing surface, reducing friction and minimizing wear. The lubrication grooves enhance the overall performance and reliability of the bearings.
  3. Corrosion Resistance: The CuSn8 tin bronze alloy offers excellent corrosion resistance, making these bearings suitable for applications in various environments, including those with exposure to moisture or corrosive substances. The corrosion resistance ensures long-lasting performance and extends the bearings’ operational life.
  4. Versatile Applications: CuSn8 tin bronze bushing groove bearings find applications in diverse industries and mechanical systems. They are commonly used in automotive components, machinery, industrial equipment, hydraulic systems, and more. The versatility of these bearings makes them a preferred choice for friction management in various applications.
  5. Reliable Load-Carrying Capacity: CuSn8 tin bronze bushing groove bearings are designed to handle high radial loads effectively. The combination of the bronze alloy’s strength and the groove design’s lubrication distribution ensures reliable load-carrying capacity, enabling the bearings to operate smoothly under heavy load conditions.

CuSn8 tin bronze bushing groove bearings offer enhanced performance in friction management, making them a valuable solution for mechanical applications. With their excellent wear resistance, effective lubrication distribution, corrosion resistance, and reliable load-carrying capacity, these bearings provide optimal performance and extended service life. Whether used in automotive, machinery, or industrial equipment, CuSn8 tin bronze bushing groove bearings contribute to efficient friction management, reduced wear, and improved reliability.

CuSn8 Bronze Bushing with Flange: Chemical Composition and Metric Size OptionsCuSn8 bronze bushings, available with a flange, are a reliable choice for friction management in various mechanical applications. These bushings are composed primarily of copper (Cu) and tin (Sn), with additional elements present in minimal amounts. This article provides information about the chemical composition of CuSn8 bronze bushings and highlights their availability in metric size options.Chemical Composition: The CuSn8 bronze bushings have the following chemical composition:

  • Copper (Cu): Approximately 91.3%
  • Tin (Sn): Approximately 8.5%
  • Phosphorus (P): Approximately 0.2%
  • Lead (Pb): Minimal or absent
  • Zinc (Zn): Minimal or absent

The CuSn8 composition ensures the bushings’ mechanical properties, including strength, wear resistance, and corrosion resistance, making them suitable for a wide range of applications.

Metric Size Options and Availability: CuSn8 bronze bushings with flanges are available in various metric sizes, providing compatibility with different shaft and housing dimensions. The following metric size options are commonly available:

  • Part No: E92
  • Oil Indentations/Holes: 090 (with oil indentations) and 092 (with oil holes)

These metric-sized bronze bushings cater to specific dimensional requirements and facilitate easy installation in mechanical systems.

Browse, Get a Quote, and Order: To browse, obtain a quote, and order CuSn8 bronze bushings in metric sizes, you can explore reputable suppliers and manufacturers specializing in bearing products. These suppliers typically offer online platforms where you can easily search for the desired metric size and quantity, get a price quote, and place an order.

By browsing the available metric size options and selecting the appropriate part based on your specific requirements, you can conveniently obtain CuSn8 bronze bushings with flanges for your friction management needs.

Conclusion: CuSn8 bronze bushings with flanges provide a reliable solution for friction management in mechanical applications. With their specific chemical composition, including copper, tin, and trace elements, these bushings offer excellent mechanical properties. The availability of metric sizes ensures compatibility with different dimensions, allowing for easy installation in various systems. By browsing, obtaining quotes, and ordering from reputable suppliers, you can acquire the CuSn8 bronze bushings in the desired metric sizes for your specific application needs.



Chemical Composition

Part No Material Cu Sn P Pb Zn
E92 CuSn8 91.3% 8.5% 0.2% / /

Browse, Get a Quote, and Order Bronze Bushings with Metric Sizes: FB090 and FB092 Wrapped Bronze Bushing Bearing

To easily browse, obtain a quote, and place an order for bronze bushings with metric sizes, particularly the FB090 and FB092 wrapped bronze bushing bearings, you can follow the steps below:

  1. Online Suppliers and Manufacturers: Start by exploring reputable online suppliers and manufacturers that specialize in bearing products, including bronze bushings. These suppliers often have user-friendly websites that provide comprehensive product catalogs and ordering systems.
  2. Browse the Size Chart: Look for the size chart specific to FB090 and FB092 wrapped bronze bushing bearings. The size chart will provide detailed information about the dimensions, including inner diameter (ID), outer diameter (OD), and length. The chart will also indicate whether the bushing has a flange or not.
  3. Select the Desired Metric Size: Based on your specific requirements, select the metric size from the available options in the size chart. Ensure that the selected size matches your application’s shaft and housing dimensions to ensure proper fit and performance.
  4. Request a Quote: Once you have identified the desired metric size, proceed to request a quote. Most online suppliers provide a quoting system where you can input the selected size, desired quantity, and any additional specifications or requirements. Submit the quote request, and the supplier will provide you with a price quote based on your input.
  5. Review the Quote and Place an Order: Upon receiving the quote, review it carefully, considering factors such as price, delivery time, and any applicable terms and conditions. If satisfied with the quote, proceed to place an order through the supplier’s online ordering system or by contacting their sales team directly. Provide the necessary details, including the selected metric size, quantity, and any additional specifications or customization requests.
  6. Complete the Order and Await Delivery: Once the order is placed, follow the supplier’s instructions to complete the transaction, including providing shipping and payment details. Afterward, wait for the delivery of the bronze bushings to your designated address.

Conclusion: By browsing through reputable online suppliers and manufacturers, referring to the size chart specific to FB090 and FB092 wrapped bronze bushing bearings, requesting a quote, and placing an order, you can easily acquire the desired metric size bronze bushings for your application. Remember to review the quote carefully before proceeding with the order and ensure that the selected sizes match your specific requirements.

d D f1 f2 L 0
-0.40
10 15 20 25 30 35 40 50 60 70 80 90 100
10 12 1010 1015 1020
12 14 0.5 1210 1215 1220
14 16 1410 1415 1420 1425
15 17 1510 1515 1520 1525
16 18 1610 1615 1620 1625
18 20 0.3 1810 1815 1820 1825
20 23 0.8 0.4 2010 2015 2020 2025
22 25 2210 2215 2220 2225 2230
24 27 2415 2420 2425 2430
25 28 2515 2520 2525 2530
28 31 2815 2820 2825 2830
30 34 1 0.6 3015 3020 3025 3030 3035 3040
32 36 3215 3220 3225 3230 3235 3240
35 39 3515 3520 3025 3530 3535 3540
40 44 4020 4025 4030 4035 4040 4050
45 50 0.8 4520 4525 4530 4535 4540 4550
50 55 1.2 5020 5025 5030 5035 5040 5050 5060
55 60 5520 5525 5530 5535 5540 5550 5560
60 65 6025 6030 6035 6040 6050 6060 6070
65 70 6530 6535 6540 6550 6560 6570
70 75 7030 7035 7040 7050 7060 7070 7080
75 80 7530 7535 7540 7550 7560 7570 7580
80 85 0.8 8030 8035 8040 8050 8060 8070 8080
85 90 1.4 8530 8535 8540 8550 8560 8570 8580 8590
90 95 9030 9035 9040 9050 9060 9070 9080 9090
95 100 9540 9550 9560 9570 9580 9590 95100
100 105 10050 10060 10070 10080 10090 100100
105 110 10550 10560 10570 10580 10590 105100
110 115 11050 11060 11070 11080 11090 110100
d D f1 f2 L 0
-0.40
25 30 35 40 50 60 70 80 90 100
115 120 1.4 0.8 11550 11560 11570 11580 11590 115110
120 125 12060 12070 12080 12090 120110
125 130 12560 12570 12580 12590 125110
130 135 13060 13070 13080 13090 130110
135 140 13560 13570 13580 13590 135110
140 145 14060 14070 14080 14090 140110
145 150 14560 14570 14580 14590 145110
150 155 15060 15070 15080 15090 150110
155 160 15560 15570 15580 15590 155110
160 165 16060  16070 16080 16090 160110
165 170 16560 16570 16580 16590 165110
170 175 17060 17070 17080 17090 170110
175 180 17560 17570 17580 17590 175110
180 185 18060 18070 18080 18090 180110
185 190 18560 18570 18580 18590 185110
190 195 19060 19070 19080 19090 190110
195 200 19560 19570 19580 19590 195110
200 205 20060 20070 20080 20090 200110

Self-Lubricating Engineered Flange Bushing: Maintenance-Free Solution

Introducing our self-lubricating engineered flange bushing, a maintenance-free solution for various applications. These flanged bushes are designed to provide reliable performance, and we offer them in metric sizes. Additionally, we provide free CAD models for easy integration into your designs. Our range of bearing forms includes cylindrical bushes, flanged bushes, thrust washers, sliding plates, and pintle bearings. To place an order for solid bronze bushing parts or for any assistance with ordering, please contact our Customer Service Team.

Our self-lubricating engineered flange bushings offer several benefits:

  1. Maintenance-Free Operation: These bushings are designed to be maintenance-free, reducing the need for regular lubrication and minimizing downtime.
  2. Self-Lubrication: The engineered design incorporates self-lubricating properties, providing a constant supply of lubrication to the bearing surface. This ensures smooth operation and extends the bushing’s lifespan.
  3. Flange Design: The flange feature provides additional stability and support during operation, making these bushings suitable for applications with axial loads or where precise positioning is required.
  4. Metric Sizes: We offer these flanged bushings in metric sizes, ensuring compatibility with a wide range of shaft and housing dimensions.

In addition to our self-lubricating engineered flange bushings, we also offer a comprehensive selection of solid bronze bearings. If you require any assistance or face any issues with ordering, our dedicated Customer Service Team is ready to help. Please contact them for more information, guidance, or support.

We strive to provide high-quality products and excellent customer service. View our full selection of solid bronze bearings to find the best solution for your specific application needs. Whether you need a solid bronze bushing or any other bearing form, we are here to assist you throughout the ordering process.

Contact our Customer Service Team today to learn more about our self-lubricating engineered flange bushings, place an order for solid bronze bushing parts, or address any inquiries or concerns you may have. We look forward to serving you.

Flanged Sleeve Bearings: CuSn8 Bronze, Thin-Walled, Wrapped Bronze

Flanged sleeve bearings made from CuSn8 bronze are a reliable choice for various applications. These thin-walled bearing bushings, wrapped in bronze material, offer technical and economic advantages over traditional metal bearings. With their self-lubricating, maintenance-free, chemical-resistant, and universally-applicable features, bronze bearings provide excellent performance and reliability. You can conveniently shop for flanged sleeve bearings on bronzelube.com.

Advantages of Flanged Sleeve Bearings:

  1. CuSn8 Bronze Composition: Flanged sleeve bearings are made from CuSn8 bronze, a composition consisting primarily of copper (Cu) and tin (Sn). This bronze alloy offers excellent mechanical properties, including high strength, good wear resistance, and corrosion resistance.
  2. Thin-Walled Design: Flanged sleeve bearings have a thin-walled construction, providing a compact and space-saving solution. This design is especially beneficial when installation space is limited or when weight reduction is a priority.
  3. Wrapped Bronze Material: The bearings are wrapped in bronze material, which further enhances their durability and wear resistance. The wrapped bronze layer provides a solid foundation for the bearing, ensuring reliable and long-lasting performance.
  4. Technical and Economic Advantages: Bronze bearings offer several technical and economic advantages over traditional metal bearings. They are self-lubricating, eliminating the need for external lubrication systems. This results in lower maintenance requirements and reduced downtime. Additionally, bronze bearings are chemical resistant and can withstand harsh operating conditions. Their universal applicability makes them suitable for a wide range of industries and applications.

Shop for Flanged Sleeve Bearings on bronzelube.com: To conveniently purchase flanged sleeve bearings, you can visit bronzelube.com. This online platform provides a comprehensive selection of bronze bearings, including flanged sleeve bearings. You can browse through their catalog, select the desired size and specifications, and place an order directly on the website. With a user-friendly interface and secure payment options, bronzelube.com ensures a smooth purchasing experience for customers.

Conclusion: Flanged sleeve bearings made from CuSn8 bronze, with their thin-walled, wrapped bronze design, offer technical and economic advantages over metal bearings. Their self-lubricating, maintenance-free, chemical-resistant, and universally-applicable features make them a reliable choice for friction management. To explore and purchase flanged sleeve bearings, you can visit bronzelube.com, where you will find a wide range of options to meet your specific application requirements.

Also available with flange bronze bushing

CuSn8 Bronze Material Bushing & Bearing

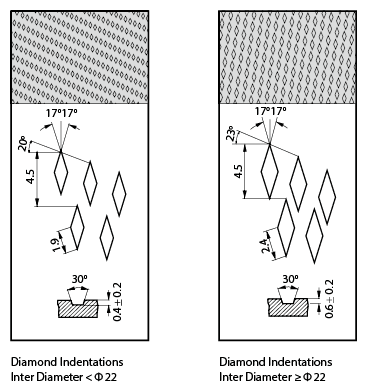

090 Oil Indentations Holes

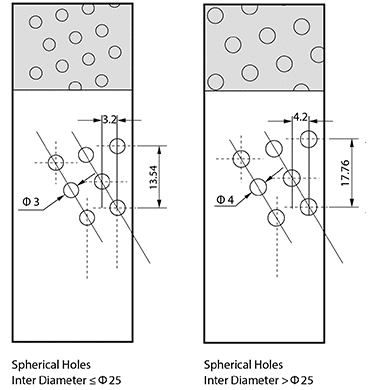

092 Oil Indentations Holes

Reliable CuSn8 Bronze Bushings for Your Industrial Needs!

Ensure smooth operation with our CuSn8 Material Bronze Bushing Flange Bearings. Ideal for applications requiring durability and low friction. Shop the best in bronze bearings today! Base CuSn8 Material: Special Bronze Bushing & Flange Bushing, Wrapped bronze plain bearings – long service interval.

Wrapped Flange Bronze Bushing, Maximize Performance with CuSn8 Bronze Flange Bearings!

Browse, get a quote and order products easily in lubricating bronze parts eCatalog

Take your machinery to the next level with our CuSn8 Bronze Bushing Flange Bearings. Outstanding wear resistance and tensile strength. Click to see how we can improve your operations!

This series of bushing is made of CuSn8 bronze as the base material, which is an economical bearing with high bearing capacity and good wear resistance. FB090 product work surface is full of regular diamond oil holes, FBO92 product work surface is full of regular oil holes, play the role of oil storage, in the initial movement can easily form oil film to reduce the initial friction coefficient. Mainly used in agricultural machinery, forest machinery, construction machinery and other high load and low speed occasions.

  • The bushing is made of cusN6.5P0.1 or CUSN8P0.3 bronze as the base material, which is an economical bearing with high bearing capacity and good wear resistance. Self-Lubricating: CuSn8 bronze bearings are often chosen for applications where lubrication may be challenging or impractical. The tin content in the alloy provides a solid lubricant that reduces friction and wear.

  • The standard FB090 product’s working surface is covered with regular diamond shaped oil holes, which act as an oil reservoir and allow easy formation of an oil film during initial movement, thereby reducing the initial friction coefficient.

CuSn8 Bronze Material Bushing Available in the following configurations:

Flanged Sleeve bearings made from CuSn8 bronze, with their thin-walled, wrapped bronze design, offer technical and economic advantages over metal bearings. Their self-lubricating, maintenance-free, chemical-resistant, and universally-applicable features make them a reliable choice for friction management. To explore and purchase flanged sleeve bearings, you can visit bronzelube.com, where you will find a wide range of options to meet your specific application requirements.Metric Sizes: We offer these flanged bushings in metric sizes, ensuring compatibility with a wide range of shaft and housing dimensions.

wrapped bronze bearings Bronze Bearings of CuSn8 - Lubrication Indents
Shop for Flanged Sleeve Bearings on bronzelube.com:

Maintenance-Free Operation: These bushings are designed to be maintenance-free, reducing the need for regular lubrication and minimizing downtime.

wrapped bronze bearings
Flanged Sleeve Bearings: CuSn8 Bronze, Thin-Walled, Wrapped Bronze

Self-Lubrication: The engineered design incorporates self-lubricating properties, providing a constant supply of lubrication to the bearing surface. This ensures smooth operation and extends the bushing’s lifespan.

wrapped bushing
Self-Lubricating Engineered Flange Bushing: Maintenance-Free Solution

Flange Design: The flange feature provides additional stability and support during operation, making these bushings suitable for applications with axial loads or where precise positioning is required.

    cusn8 plate Bronze Plate of CuSn8 - Lubrication Indents
    CuSn8 bronze bearings are a type of bronze bushing or bearing made from a material known as CuSn8, which is a copper-tin alloy. These bearings are used in various applications due to their excellent mechanical properties and self-lubricating characteristics.

    CuSn8 bronze bearings are a type of bronze bushing or bearing made from a material known as CuSn8, which is a copper-tin alloy. These bearings are used in various applications due to their excellent mechanical properties and self-lubricating characteristics.
