Oil Free Flange Bush
Oil Free Flange Bush
Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.
Manufacturing on Demand
Oil Free Flange Bush
(High Strength Brass / Copper Alloy + Solid Lubricant) Oil-Free Flange Bush, Oil-Free Washer, Oil-Free Bearings Catalog
We are Specialized in Centrifugal castings oil-free flange bushing products and graphite bearingproducts like Aluminium bronze bush, leaded bronze bush, phosphorus bronze bushes use for maintenance work of forging presses, OEM machineries.
https://www.bronzelube.com/wp-content/uploads/2022/04/Oil-free-Bronze-Bearing.pdf
Oil-Free Flange Bush, Bronze Alloys Material: #500SP, Machine Bushes
(High Strength Brass / Copper Alloy + Solid Lubricant), Need A Quote? Could you start the process and Contact us today?
Flanged Bronze Graphite Bushing Self lubricated Sleeve Bearing, buje autolubricado, cojinetes autolubricados
Self-Lubricating Bushes， Get the Best Price
Business Type Manufacturer, Supplier, Retailer
Size Available In Different Sizes
Graphite Plugged Cast Bronze Flanged Bushings, We machine self-lubricating bronze bearings according to clients’ drawings.
Characteristics and advantages
- Manual lubrication is not required
- Maintenance free
- Applications where it is difficult to add oil/grease lubricants
- Heavy loads and low speed
They are especially suited to applications where it is difficult to lubricate manually or where oil and grease lubricants cannot be used. They offer excellent lubrication in conditions of high loads and slow speeds.
The base material is always bronze or high-tensile brass manufactured in the Wisco Española foundry.
We machine all our self-lubricating bronze bearings based on clients’ designs.
Bronze graphite self-lubricating bushings ( LUB-MET, JDB, JFB, OLTEC P, BNZ…. .BG1 )
Bronze-graphite self-lubricating sliding bushings Spherical bronze-graphite bushings are made of a bronze alloy with a 20-25% porosity. The oil in the pores provides permanent lubrication of the space between the bearing and the shaft. Application advantages: oil reduces the possibility of scuffing; allows bronze graphite bushings to remain in operation for thousands of hours without wear; requires no lubrication; produces little noise. The product is used in electrical equipment, household appliances, printing machinery, machine tools, etc. Ordering: Products can be manufactured according to customer specifications. Bronze graphite bushings can be purchased on the company’s website.
Shop For Graphite Plugged Oil-free Flange Bushing At Bronzelube.Com, Supply High-Strength Brass Bearings To Your Specifications.
Oil-Free Flange Bush Material
Oil-Free bush flange type for universal use in many dry applications such as die/mold, machinery, automation, construction, and automobile. The Oil Free bush is self-lubrication and works without grease.
Material : #500SP
(High Strength Brass / Copper Alloy + Solid Lubricant)
Casting High Hardness Bronze Flange Bushing
Qsn5-5-5 tin bronze composition performance use introduction
Qsn5-5-5 Qsn10-1 Qsn10-2 Qsn12-1 Qsn6-6-3 C93200 C95400 C86300 Tin Bronze Bushing
Qsn5-5-5 tin bronze composition performance use introduction
Alloy materials
-
Model / corresponding trademark International brands GB1776-87 ZCuZn25
Al6Fe3Mn3ZCuSn6Zn6Pb3 ZCuAl10Fe3 ZCuSu10P1 Steel+ ZCuSn6Zn6Pb3 HT250 GCr15 International ISO1338 GCuZn25
Al6Fe3Mn3GCuSn6Zn6Pb3 GCuAl10Fe3 – Steel + CuSn6Zn6Pb3
Fe3Ni5– B1 Germany DIN G-CuZn25
Al5GB-CuSn5Zn5Pb5 GB-CuAl10Ni GB-CuSn10 Steel + CuSn6Zn6Pb3Ni – 100Cr6 Japan JIS HBsC4 BC6 AIBC3 BC3 BC6 FC250 SUJ2 American ASTM/UNS C86300 C83600 C95500 C90500 C83600 Class40 52100 British Standard（BS） HTB2 LG2 AB1 PB4 LG2 – –
ZCuSn5Pb5Zn5(5-5-5) Casting Tin Bronze Rod Introduction Material Name: Casting Copper Alloy (5-5-5 Tin Bronze, Sand Type Metal Type)
Brand： ZCuSn5Pb5Zn5 Standard： GB/T 1176-1987
●Characteristics and scope of application： Good wear resistance and corrosion resistance, easy processing, good casting performance, and air tightness.
ZCuSn5Pb5Zn5(5-5-5) Casting tin bronze Chemical composition: Cu: remaining Sn: 4.0-6.0 Zn: 4.0-6.0
Lead Pb: 4.0 ~ 6.0 phosphorus P: ≤ 0.05 nickel Ni: ≤ 2.5 aluminum Al: ≤ 0.01 iron Fe: ≤ 0.3 silicon Si: ≤ 0.01 antimony Sb: ≤ 0.25 sulfur S: ≤ 0.10 Note: the sum of impurities ≤ 1.0
ZCuSn5Pb5Zn5(5-5-5) cast tin bronze mechanical properties: tensile strength σb (MPa): ≥ 200 yield strength σ (MPa): ≥ 90 elongation δ5 (%): ≥ 13
ZCuSn5Pb5Zn5(5-5-5) cast tin bronze hardness: ≥590HB(reference value)
●Heat treatment specification： Heating temperature 1188～1220℃； Pouring temperature 1150～1200℃.
●Casting method： Sand casting, metal type casting
Oil-Free Flange Bush Size, JFB bushing Size Chart
| d E7 | D r6 | L | D1 | t | ||||||||||||||
| 5 | +0.032 +0.020 |
9 | +0.028 +0.019 |
10 | 12 | 14 | 2 | |||||||||||
| 6 | 10 | 10 | 12 | 15 | 16 | |||||||||||||
| 8 | +0.040 +0.025 |
12 | +0.034 +0.023 |
10 | 12 | 15 | 20 | 20 | ||||||||||
| 10 | 14 | 10 | 12 | 15 | 20 | 25 | 30 | 22 | ||||||||||
| 12 | +0.050 +0.032 |
18 | 10 | 12 | 15 | 20 | 25 | 30 | 25 | 3 | ||||||||
| 13 | 19 | 10 | 12 | 15 | 17 | 20 | 25 | 30 | 26 | |||||||||
| 14 | 20 | +0.041 +0.028 |
15 | 20 | 25 | 30 | 27 | |||||||||||
| 15 | 21 | 10 | 12 | 15 | 20 | 25 | 30 | 28 | ||||||||||
| 16 | 22 | 12 | 15 | 20 | 25 | 30 | 35 | 40 | 29 | |||||||||
| 18 | 24 | 15 | 20 | 25 | 30 | 35 | 40 | 32 | ||||||||||
| 20 | +0.061 +0.040 |
30 | 15 | 20 | 25 | 30 | 35 | 40 | 40 | 5 | ||||||||
| 25 | 35 | +0.050 +0.034 |
15 | 20 | 25 | 30 | 35 | 40 | 50 | 45 | ||||||||
| 30 | 40 | 20 | 25 | 30 | 35 | 40 | 50 | 50 | ||||||||||
| 31.5 | +0.075 +0.050 |
20 | 25 | 30 | 35 | 40 | 50 | |||||||||||
| 35 | 45 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | ||||||||||
| 40 | 50 | 20 | 25 | 30 | 35 | 40 | 50 | 65 | ||||||||||
| 45 | 55 | +0.060 +0.041 |
20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | ||||||||
| 50 | 60 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 75 | |||||||||
| 55 | +0.090 +0.060 |
65 | 30 | 35 | 40 | 60 | 80 | |||||||||||
| 60 | 75 | +0.062 +0.043 |
30 | 35 | 40 | 50 | 60 | 80 | 90 | 7.5 | ||||||||
| 70 | 85 | +0.073 +0.051 |
50 | 60 | 80 | 105 | ||||||||||||
| 75 | 90 | 60 | 80 | 110 | ||||||||||||||
| 80 | 100 | 60 | 80 | 100 | 120 | 10 | ||||||||||||
| 90 | +0.107 +0.072 |
110 | +0.076 +0.054 |
60 | 80 | 100 | 130 | |||||||||||
| 100 | 120 | 80 | 100 | 150 | ||||||||||||||
| 120 | 140 | +0.088 +0.063 |
80 | 100 | 170 | |||||||||||||
Oil-Free bush straight type or universal use in many dry applications such as die/mold, machinery, automation, construction, and automobile. The Oil Free bush is self-lubrication and works without grease.
Oil-Free Flange Bush Material
| Material | China GB1776-87 |
Standard | Application situation | |||
| International ISO 1338 |
Japan | USA | Germany | |||
| 500#SP | CuZn25Al6FeMn3 | CuZn25Al6FeMn3 | H5102 CAC304 |
B30-92 C86300 |
DIN1709 G-CuZn25A/2.0598 |
High load, low speed, general use |
| 500#SP1 | CuZn25Al6FeMn3 | CuZn25Al6FeMn3 | H3102 CAC304 |
B30-92 C86300 |
DIN1709 G-CuZn25A/2.0598 |
High load, low speed, high load-bearing |
| 500#SP5 | CuZn25Al6FeMn3 | CuZn25Al6FeMn3 | H3102 CAC304 |
B30-92 C86300 |
DIN1709 G-CuZn25A/2.0598 |
Ultra-high load, low speed, high load-bearing |
| – | CuAl10Fe3 | CuAl10Fe3 | H5114 CAC703 |
B30-92 95800 |
DIN1714 GB-CuAl10NI/2.1096 |
Medium load, medium speed, general use |
| – | CuSn5Pb5Zn5 | QSn5-5-5 | H5111 CAC406 |
B30-92 C83600 |
DIN1705 G-Cu5N5ZnPb/2.1096 |
Medium load, medium speed |
Contact Us
For inquiries or to request an oilless bearing size and catalog, click here!
Manufacturer of castings Oil-free bushing and machined components made of bronze. Manufacturing units are located in China;

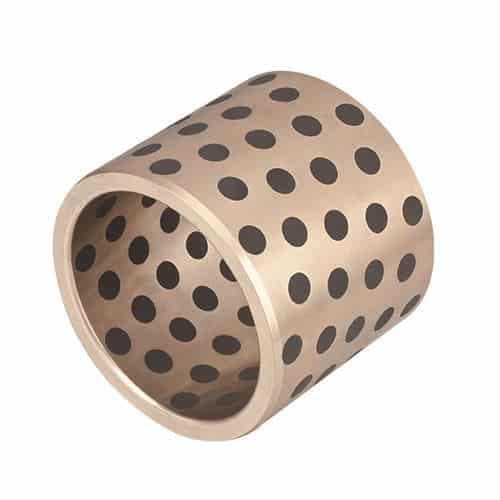

Graphite plug cast bronze
Self-lubricating high temperature and heavy load. Graphite plug bronze bushings are self-lubricating and maintenance free. These bushings are machined from continuous cast bronze and are plugged with solid lubricant plugs. A bush, which is being mated
surfaces should always be separated by a layer of lubricant. Graphite plugged bronze bushings do not require any form of supplemental lubrication.
When it starts running, a layer of solid lubricant is transferred to the shaft. Self-lubricating properties allow graphite plug bushings to be used where oiling is difficult and implementation is expensive
Grease cannot be used. Good lubrication can be obtained even at low speeds under high loads.
Applications
The applications for graphite plug bushings are virtually limitless. From difficult-to-maintain applications to high-temperature environments to heavy-duty
applications, graphite plug bronze bushings exhibit excellent service and wear resistance. These applications include:
Steel mills, blast furnaces, drying equipment, ovens, heat exchangers, punching dies, assembly lines, machine tools, chain conveyors, offshore structures, deck cranes
winches, hatch covers, rudder arms, lifting equipment, tire and paper mills, rod bearings for injection molding machines, mixers, grinders, grinders, construction machinery, mining
drilling rigs arm joint bearings, power shovels, and more.
Your expert in self-lubricating Bearing
and Bronze alloys – serving globally
