Project Description
China Plain Bush Bearing Manufacturer & Supplier
High Quality Bearing Bushes With Competitive Price. Source Plain Bush Bearing From China Now! Get Quotations. Download Our Lubricating Bushings Catalog. Join For Free. Highlights: New Customer Guide Available, Bushings & Bearings Available, Multiple Quotes Available.
Projects

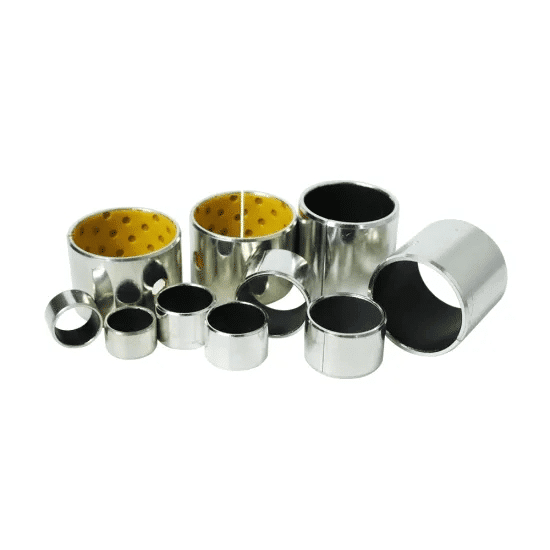

Sleeve Bearings- Split Type Carbon Steel Backed-Switch from Steel Composite Bushings.
Composite bearings are self-lubricating, which means you never need grease. Extend the life of your equipment by switching to composite bearings and bushings. Volume Supplier. Vertically Integrated. A metal steel sintered bronze bushing. Easy-Install Dry-Running Flanged Sleeve Bearings. Split Wrapped Bushing Parts – Low Friction Coefficient, Split steel bushings or bearings are utilized to reduce friction on the shaft and utilize a thin cross section. The split in the material allows for ease of installation of the bushing. Split steel bushings are available pre-lubricated or self lubricated.
PTFE Material or POM Material Greased Bushings. Self-lubricant bushes 3 sliding layer:
- Acetal resin (POM) layer/PTFE
- Sintered bronze
- Steel backing
- Copper plating/Tin plating slide bushings
For standard parts, steel backed bushing is plated with a thin copper layer.
Chemical resistance
Sliding Bushings RoHS Directive.
Bushings are suitable for rotating, oscillating and linear movements, whereas straight (cylindrical) bushings can accommodate radial loads only and flanged bushing. POM anti-friction layer prevents from corrosion with the contact surface.
Sliding Bushing are often used under severe working conditions especially for construction machines and agricultural vehicles. It can also be used for handling systems, ski lifts or office furniture equipment.
Top Quality Sleeve Bearings
The promise of sliding bushings high quality, meet your requirement.
Sliding Dimension
Small minimum order value & quantity, fast delivery.
Top Quality Sliding Layer Split Bushings Products at Competitive Prices
Sliding Bushings Performance
Sliding Bushings is perfect for dry use, without lubrication.
Online offers a huge range of Split Bearing Bushings in metric and imperial sizes.
Cylindrical Sliding Bushing Application & Quick Delivery
Exceptional Customer Service! High-Quality split steel bushings To Your Specifications. POM based Self lubricant layer avoids corrosion between the contact surfaces and the bush’s internal diameter. However in case of oxidation risk, we advises to use stainless steel backed bushings.
Bushes are used in industrial applications, as well as professional and general public materials: printing, robotics, handling, car industry, home appliances…
We design Oil lubrication bushing split for the your application.
Oil lubrication Parts: When used with regular oil lubrication, sliding properties and lifetime of the bush are modified.
* Our enterprise, is one of the undisputed supplier of the Plain Bearings & Sliding Bushings industry in china.
Explore More Plain Bearings
Sliding Bushing Production & Process Flow

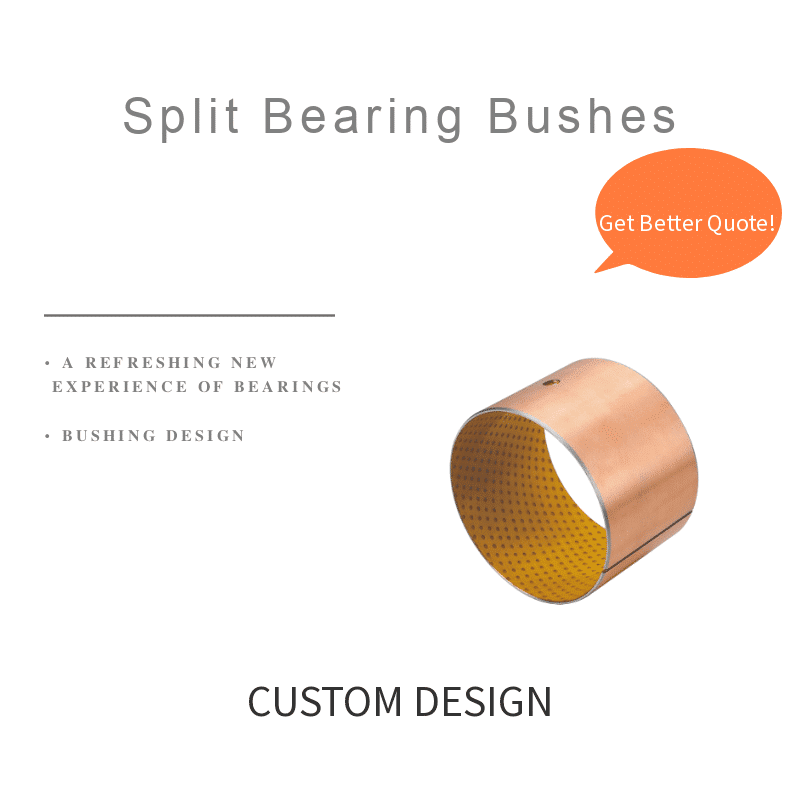

Split Bearing Bushes | Bronze Bearings | Online Bearings
Low maintenance slide bearings Split Bushes Flange Type,Multilayer Sliding Bushing,ISO 3547,On this page you can find the complete product range of low maintenance bushings from china: www.bronzelube.com
The boundary lubricated bearing is made of steel plate as the matrix, sintered spherical bronze powder in the middle, surface rolled modified POM, and contains oil storage pit.It is suitable for normal temperature, low speed and medium load places, replacing the traditional copper cover not only reduces the cost but also prolongs the service life.It can save the frequency of refueling and simplify the replacement procedure.
STEEL BACKED BRONZE POM BUSHES Composite Bearing
Split Bearing Bushes Characteristics
- for rotating and oscillating applications
- low maintenance
- long maintenance rates
- low wear
- good damping
- no water absorption
Structure of Composite Material
- copper plated steel backside
- porous layer of sintered bronze
- void filling and conversion coating : resin of acetal
Split Bearing Bushes Technical data
static surface pressure 140N/mm²
temperature range: -40°C – +130°C
Inside ID * Length * Oil Hole OD * Outside Dimensions
Fitting Tolerances
- housing H7
- shaft h8
Shapes&Forms
- Cylindrical bushes
- Flanged bushes
- Thrust washers
- Flanged washers
- Sliding plates
Assembling Instructions
The edges of the mounting hole and the shaft must be chamfered. It is recommended to use. Please avoid damaging the sliding surface. The butt joint should not be in load direction.
Split Bearing Bushes Application
The dry sliding bearings bushings have been widely used in automotive chassis, forging machine tools, metallurgical mining machinery, engineering machinery, hydropower, steel rolling industry and other fields.
Foundation technical parameters
- Low maintenance POM sliding layer with grease holes
- Coated steel backed bushing
- Lead free, RoHS compliant
- For lubrication applications
Bushing Design
Bushing materials is filled PTFE modified POM plastics for the surface layer of three layer composite self-lubricating materials, it is a kind of benign boundary lubrication material, thus is especially with high load under the low speed of rotation, swing movement and often opening and closing under load and not easy to form hydrodynamic lubrication of bearings, thrust washers, slider, ball seat and other friction parts.Multilayer Sliding Bushing can make full use of trace lubricating grease, which can be used for long-term maintenance without refueling under boundary lubrication condition.Under the condition of completely without oil lubrication, the dry sliding friction bearings performance and allow the PV value is low, so often in the plastic surface of the rolling oil storage pit, fitting was coated with lithium base grease or silicon grease, etc.
