Bronze Sleeve Bushing
Bronze Sleeve Bushing
Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.
Manufacturing on Demand
Bronze Sleeve Bushing
Wrapped bronze sleeve bushing, Case material: bronze CuSn8P (DIN 17662)
Wrapped Bronze With Lubrication Pockets, wrapped in bronze with lubrication pockets, which serves as a lubricant reservoir

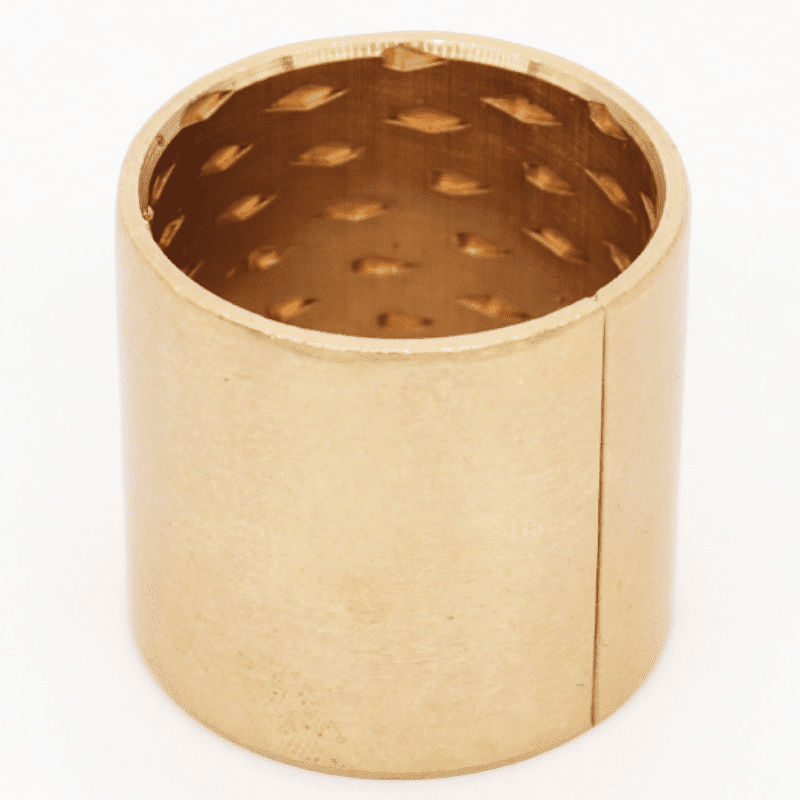

Wrapped bronze sleeve bushing is a kind of bush wrapped with bronze tape. This type of bronze bearing is made of special formula with high specific weight, and its surface can be provided with spherical or diamond indentations or oil grooves according to customers’ requirements. It is high load capacity and long service life. Compared to traditional bronze cast bushing, it is cheaper and more compact. The wrapped bronze bushing is widely used in hoisting machinery, construction machinery, automobile, truck, machine tool, mineral equipment etc.
Wrapped Bronze Sleeve Bushing – Metric Size, Perforated Wrapped Bronze Bushes, Wrapped bronze sliding bearing · CuSn8P (DIN 17662) · DIN 1494 / ISO 3547 · Low-maintenance · With perforations and sealing at both ends.
Bronze sleeves with perforated storage,
Perforated wrapped bronze bushes, also referred to as wrapped bronze bearings, are commonly utilized plain bearings across numerous industrial sectors. Constructed from sintered bronze infused with oil or grease through its fine pores, these bushes ensure ongoing lubrication while in use. A PTFE coating encases them, offering self-lubrication and increased resistance to wear, in alignment with DIN 1494 / ISO 3547 standards.
These bushes are recognized for their low wear rate, minimal friction coefficient, longevity, and operational efficiency. They represent a cost-effective alternative to various other types of bearings and are employed in fields such as automotive, agriculture, construction, mining equipment, shock absorbers, electric motors, and a range of other industrial machinery.
The design of wrapped bronze bushes incorporates a sintered bronze base filled with lubricant and covered in a PTFE layer, facilitating hydrodynamic lubrication to minimize friction between the shaft and bearing surface. Additionally, the PTFE covering aids in resisting corrosion and protecting against chemical damages.
Ideal for applications involving slow speeds and high loads where self-lubrication, low friction, and high load-bearing capabilities are crucial, these bushes are offered in several standard sizes but can also be tailored to specific needs. Wrapped bronze bushes aim to diminish energy consumption, manage stick-slip occurrences, enhance precision, lower noise output, and boost the performance of the overall equipment.
Bronze Sleeve Bushing, Bronze Rolled Bushing
In Stock And Ready To Ship – Brass, Bronze & Copper Alloys
A large selection of sintered bronze sleeve bearings and bushings stock
Bronze Bearings made of CuSn8, CuSn8 Tin Bronze Bushing
| TECHNICAL DATA | |
|---|---|
| Material: | Cu – 91.3% Sn – 8.5% P – 0.2% |
| Standard: | Cu Sn8. DIN 17662. CW453K |
| Sliding layer (thickness): | Homogeneous |
| Tensile strength Rm: | 450N/mm² |
| Yield strength Rp 0.2: | 250N/mm² |
| Elongation in % A10: | 0.4 |
| Hardness: | 90-120 HB |
| Friction coeff: | 0.08-0.25µ |
| Thermal conductivity: | 60W/m·K |
| Temperature range: | -100°C/200°C |
| Max. load static: | 120 N/mm² |
| Max. load, dynamic: | 40 N/mm² |
| Max. sliding speed (w.lubr.): | 2.5 m/s |
| Pv-value, Mpa x m/s, kont / int: | 2.8 |
| Counter material | |
| Recommended shaft hardness: | >210HB |
| Rec. shaft surface roughness (Ra) | 1.6 |
| Recommended tolerance: | e7-f7 |
| House: | H7 |
Rolled Perforated Bronze Flanged Bushing Standard Size
Designation FB090/FB0921010 FB090/FB0921015 FB090/FB0921210 FB090/FB0921215 FB090/FB0921220 FB090/FB0921410 FB090/FB0921415 FB090/FB0921420 FB090/FB0921425 FB090/FB0921510 FB090/FB0921515 FB090/FB0921520 FB090/FB0921525
d×D×L 10×12×10 10×12×15 12×14×10 12×14×15 12×14×20 14×16×10 14×16×15 14×16×20 14×16×25
15×17×10 15×17×15 15×17×20 15×17×25 16×18×10 16×18×15 16×18×20 16×18×25
FB090/FB0921610 FB090/FB0921615 FB090/FB0921620 FB090/FB0921625 FB090/FB0921810 FB090/FB0921815 FB090/FB0921820 FB090/FB0921825 FB090/FB0922010 FB090/FB0922015 FB090/FB0922020 FB090/FB0922025 FB090/FB0922030 FB090/FB0922215 FB090/FB0922220 FB090/FB0922225 FB090/FB0922230 FB090/FB0922240 FB090/FB0922430
18×20×10 18×20×15 18×20×20 18×20×25
20×23×10 20×23×15 20×23×20 20×23×25 20×23×30 22×25×15 22×25×20 22×25×25 22×25×30 22×25×40 24×27×30 mm dxDxL 25×28×15 25×28×20 25×28×25 25×28×30 28×32×15 28×32×20 28×32×25 28×32×30
Designation FB090/FB0922515 FB090/FB0922520 FB090/FB0922525 FB090/FB0922530 FB090/FB0922815 FB090/FB0922820 FB090/FB0922825 FB090/FB0922830 FB090/FB0923015 FB090/FB0923020 FB090/FB0923025 FB090/FB0923030 FB090/FB0923040 FB090/FB0923215 FB090/FB0923220 FB090/FB0923225 FB090/FB0923230 FB090/FB0923240 FB090/FB0923515 FB090/FB0923520 FB090/FB0923525 FB090/FB0923530 FB090/FB0923540 FB090/FB0923550 FB090/FB0924020 FB090/FB0924025 FB090/FB0924030 FB090/FB0924040 FB090/FB0924050 FB090/FB0924060 30×34×15 30×34×20 30×34×25 30×34×30 30×34×40 32×36×15 32×36×20 32×36×25 32×36×30 32×36×40 35×39×15 35×39×20 35×39×25 35×39×30 35×39×40 35×39×50 40×44×20 40×44×25 40×44×30 40×44×40 40×44×50 40×44×60 35
PRODUCTS & SOLUTIONS
At viiplus, we offer a wide variety of bronze-bearing bushing products and solutions tailored to your needs. And we offer not just self-lubricating bronze bearings products, but our services as well. We offer consultancy, design, installation, and more importantly, ongoing after-sales support to give you that peace of mind as we forge a long-term partnership with you!
090 Bronze wrapped bushing, a Bronze substrate made of a rolling bearing having a high wear resistance of thin-walled copper-good…
“power towards a sustainable future.”
Bronze wrapped bushing， Low Maintenance Cost
BUCHAN CILÍNDRICA
BUCHAS CILÍNDRICA
O90 bronze rolling bearing, tin bronze alloy CuSn8 as the material, the surface rolling rhombic oil hole, since the role of storage grease, it has good fatigue strength and load-carrying capacity, corrosion resistance, wear resistance. Widely used in agricultural machinery, construction machinery, construction machinery, and other high-load low-speed occasions.
The range and variety of our wrapped bushings, low-maintenance plain bearings with lubrication pockets are not afraid of the competitors: we offer itself as a unique interlocutor for its customers, with a complete range of products ready in stock that are able to satisfy any request and design need.
wrapped bushing with lubrication pockets
Bronze Plain Bearing
Wrapped Bronze With Lubrication Pockets – low-maintenance
SLWB 1R – Bronze Plain Bearing
Material – Characteristics
Sliding elements are made of solid tin bronze (CuSn8) with diamond-shaped lubrication pockets, which serves as a lubricant reservoir.
These plain bearings are suitable for grease and oil lubrication.
Bronze Bushes – Bearings & Bushes – bronzelube.com
Our range of wrapped bushing with lubrication pockets, in Metric & Imperial Sizes. Buy online here for Savings & Fast delivery.
Wrapped Bronze Bushing Metric Size
Wrapped bushings diamond pocket Oilless Bronze Sleeve Self Lubricating Flange Copper Bearing Bushing.
BUCHAS CILÍNDRICA
Bucha Flangeada & Bucha Cilíndrica
Bucha Flangeada
Fast Nationwide Delivery
Fast Delivery, Air Delivery Available,
Material: CuSn8
also with different alloys available upon request
Chemical Composition
| Part No | Material | Cu | Sn | P | Pb | Zn |
| BRONZE BUSHING-090 | CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
| BRONZE BUSHING-092 | CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
Parameters
| Max.load | |
| Static load | 120 N/mm² |
| Dynamic load | 40 N/mm² |
| Max.speed | 2m/s |
| Max. PV | 2.8 N/mm²*m/s |
| Tensile strength | 450 N/mm² |
| Hardness | HB 110-150 |
| Elongation | 40% |
| Max. temp | -100℃~+200℃ |
| Friction coef. | 0.08~0.25 |
| Thermal conductivity | 58W（m*k）-1 |
| Linear cofe. of thermal expansion | 18.5*10-6K-1 |
Wrapped Bronze Bushing, Bushings & BearingsDownload complete catalog
Bronze wrapped bushing
Bronze Base Rolling Bearings， CuSn8 tin bronze alloy as the material, the surface rolling diamond oil hole, played the role of fat storage, it has good fatigue strength and load-bearing capacity, corrosion resistance, abrasion resistance. Widely used in agricultural machinery, construction machinery, engineering machinery, and high load low-speed applications.
WE PROVİDE HIGH-QUALITY ROCK DRILLING MACHINE BRONZE BEARINGS SPARE PARTS
The advantages of the wrapped bronze bushings
1. save a lot of copper, copper sets car system saves hours:
2. bushes, bearing compared to its light weight and low cost;
3. The friction surface can be processed in a variety of points there, pit, storing a grease, extended refueling time is five times that of copper sets;
4. The high load capacity, especially suitable for rough friction surface;
Products are available: straight sets, thrust washers, flanged bushings, bearings, skateboards, steel sleeve assembly.
Oil Indentations/Holes
Explore the catalog of Bronze bushings, bronze bushes, and bearings of all types. Discover the wide range and fill out the form: you can also request 2D or 3D drawings!
Standard bushing tolerances
| Standard Dia. | O.D.Size | Housing Bore | I.D.Size | Matching Shaft Diameter |
| 10~18 | +0.065 +0.030 |
+0.018 0 |
+0.046 0 |
– 0.016 – 0.043 |
| 18~30 | +0.075 +0.035 |
+0.021 0 |
+0.052 0 |
– 0.020 – 0.020 |
| 30~50 | +0.085 +0.045 |
+0.025 0 |
+0.062 0 |
– 0.025 – 0.064 |
| 50~80 | +0.100 +0.055 |
+0.030 0 |
+0.074 0 |
– 0.030 – 0.076 |
| 80~120 | +0.120 +0.070 |
+0.035 0 |
+0.087 0 |
– 0.036 – 0.090 |
| 120~180 | +0.170 +0.100 |
+0.400 0 |
+0.100 0 |
– 0.043 – 0.106 |
| 180~250 | +0.210 +0.130 |
+0.046 0 |
+0.115 0 |
– 0.050 – 0.122 |
| 250~315 | +0.260 +0.170 |
+0.052 0 |
+0.130 0 |
– 0.056 – 0.137 |
