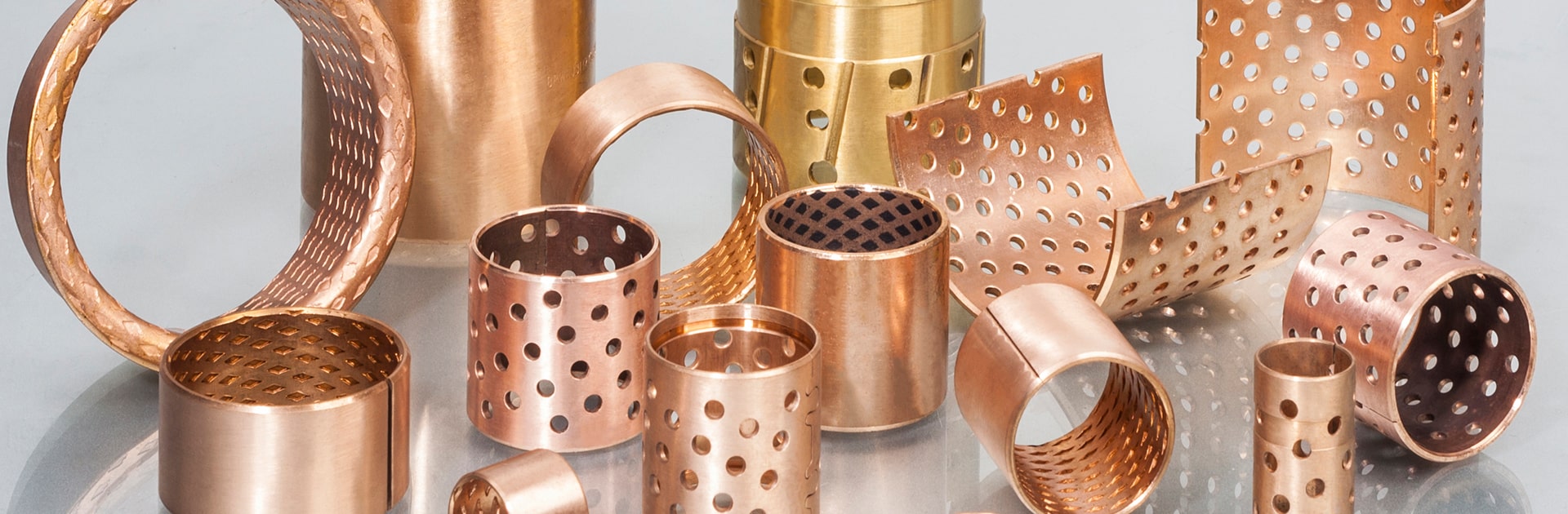

Bronze Wrapped Bearing Bushings
Material – Characteristics
Wrapped flanged bushings are made of solid tin bronze (CuSn8) with lubrication holes, which serve as a lubricant reservoir.
Larger amounts of the lubricant can be stored due to the hole depots, resulting in longer maintenance intervals.
These Wrapped flanged bushings are only suitable for grease lubrication.
Wrapped Bronze bushes – Request a free quote
Exploring Wrapped Flanged Bushings FB092: Dimensions and Applications
When it comes to ensuring efficient machine operation, the importance of bushings cannot be overstated. These seemingly small components are integral to reducing friction between moving parts and enhancing the performance and longevity of various machines and equipment. Among the variety of bushings available on the market, wrapped flanged bushings have gained prominence, especially the FB092 series.
Understanding Wrapped Flanged Bushings FB092
The FB092 series of wrapped flanged bushings is manufactured using high-grade bronze, making them durable and capable of withstanding heavy loads and shocks. Their design features a thin wall, which is drawn from a precise strip of bronze and then wrapped and flanged. This creates a robust bushing that maintains its structural integrity under challenging conditions.
The interior surface of these bushings is typically adorned with diamond-shaped or circular oil pockets. These pockets serve as reservoirs for lubricants, ensuring a self-lubricating operation that enhances performance and reduces maintenance requirements.
FB092 Flanged Bushing Dimensions
The dimensions of the FB092 wrapped flanged bushings vary depending on the specific requirements of the application. However, the general structure includes a cylindrical body with an outward flange at one end.
Here is a general chart that represents the typical dimensions of an FB092 bushing:
- Inside Diameter (d): Ranging from 10mm to 200mm
- Outside Diameter (D): Ranging from 12mm to 210mm
- Length (L): Ranging from 10mm to 100mm
- Flange Diameter (Df): Ranging from 18mm to 220mm
- Flange Thickness (Lf): Ranging from 1.5mm to 2.5mm
(Note: The actual sizes may vary depending on the specific model of the FB092 bushing and the particular needs of the application.)
Applications of FB092 Flanged Bushings
Thanks to their robust and efficient design, FB092 bushings are suitable for a wide array of applications, including but not limited to:
- Automotive manufacturing: These bushings are used in various parts of vehicles, including suspension systems, transmissions, and engines.
- Industrial machinery: They are utilized in heavy-duty machinery for agriculture, construction, and other industrial applications.
- Home appliances: These bushings also find their use in many household appliances due to their durability and self-lubricating properties.
In conclusion, the FB092 series of wrapped flanged bushings offers a robust and reliable solution for numerous applications. The flange design adds an extra level of support, making them a perfect choice for high load-carrying tasks. Remember to consider your specific application requirements when selecting the size of your FB092 flanged bushings.
Wrapped bronze flanged bushing requiring low-maintenance
High Quality Bronze Wrapped Flanged Bushings, Sliding Bearing
Explore the catalog of self-lubricating bushings, bronze bushes and bearings of all types. Discover the wide range: you can also request free drawings!
These bearing bushings are wrapped in cold-formed homogeneous bronze (CuSn8), which can achieve exceptional material properties.
Wheter grease or oil is used, a good quality lubricant will reduce friction and wear by separating a bronze bushing from its shaft.
Advantages of wrapped bronze bushings include:
- insensitive to contaminated environments
- resistant to shock loads and vibrations at slow speeds
- good resistance to corrosive environments
Applications include:
- agriculture machinery
- hoisting equipement
- construction machinery
- forestry machinery
Wrapped flanged bushings, Bronze Rolled Bushing
The range and variety of our Wrapped Bronze Bushing are not afraid of the competitors: we offer itself as a unique interlocutor for its customers, with a complete range of products ready in stock that are able to satisfy any request and design need.
Wrapped flanged bushings
low-maintenance plain bearings with lubrication holes
Oil-Free Bushings/Bronze/Flanged by Bronzelube.com
Custom Bronze Bushings and Bearings,
Wrapped Bronze Bushing, Bronze Rolled Bushing
Flanged Construction Machinery Parts CuSn8P Copper Sleeves Bushing
It can also substitute for a copper liner that sharply reduces the cost. It is applicable to the situation of medium load and low velocity. For instance, conveyors, lifts, winding engines, smoothing machines, and so on.
It may supply the products: straight bush, flange bush, plate, shaft tile, slide, and steel liner combination.
Bronze Bushes – Bearings & Bushes – bronzelube.com
Our range of Bronze bushes, in Metric & Imperial Sizes. Buy online here for Savings & Fast delivery.
Bronze base rolling bearings
High-density copper alloy strip with special formula is used as matrix
The surface can be rolled diamond or hemispherical oil hole, oil groove according to user requirements
Wrapped flange sliding bearings, also known as flanged bushings, are a specific type of plain bearing designed for applications where axial support is crucial. These bearings are called “wrapped” because they are typically manufactured from strips of material that are then wrapped into the final cylindrical shape with a flange at one end.
Here are some key points to consider:
- Material: Wrapped flange sliding bearings can be made from various materials including bronze, steel, and plastic, among others. The choice of material largely depends on the specific application and the required physical properties such as load capacity, speed, operating temperature, and resistance to wear and corrosion.
- Structure: They consist of a cylindrical body with a flange extending radially outward at one end. The flange provides an axial bearing surface that helps to prevent movement along the shaft axis.
- Lubrication: Depending on the type of material and the specific design, some wrapped flange sliding bearings are self-lubricating. Self-lubricating bearings typically contain lubricant within the bearing material itself, reducing the need for additional lubrication during operation.
- Applications: They are used in a variety of applications, including automotive engines, agricultural machinery, construction equipment, and many more. They are ideal for situations where axial loads are present and alignment is critical. For example, they can be found in hinge points, pedals, and levers.
Wrapped Bronze Bushing Metric Size, Self-lubricating bearing manufacturer
FB090 WB800 Oilless Bronze Sleeve Self Lubricating Flange Copper Bearing Bushing
Wrapped Flanged Bushings | ⌀d x ⌀D x ⌀B x L |
Flange Wrapped Bushing-2515 | ⌀25 x ⌀28 x ⌀35 x 15 |
CuSn8 Bronze | |
Flange Wrapped Bushing-2520 | ⌀25 x ⌀28 x ⌀35 x 20 |
CuSn8 Bronze | |
Flange Wrapped Bushing-2525 | ⌀25 x ⌀28 x ⌀35 x 25 |
CuSn8 Bronze | |
Flange Wrapped Bushing-3020 | ⌀30 x ⌀34 x ⌀45 x 20 |
CuSn8 Bronze | |
Flange Wrapped Bushing-3025 | ⌀30 x ⌀34 x ⌀45 x 25 |
CuSn8 Bronze | |
Flange Wrapped Bushing-3030 | ⌀30 x ⌀34 x ⌀45 x 30 |
CuSn8 Bronze | |
Flange Wrapped Bushing-3520 | ⌀35 x ⌀39 x ⌀50 x 20 |
CuSn8 Bronze | |
Flange Wrapped Bushing-3525 | ⌀35 x ⌀39 x ⌀50 x 25 |
CuSn8 Bronze | |
Flange Wrapped Bushing-3530 | ⌀35 x ⌀39 x ⌀50 x 30 |
CuSn8 Bronze | |
Flange Wrapped Bushing-3535 | ⌀35 x ⌀39 x ⌀50 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-4025 | ⌀40 x ⌀44 x ⌀55 x 25 |
CuSn8 Bronze | |
Flange Wrapped Bushing-4030 | ⌀40 x ⌀44 x ⌀55 x 30 |
CuSn8 Bronze | |
Flange Wrapped Bushing-4035 | ⌀40 x ⌀44 x ⌀55 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-4040 | ⌀40 x ⌀44 x ⌀55 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-4530 | ⌀45 x ⌀50 x ⌀60 x 30 |
CuSn8 Bronze | |
Flange Wrapped Bushing-4535 | ⌀45 x ⌀50 x ⌀60 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-4540 | ⌀45 x ⌀50 x ⌀60 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-4550 | ⌀45 x ⌀50 x ⌀60 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-5030 | ⌀50 x ⌀55 x ⌀65 x 30 |
CuSn8 Bronze | |
Flange Wrapped Bushing-5035 | ⌀50 x ⌀55 x ⌀65 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-5040 | ⌀50 x ⌀55 x ⌀65 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-5050 | ⌀50 x ⌀55 x ⌀65 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-5530 | ⌀55 x ⌀60 x ⌀70 x 30 |
CuSn8 Bronze | |
Flange Wrapped Bushing-5535 | ⌀55 x ⌀60 x ⌀70 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-5540 | ⌀55 x ⌀60 x ⌀70 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-5550 | ⌀55 x ⌀60 x ⌀70 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6030 | ⌀60 x ⌀65 x ⌀75 x 30 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6035 | ⌀60 x ⌀65 x ⌀75 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6040 | ⌀60 x ⌀65 x ⌀75 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6050 | ⌀60 x ⌀65 x ⌀75 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6060 | ⌀60 x ⌀65 x ⌀75 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6530 | ⌀65 x ⌀70 x ⌀80 x 30 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6535 | ⌀65 x ⌀70 x ⌀80 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6540 | ⌀65 x ⌀70 x ⌀80 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6550 | ⌀65 x ⌀70 x ⌀80 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-6560 | ⌀65 x ⌀70 x ⌀80 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7035 | ⌀70 x ⌀75 x ⌀85 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7040 | ⌀70 x ⌀75 x ⌀85 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7050 | ⌀70 x ⌀75 x ⌀85 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7060 | ⌀70 x ⌀75 x ⌀85 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7070 | ⌀70 x ⌀75 x ⌀85 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7535 | ⌀75 x ⌀80 x ⌀90 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7540 | ⌀75 x ⌀80 x ⌀90 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7550 | ⌀75 x ⌀80 x ⌀90 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7560 | ⌀75 x ⌀80 x ⌀90 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-7570 | ⌀75 x ⌀80 x ⌀90 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-8035 | ⌀80 x ⌀85 x ⌀100 x 35 |
CuSn8 Bronze | |
Flange Wrapped Bushing-8040 | ⌀80 x ⌀85 x ⌀100 x 40 |
CuSn8 Bronze | |
Flange Wrapped Bushing-8050 | ⌀80 x ⌀85 x ⌀100 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-8060 | ⌀80 x ⌀85 x ⌀100 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-8070 | ⌀80 x ⌀85 x ⌀100 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-8080 | ⌀80 x ⌀85 x ⌀100 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-9050 | ⌀90 x ⌀95 x ⌀110 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-9060 | ⌀90 x ⌀95 x ⌀110 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-9070 | ⌀90 x ⌀95 x ⌀110 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-9080 | ⌀90 x ⌀95 x ⌀110 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-9090 | ⌀90 x ⌀95 x ⌀110 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-10050 | ⌀100 x ⌀105 x ⌀120 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-10060 | ⌀100 x ⌀105 x ⌀120 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-10070 | ⌀100 x ⌀105 x ⌀120 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-10080 | ⌀100 x ⌀105 x ⌀120 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-10090 | ⌀100 x ⌀105 x ⌀120 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-11050 | ⌀110 x ⌀115 x ⌀130 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-11060 | ⌀110 x ⌀115 x ⌀130 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-11070 | ⌀110 x ⌀115 x ⌀130 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-11080 | ⌀110 x ⌀115 x ⌀130 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-11090 | ⌀110 x ⌀115 x ⌀130 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-12050 | ⌀120 x ⌀125 x ⌀140 x 50 |
CuSn8 Bronze | |
Flange Wrapped Bushing-12060 | ⌀120 x ⌀125 x ⌀140 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-12070 | ⌀120 x ⌀125 x ⌀140 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-12080 | ⌀120 x ⌀125 x ⌀140 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-12090 | ⌀120 x ⌀125 x ⌀140 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-13060 | ⌀130 x ⌀135 x ⌀155 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-13070 | ⌀130 x ⌀135 x ⌀155 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-13080 | ⌀130 x ⌀135 x ⌀155 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-13090 | ⌀130 x ⌀135 x ⌀155 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-14060 | ⌀140 x ⌀145 x ⌀165 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-14070 | ⌀140 x ⌀145 x ⌀165 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-14080 | ⌀140 x ⌀145 x ⌀165 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-14090 | ⌀140 x ⌀145 x ⌀165 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-15060 | ⌀150 x ⌀155 x ⌀180 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-15070 | ⌀150 x ⌀155 x ⌀180 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-15080 | ⌀150 x ⌀155 x ⌀180 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-15090 | ⌀150 x ⌀155 x ⌀180 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-16060 | ⌀160 x ⌀165 x ⌀190 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-16070 | ⌀160 x ⌀165 x ⌀190 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-16080 | ⌀160 x ⌀165 x ⌀190 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-16090 | ⌀160 x ⌀165 x ⌀190 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-17060 | ⌀170 x ⌀175 x ⌀200 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-17070 | ⌀170 x ⌀175 x ⌀200 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-17080 | ⌀170 x ⌀175 x ⌀200 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-17090 | ⌀170 x ⌀175 x ⌀200 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-18060 | ⌀180 x ⌀185 x ⌀215 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-18070 | ⌀180 x ⌀185 x ⌀215 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-18080 | ⌀180 x ⌀185 x ⌀215 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-18090 | ⌀180 x ⌀185 x ⌀215 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-19060 | ⌀190 x ⌀195 x ⌀225 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-19070 | ⌀190 x ⌀195 x ⌀225 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-19080 | ⌀190 x ⌀195 x ⌀225 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-19090 | ⌀190 x ⌀195 x ⌀225 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-20060 | ⌀200 x ⌀205 x ⌀235 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-20070 | ⌀200 x ⌀205 x ⌀235 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-20080 | ⌀200 x ⌀205 x ⌀235 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-20090 | ⌀200 x ⌀205 x ⌀235 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-22560 | ⌀225 x ⌀230 x ⌀260 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-22570 | ⌀225 x ⌀230 x ⌀260 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-22580 | ⌀225 x ⌀230 x ⌀260 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-22590 | ⌀225 x ⌀230 x ⌀260 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-25060 | ⌀250 x ⌀255 x ⌀290 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-25070 | ⌀250 x ⌀255 x ⌀290 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-25080 | ⌀250 x ⌀255 x ⌀290 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-25090 | ⌀250 x ⌀255 x ⌀290 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-26560 | ⌀265 x ⌀270 x ⌀305 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-26570 | ⌀265 x ⌀270 x ⌀305 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-26580 | ⌀265 x ⌀270 x ⌀305 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-26590 | ⌀265 x ⌀270 x ⌀305 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-28560 | ⌀285 x ⌀290 x ⌀325 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-28570 | ⌀285 x ⌀290 x ⌀325 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-28580 | ⌀285 x ⌀290 x ⌀325 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-28590 | ⌀285 x ⌀290 x ⌀325 x 90 |
CuSn8 Bronze | |
Flange Wrapped Bushing-30060 | ⌀300 x ⌀305 x ⌀340 x 60 |
CuSn8 Bronze | |
Flange Wrapped Bushing-30070 | ⌀300 x ⌀305 x ⌀340 x 70 |
CuSn8 Bronze | |
Flange Wrapped Bushing-30080 | ⌀300 x ⌀305 x ⌀340 x 80 |
CuSn8 Bronze | |
Flange Wrapped Bushing-30090 | ⌀300 x ⌀305 x ⌀340 x 90 |
Fast Nationwide Delivery
Fast Delivery, Air Delivery Available,
Highest Quality Wrapped Bronze Bushing.
Chemical Composition
Part No | Material | Cu | Sn | P | Pb | Zn |
BRONZE BUSHING-090 | CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
BRONZE BUSHING-092 | CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
Material Characteristics
Max. Load Capacity P | ||
Static Load | N/mm2 | 120 |
Dynamic Load | N/mm2 | 40 |
Max. Speed V | ||
HSB-090 | m/s | 2.0 |
E92 | m/s | >2.5 |
Max. PV Value | N/mm2·m/s | 2.8 |
Tensile Strength | N/mm2·m/s | 450 |
Yield Point | N/mm2·m/s | 250 |
Hardness | HB | 90-120 |
Elongation | 40% | |
Coefficient of Friction | μ | 0.08~0.25 |
Operation Temperature Range | ℃ | -100~200 |
Thermal Conductivity | W/(m · k) | 60 |
Coefficient of Thermal HSB-2pansion | k-1 | 15×10-6 |
Download complete catalog
Wrapped Bronze Bushing, Bushings & Bearings
Wrapped Bronze Bushing
Oil Indentations/Holes
Explore the catalog of Bronze bushings, bronze bushes, and bearings of all types. Discover the wide range and fill out the form: you can also request 2D or 3D drawings!
Your expert in self-lubricating Bearing
and Bronze alloys – serving globally
