Project Description

Bimetal Bush Manufacturing Process

Metal and Bimetal Bearings

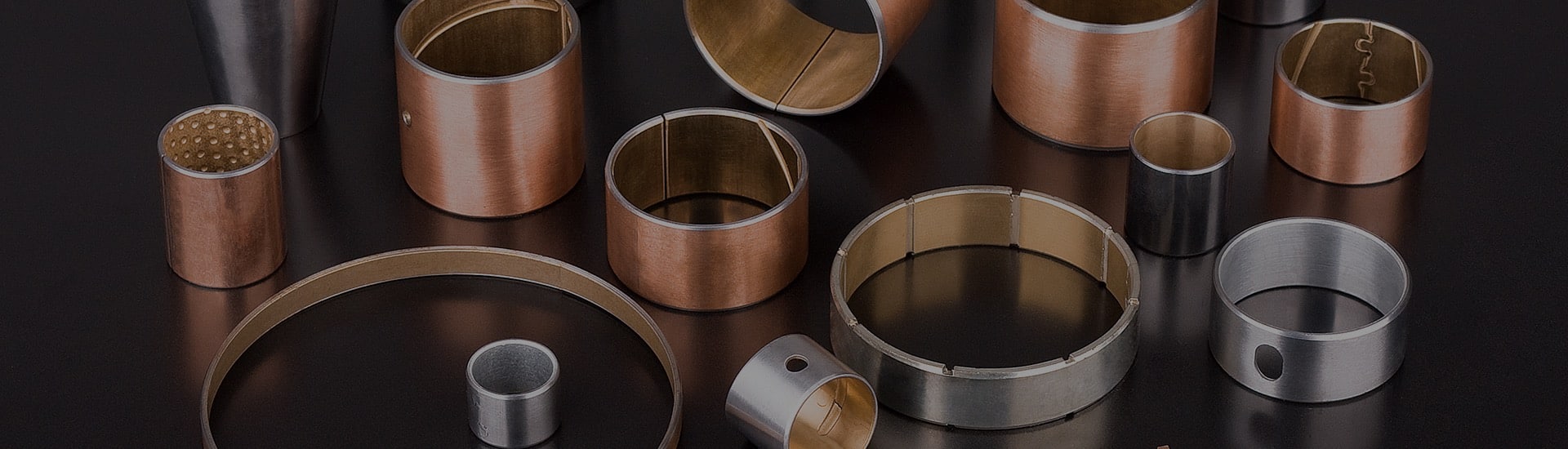

bimetal bearing bushes

MAINTENANCE
CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu、Bimetal Bearing Alloy Layer- Bimetal bearing bushes

Experience of over 10 years of successful projects on creating high quality bimetal bearing & bushings from China.

bimetal bearings catalogue

Explore More BIMETAL BEARINGS dimensions and imperial sizes are available on request

Production Technology of Bimetallic Composite Sliding Bearing

hr

The production process of bimetallic composite sliding bearing comprises the following steps :

  1. One-time laying powder;
  2. Secondary powder laying;
  3. Sintering;
  4. suppression :
  5. Post-processing; And phase sintering and sintering process using gradient, also USES in stages in the process of suppressing repression. Advantage: production technology of double metal composite sliding bearing, compared with the traditional preparation technology, to improve the spread powder technology, can make the laid on iron substrate copper powder can be close-grained, avoid the suppression in the process of copper powder uneven, leading to poor density; At the same time, the sintering process adopts gradient and stage sintering, and the cutting and pressing process also adopts stage pressing, which can greatly enhance the bonding strength between copper powder layer and iron matrix. At the same time, the production process is suitable for different specifications of the sliding bearing, can reduce the production cost, suitable for mass production.
Bimetal Bushing Design

The structure of bimetallic composite sliding bearing

Sliding bearing is the main working part of bending machine and plate shearing machine. For a long time in the state of high-speed rotation and high stress wear, sliding bearing wear consumption is very fast. The traditional casting method of sliding bearing has exposed a series of problems in the process of use, such as easy to produce shrinkage porosity, shrinkage defects, low density. In order to solve these problems, a bimetallic composite technology was put forward to improve the service life of sliding bearing and reduce its production cost. In this paper, the selection of sliding bearing specifications, structural design, technology and die design are systematically studied. Based on the heat transfer analysis and hypothesis, the mathematical model of temperature rise calculation and liner thickness design of sliding bearing under service condition is established by using one-dimensional heat conduction and thermal resistance analysis method in radial system

bimetal bearings bushings

Contact us today

Bimetal Bushing

Standard-Stock Size Available

Bimetal Bushings, Bimetallic Bearings, Bimetal Washers & Plates

Bimetal Bearings Design & Selection

hr

we constantly study new bimetal bearing materials and new metal backed bearings development.

Testing equipment:We have all kinds of professional testing equipment, strict quality assurance system, excellent QC department and professional testing personnel to ensure the quality of bimetal-bearings

bimetal beaering bushes

METRIC BIMETAL BUSHING SIZE BIMETAL BEARINGS ONLINE CATALOGUE

Economic Bimetal Bearing Bushes Price

Bimetal Bearing Lubrication Design Split Gap Design Oil Hole Design & Application

Bimetal bushings bearing, the most powerful bearing capacity, heavy truck balance bridge bushing, gasket; The wheel of a bulldozer bushing; Automobile steel backed bimetal bearing bushing, all use this product. It is a kind of sliding bearing with high load and low speed.

The Connection Type of Bimetal Bushings

  • Straight Joint
  • Butterfly Joint

Discovery The Right Bimetal Bearing Bushing for Your Application!

GET A FREE QUOTE!
Bimetallic bearing Bushing Dimension

Metal, Bimetal Bearings|Steel Backed Bronze Bushings

Bimetal bushing sleeve bearing with flange, mm, bronzelube.com

Top Quality

High Quality Bimetal Plain Bearing Bush for Customer’s Request.

Bimetallic Bearing Technology

Professional Technology&Design.

Bimetallic Bronze Bearing Supplier – High Quality Factory Price‎, Contact Us Today For A Quote!

China Engine Bimetal Connecting Rod Bushing, Find details about China Bimetal Bearing, Engine Bearing from bronzelube.com

Bimetal Plain Bearing Bush Structure

Bimetal Bearings Bushing Material

Steel Back
Bimetallic bearing, Alloy CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu、CuSn8Ni, with groove type, self-lubricating holes.

Discover our bimetal pain bearing bush

RELATED BIMETAL BEARING BUSHING

Bimetal & Steel Bearings

hr

We offers a broad range of sizes, forms and materials in monometallic and bimetallic bearings.

also manufactures a wide range of Engine Bearings, Bushings, Thrust Washers, and Bimetallic Strips.

BIMETAL BEARINGS!

Bimetal bearings are able to handle heavy loads and shock loading conditions. Our bimetal bearings have anti-corrosion capabilities and are easy to install, making them ideal for emergency replacements. thin walled bearing is available with stainless steel, carbon steel or bronze backing.
