Switch to Bronze Bearing – Bronze Bearings – International Supplier, Get Instant Quote
High Quality Bronze Wrapped Bushings, Bronze bearings that are rolled with bronze strips are called wrapped bronze bushings. These bearings are wrapped from a cold formed homogenous bronze (CuSn8), which can achieve exceptional material properties. According to various lubrication bronze bushing design.
What is the secret to producing a more durable and precise Bronze bushing?
Common bearings, high cost, tedious maintenance, reproducible production. Tribological surface solutions, on the other hand, offer new hope for solving these problems. Bearing and self-lubricating plain bearing solutions in bronze can effectively reduce friction and meet the engineering requirements for durability, longevity and cost of prosthetic products. Always Ready To Adapt As Your Business Needs
CuSn8 bronze with either grease pockets or holes，bronze bearing bushing!
Plain Flange Bronze Wrapped Bearings Made From Self-Lubricating CuSn8 Bronze. Our range of CuSn8 bronze bearings manufactured from CuSn8 rolled phosphor bronze alloy material is extremely versatile and well suited for a wide range of applications. Our range of CuSn8 bronze bearings (rolled phosphor bronze alloy material) are extremely versatile and well suited for a wide range of applications. These bronze bearings have been developed to for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture and automotive industries. Select your bronze roller bearing execution below: plain bearing with grease lubricating holes, flanged bearing with grease lubricating holes, plain bearing with lubrication holes (CuSn8 Bronze Bearing Type! Wrapped bronze plain bearings, Wrapped bronze flanged bearings Wrapped bronze perforated bearings!
taxation planning
Eiusmod tempor incididunt ipsum ut labore dolore magna aliqua. Ut enim minim veniam duisy ipsum sed quis.
CuSn8 Bronze Bushing, Design a better bronze bushing to replacement / re-manufacturer
Bronze CuSn8, CuSn8 belongs to the German standard tin bronze, stable mechanical properties at high temperatures (400 ℃), good friction reduction, good corrosion resistance in the atmosphere, fresh water and seawater, good pressure processing in the hot state, can be heat-treated to strengthen, can be welded, not easy to fiber welding, machinability is still good. cuSn8 chemical composition, implementation standards, mechanical properties as shown in the selection: Grade: CuSn8 code: 2.1030 standard : DIN 17662-1983 ● CuSn8 chemical composition: copper Cu: the balance of tin Sn: 7.5 ~ 8.5 phosphorus P: 0.01 ~ 0.35 iron Fe: ≤ 0.1 nickel Ni: ≤ 0.3 lead Pb: ≤ 0.05 zinc Zn: ≤ 0.3 other total: ≤ 0.2. Wrapped Bronze Bushings Service.
Customized Size Wrapped bronze bushings, Make it Unique, Rapid Manufacturing Service – Low Cost, On Time, To Spec

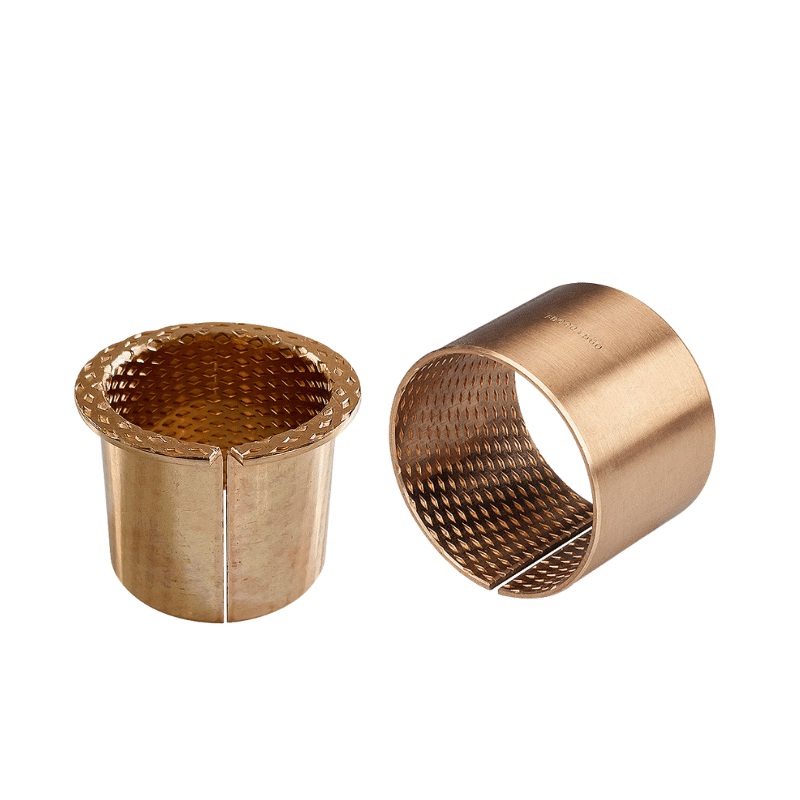

CuSn8 CuSn6 Bronze Rolled Diamond Bushing, Identification Mark On the Wrapped bronze bushings, For the straight bushing size or flange bushing size. DIN 1494 (CuSn8): Punching Size Or Logo Code, Wrapped bronze bushings| Wholesale Suppliers OnlineSliding Bearings. Bronze sliding bearings, roller bearings bushings and engineering bronze: CuSn8 Bronze Bearings (FB090 & FB092)， Can be used on virtually any surface, regardless of shape or material, while. Flanged Sleeve Bearings Made From Self-lubricating Tin Bronze.
- Very lightweight
- No lubrication required
- Reduced friction
- Excellent wear life
- Reduced system noise
Customize your bronze bearings rolled bushing
High quality services – performance-based prices – simple solutions–flawless products. We offer an extensive range of sliding bronze bearings and excellent customer service. Contact now. Developed for slow-speed, high-load applications, our bronze washers are especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agricultural and automotive industries.
Huge Bushing Selection
Manufacturer of Bronze Bearing Bushings and Supplier Thrust Washer. These rolled bronze bushings are ideally suited for thin wall applications. The indents provide lubricant reservoirs that allow for excellent and prolonged service.
Bushing Rapid Manufacturing – Quotes in Hours, Parts in Days Switch to Bronze Bearing – Wrapped Bushing
Beautifully crafted leather products.
Bronze Bearings – Sleeve, Flange Bushing, Buy bushings online, Self-lubricating Wrapped Bearings Size. Bronze Wrapped Plain Bearings Supplier. Normal Brass Bearing. Bronze bearings that are wrapped with bronze strips are called wrapped bronze bushings. The average repair cost is 15-20% higher than the actual production cost, which is a big headache for both manufacturers and users. The self-lubricating bronze products can effectively help reduce the number of repairs, thus achieving the purpose of cost reduction. Get quality parts fast with rapid prototyping and low-volume production. We share your sense of urgency. Get an online quote today. Guaranteed Exact Parts. Bushing Production. Made to order from China. Infinite Capacity. Fast & Free Quote Feedback.
We manufacturing
rolled bronze bushing tailored to your needs.
Bronze Bearings made of CuSn8 with Grease Reservoirs
Bronze bearings made of CuSn8 are a common choice for applications that require good wear resistance and high load-carrying capacity. CuSn8 is a bronze alloy composed of copper, tin, and small amounts of other elements, and it is known for its excellent sliding properties and resistance to corrosion and fatigue.
Adding grease reservoirs to bronze bearings can help to improve their performance by reducing friction and wear. The grease reservoirs act as a reservoir for lubricant, which is slowly released during operation to keep the bearing surfaces separated and reduce friction. This can help to extend the service life of the bearings and reduce maintenance requirements.
When designing bronze bearings with grease reservoirs, it is important to consider factors such as the size and location of the reservoirs, the type and viscosity of the lubricant used, and the operating conditions of the application. Proper lubrication is essential to the performance and longevity of bronze bearings, so it is important to select the right lubricant and to maintain a proper lubrication schedule.
Overall, bronze bearings made of CuSn8 with grease reservoirs can provide a reliable and cost-effective solution for a wide range of high-load, high-wear applications.
Bronze Wrapped Bearings Material
Lubrication indenters are available in different shapes to handle different lubrication tasks. Diamond shaped lubrication indenters are best used for grease lubrication and spherical indenters for liquid lubricants such as oil.
Rolled Bronze Bushing Advantages
- Only one assembly part instead of different single parts
- Guaranteed function without frequent relubrication
- Deposits of foreign matter in the lubrication indent
- Can be reduced to any width without any adverse effect on the lubrication indentation
- Better press fit and higher load capacity than bronze bushings
- slide bearings are 100% recyclable
- Any common type of grease can be used
- Rolled bushing long-term lubrication with depot Easy installation
Slide rolled bushing bearings flange sizes or cylinder-shaped, depending on the application. This slide bearing type is specially designed for thin walled slide bearings.
Manufactured from CuSn8 rolled phosphor bronze alloy material, our range of bronze Wrapped Bearings is extremely versatile and well suited to a wide range of applications. Developed for low speed, high load applications, these bronze bearings are particularly suitable for oscillating motion and are perfect for the construction, mining/quarrying, agricultural and automotive industries. Quick turn Prototypes Metal parts. Upload your CAD files for an instant free Manufacturing Quote!
Our range of rolled-bearing bronze bushings are capable of withstanding axial and radial loads, have excellent resistance to saltwater and corrosion, and most importantly; are more cost effective than machined, roller, or ball bearings.
Bronze Wrapped Bearings Bushing Construction
The rolled-bearing bronze bushing series is made entirely of CuSn8. The working surface is rolled with diamond indentations or stamped with oil grooves. During assembly or operation, these grooves can be filled with grease or oil and act as a reservoir to create good long-term lubrication.
Bronze bearings are made of rolled phosphor bronze alloy with good hardness and finish. The material composition is as follows.
Cu – Balance
The rolled-bearing bronze bushing series is another extremely versatile series. Please feel free to contact us to discuss your specific project requirements. Bronze Wrapped Bearings are available for heavy duty applications with pockets, recesses or through holes.
Bushings – Plain Wrapped Bearings – Sleeve Bearings, Besides our online Bronze Bushing, Wrapped Bearing Type, other online bearing catalogs are also available. We offers high stock levels of wrapped roller bronze bearings and flanged bushings. A majority is online available for immediate deliveries. We ship worldwide. Do you service machines? Select the required dimensions below and order online for immediate delivery. Order Wrapped bronze plain bearings online:
Bronze Bushing Wrapped Bearings Solutions, Special Rolled Bushing Parts
For higher requirements – e.g. higher temperature ranges – different materials wrapped bronze bushings are available made to order from china, bronzelube.com, we offer you a great range of materials – find the right solutions for your application.
In the field of special parts, we specialize in the manufacture of assemblies made of different material combinations as well as in the manufacture of other milled and turned parts, bronze bushing, rolled bushings, wrapped bronze bearings, etc. The bearing bushing products are made of different materials such as tin bronze and aluminum bronze as well as partly steel and cast bronze.
Projects
MAINTENANCE BRONZE BEARINGS
Wrapped bronze bearing, DIN 1494 (CuSn8)
Experience of over 10 years of successful projects on creating high quality bronze bushing from China. Bronze Bushings Available – Made To Order bronzelube.com, Thin-walled self-lubricating bearings according to DIN1494 (ISO347) are available in different types such as straight cylindrical, straight cylindrical bush with flange, thrust spacer, slide plate and other types as per customer’s requirements. We can also provide different materials as substrate, such as copper, steel, aluminum, stainless steel, etc.; different materials as self-lubricating material such as graphite, PTFE, POM, PEEK or PTFE with fiber material, etc. If you want to know the characteristics and technical parameters of different models and materials, please contact us for related information.
The ship, manage, track, and deliver! Application due to a thin wall thickness bronze bushing.
Thus finding the most suitable solution. With the durable bearing components and solid lubricants of self-lubricating bronze bearings, plain bearings maintain good stability and self-lubricating high performance.
Contact our z-industry experts today to create a customized solution for you! CuSn8 bearings can be manufactured in a variety of forms to meet specific application requirements. Cylindrical bushes with non-standard dimensions are one example of a custom bearing form that can be made to order. These bushes can be machined to exact specifications to fit unique shaft sizes or housing dimensions.
In addition to customizing the dimensions of the bearing form, customized bearing designs can also be created to meet specific application needs. For example, a custom bearing design may include features such as flanges, grooves, or oil or grease holes to enhance lubrication and improve performance. When ordering custom bearings, it is important to work closely with the manufacturer to ensure that the design and specifications meet the requirements of the application. The manufacturer can provide guidance on material selection, lubrication options, and other factors that may impact the performance of the bearing.
Economic solution for Wrapped bronze bushings
Wrapped bronze bushings Online web store: www.bronzelube.com for long life bronze bushing. Self lubricating bushings – Request a free quote.
Manufacturer of bushings, Bushes Manufacturer – Tech Standard & Special Parts
Advantages of self-lubricating wrapped bushings: Reliability, economy,
Straight Bushing Copper Bushing, A wrapped bushing or bronze bushing is a type of bushing bearings. It provides an interface between two parts, damping the energy transmitted through the bushing.
Wrapped bronze bearing and bushes – Tech Standard & Special Parts
Beautifully crafted leather products.
Custom CuSn8 bearings can be an excellent solution for applications that require specific dimensions or features that are not available with standard bearing forms. By working with a knowledgeable manufacturer, it is possible to create a customized bearing design that meets the exact needs of the application.
Technical Bronze Bushing Parts. Standards & special parts for var applications. Get a Free Quote. View Catalogues. Bushing Online. Products, Order information, Get the Ordering Information On Samples, Wrapped Bronze Bearings, And More. Our Products are Made Of Engineering Bronze Bearing, Metals, And Bushing. Wholesale Bushing at Good Price Source online for high-quality bronze bushing from Verified Wholesale Suppliers! Offering a free quote…Bushing Bronze – Wholesale Suppliers Online. Find Quality Products from Verified Suppliers. Get a Live Quote Now!
“Wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low maintenance.”
Beautifully crafted leather products.
Metal Bronze Bushing Parts – Customized Service & Products. OEM Service. Precision Metal Components Parts.
Custom metal bushing – Personalized Customization. DIN 1494 (CuSn8) Bronze Bearing.
Custom Bronze Bearing PartS. We Can Delivering High Quality Parts According To Client’ S Requirements. Accept Small Orders.
Type of lubricating Bushing, Made in china
Wrapped bronze bushes, also known as oil-impregnated bronze bearings or oilite bearings, are a type of plain bearing that is widely used in various industrial applications. These bushes are made of a porous bronze material that is impregnated with oil or grease, which helps to reduce friction and wear between the bearing and the shaft. In this article, we will take a closer look at the construction, working principle, advantages, and applications of wrapped bronze bushes.
Construction of Wrapped Bronze Bushes:
Wrapped bronze bushes are made of a sintered bronze material that contains a uniform distribution of fine pores. These pores are then filled with oil or grease under vacuum or pressure, which ensures that the bearing is continuously lubricated during operation. The bushes are then wrapped with a thin layer of PTFE (polytetrafluoroethylene), which acts as a self-lubricating and wear-resistant coating. The PTFE layer also provides protection against corrosion and other forms of chemical attack.
Working Principle of Wrapped Bronze Bushes:
The working principle of wrapped bronze bushes is based on the principles of hydrodynamic lubrication. When the shaft rotates, a thin film of lubricating oil or grease is generated between the shaft and the bearing surface. This film helps to reduce the friction and wear between the two surfaces, ensuring smooth and efficient operation. The porous structure of the bronze material also helps to retain the lubricant, ensuring a constant supply of oil or grease to the bearing surface.
Advantages of Wrapped Bronze Bushes:
High Load Capacity: Wrapped bronze bushes have a high load-carrying capacity, which makes them suitable for heavy-duty applications.
Self-Lubricating: The PTFE layer on the surface of the bushes acts as a self-lubricating coating, reducing the need for external lubrication.
Low Friction: The hydrodynamic lubrication principle ensures that there is minimal friction between the bearing and the shaft, which reduces wear and tear.
Corrosion Resistance: The PTFE layer on the surface of the bushes provides protection against corrosion and chemical attack.
Cost-Effective: Wrapped bronze bushes are cost-effective compared to other types of bearings, making them a popular choice for many industrial applications.
Applications of Wrapped Bronze Bushes:
Wrapped bronze bushes are used in a wide range of industrial applications, including automotive, agricultural, construction, and mining equipment. They are particularly suited for applications where high load capacity, low friction, and self-lubrication are important. Some common applications of wrapped bronze bushes include:
Shock Absorbers: Wrapped bronze bushes are used in shock absorbers to reduce friction and wear between the piston rod and the shock absorber body.
Electric Motors: Wrapped bronze bushes are used in electric motors to support the rotor and reduce friction between the rotor and the stator.
Industrial Machinery: Wrapped bronze bushes are used in a variety of industrial machinery, including pumps, compressors, and gearboxes.
In conclusion, wrapped bronze bushes are a popular type of plain bearing that offers many advantages, including high load capacity, self-lubrication, low friction, and corrosion resistance. They are widely used in various industrial applications, particularly where heavy loads, low friction, and self-lubrication are important.
Precise Production Sizing
Our surface solutions help engineers to precisely control the dimensions of the production tin bronze bushing at design time so that customers can produce parts efficiently. Not only does this reduce costs, but any party in the procurement chain, from suppliers and factories to end users, can use and replace self-lubricating bearings more efficiently and meet production needs.
Manufactured from CuSn8 rolled phosphor bronze alloy material, our range of bronze bearings are highly versatile and ideally suited to a wide range of applications. Developed for low speed, high load applications, these bronze bearings are particularly suitable for oscillating motion and are perfect for the construction, mining/quarrying, agricultural and automotive industries.
Our range of bronze bearings are capable of withstanding axial and radial loads, have excellent resistance to salt water and corrosion and most importantly; are more cost effective than machined, roller or ball bearings.
Material CuSn8 (entirely bronze) Bushing DIN 1494 (CuSn8)
Wrapped bushing, split joint flange bushings Tin phosphor bronze, Bronze Bearings Material CuSn8P & CuSn6P, DIN 1494 / ISO 3547, Low-maintenance MADE-TO-ORDER from china, Standard dimension of cylindrical wrapped bronze bushing & bushes ( mm sizes) From ID 10mm to 300mm.
BRONZE WRAPPED BEARING
We offer a wide range of straight and flange wrapped bronze bushing & bronze bearings.
BRONZE BUSHINGS CHARACTERISTICS
- Maintenance-free operation
- Very good frictional properties
- High load carrying capacity
- High sliding velocity
BRONZE BUSHINGS MATERIAL & COMPOSITION
- Wrapped bronze bushing bade material CuSn8P (DIN 17662)
- alternative CuSn6P available for wrapped bronze bushing.
BRONZE BUSHINGS DIMENSION
Metric (mm) & Imperial (inch) Wrapped Bronze Bushing: Shaft and housing tolerances (Design of bushing arrangements)
- Housing ØH7
- Bushing inner-Ø after mounting H9
- Shaft tolerance f7 to h8
WRAPPED BRONZE BUSHINGS AVAILABILITY
Wrapped Bronze Bearing types available in standard dimensions. Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs.
WRAPPED BRONZE BUSHINGS SHAPES & TYPES
- Cylindrical bushes
- Flanged bushes
- Thrust washers
- Flanged washers
- Sliding plates
WRAPPED BRONZE BUSHINGS ASSEMBLY ADVISE
- Housing: Mounting bevel min. 1.5 mm x 15-45°
- Shaft: Mounting bevel 5 mm x 15°, edges roundedThe application of an adequate force fitting mandrel is advisable.
- Grease lubrication of the outer surface may be necessary when mounting.
WRAPPED BRONZE BUSHINGS RANGE OF APPLICATION
WRAPPED BRONZE BUSHINGS AREA OF USE: Agriculture machinery, truck cranes & construction machinery, suitable for impact loads
SPECIAL MANUFACTURING
Wrapped bronze bushing special dimensions are available on request.
WRAPPED BRONZE BEARING PROPERTIES
| Material：CuSn8P0.3 or CuSn6.5P0. 1 |
| Hardness：HB90~120 |
| Temperature limit：-80℃~200℃ |
| Load capacity：75N/mm2 |
| Speed limit：2.5m/s |
Meeting Customization Needs
Engineers and bearing procurement specialists are faced with a growing demand for high performance self-lubricating bearings. We can provide our customers with a wide range of surface solutions for plain bearing brass bushings. Our products are suitable for a wide range of solutions, and we can develop your proprietary design and provide samples in a short time.
CuSn8 bronze with either grease pockets or holes – Standard or custom made parts
Roller Bronze Bearing Supplier, Self-Lubricating Bushing Catalog
Our range of CuSn8 bronze bearings (rolled phosphor bronze alloy material) are extremely versatile and well suited for a wide range of applications. , Free Bearing Catalog. The Most Trusted and Reliable Supplier of Bearing Brand Products.
