Bronze Graphite Oil-free Bushing Bearings – Oilless Bushing in High & Low Temps
Oil Free Bushings for industrial applications. We offers free CAD downloads, prompt lead times, competitive pricing, and no minimum order quantity.
Bronze Graphite Bearings and Bushings. Reduced costs & downtime. Increased productivity. Services: Custom Design, Engineering Support, Short Lead Times.
Shop a large range of oil-free bearings & copper bushing at bronzelube.com. Support all your metal copper bushing and maintenance repair needs … with excellent quality, to win customers of all ages.

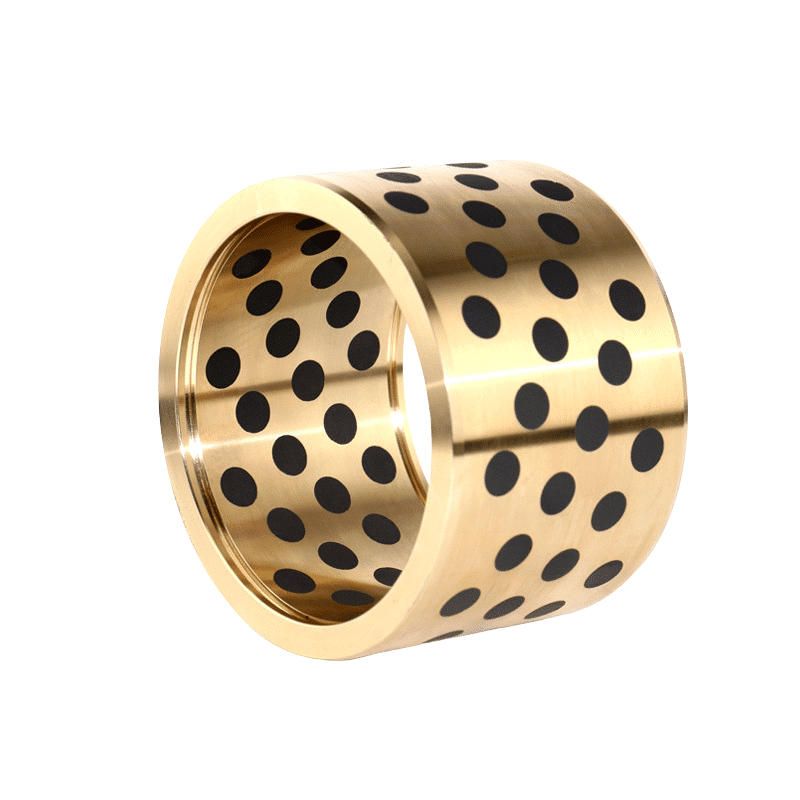

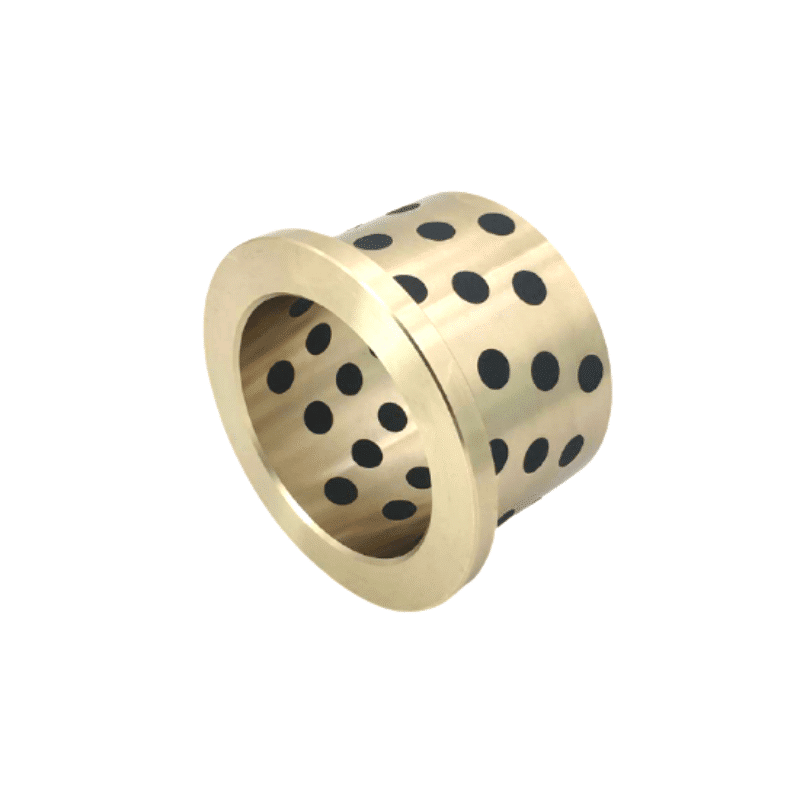

Bronze Graphite Bushing Description
This material provides a maintenance-free and low friction bearing solution, particularly for high load and intermittent oscillating motion. Solid lubricants within the bronze combine the strength of the bronze with the wear resistance of the graphite. Applications covered are automotive production lines, water industry, dam gates, plastic molding machinery, etc. Different types of bronze alloy can be offered according to the application.
Contact Us
Need Assistance? Call Or Email Us Engineering Support Available
Innovative oil-free bushing bearings feature that provide unique performance advantages. High load capacity, self-lubrication options, and plugged graphite designs. Oilless Bushing. Bronze Castings. Straight Type. Material Base Bronze. Solid lubricant Graphite.

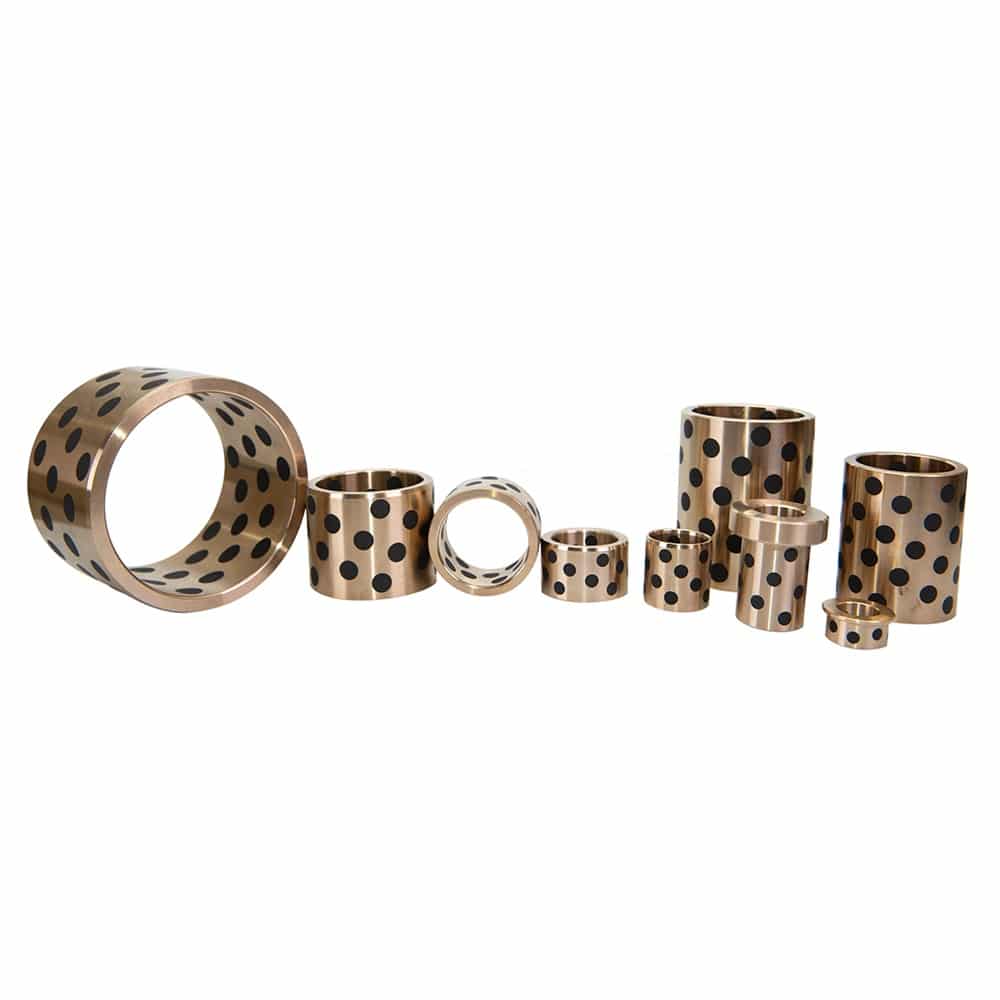

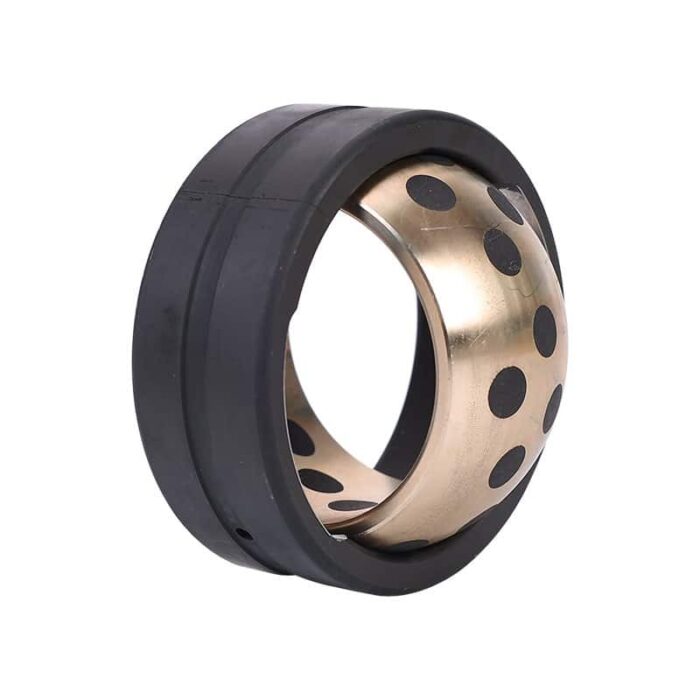

Copper self-lubricating oil-free bushing bearings, also known as oilless bushings, are a type of bearing that can operate without the need for external lubrication. They are made of a copper alloy, often with embedded solid lubricants such as graphite, which provides self-lubricating properties.
These bearings are designed to work continuously under conditions of no oil lubrication, making them suitable for heavy load and low-speed conditions. They exhibit good wear resistance and a very low friction coefficient. They are also suitable for reciprocating, rotating, and intermittent motion where an oil film is difficult to form.
Delivers all bearing bushing, small parts, services, and expertise needed to assemble future mobility
Bronze is a popular choice for creating plain bearings, bushings, liner plates, washers, and oilless components due to its excellent wear resistance, high load-carrying capacity, and good corrosion resistance. The 500SP series is a type of copper alloy commonly used for creating oilless components in a variety of applications. Here’s an overview of machining these parts:
Material Selection: Choose the right type of bronze alloy for your application. The 500SP series is a popular choice for oilless components due to its embedded solid lubricant particles, which provide self-lubricating properties.
Machining Process: For machining bronze components, the most commonly used methods include turning, milling, drilling, and grinding. The specific process depends on the desired shape and size of the component. Use cutting tools with sharp edges and high-quality cutting fluid to ensure smooth machining and prevent workpiece deformation.
Cutting Speed and Feed Rate: The optimal cutting speed and feed rate depend on the type of bronze alloy, the machining process, and the tooling used. In general, lower cutting speeds and feed rates are recommended for bronze alloys with high lead content, while higher cutting speeds and feed rates can be used for alloys with lower lead content. Make sure to monitor tool wear and adjust the parameters accordingly.
Tool Material: Carbide cutting tools are recommended for machining bronze due to their high wear resistance and ability to maintain a sharp edge. High-speed steel (HSS) tools can also be used, but they may require more frequent sharpening and replacement.
Lubrication and Cooling: Proper lubrication is essential when machining bronze components to minimize tool wear and achieve a high-quality surface finish. Use a high-quality cutting fluid and ensure adequate cooling during the machining process.
Finishing and Deburring: After machining, it’s important to finish and deburr the component to remove any sharp edges or rough surfaces. This can be done using manual deburring tools, sandpaper, or specialized finishing machines.
Quality Control and Inspection: Inspect the machined components for dimensional accuracy, surface finish, and any potential defects. Use measuring instruments like calipers, micrometers, and surface roughness testers to ensure the components meet the required specifications.
By following these guidelines, you can effectively machine bronze bushings, plain bearings, liner plates, washers, and 500SP copper alloy oilless components for a wide range of applications.
Here is a table summarizing the different properties of the copper alloys mentioned for precision machining of bearing bushings:
Material
Density (g/cm³)
Yield Strength (MPa)
Tensile Strength (MPa)
Elongation (%)
Hardness (HB)
Load Bearing
Corrosion Resistance
Machinability
Available Forms
Customizable Groove Designs
CuZn25Al6Mn4Fe3
8.0
300
750
10
180-220
High
Excellent
Good
Sleeve, Flange, Washer, Slide Plate
Yes
CuSn5Pb5
8.9
100
200
20
60-90
Medium
Good
Excellent
Sleeve, Flange, Washer, Slide Plate
Yes
CuAl10Ni5Fe5
7.8
400
800
10
200-250
High
Excellent
Good
Sleeve, Flange, Washer, Slide Plate
Yes
CuSn12
8.9
120
250
15
70-100
Medium
Good
Good
Sleeve, Flange, Washer, Slide Plate
Yes
CuSn10Pb10
8.8
100
220
20
60-90
Medium
Good
Excellent
Sleeve, Flange, Washer, Slide Plate
Yes
CuZn25Al6Mn4
8.0
290
720
10
170-210
High
Excellent
Good
Sleeve, Flange, Washer, Slide Plate
Yes
We can provide different grades of copper alloys based on various working conditions and process them into different forms and designs with various groove styles, as per the requirements.

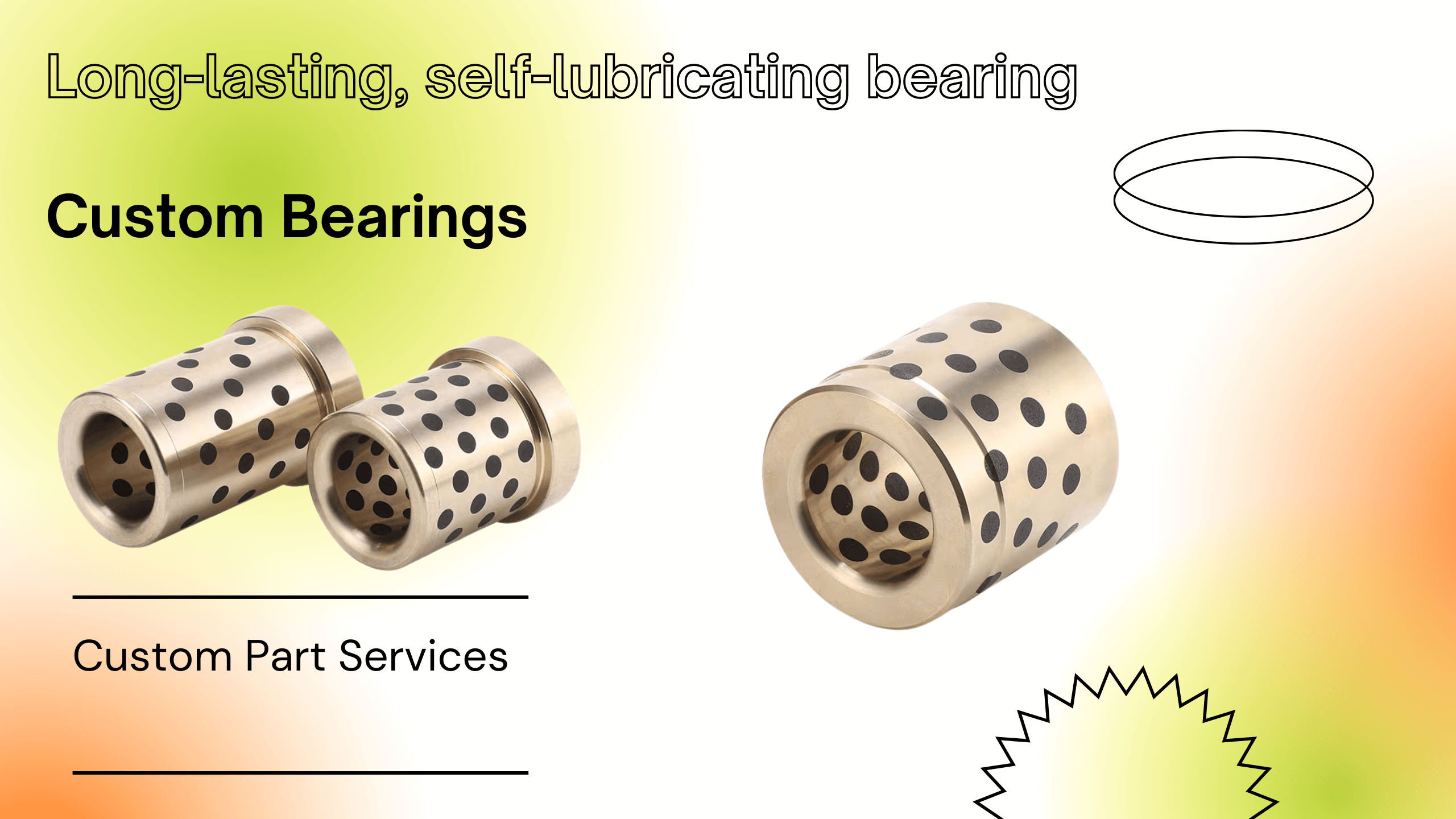

High-strength brass oilless bearings with embedded solid lubricant Dam gates
High-strength brass oilless bearings with embedded solid lubricant are becoming increasingly popular for use in dam gates, where they offer significant advantages over traditional bearings.
Oilless bearings are made of materials that do not require oil or grease to operate, which makes them more environmentally friendly and reduces the need for maintenance. In addition, they are more durable and can operate at higher speeds and under heavier loads than traditional bearings.
One type of oilless bearing that is particularly well-suited to dam gates is the high-strength brass bearing with embedded solid lubricant. These bearings are made of a high-strength brass alloy that provides excellent resistance to corrosion and wear, making them ideal for use in harsh environments like those found in dams.
The embedded solid lubricant in these bearings provides an additional layer of protection against wear and helps to reduce friction, which in turn reduces energy consumption and extends the lifespan of the bearings. The solid lubricant is typically made of graphite or molybdenum disulfide, which are both highly effective at reducing friction and wear.
In addition to their durability and high performance, high-strength brass oilless bearings with embedded solid lubricant offer other advantages for use in dam gates. For example, they can be custom designed to fit specific applications and can be easily replaced if necessary, which reduces downtime and maintenance costs.
Overall, the use of high-strength brass oilless bearings with embedded solid lubricant is a smart choice for dam gates and other applications where high performance and durability are essential. They offer significant advantages over traditional bearings and are a cost-effective and reliable solution for a wide range of industrial applications.

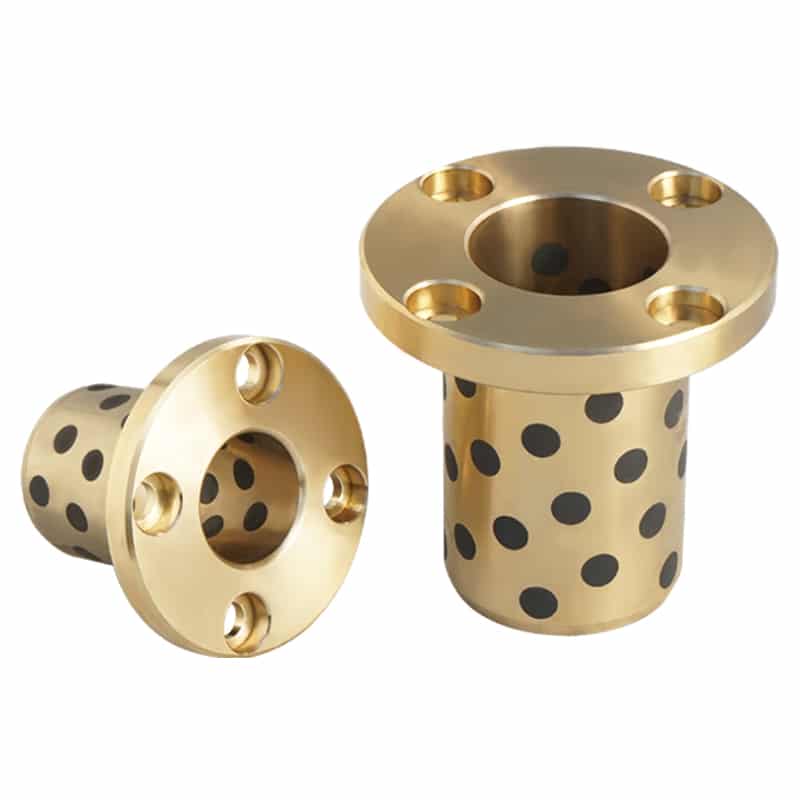

Product information ALLOY CuZn25Al5 Maintenance-free sliding bushing elements
Oil-free Bushing Series. Bronze plain bearings with solid lubricant inserts

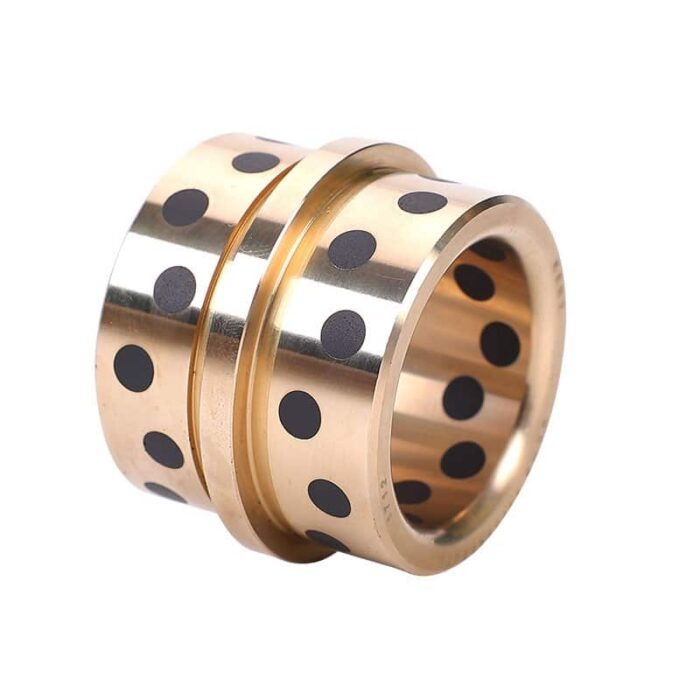

Maintenance-free cast bronze plain bearings with graphite inserts
The Oil-free Bushing series of solid bronze plain bearings with solid graphite lubricant inserts combines the advantages of both worlds. On the one hand, the insert with a base made of turned bronze has the advantages of a solid plain bearing, such as high load capacity and excellent suitability for shock loads. On the other hand, thanks to the solid lubrication of the plain bearings, the regularly recessed lubricant reservoirs allow for longer maintenance intervals.
In these recesses, the bronze plain bearings absorb dust particles and the coefficient of friction at the bearing position is reduced by solid lubrication with graphite.Oil-free Bushing’s solid cast bronze plain bearings conform to ISO 4379 and are also characterized by their resistance to high temperatures above 250°C and low wear – even under high loads.
Oil Free Bushings Size
What is CuSn12?
CUSN12 is likely a reference to a specific type of metal alloy. CUSN12 is typically abbreviated code for an alloy of copper, nickel, and tin, known as “C12200” in the North American market. This alloy is commonly used for a variety of applications, including electrical conductors and plumbing fittings, due to its good electrical and thermal conductivity, high resistance to corrosion and dezincification, and ease of fabrication.
Alloy CuSn12 is a phosphor bronze, often referred to as “gear bronze”, which meets the requirements of DIN 1705 alloy GC-CuSn12. CuSn12 has good machinability, high strength and good corrosion resistance to seawater and salt water, making it suitable for use in pump and valve components.
Worldwide equivalents of grade Oil-free Bushing GK-CuZn25Al5 (Germany: DIN, WNr ) Maintenance-free sliding elements
GK-CuZn25Al5 Germany Standard : DIN 1709-1981 for GK-CuZn25Al5 (DIN, WNr ) and its European equivalent CuZn25Al5Mn4Fe3-C ( EN ) Oil-free Bushing
CuZn25Al5 alloy Oil-free Bushing Maintenance-free sliding bearing
CuZn25Al5 is a high-strength manganese bronze or high-tensile brass.
Alloy CuZn25Al5 Oil-free Bushing has exceptional strength, good wear properties, and good ductility, but poor machinability.
It is suitable for super-heavy slow-speed bearings and hydraulic cylinder components with good lubricity.
Oil-free Bushing Alloy CuZn25Al5 has good corrosion resistance, but may be susceptible to dezincification under certain conditions.
It is prone to dezincification under conditions.
The composition and casting conditions of alloy CuZn25Al5 are strictly controlled. The product is
manufactured using the latest continuous and centrifugal casting techniques.
Maintenance-free sliding elements Oil-free Bushing Alloy CuZn25Al5 – Manganese Bronze Summary of Properties
Chemical Composition – Percentage
Element Name
Copper 60.0 – 65.0 63.0
Aluminum Al 5.0 – 7.5 5.7
Iron Fe 2.0 – 4.0 3.0
Manganese Mn 2.5 – 5.0 3.5
Nickel Ni 0.5 max
Tin Sn 0.2 max
Lead Pb 0.2 max.
Zinc Zn Balance
Mechanical properties [typical] Continuous casting
Yield strength 460 Mpa (67,000 psi)
Ultimate tensile strength 780 Mpa (113,000 psi)
Elongation 15%
Typical hardness 210 BHN
Specific gravity 8.2
Machinability grade (free machining brass = 100) 8
Maximum Operating Temperature Operating Temperature 260oC (500O
F)
Strain relief temperature 260oC (500O F)
F)
Time at temperature 1 hour per 25 mm section thickness
Comparative Specifications
AS1565 C86300; ASTM B505, B271 – C86300; SAE 430B*; BS1400 – HTB3*; DIN 1709 – CuZn25Al5 Oil-free Bushing*;
* Similar but not identical
cac304 brass corresponds to domestic grade A cac304, high force brass domestic material. High force brass is a variety of alloys consisting of more than two elements called special brass. As by aluminum, lead, tin, manganese, nickel, iron, and silicon composition of copper alloy, high force brass is one of them.
China Copper Bushing – High-Quality Price, sliding bush, Find the perfect sliding bush for your requirement at bronzelube.com, Browse through multiple variations for sliding bush that matches yours.
Safe Trading Copper Self-lubricating Bushingon Platform. Sourcing Copper Bushing from China Now. Self-lubricating bearing is used where the demand for maintenance-free operation, high load, or high temperature makes it impossible to use conventional bearings. Manufactured and sell the bearing from China. Function oil-free bronze self-lubricating bearings use high-grade bronze alloys as their base material and have a finely finished surface with pockets in which a specially formulated solid lubricant is embedded. The pattern of the lubricating material is arranged geometrically, so that the entire bearing surface is lubricated permanently, in the direction of motion. During operation, a very thin, but nevertheless extremely strong, lubricating film is deposited automatically over the complete moving surface. This film remains intact at all times, even at standstill. The solid lubricant covers 25–30% of the sliding surface. Oil-free bushing bearings are primarily intended for intermittent duty.
Oil-free Bushing Key Features.
Excellent strength, good wear resistance, and good ductility, but only average machinability.
Oil-free Bushing Full alloy description.
Oil-free Bushing CuZn25Al5Mn4Fe3 required high-strength manganese bronze or high-tensile brass.
The Oil-free Bushing CuZn25Al5 alloy has exceptional strength, good wear resistance and good ductility, but poor machinability.
It is suitable for super heavy slow-speed bearings and hydraulic cylinder parts with good lubricity. Oil-free Bushing Alloy CuZn25Al5 has good corrosion resistance, but may be susceptible to dezincification under certain conditions. The composition and casting conditions of alloy CuZn25Al5 are strictly controlled. The products are manufactured using the latest continuous and centrifugal casting techniques.
Self-lubricating bushing material is made with high-strength copper alloy, and the inserted solid lubricant materials are made with graphite and PTFE.
According to the bushings’ working conditions, the bronze combination between the different metal basements and various solid lubricants can ensure that the product can perform under various temperatures, loads, movements and mediums as required.
Oilless bush is especially applied in oil-free high temperature, high load, low speed, contamination resistance, corruption resistance radiation resistance as well as the use under such special work conditions that cannot be lubricated, such as underwater and in vacuum space.
When ordering an oil-free bearing the following data shall be given: Dimensions, base material, lubricant, lubricant pattern and direction of movement, Rotation, or Axial. For radial bearings the letter R after the lubricant pattern designation stands for Rotation and the letter A for Axial movement.

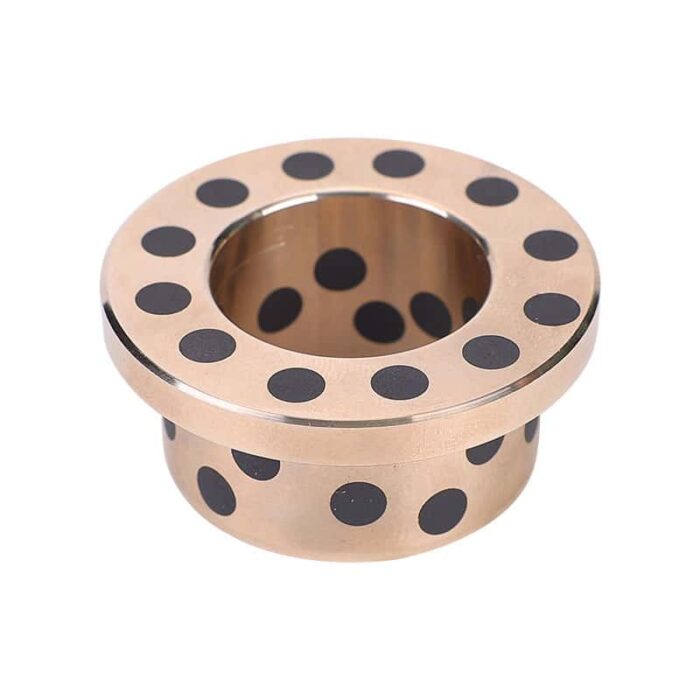

Oilless bronze bush is made of centrifugal cast bronze material with graphite
Oilless Bronze Bush Characteristics:
1. May work without any oil for long period.
2. Extremely high load capacity, good anti-wear, and low friction.
3. Particularly appropriate for low speed and high load.
4. Suitable single-direction axial loads
5. Free design is possible on the shape and size
6. Can be used in a wide range of temperatures, from - 40℃+ 300℃
Our Oil-free Bushing Feature Special Bronze Material Grades For High Performance & Service Life. Bronze Graphite Bearings. Fast Response & Quick Turnaround Times. Contact Us Today! Manufactured in China. Call to Order Today.
The geometry, as well as the choice of material, is based on the specific application of the bearing. This means that each bearing is specially made to meet all load, environmental, and temperature requirements where it is to be used.
Base material produces a wide range of copper-based alloys, which are used as base material on oil-free bushing bearings. Data relating to four of those alloys are given in the table below. The capacity or carrying load is very much dependent on the choice of alloy, The selection of the base material will thus be based on the requirement of load-carrying capacity. Note that the temperature has an influence on the allowable load values and also the choice of lubricant.
CuSn5Pb5Zn5 Gun Metal oil-free bronze bushing
CuSn12 Tin Bronze oil-free bronze bushing
CuSn10Pb10 Lead-Tin Bronze bushing
Oilless Bushings SPB Alloy materials
Model
JDB-1
JDB-2
JDB-3
JDB-4
JDB-5
Grade
China Brands
GB1776-87
ZCuZn25
AI6Fe3Mn3 Oil-free Bushing
ZCuSn6Zn6Pb3
ZCuAI10Fe3
ZCuSu10P1
Steel+ZCuSn6Zn6Pb3
HT250
GCr15
International
ISO1338
GCuZn25
AI6Fe3Mn3 Oil-free Bushing
GCuSn6Zn6Pb3
GCuAI10Fe3
CuSn12
Steel+CuSn6Zn6Pb3Fe3Ni5
–
B1
Germany
DIN
G-CuZn25
AI5 Oil-free Bushing
GB-CuSn5Zn5Pb5
GB-CuAI10Ni
GB-CuSn10
Steel+CuSn6Zn6Pb3Ni
–
100Cr6
Japanese
JIS
HBsC4
BC6
AIBC3
BC3
BC6
FC250
SUJ2
United States
ASTM/UNS
C86300
C83600
C95500
C90800
C83600
Class40
52100
British Standard
HTB2
LG2
AB1
PB4
LG2
–
–
Material alloy chemical composition
Chemical Elements
JDB-1
JDB-2
JDB-3
JDB-4
JDB-5
Cu ( % )
Rest
Rest
Rest
–
–
Sn ( % )
–
6
–
10
6
–
–
Zn ( % )
25
6
–
–
6
–
–
Ni ( % )
–
–
–
–
–
–
–
AI ( % )
6
–
10
–
–
–
–
Fe ( % )
3
–
3
–
–
Rest
Rest
Mn ( % )
3
–
–
–
–
0.905 – 1.3
0.20 – 0.40
Cr ( % )
–
–
–
–
–
–
1.30 – 1.65
C ( % )
–
–
–
–
–
2.5 – 4
0.95 – 1.05
Si ( % )
–
–
–
–
–
1.0 – 1.3
0.15 -0.35
Pb ( % )
–
3
–
–
3
–
–
Technical Parameters
Performance
JDB-1
JDB-2
JDB-3
JDB-4
JDB-5
Max.load P ( N/mm² )
100
60
70
60
250
Max.speed V ( m/s )
Dry0.4 oil5
2
2
0.5
0.1
Max.PV ( N/mm²·m/s )
3.8
0.5
0.6
0.8
2.5
Density ρ( g/cmsup3 )
8.0
8.0
7.6
7.3
7.8
Tensile strength ( N/mm² )
> 600
> 250
> 500
> 250
> 1500
Elongation ( % )
> 10
> 4
> 10
–
–
Hardness ( HB )
> 210
> 80
> 80
> 160
HRC> 55
Max.temp ( ℃ )
300
350
300
400
350
Friction coef. ( μ )
Oil lubrication: 0.03
Friction(dry): 0.16
SPB OIL-FREE BEARING SIZE
(Examples) I.D. is 25mm, O.D. is 33mm, and length is 20mm. SPB – 253320
Solid lubricants Three different kinds of solid lubricants are available, two of which are based on graphite and one on PTFE. They are produced by compression which gives plugs with high density and good lubrication properties.
Lubricant Features All lubricants may be used in temperatures down to –40°C Lubricant pattern General use -B1 -W1 -P1 SL101 graphite+add Excellent resistance against chemical attacks Temperature <300°C SL201 graphite+add Lubricant for general use. Temperature <150°C SL403 PTFE+add Lowest in friction. Temperature <80°C Good for shock loads. When possible always recommended because of the excellent friction properties, for example in water.
Bronze Bearing Technologies/Products
All forging, casting bronze bearings, machining metal bushes, stamping, welding components, tooling, sliding bearing bushing, extrusion, raw materials, gear bearings, cylinder bushing bearings, packaging
Gunmetal brass bushing oilless bearing, red brass, steam, and hydraulic castings, valves, gears, statues
Gunmetal
Gunmetal alloys include the most commonly used bearing materials. They have a somewhat lower load-bearing capacity than lead-free or lead-containing copper-tin alloys. However, they can adequately meet the requirements of bearings operating at moderate loads and medium to high speeds.
The solubility of lead in liquid copper is very low. It is almost entirely insoluble in solid copper or its alloys. In addition, lead melts at relatively low temperatures and when the bearings are cast, the information in the alloy ends up freezing, thus forming irregular spheres between the boundaries of the copper-tin alloy. The lead is used to improve its bearing performance. The free lead islands tend to coat the surfaces of the bearings and shafts, effectively acting as a built-in lubricant. This prevents seizures in the event of interruptions in the lubricant supply. For this reason, these alloys are particularly recommended for boundary lubrication and mixed film applications. Gunmetal alloys can be used for unhardened shafts.
Reasonable strength
Excellent thermal conductivity
Reasonable resistance to seawater corrosion
Maximum operating temperature of 220°C
Contact Us, Find the Oil-free Bushing Size
For inquiries or to request an oilless bearing size and catalog, click here!

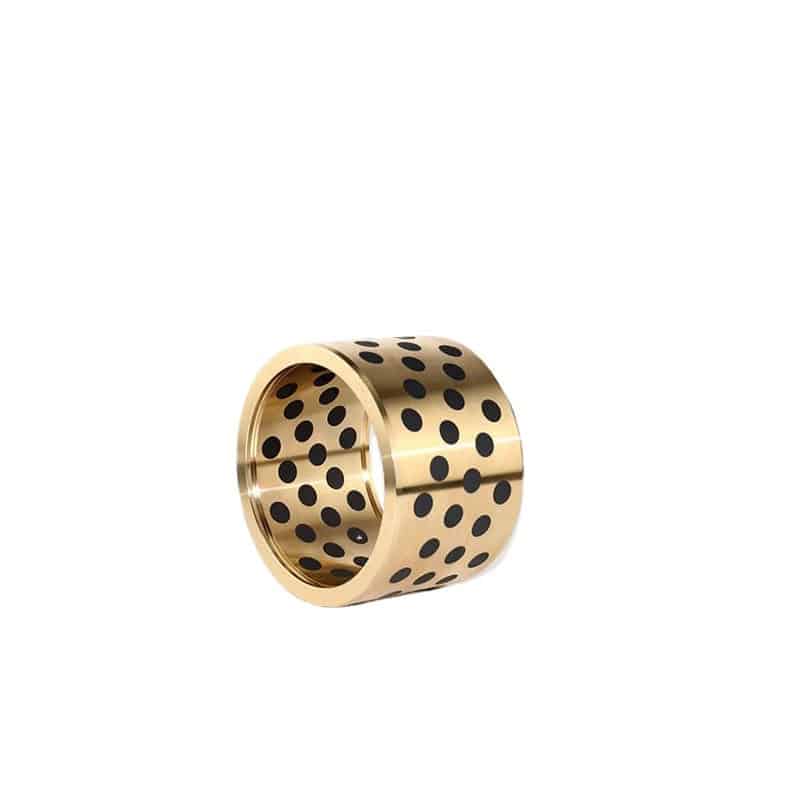

OILES 500SP1-SL1 Bushings
I.D.: Φd
O.D.: ΦD
Length: L
SPB-061008
6
10
8
SPB-061010
6
10
10
SPB-061012
6
10
12
SPB-081208
8
12
8
SPB-081210
8
12
10
SPB-081212
8
12
12
SPB-081215
8
12
15
SPB-101408
10
14
8
SPB-101410
10
14
10
SPB-101412
10
14
12
SPB-101415
10
14
15
SPB-101420
10
14
20
SPB-121808
12
18
8
SPB-121810
12
18
10
SPB-121812
12
18
12
SPB-121815
12
18
15
SPB-121816
12
18
16
SPB-121819
12
18
19
SPB-121820
12
18
20
SPB-121825
12
18
25
SPB-121830
12
18
30
SPB-131910
13
19
10
SPB-131912
13
19
12
SPB-131915
13
19
15
SPB-131920
13
19
20
SPB-131925
13
19
25
SPB-131930
13
19
30
SPB-142010
14
20
10
SPB-142012
14
20
12
SPB-142015
14
20
15
SPB-142020
14
20
20
SPB-142025
14
20
25
SPB-142030
14
20
30
SPB-152110
15
21
10
SPB-152112
15
21
12
SPB-152115
15
21
15
SPB-152116
15
21
16
SPB-152120
15
21
20
SPB-152125
15
21
25
SPB-152130
15
21
30
SPB-152135
15
21
35
SPB-152140
15
21
40
SPB-162210
16
22
10
SPB-162212
16
22
12
SPB-162215
16
22
15
SPB-162216
16
22
16
SPB-162219
16
22
19
SPB-162220
16
22
20
SPB-162225
16
22
25
SPB-162230
16
22
30
SPB-162235
16
22
35
SPB-162240
16
22
40
SPB-172315
17
23
15
SPB-182410
18
24
10
SPB-182412
18
24
12
SPB-182415
18
24
15
SPB-182416
18
24
16
SPB-182420
18
24
20
SPB-182425
18
24
25
SPB-182430
18
24
30
SPB-182435
18
24
35
SPB-182440
18
24
40
SPB-192615
19
26
15
SPB-192620
19
26
20
SPB-202810
20
28
10
SPB-202812
20
28
12
SPB-202815
20
28
15
SPB-202816
20
28
16
SPB-202819
20
28
19
SPB-202820
20
28
20
SPB-202825
20
28
25
SPB-202830
20
28
30
SPB-202835
20
28
35
SPB-202840
20
28
40
SPB-202850
20
28
50
SPB-203010
20
30
10
SPB-203012
20
30
12
SPB-203015
20
30
15
SPB-203016
20
30
16
SPB-203020
20
30
20
SPB-203025
20
30
25
SPB-203030
20
30
30
SPB-203035
20
30
35
SPB-203040
20
30
40
SPB-203050
20
30
50
SPB-223212
22
32
12
SPB-223215
22
32
15
SPB-223220
22
32
20
SPB-223225
22
32
25
SPB-253312
25
33
12
SPB-253315
25
33
15
SPB-253316
25
33
16
SPB-253320
25
33
20
SPB-253325
25
33
25
SPB-253330
25
33
30
SPB-253335
25
33
35
SPB-253340
25
33
40
SPB-253350
25
33
50
SPB-253360
25
33
60
SPB-253512
25
35
12
SPB-253515
25
35
15
SPB-253516
25
35
16
SPB-253520
25
35
20
SPB-253525
25
35
25
SPB-253530
25
35
30
SPB-253535
25
35
35
SPB-253540
25
35
40
SPB-253550
25
35
50
SPB-253560
25
35
60
SPB-283820
28
38
20
SPB-283825
28
38
25
SPB-283830
28
38
30
SPB-283840
28
38
40
SPB-303812
30
38
12
SPB-303815
30
38
15
SPB-303820
30
38
20
SPB-303825
30
38
25
SPB-303830
30
38
30
SPB-303835
30
38
35
SPB-303840
30
38
40
SPB-303850
30
38
50
SPB-303860
30
38
60
SPB-304012
30
40
12
SPB-304015
30
40
15
SPB-304020
30
40
20
SPB-304025
30
40
25
SPB-304030
30
40
30
SPB-304035
30
40
35
SPB-304040
30
40
40
SPB-304050
30
40
50
SPB-304060
30
40
60
SPB-314030
31.5
40
30
SPB-314040
31.5
40
40
SPB-324220
32
42
20
SPB-324230
32
42
30
SPB-324240
32
42
40
SPB-354420
35
44
20
SPB-354425
35
44
25
SPB-354430
35
44
30
SPB-354435
35
44
35
SPB-354440
35
44
40
SPB-354450
35
44
50
SPB-354460
35
44
60
SPB-354520
35
45
20
SPB-354525
35
45
25
SPB-354530
35
45
30
SPB-354535
35
45
35
SPB-354540
35
45
40
SPB-354550
35
45
50
SPB-354560
35
45
60
SPB-384840
38
48
40
SPB-405015
40
50
15
SPB-405020
40
50
20
SPB-405025
40
50
25
SPB-405030
40
50
30
SPB-405035
40
50
35
SPB-405040
40
50
40
SPB-405050
40
50
50
SPB-405060
40
50
60
SPB-405070
40
50
70
SPB-405080
40
50
80
SPB-405515
40
55
15
SPB-405530
40
55
30
SPB-405535
40
55
35
SPB-405540
40
55
40
SPB-405550
40
55
50
SPB-405560
40
55
60
SPB-455530
45
55
30
SPB-455535
45
55
35
SPB-455540
45
55
40
SPB-455550
45
55
50
SPB-455560
45
55
60
SPB-455630
45
56
30
SPB-455635
45
56
35
SPB-455640
45
56
40
SPB-455650
45
56
50
SPB-455660
45
56
60
SPB-456030
45
60
30
SPB-456035
45
60
35
SPB-456040
45
60
40
SPB-456050
45
60
50
SPB-456060
45
60
60
SPB-456070
45
60
70
SPB-456080
45
60
80
SPB-506020
50
60
20
SPB-506030
50
60
30
SPB-506035
50
60
35
SPB-506040
50
60
40
SPB-506050
50
60
50
SPB-506060
50
60
60
SPB-506070
50
60
70
SPB-506080
50
60
80
SPB-506230
50
62
30
SPB-506235
50
62
35
SPB-506240
50
62
40
SPB-506250
50
62
50
SPB-506260
50
62
60
SPB-506270
50
62
70
SPB-506280
50
62
80
SPB-506530
50
65
30
SPB-506540
50
65
40
SPB-506550
50
65
50
SPB-506560
50
65
60
SPB-506570
50
65
70
SPB-506580
50
65
80
SPB-5065100
50
65
100
SPB-557030
55
70
30
SPB-557035
55
70
35
SPB-557040
55
70
40
SPB-557050
55
70
50
SPB-557060
55
70
60
SPB-557070
55
70
70
SPB-607430
60
74
30
SPB-607435
60
74
35
SPB-607440
60
74
40
SPB-607450
60
74
50
SPB-607460
60
74
60
SPB-607470
60
74
70
SPB-607480
60
74
80
SPB-607530
60
75
30
SPB-607535
60
75
35
SPB-607540
60
75
40
SPB-607550
60
75
50
SPB-607560
60
75
60
SPB-607570
60
75
70
SPB-607580
60
75
80
SPB-6075100
60
75
100
SPB-637560
63
75
60
SPB-637570
63
75
70
SPB-637580
63
75
80
SPB-658040
65
80
40
SPB-658050
65
80
50
SPB-658060
65
80
60
SPB-658070
65
80
70
SPB-658080
65
80
80
SPB-708530
70
85
30
SPB-708535
70
85
35
SPB-708540
70
85
40
SPB-708550
70
85
50
SPB-708560
70
85
60
SPB-708570
70
85
70

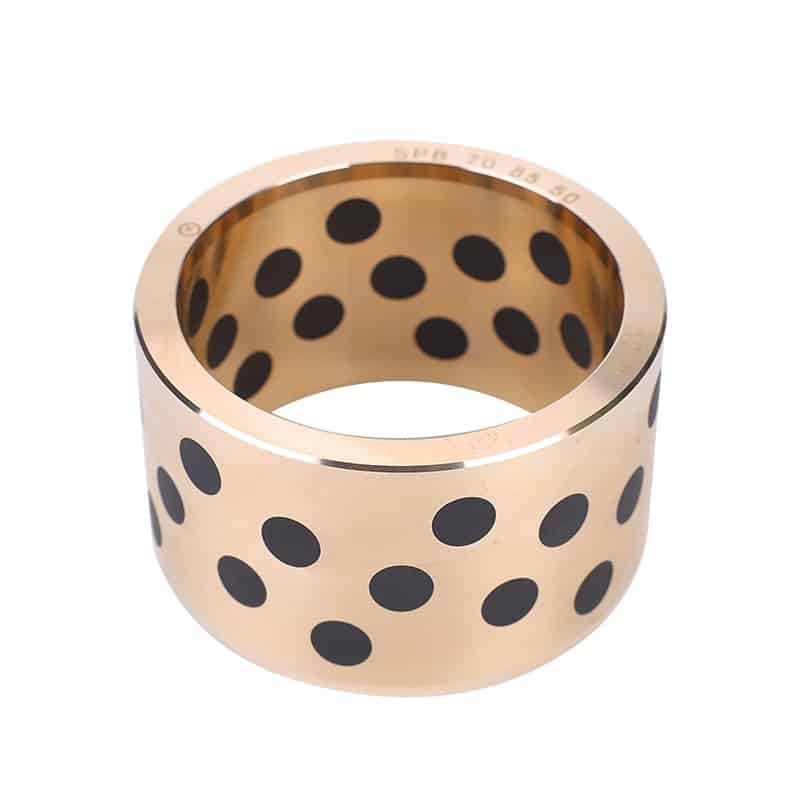

SPB-708580
70
85
80
SPB-7085100
70
85
100
SPB-709050
70
90
50
SPB-709060
70
90
60
SPB-709070
70
90
70
SPB-709080
70
90
80
SPB-759050
75
90
50
SPB-759060
75
90
60
SPB-759070
75
90
70
SPB-759080
75
90
80
SPB-7590100
75
90
100
SPB-759560
75
95
60
SPB-759570
75
95
70
SPB-759580
75
95
80
SPB-7595100
75
95
100
SPB-809640
80
96
40
SPB-809650
80
96
50
SPB-809660
80
96
60
SPB-809670
80
96
70
SPB-809680
80
96
80
SPB-8096100
80
96
100
SPB-8096120
80
96
120
SPB-8010040
80
100
40
SPB-8010050
80
100
50
SPB-8010060
80
100
60
SPB-8010070
80
100
70
SPB-8010080
80
100
80
SPB-80100100
80
100
100
SPB-80100120
80
100
120
SPB-80100140
80
100
140
SPB-8510060
85
100
60
SPB-8510080
85
100
80
SPB-9011050
90
110
50
SPB-9011060
90
110
60
SPB-9011080
90
110
80
SPB-9011090
90
110
90
SPB-90110100
90
110
100
SPB-90110120
90
110
120
SPB-10012050
100
120
50
SPB-10012060
100
120
60
SPB-10012070
100
120
70
SPB-10012080
100
120
80
SPB-10012090
100
120
90
SPB-100120100
100
120
100
SPB-100120120
100
120
120
SPB-100120140
100
120
140
SPB-11013050
110
130
50
SPB-11013070
110
130
70
SPB-11013080
110
130
80
SPB-110130100
110
130
100
SPB-110130120
110
130
120
SPB-12014070
120
140
70
SPB-12014080
120
140
80
SPB-12014090
120
140
90
SPB-120140100
120
140
100
SPB-120140120
120
140
120
SPB-120140140
120
140
140
SPB-125145100
125
145
100
SPB-125145120
125
145
120
SPB-13015080
130
150
80
SPB-130150100
130
150
100
SPB-130150130
130
150
130
SPB-140160100
140
160
100
SPB-140160140
140
160
140
SPB-15017080
150
170
80
SPB-150170100
150
170
100
SPB-150170150
150
170
150
SPB-16018080
160
180
80
SPB-160180100
160
180
100
SPB-160180150
160
180
150
SPB-170190100
170
190
100
SPB-170190150
170
190
150
SPB-180200100
180
200
100
SPB-180200150
180
200
150
SPB-190210100
190
210
100
SPB-190210150
190
210
150
SPB-200230150
200
230
150
SPB-200230200
200
230
200
Installation self-lubricating bearings require minimum or no maintenance provided they are correctly dimensioned and installed. Their high strength will then give a long bearing life. The following points are important when installing the bearing:
oil-free bushing is specially packed for transporation. Please do not remove the protective cover until installation.
The sliding surface of the bearing is treated with a solid lubricant coating.
This is applied to improve the running-in process. Please make sure that this film is not damaged at the installation.
Make sure the mating material is cleaned carefully. This is very important for the life of the oil-free bearing.
oil-free bearing
Additional information
Size
Custom Size, Extra large, Imperial size, Metric Size
