Project Description



Slide Bronze Bearing

Thin wall Bronze Wrapped Bush CuSn8, Bronze Bushing supplier, widely used gear pump, door hinge, construction machinery, etc.

  • Wrapped bronze flanged bearings
  • Order Wrapped bronze perforated bearings online:

bronze bushing
wrapped bronze bearing
wrapped bushing
Bronze Bushing – Accessories for Rollers – Roll-off Containers



Buy Rolled Bronze Perforated Bushings

Our perforated bushings are available flanged or sleeve bronze bushes and are intended for high loads. These perforated bronze bushings require lubrication and are available with perforations or internal lubrication pockets. Grease grooves in bushings. Sliding bushing bearings with or without flange which requires lubrication. Suitable for high loads.

Top QualitySelf-lubricating Bronze Bushing

Offering Custom Designed Self Lubricating Bronze Bushing & Bearing – Factory Direct & Fast Shipping

Bronze Bushings Price & delivery time on request

Bronze Bushing – Accessories for Rollers – Roll-off Containers,DIN 1494 / ISO 3547 the strongest link in your supply chain

Copper – based rolling bearings are widely used in lifting equipment and construction machinery, automobile industry, tractors, trucks, agricultural machinery and mining equipment, such as high load and low speed working conditions. The products can be machined include bushing, bushing, flanging bushing, thrust gasket and so on.

AVAILABILITY. BRONZE BEARINGS MADE OF CUSN8. WITH GREASE RESERVOIRS. Bearing forms made to order: Cylindrical bushes

Bronze Bushing,CuSn8P (DIN 17662) with lubrication perforated

Bronze bushing, components for containers roll-off-containers rollers accessories for rollers,Oil Indentations/Holes.Work in High Temp & Submerged Applications Where Grease,Self-lubricating Bronze Bearings. Use Sliding Bearings for High Performance and Low Maintenance.Metric Size, Inner Diameter d,Outer Diameter D,Length L ,also Flange Bronze Bushing Available,Special dimensions and imperial sizes are available on request.Inquire Online. Chat Support Available.

High quality self-lubricating bearing materials are resistant to various types of damage and external factors while also providing corrosion protection, significantly extending their service life and making them reliable under all conditions.

bronze gleitlager cusn8

bronze gleitlager cusn8

Flange Bronze Lube Bushing,ID50*OD55*65Flange*L50mm,ID40*OD44*55Flange*L50mm

Material Chemical Composition

Material data sheet CuSn8P

Part NoMaterialCuSnPPbZn
E92CuSn891.3%8.5%0.2%//
Part NoMaterialCuSnPPbZn
E92CuSn891.3%8.5%0.2%//
Part NoMaterialCuSnPPbZn
E92CuSn891.3%8.5%0.2%//

Support material CuSn8P (DIN 17662)

alternative CuSn6P available

This Bronze CuSn8P (DIN 17662) Phosphor Bronze Alloy Bearings is produced mainly in the hard temperature and has higher mechanical strength than CuSn6.The alloy has excellent bearing and corrosion properties.

Bronze is a versatile and commonly used material because it comes in many alloys and compositions. Bronze bushings (also called bronze bearings or solid bronze bushings) are hard and strong, as opposed to softer brass bushings. Bronze bushings have long lifespans and resist shock, impact, wear and corrosion. They require an external lubricant, for example grease or oil, at installation and during operation to reduce friction and wear.

Sliding Bearing, VIIPLUS constantly study new materials and new products development.

Wrapped Bronze Bushing With Through Holes | Accessories for Containers | Get A Free Quote!

bronze bushing

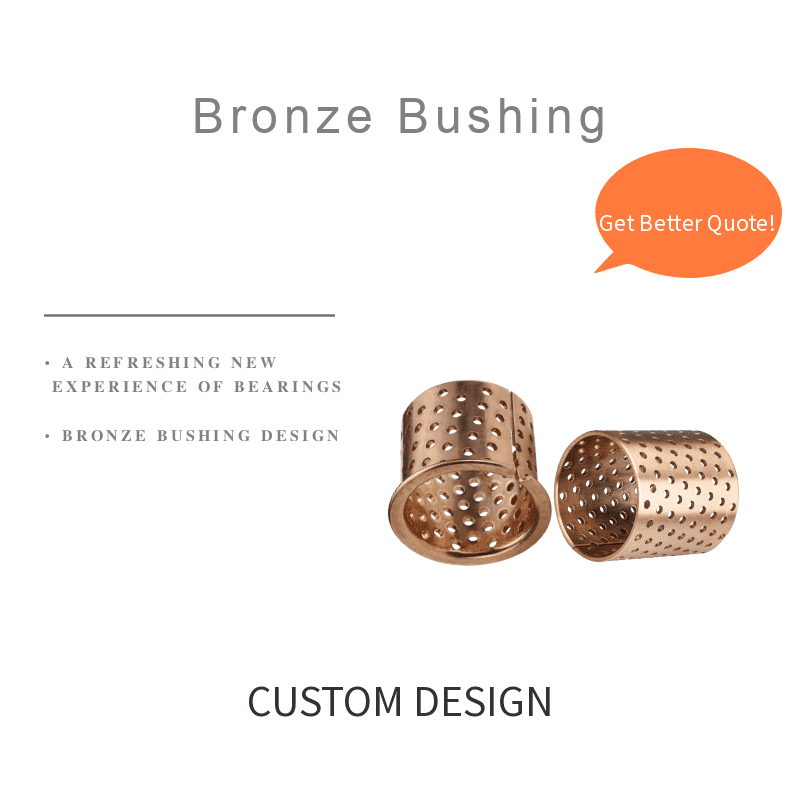

Bronze Bushing Description

E92 is deriving from E90; the difference between E90 & E92 is diamond indentations on working surface, which substituted by perforated-holes. Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.

Bronze Bushing, perforated

The holes have the advantage of storing more lubricants than the pockets and therefore, the maintenance intervals can be extended.

  • Straight Bushings
  • Flange Bearings
  • Sliding Thrust Washer
  • Sliding Plates
  • Custom-made Bushing

About Us

VIIPLUS research and production of a variety of self-lubricating bearings, Multilayer Sliding Bushing, sliding bearings and other professional dry sliding bearing manufacturers.The company has a professional team, advanced and complete equipment, scientific and perfect management, self-lubricating bronze bushing sales throughout the world, by the majority of domestic and foreign customers trust and praise.

Bronze Bushing Characteristics

  • Economic solution for bronze bearing application due to a thin wall thickness.
  • High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance.
  • Lubrication holes for maximum grease storage and the lowest maintenance intervals.

Self-lubricating Bearings Type

Bronze CUSn8 & CuSn6 Material with lubrication perforated

  • Flanged bearings with lubrication indents
  • Cylindrical bearings with hole pattern
  • Cylindrical bearings with joint
  • Flanged bearings with lubrication indents
  • Bronze Bearings with lubrication indents
  • Bronze Bearings with hole pattern

Bronze Bushing Technical data

  1. Specific load capacity static ≤ 120 [N/mm2]
  2. Specific load capacity dynamic ≤ 40 [N/mm2]
  3. Sliding speed ≤ 2.5 [m/s] depending on lubrication
  4. Friction value 0.05 [µ] to 0.12 [µ]
  5. Temperature strain – 40 [°C] to + 250 [°C]
  6. Max. PV-value 2.8 [N/mm² x m/s]

Bronze Bushing Tolerance

  • Housing ØH7
  • Bushing inner-Ø after mounting H9
  • Shaft tolerance f7 to h8

Assembling Advise

  • Housing: Chamfer min. 1.5 mm x 15-45°, for easy bushing alignment.
  • Shaft: Chamfer 5 mm x 15°, for easy insertion of the shaft.

VIIPLUS advises to use a force fitting mandrel for the installation of the bushing. It might be necessary to apply some grease on the outer surface of the bushing when press fitting it into the housing.

Bronze Bushing Markets

Industrial Equipment & Machinery,Port machinery, components containers, agriculture machinery, truck cranes & construction machinery, suitable for impact loads.

Wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance

Bronze CuSn8p is a low maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory. The lubrication holes are an excellent lubrication depot and keeping maintenance to a minimum.

Welcome to contact us!

The development of the bronze lube to study the new materials and new sliding bearings products.

wrapped bronze bushing
