Project Description

Reliable & safe. Always Long-lasting.

Viiplus the most comprehensive product range of sliding bearings in China.

Custom Bearings & Brass Bushing – Sintered Bronze

Creating A World Of Sintered Bronze Bushes Solutions

Bronze Bushing Projects.

Minimal stock keeping and fast deliveries.

We offer an extensive range of bronze bushing products for your requirements.

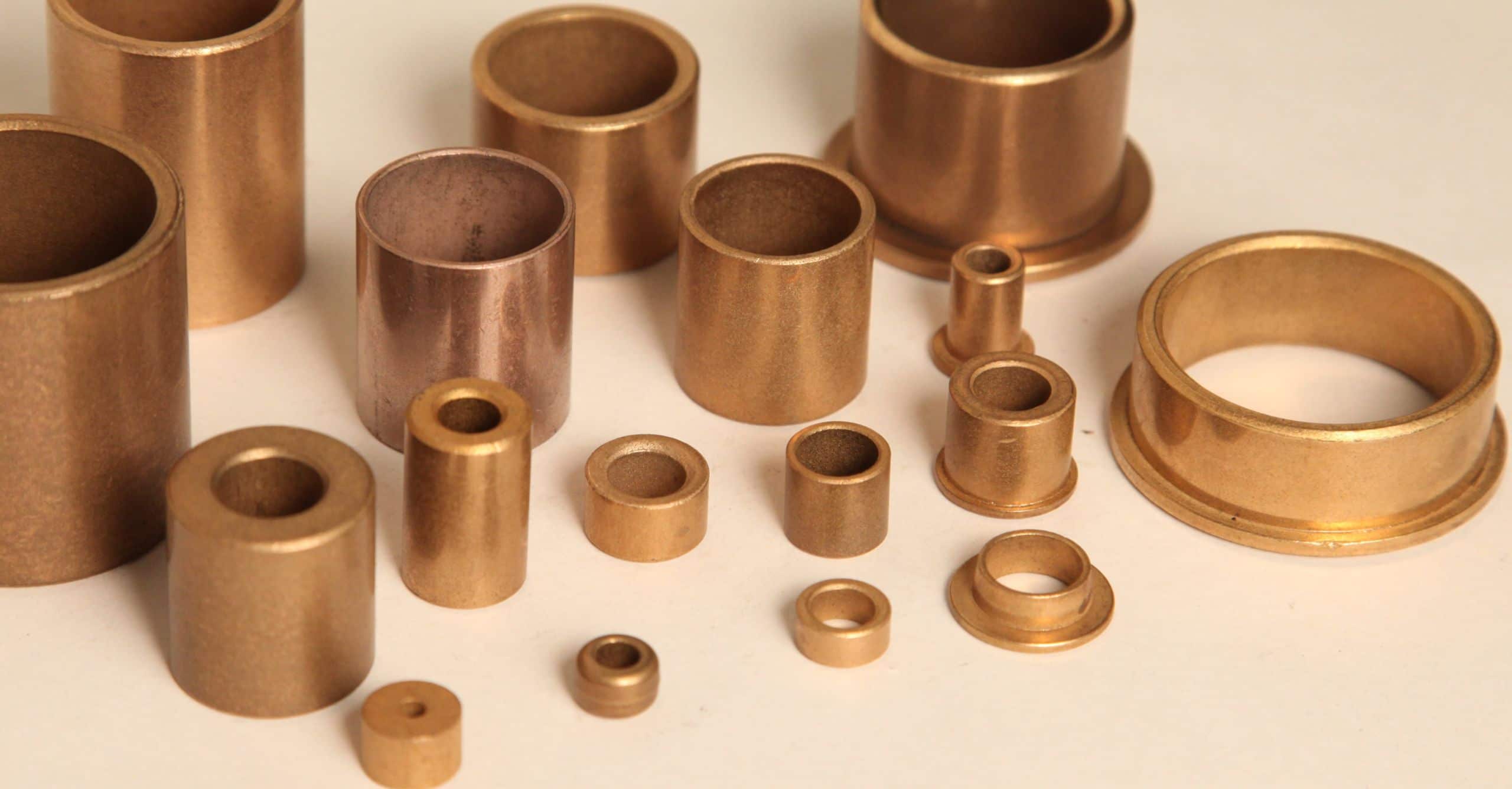

sintered bronze bushing

Learn More

wrapped bushing with flange
flange bronze bushings
wrapped bronze bearing bushing
Sliding Bearing Technology

The promise of sleeve bearings high quality, meet your requirement.

Metric Sleeve Bushings

Cylindrical bushings, flanged bushings and strips are standard fabrication.

Professional sintered bronze sliding bearing technology

Oil Impregnated Bronze Bushings – Bronze Bearing Sintered Metal – Innovation & Sustainability

Sintered bronze CuSn10 (SINT B50)

Sintered Bronze Sliding Bearings Plain Bearing Bush Sint-B50 Technical Details

  • Sintered bronze sliding bearing
  • Sintered bronze (Cu-Sn-alloy)
  • DIN 1850 / ISO 2795
  • Maintertance -free
  • Oil-soaked
  • Pre-finished
  • Solid lubricant (for example MoS2) on request
  • Sintered iron / sintered steel on request

Glide bushing Sint B50, Price on request. Reduce production costs and achieve more advanced designs with metal powder sintering. Improve the quality of your sintered bronze sliding bearing products. View Services.

Bronze Bushings at Good Price in China.

“EXCITING OUR CONSUMERS, MORE SERVICES TO MAKE OUR CONSUMERS SMILE”

Explore More flange sleeve bushings

High Quality Self-lubricating Bronze Bearing Bushing With Competitive Price.

Fast & Reliable Delivery

sintered bronze bushes bearings and components: Discover the wide range of bearings and components we have.

Good Bronze Bushing Service

Bronze Bearing Bushings at Good Price in China. China Bronze Bearing – High Quality Price Ratio.

explore more sintered BRONZE BEARINGS

Custom Sintered Bronze Bearings Solution- Advantages of P/M Parts

The Sintered Bronze Bearings process is an economical, environmentally clean, high production method for making parts exactly or close to final dimensions. With little or no machining operations required. Due to their porosity, they may be impregnated with oil or plastic.

Oil Impregnated Bronze Bushings, Bronze Bearing Made In China – Manufacturer & Exporter: Whether it’s sliding bearings, special sliding bearings, bearings made of steel, plastic or bronze, inner tension bushings or special plain bearings, you will find what you need in our comprehensive, high-quality product portfolio covering everything for sliding bearing technology. And if you do not find your ideal, ready-to-install sintered bronze sliding bearing in the standard selection, our application technology team will be pleased to work with you to develop a tailor-made sintered bronze sliding bearing solution.

Oil Impregnated Bronze Bushings

Outstanding – And Close To The Consumer

Self-lubricating Sintered Bronze Sliding Bearing, Sintered Bronze Bushes from www.bronzelube.com

Oil-impregnated Bearings Self-lubricating Bronze Sleeve Bearings | Imperial & Metric Size

These are your benefits: certified, reliable and flexible self-lubricating bronze bearings products.

Minimal Waste: Proper design of components for manufacture via the sinter bronze bushing process can minimize or elimate the need for secondary maching. With Powdered Metallurgy we are able to maintain close dimensional tolerances and achieve “net” shaping. The reduction in processes and scrap loss is the largest cost saving advantages of powdered metal parts. The P/M process eliminates or minimizes scrap losses by typically using more than 97% of the starting raw material in the finished part.

  • Standard and custom-made bronze sliding bearings
  • From plain bushings to compound sliding bearings, we are always flexible
self-lubricating bronze bearing bushes

Discover Sintered Bronze Sliding Bearing Made By www.bronzelube.com

Choose from standard and cylindrical & flanged bearings in a wide range of sizes & material.

Type: Cylindrical /Flanged

Material: Sintered Bronze

Metric Sintered Bronze Bearing, Sliding Bushings, The powdered metal process is well suited for economical, high volume production. However, itself on being particularly volume flexible.

Always Self-lubricating, Always Long-lasting. Request a Free Quote. Help you Save on Cost. Wide Range Of High-Quality Bronze Bushing With Flange Entirely Supplied By China Bushings Factories. Contact Now!

The basic information
Powder metallurgy bearings may not need to add lubricating oil for a long time.
The higher the porosity of powder metallurgy bearing, the more oil storage, but the more the porosity, the lower its strength.
This kind of bearing is often in the state of mixed lubrication, sometimes can also form film lubrication, often used to supplement lubricating oil and light load and low-speed situation.
Powder metallurgy bearings with different oil content are selected according to different working conditions. When the oil content is large, it can be applied without supplementary lubricating oil and under low load. Small oil content, can be used under heavy load and high speed; Graphite-containing powder metallurgy bearings, because of the graphite itself has lubrication, can improve the safety of bearings, its disadvantage is low strength; In the case of no corrosion, can be considered to choose cheap, high strength iron-based powder metallurgy bearings, but with the journal, hardness should be properly improved
Find a huge selection of  bronze bushings at www.bronzelube.com

A wide range of options available in stock for fast delivery. Request your free sample today.

Metal powder and other powder metallurgy bearing anti-friction material powder pressing, sintering, plastic and oil, and has a porous structure, after infiltration in hot oil, pore Spaces filled with lubricating oil, work due to the effect of suction of the shaft neck rotation and friction heat, expansion of metals and the oil is heated, the oil out of the pore, the lubrication and friction surface, after bearing cooling, The oil is sucked back into the pores.

Sintered Bronze Bushings Factory In China, Focus On Bushing With Flange Custom Services For Industries

We offers good buying experience for each customer. Contact us now. Standard Flanges. Good Bushing Flanged Products Service.

Oil-impregnated, maintenance-free, self-lubricating

sintered bronze bushing

Avaliability

Bronze bearing forms available in standard dimensions

  • Cylindrical bronze bushes
  • Bushing with flange
  • Thrust washer

Sliding Bearing forms made to order: cylindrical bronze bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

Powder Metallurgy, Sinter Metals, Powdered Metals

Powder metallurgy is the process technology of making metal powder or using metal powder (or the mixture of metal powder and non-metal powder) as raw material, through forming and sintering, making metal materials, composite materials and various types of products. Powder metallurgy and ceramic production have similar places, both belong to powder sintering technology, therefore, a series of new powder metallurgy technology can also be used for the preparation of ceramic materials. Due to the advantages of powder metallurgy technology, it has become the key to solve the problem of new materials, and plays an important role in the development of new materials.
Powder metallurgy includes powders and products. The powder is mainly metallurgical process, and the literal. Powder metallurgy products, on the other hand, are often far beyond the scope of materials and metallurgy and are often multidisciplinary (materials and metallurgy, machinery and mechanics, etc.) technologies. Especially modern metal powder 3D printing, set mechanical engineering, CAD, reverse engineering technology, layered manufacturing technology, numerical control technology, material science, laser technology in a body, making powder metallurgy products technology become a modern comprehensive technology across more disciplines.

Sintered bronze sliding bearing – oil-soaked and self lubricating

PROPERTIES

  • Suitable for high sliding speed at low load capacity

MATERIALS

  • Sintered bronze
  • Support materialCuSn10 (SINT B50)
  • Other Cu-Sn-alloys on request

MATERIAL PROPERTIES

  • Specific load capacity static≤ 10 [N/mm2] to 50 [N/mm2] at SINT A51
  • Specific load capacity dynamic≤ 5 [N/mm2]
  • Sliding speed≤ 6 [m/s]
  • Friction value ***0.05 [µ] to 0.20 [µ]
  • Temperature strain– 20 [°C] to + 100 [°C]
  • Max. PV-value1.6 [N/mm² x m/s]

TOLERANCE DETAILS

  • Housing ØH7
  • Bushing inner-Ø after mountingH7 / H8
  • Shaft tolerancef7 to h8

SHAFT MATERIAL

  • Steel > 200HB dressed to size, surface roughness ≤ Rz 4

MOUNTING ADVISE

  • The application of an adequate force fitting mandrel is advisable

MAINTENANCE

  • Sintered bronze sliding bearing is a self-lubricating and maintenance-free sliding bearing

RANGE OF APPLICATION

  • electrical motors and gearing mechanisms, precision engineering, home appliances
  • Automotive equipment: starters, electric windows, pedals, wipers, fuel systems, cooling systems, Exhaust Gas Recirculation (EGR), brakes, transmission, mirrors, sunroof, seating systems, etc.
  • Medium and low power electric motors and gearboxes.
  • Linear and rotary actuators: pneumatic, hydraulic and electromagnetic types.
  • Household appliances: washing machines, fans, extractor fans, shaving machines, epilators, juicers, rotisserie, air conditioning, portable machine tools, coffee machines, whisking machines, vacuum cleaners, lawnmowers, boilers, etc.
  • Home appliances: locks, garage doors, awnings, roller shutters, sliding doors/windows, office swivel chairs, rolling trolley wheels, hinges, furniture, etc.
  • Industrial sector: bottling machinery, wood-working machinery,
    anemometers, gardening, automatisms, key duplicating machines, sewing machines, industrial
    vehicles, electrical switchgear, etc.
    • Other markets: mobility, medical,
    catering, industrial machines, farm
    machinery, toys, etc

Powder metallurgy bearing

Powder metallurgy oil bearing (oil-bearing) is a kind of porous alloy product with lubricating oil in the pores. When the shaft rotates, the friction between the shaft and the oil-bearing causes the temperature of the oil-bearing to rise and the pumping action. Lubricating oil leaks out of the friction surfaces of the inner or outer diameters of the oil-bearing when the shaft stops rotating. The lubricating oil flows back into the bearing. Therefore, the consumption of lubricating oil is very small and can be used for a long time without an external supply of lubricating oil. Very suitable for oil supply difficulties and avoid lubricating oil pollution occasions.

Oil bearing is widely used in: motor industry, automobile and motorcycle industry, home appliance industry, digital products, office equipment, power tools, textile machinery, packaging machinery, and other types of mechanical equipment.
Generally speaking, powder metallurgy oil-bearing is mainly made of raw material powder through pressing, sintering, shaping, oil immersion, and other processes. Machines are mostly highly automated. Daily output is relatively large, most of the products can be formed at a time, so the larger the batch better the production. And with a little less mold may do hundreds of thousands of words, more words may do more than a million. But the cost of the mold is relatively high, so it is not easy to do if the batch is small, and the time to replace the mold is also long.
Powder metallurgical oil-bearing can generally be formed once, basically without cutting. Cost is lighter than machining, material waste is less, so the price is cheaper. It is also in line with the national policy of promoting energy conservation, so it is considered a technology that will not fall behind The Times.
The matrix of powder metallurgy oil-bearing has been filled with a lubricating oil by vacuum immersion method, and the lubricating oil will ooze out to the running surface due to temperature rise and pumping during operation, so it can be used on occasions without adding lubricating oil.

GET IN TOUCH WITH BRONZELUBE.COM, SINTERED BRONZE SLIDING BEARINGS

Discover our wide range of self-lubricating bronze sliding bearings.

Join Over 500,000 Customer Enjoying Buying Sintered Bronze Slide Bearing Parts Now

Always tested. Always proven. Always Bronzelube.com
