Large Metal Washers, Thrust washer bearings by bronzelube.com

Carbon Steel self-lubricating Thrust washer bearings from China, large metal washer, used high-quality low-carbon steel plate as base, sintered porous bronze as its interlayer, and the Compound of PTFE and Lead as its surface. It offers the property of good self-lubrication, low wear, low friction good sliding characteristics, low noise. It has been widely applied to various mechanical sliding positions, such as textile machinery, printing machinery, hydraulic pressure transit vehicle, tobacco machinery, gymnastic instrument, and agricultural machinery, etc.

Description

Proven, long-lasting composite washer, Large metal washers, Steel Washer, Flat Washers

Extra Large Self-Lubricating Metal Washers

Extra large metal washers are critical components in many industrial applications, primarily serving to distribute the load of a threaded fastener, such as a screw or nut. When these washers are self-lubricating, they play an added role in reducing friction and wear in moving parts, extending the life of the assembly.

Characteristics of Self-Lubricating Metal Washers:

  1. Material: These washers are typically made from metals such as bronze or steel and are embedded with lubricating materials like graphite or PTFE.
  2. Size: Being “extra large,” these washers are designed for heavy-duty applications, often used in large machinery or structural assemblies.
  3. Self-Lubricating Feature: The embedded lubricant ensures a continuous supply to reduce friction between contact surfaces. This property eliminates the need for external lubrication.
  4. Durability: The combination of metal and lubricant materials ensures a longer lifespan and reduced wear and tear.

Benefits:

  1. Maintenance Reduction: The self-lubricating feature diminishes the need for periodic lubrication, reducing downtime and maintenance costs.
  2. Extended Lifespan: The lubrication reduces wear and tear on both the washer and the adjoining surfaces, prolonging the life of the assembly.
  3. Resistance to Environmental Factors: These washers can perform under a range of temperatures and conditions, thanks to the lubrication preventing seizing or rusting.
  4. Versatility: Suitable for a wide range of applications, from machinery to construction.

Common Applications:

  1. Heavy Machinery: In machines where large bolts and nuts are prevalent, these washers help distribute the load and reduce friction.
  2. Construction: Used in structures where stability is paramount and where there might be movement or vibration.
  3. Transportation: Found in the assembly of large vehicles such as trains, buses, and trucks.
  4. Aerospace: Used in aircraft assembly for both load distribution and friction reduction.

Choosing the Right Self-Lubricating Metal Washer:

When selecting a washer for your application, consider the following:

  1. Size: Ensure the washer fits the bolt or screw size and is appropriate for the load.
  2. Material: Choose a material based on the environment (e.g., corrosion resistance) and the expected load.
  3. Lubrication Needs: While these washers are self-lubricating, understanding the type of lubricant embedded can help in specific applications.

Conclusion:

Extra large self-lubricating metal washers are an invaluable asset in many industrial applications. By combining the load distribution properties of a washer with the friction-reducing capabilities of a lubricant, these components ensure efficient, long-lasting, and maintenance-reduced operations in various fields. When considering such washers for your needs, it’s essential to work with a reputable supplier to ensure quality and suitability for your specific application.

The Advantages of Large Size Glacier Washers: Perfect for Heavy-Duty Applications

As machines become larger and more complex, the need for components that can handle high loads and offer reliable performance under strenuous conditions becomes paramount. One such component, often overlooked but crucial for the smooth running of various machinery, is the washer. Large size Glacier washers are an excellent choice for heavy-duty applications due to their robustness, durability, and self-lubricating properties.

Large metal washers, particularly those used as thrust bearing washers, are essential components in a wide range of applications, from automotive to industrial machinery. These washers are designed to handle axial loads and control the movement of components along an axis.

A common variant of these washers utilizes a composite material, bringing together the benefits of steel, bronze, and PTFE (Teflon) to create a product that offers the durability, strength, and self-lubrication properties required in demanding operating conditions.

Steel: Steel, known for its robustness and resilience, forms the backbone of the washer. It provides the fundamental strength and rigidity, enabling the washer to withstand heavy loads and high-pressure environments.

Bronze: A thin layer of bronze is often applied over the steel core. Bronze is chosen for its excellent load carrying capacity, thermal conductivity, and lower friction properties. These features help in reducing wear and extending the washer’s operational life.

PTFE (Teflon): The final layer consists of PTFE or Teflon. Teflon is renowned for its outstanding low friction and high temperature resistance properties. In the operational environment, this layer acts as a self-lubricating agent, reducing the friction and wear even under extreme conditions. This not only prolongs the service life of the washer but also the associated machinery parts.

These large, self-lubricating thrust bearing washers find use in numerous applications, including gearboxes, automotive engines, and heavy-duty industrial machinery. They are particularly advantageous in scenarios where regular lubrication is difficult or not feasible.

By reducing the maintenance needs and enhancing operational efficiency, these large metal washers made from steel, bronze, and PTFE offer a superior, cost-effective solution for industries. They symbolize the innovation and advancement in bearing technology, meeting the ever-increasing demands of modern applications.

What is a Glacier Washer?

A Glacier washer, often referred to as a thrust washer, is a flat bearing that is used to provide a bearing surface for rotary applications. They are designed to prevent movement along the axis of a shaft. Glacier washers, named for their ability to perform under high-stress and low-maintenance conditions similar to a glacier, are self-lubricating, maintenance-free, and exhibit excellent wear resistance.

Why Choose Large Size Glacier Washers?

When it comes to heavy-duty applications, size does matter. The larger the washer, the more load it can bear, and the better it can distribute the load across a wider area. Large size Glacier washers have a greater surface area, providing excellent support for heavy loads and effectively preventing wear and tear on your machinery.

Features of Large Size Glacier Washers

  1. High Load-Bearing Capacity: Thanks to their larger size, these washers can comfortably handle heavier loads, making them ideal for heavy-duty machinery.
  2. Self-Lubricating: Glacier washers are known for their self-lubricating properties. This feature minimizes the need for regular maintenance and ensures the washers function smoothly even under harsh conditions.
  3. Durability: These washers are robust and durable, designed to withstand wear and tear, thereby prolonging the life of your machinery.
  4. Versatility: With their ability to handle high loads and perform under different conditions, large size Glacier washers can be used in a variety of industrial applications.

Conclusion

Large size Glacier washers offer an excellent solution for heavy-duty applications where high load-bearing capacity and durability are paramount. Their self-lubricating feature further enhances their appeal by reducing the need for maintenance. By choosing large size Glacier washers for your heavy-duty machinery, you’re investing in the prolonged, smooth, and efficient operation of your equipment.

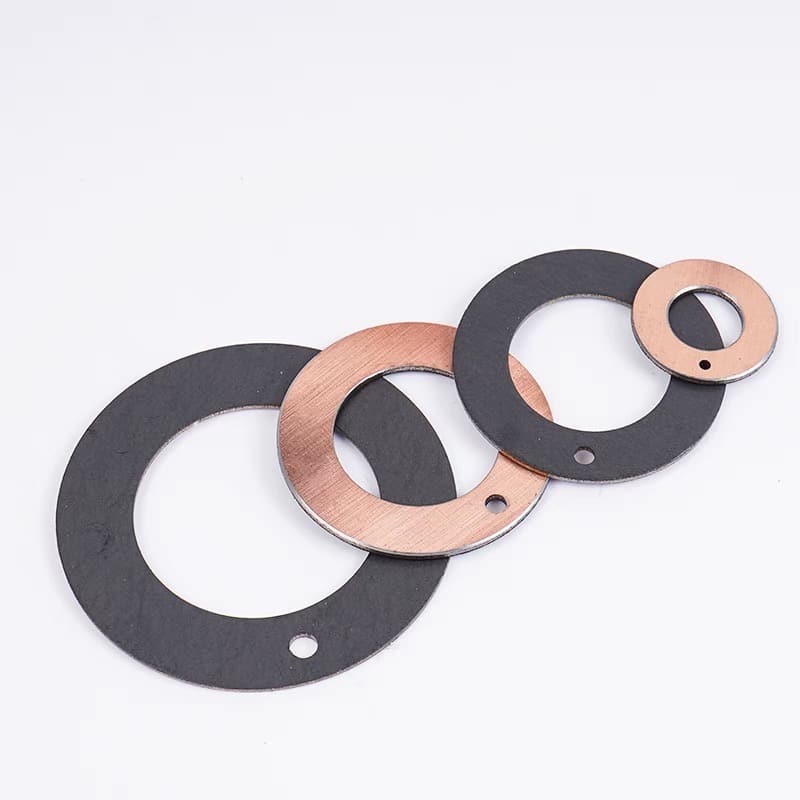

composite dry sliding thrust washers are designed for applications where axial space is limited, maintenance-free washer

self-lubricating bearings with a wide range of applications, steel large metal washer components – click here for more information.

Metal and Composite Washers: Essential Components for Machinerycomposite dry sliding thrust washers

Large metal washers, thrust bearing washers, and flat washers are essential components used in machinery to distribute loads, reduce friction, and prevent wear and tear on other machine parts. These washers are available in a variety of materials and designs, each with its own unique properties and benefits.

Steel washers are a popular choice for their durability and strength. They are often used in heavy-duty applications where high loads and stresses are present. Flat washers are designed to distribute the load of a fastener, preventing damage to the material being fastened.

Thrust bearing washers are used to reduce friction and wear in rotating machinery. They are designed to be used in conjunction with thrust bearings to absorb axial forces and prevent damage to the bearing.

Large metal washers are commonly used in applications where a larger surface area is required to distribute the load. They are often used in construction equipment, industrial machinery, and other heavy-duty applications.

Composite washers are an alternative to traditional metal washers. They are made of a variety of materials, including polymers, composites, and plastics. Proven, long-lasting composite washers are designed to withstand high loads and provide reliable performance in harsh operating conditions.

Self-lubricating steel bronze washers with PTFE (polytetrafluoroethylene) are a popular choice for their self-lubricating properties. The PTFE acts as a solid lubricant, reducing friction and wear between the washer and other machine parts. These washers are often used in applications where external lubrication is not possible or desirable.

In conclusion, metal and composite washers are essential components used in machinery to distribute loads, reduce friction, and prevent wear and tear on other machine parts. Steel washers, flat washers, thrust bearing washers, and large metal washers are all available to meet specific machinery requirements. Composite washers provide a proven, long-lasting solution for harsh operating conditions, while self-lubricating steel bronze washers with PTFE offer an innovative solution for applications where external lubrication is not feasible.

Large Metal Washers Thrust Washer Application

Oil-Free Washers

Lubrication-free oil feee washers are washers that don’t require lubricating oil. They are also called dry thrust plain bearing washers. To prevent a seizure or wear caused by heat from frictional resistance due to the load on the plain thrust bearings, a lubricant such as oil is usually used on washers. Lubrication-free stell lubricating washers can receive thrust loads without using lubricating oil. Normally, lubrication-free bushings that contain lubricating oil or lubricant are used in combination …discovery more

› Automotive Industry
› Packaging Industry
› Medical and Pharma Industry
› 3D Printer Industry
› On-demand Manufacturing, RAPiD Design: in CAD Library

Standard dimensions for large metal washers,  Steel Backed Washer, Stainless Steel Flat Washers

Steel + Sintered Bronze + PTFE Washer- Lead-free

Metal-polymer self-lubricating large metal stell washer…

The steel. bronze backing provides mechanical strength and the bronze sinter layer provides a strong mechanical bond for the filled bearing lining.

Extra Heavy-Duty Flat Flat Washers

Flat, Metal Washers
Material Metal steel backed Operating Environment Standard / Heat Resistant / Foreign object Resistance
Flat washers protect surfaces by evenly distributing torque when a bolt or screw is tightened. They prevent corrosion between a steel screw and an aluminum surface. A self-lubricating large metal flat steel washer can be placed under a machine screw to reduce noise and abrasion and offer electrical insulation.

Metal Flat Washers, Shop Flat Washers In A Variety Of Sizes

Extra large size stainless steel washer

Flat Washers, Large Pattern, Stainless Steel 304 (316L), and more in stock. Large selection, low prices, volume discounts, fast service.


See Our Online Dry Sliding Composite Bearings Catalog & Request A Quote! large metal washers Made To The Higher Standards.

Plain Bearings & Large Metal Washers | www.bronzelube.com

Shop bronzelube.com for all your large metal washers needs. We offer free CAD download, short leadand  times, competitive pricing.

Metal Thrust Washers

Self-Lubricating Washer – Lead-Free, Size: 5 mm to 250 mm

DU Thrust Washer inch size standard  washer

Part No. ID OD Thickness
min.  max. max. min. max.

min.

WC08DU 10 10.25 20 19.75 1.50 / 1.45
wc10Du 12 12.25 24 23.75
wc12DU 14 14.25 26 25.75
wc14Du 16 16.25 30 29.75
wC16DU 18 18.25 32 31.75
wC18DU 20 20.25 36 35.75
wc20DU 22 22.25 38 37.75
wc22Du 24 24.25 42 41.75
wc24Du 26 26.25 44 43.75
wc25Du 28 28.25 48 47.75
wc30DU 32 32.25 54 53.75
wC35DU 38 38.25 62 61.75
wC40DU 42 42.25 66 65.75
wC45DU 48 48.25 74 73.75 2.00 / 1.95
wc5oDu 52 52.25 78 77.75
wc6oDu 62 62.25 90 89.75

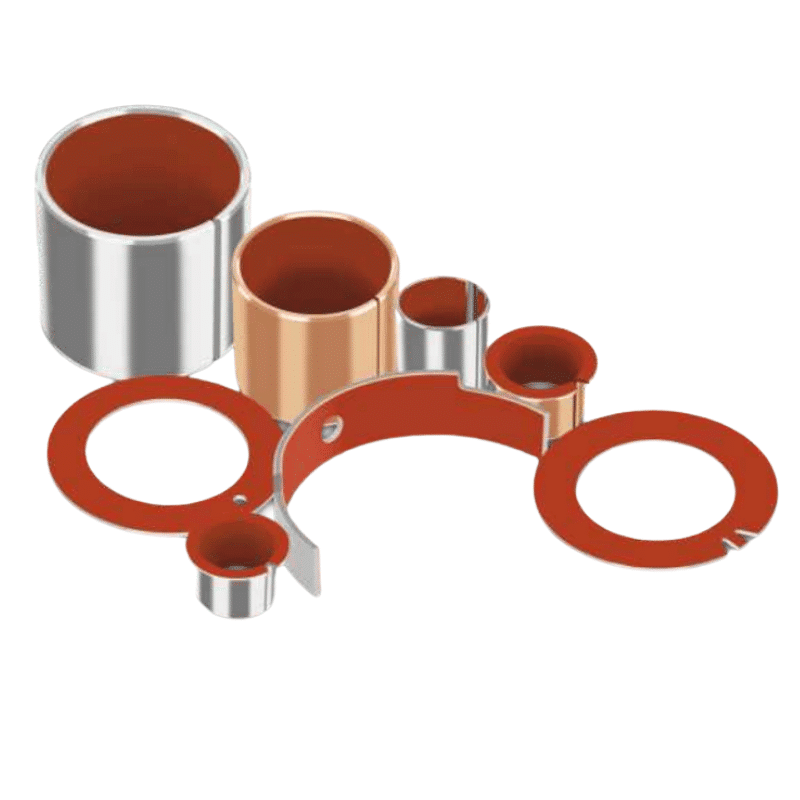

metal lurbicating washerMaterials

Support material Steel backing 0.4-2.2mm
Intermediate layer Porous bronze 0.2-0.3mm
Sliding layer POM with fiber 0.3-0.5mm
Plating Tin plating 0.005mm or Copper plating 0.008mm



Large Metal Washers Self-lubricating Thrust Washer


Self-lubricating thrust washer, low friction large metal washers

large metal washers

High-quality low carbon steel as the matrix

The Thrust Washer Plain Bearing is a mixture of polytetrafluoroethylene (PTFE) rolled on the surface of sintered spherical bronze layer in the middle of high-quality low carbon steel. It has good self-lubrication, wear resistance, low friction coefficient, good coupling performance, low noise, and other properties and is widely used in sliding parts of various machinery.

  1. PTFE and lead mixture 0.01-0.03mm
  2. Spherical bronze powder 0.2-0.3mm
  3. Steel back 0.7-2.3mm
  4. Electroplating layer: tin layer thickness of 0.005mm, or copper layer thickness of 0.008mm

APPLICATION CHARACTERISTICS

  1. No oil lubrication or little oil lubrication, suitable for occasions where refueling is impossible or difficult, can be used without or with little maintenance.
  2. Good wear resistance, small friction coefficient, and long service life.
  3. Can be used in the range of -195°C to +280°C.
  4. close performance is good, low ring bitter, no pollution.
  5. A thin wall structure, lightweight, can reduce the mechanical volume.
  6. Transfer film can be formed during operation to protect the grinding shaft. No axial biting phenomenon.
  7. The hardness of the grinding shaft is low, and the shaft without quenching and tempering can be used. Thus long low processing difficulty of the relevant parts.
  8. No rice water, oil absorption; The hot melt is small, so the macro is good and the size is fixed.
  9. The back of the steel can be plated with a variety of metals, so it can be used in corrosive media, will not rust.

The product name
Self-lubricating thrust washer

Bearing mechanism

Solid friction

Product composition

The steel base copper plating

Product features

Good abrasion resistance
Small coefficient of friction
Long service life
Strong corrosion resistance
Oil-free self-lubrication

Product use
Used in all kinds of machinery Lubrication part
Such as automatic machinery and equipment
